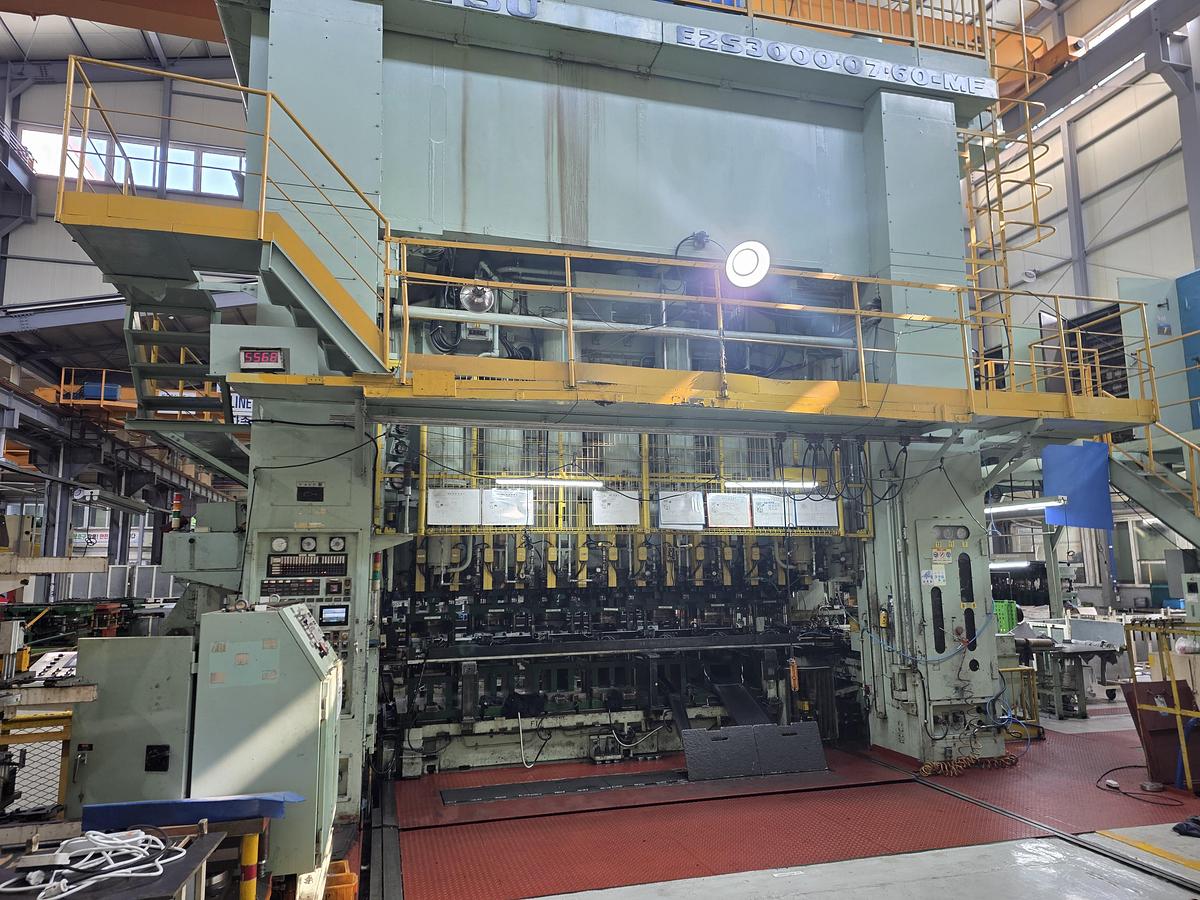

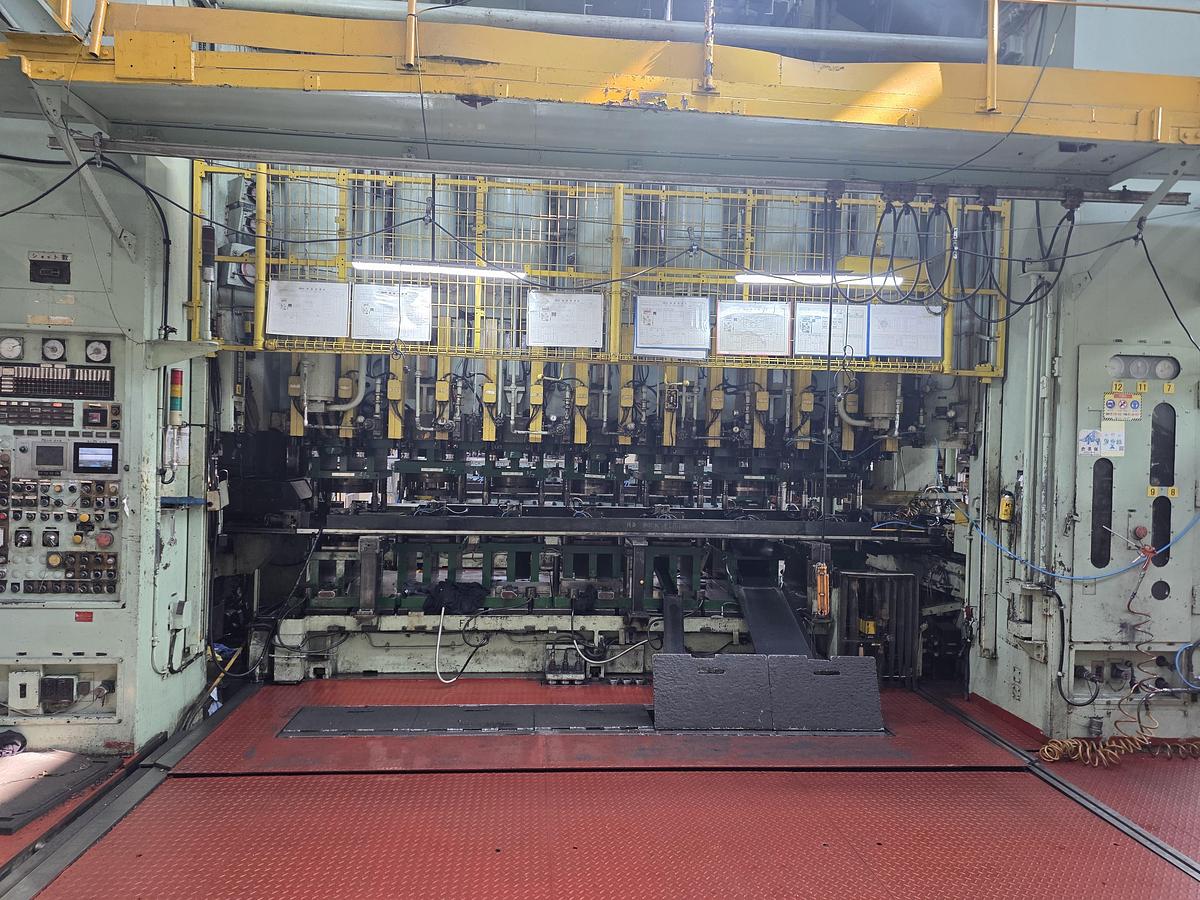

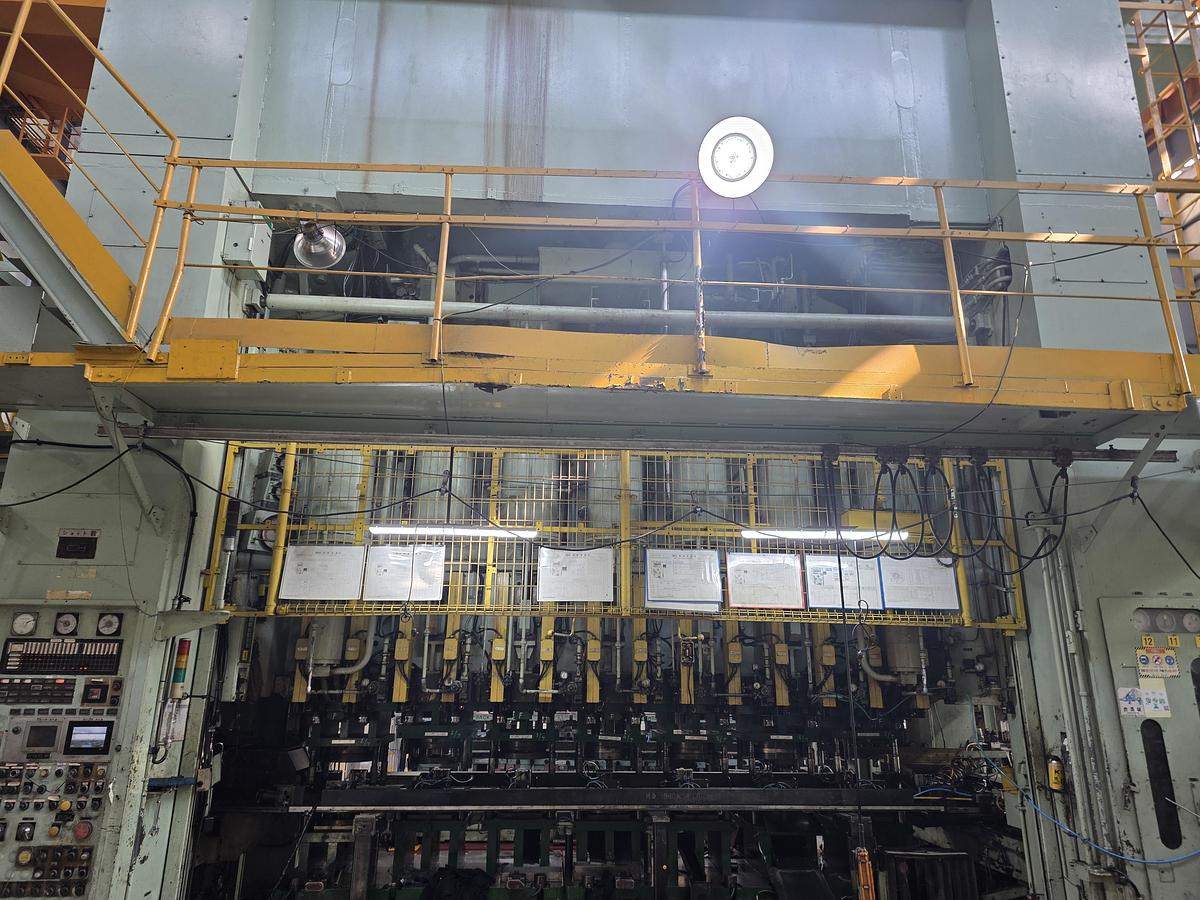

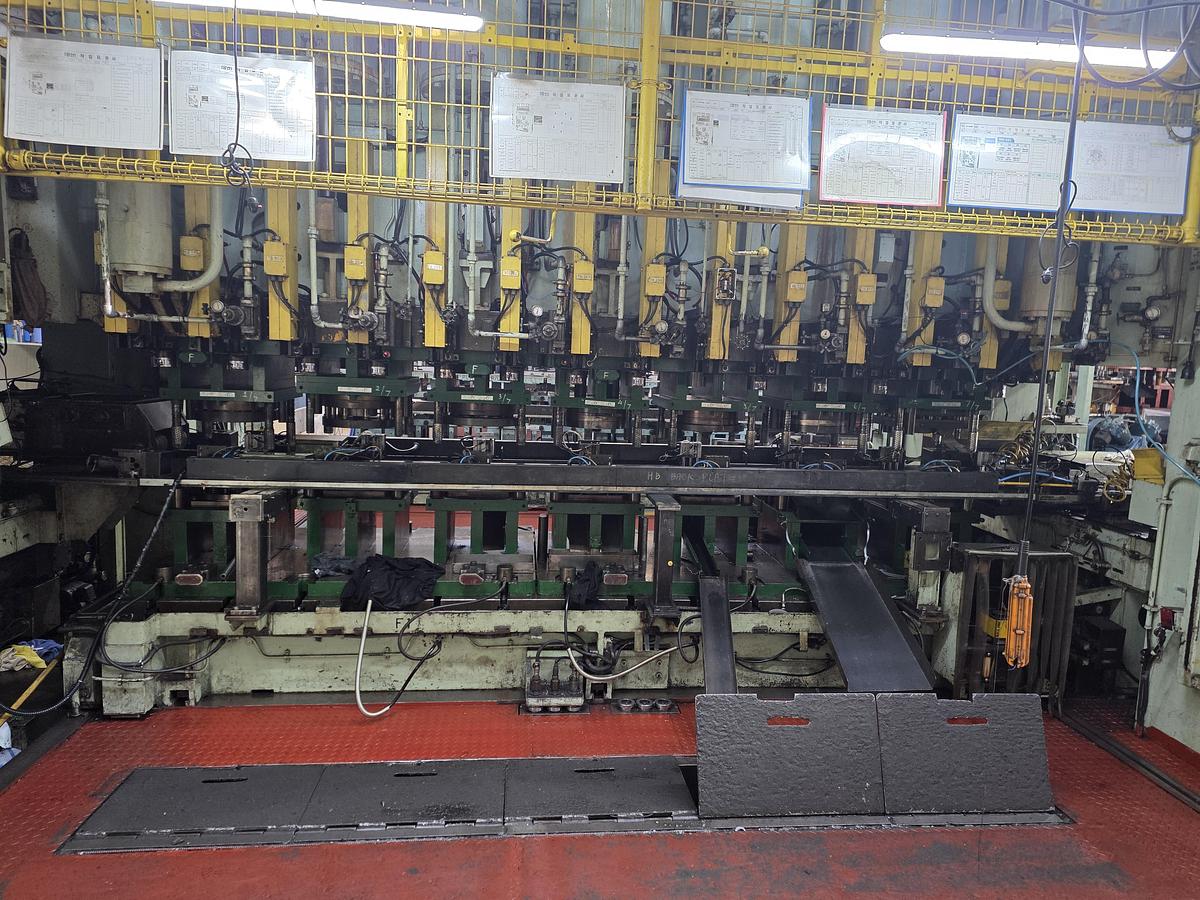

3000 tons Press Transfer Mechanical Komatsu E2S-3000-07-60-60

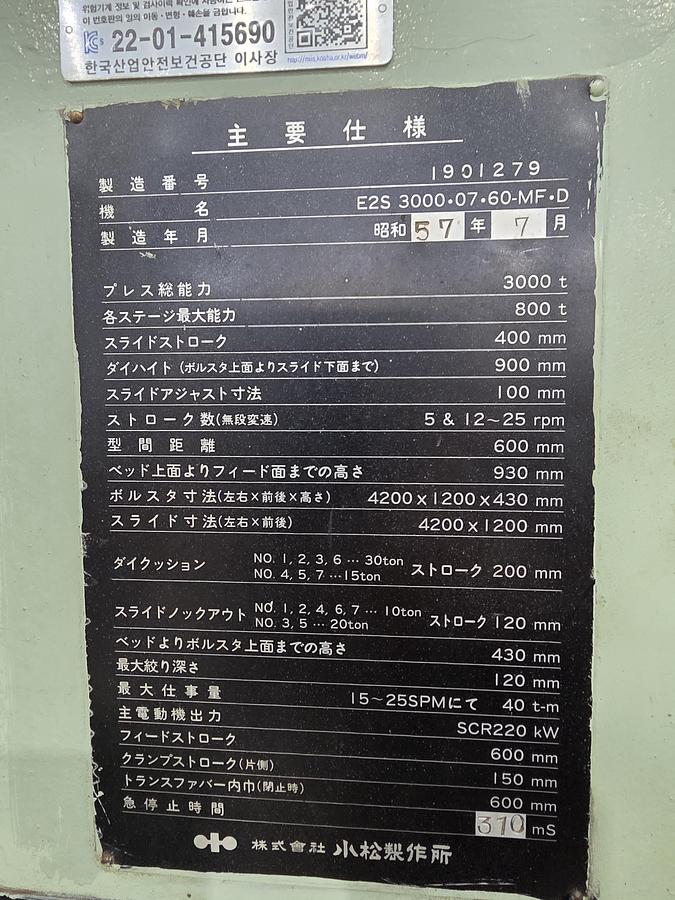

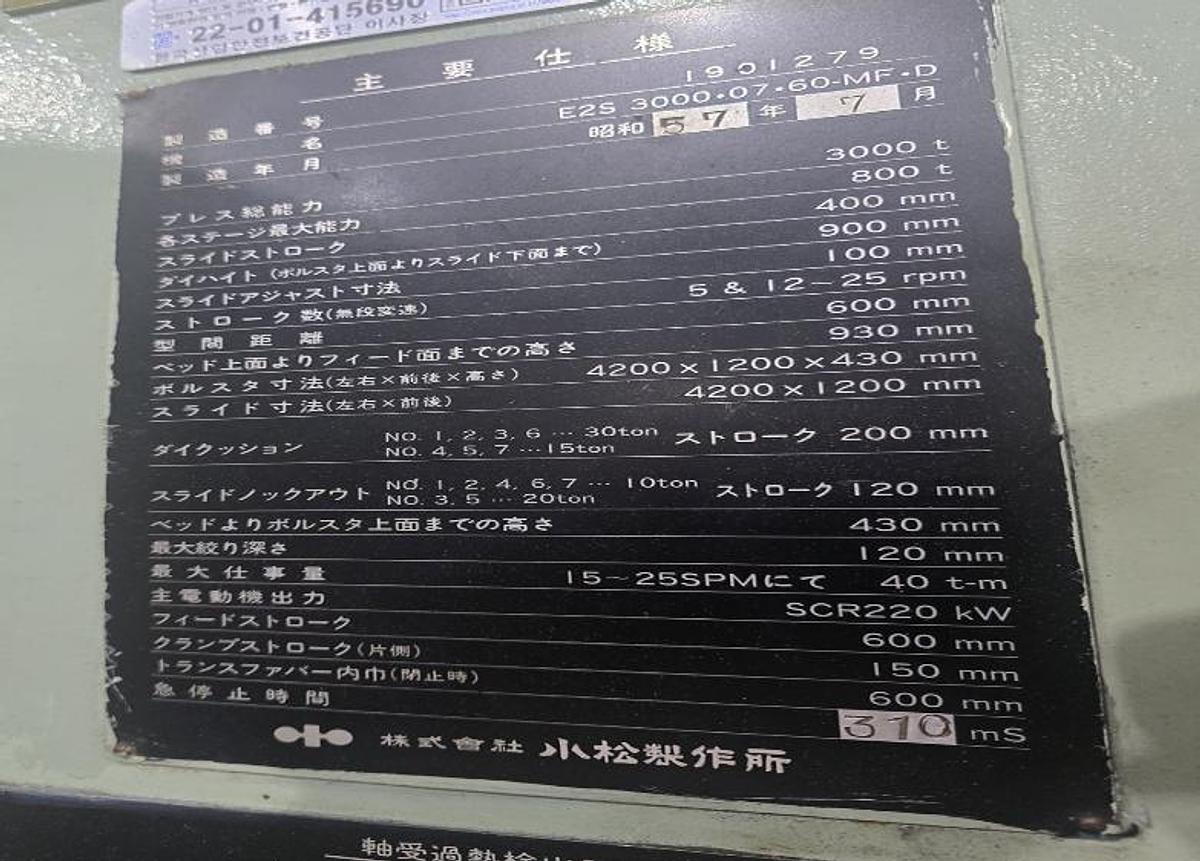

Capacity : 3000 tons,

Maximum capacity of each stage : 800 tons,

Slide stroke : 400 mm,

Number of stroke per minutes : 5 & 12~25 rpm,

Die height (from the top of the bolster to the bottom of the slide) : 900 mm,

Slide adjustment dimension : 100 mm,

Mold distance : 600 mm,

Height from the top of the bed to the feed surface : 930 mm,

Bolster dimension (left/right x front/back x height) : 4200 x 1200 x 430 mm,

Slide dimension : 4200 x 1200 mm,

Die cushion :

Capacity : 15 tons

Stroke : 200 mm,

Height from bed to top of bolster : 430 mm,

Maximum drawing depth : 120 mm,

Maximum workload : At 15-25 SPM 40 t-m,

Main motor output : SCR220 kW,

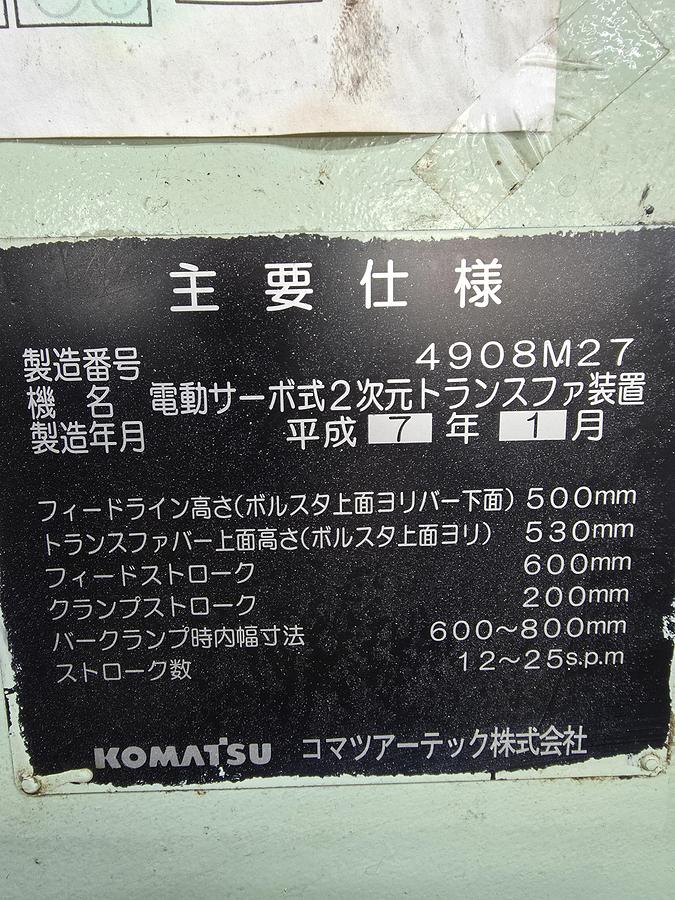

Feed stroke : 600 mm,

Clamp stroke (one side) : 150 mm,

Transfer bar inner width (closed) : 600 mm,

Sudden stop time : 310 ms,
