700 tons Blanking Line KIA

1) 700 Ton Blanking Press - KIA ( Korea ) , new 1998

Capacity : 700 tons,

Stroke : 250 mm,

Stroke per minutes : 20 - 90 SPM,

Die height : 1200 mm,

M/B area : 4300 x 2500 mm,

Slide adjustment : 300 mm,

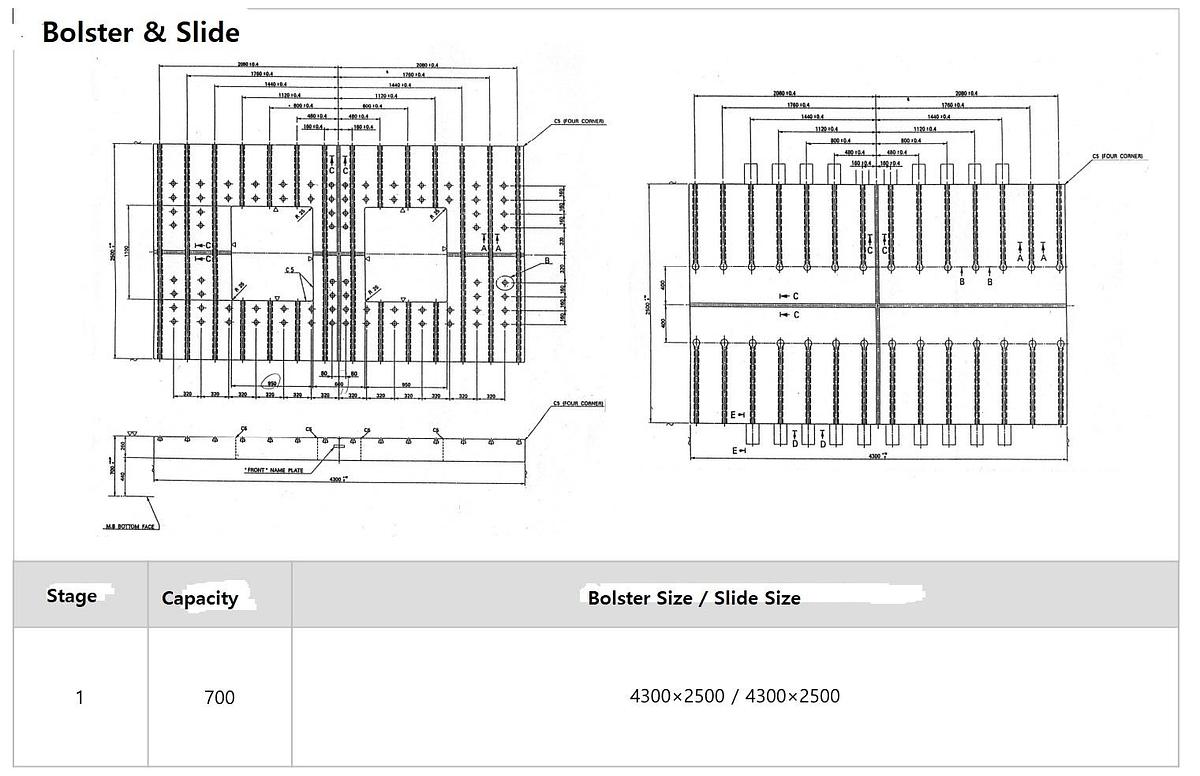

Slide area : 4300 x 2500 mm,

Bolster height : 700 (from bed),

M/B capacity : max. 40 tons,

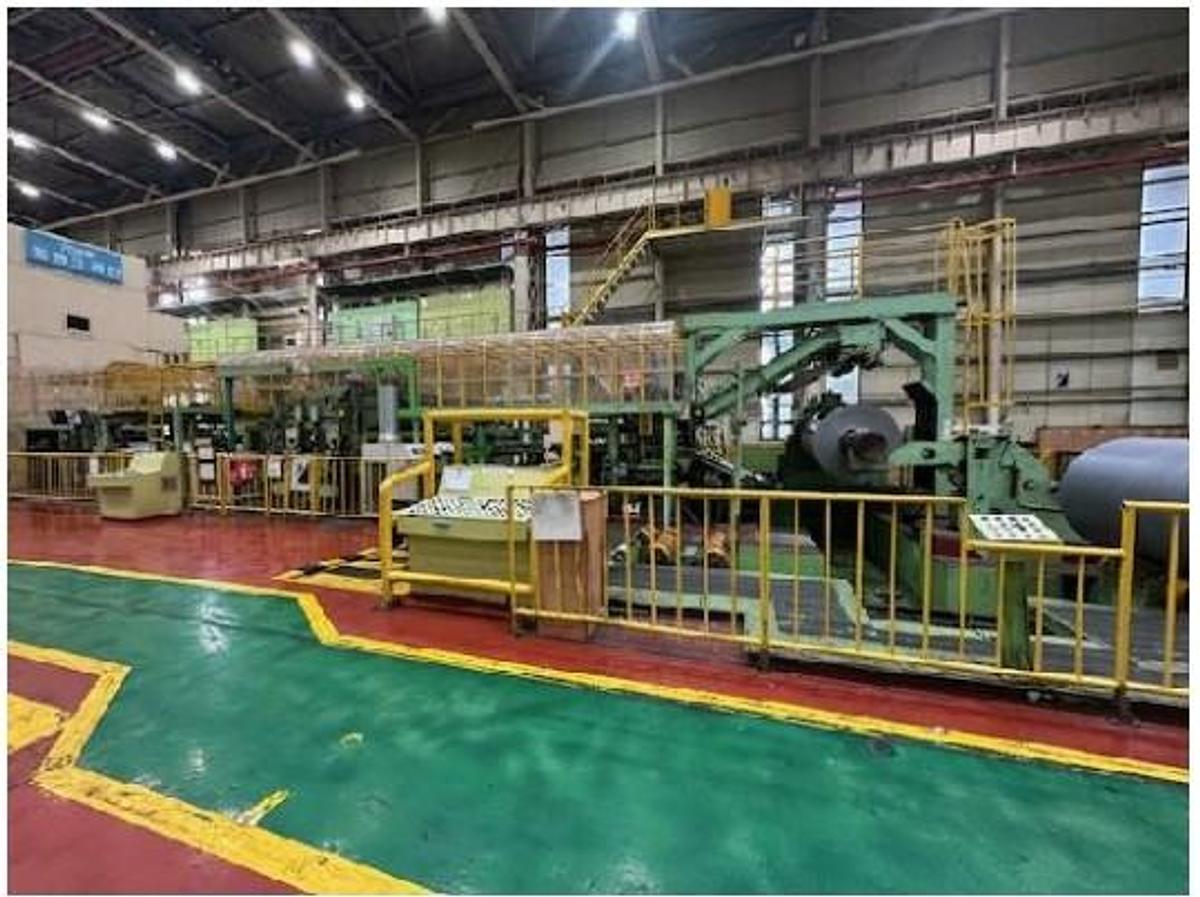

2) Coil Line, Sumikra ( Japan ), new 1998

Type : Coil Skid Car,

Thickness : 0.4 ~ 2.6 mm,

Width : max. 1900,

Coil internal dia. : 508~610 mm,

Coil out die : 600 ~ 2100 mm,

Feed length : min 250 ~ max 4000 mm,

Line speed : max 90 m/min,

Feeding equipment :

Type : Pop Up and Cleanning,

 Point : Pop Up + Cleanning

Convveyor arrangement : 4 column movable type,

Raw material cleanning sys. : Adopted,

Belt drive speed : 162.4 m/ min,

Telescopic drive speed : 26.5 mm/sec,

Width adjust drive speed : 13.9 mm /sec,

Height adjust speed : 6 mm/sec,

Oscillator:

Type : S/motoer driven swing cut,

Travel speed : 1 m/min,

Swing angle : max. +-40

Piler : Auto loading , car 2ea.

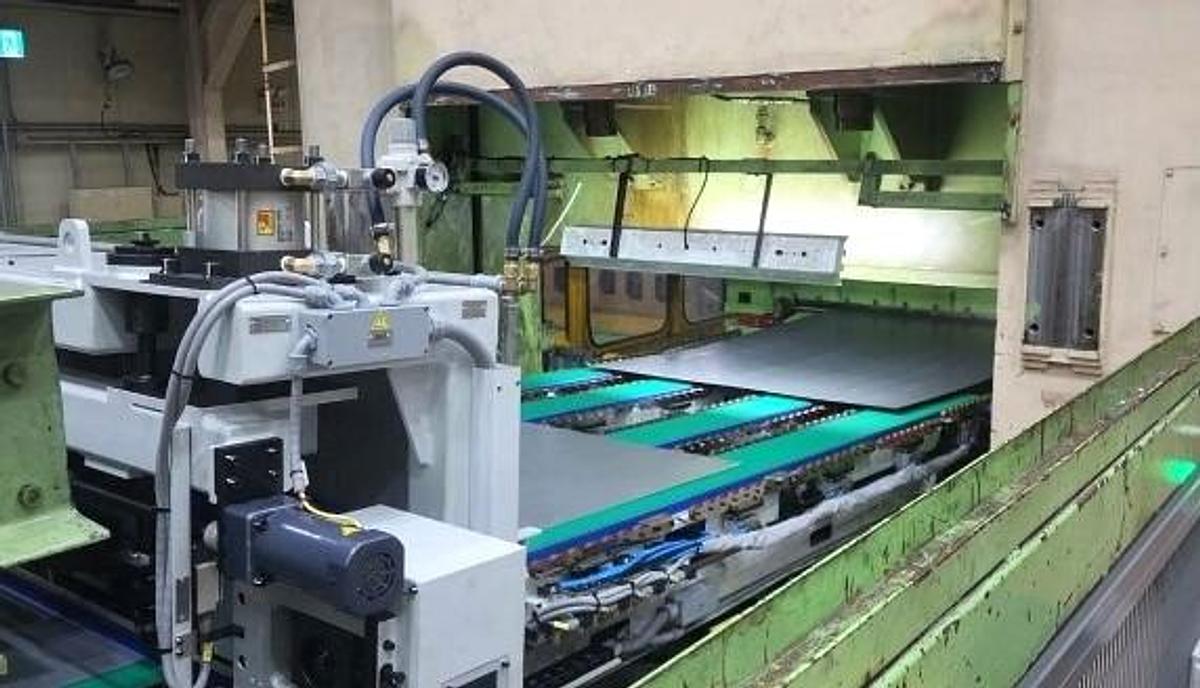

3) 700 Ton Pop Up Telescopic Conveyor + Cleanning Sys. Poly tech ( Korea ), New 2024

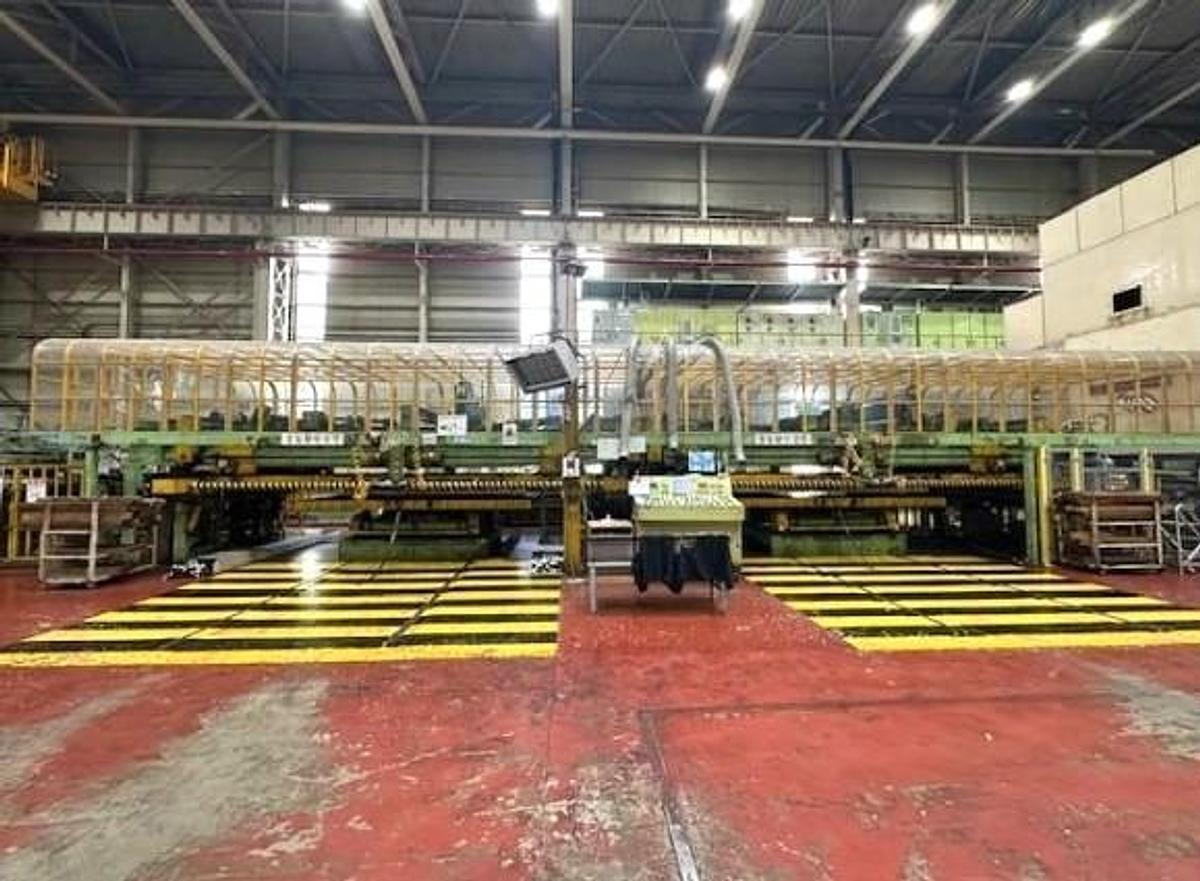

4) 700Ton Piler with 1 Row Piler & 2 sets of Piler Cars , Sumikua ( Japan ) , New  1998
