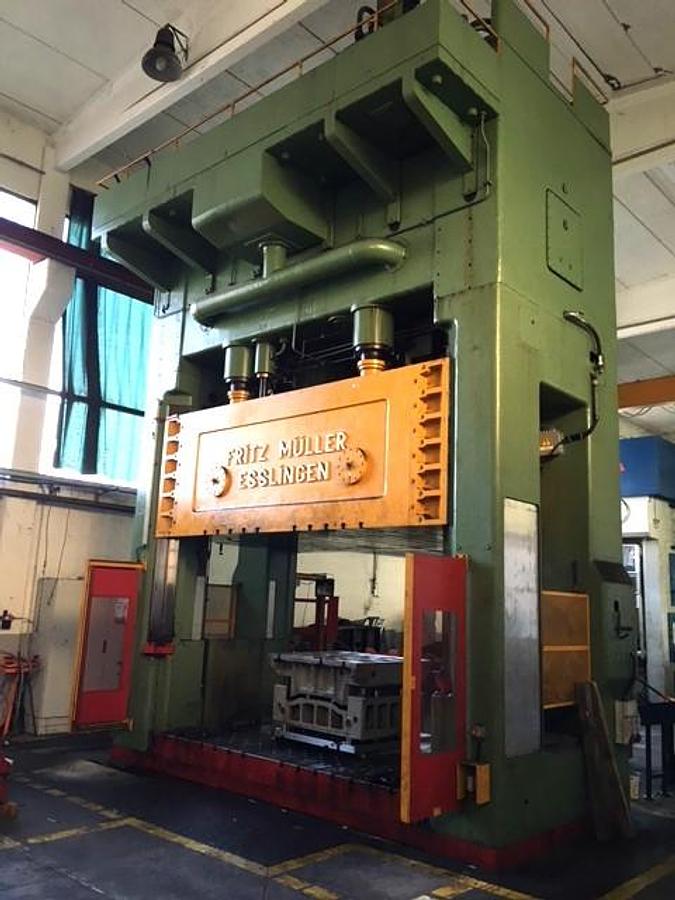

1000 tons Press Sheet Stamping Hydraulic Muller BZE1000 32.4.16

Double-column, double-acting

Capacity : 1000 tons,

Stroke : 1350 mm,

Table dimensions (x-y) : 3200 x 2000 mm

Ram dimensions X-Y : 3200 x 2000 mm,

Clearance at TDC* : 2100 mm,

Working speed at 100% : 450 (mm/sec)

Descent speed : 400 mm/sec

Blankholder stroke : 400 mm,

Blankholder thrust : 300 tons,

Weight : 180 tons,

Height : 11500 tons,

Face : 6000 mm,

Depth : 3300 mm.
