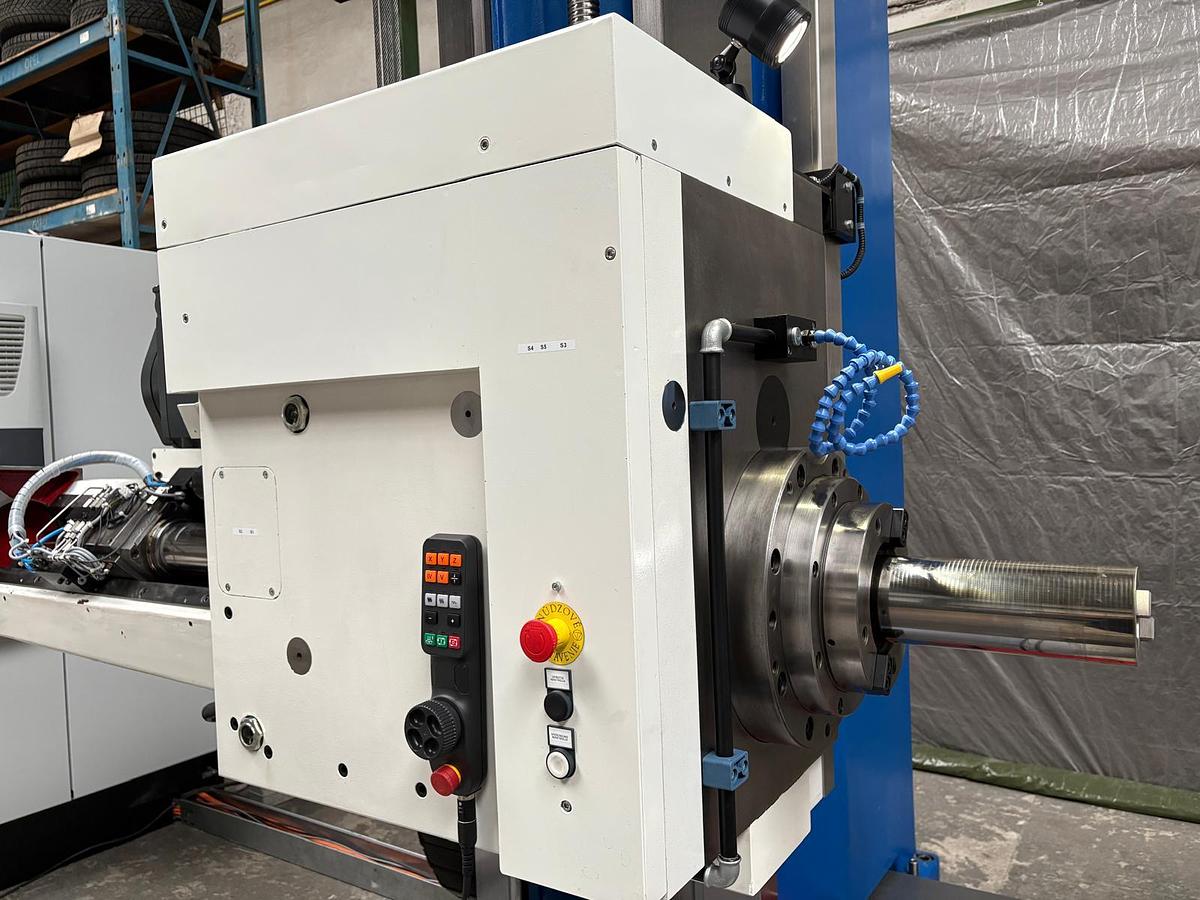

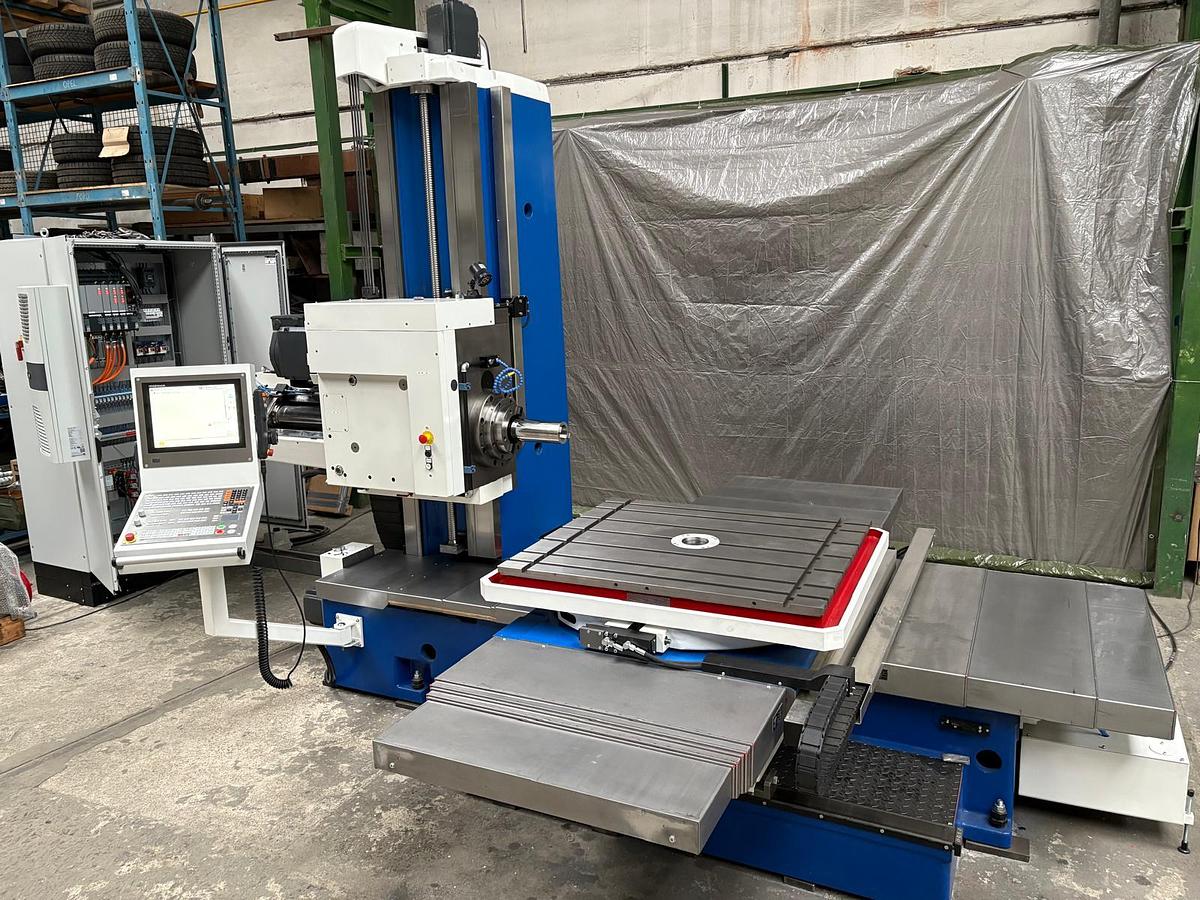

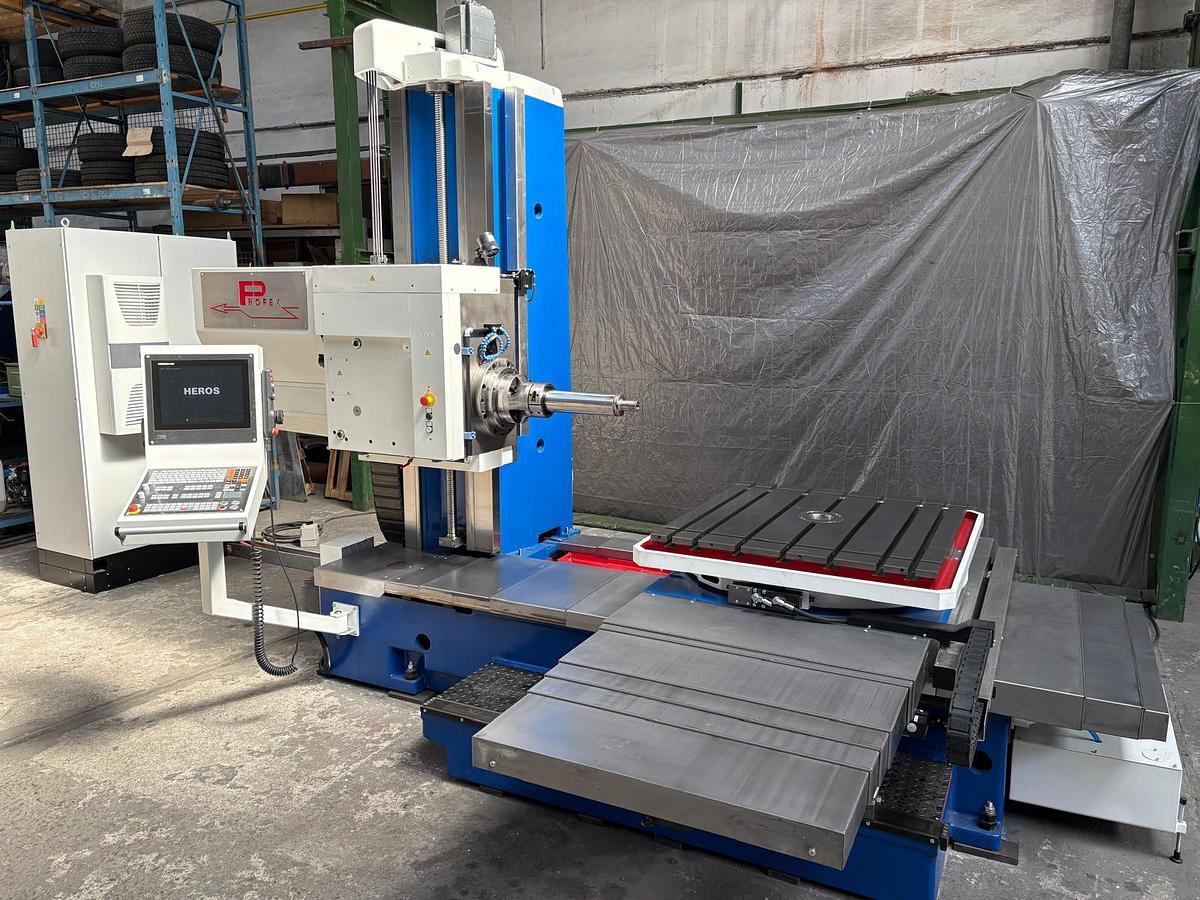

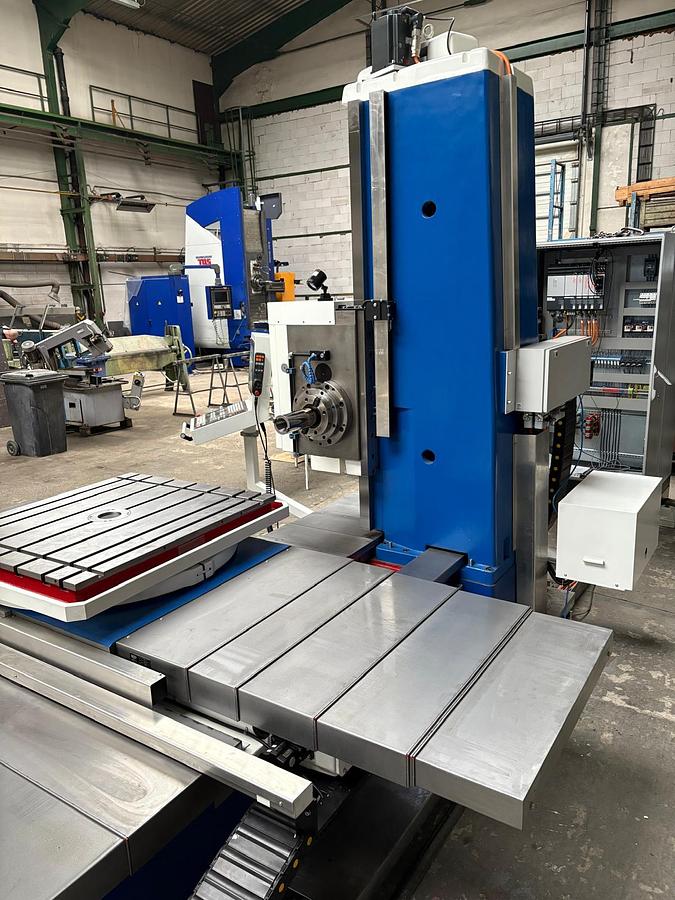

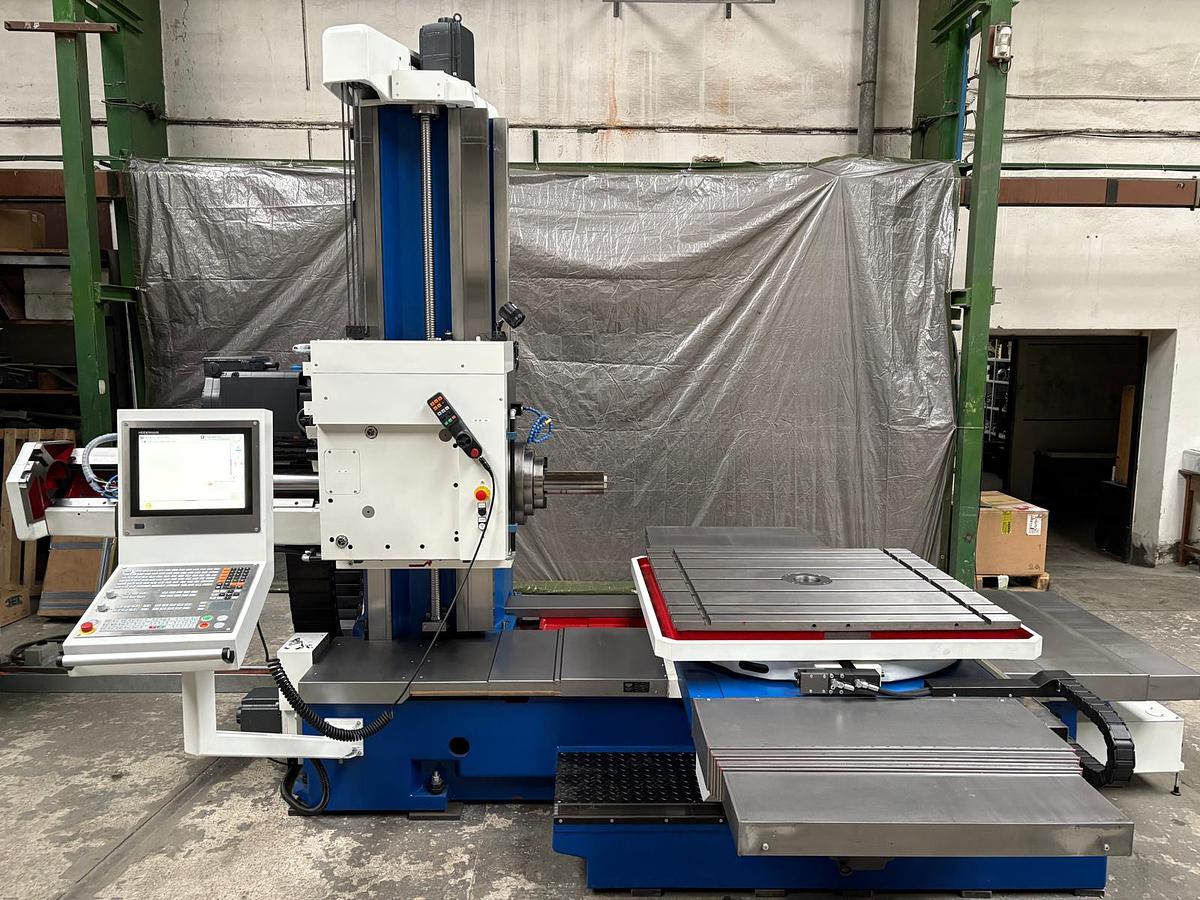

Borer Horizontal Table Type CNC Tos Varnsdorf WH10

Work spindle diameter : 100 mm,

Spindle TOS Max. Speed of the working spindle : 2500 rpm

Clamping taper : ISO 50,

Tool shank : 69871 DIN,

Clamping adapter - screw : TOS 4100793,

Main motor power (S1/S6-40%) : 22/34 kW,

Max. spindle speed : 2500 rev/min,

Max. torque of the spindle (S1/S6-40%) : 2173/3250 Nm,

Table transverse travel X : 1250 mm,

Headstock vertical travel Y : 1100 mm,

Table longitudinal travel Z : 1000 mm,

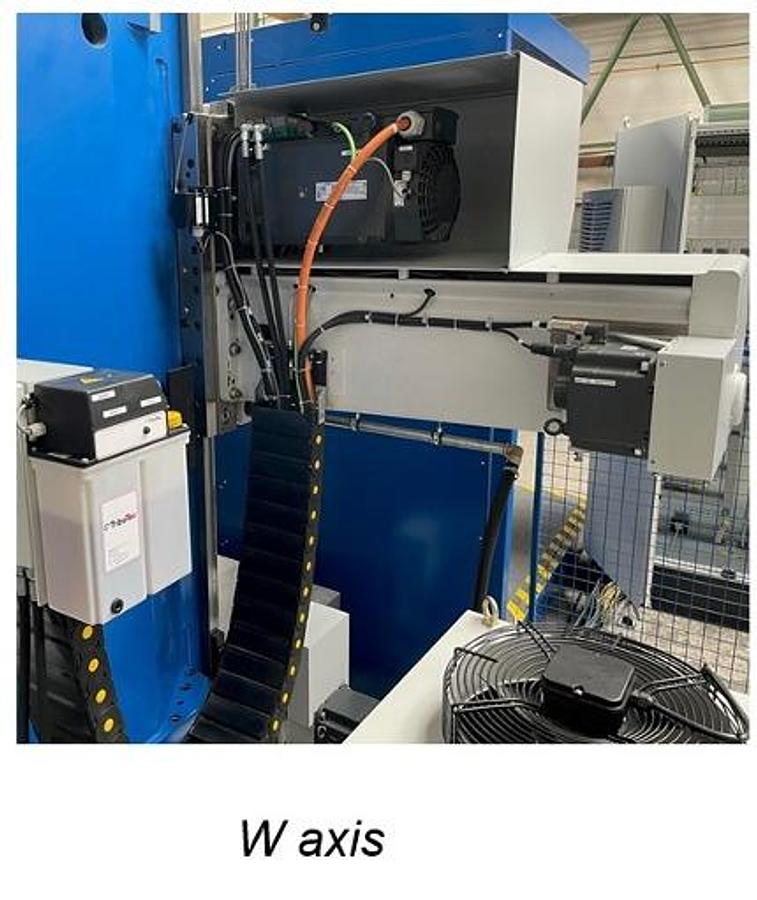

Spindle stroke W : 630 mm,

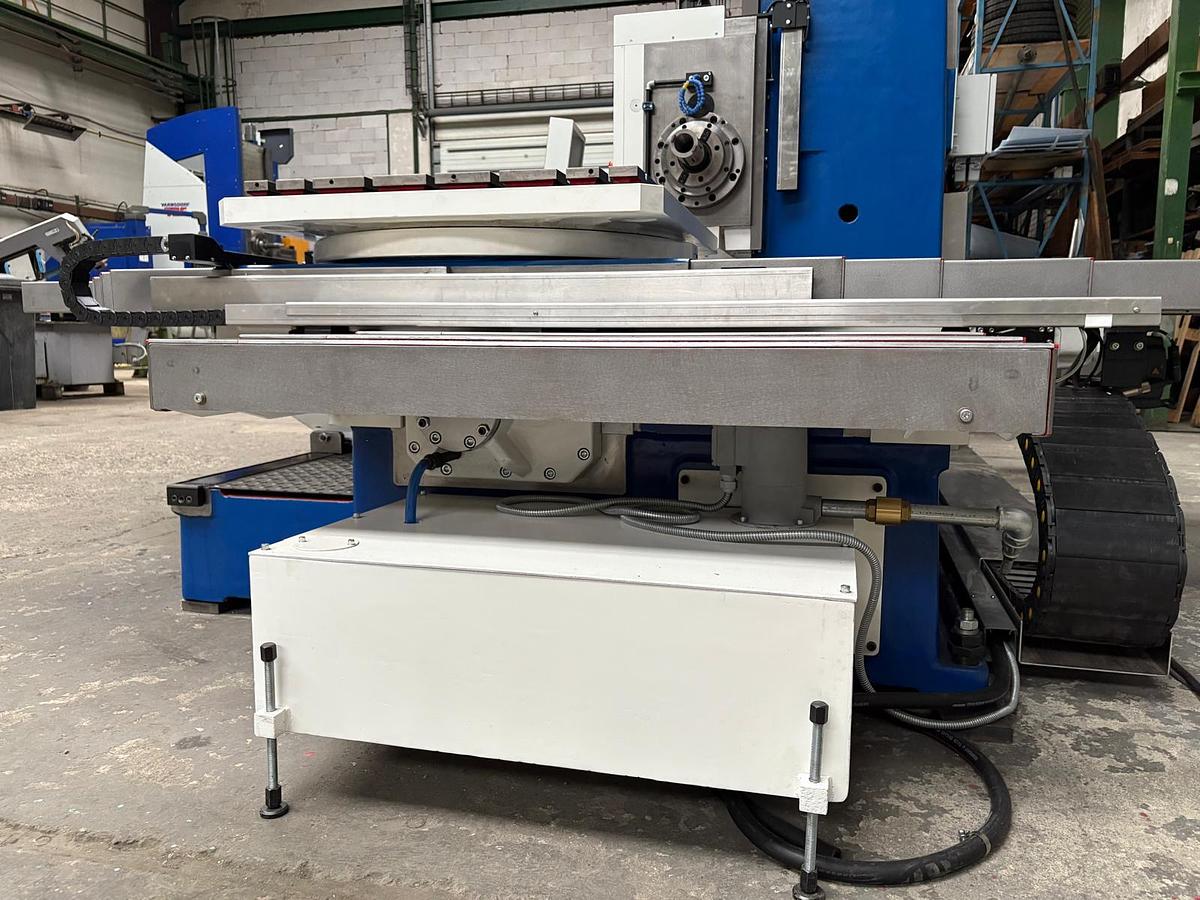

Table clamping surface : 1000 x 1100 mm,

Workpiece weight max. : 3000 kg,

Feed range : 4 – 6000 mm/min,

Total power consumption : 50 kVA,

Machine weight : 13 tons.

HEIDENHAIN TNC620 CNC Heidenhain

4 linear axes and rotary table.

Sliding working spindle with. Max 2 500 rev/min and ISO 50 clamping set.

Features mechanical side

- hardened guide surfaces on all axes

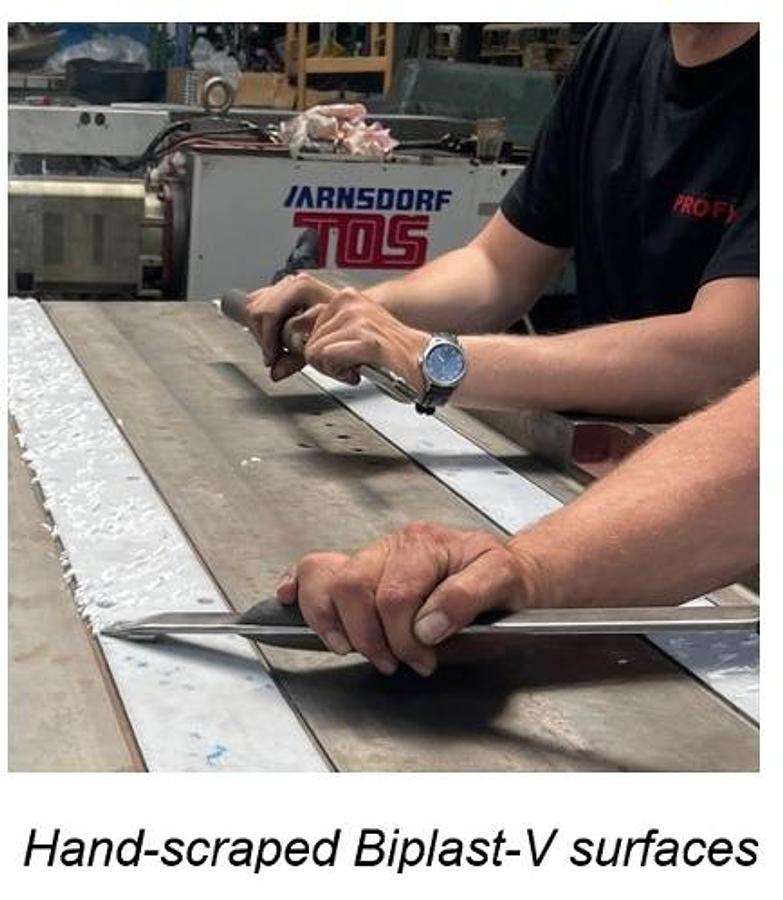

- Biplast-V lining for the guide ways counter surfaces

- Geometric accuracy according to the accuracy protocol TOS Varnsdorf WH 10

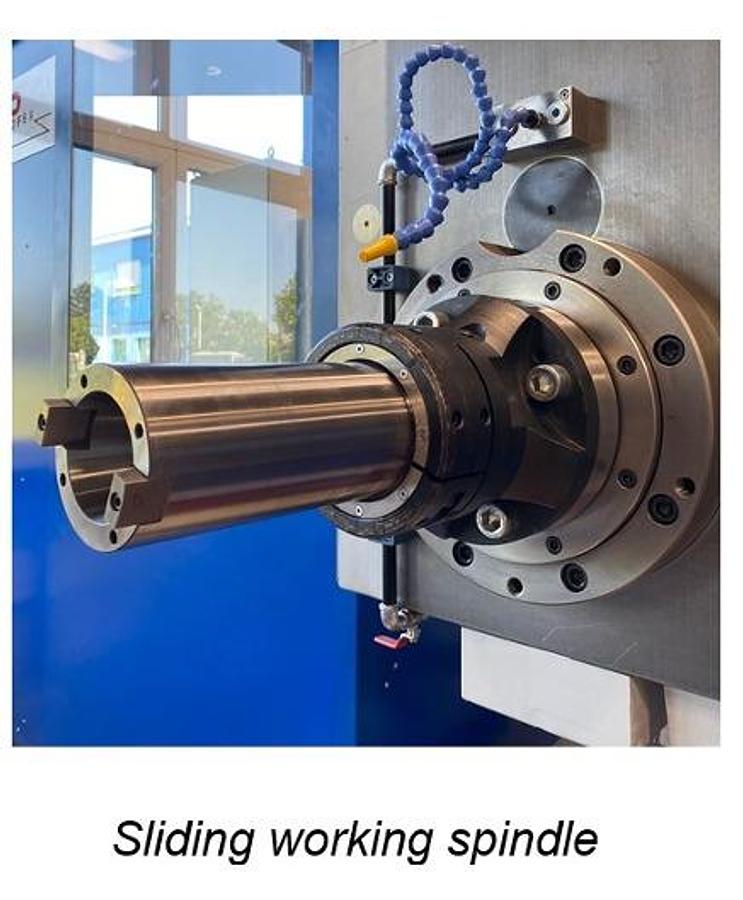

- Sliding working spindle with diameter of 100 mm, spindle bearings - FAG, SKF

- hydraulic tool clamping set 22kN - Ott-Jakob

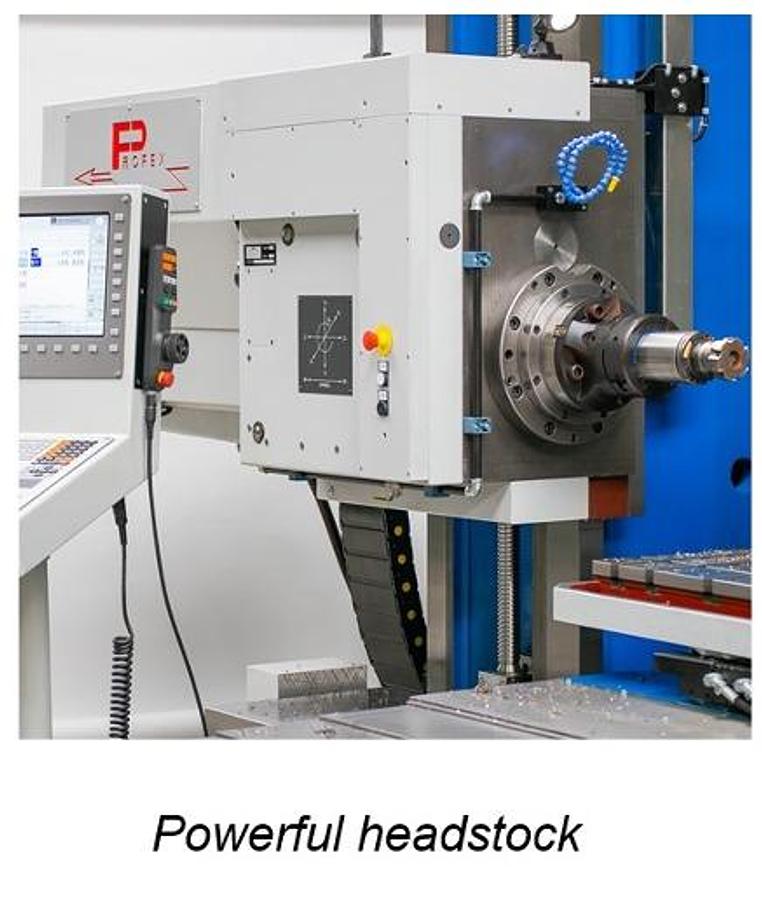

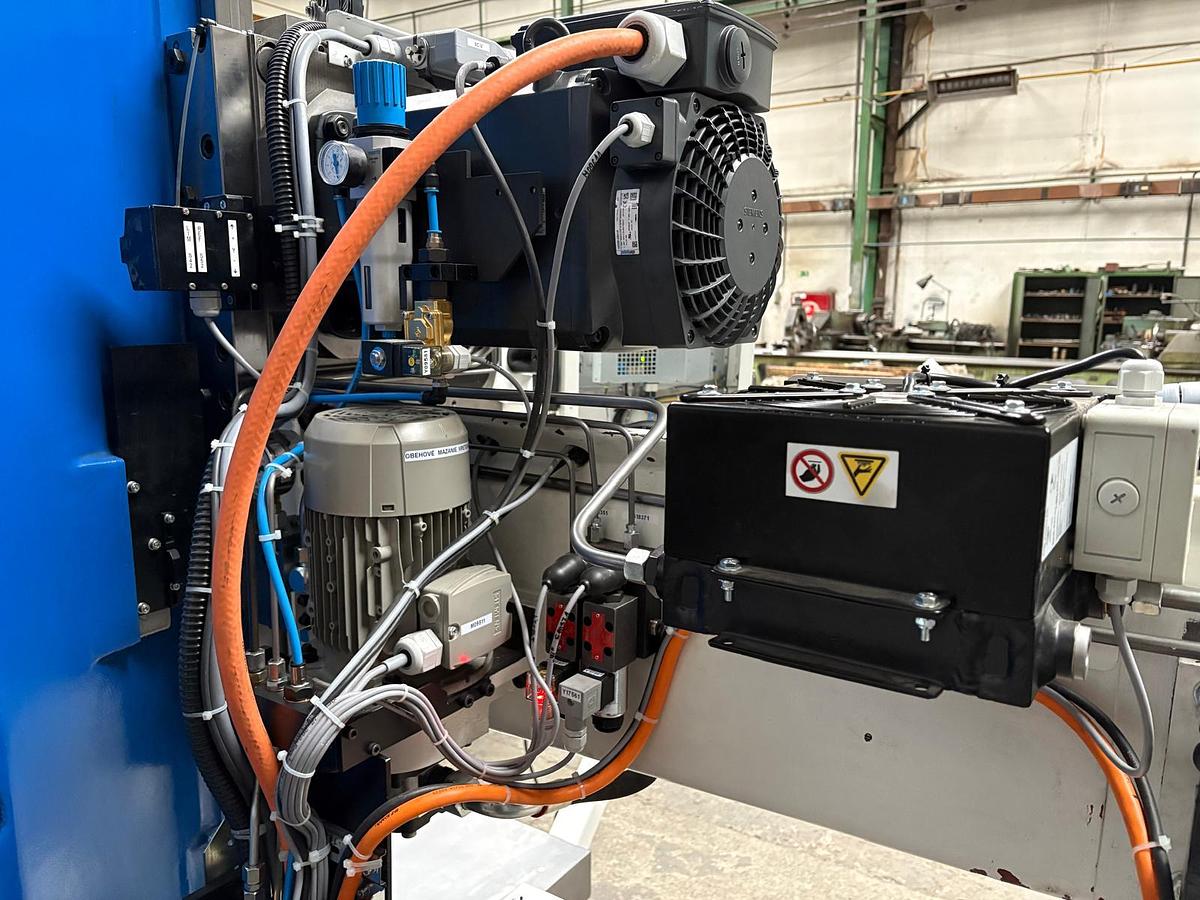

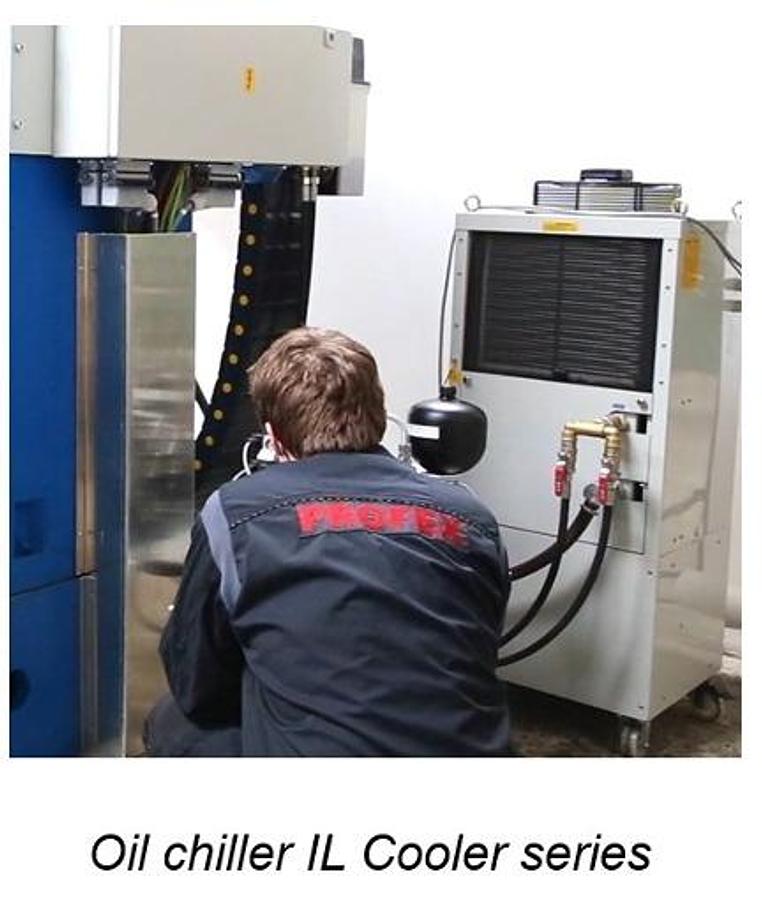

- Headstock with cooling circuit - reTOS Varnsdorf

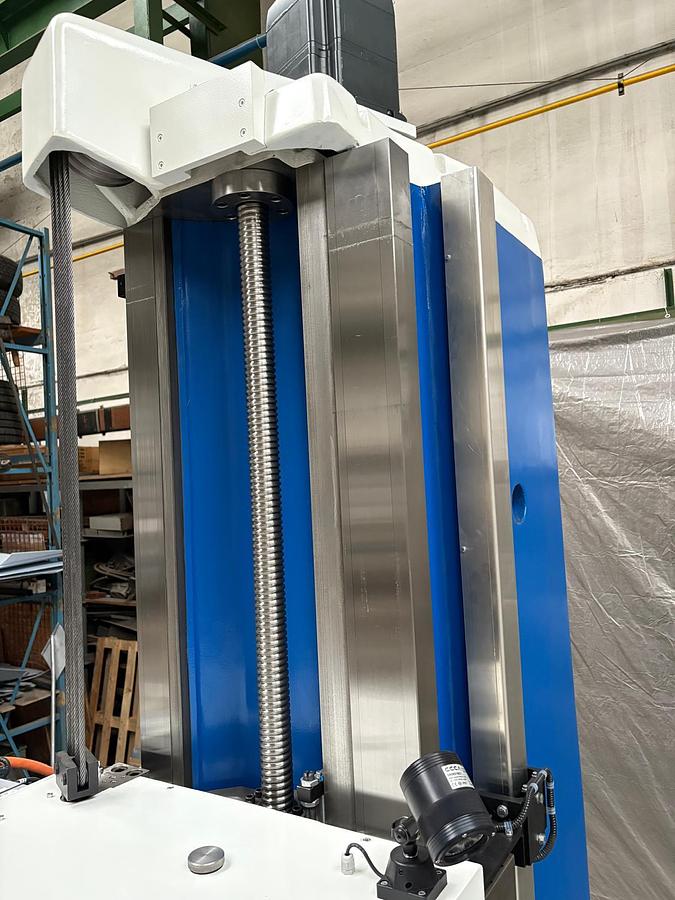

- Ball screws on the X, Y, Z and W axes - KSK Kurim

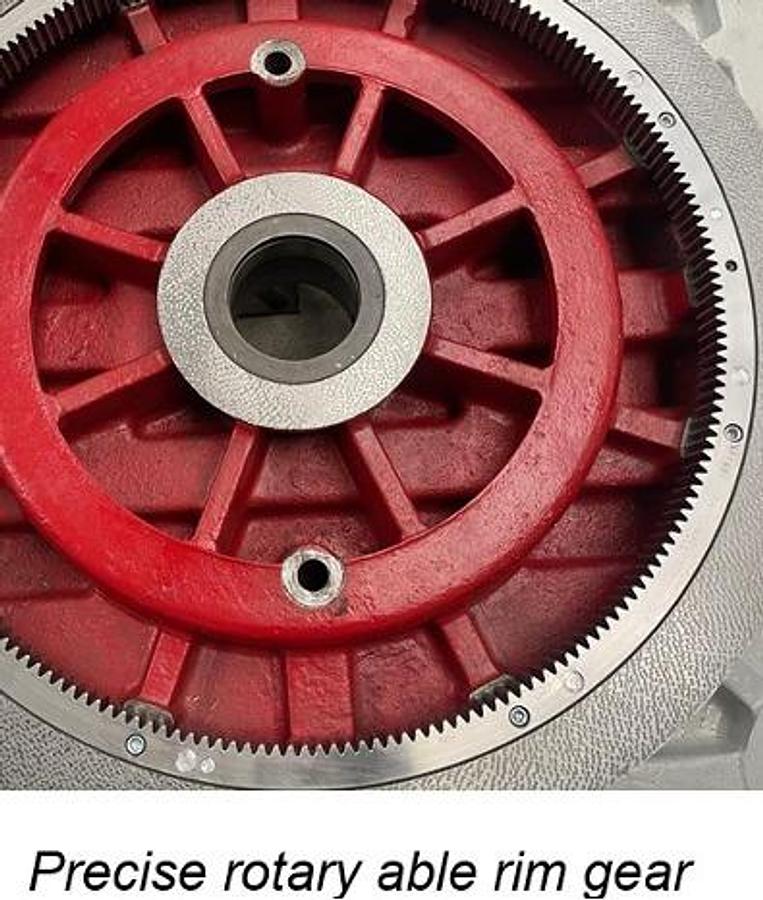

- Rim and pinion for precise rotary table positioning - reTOS Varnsdorf

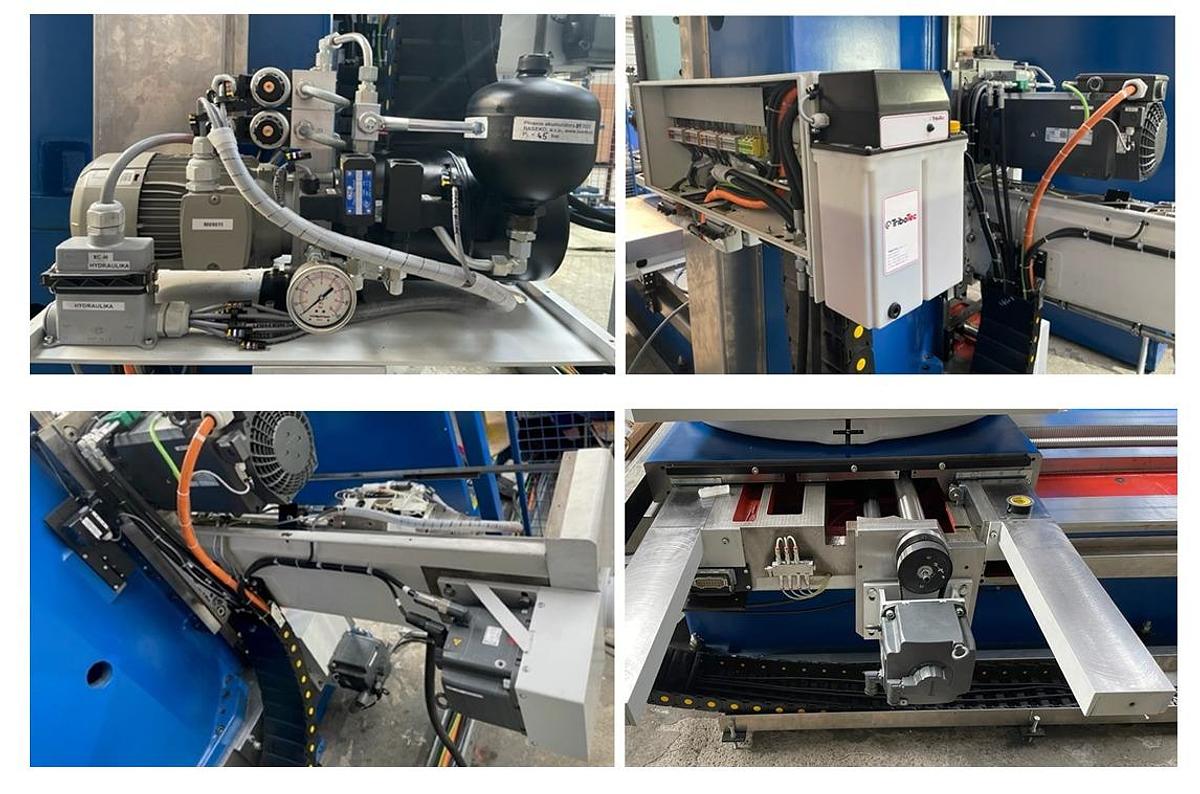

- Hydraulic system (unit, pumps, hoses, fittings) - Baseco

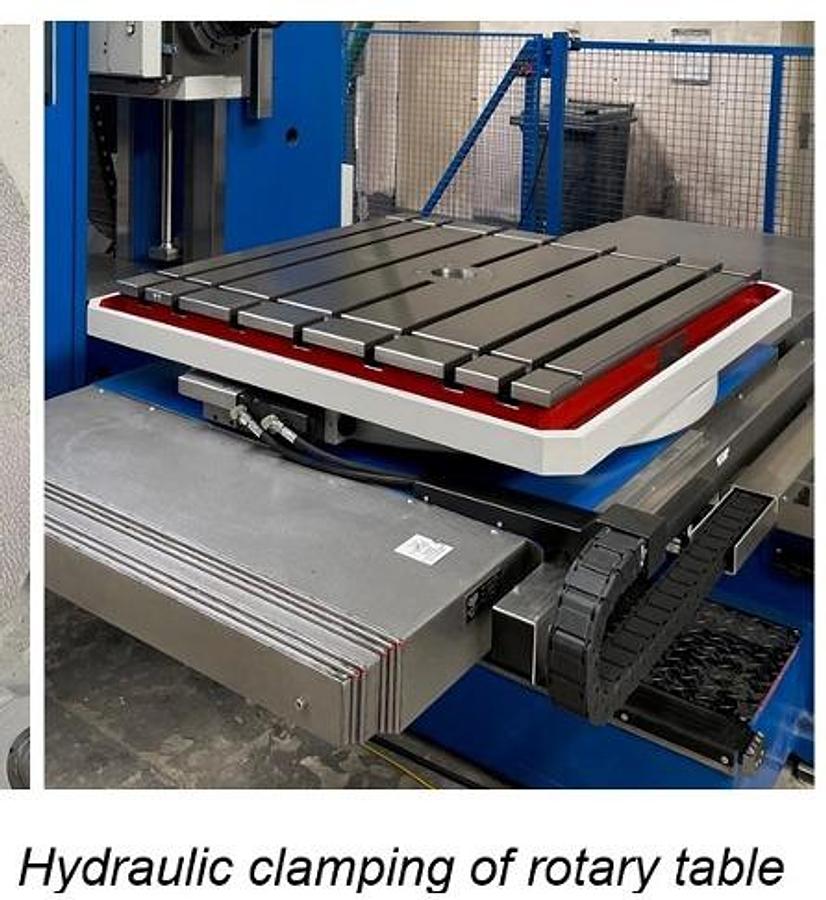

- Rotary table reinforcement controlled by CNC system

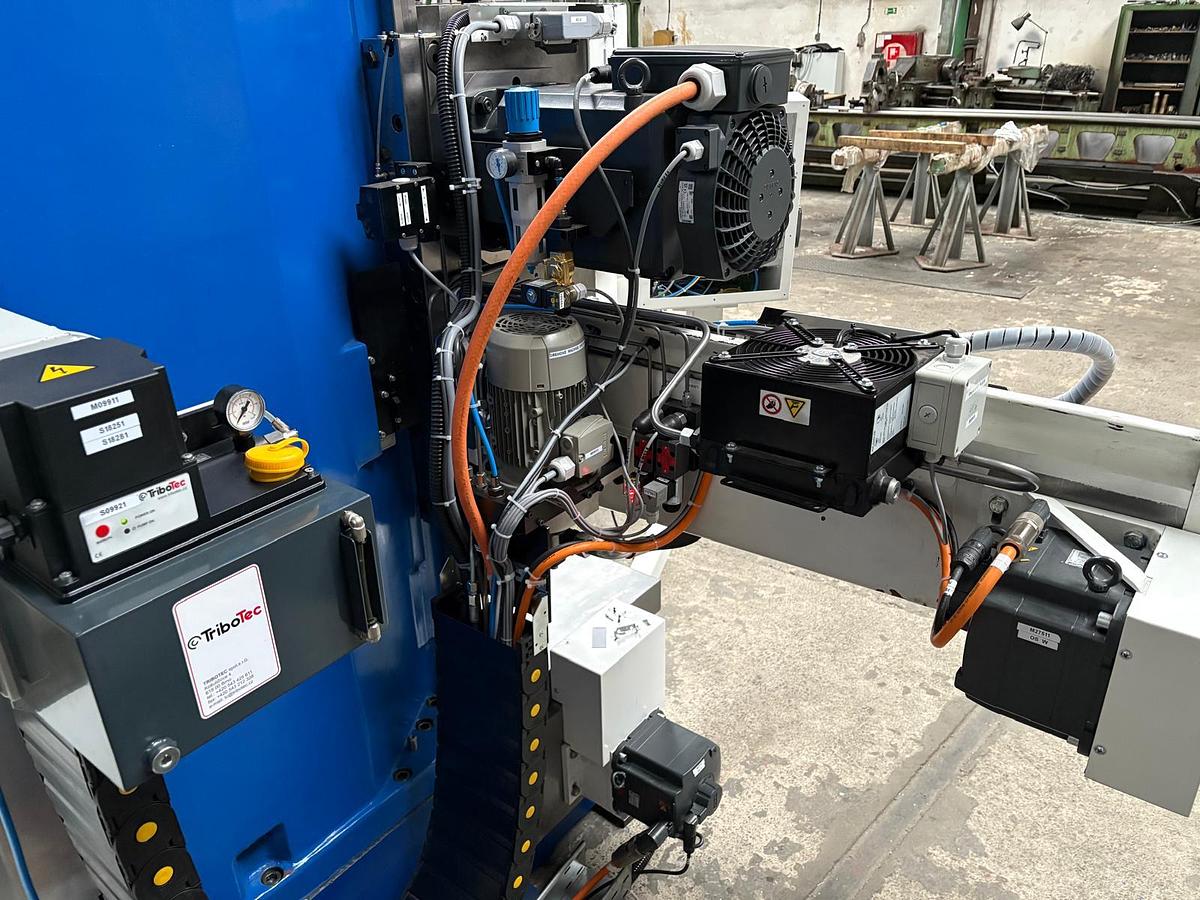

- Central lubrication system controlled by CNC system - Tribotec

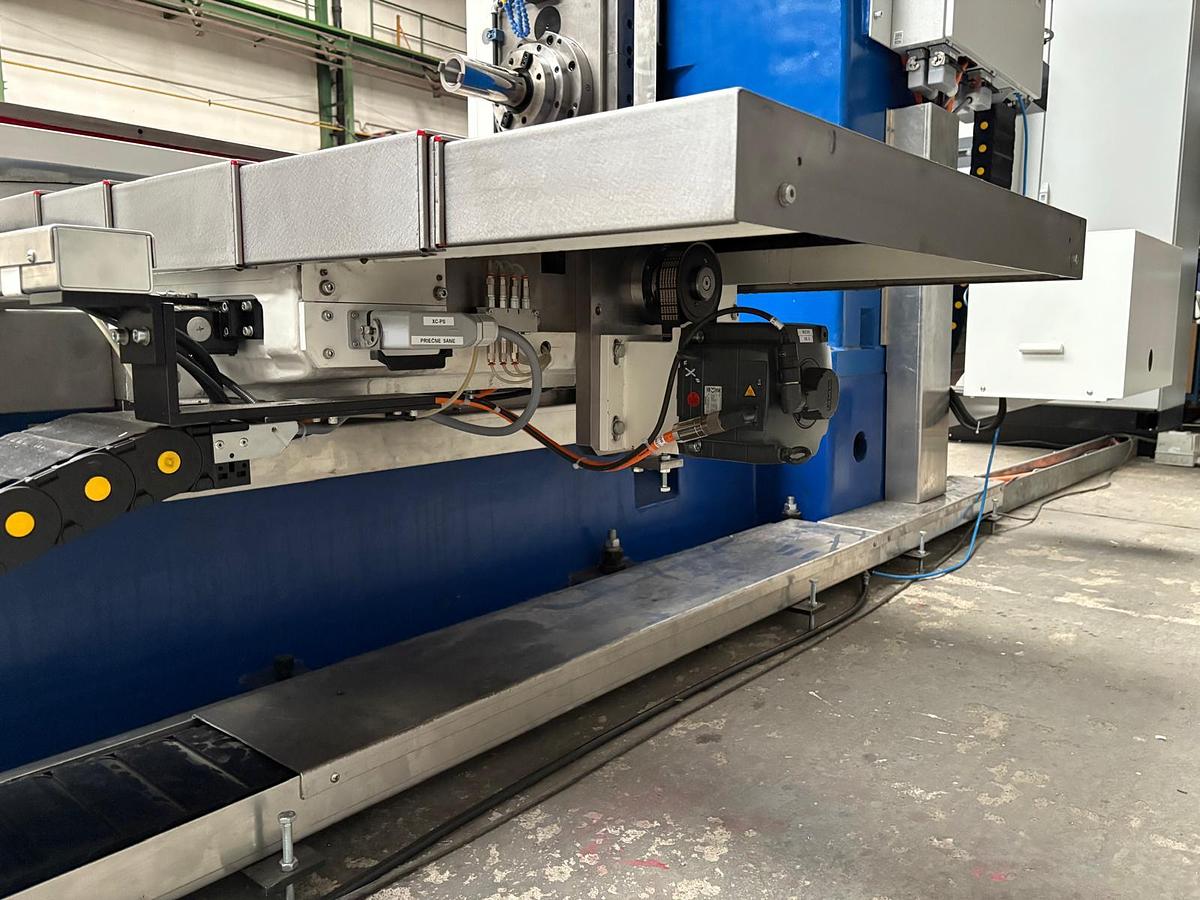

- Telescopic covers (X and Z axes)

Features electrical side

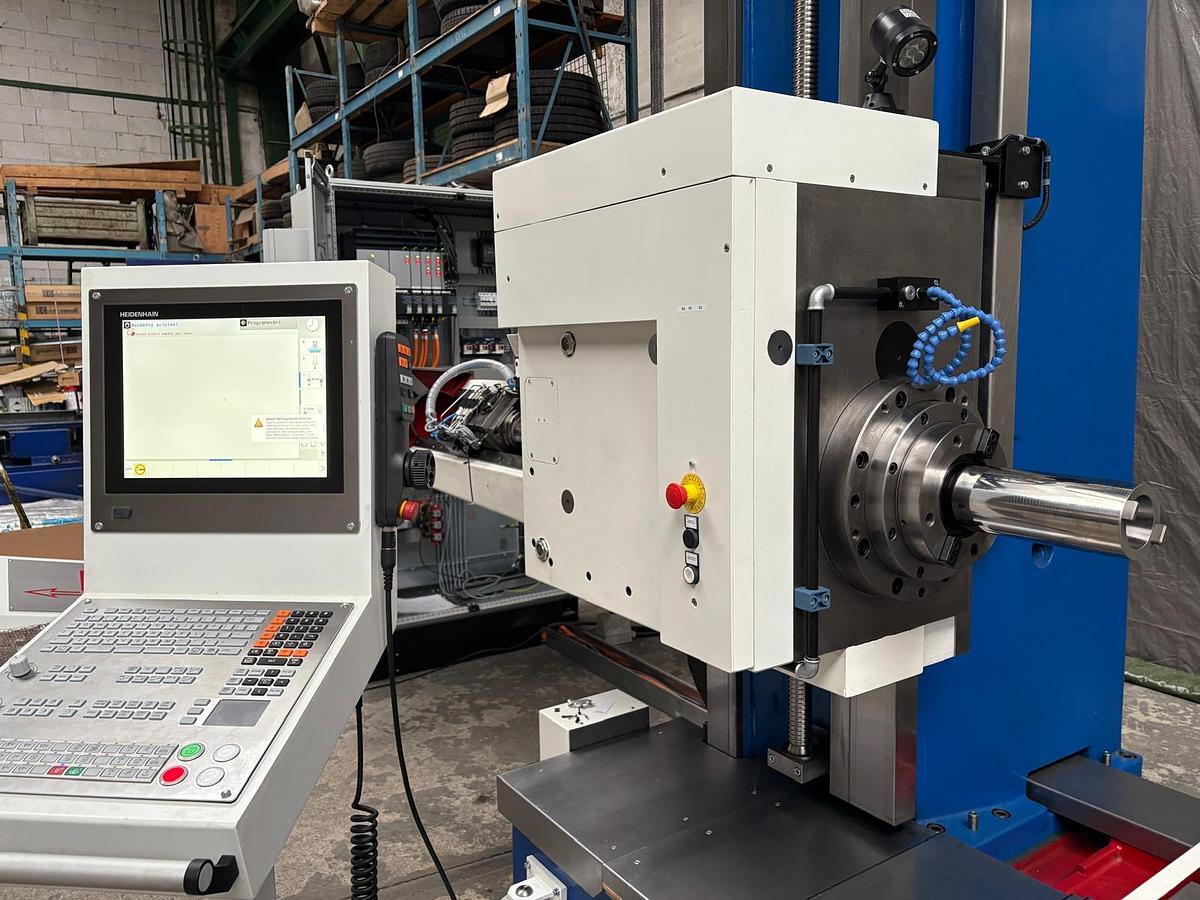

- CNC control system iTNC 620 Heidenhain Gen3

- Servo-motors Siemens 1FKZ 100...(5 pcs.)

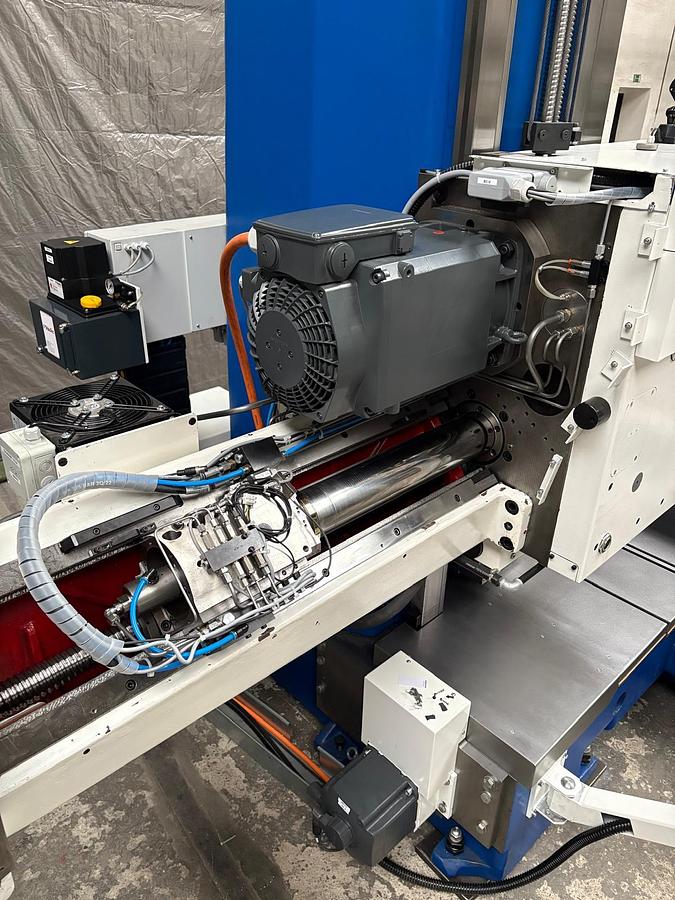

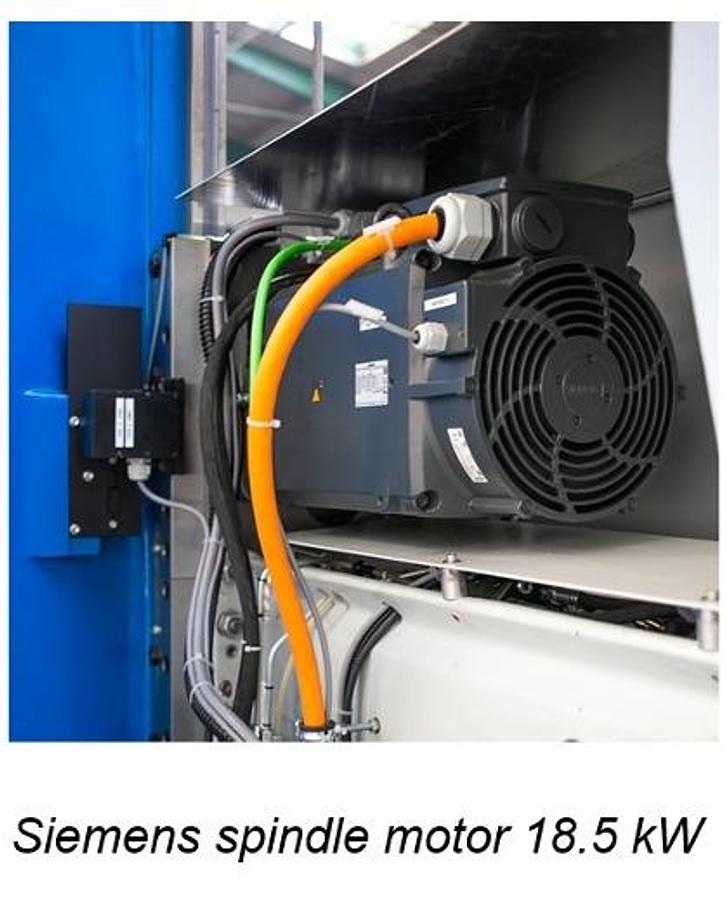

- Spindle motor 1PH8135... - 22kW

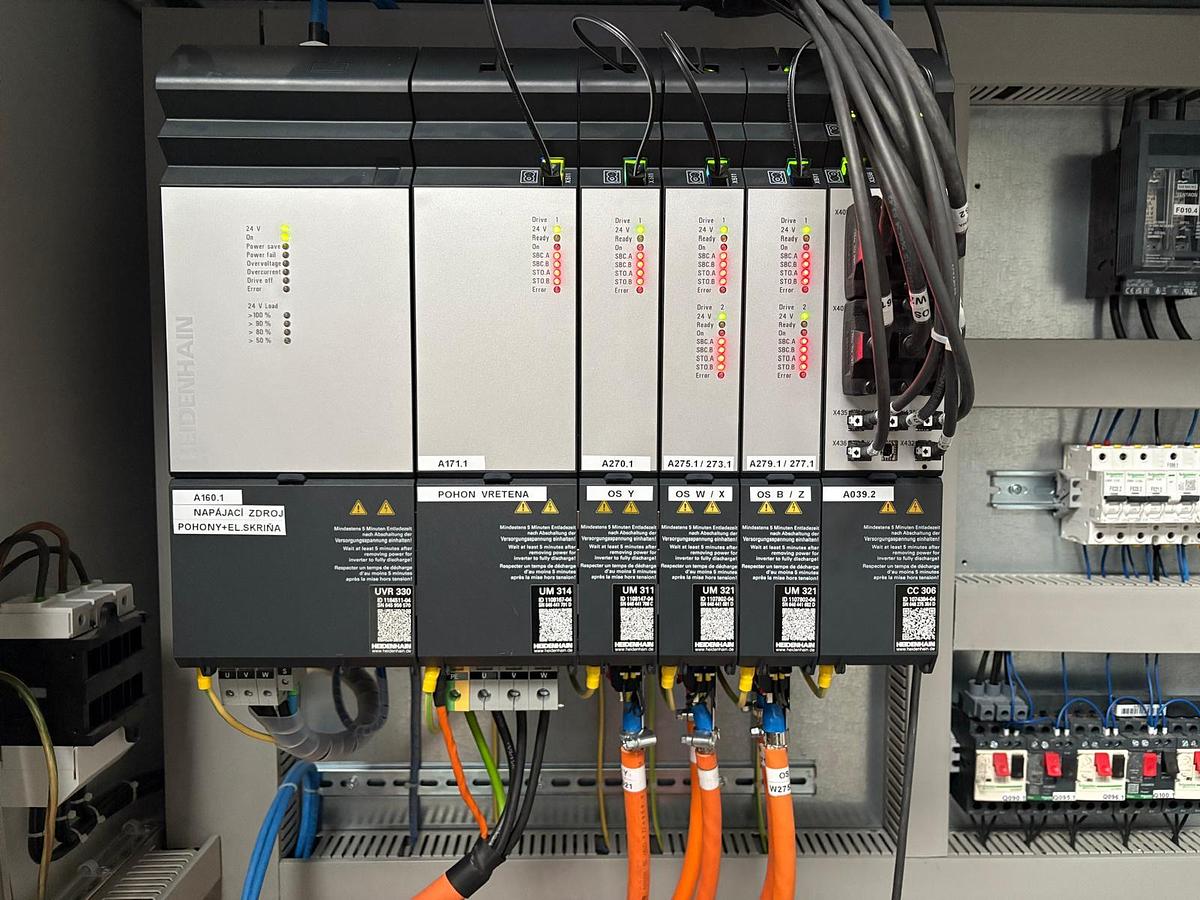

- Converter Heidenhain UM114D

- Linear scales Heidenhain for X, Y and Z axes

- Encoder Heidenhain ROD 480 for rotary table

- Encoder Heidenhain TTR ERM for spindle - Oriental stop

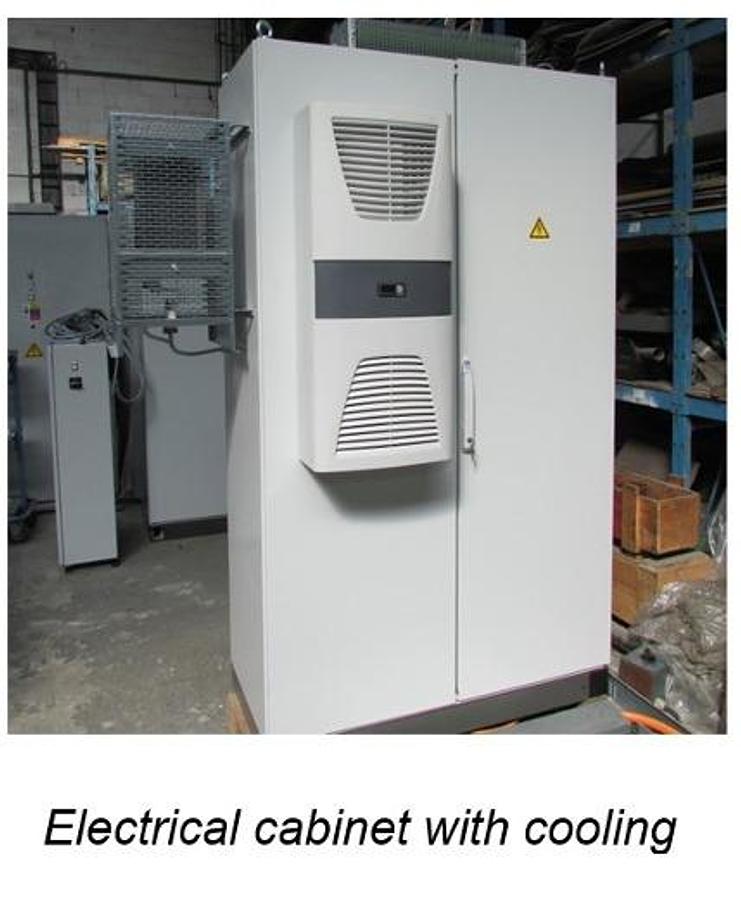

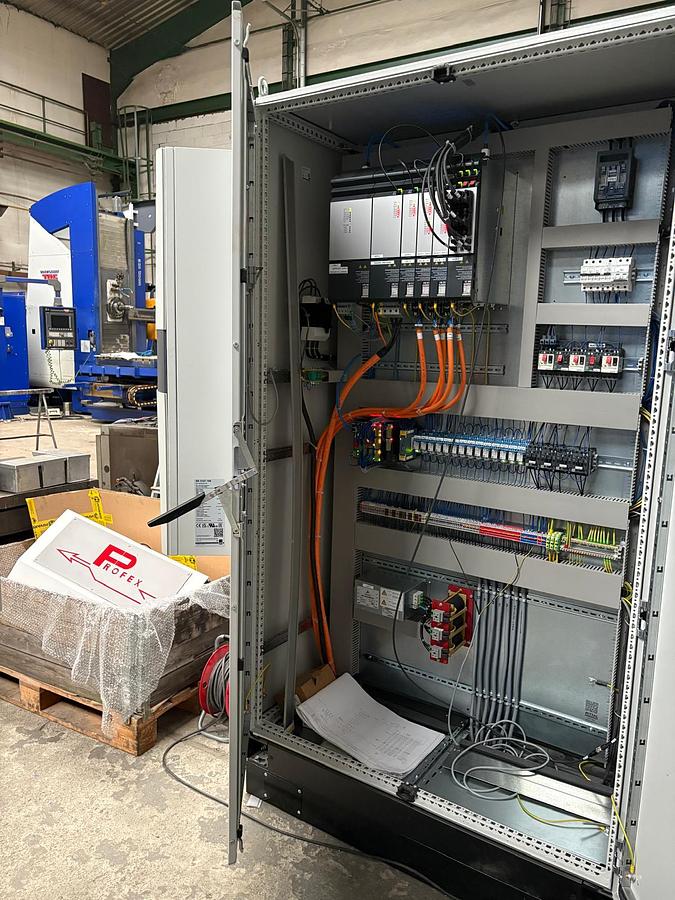

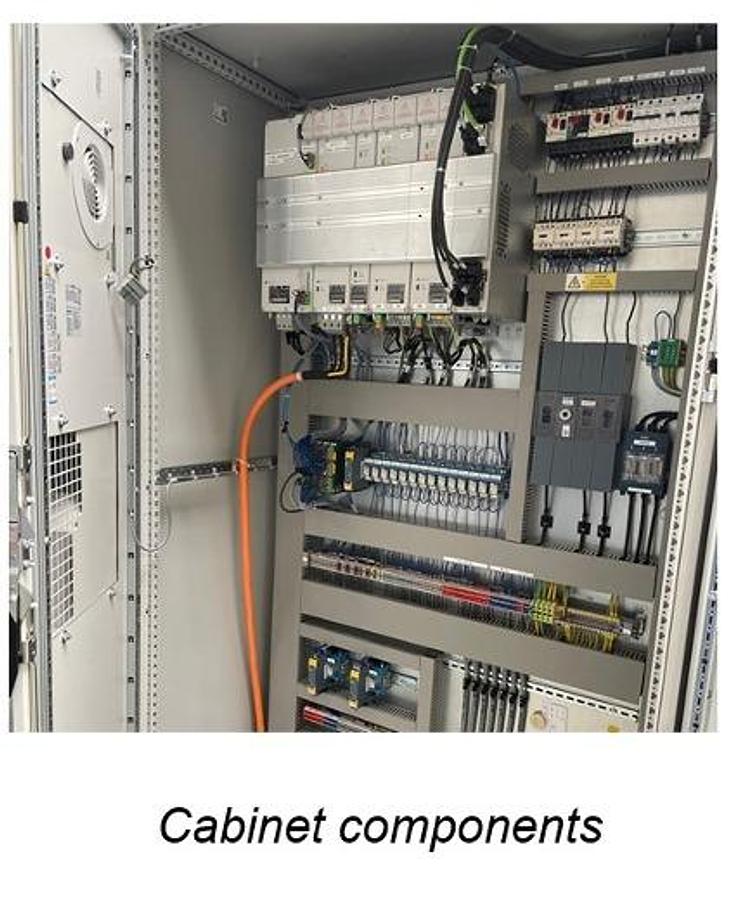

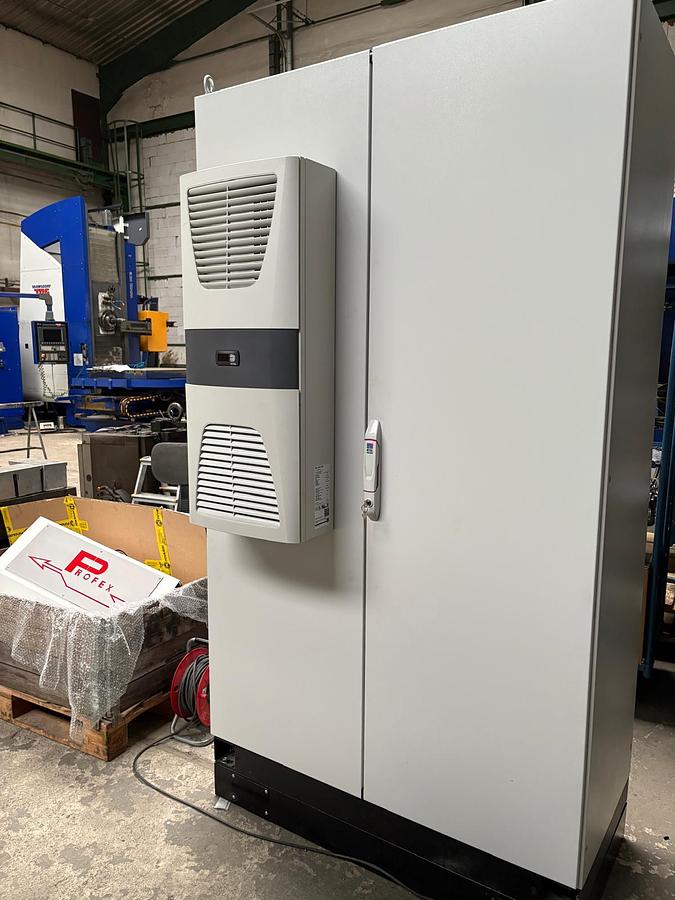

- Control cabinet from Ritall with cooling unit

- Wiring and modern electrical components

- End-limit switches Balluff

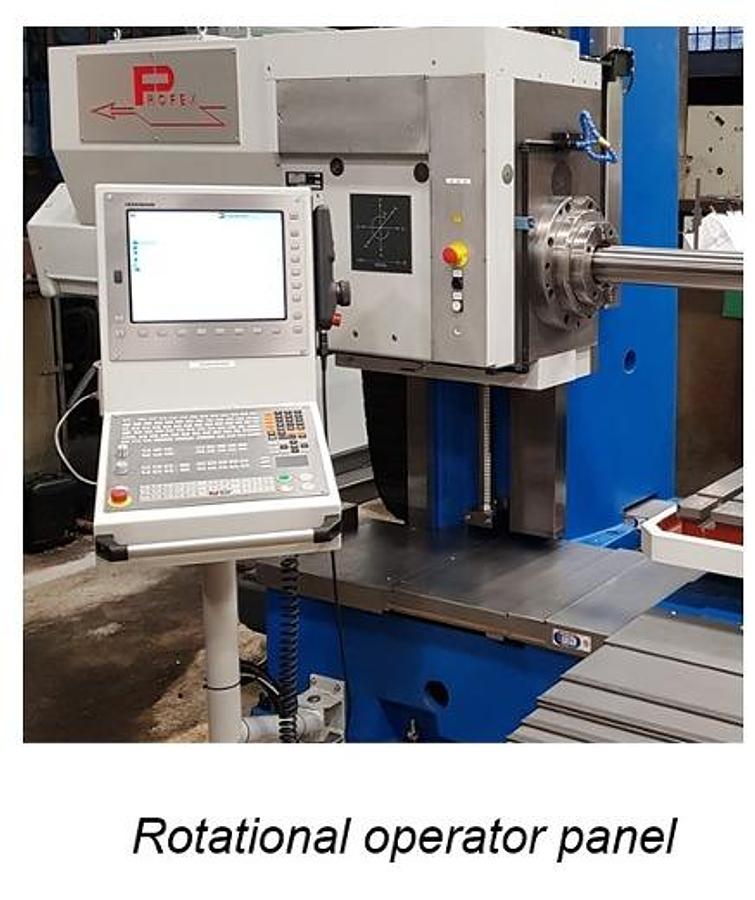

- Rotational control panel

- Workplace lighting

Other

- Electrical inspection report, technical documentation

- Certificate of geometric accuracy WH 10 Tos Varnsdorf

- spindle ball-bar test protocol, linear scales accuracy protocol

- cooling of work space placed on spindle forehead (tank, pump, hoses)

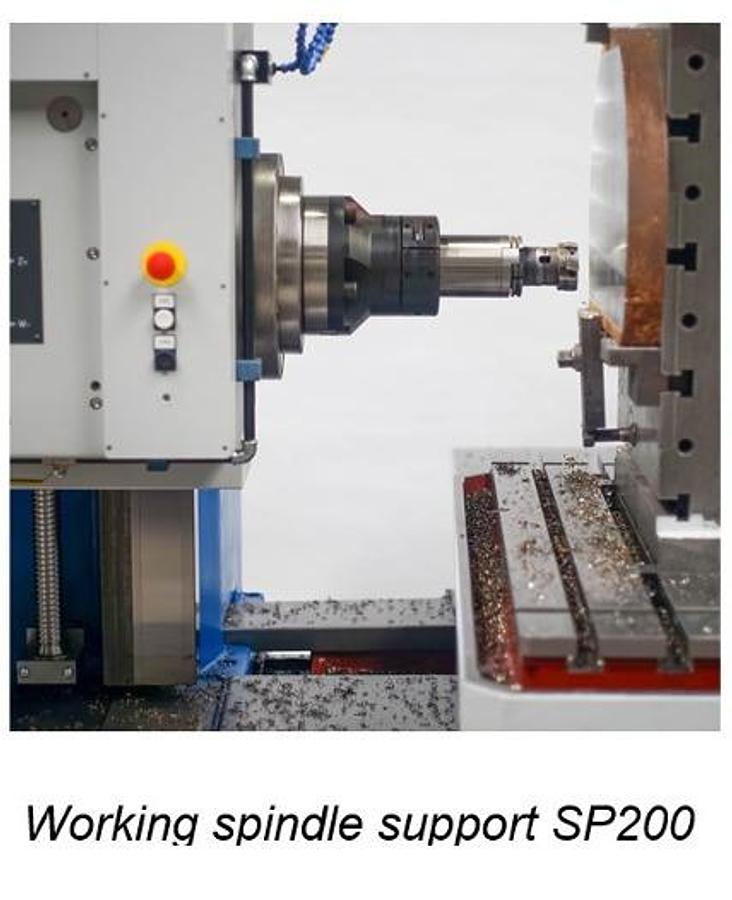

- working spindle support with brass bushings SP200 Tos Varnsdorf

- Heidenhain Options nr. 8, 19 and 20

- Heidenhain HR510 handwheel

- Heidenhain Linear scales upgrade to LC115 series for X, Y and Z axis
