Part Former Hot Line Hatebur AMP70

Hatebure AMP70 with 1200 KW Induction Heater with all coil sets and auxiliary equipment.

Round job up to 170 dia.

Profile job up to 180 mm in length.

Production rate : 60/80 part per minute.

Extra note: capacity to forge part up to 7 kg.

Bar inlet system with roller and single bar selector.

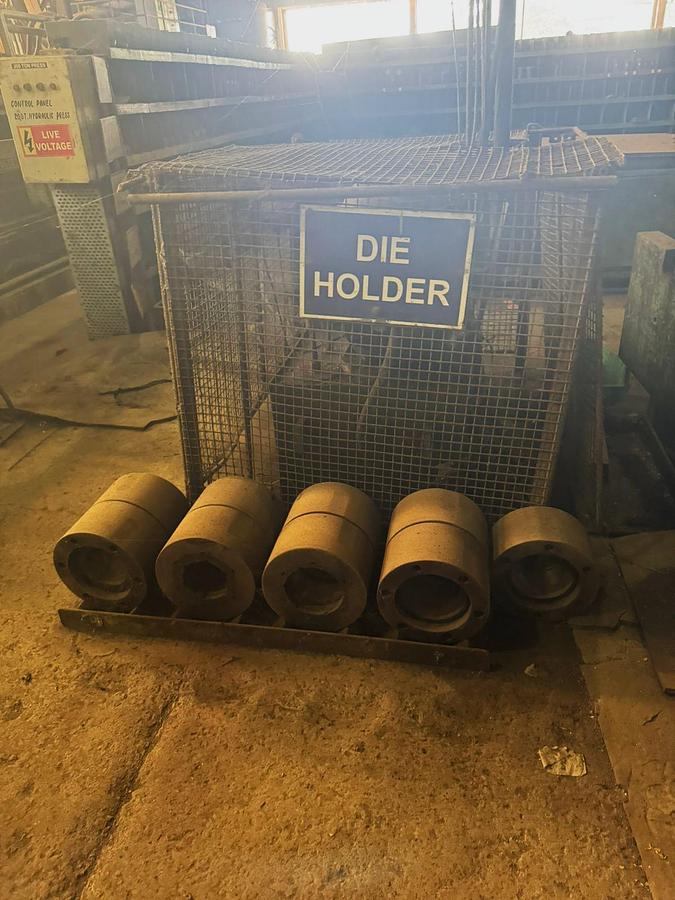

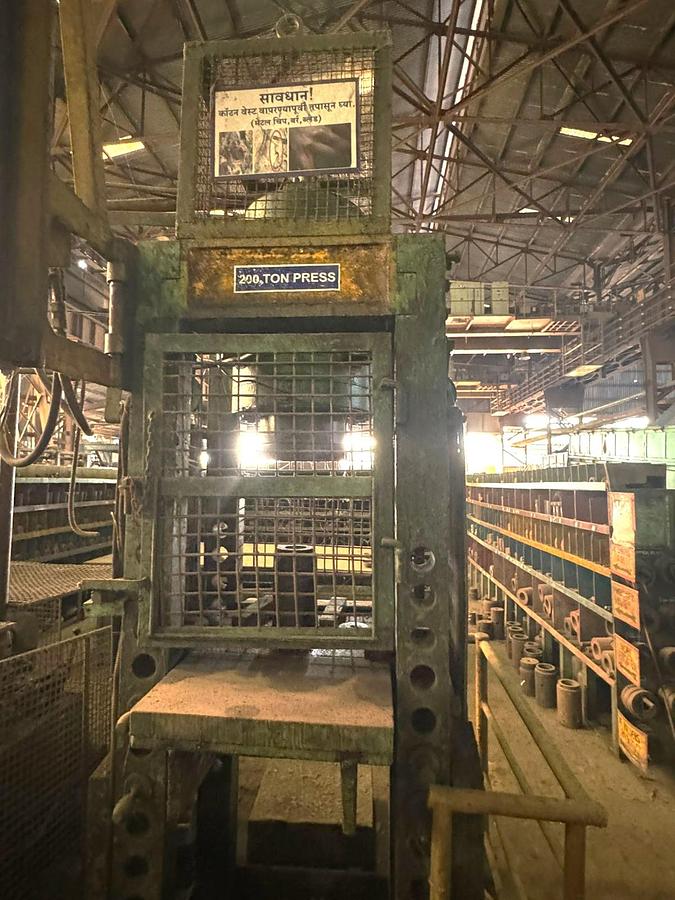

All spare parts all die holder 200 ton press for tools assembly with hydraulic powerpack grade shorting machine mobile deck 10 ton capacity cooling conveyor for rings pneumetic system, lubrication system, surface plate table.

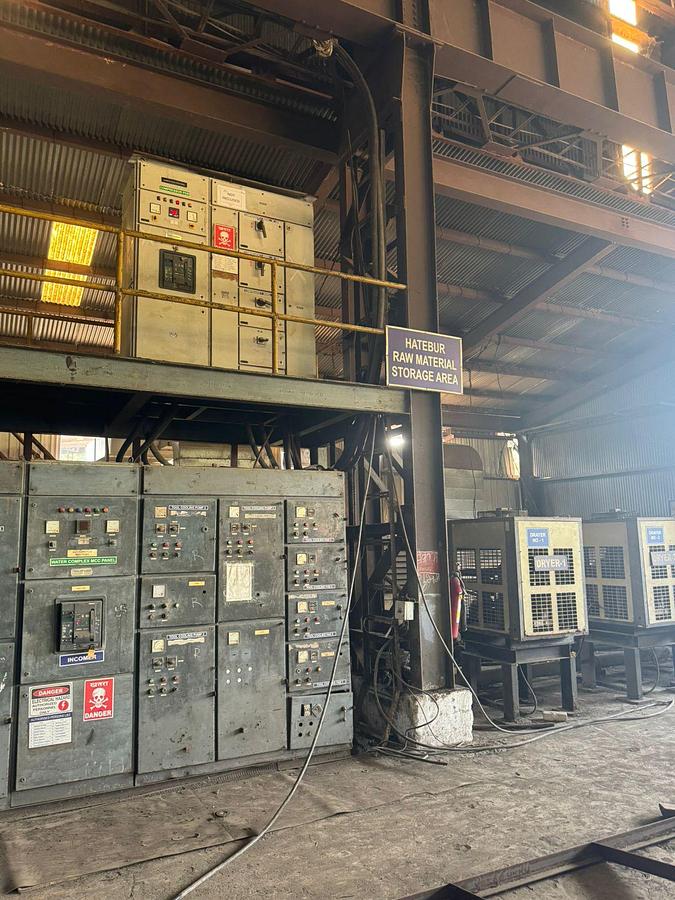

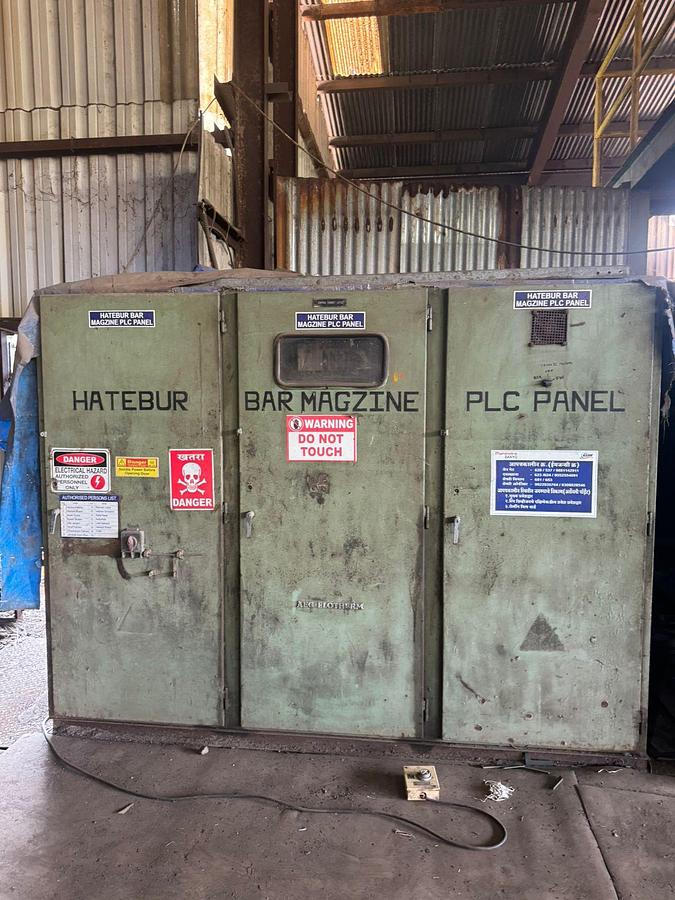

Electric panel with plc and drive, control desk, scada system.

Slat conveyor between main machine to cooling conveyor.

Optional: 22 kva input current ht transformer 2000 kva + 1600 kve both mysore kirloskar make.

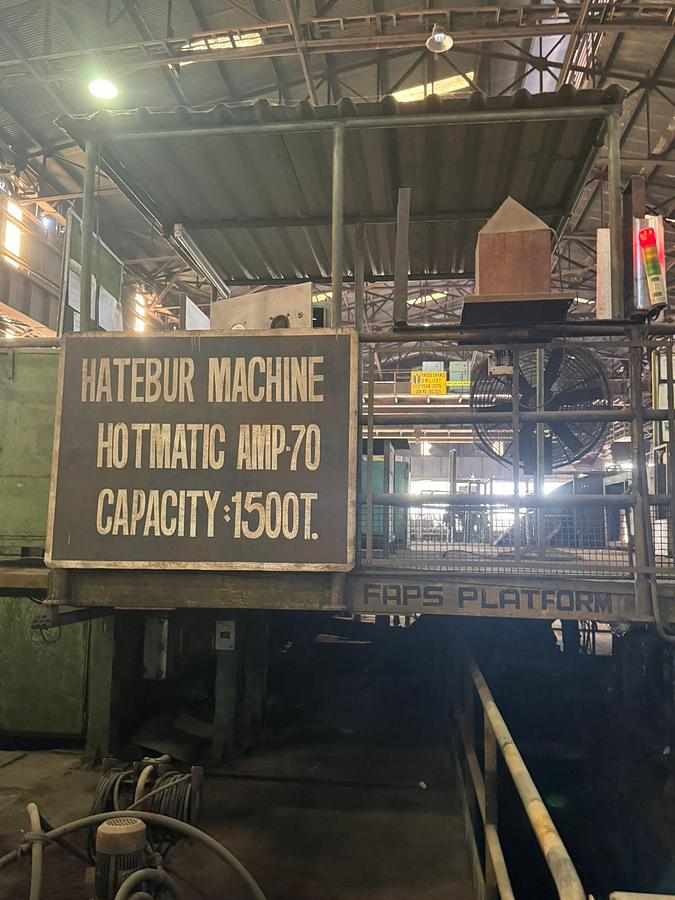

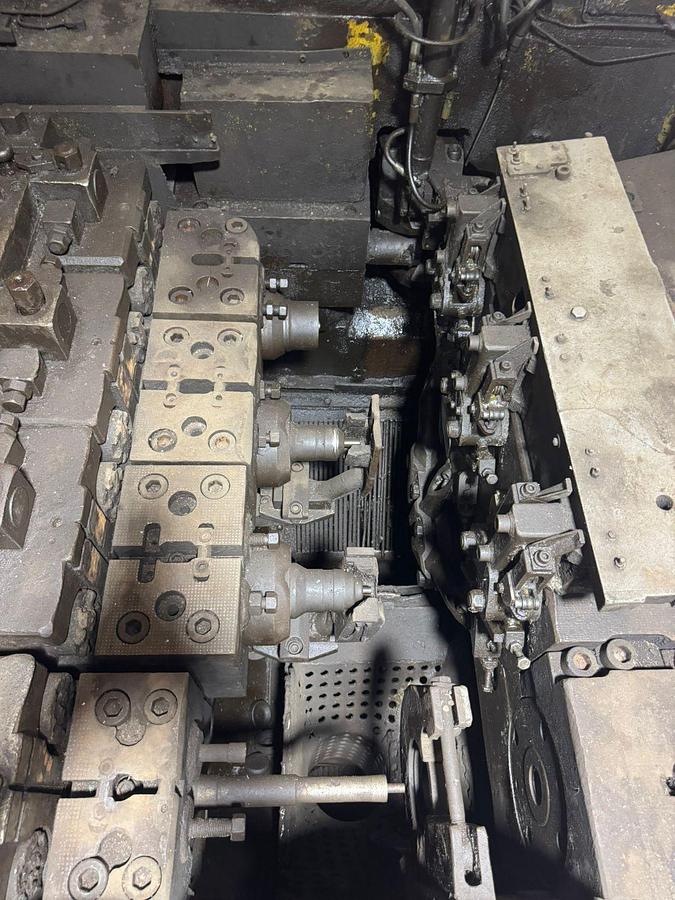

Horizontal Forging Machine

Machine capacity - 1500 tons,

Serial No : 470044,

YEAR OF Manufacturing -1985,

Main motor - 350 kw,

Output Speed - 70 SPM (Present condt-Output speed-45 SPM),

Bar diameter : 36 - 75 mm (Present condt Bar diameter : 36 - 56 mm),

Cut off length : 45 - 150 mm,

Cut off weight : 400 - 5000 Grams (Present condt.Cut off weight : 400 - 1500 Grams),

Max. a/f in hex. Components : 130 mm,

Max. a/f in square components : 100 mm,

Max. outer diameter (single ring) : 145 mm,

Max. outer diameter (combi ring) : 122 mm,

Number of forging stations : 4,

Forging load of single st. 1./2. st.; 3000/9000 tons,

Forging load of single st. 3./4. : st. 9000/7000 tons,

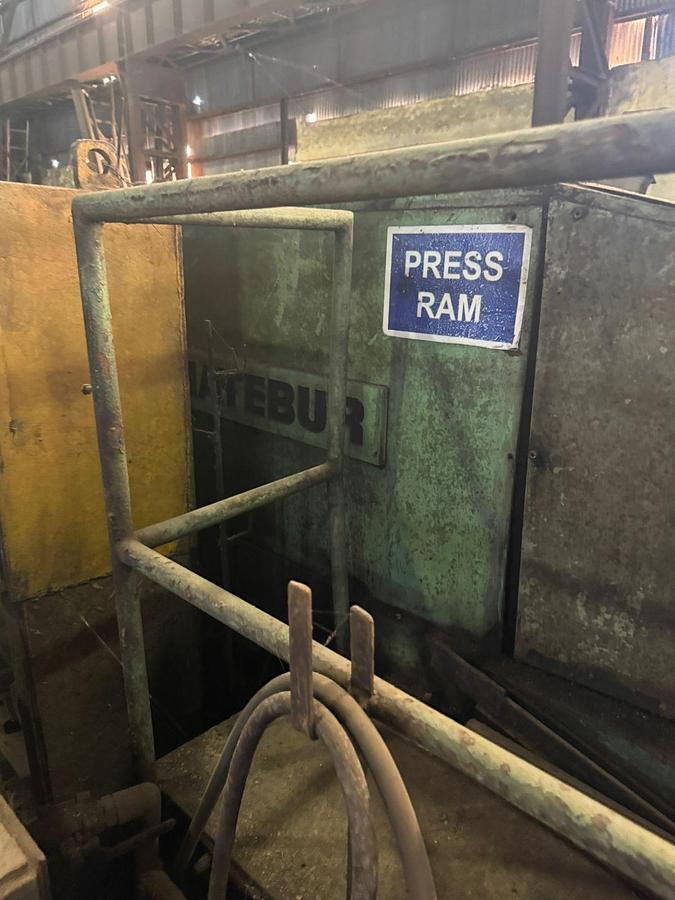

Stroke of press ram : 320 mm,

Stroke of shearing slide : 267 mm,

Stroke of die side ejector : 0/165/180 mm,

Stroke of punch side ejector :85 mm,

Stroke of grippers : 50 mm,

Bar stop adjustment : 105 mm,

Distance between the centre of dies : 320 mm,

Diameter of die holders : 0/290/270 mm,

Diameter of punch holders : 1&4-160/2&3-190 mm,

Feed level : 1500 mm,

Machine dimensions (length x width x height) : 9200 x 6200 x 3100 mm,

Weight of the machine : 172 tons,

Cooling water consumption (at 6 bar pressure) : 120 cubic mtr per hr,

Compressed air consumption : 4bar.

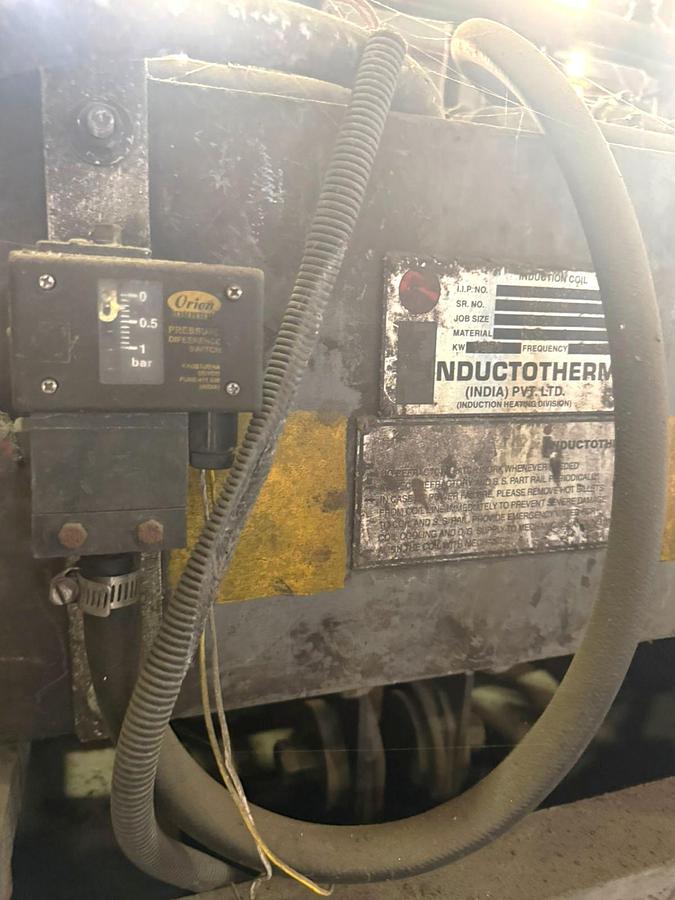

Heater Coil with control panels

Make : Indototherm

Dia - 50,1500 KW-8 nos, Dia -75,1500 KW - 8 Nos,

Dia - 75,1250 KW-10 nos, Dia -50,1250 KW - 10 Nos,

Dia - 40,1250 KW - 4 Nos.

Annealing Furnace

Make : Wellman

Capacity : 1 Tonnes/ Hr,

Energy source : Electric,

Type : Twin Basket/Tray pushing type,

Basket/Tray Size : 600 x 470 x 460

Length : 16 Mtr,

Width : 2.75 Mtr,

No of Zone : 9,

Heaters : Zone 1 To 3 - Hanging Type, Zone 4 To9 -Strip Type,

Other : 8 Re-Circulating fans, Hydraulic Pusher, Force cooling blower, Scada system.

Air Compressors 1 & 2

Make : Ingersoll Rand

Sr.No : NAR 10242629,

Model No : R1601-X8.5AC,

Capacity : 29 Cu M/Min,

Type of compressor : Screw compressor,

Nominal Operating Pressure : 8 BAR,

Cooling type : Air Cooled,

Motor Capacity - 160 KW.

Shot Blasting Machines

Model No : Indabrator M/c No : 2K1521/2K1522,

Capacity : 14 Cubic Feet,

Type : Super 2 Tumblast with Pulse Jet -3,

Dust Collector : 1036 RA108,

2 Nos.

Grade Sorting Machines

Make : Technofour,

Model - Multifect-ECX-S,

Version - 21.03.10,

System - Auto System,

Threshod Type - Eliptical With Go/No-Go Map,

Sort Type - Two Ways,

Threshod PO - 300 (Circle),

Basic Gain Size - 2.2,

Frequency - Single Frequency,

Min Coil Size : 100 x 60 mm,

Max Coil Size - 155 x 880 mm,

Counting Type - Auto Counting,

Power Supply - 440 Volts,

2 Nos.
