Ring Rolling Line Wagner RAW 125/100-2000/500

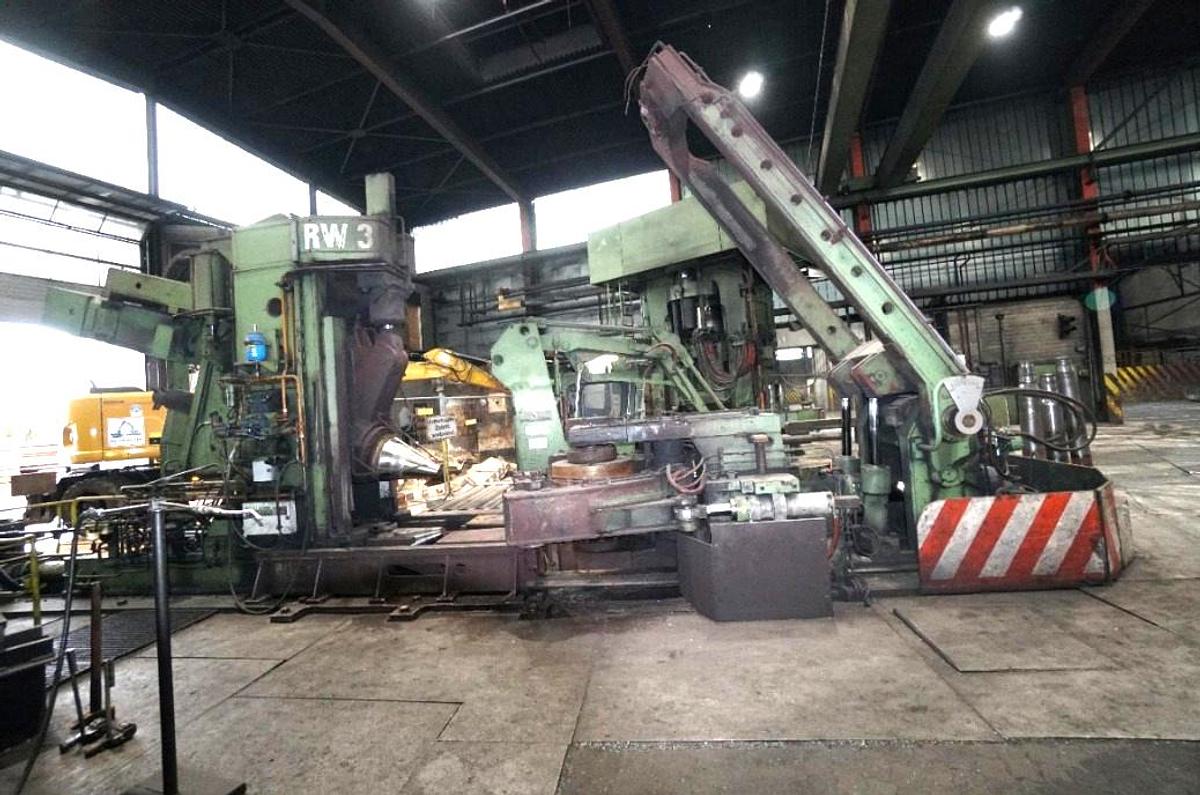

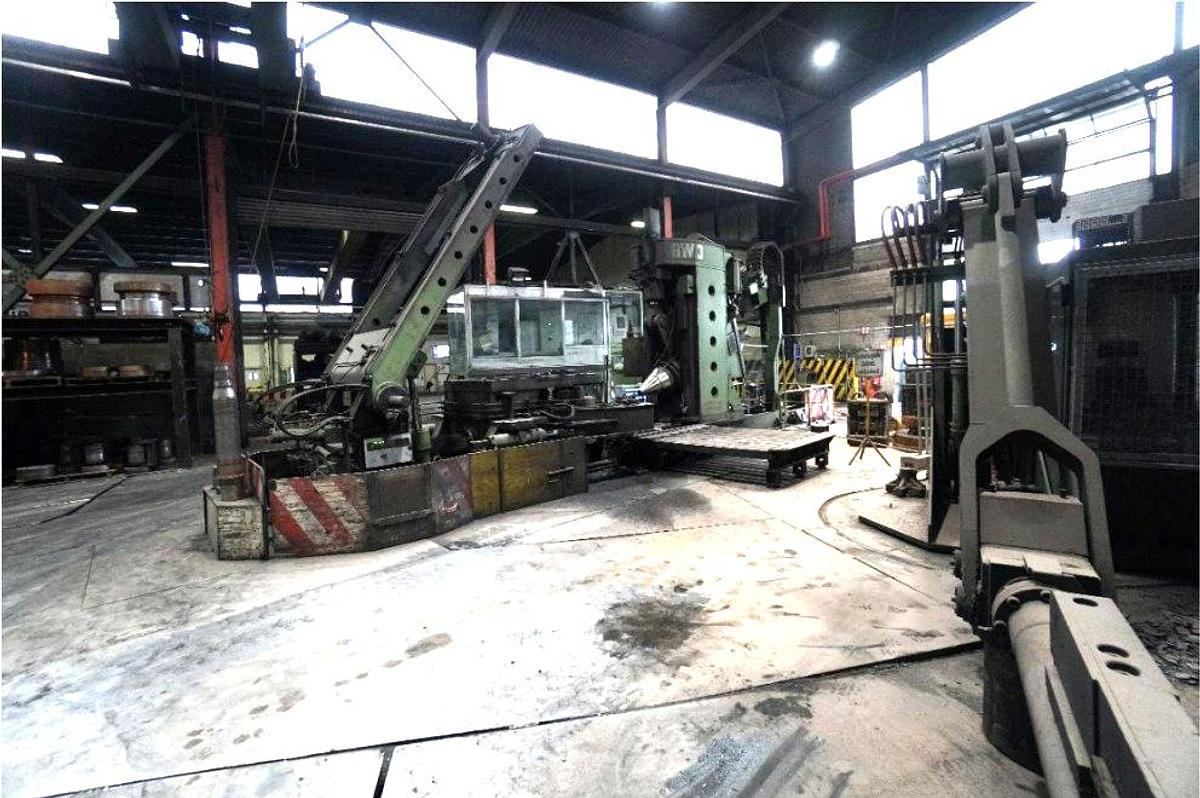

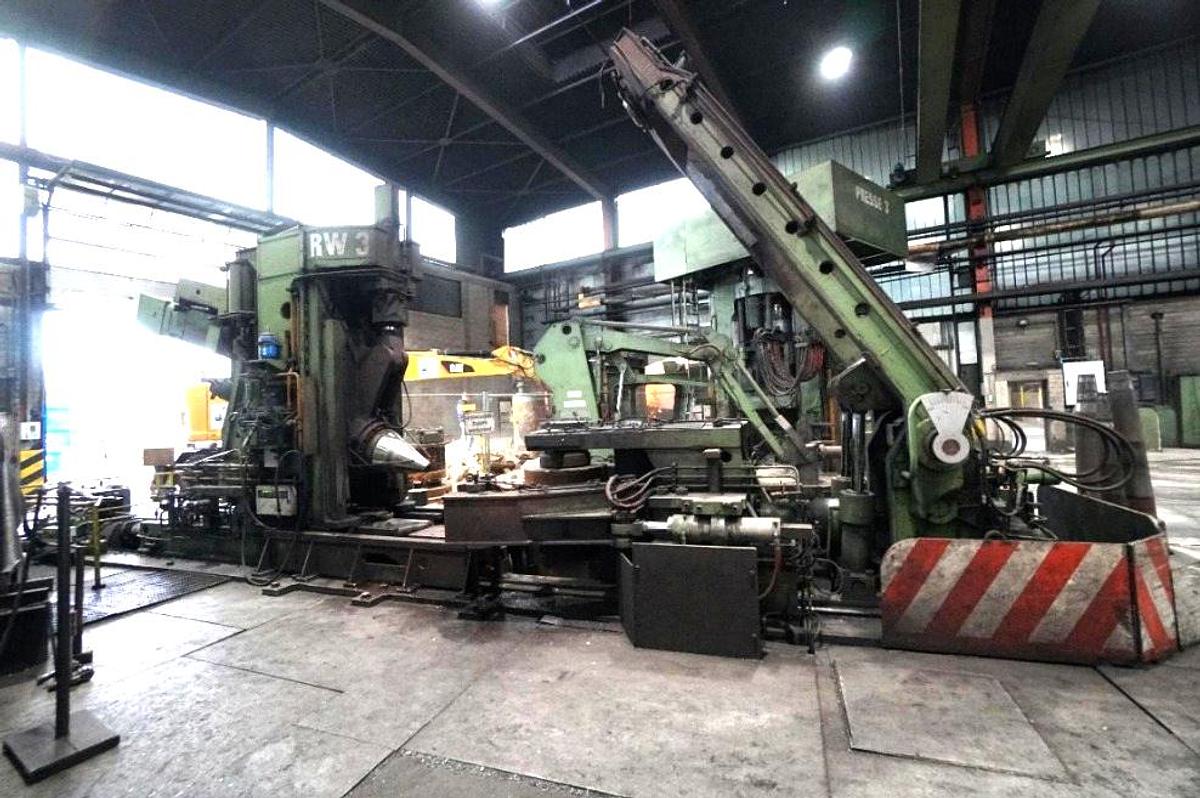

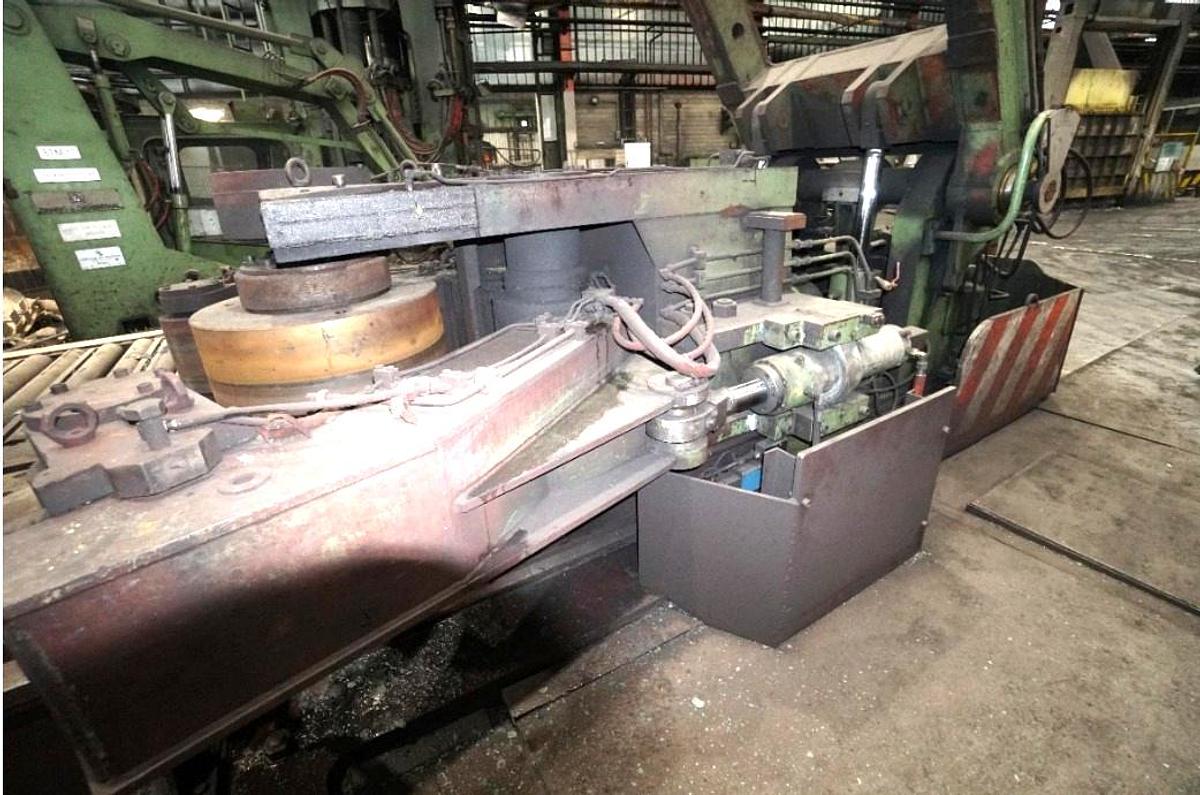

1. Ring Rolling Machine Wagner RAW 125/100-2000/500

Exterior ring dia. : 300 - 2000 mm,

Ring height : 40 - 500 mm,

Weight of coil : 800 kg,

Radial force : 125 tons,

Axial force : 100 tons,

Driving power radial : 250 kW,

Driving power axial : 2 x 180 kW,

Roll speed : 0.4 - 1.6 m/s.

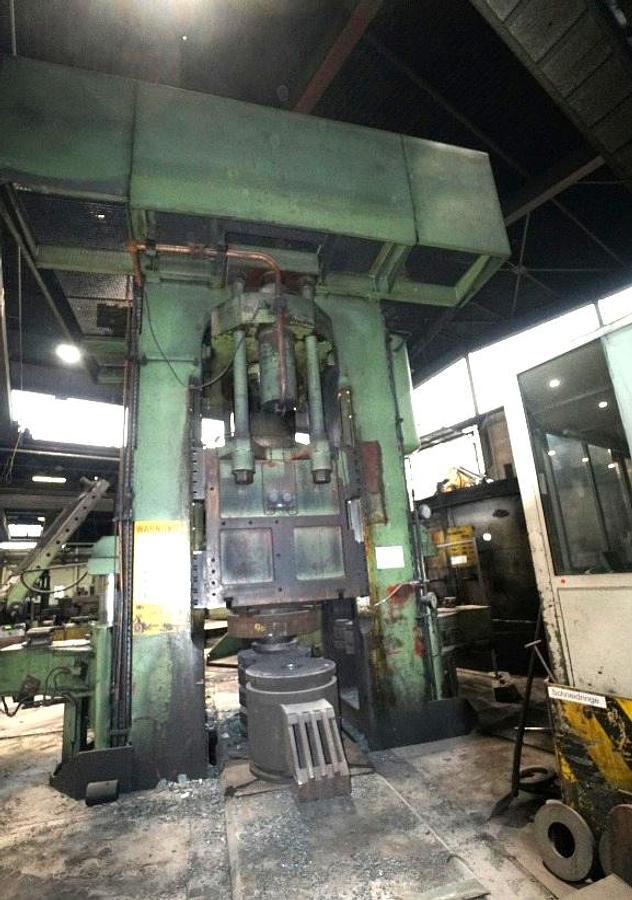

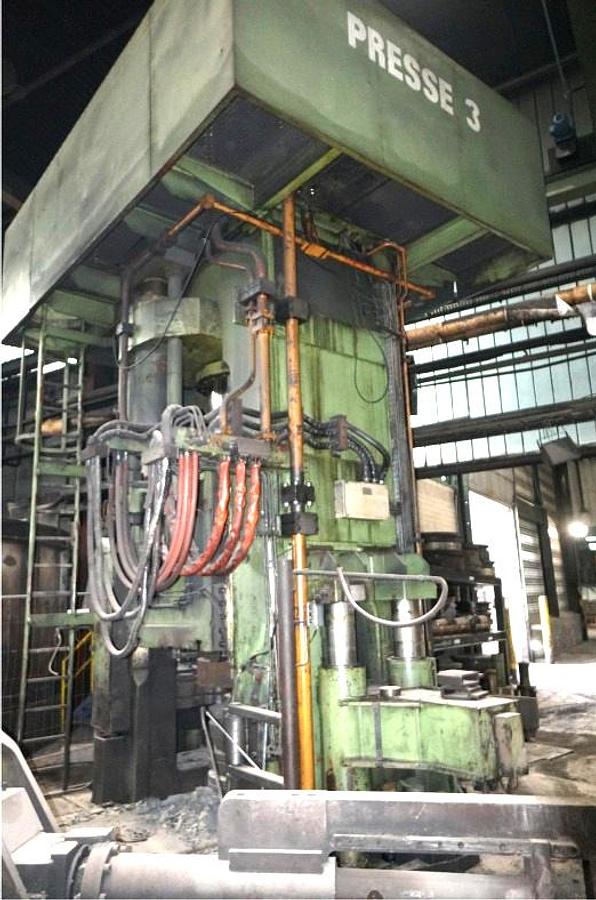

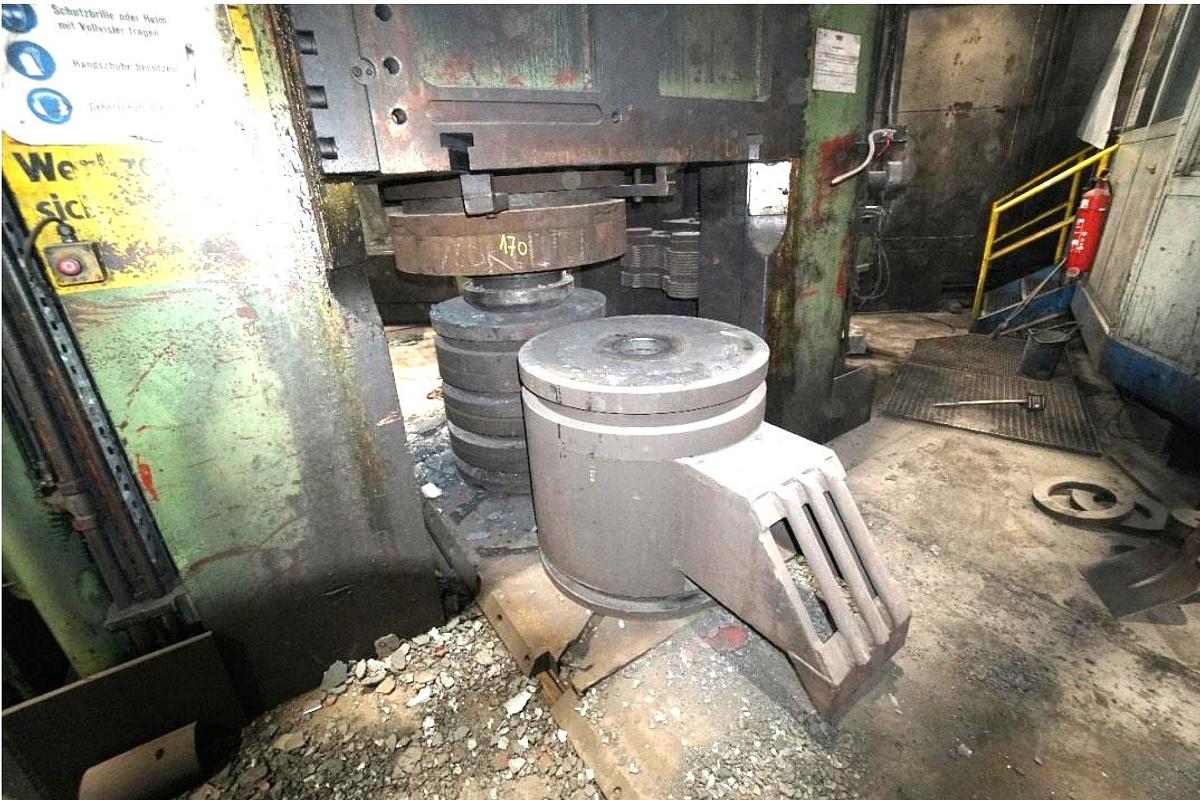

2. Ring Blanking Press Wagner RSTPÖ 1500 S

Capacity : 1500 tons,

Stroke : 800 mm,

Daylight (Between moving table + ram) : Max. 2000 mm, Min. 1200 mm,

Table size left to right (moving table) : 1100 mm,

Table size Front to back (moving table) : 1900 mm,

Approach speed : 300 mm/sec,

Pressure speed : 50 mm/sec,

Return speed : 250 mm/sec,

Diving power : 3 x 250 kW,

Working Pressure : 315 bar,

Height of machine above floor : 7100 mm,

Total weight : 142 tons.

3. Stationary Charging Manipulator Dango & Dienenthal STM 12

Capacity : 1200 kg,

Yom : 2001.
