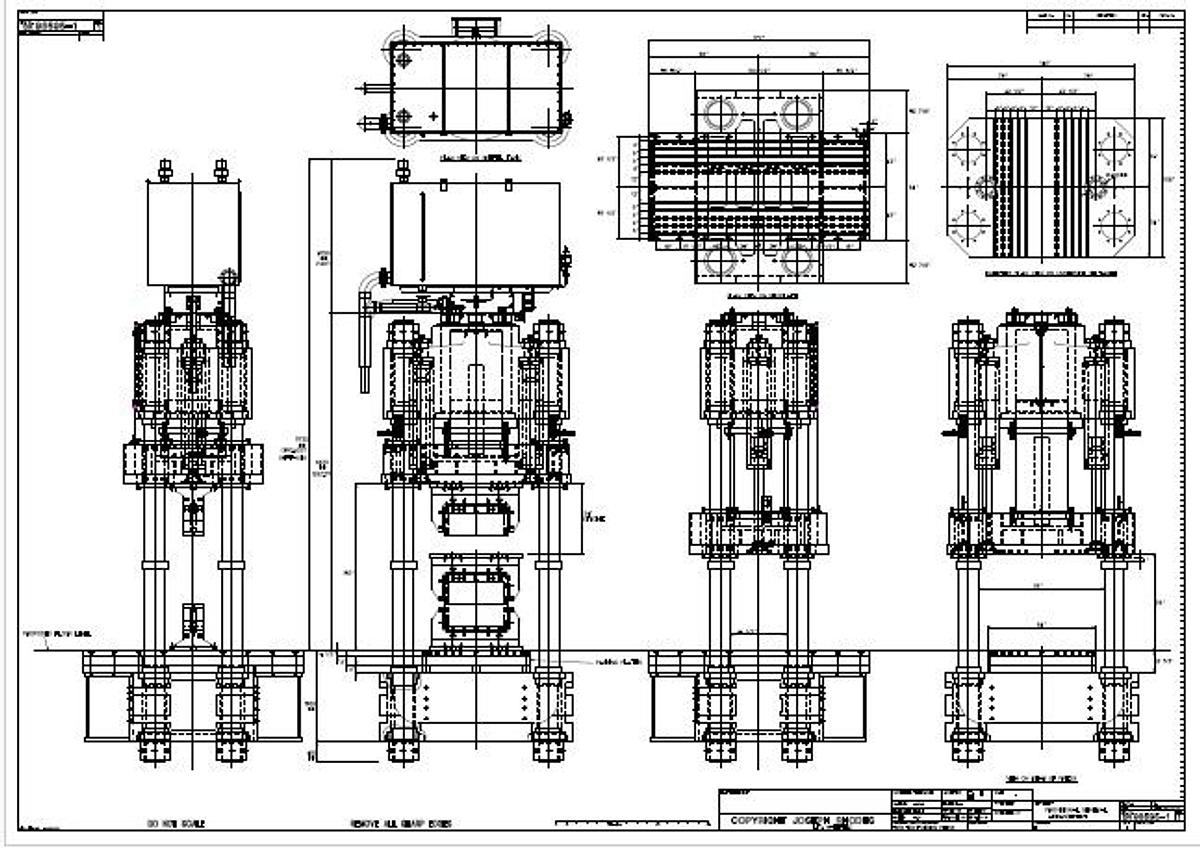

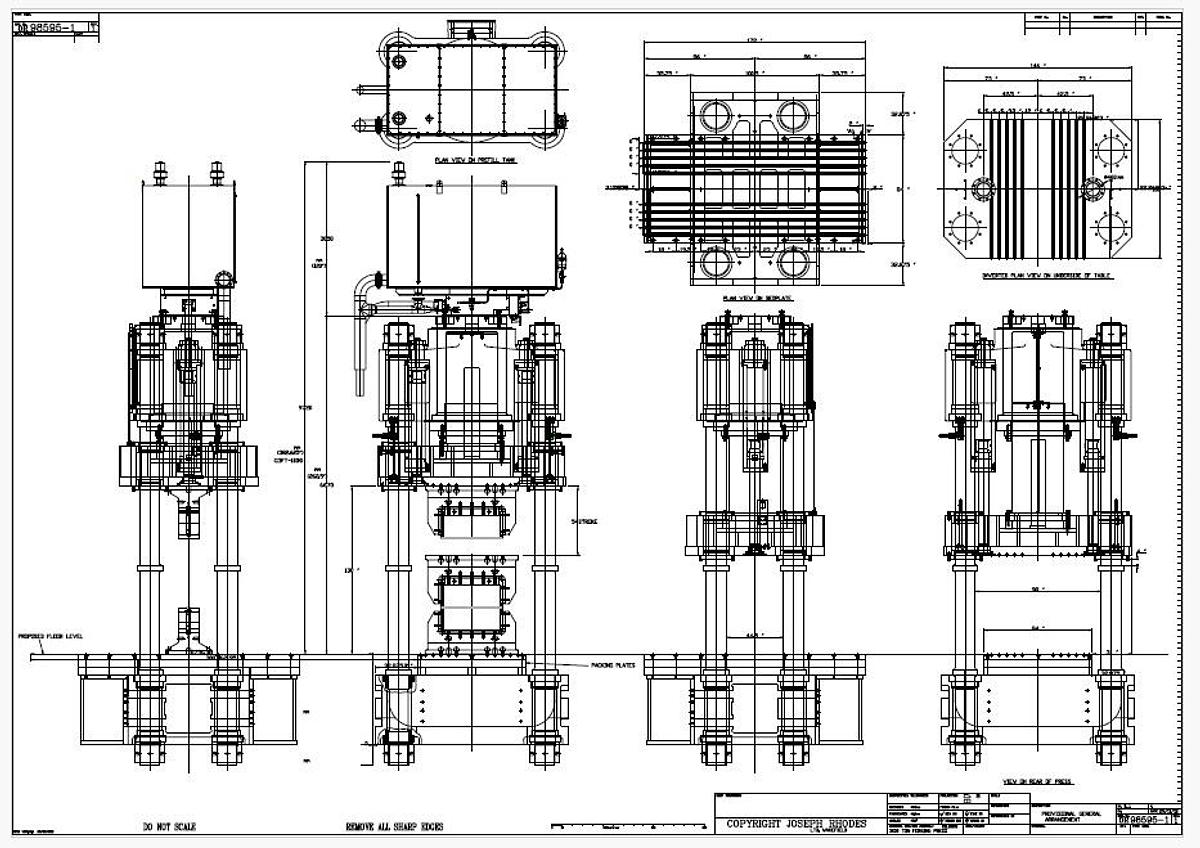

3000 tons Press Forging Open Die Hydraulic Davy

Capacity : 3000 tons,

No. of columns : 4,

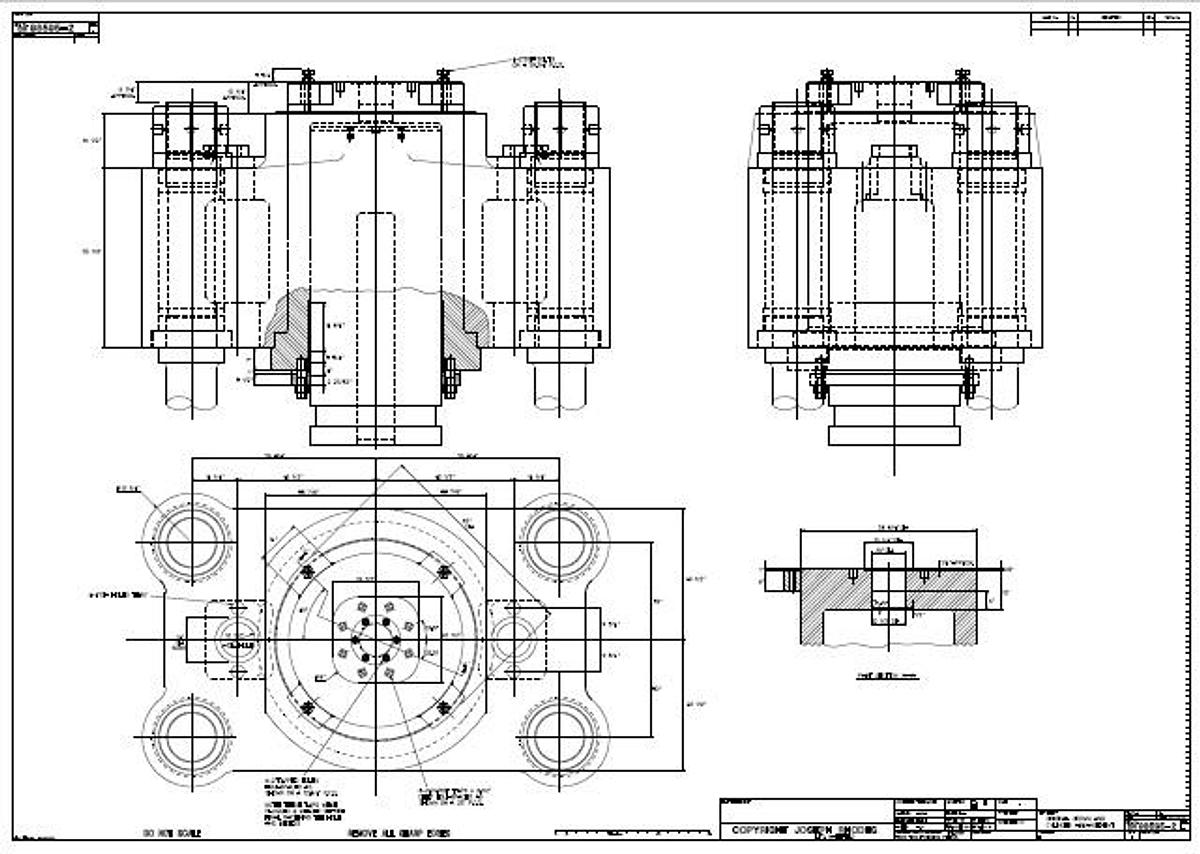

Main Rams

Qty : 1

Bore : 1000 mm,

Stroke : 1500 mm,

Pressure : 5500psi.

Return Rams

Qty : 2,

Bore : 200 mm,

Stroke : 1500 mm,

Pressure : 5500 psi,

Original Speeds :

Approach : 5 In/s,

Forge : 0.34 In/s,

Return : 4.3 In/s,

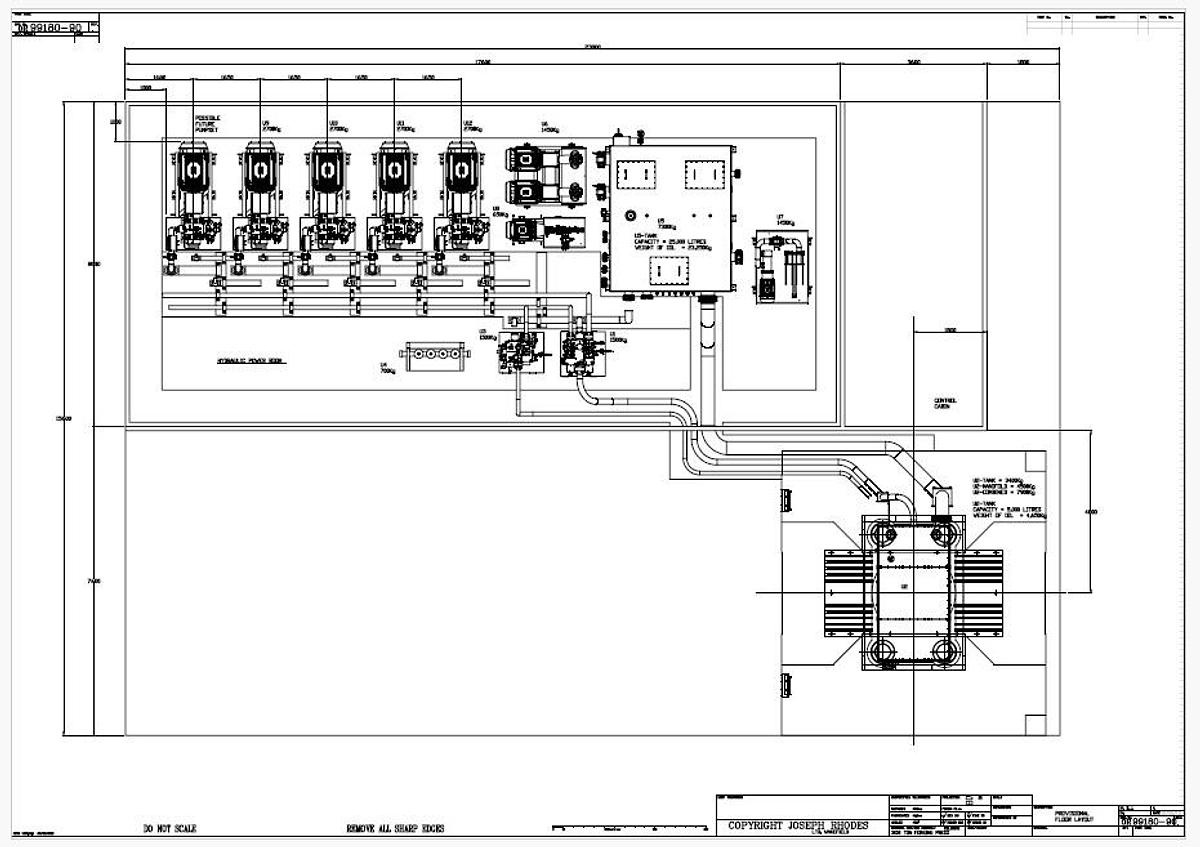

We have included for piping within a unit assembly, but have not included for any pipework between uniits.
