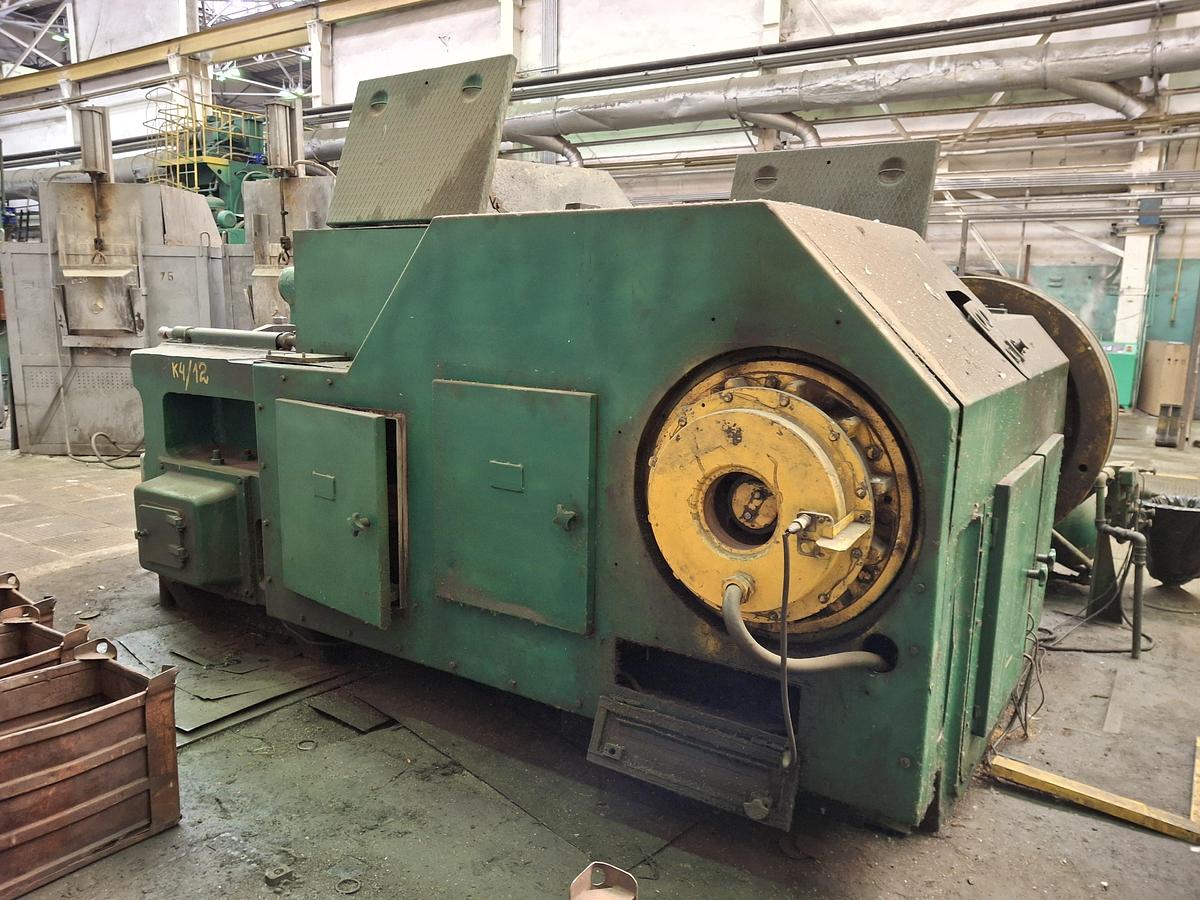

Upsetter Stanko V1136

2"

Capacity : 400 tons,

Movable die stroke : 125 mm,

Max. upsetting ram stroke : 290 mm,

Upsetting ram work stroke : 190 mm,

Upsetting ram return stroke with closed dies : 60 mm,

Distance between upsetting ram and dies stroke forward : 100 mm,

No. of ram strokes per minute : 50,

Die dimensions: length : 450 mm,

Width : 160 mm,

Height : 480 mm,

Main drive motor power : 21 kW,

Overall dimensions : floor space 4330 x 3150 mm,

Height above floor level : 1860 mm,

Mass approx. : 36 tons.
