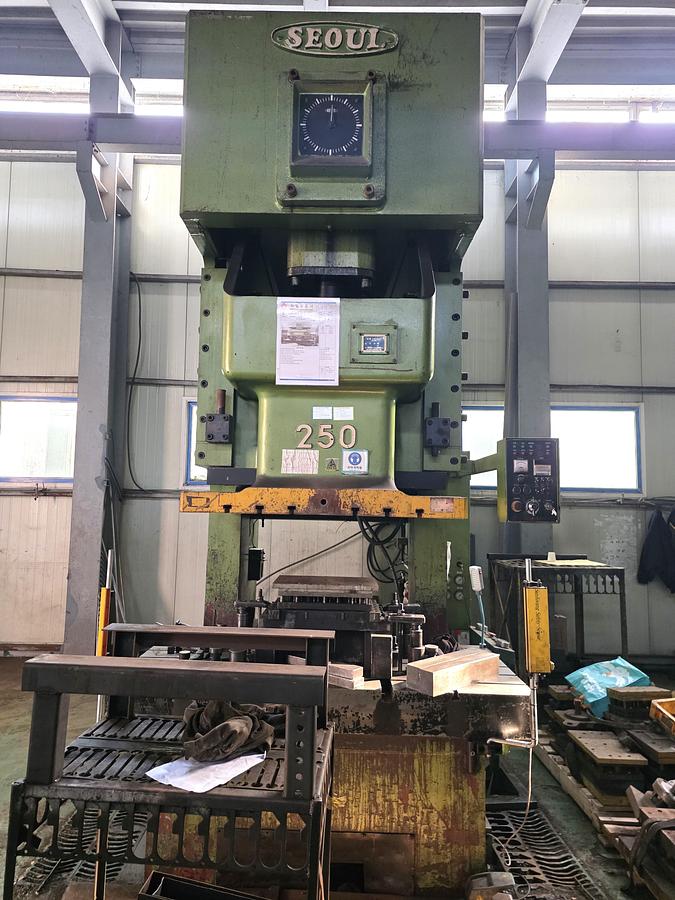

250 tons Press Trimming Seoul SSC-250

Capacity : 250 tons,

Stroke : 200 mm,

Stroke per minutes : 38 SPM,

Die height : 600 mm,

Slide adjustment : 130 mm,

Slide area (LR x FB) : 1360 x 800 mm,

Bolster area (LR x FB) : 1900 x 900 mm,

Frame gap : 465 mm,

Bolster thickness : 190 mm,

Main motor : 60 x 4 kwXp,

Motor slide adj : 1.5 x 4 kwXp,

Cushion

Capacity : 18 tons,

Stroke : 130 mm,

Pad area : 700 x 480
