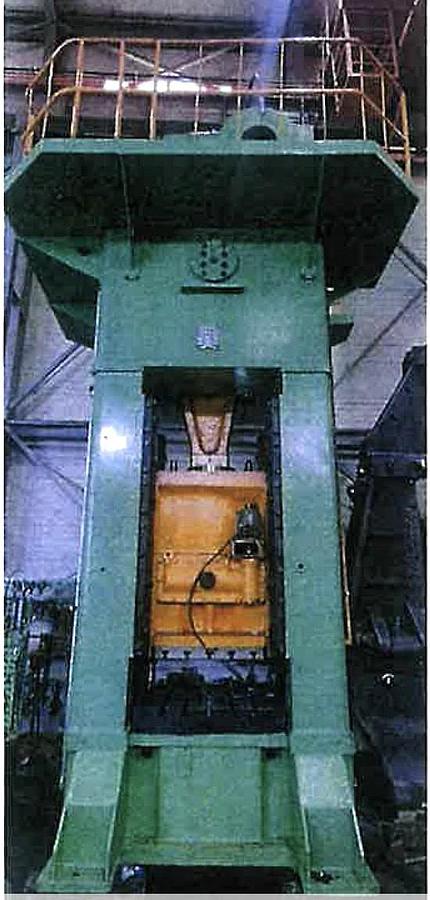

400 tons Press Trimming TMP Voronezh KA9536

Capacity : 400 tons,

Stroke : 400 mm,

No. of stroke per min : 25,

Slide when in down position and adjustment up : 470 mm,

Adjustment stroke : 160 mm,

Bed dimensions : 1000 x 1000 mm,

Dimensions of opening in bed : 630 x 630 mm,

Slide dimensions : 800 x 800 mm,

Bolster plate thickness : 160 mm,

Main drive motor power : 40 kW,

Overall dimensions :

Floor space : 3410 x 3410 mm,

Height above floor lever : 5940 mm,

Weight : 32.7 tons.
