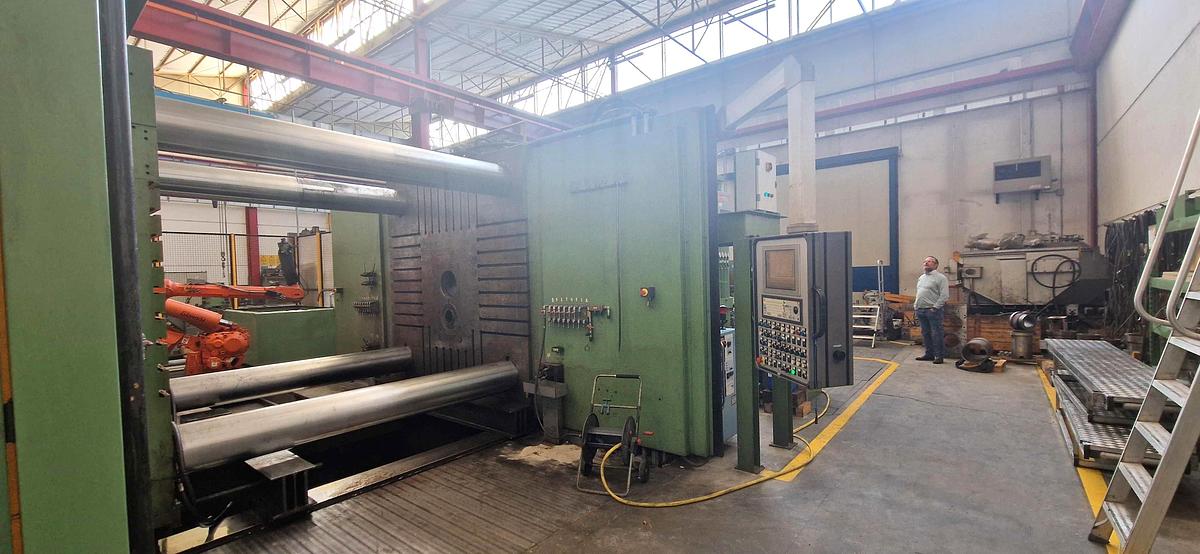

Die Casting Press IDRA OL3500

Capacity : 3500 tons (3700 tons approx),

Number of prints performed : 15000

Number of hours of service : 1600-1800

Max width : 8000 mm,

Height : 5430 mm,

Length : 17270 mm,

Space required for column insertion : 23135 mm,

Column extension space requirement : 19700 mm

Total weight : 235000 kg,

High max dies : 2100 mm,

High min dies : 1200 mm,

Table dimension (LxH) : 2800 X 2800

Distance between columns : 1780 x 1780 mm,

Movin gtable stroke : 1600 mm,

Central extraction stroke : 380 mm,

Closing force : 37050 kn,

Opening force : 9260 kn,

Maximum iniection force : 2552 kn,

Maximum iniection pressure : 470 bsr,

Central extraction pressure : 1005 kn,

Maximum operating pressure (high pressure) : 160 bar, Maximum operating pressure (low pressure) : 60 bar, Tank capacity : 6813 litres,

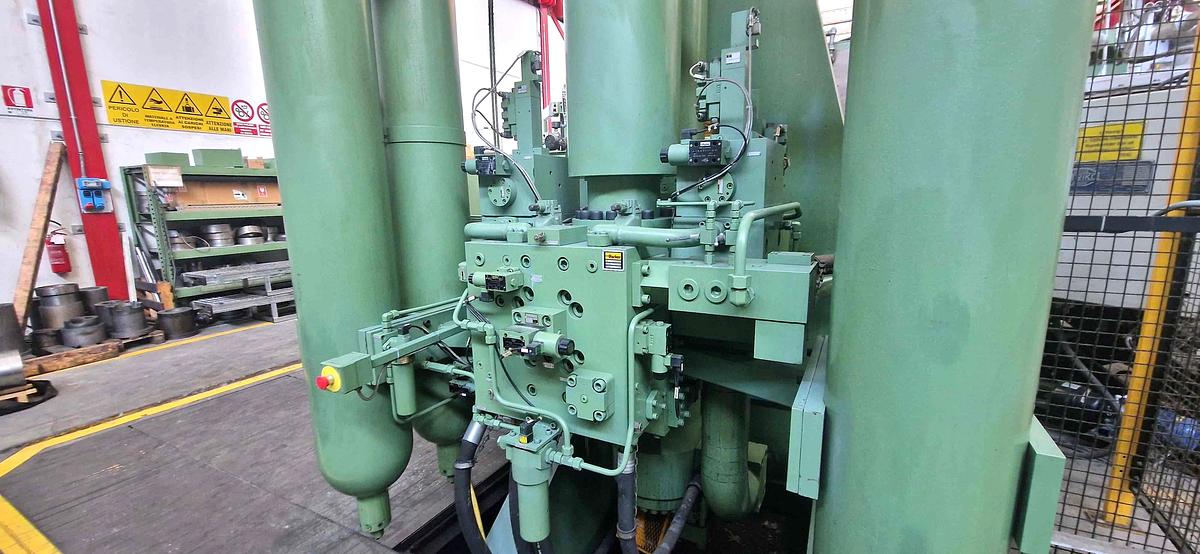

Accomulator second step : 125 liters,

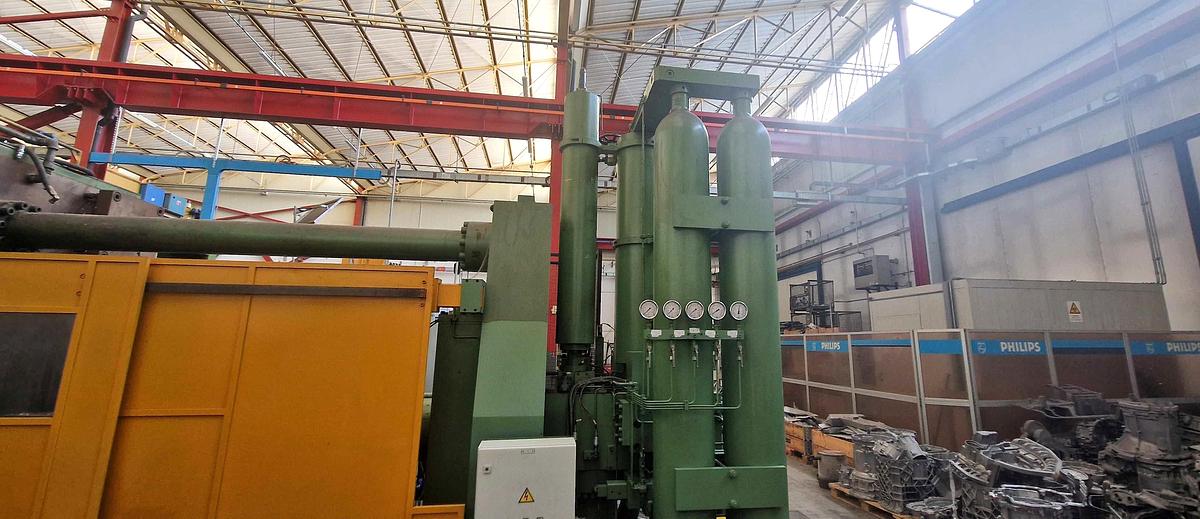

Nitrogen 2° Step (225x4)

Installed power: 193 kw,

Radials : 3 mobile part moving part 2 fixed part,

Squeeze Program by radial valves

Injection progressive

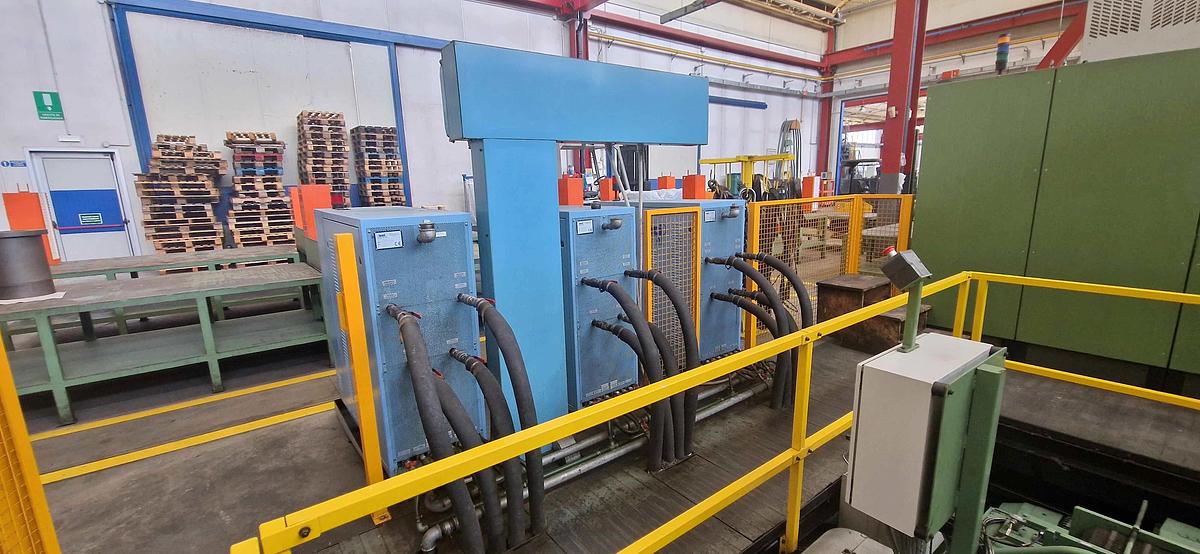

n.3 preheating die IECI double circuit

n.1 Cenral IECI

Control INJECT II complete of analisy of injection curve  Robot : ABB IRB6400 Foundry

Technical manuals available
