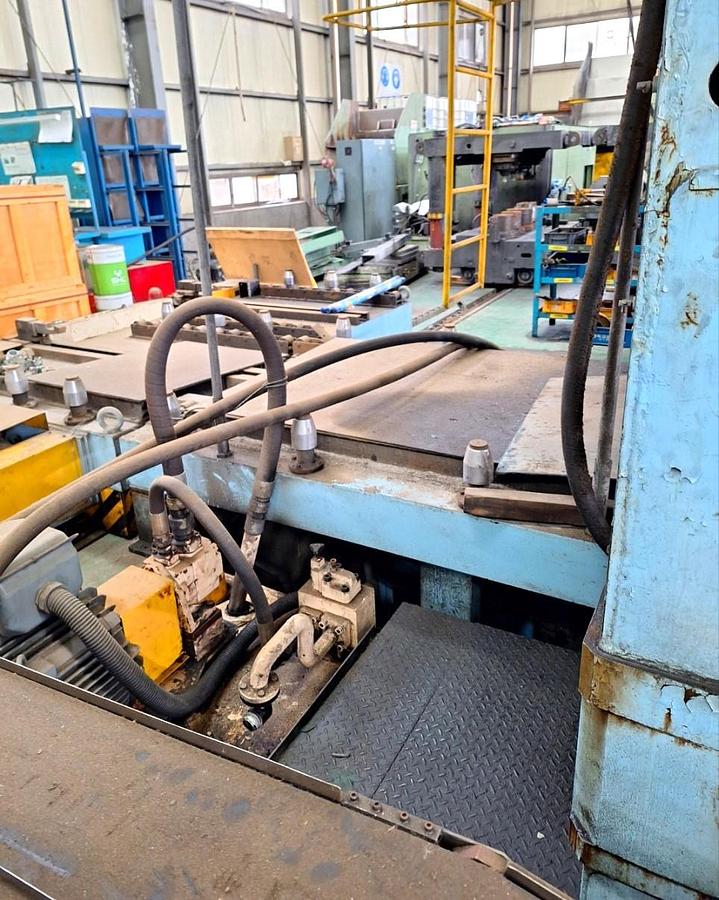

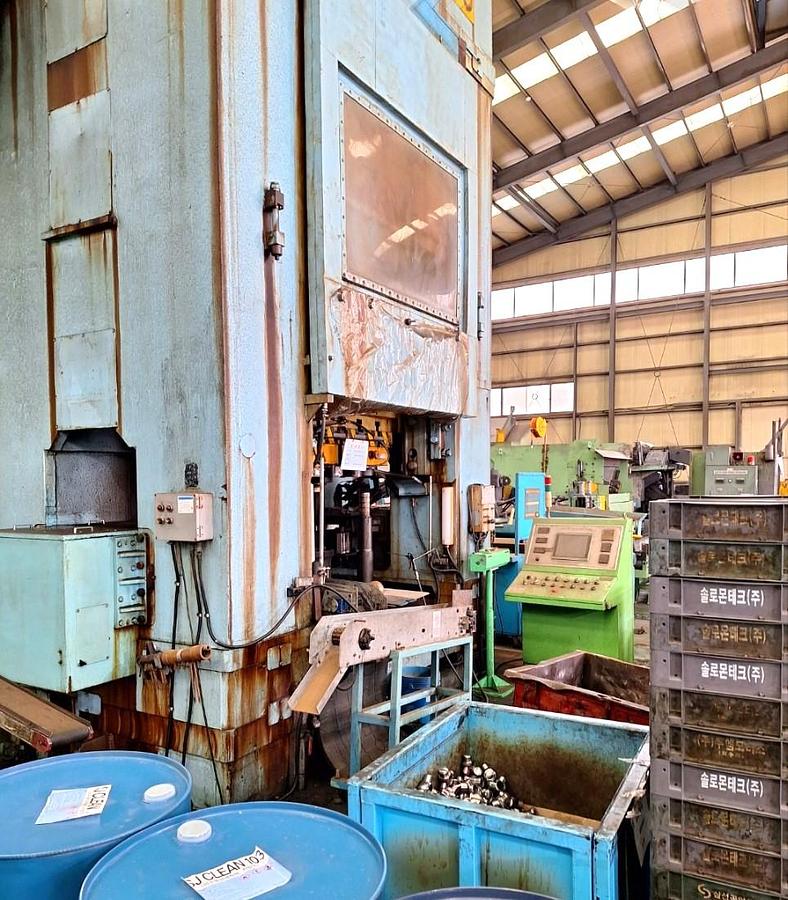

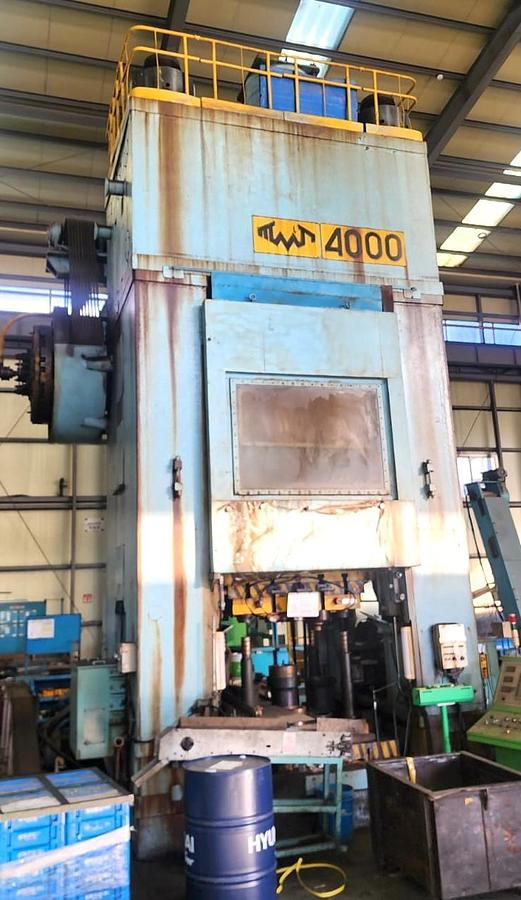

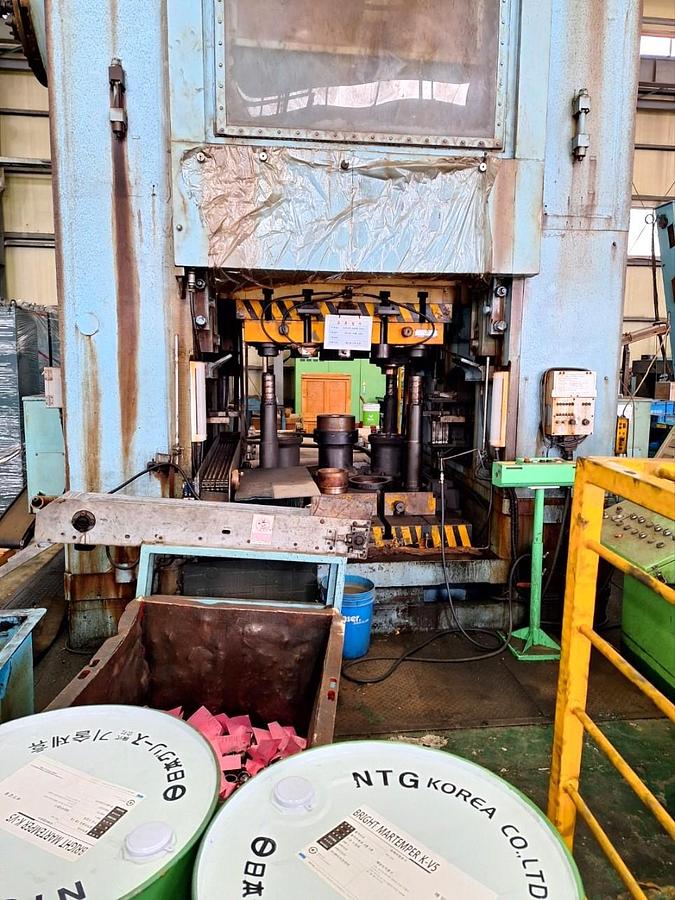

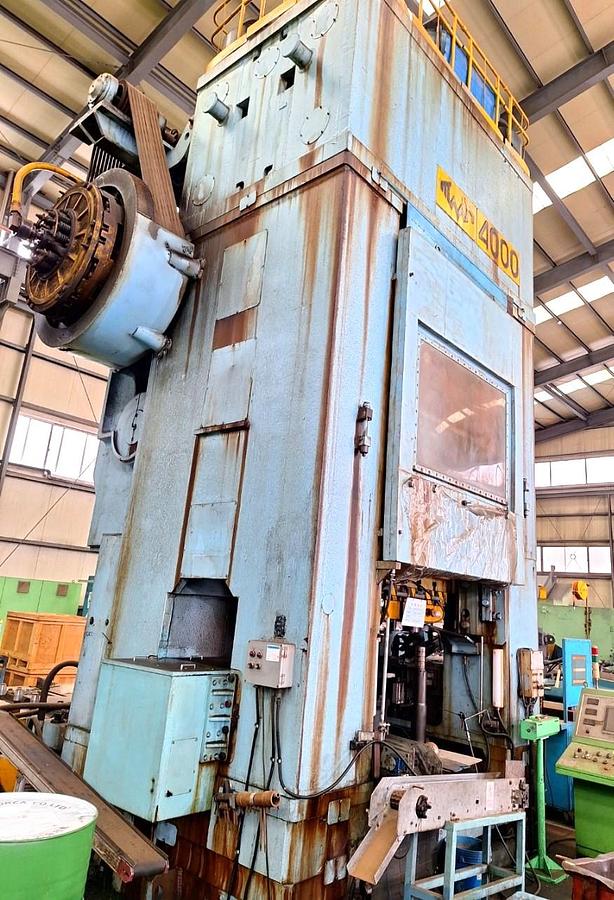

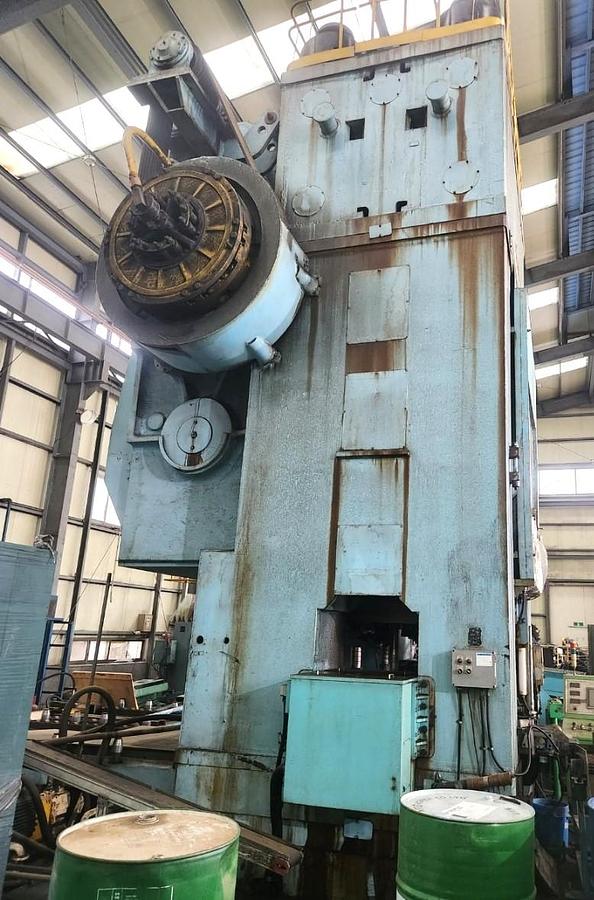

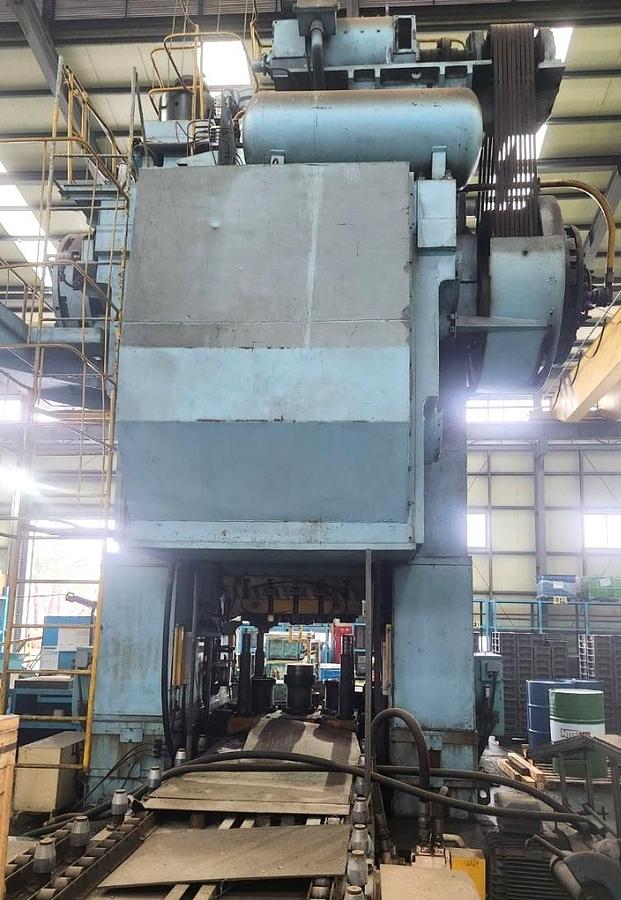

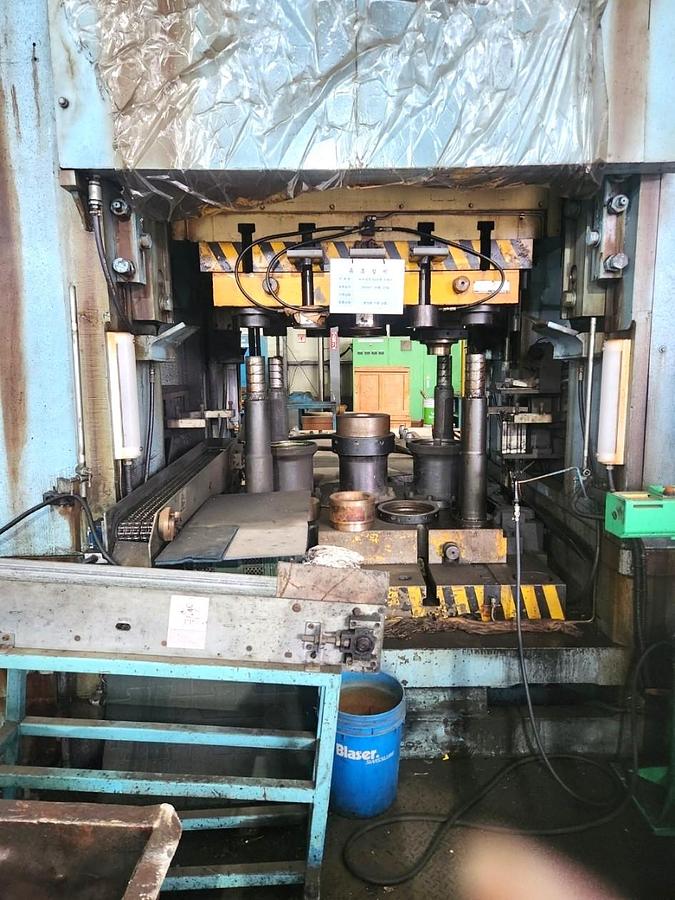

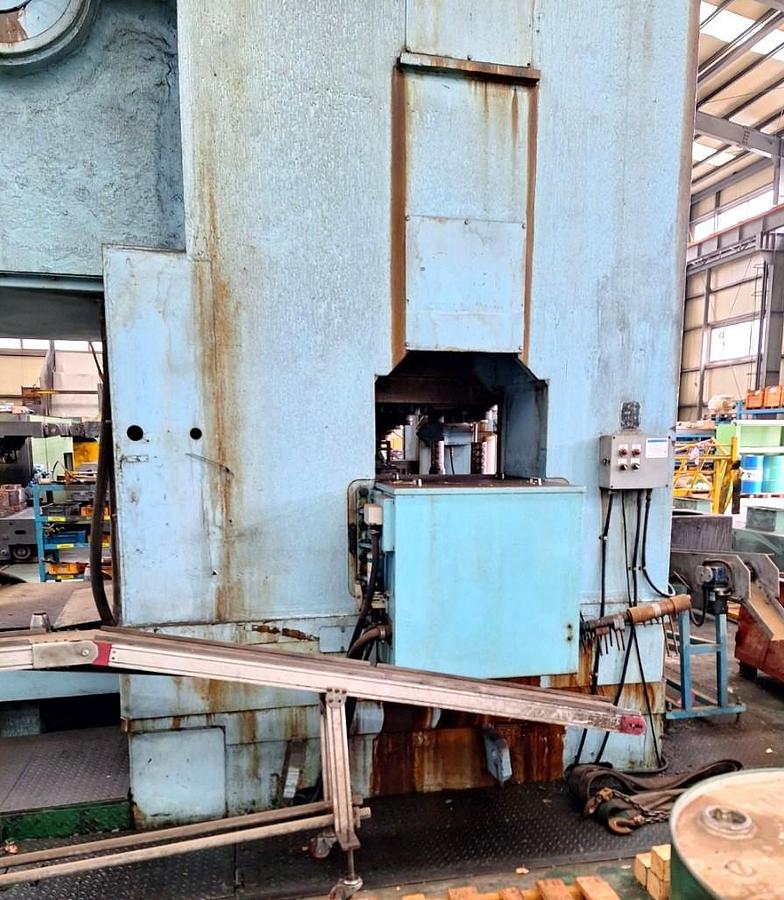

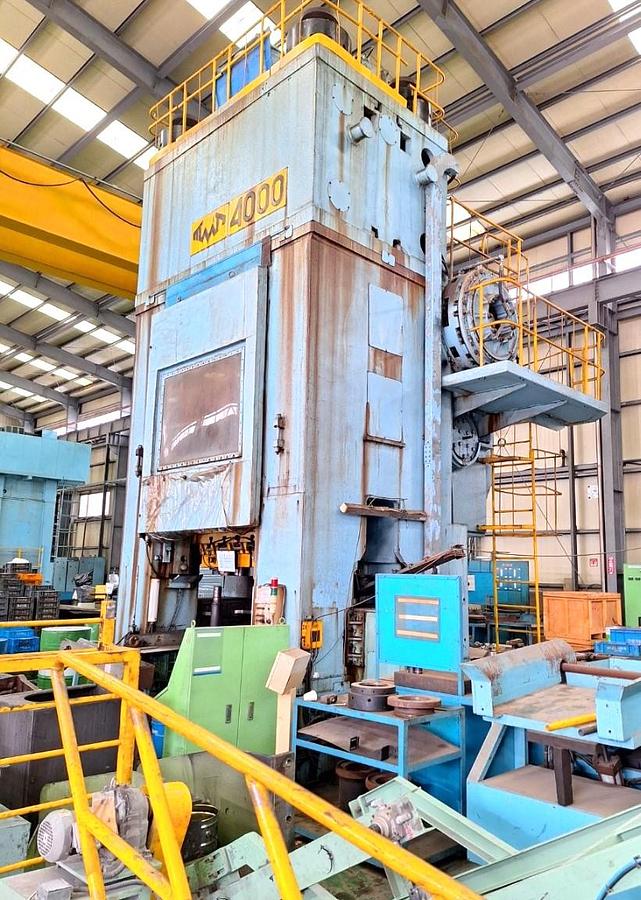

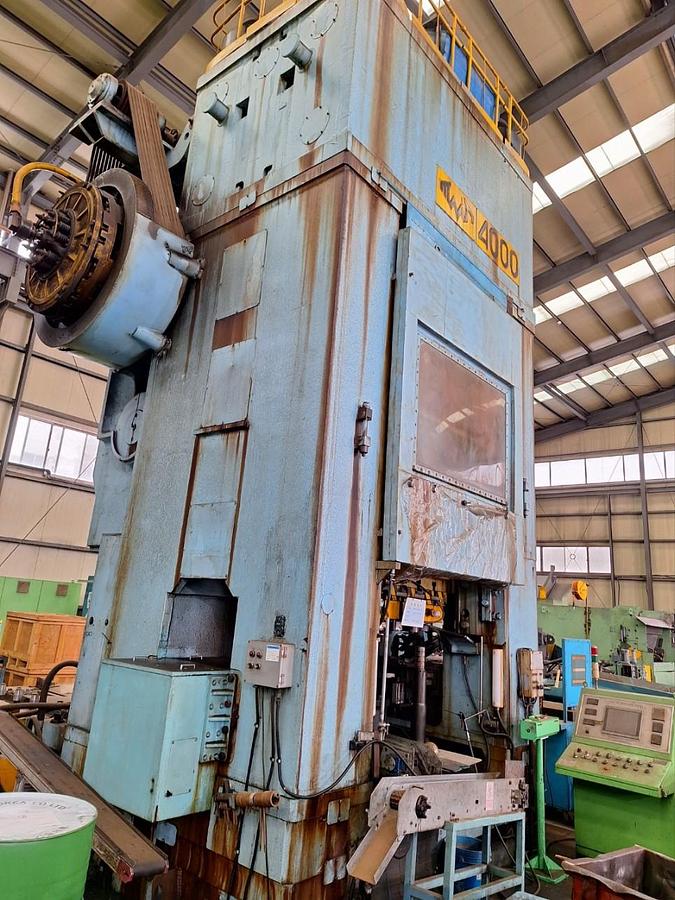

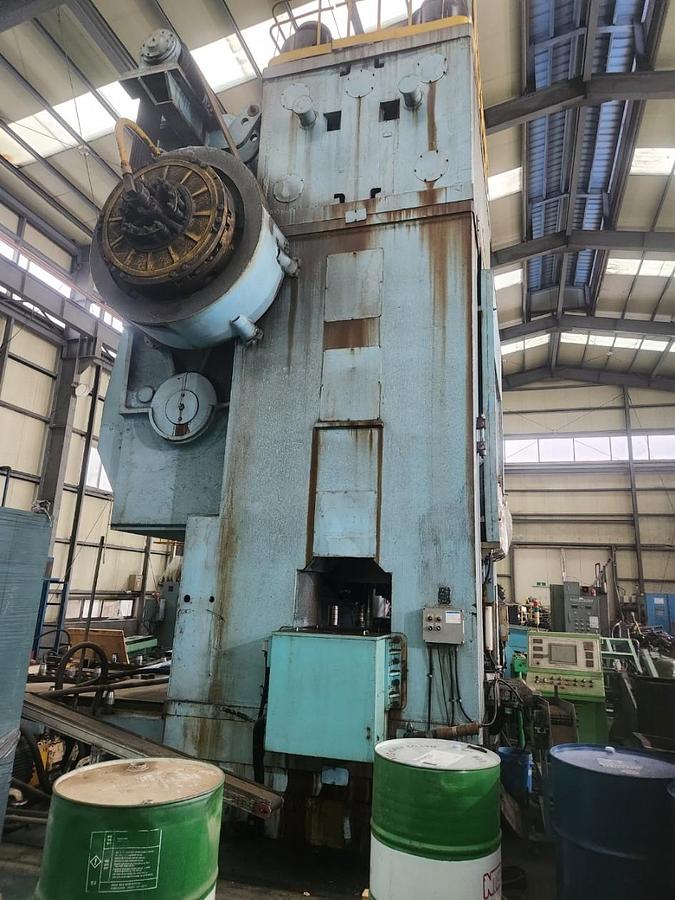

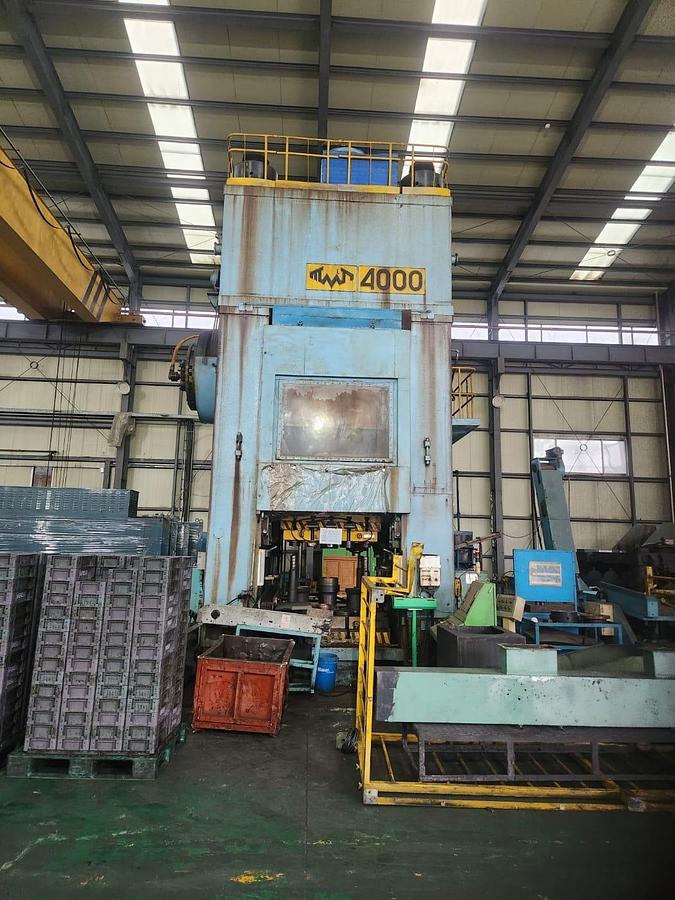

4000 tons Press Cold Forging TMP Voronezh Russia K8346

Capacity : 4000 tons,

Slide stroke : 200 mm,

Stroke per minutes : 16,

Max distance between table and ram: 720 mm,

Bolster plate-to-ram adjustable stroke: 20,

Slide dimension (LR x FB) : 1000 mm,

Table dimension (LR x FB) : 1620 x 1620 mm,

Distance between uprights : 1470 mm,

Upper knock-out :

Capacity : 40 tons,

Stroke : 60 mm,

Lower knock-out :

Capacity : 125 tons,

Stroke : 125 mm,

Overall dimensions: 5290 x 4680 x 7360 mm

Main motor : 132 kW,

Weight: 240 tons.

Changed new

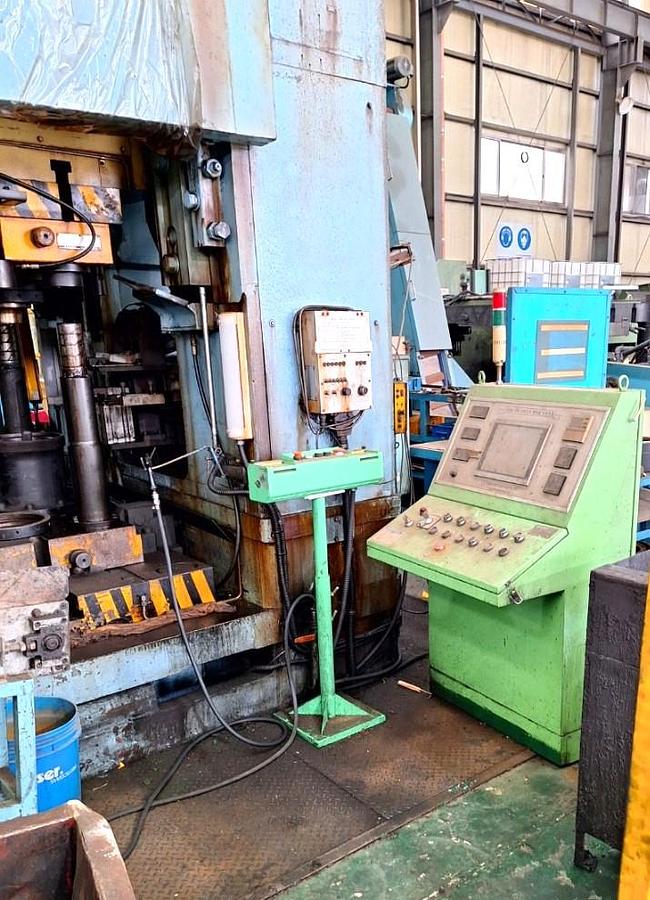

1) DC control panel

2) Mold life device

3) Under hydraulic cylinder

4) Hydraulic motor 75 HP

5) Slide stroke : 200-400 mm,

6) Die height : 900 - 1100 mm,

7) Bed (K/0.8) 1 point - 3 point,

pitch 400, Stroke 60-400 mm,

9) Slide K/0 3 point, pitch 400, Stroke 60 -400 mm,
