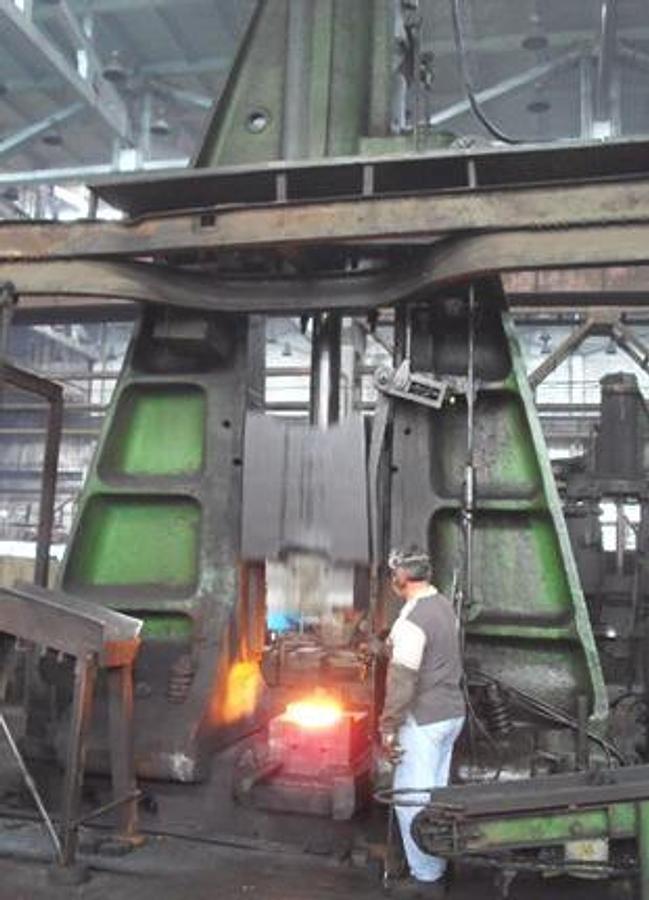

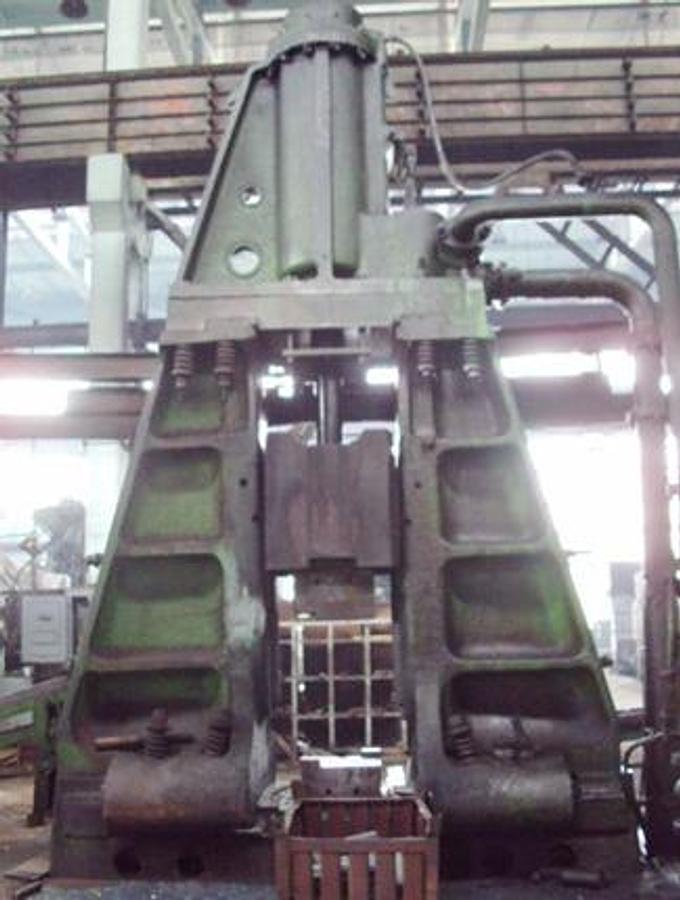

5 tons Hammer Forging Pneumatic Voronezh M2147
or
Call +919920651051
Specifications
| Manufacturer | TMP Voronezh Russia |
| Model | M2147 |
| Condition | Used |
| Stock Number | MA3201 |
| Item condition | Good condition |
| Capacity tons | 5 |
Description
Capacity : 5 tons,
Energy of blow : 12,500 kgm,
Impact energy : 125 kj,
Ram weight : 5000 kg,
Max. ram stroke : 1300 mm,
Number of strokes per minute : 50,
Distance between guides : 800 mm,
Size of the ram, front to back : 950 mm,
Size of die holder, front to back : 1180 mm,
Minimal distance slide – die holder : 400 mm,
Total weight : 140 tons.
Anvils weight : 100 ton / 77 +23,
