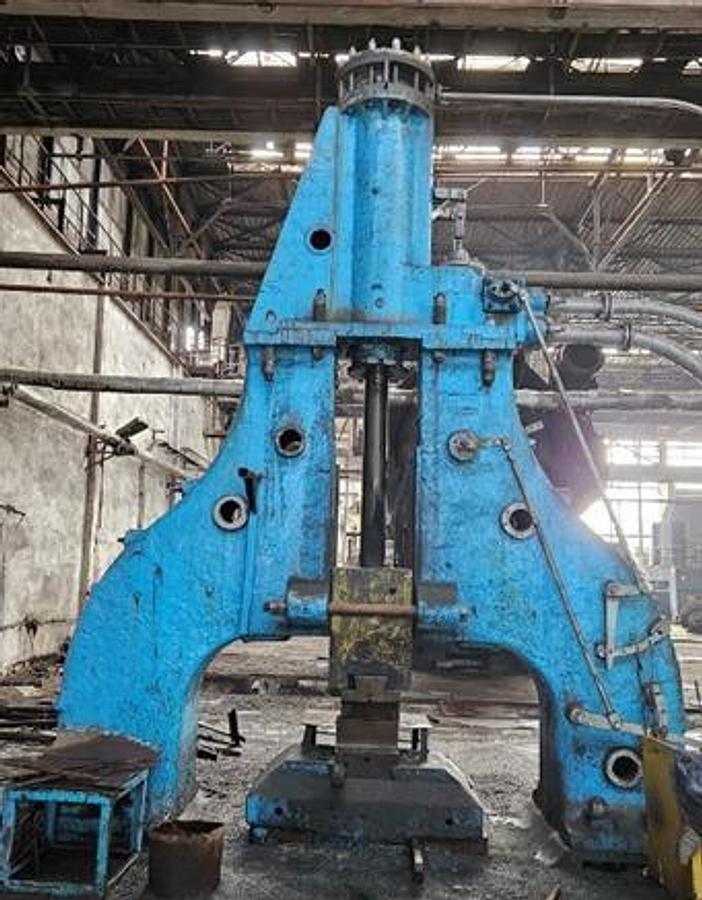

2 tons Hammer Drop Forging Open Die Stanko M1343

Capacity : 2 tons,

Falling parts nominal weight : 2000 kg,

Blow energy : 5000 kgm,

Impact energy : 50 kJ,

Number of blows, max. : 50,

Maximal ram stroke : 1200 mm,

Distance between uprights : 2300 mm,

Working aria height : 530 mm,

Lower die height above floor : 750 mm,

Ram surface : 530 x 290 mm,

Air pressure needed : 6 – 8 Atm,

Air pressure upon discharge : 0.2 – 0.5 Atm.,

Piston diameter : 145 mm,

Cylinder diameter : 380 mm,

Overall dimensions : L = 4900 mm; B = 1930 mm; H = 5350 mm,

Anvil weight : 30 tons,

Total weight : 50 tons.
