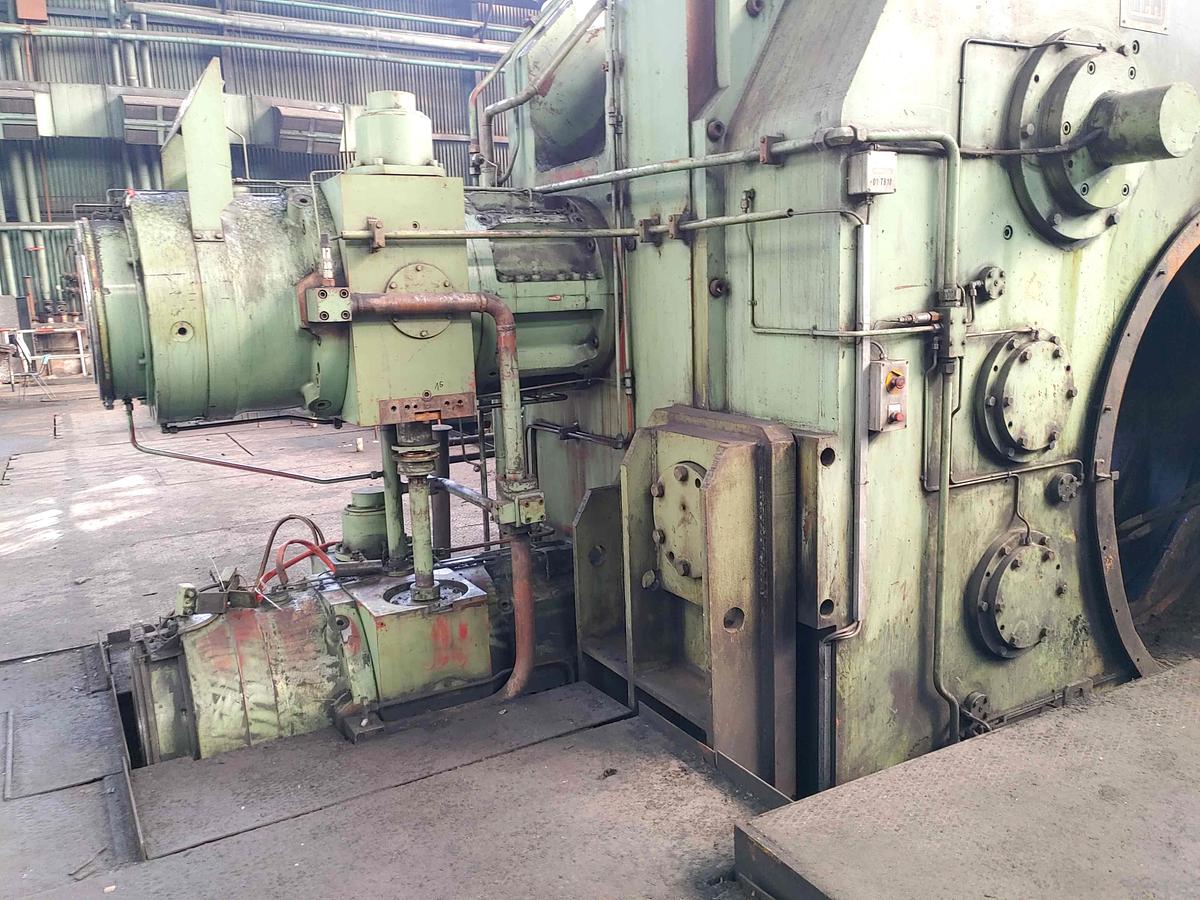

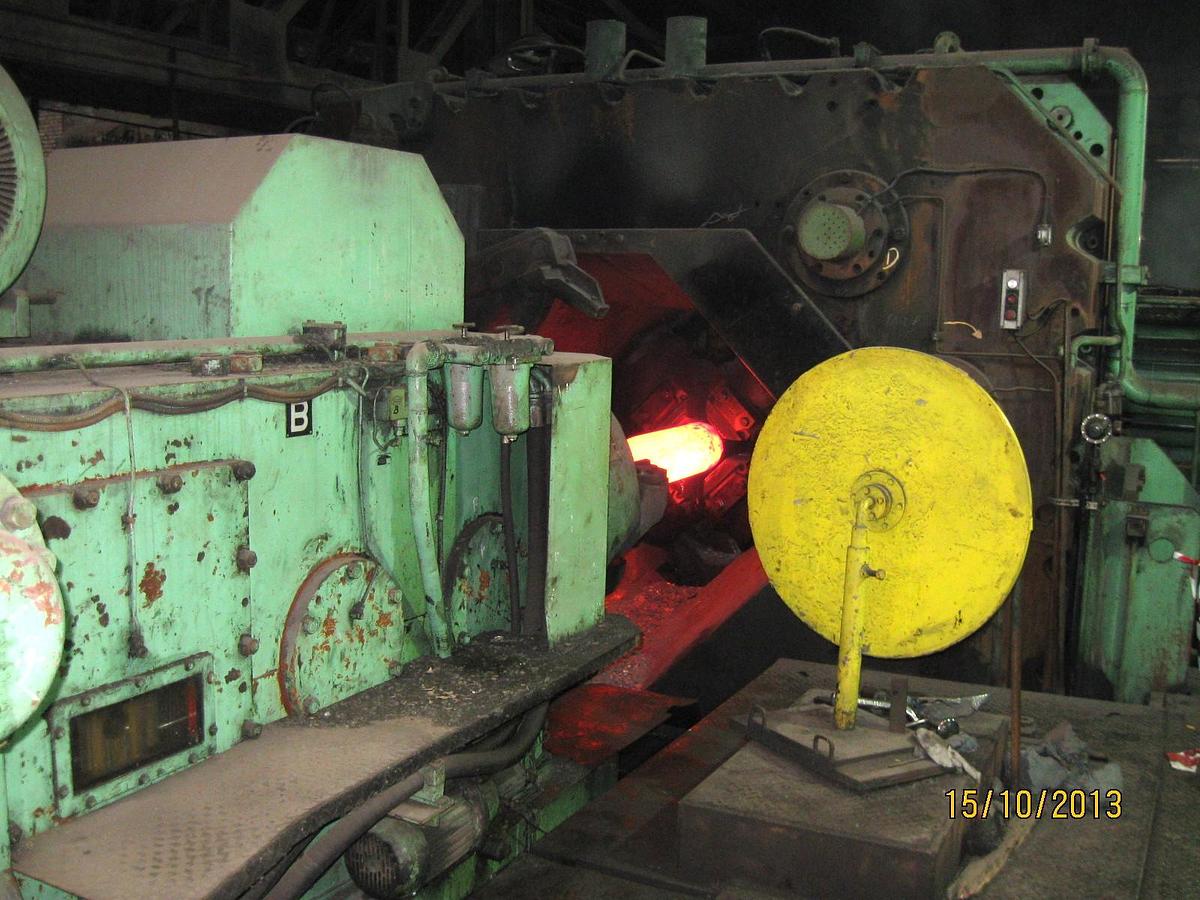

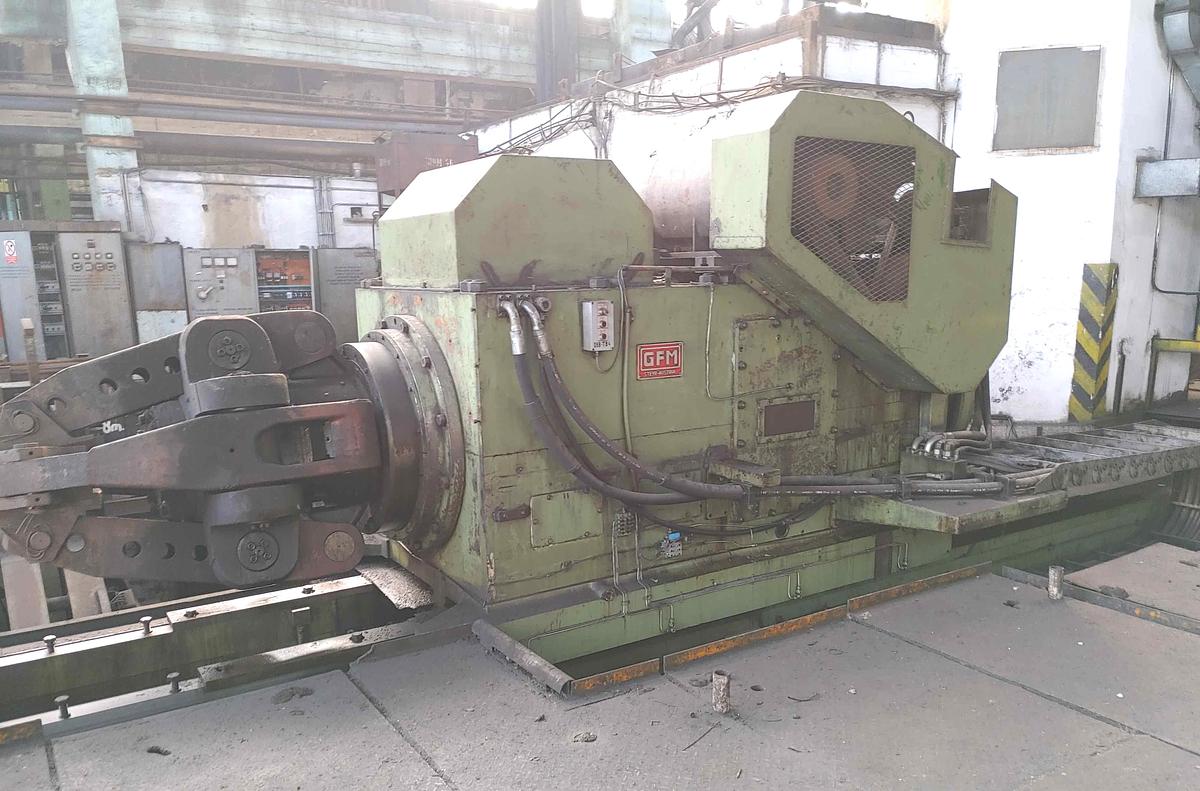

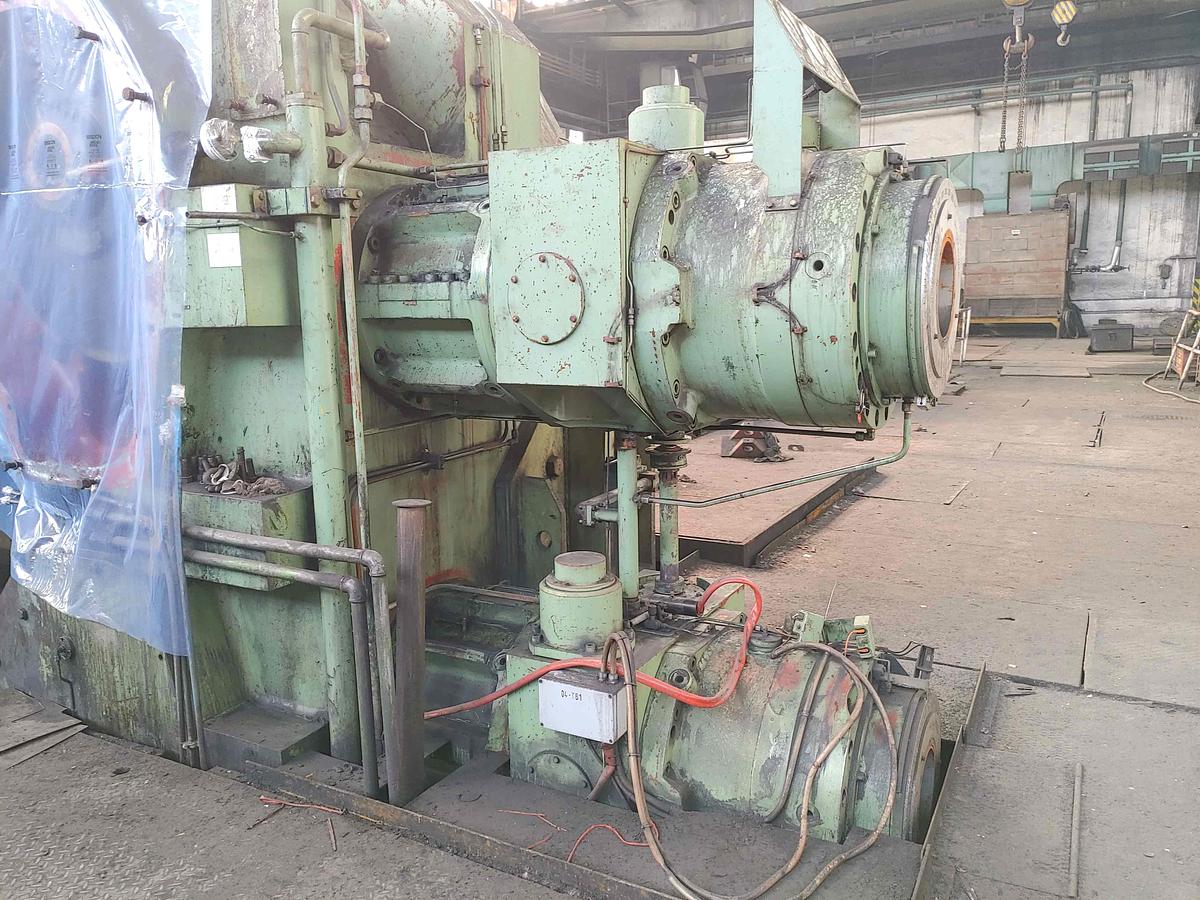

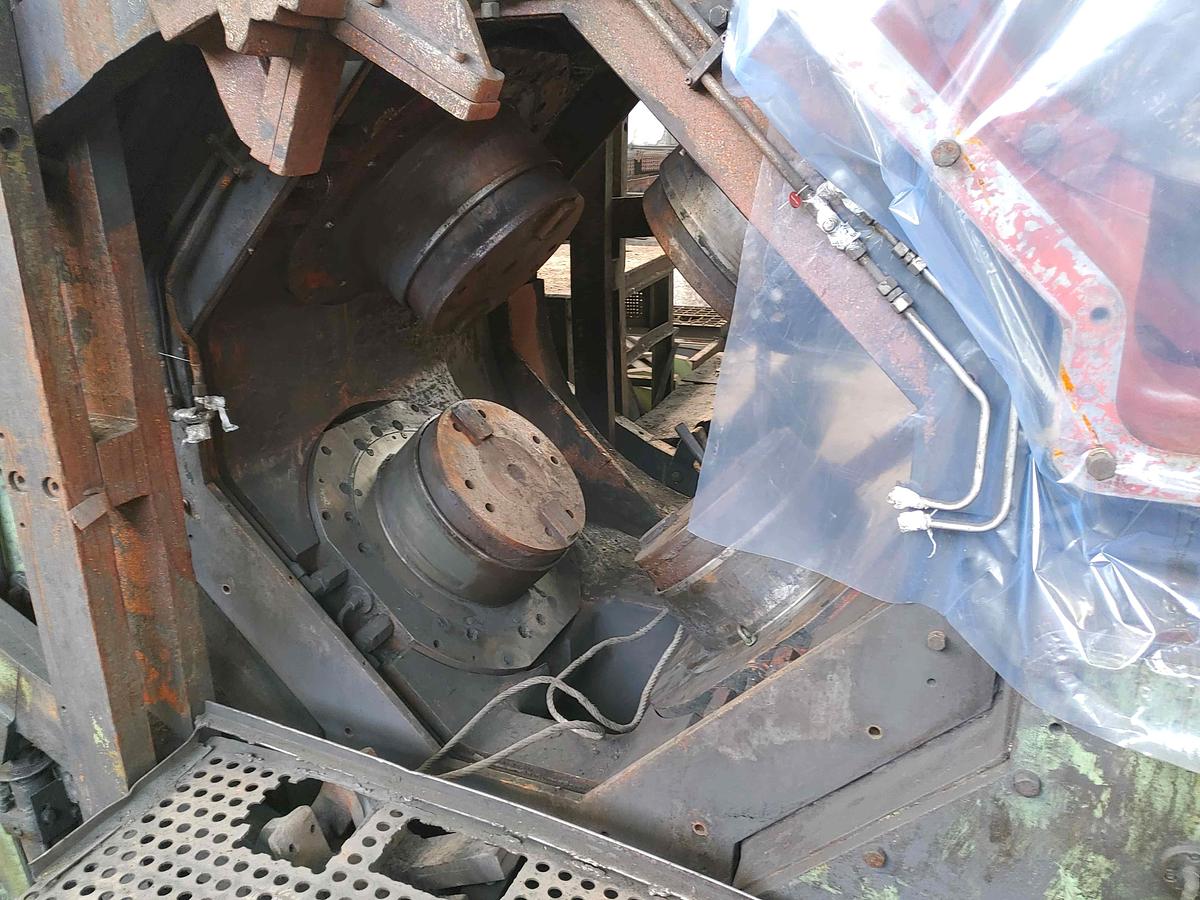

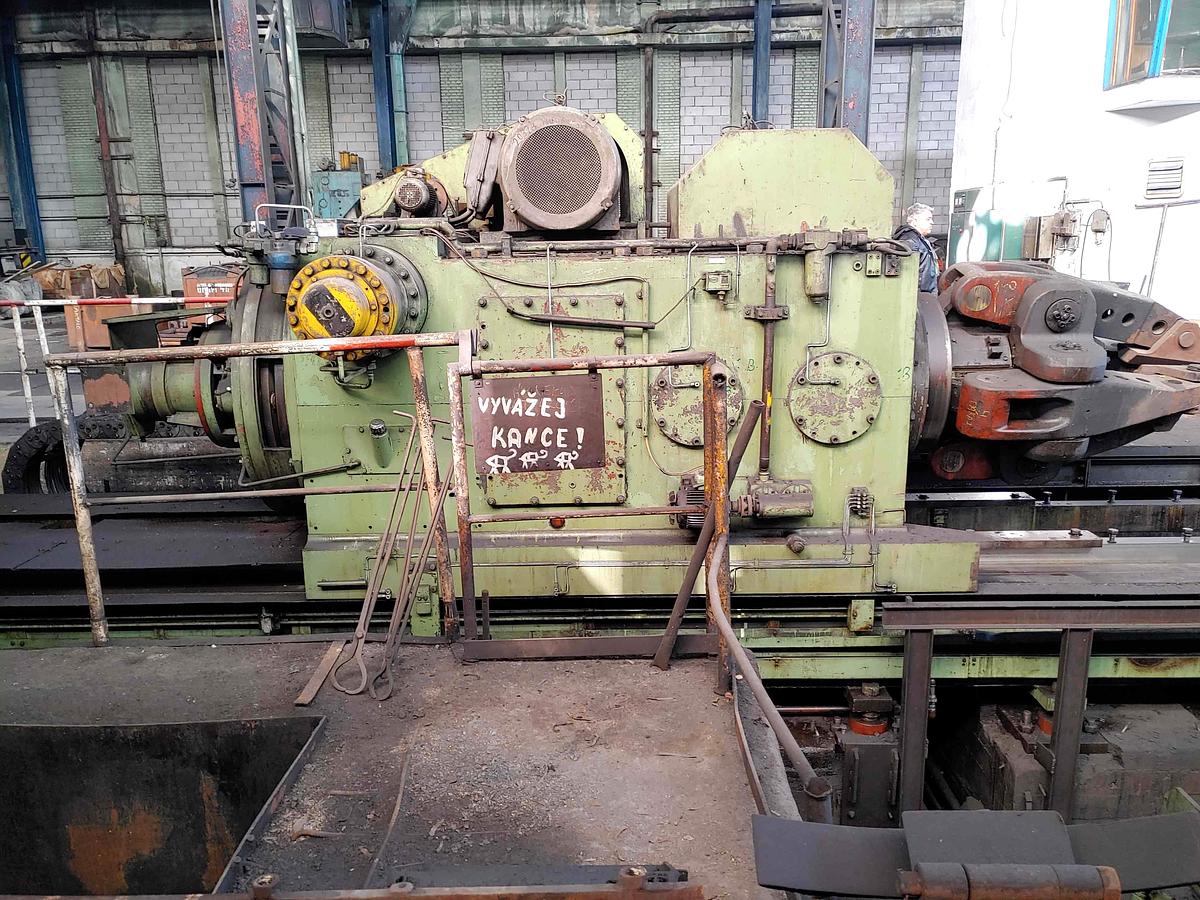

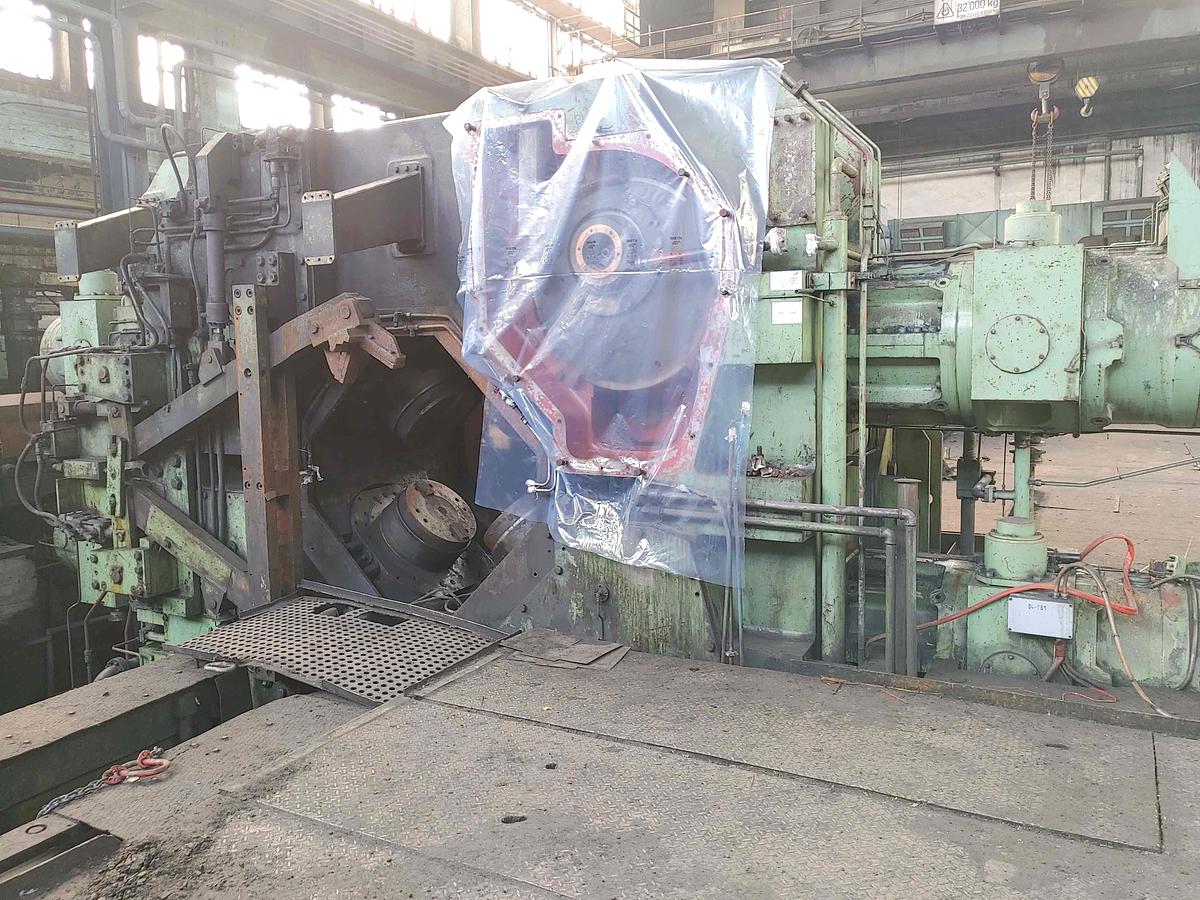

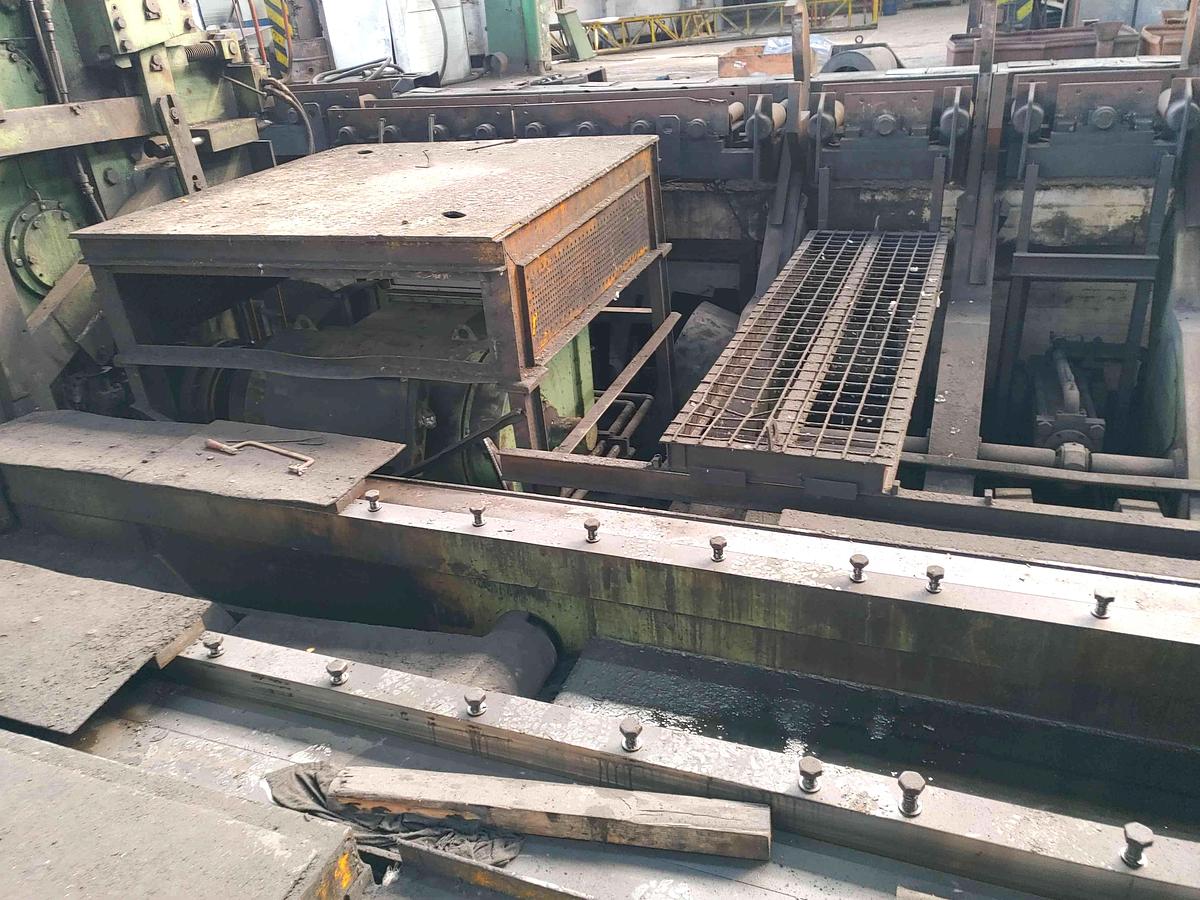

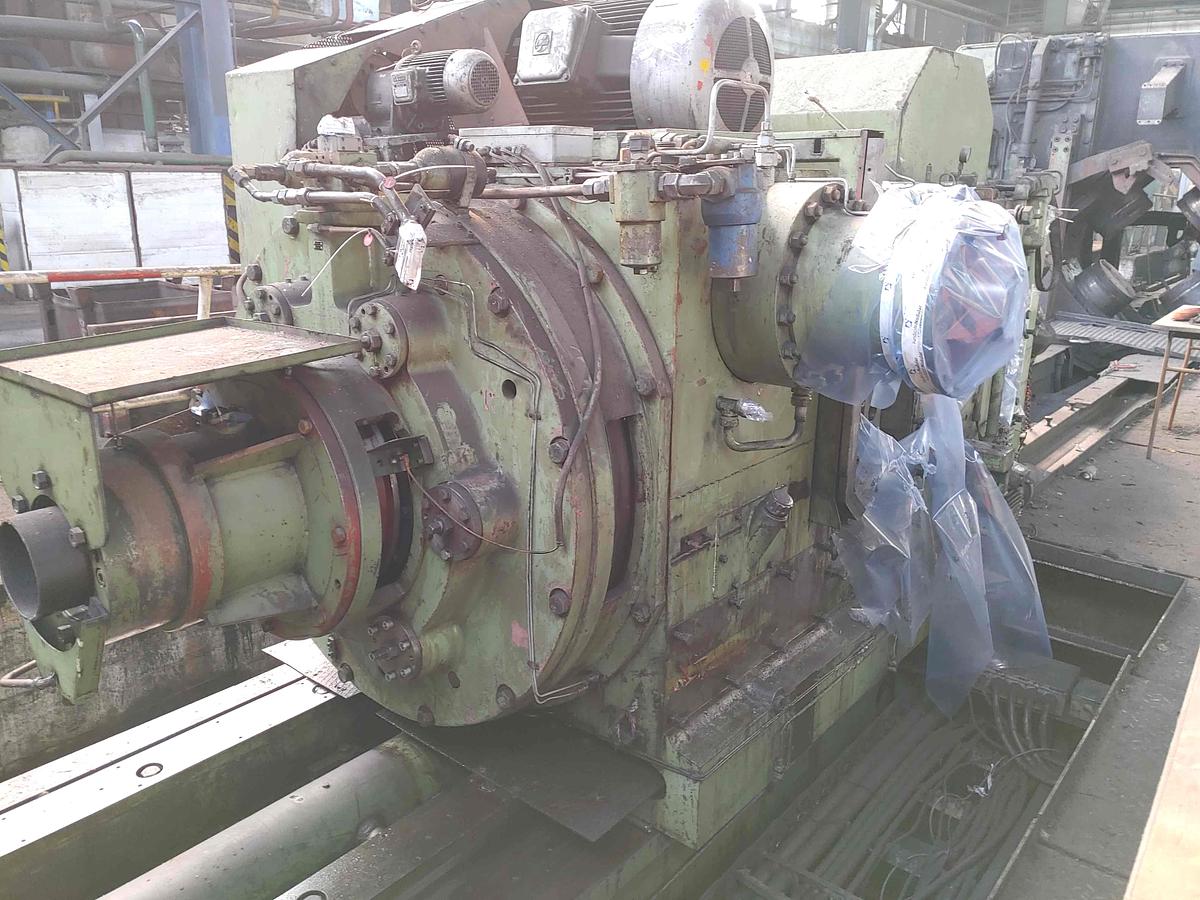

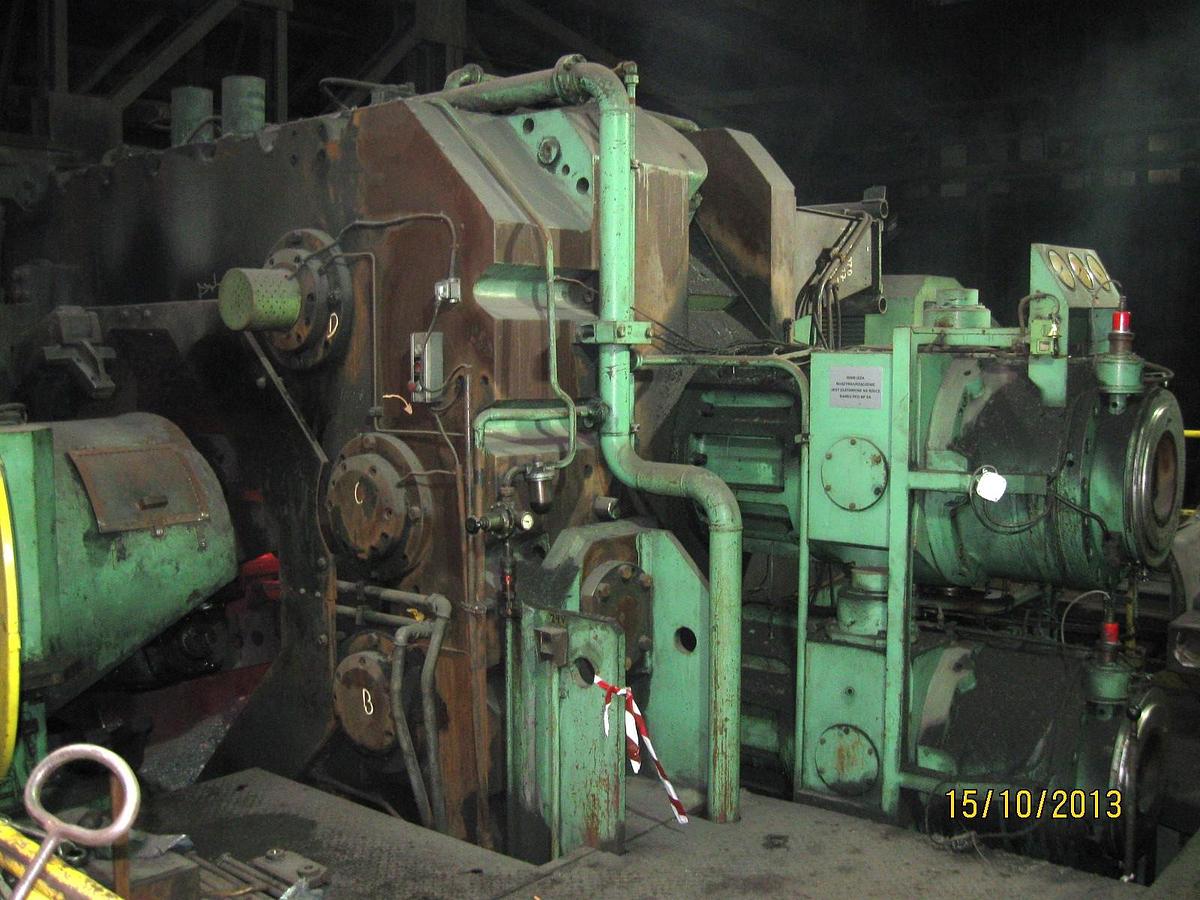

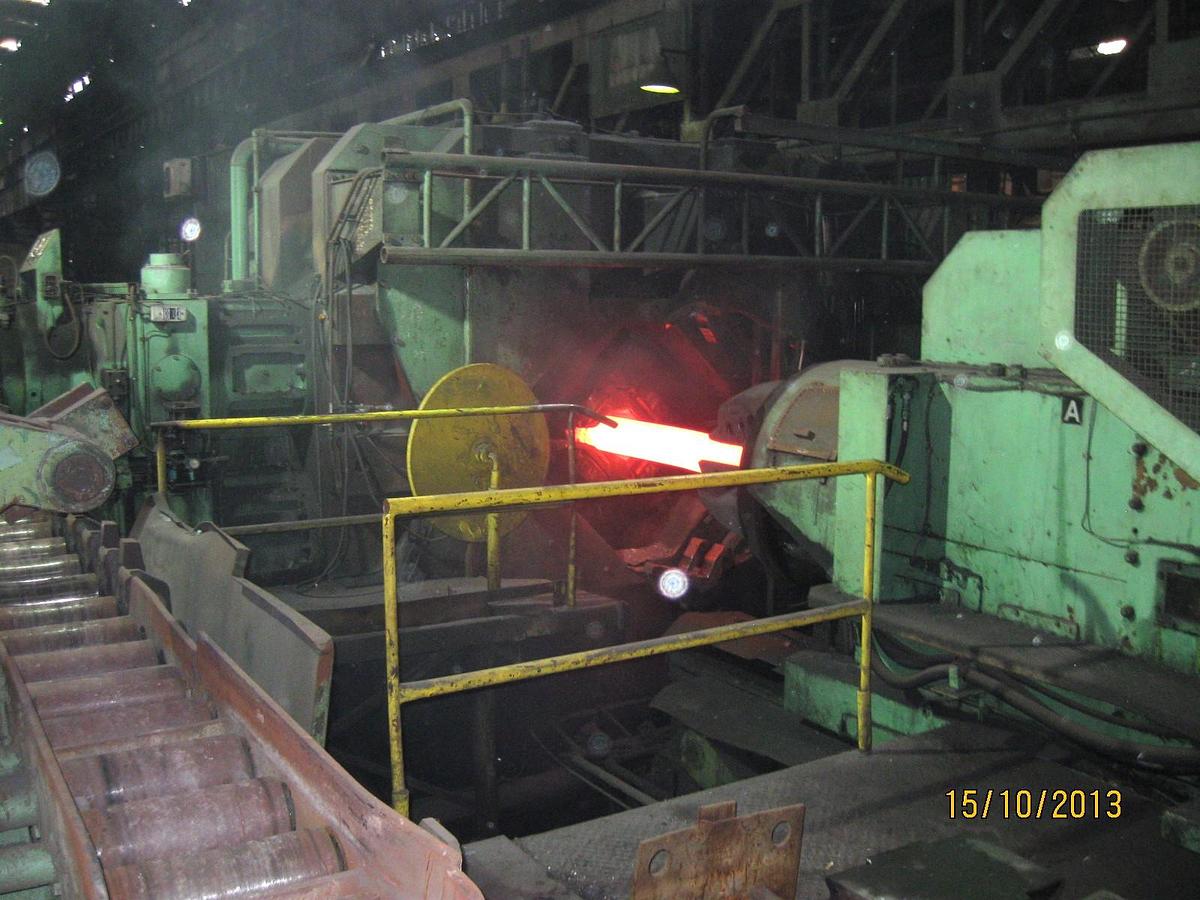

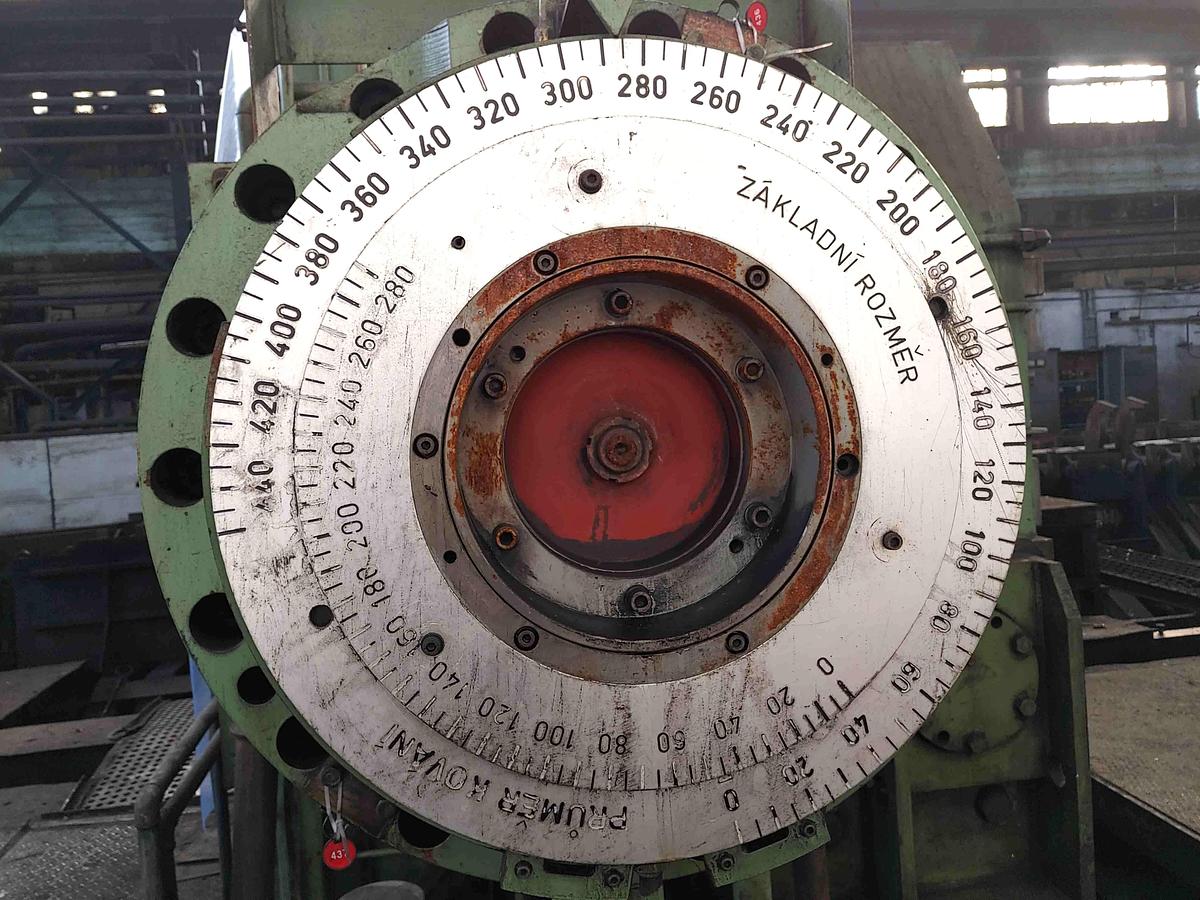

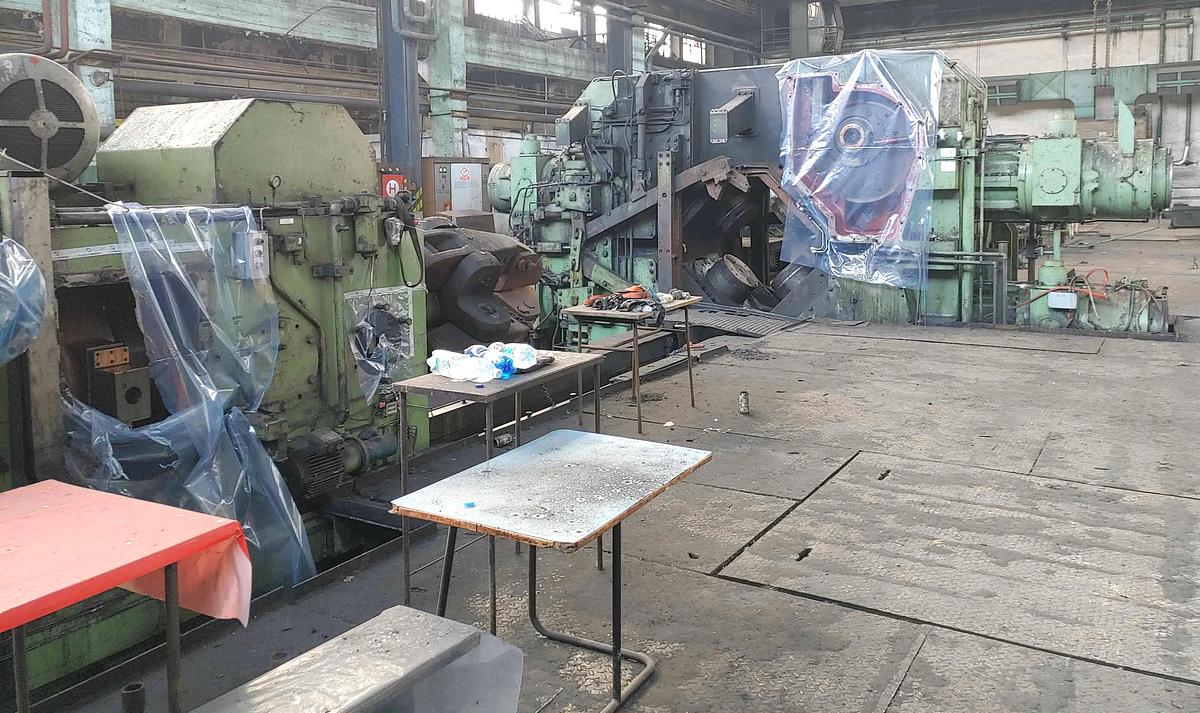

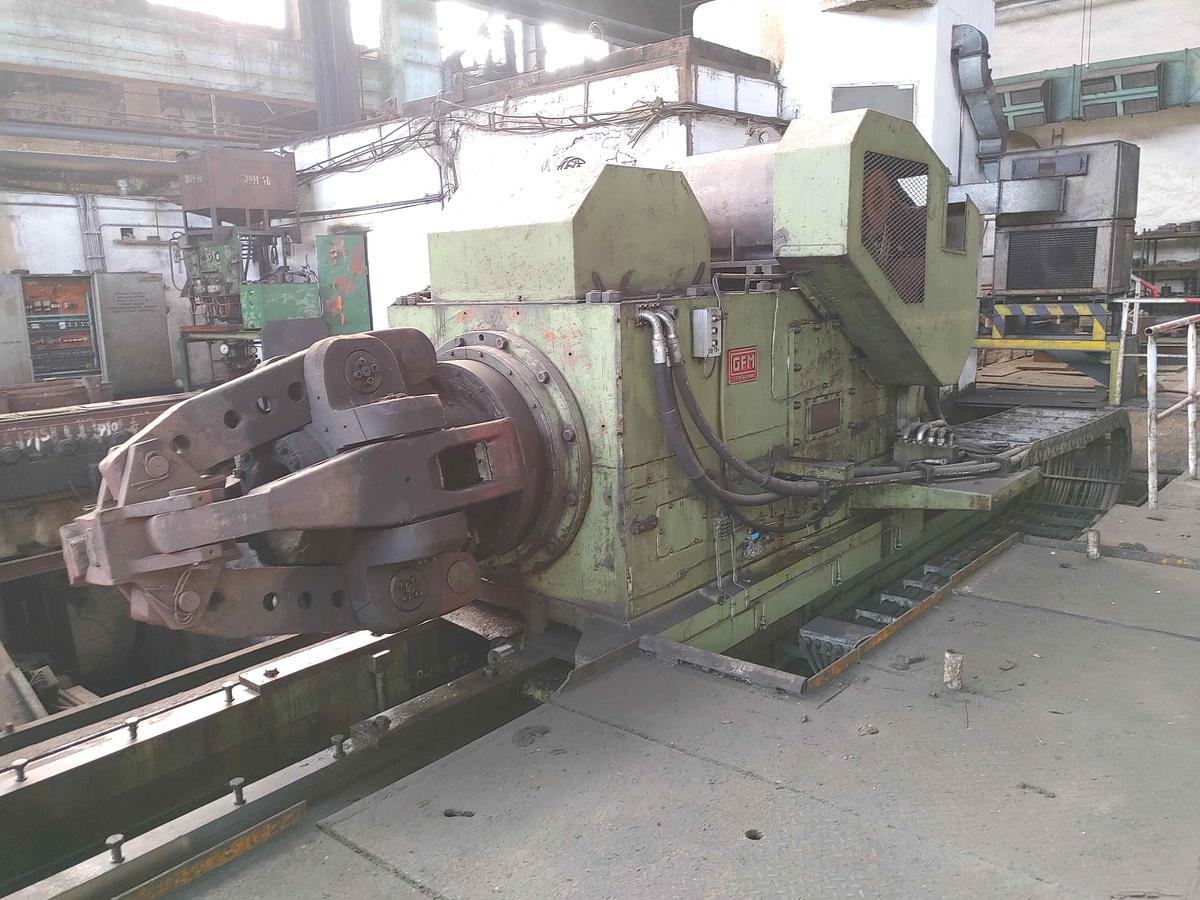

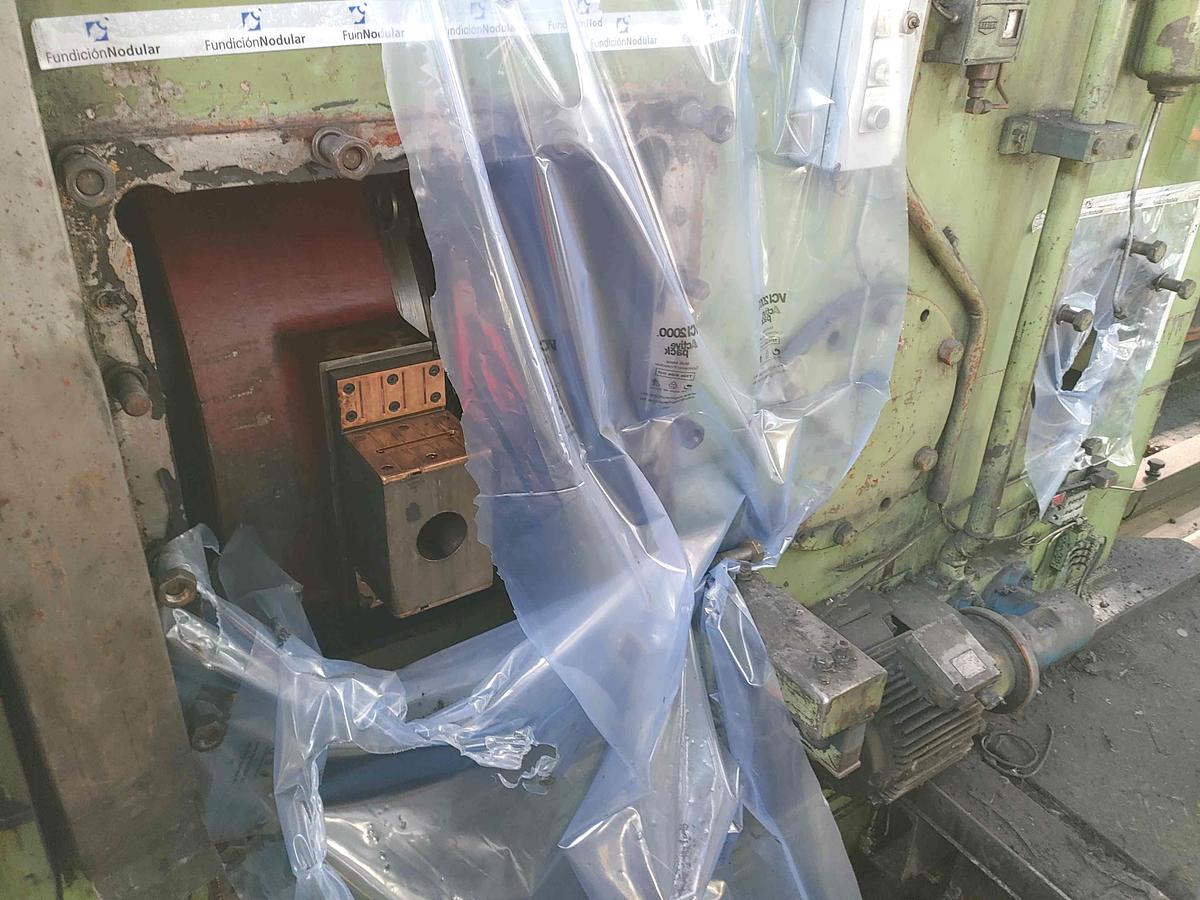

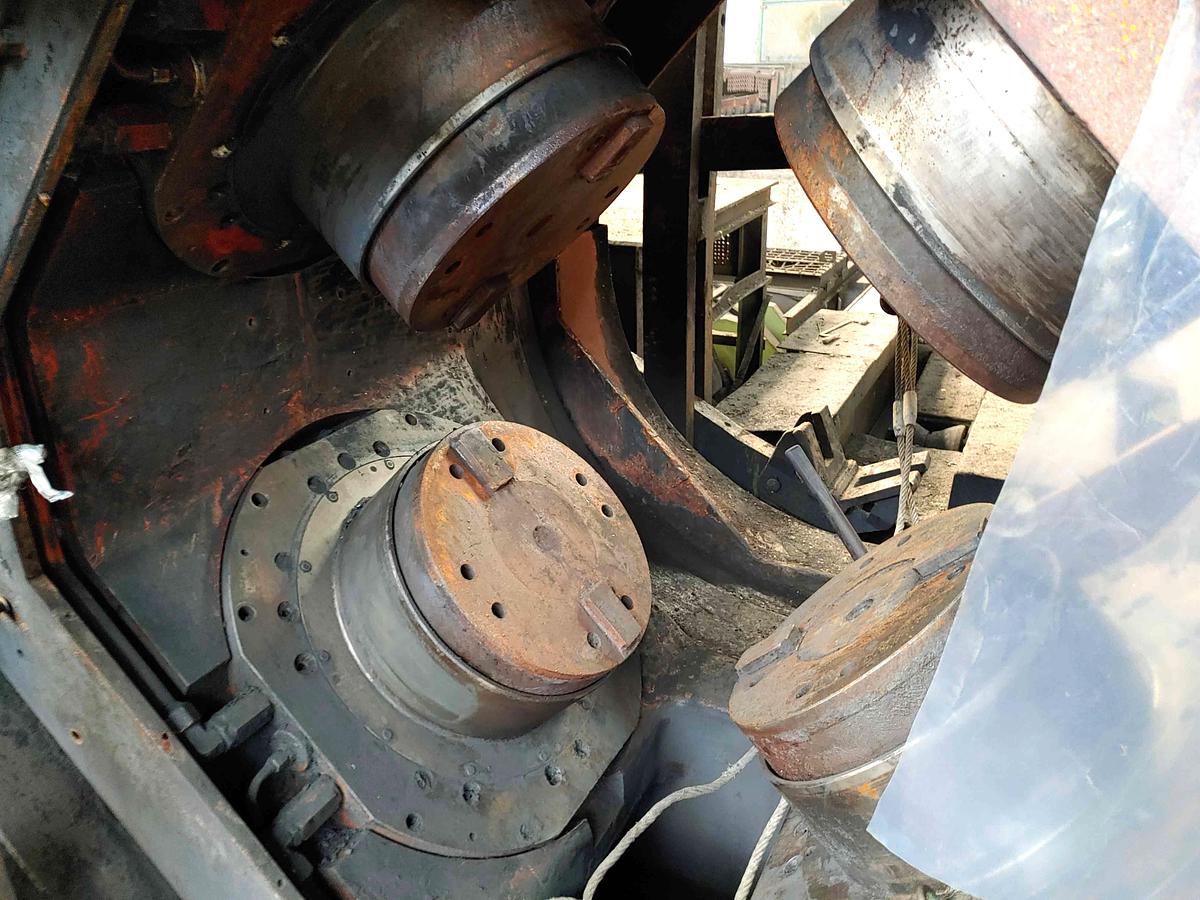

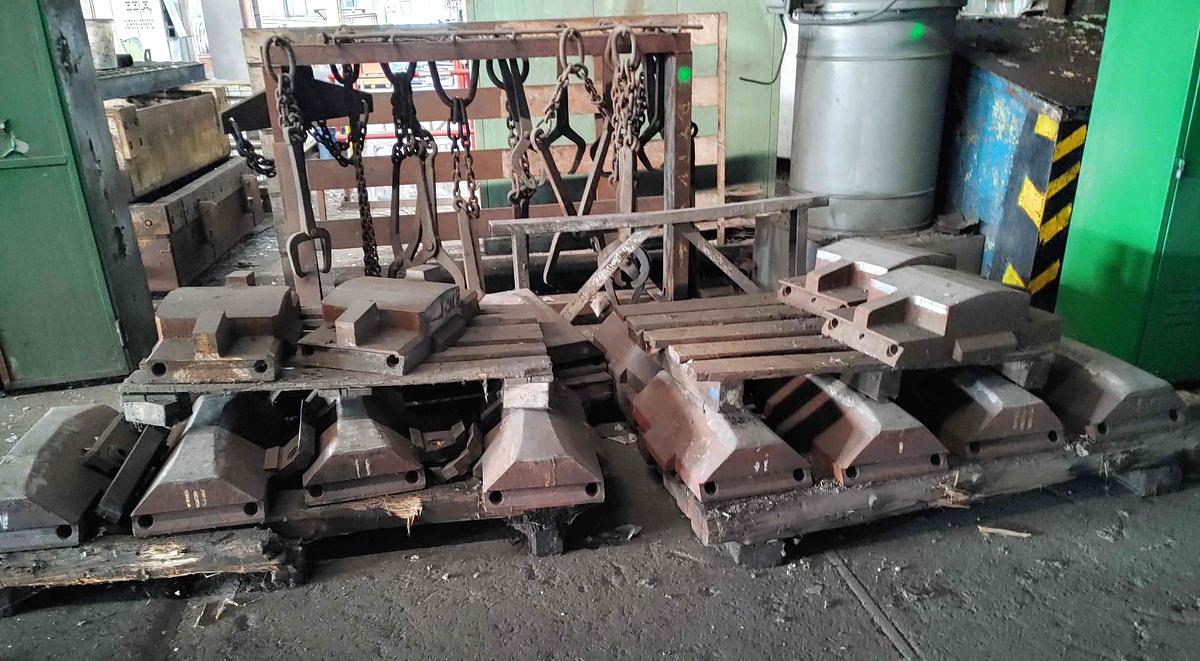

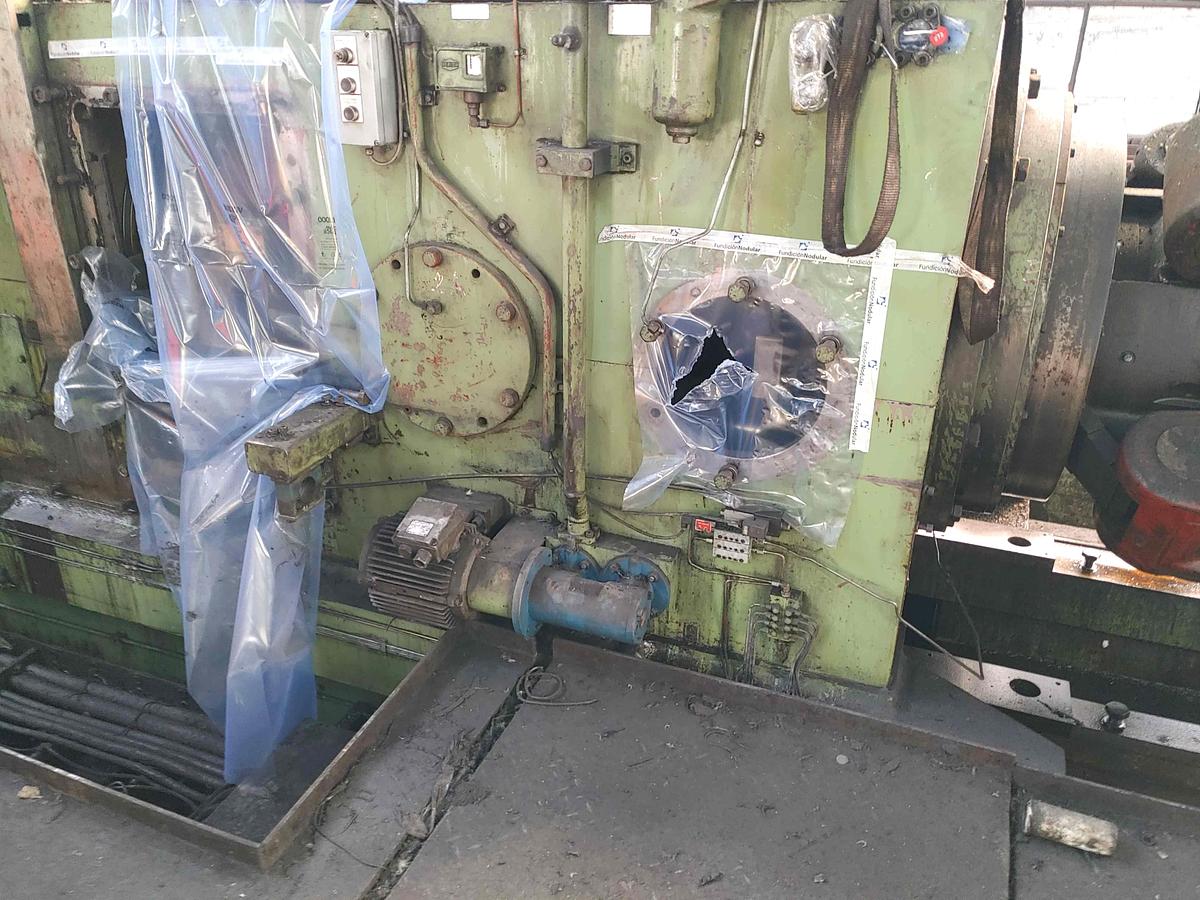

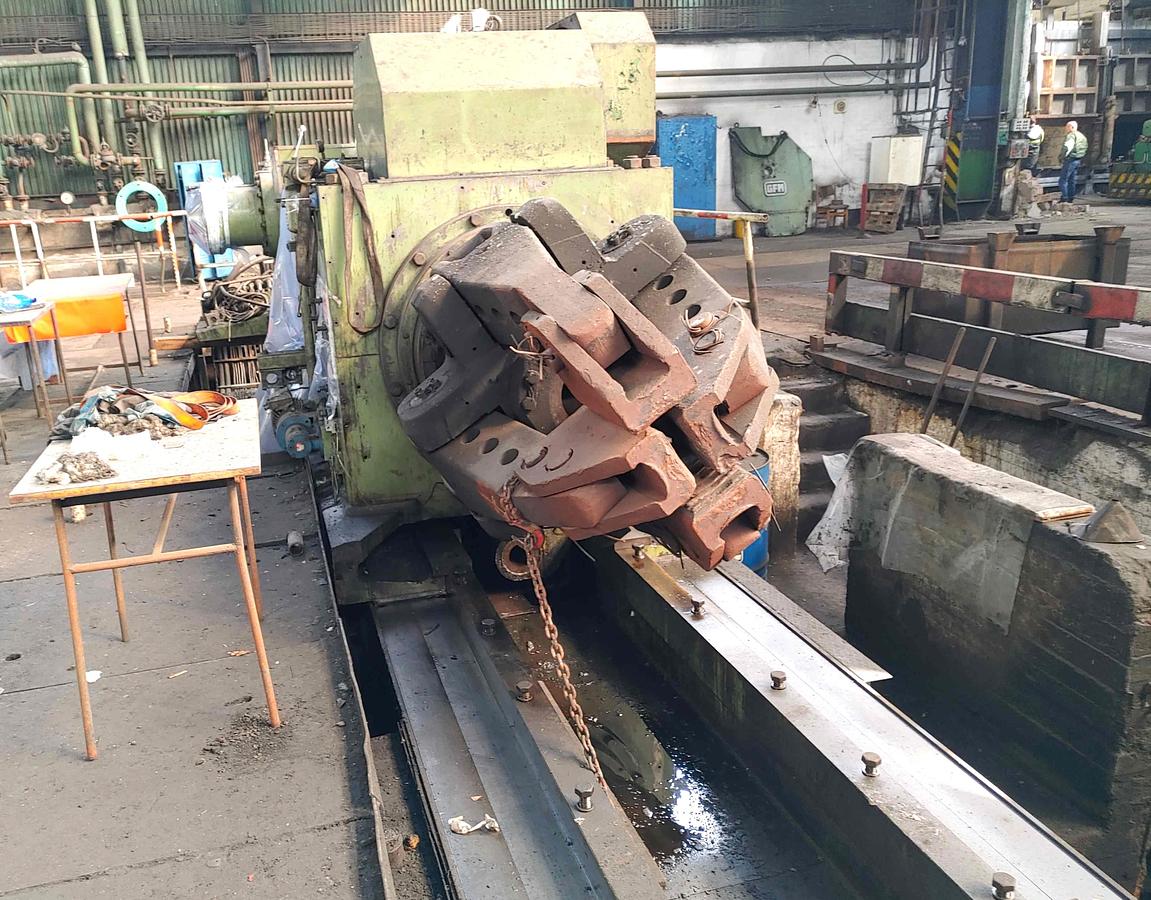

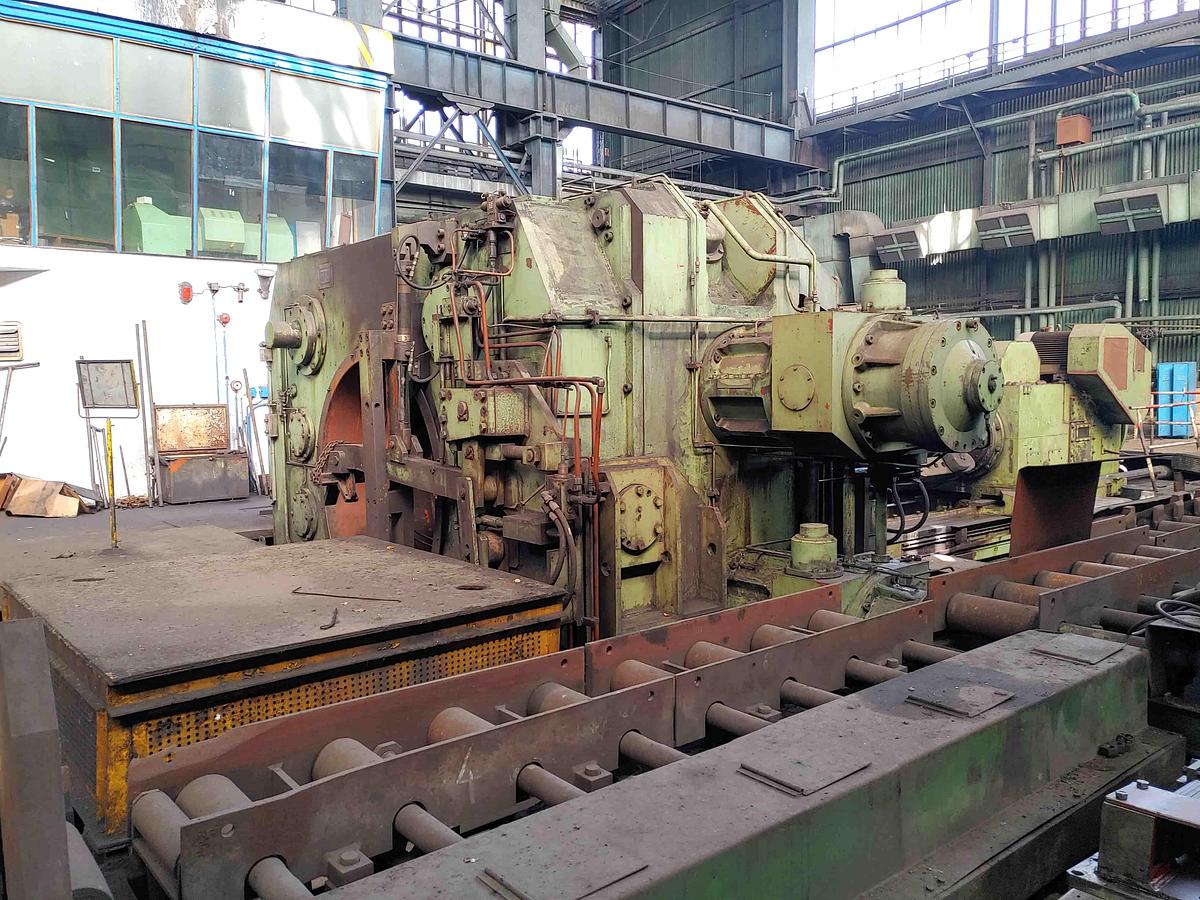

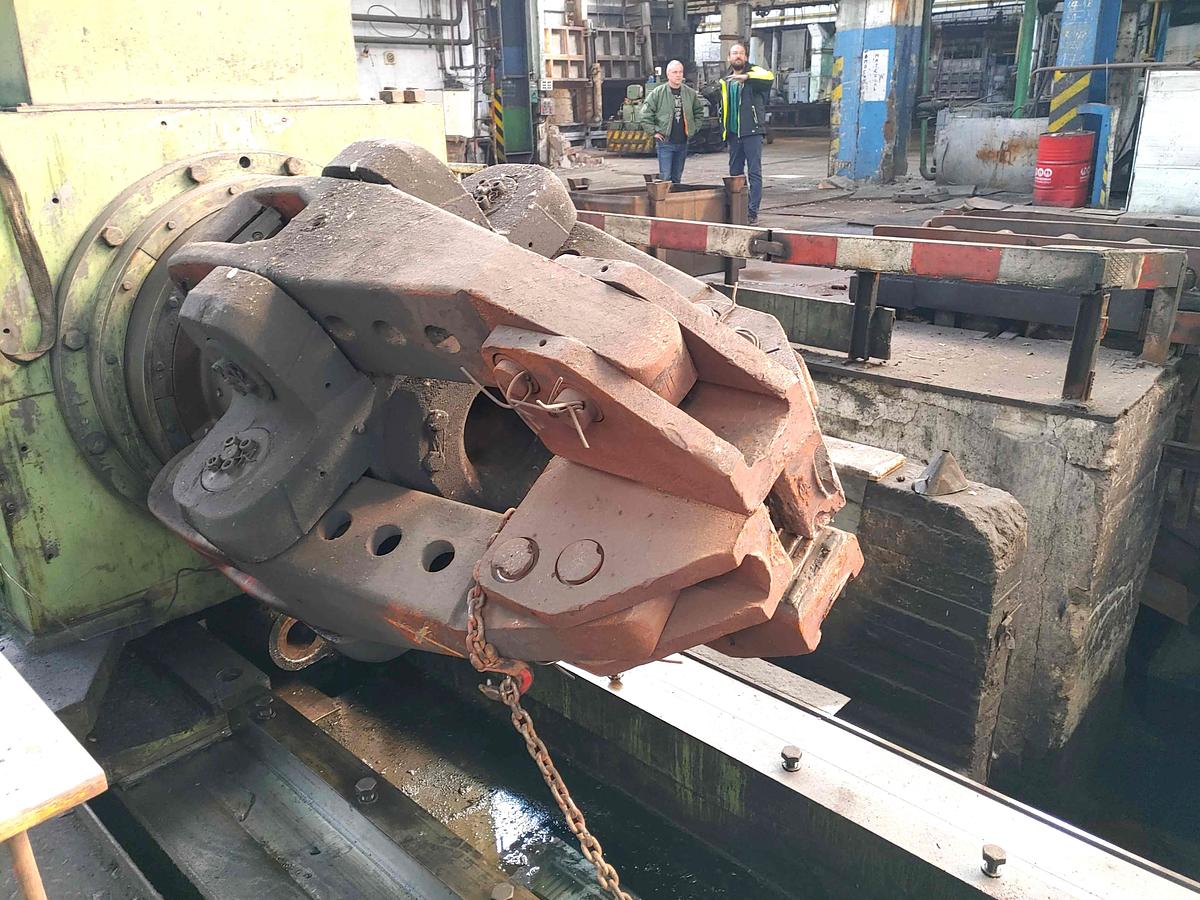

Radial Forging Line GFM SXL40

Numbers of Hammers: 4

Forging force : 2600 tons  (650 t per hammer),

After reconditioning by GFM year 1991 from 650 Ton per hammer to 800 Ton per hammer

Strokes per minute : 270,

Hammer length : 550 mm,

Maximum diameter of forging:

circular cross section : Ø 450 mm,

square cross section : 320 mm,

Minimum output diameter: - circular : 60 mm,

Square : approx 50 mm,

Maximum length of forging with/without lateral reception : 8.000 mm / 9.700 mm,

Feed of manipulator A : 7200 mm,

Feed of manipulator B : 10000 mm,

Manipulators speed in fast moving : 350 mm/s,

Feed speed of manipulators (steeples regulation) : 10,

Machine dimension:

Axis height of forging above the hall level : 750 mm,

Maximum height of machine above the hall level : 2950 mm,

Maximum length of machine at the hall level: 30000 mm,

Foundation length : 44000 mm,

Maximum width of machine at hall level without loading device : 8020 mm,

Foundation width : 18600 mm,

Machine weight: 439 tons,
