Lathe Vertical Turning CNC Forest
or
Call +919920651051
Specifications
| Manufacturer | Forest |
| Year | 2007 |
| Condition | Used |
| Stock Number | MA3217 |
| Item condition | Installed and underpower working condition |
| Capacity tons | 4700 |
Description
Max working dia : 4700 mm,

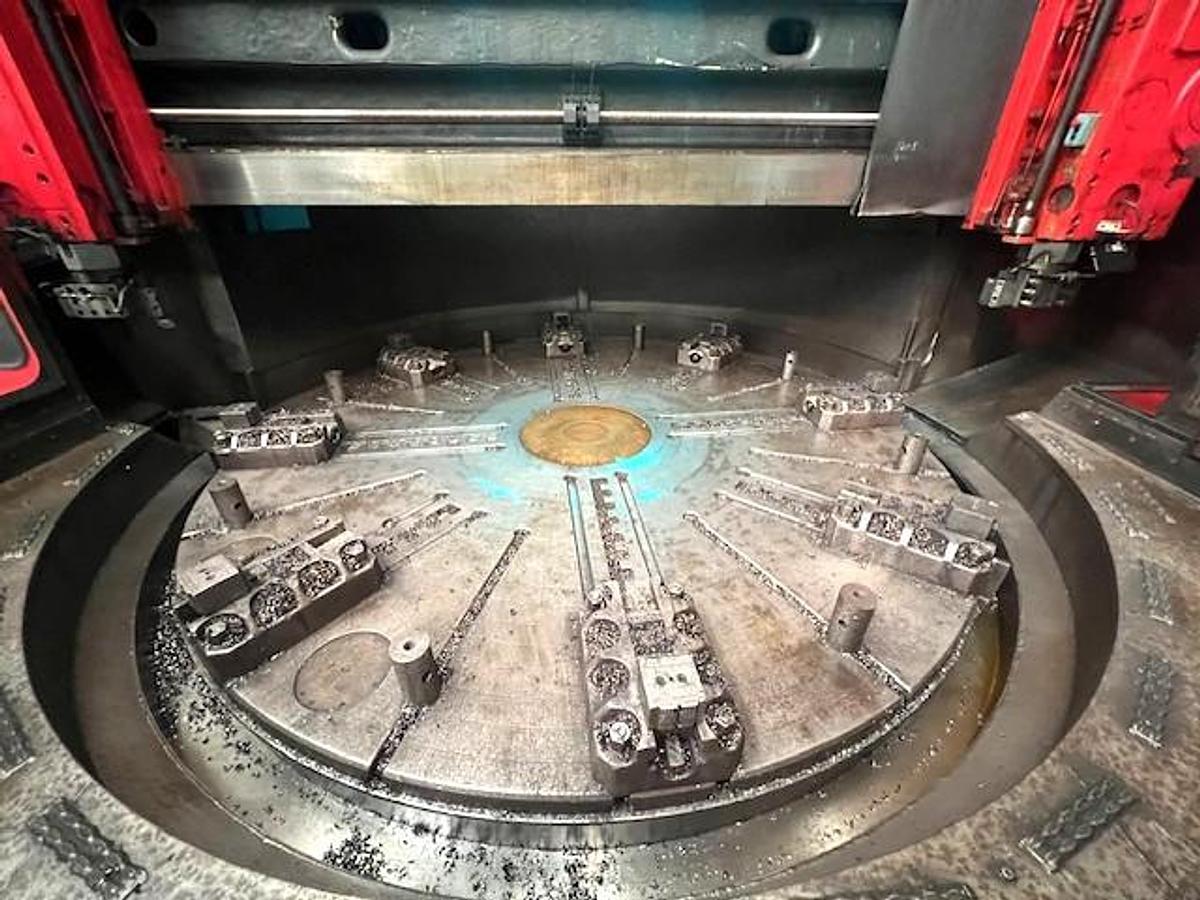

Table diameter : 4200 mm,
Hydraulic clamping : 6,
C axe : yes,
Max table speed : 28 rpm,
Z stroke : 1500 mm,

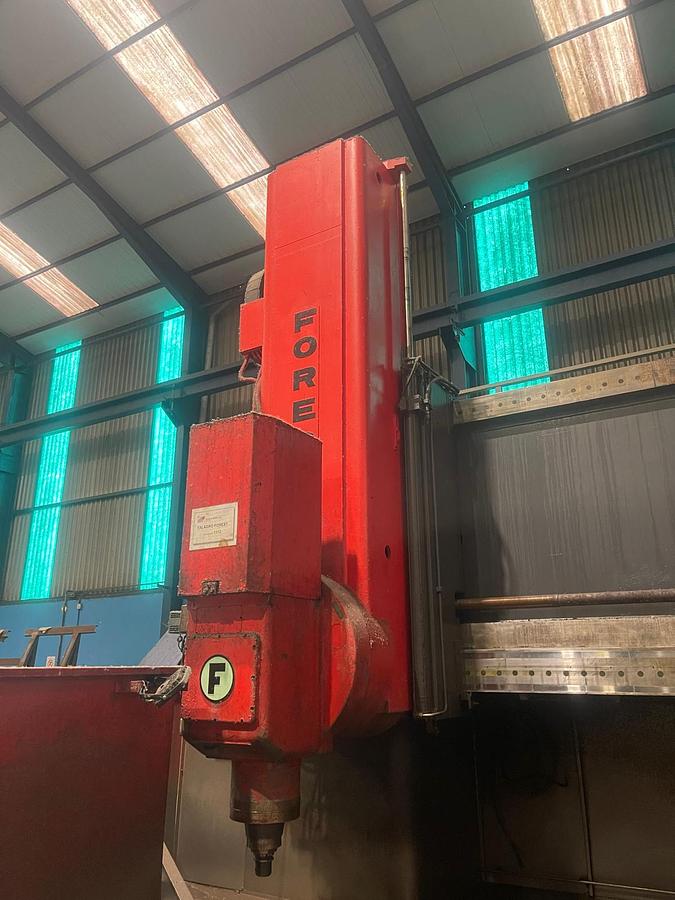

Rams : 2
Tools : ISO50,
Max height part : 1170 mm,
Main motor : 28 KW,

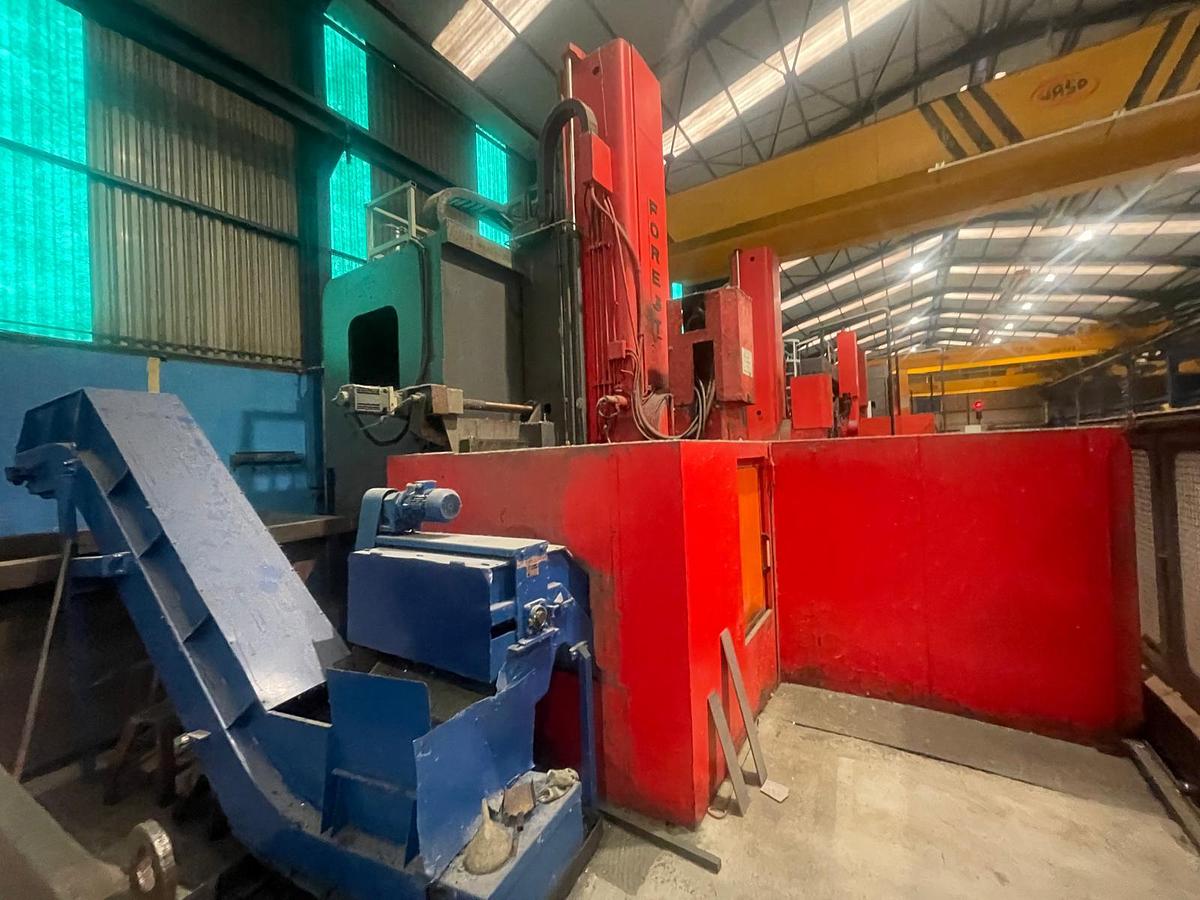

Chip conveyor : 1,
Max weight : 63 tons,,
External machine dimension : 7000 x 9000 x 6500 mm,

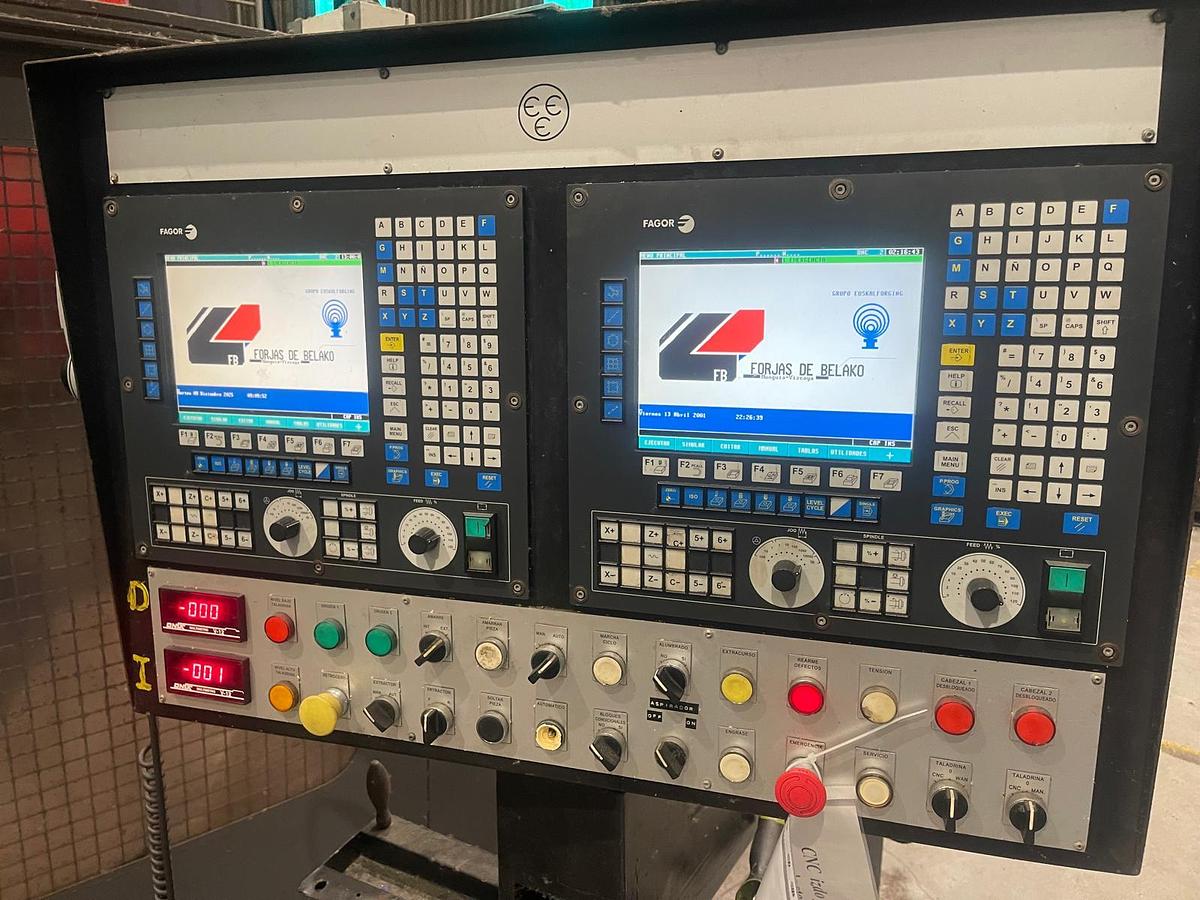

CNC model : Fagor 8055.
