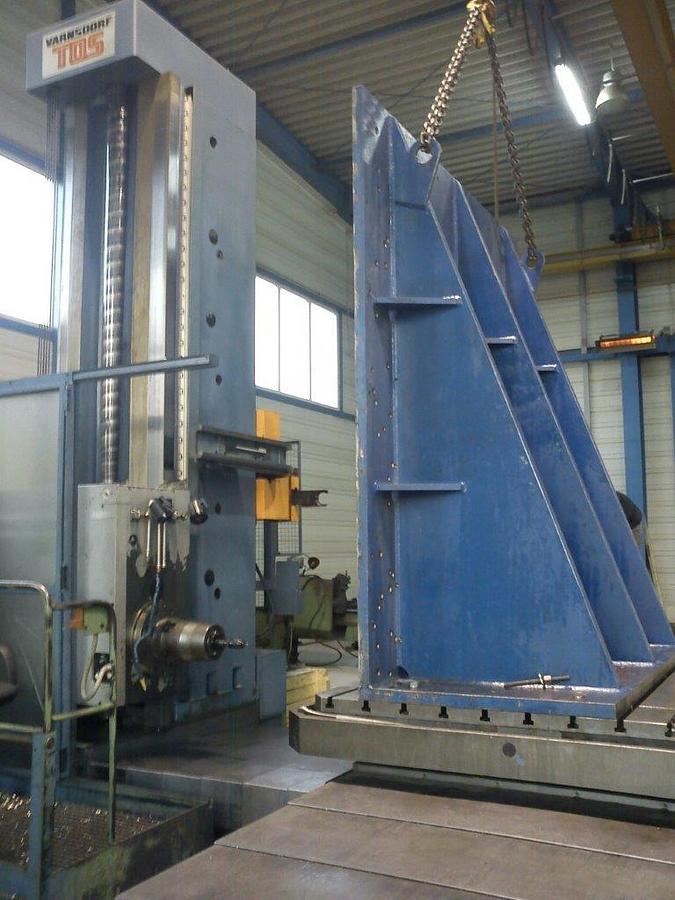

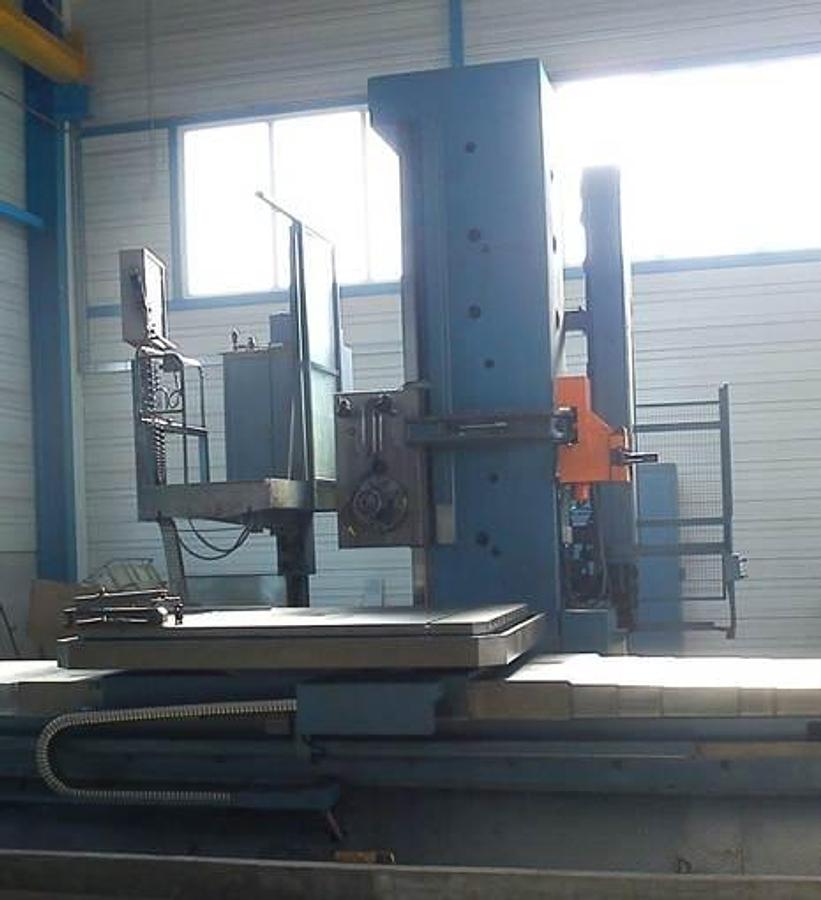

Borer Horizontal Table Type CNC Tos Varnsdorf WHQ13

Spindle diameter : 130 mm,

Travel distance X-axis : 3500 mm,

Travel distance Y-axis : 2500 mm,

Travel distance Z-axis : 1250 mm,

Travel distance W-axis : 800 mm,

Table load : 15 tons,

Max. payload : 12 tons,

Spindle speed (max.) : 3000 rpm,

Table size : 1800 × 2200 mm,

Automatic tool changer : 60 positions,

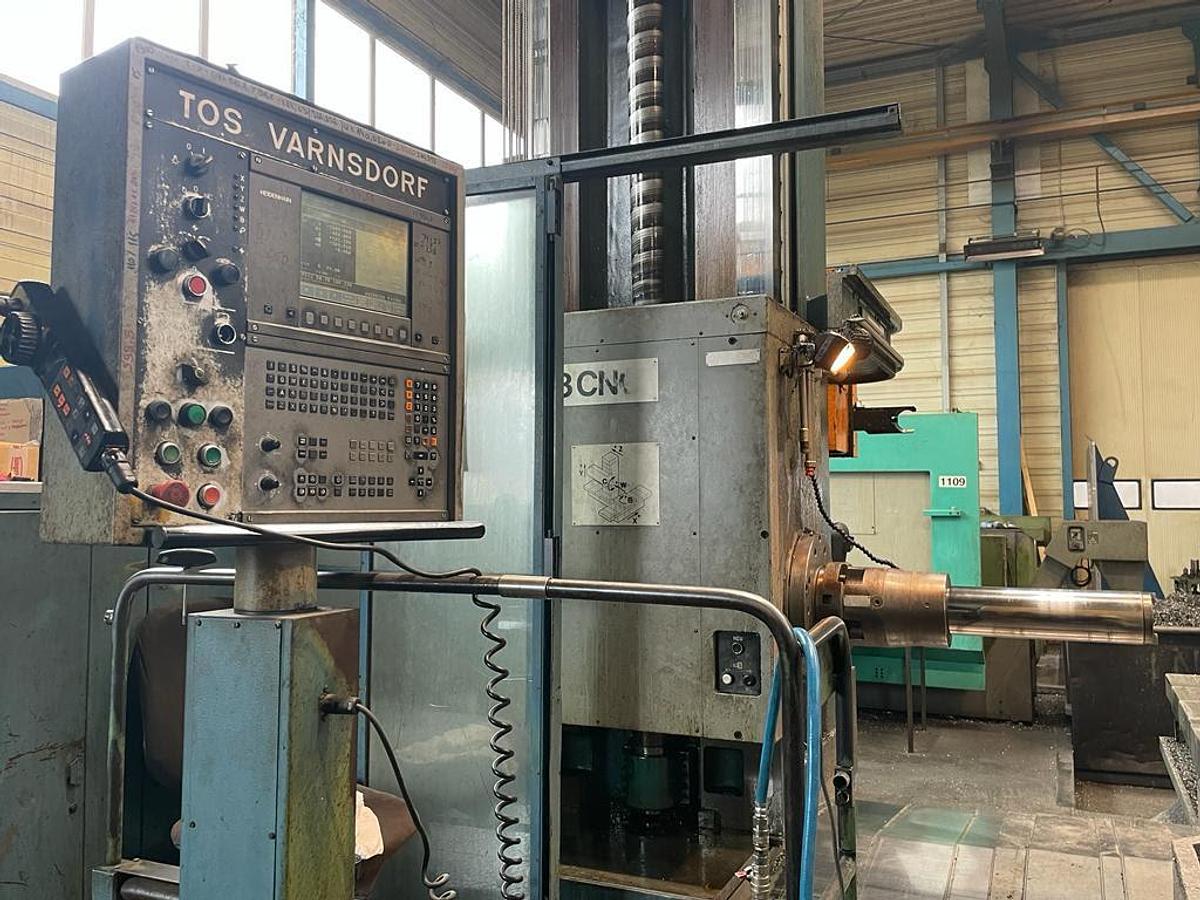

CNC Heidenhain TNC426M,

Automatic Tool Changer AVN 60 positions,

Lifting operator platform,

External tool cooling,

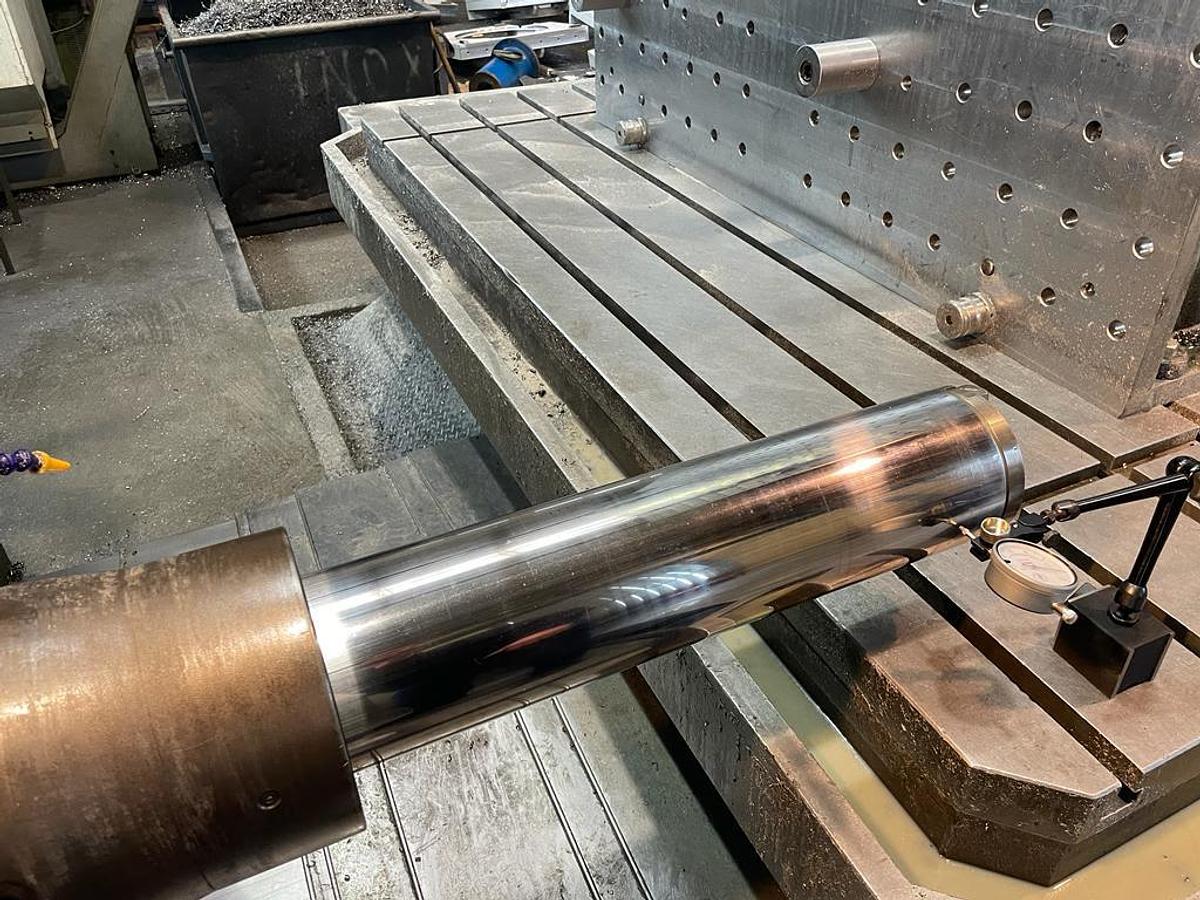

Spindle clamping support.

In 2025 there was done exchange of spindle bearings set (6pc), grease and brass bushings.

Excellent geometric accuracy.
