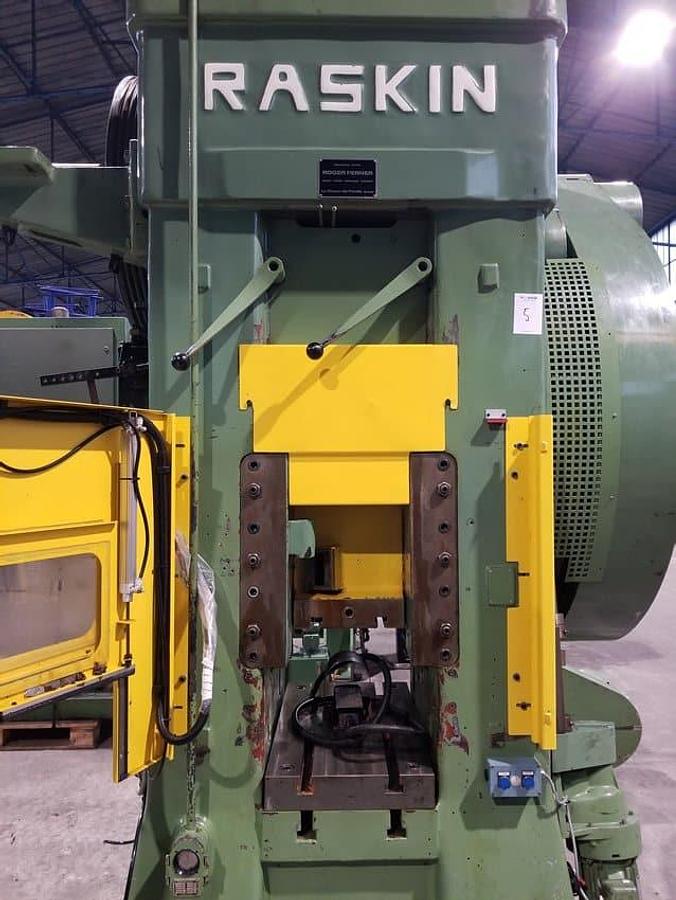

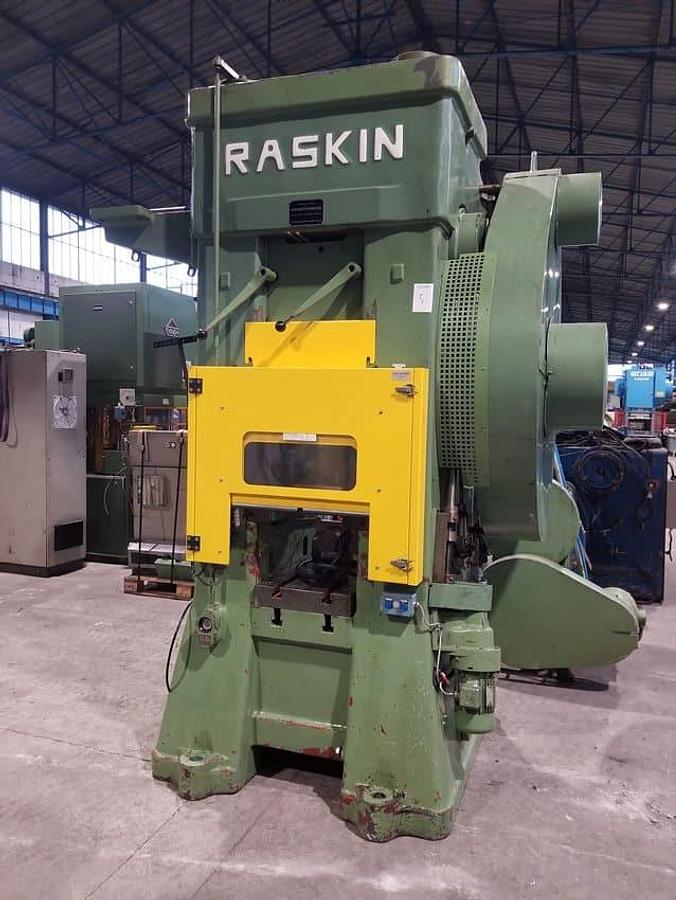

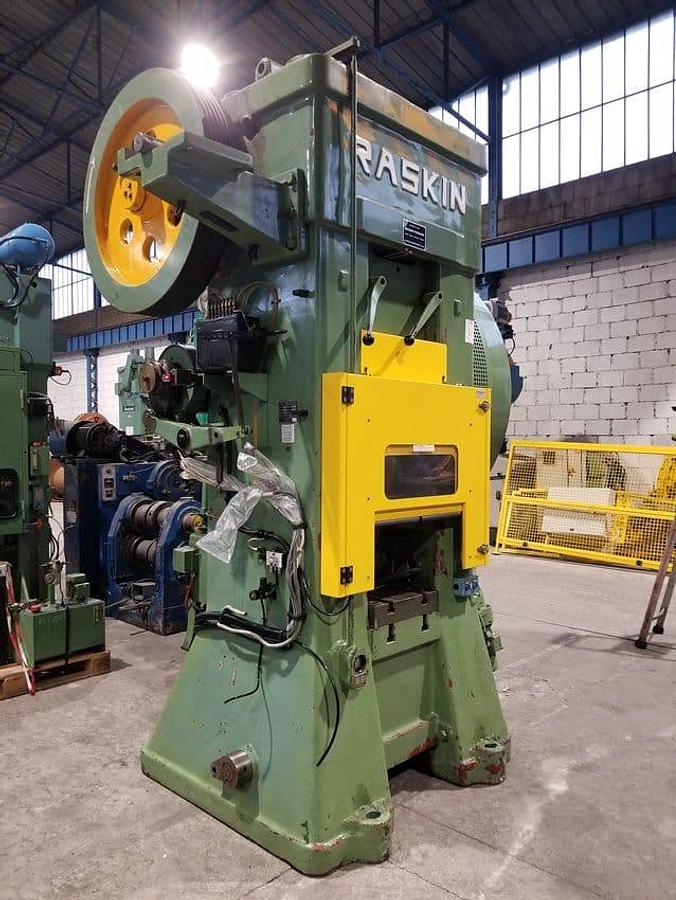

400 tons Press Knuckle Joint Coining Raskin 400TG

Capacity : 400 tons,

Ram stroke : 70 mm,

Stroke per minute : 40 spm,

Minimum Distance Table/Ram : 350 mm,

Ram Adjustment : 12 mm,

Movable Table Depth : 90 mm,

Table (left to right x back to front) : 430 x 750 mm,

Distance between uprights : 450 mm,

Ram (left to right x back to front) : 315 x 450 mm,

Hole in Ram : 50 mm,

Motor Power : 9.5 HP,

Motor Speed : 1500 rd/mn,

Overall dimensions (L x W x H) : 1900 x 1880 x 3500 mm,

Weight : 12.8 tons.

Qty : 2 Nos.
