3 tons Hammer Forging Hydraulic Line Schuler KGH6.3B

Fully Automated Forging Hammer Line (2023) Schuler KGH6.3B (63 KJ)

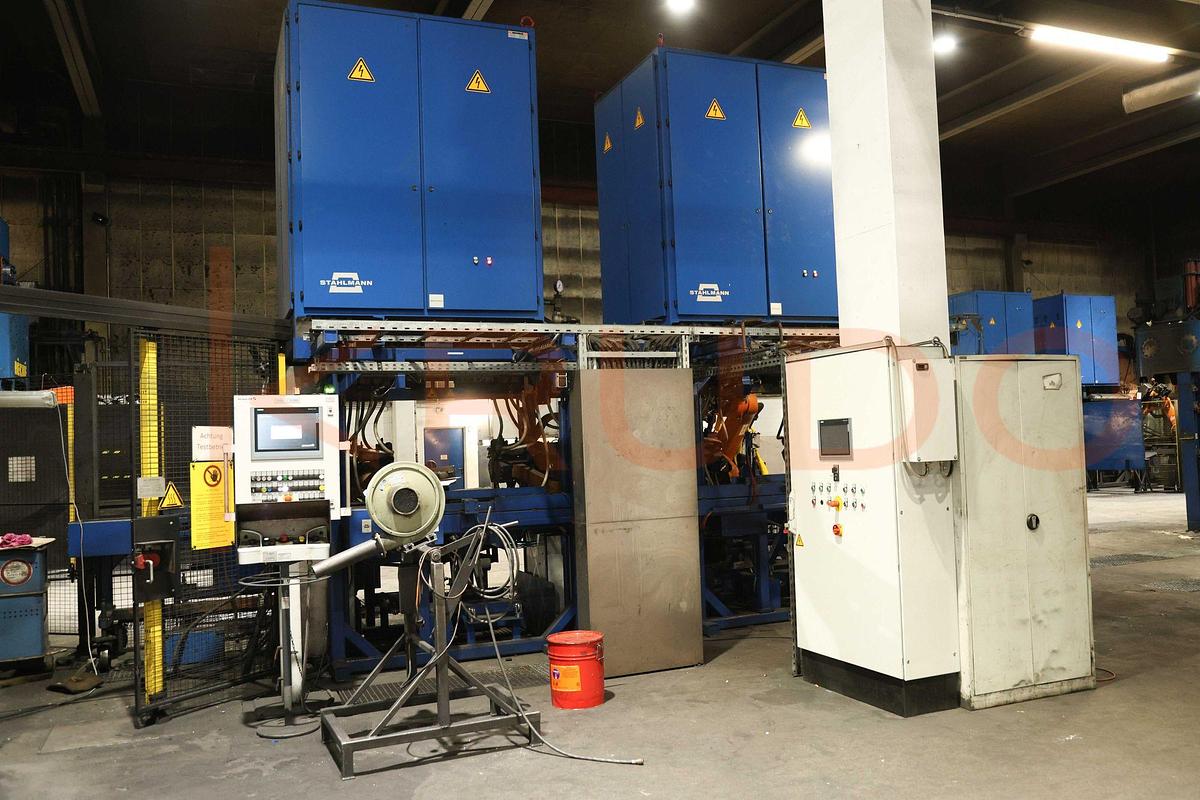

The complete line consists of the following machines:

‍

Tilting Device, Stahlmann

Step Conveyor, Stahlmann

Cold conveyor belt

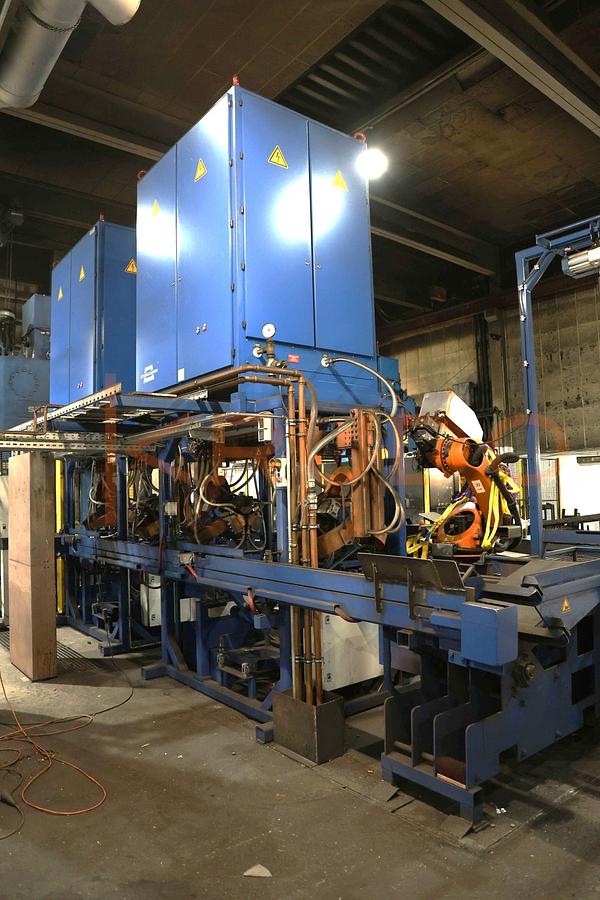

Conductive Heating System, Stahlmann, E89, 2023

Transfer Gripper

Hot Conveyor Belt with Lifting Device

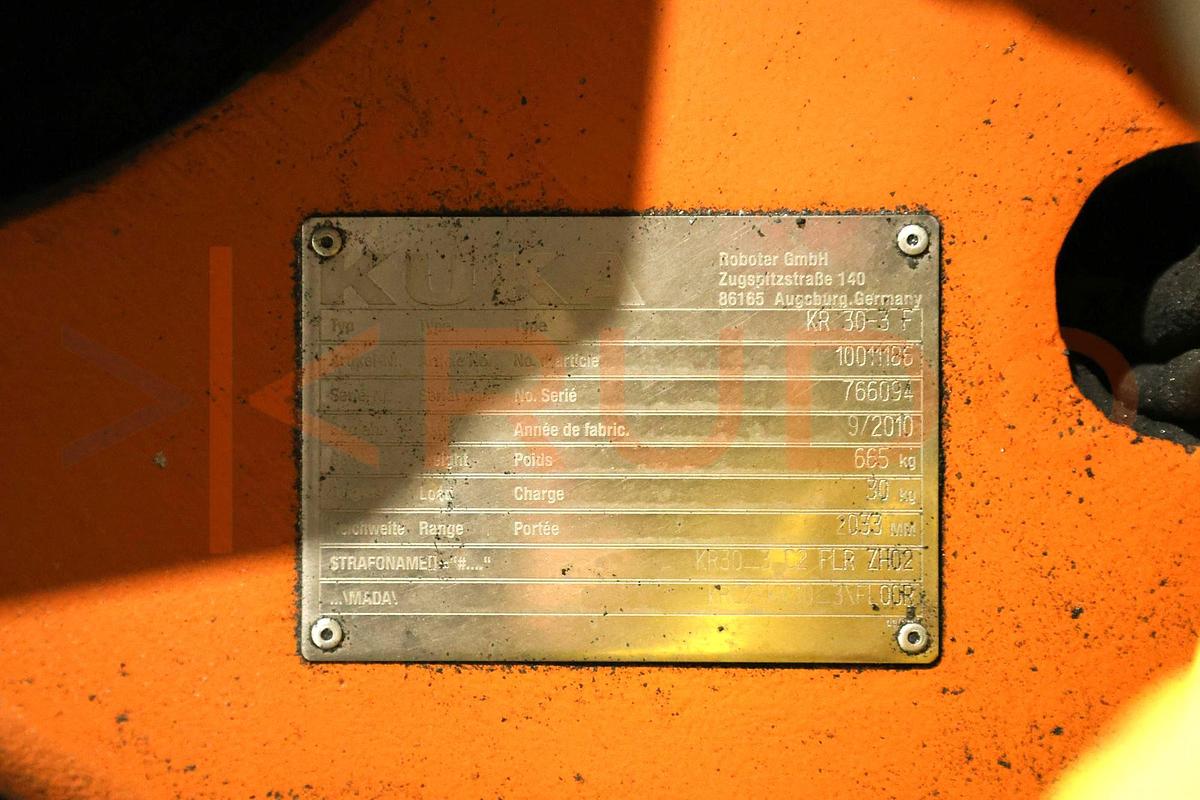

2 Forging robot, Kuka, KR 30-3F, 2010

Safety Fence with Safety Doors

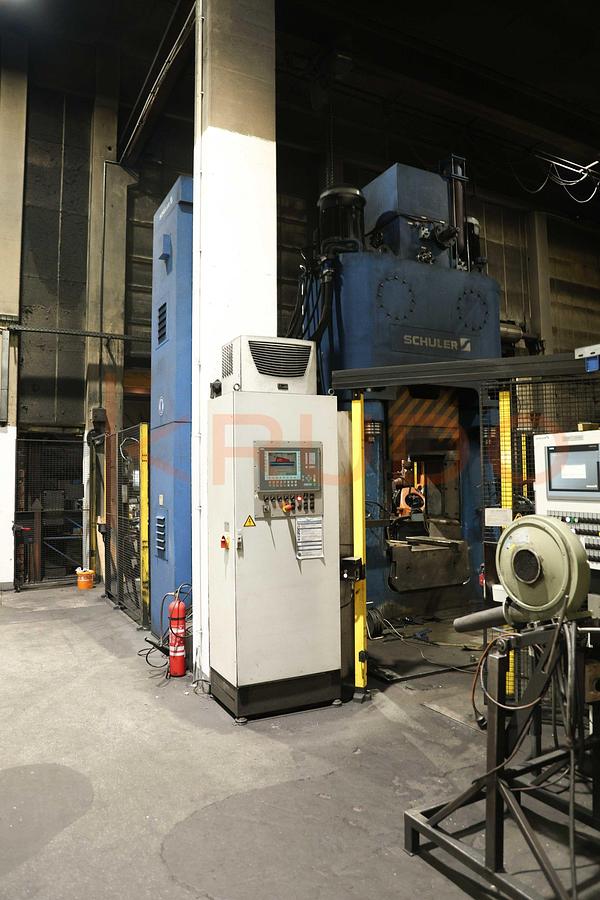

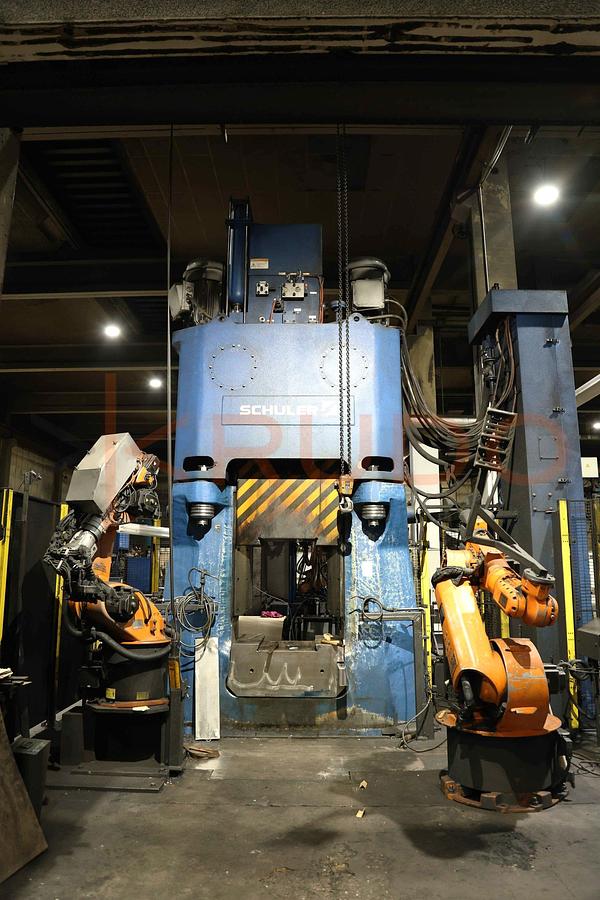

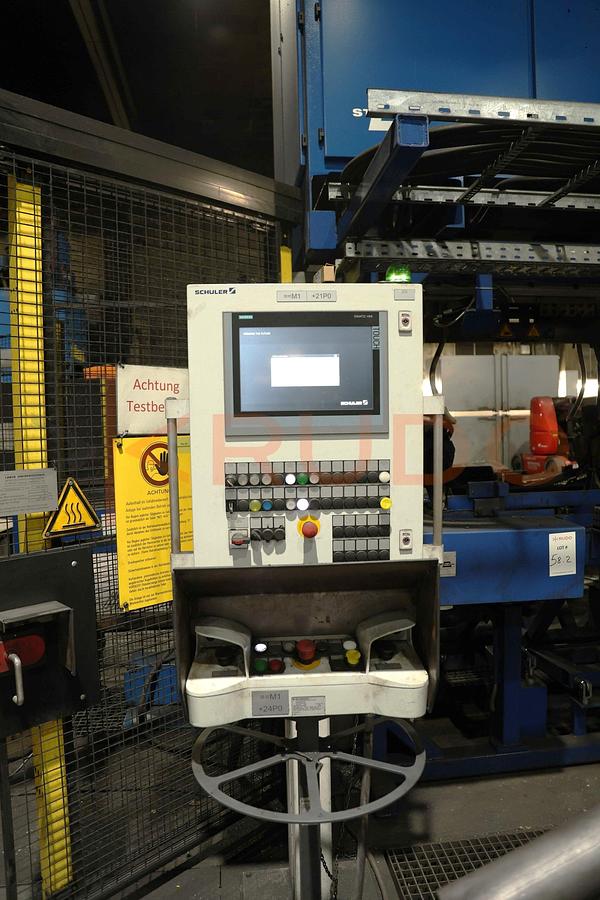

Short-Stroke Die Forging Hammer, Schuler, KG H 6.3 B, 2023

Discharge / Extraction Robot, Kuka, KR 150/2, 2010

Output Station, Stahlmann, 2010

Technical Details

‍

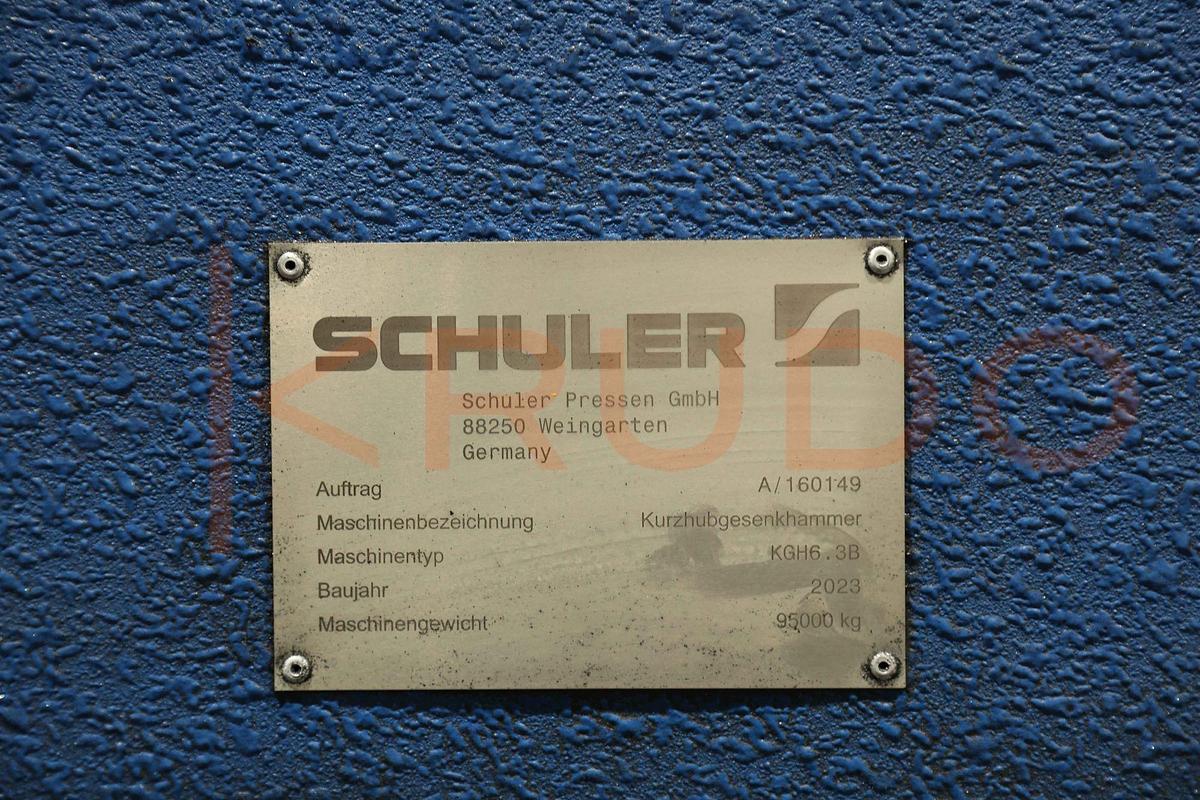

‍1. Machine identification data

Name : Short-Stroke Die Forging Hammer,

Model : KGH 6.3B,

Machine number : 119820,

Year of manufacture : 1998‍,

Capacity : 3 tons.

2. Operational parameters

Working capacity max. : 63 kJ,

Max. impact frequency : 98/min,

Max. usable impact rate : 42/min,

Ram speed : 5,1 m/s.

3. Workspace

-Ram Stroke : Min. 550 mm, Max. 825 mm

-Die height without dovetail : Min. total 190 mm, Max. total 465 mm,

-Clear width between guides : 831 mm,

-Ram depth approx. : 750 mm

4. ‍Weights

Total machine weight approx. : 95 tons,

Anvil bed : 81 tons.

5. Dimensions‍

Installation height above floor approx. : 5655 mm,

Anvil bed Width x Depth : 2950 x 1880 mm.
