Hammer Forging Hydraulic Line Lasco HO-U 800
Specifications
| Manufacturer | Lasco |
| Model | HO-U 800 |
| Year | 2009 |
| Condition | Used |
| Stock Number | MA3230 |
| Item condition | Good condition |
Description

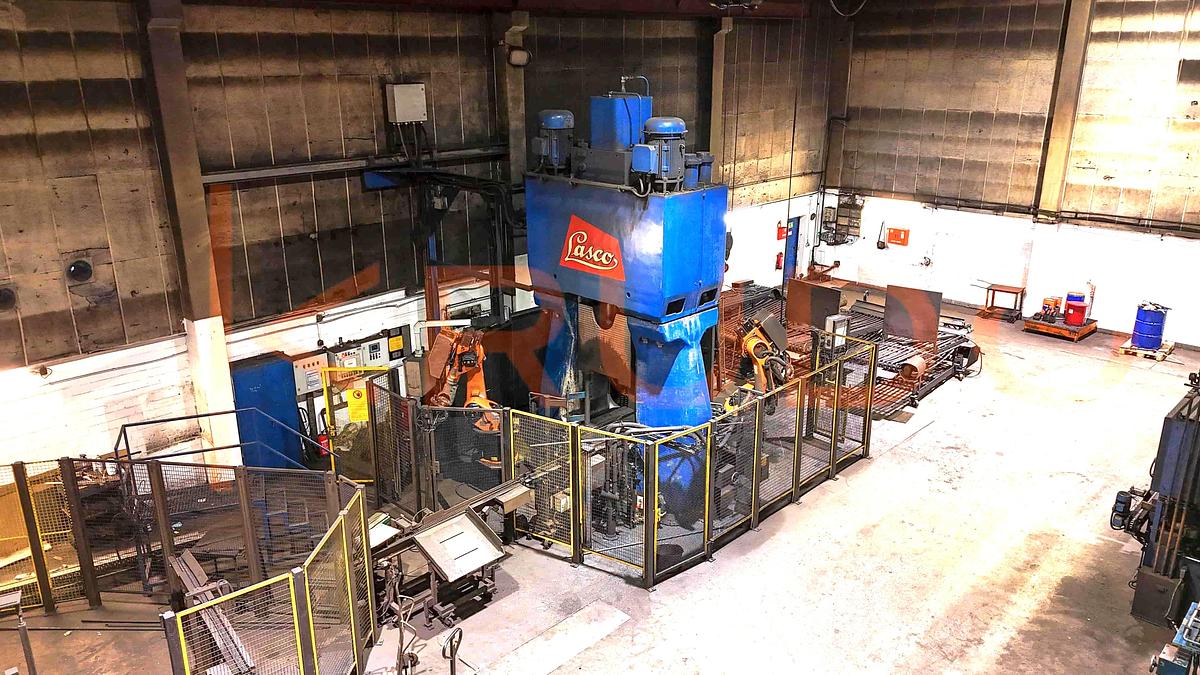

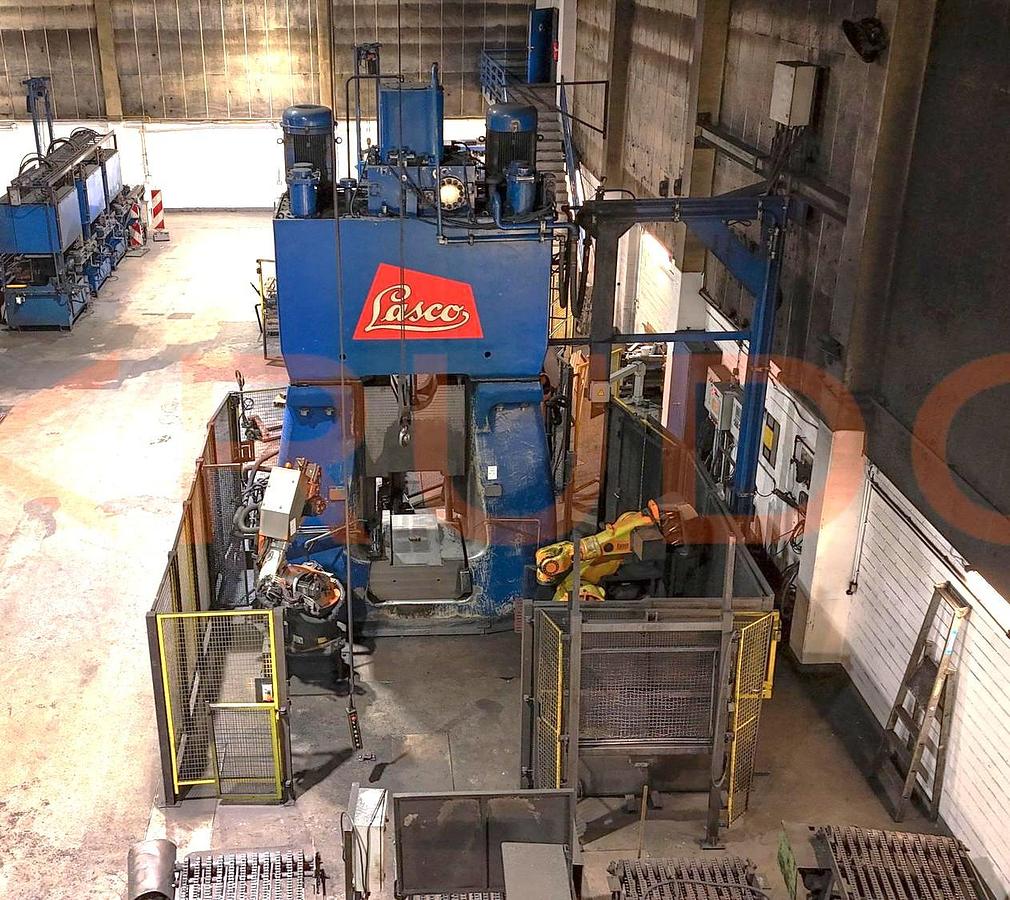

Fully Automated Forging Hammer Line (2009) Lasco H-OU 800 (80 KJ)
The complete line consists of the following machines:
Tilting device, Stahlmann
Step conveyor, Stahlmann

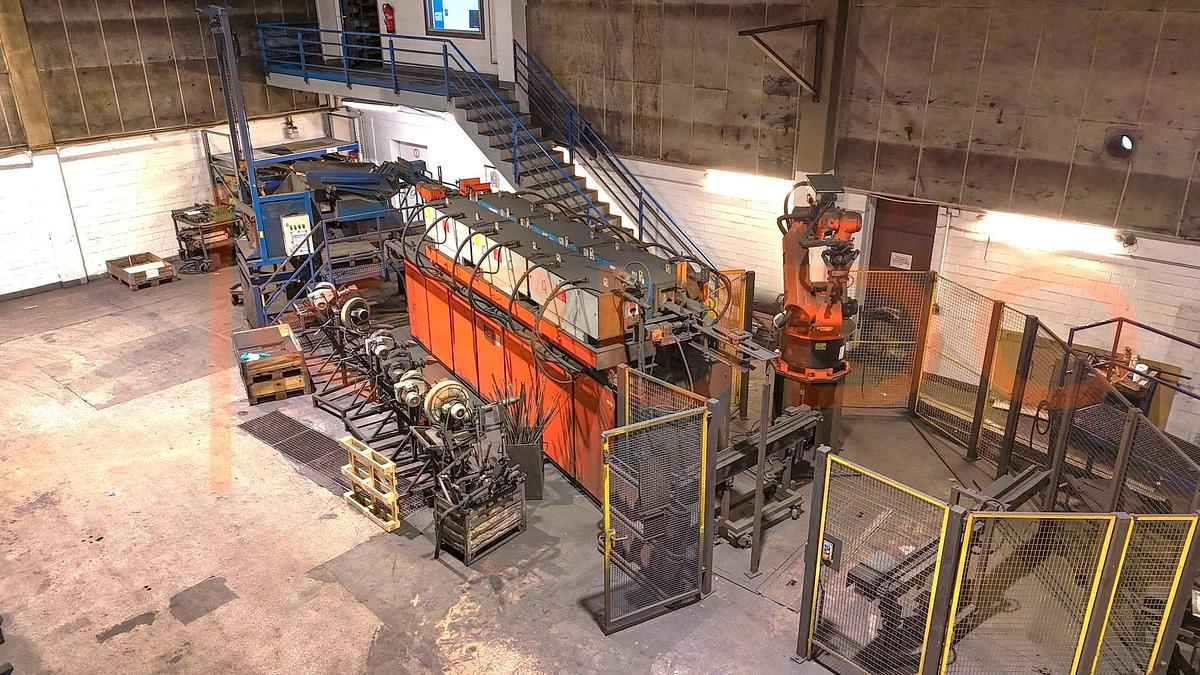

Induction heating unit, ABP, EBS 345-W, 2009
Quick-release conveyor

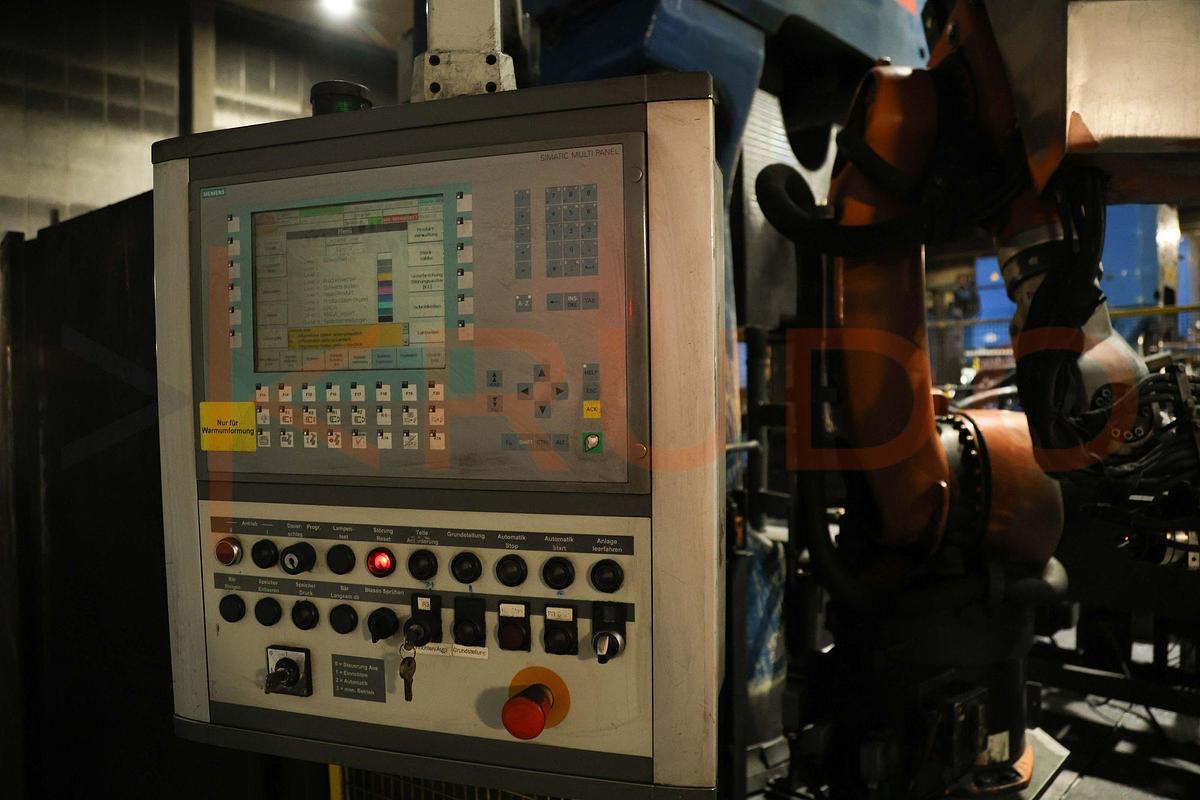

Automation unit, Lasco, 2009

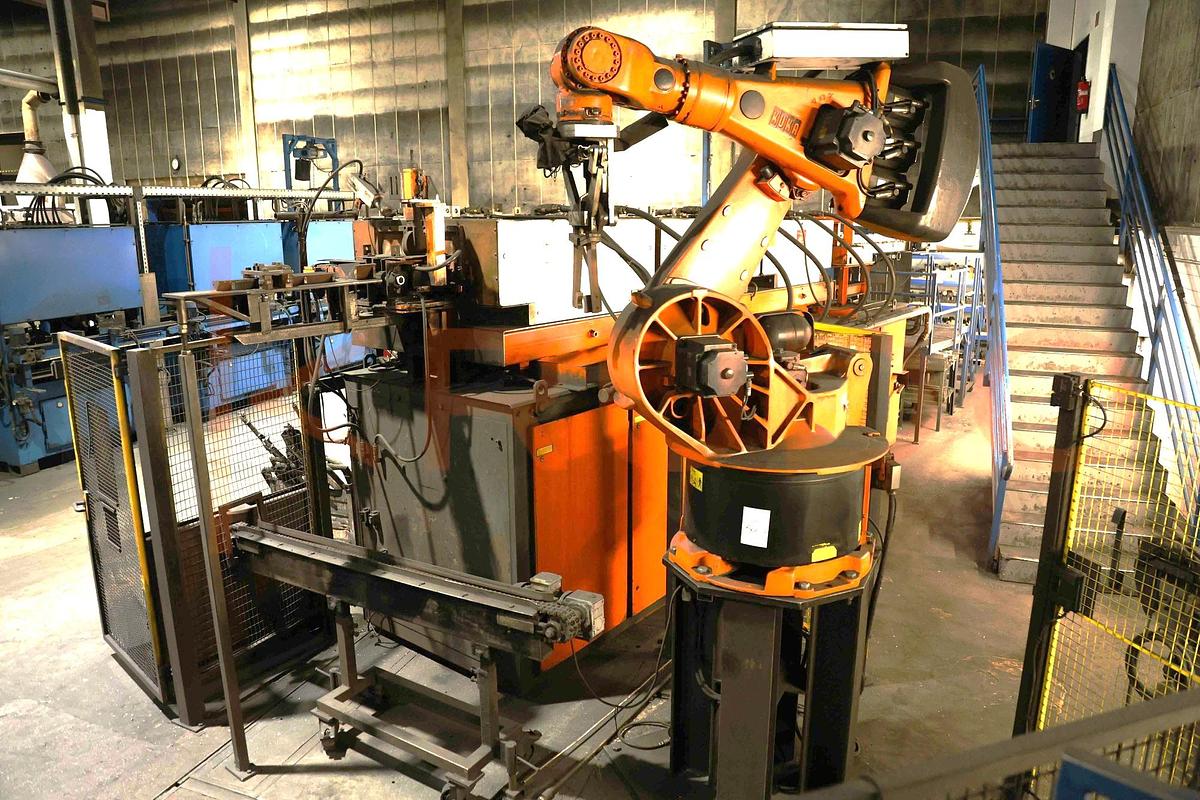

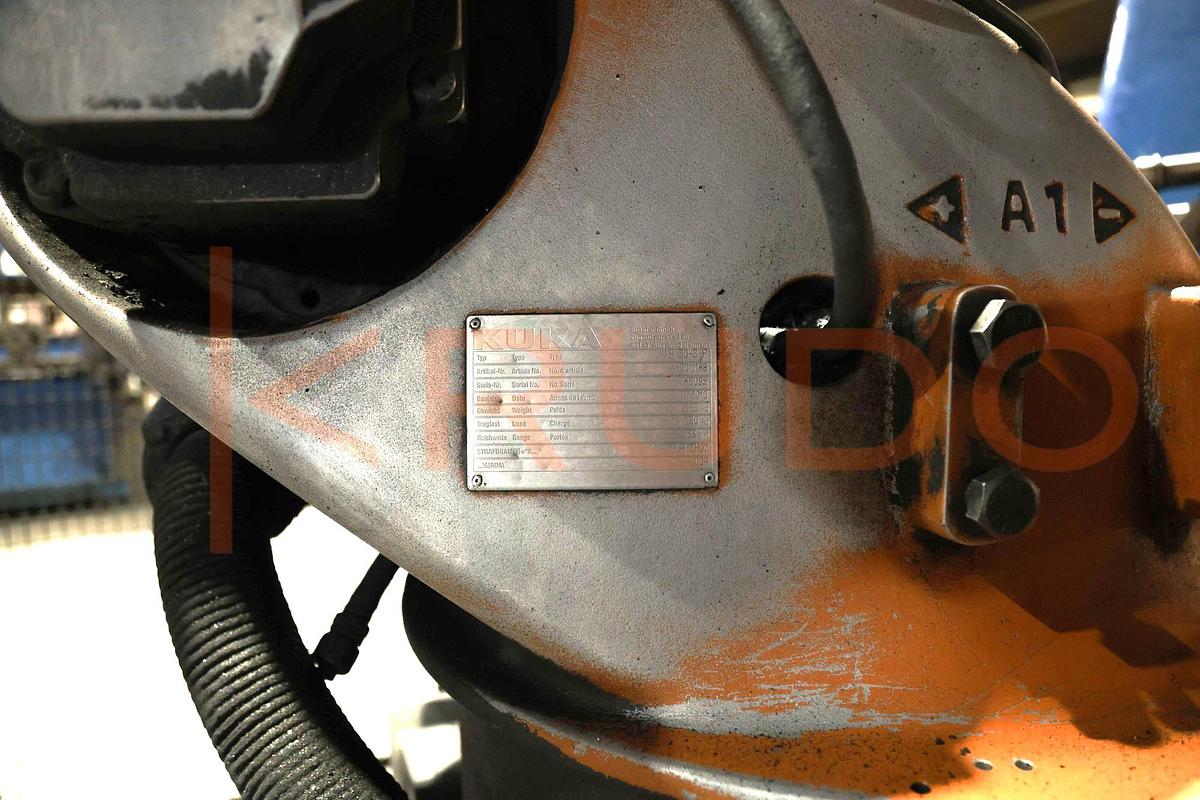

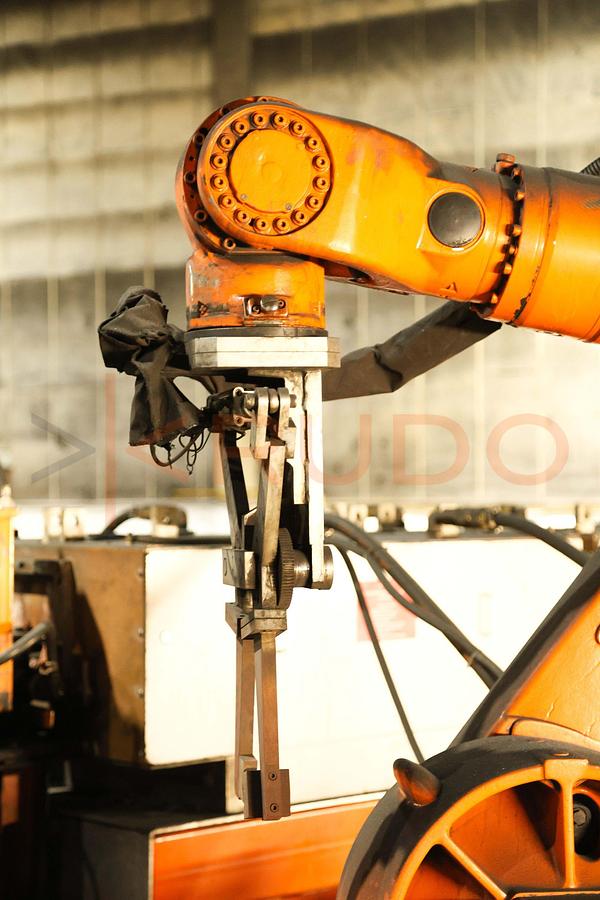

2 Forging robots, Kuka KR 30-3F, 2013
2 Bases, weight each: 336 kg
Conveyor belt with lifting device, safety enclosure with doors

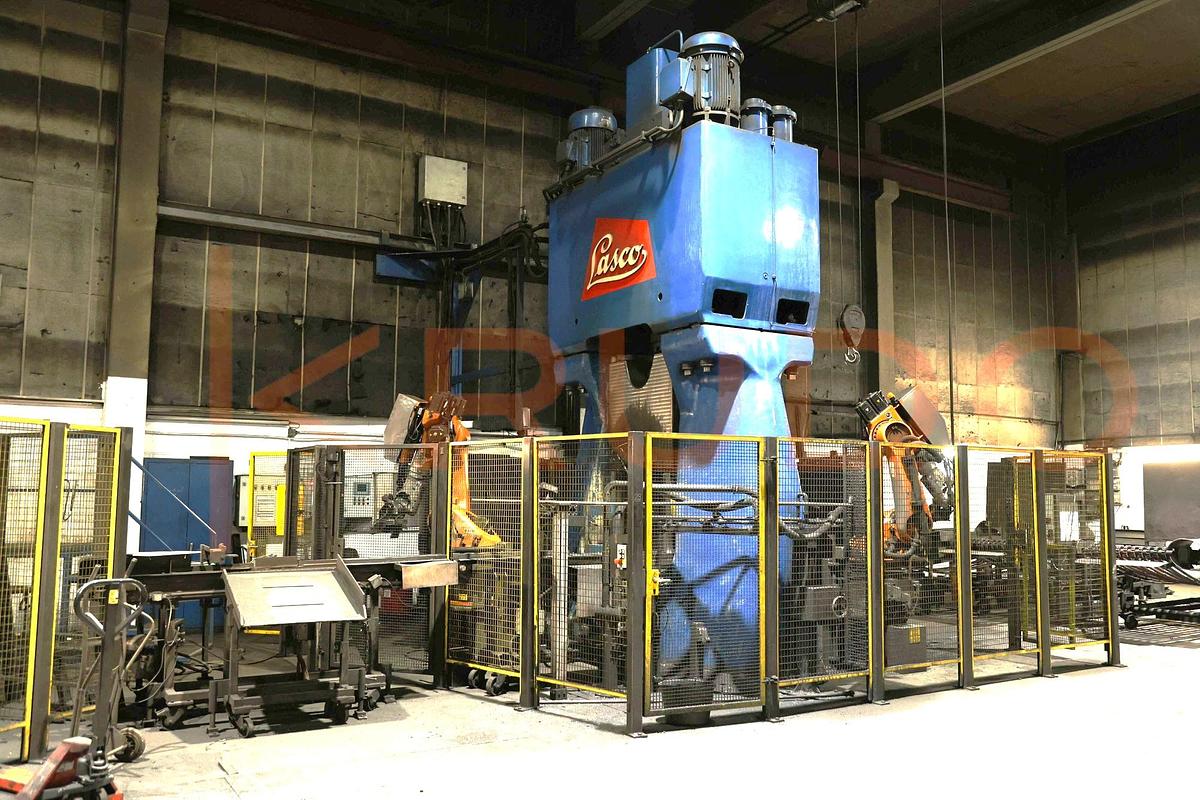

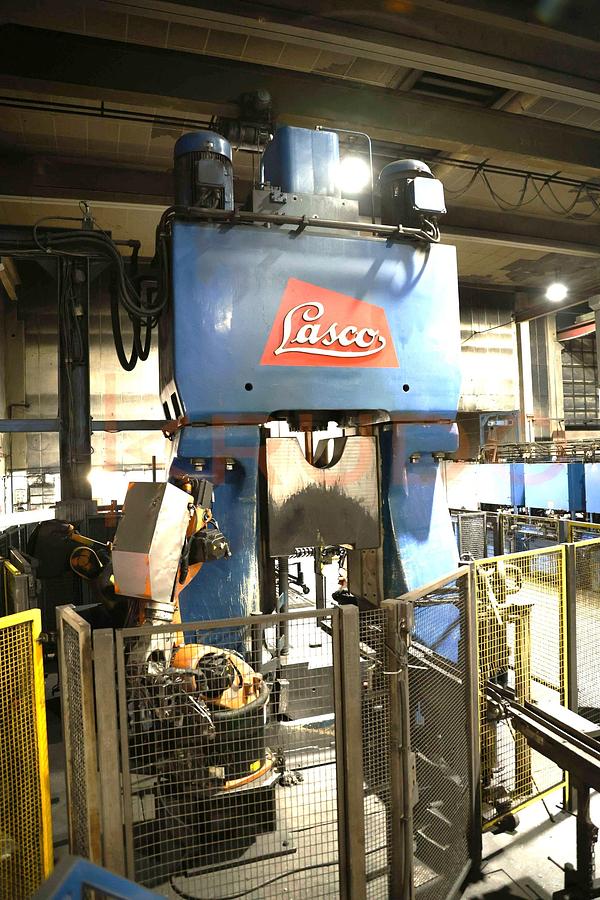

Top pressure drop forging hammer, Lasco, HOU 800, 2009
Picking robot, Kuka, KR 150/2, 1998
Dispensing station, consisting of : Discharge conveyor and blow-off control, Manufacturer Schramm
Technical Details
1. Machine identification data
Name : Short-Stroke Die Forging Hammer,
Model : HO-U 800,
Machine number : 119820,
Year of manufacture : 1998,
2. Operational parameters
Working capacity max. : 80 kJ,
Max. impact frequency : 80/min,
Impact energy approx. : 80 kJ,
Impact frequency at rated working capacity approx. : 80 1/min.,
Ram stroke max. : 810 mm,
Ram stroke min. : 560 mm,
Ram weight approx. : 5600 kg,
Ram depth approx. : 800 mm,
Die height of both dies without dovetails : Max. approx. 530 mm, Min. approx. 280 mm,
Frame weight approx. : 105 tons,
Total weight of the hammer approx. : 122 tons,
Height above floor with floor height up to top of insert = 700 mm 5940 mm,
Overall height approx. : 7320 mm,
Oil volume in oil tank approx. : 3400,
Storage pressure approx. : 130 bar,
3. Technical Data (Electrical)
Drive Power - Main Motor 2 x 90 kW,
Drive Power - Cooling Circuit 5.5 kW,
Drive Power - Lubrication Pump 0.18 kW,
Operating Voltage : 400 V/50 Hz,
Control Voltage : 230 V/50 Hz,
Valve Voltage : 24 V DC,
Connection Power approx. : 200 kVA,
Motor Protection Class IP 55,
Control Column Protection Class IP 55,
Display Color,
Screen Diagonal 10.4",
