Hammer Forging Hydraulic Line Beche KGH5B

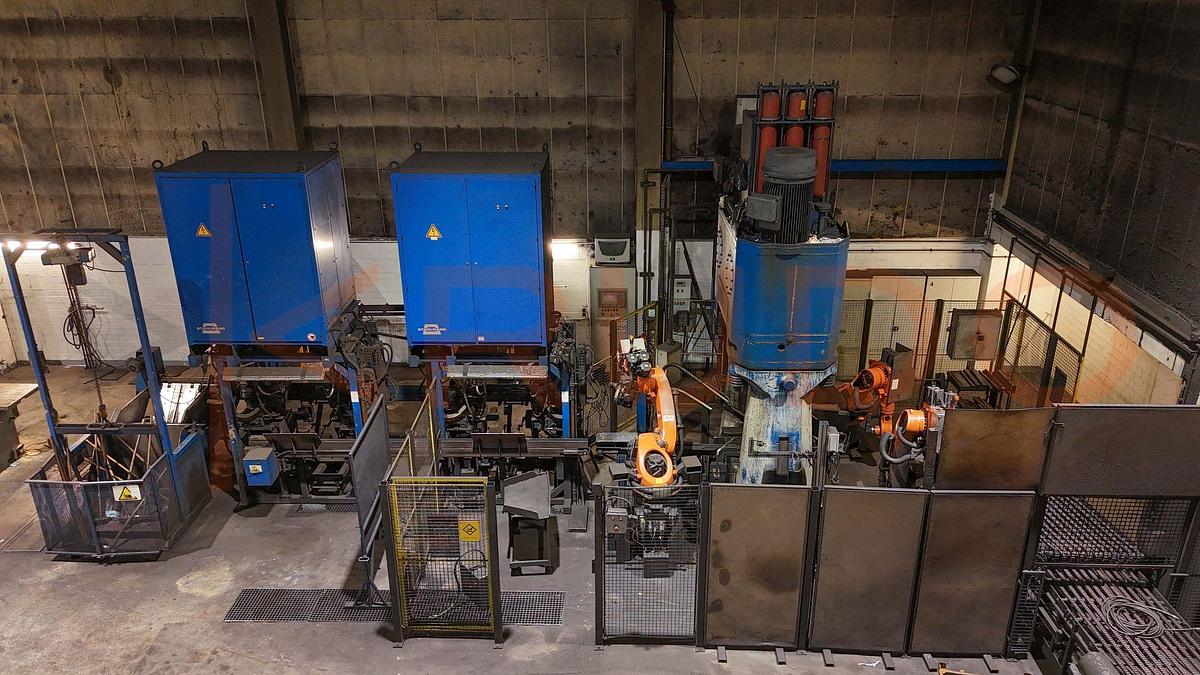

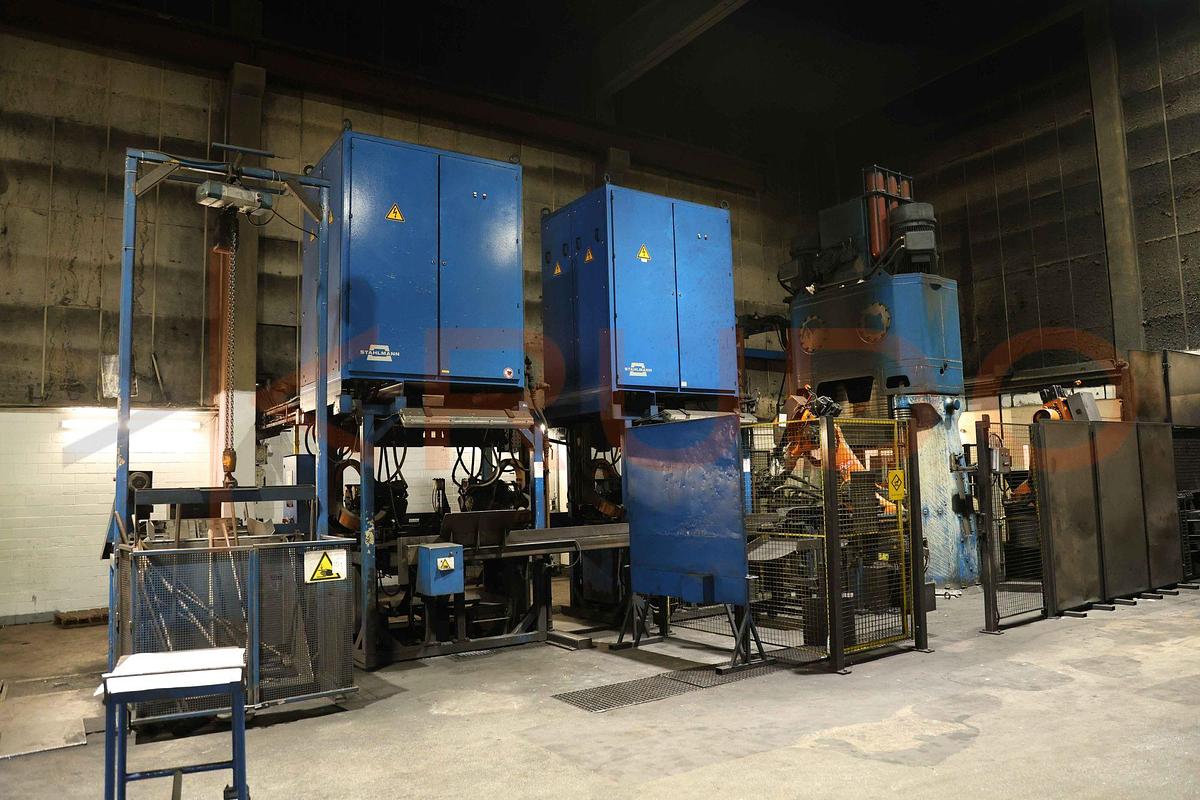

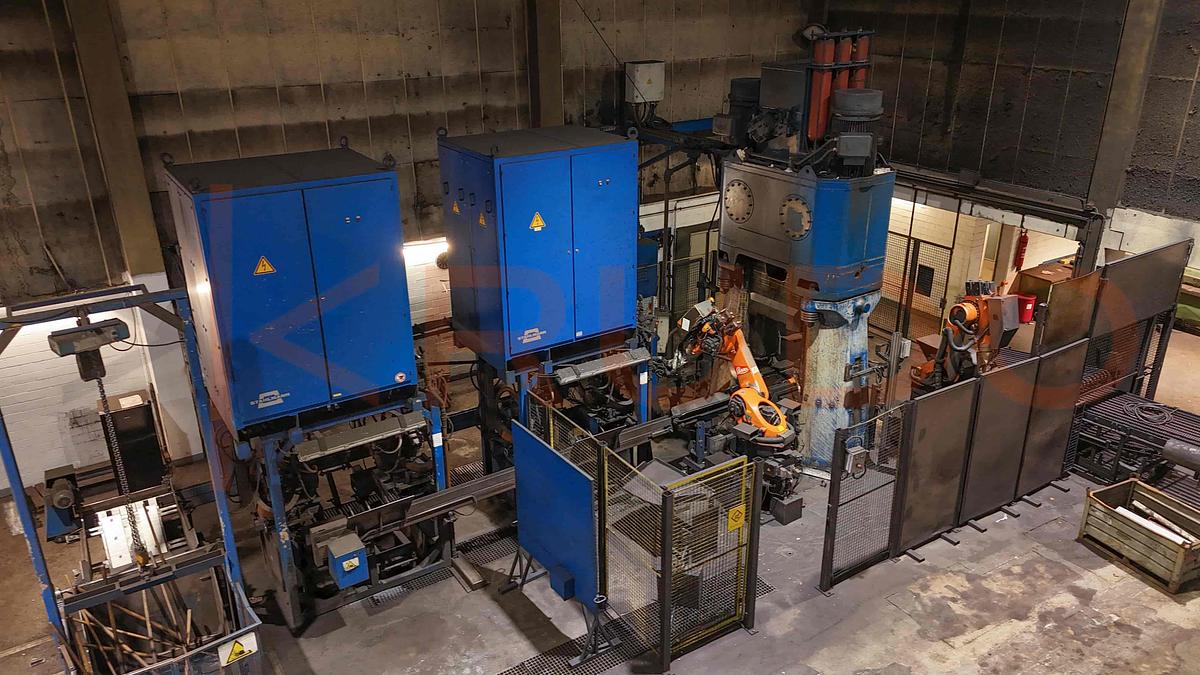

Fully Automated Forging Hammer Line (2004) Beche KGH5B (55 KJ)

The complete line consists of the following machines:

‍

Tilting device, Stahlmann

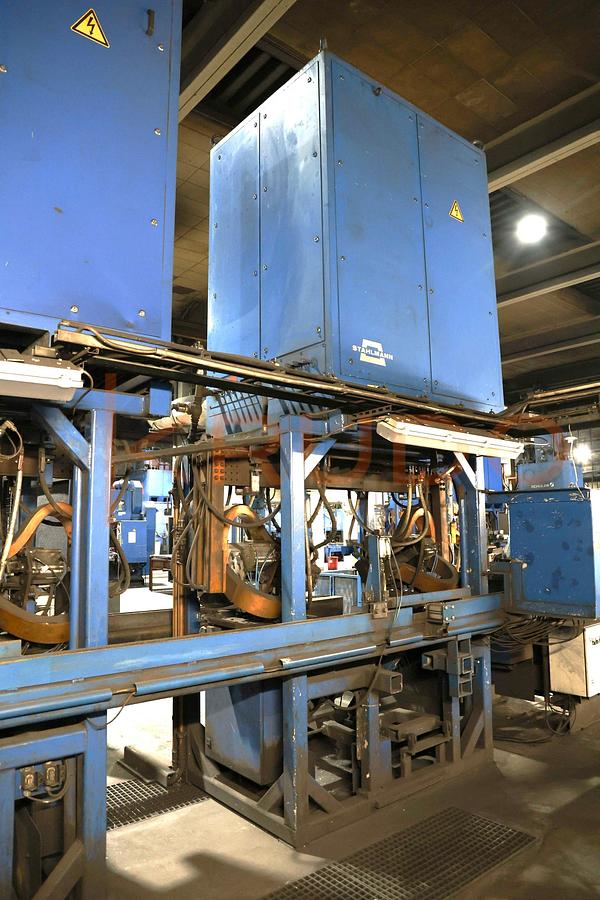

Conductive heating system, Stahlmann, D400G21/39000 XSH, 2004

Frako reactive power compensation

Automation system, Lasco, 2009

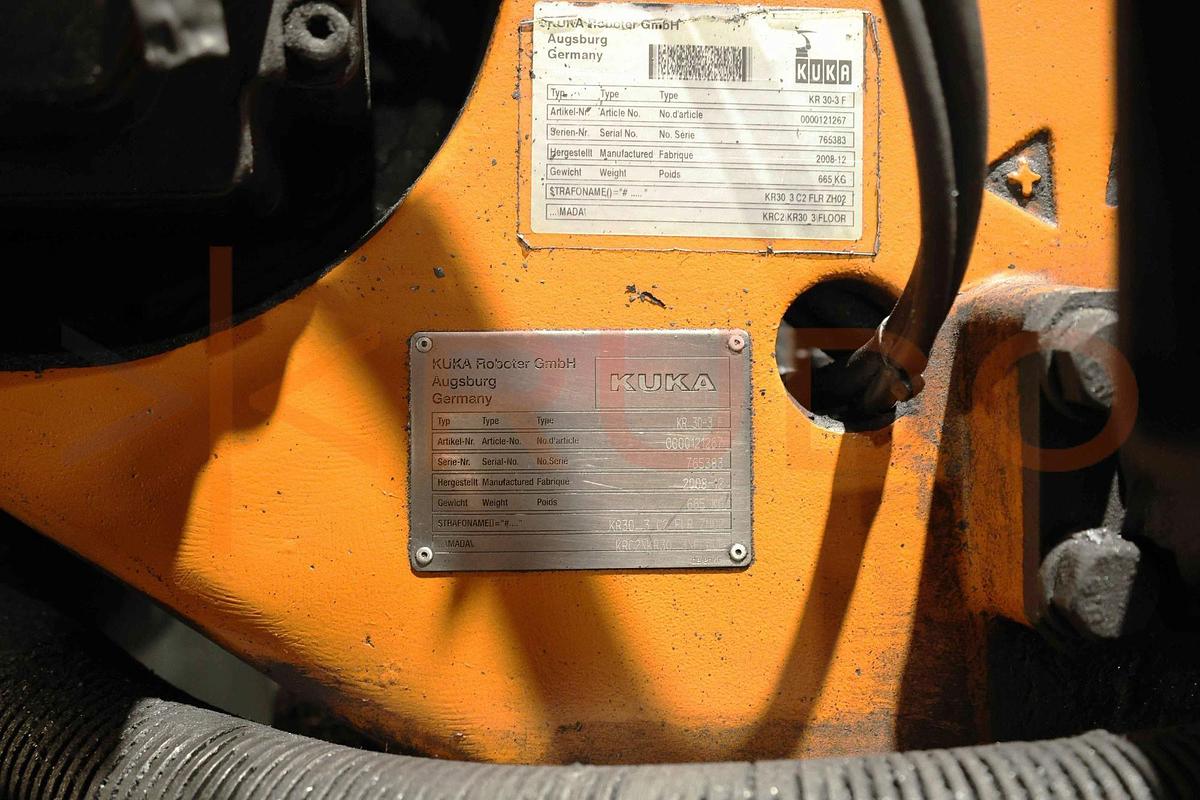

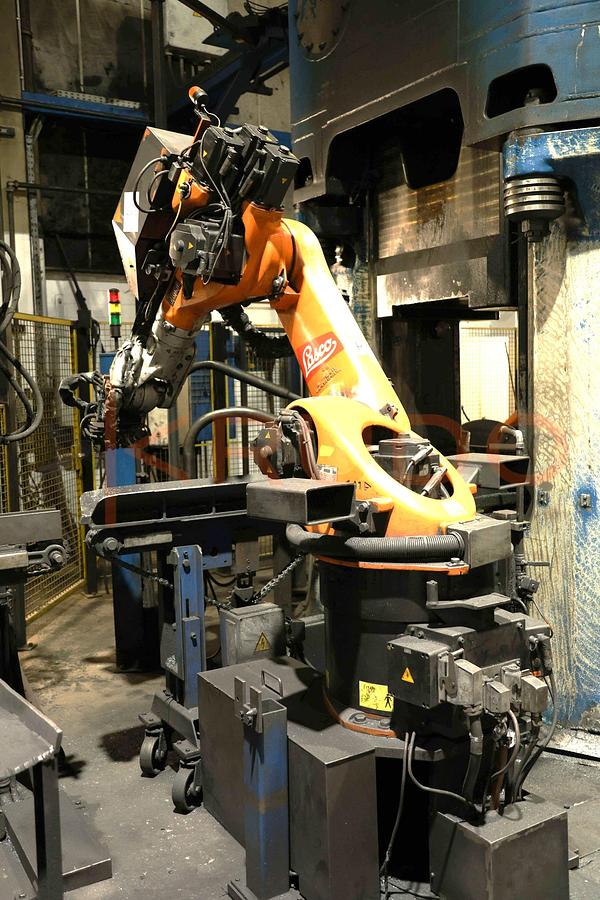

2 Forging robots, Kuka, KR 30-3F

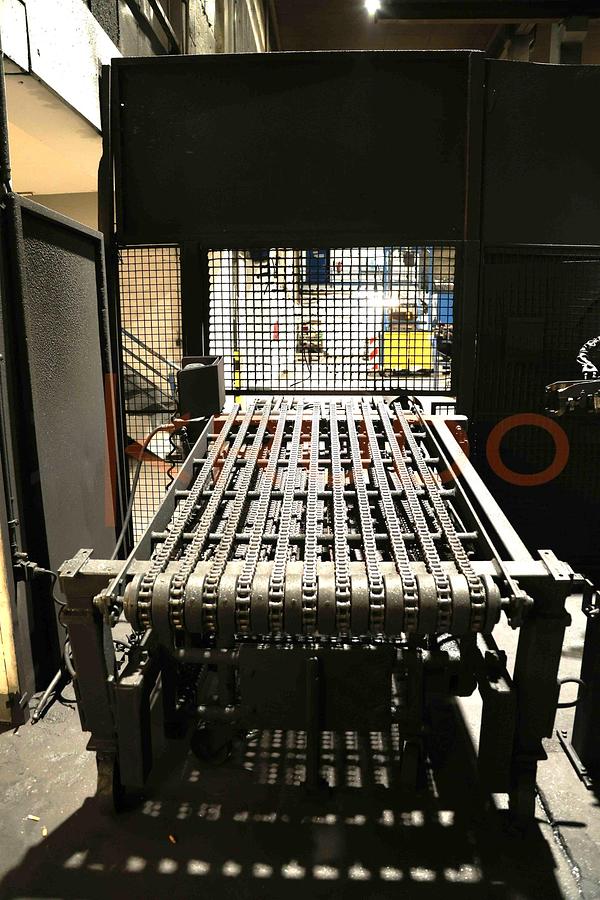

Conveyor belt with lifting device

Control cabinet with higher-level control system

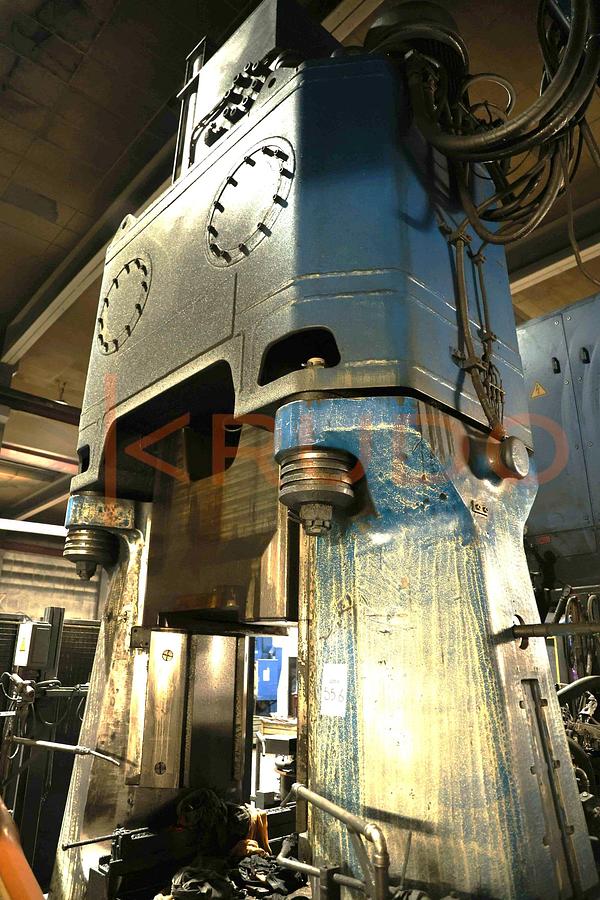

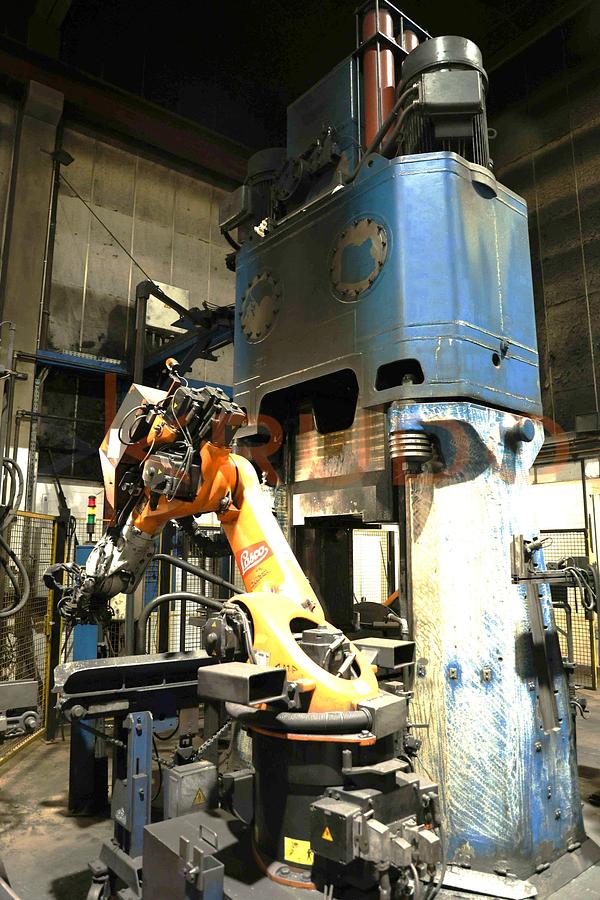

Short-stroke drop hammer, Beche, KG H 5B, 2004

Discharge robot for removal, Kuka, KR 30/2, with bucket, 1999

Technical Details

‍

‍1. Machine identification data

Name : Short-Stroke Die Forging Hammer,

Model : KGH5B,

Machine number : 155002,

Year of manufacture : 2004,

2. Operational parameters

Working capacity max. : 55 kJ,

Max. impact frequency : 99/min,

Max. usable impact rate : 55/min,

Maximum impact rate at rolling impact : 120 min⁻¹,

Min. ram stroke : 530 mm,

Max. ram stroke : 775 mm,

‍

3. ‍Weights

Total machine weight approx. : 75 tons,

Anvil bed : 58.3 tons,

Drive head complete without oil : 12.4 tons,

Ram approx. : 3,700 kg ‍

4. Dimensions

Overall height approx. : 6600 mm,

Installation height above floor approx. : 5695 mm,

Installation height below floor approx. : 905 mm,

Width x Depth : 2720 x 1760 mm,

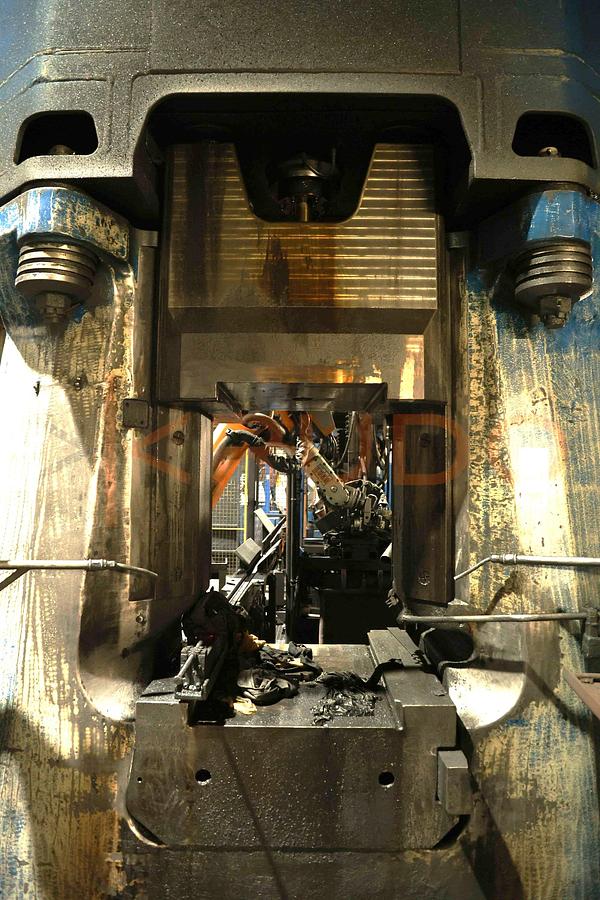

5. Workspace

Clear width between guides : 766 mm,

Working height to upper edge of the insert : 900 mm,

Ram depth : 800 mm,

Insertion depth : 1000 mm,

Die height without dovetail : Min. total 190 mm, Max. total 435 mm.
