Hammer Forging Hydraulic Line Beche KGH5B

Fully Automated Forging Hammer Line (2002) Beche KGH5B (55 KJ)

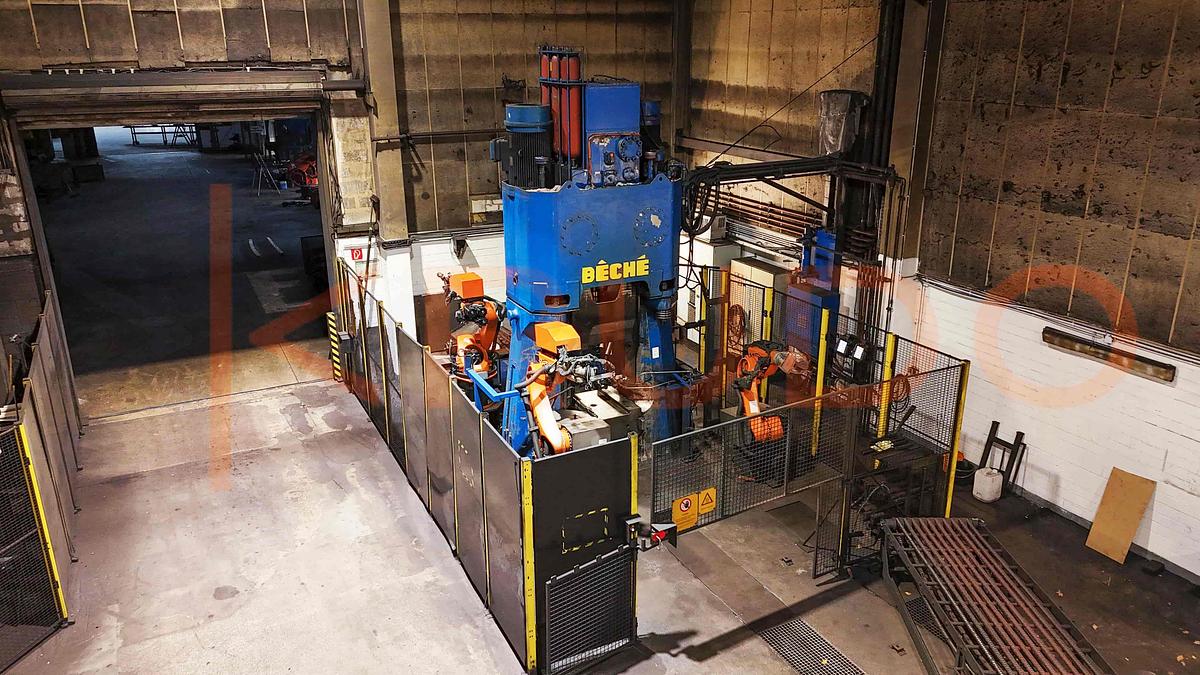

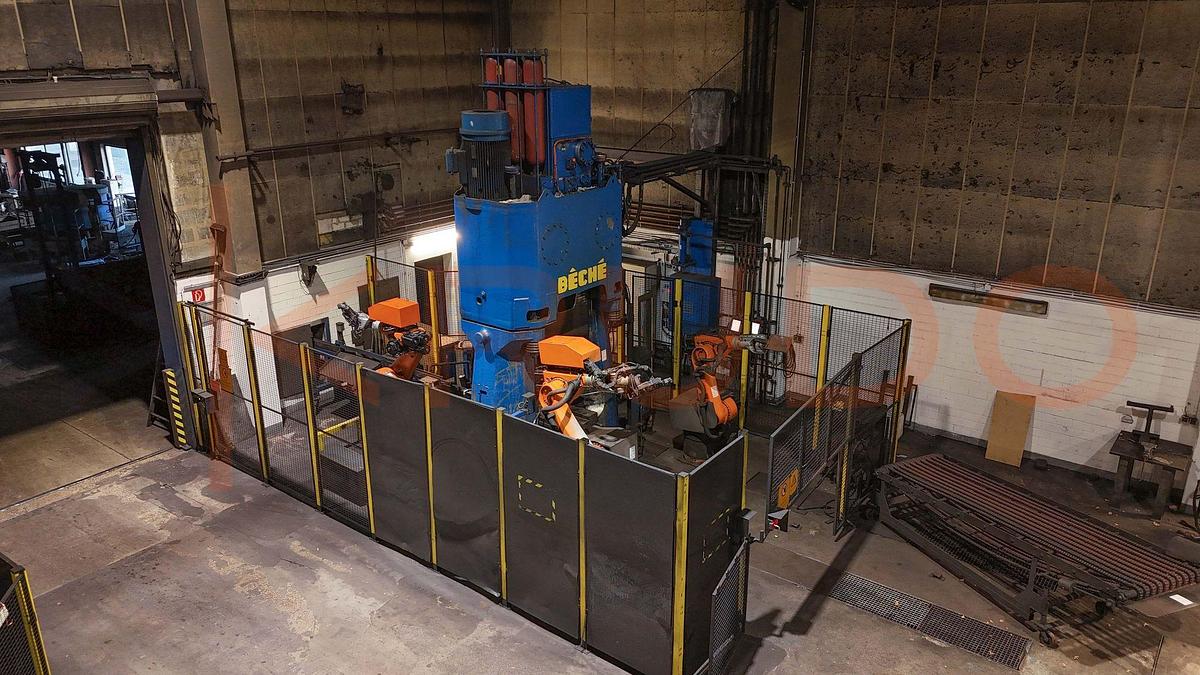

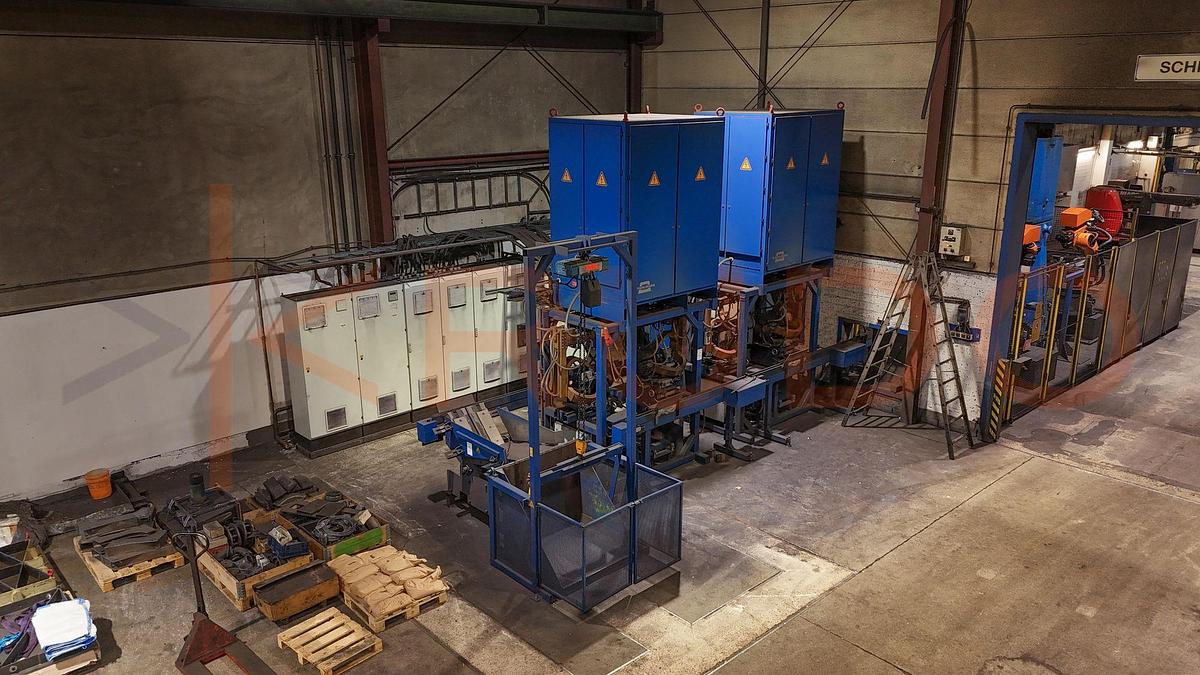

The complete line consists of the following machines:

‍

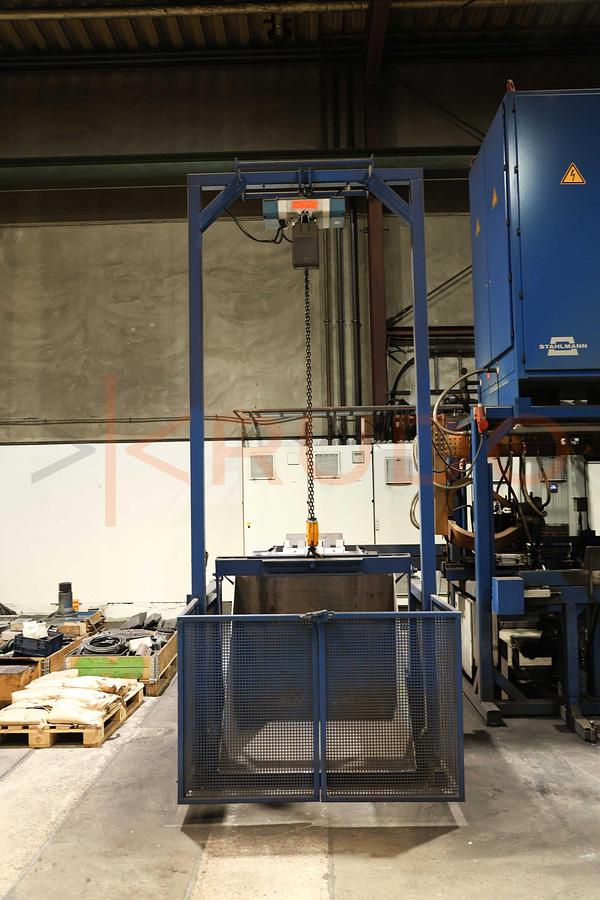

Tilting Device, Stahlmann

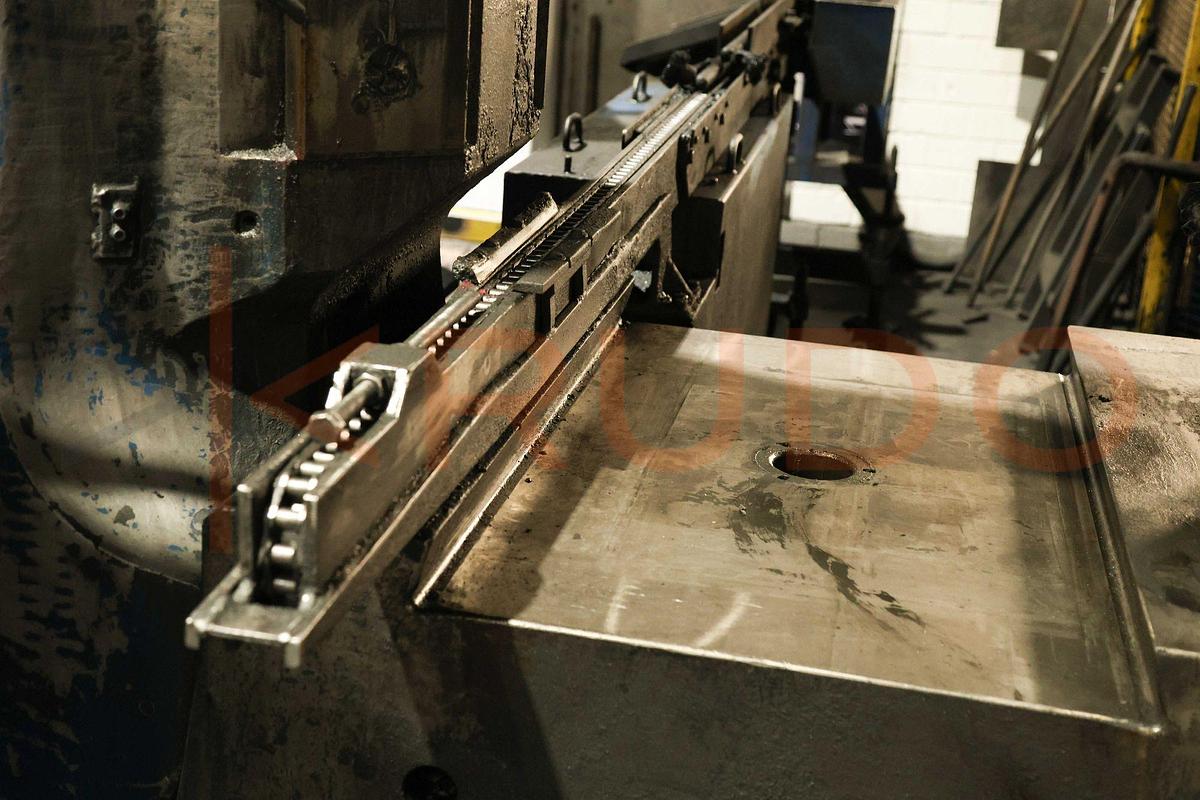

Step conveyor, Stahlmann

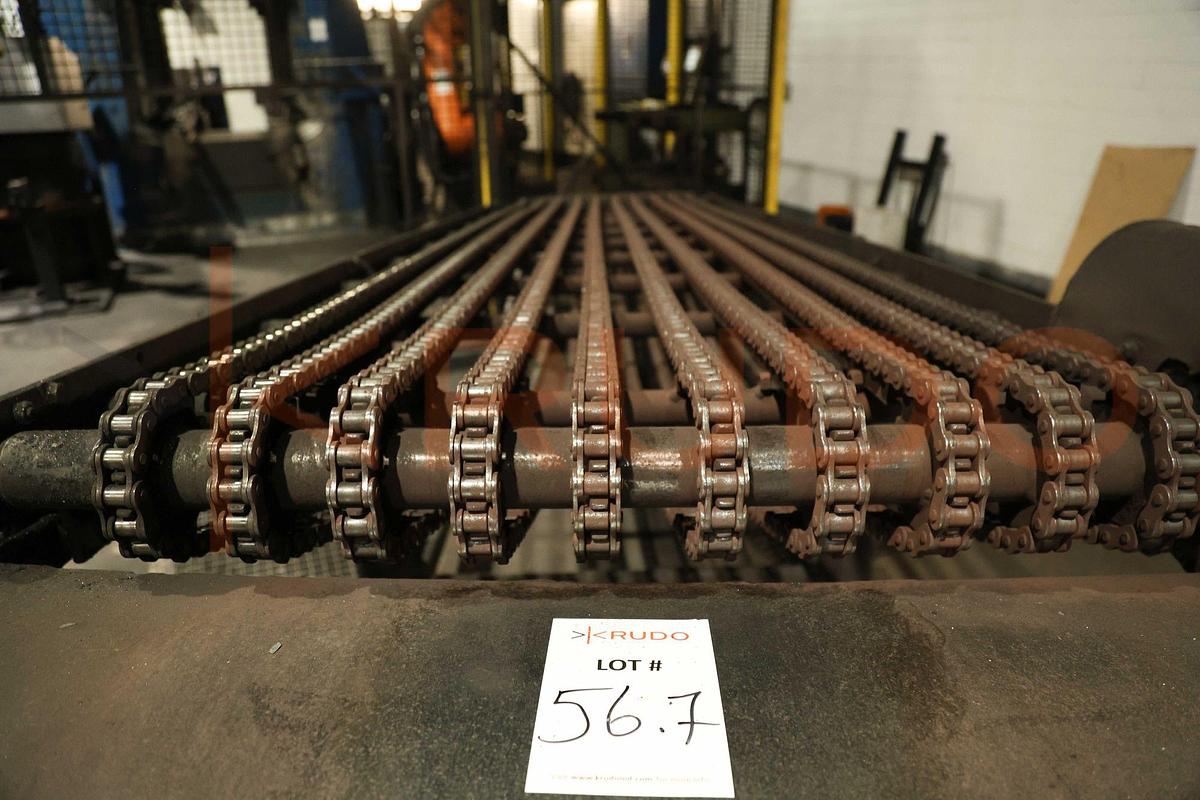

Cold Belt Conveyor with Lifting Device

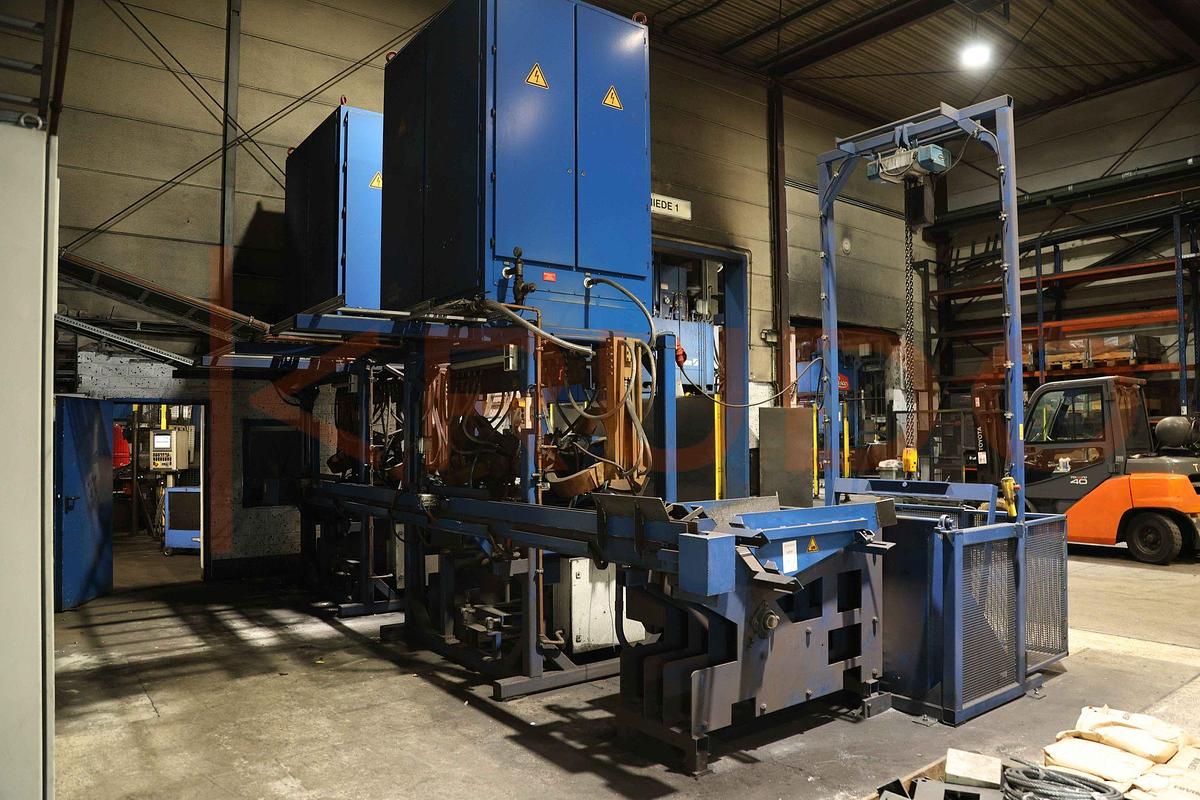

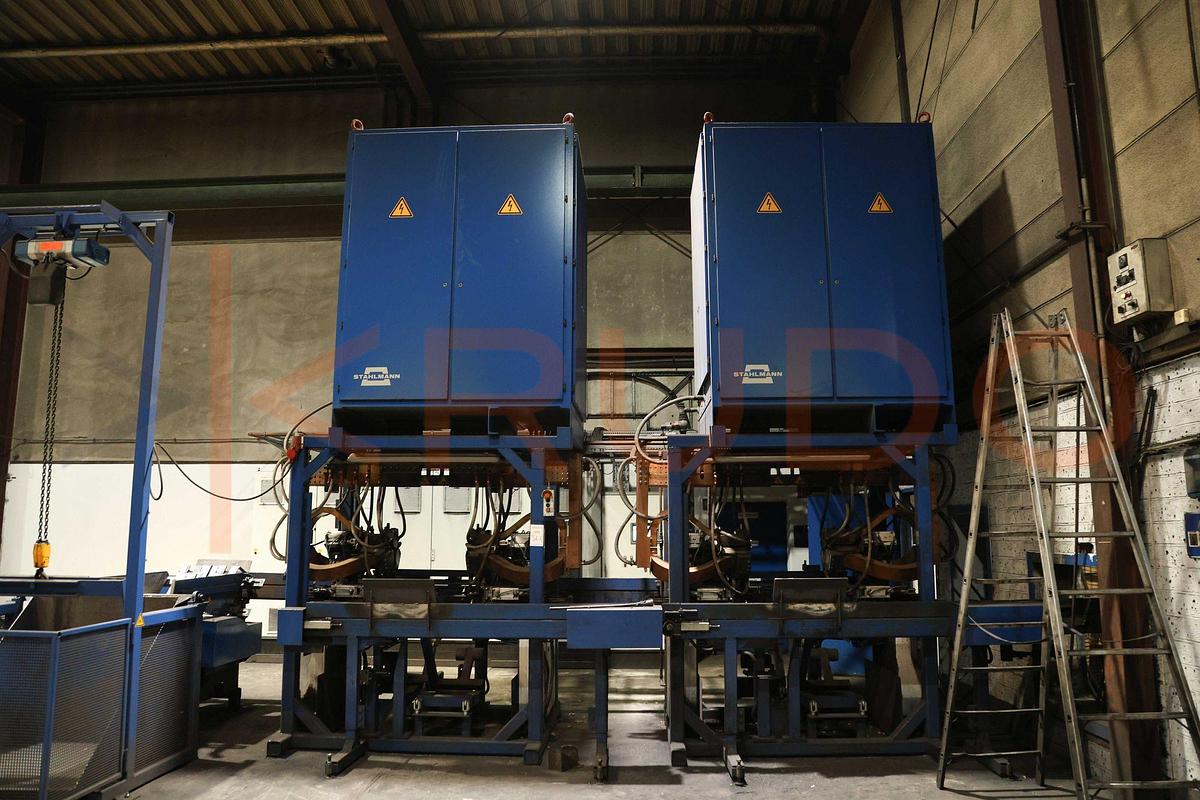

Conductive Heating System, Stahlmann, E89, 2019

Heated Conveyor Belt

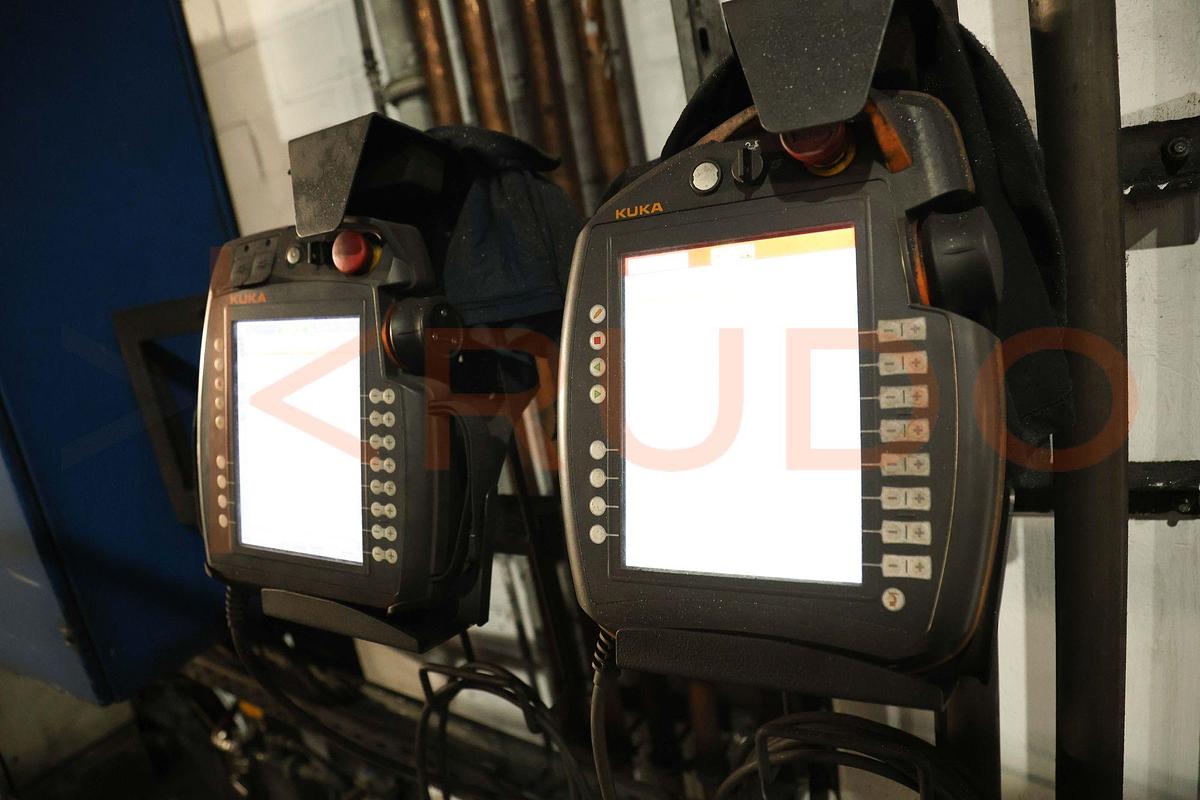

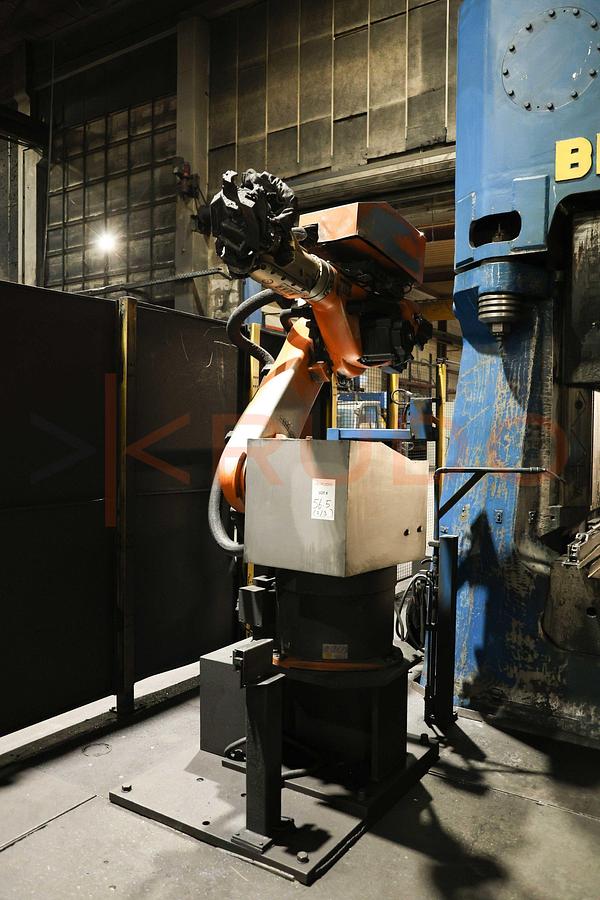

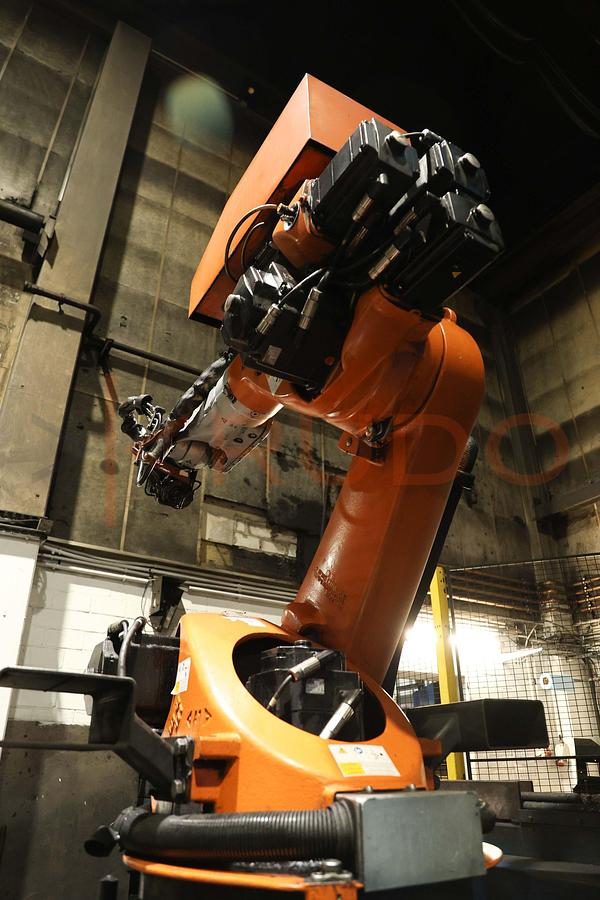

Forging Robot, Lasco / Kuka, KR 60-3F, 2019

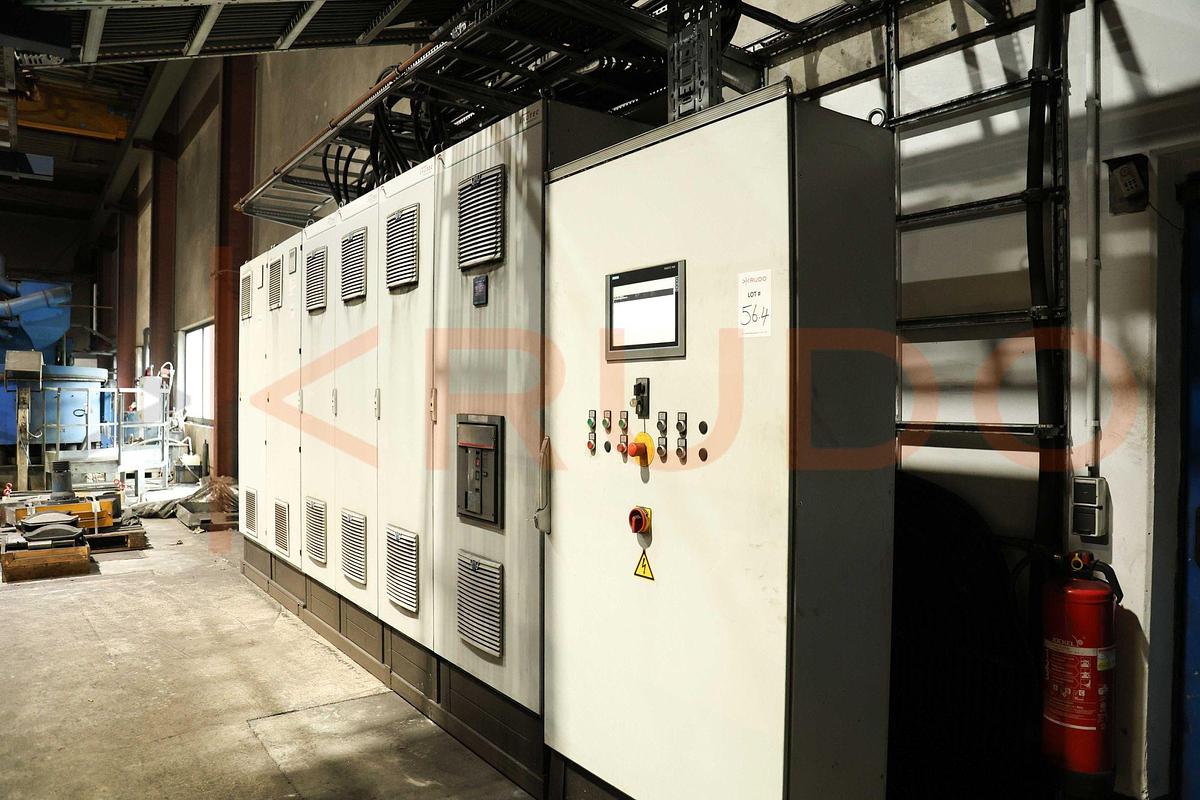

Central Control Cabinet

Safety Fence with Safety Doors

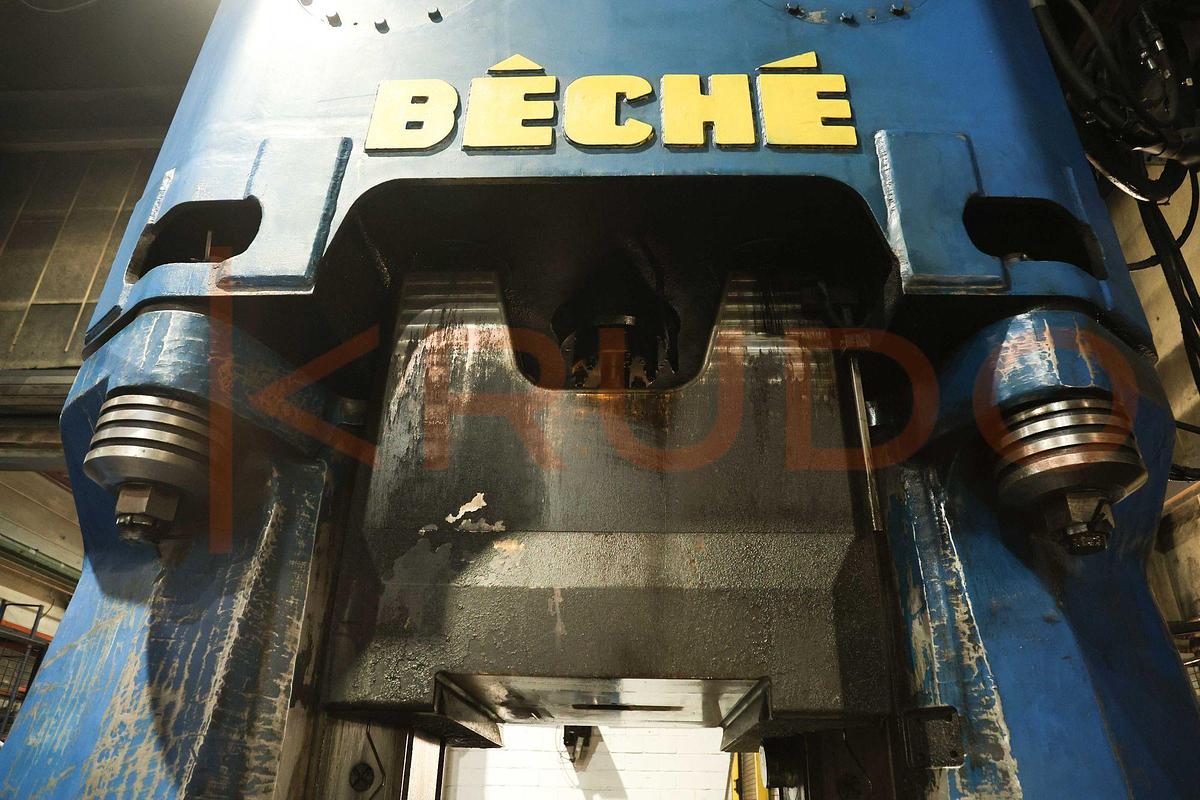

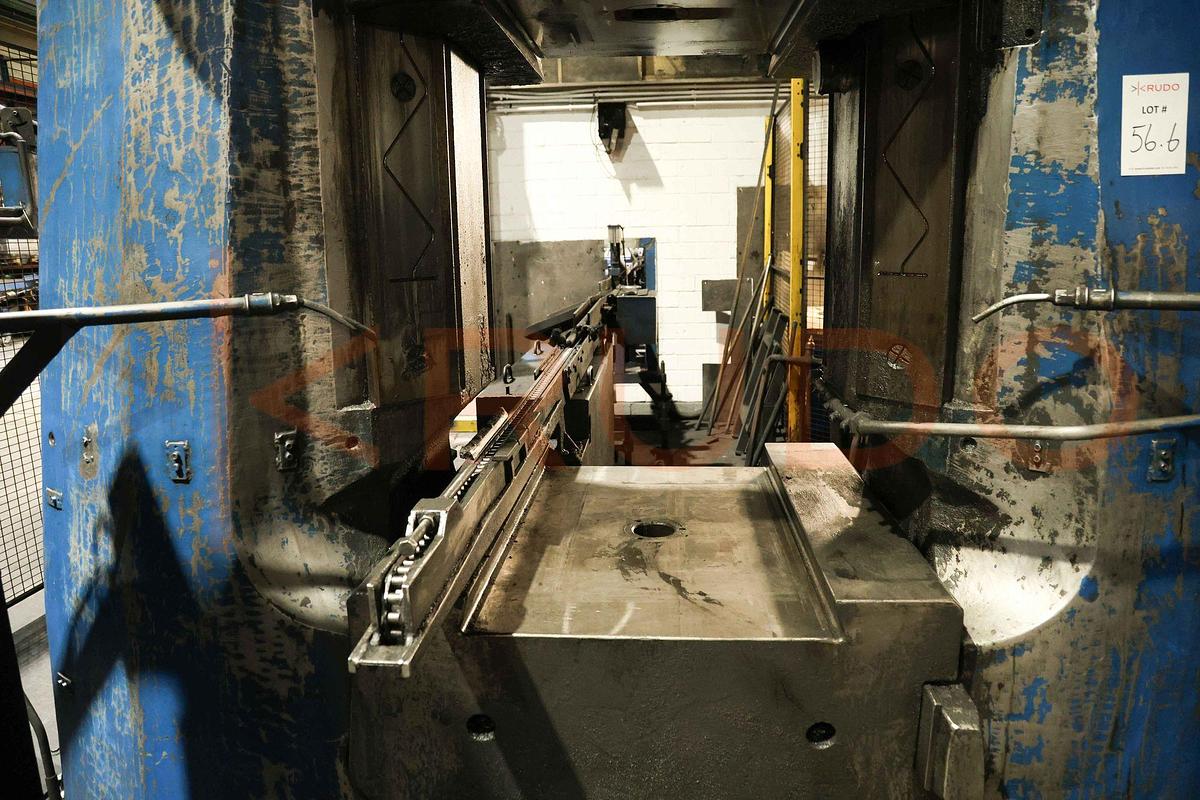

Short-Stroke Die Forging Hammer, Müller Weingarten (Beche), KG H 5B, 2002

Extraction robot, Kuka, KR 60-3F, 2019

Discharge station, Stahlmann

‍

Technical Details

‍

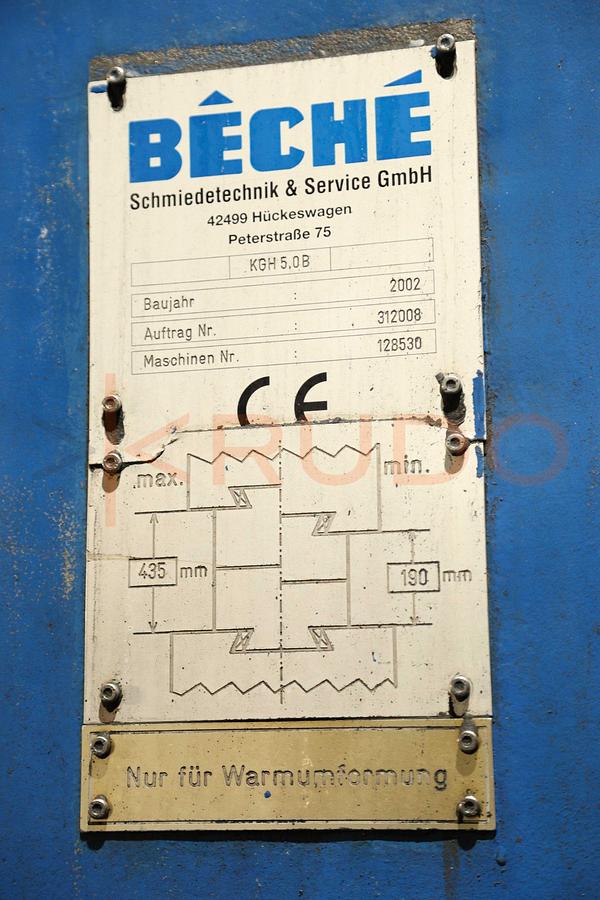

‍1. Machine identification data

Name : Short-Stroke Die Forging Hammer,

Model : KGH5B,

Machine number : 127050,

Year of manufacture : 2002,

2. Operational parameters

Working capacity max. : 55 kJ,

Max. impact frequency : 99/min,

Max. usable impact rate : 45/min,

Max. ram stroke : 775 mm,

‍

3. ‍Weights

Total machine weight approx. : 75 tons,

Anvil bed : 58.3 tons,

Drive head complete without oil : 12.4 tons,

Ram approx. : 3700 kg ‍

4. Dimensions

Overall height approx. : 6600 mm,

Installation height above floor approx. : 5695 mm,

Installation height below floor approx. : 905 mm,

Width x Depth : 2720 x 1760 mm,

5. Workspace

Clear width between guides : 766 mm,

Working height to upper edge of the insert : 900 mm,

Ram depth : 800 mm,

Insertion depth : 1000 mm,

Die height without dovetail : Min. total 190 mm, Max. total 435 mm.
