Hammer Forging Hydraulic Line Beche KGH4B

 Semi-Automated Forging Hammer Line (2001) Beche KGH4B (40 KJ)

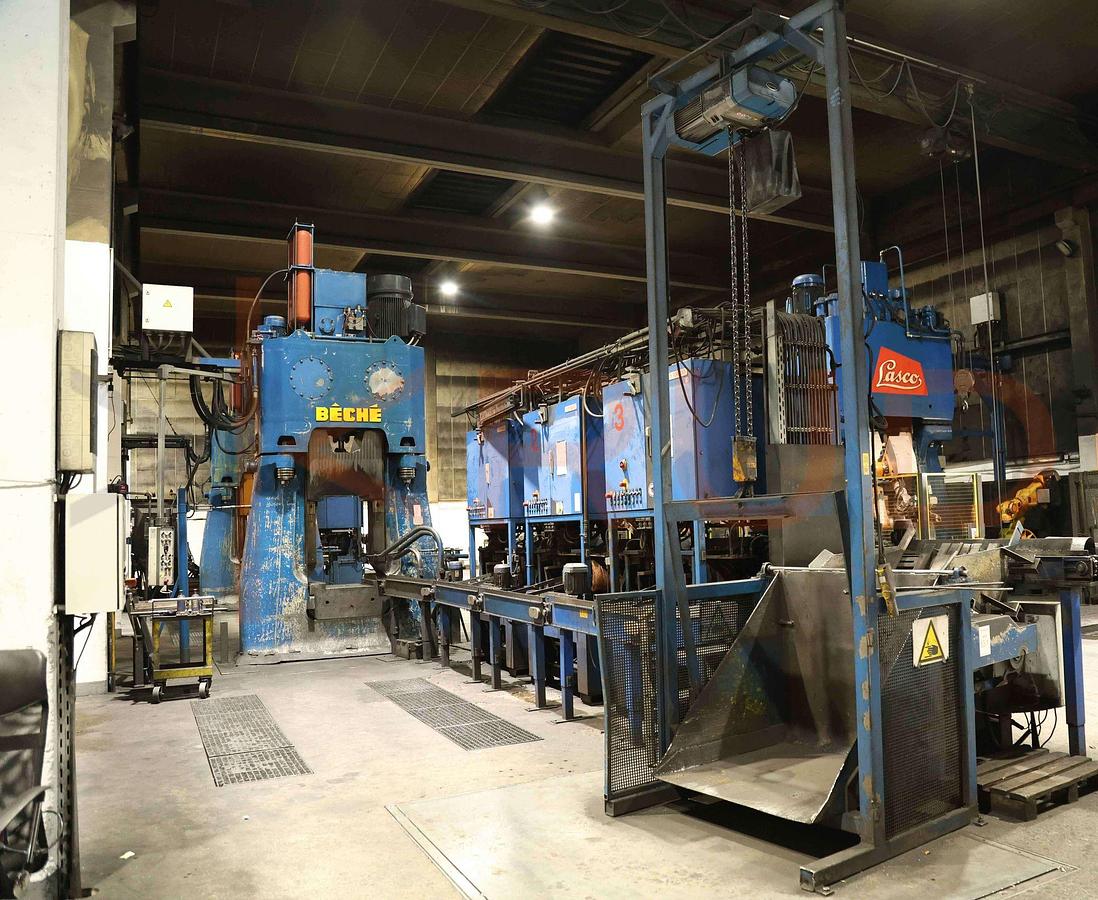

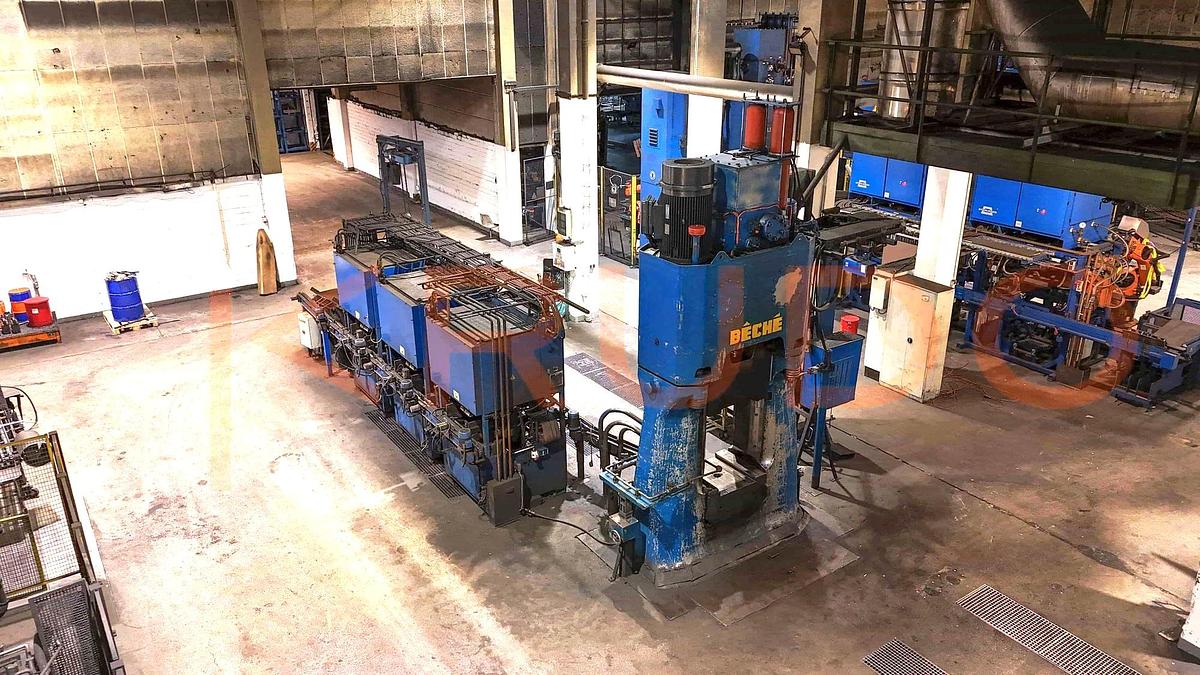

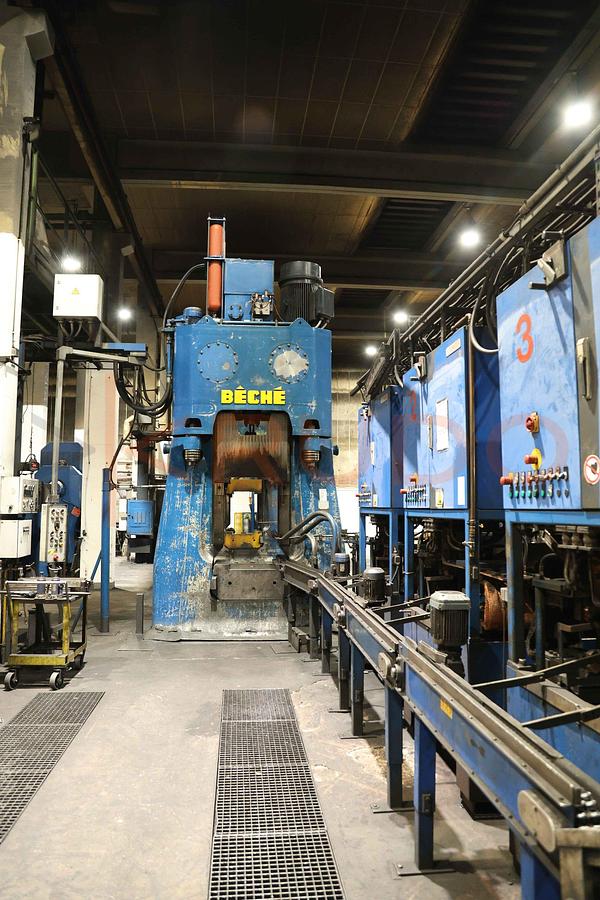

The complete line consists of the following machines:

‍

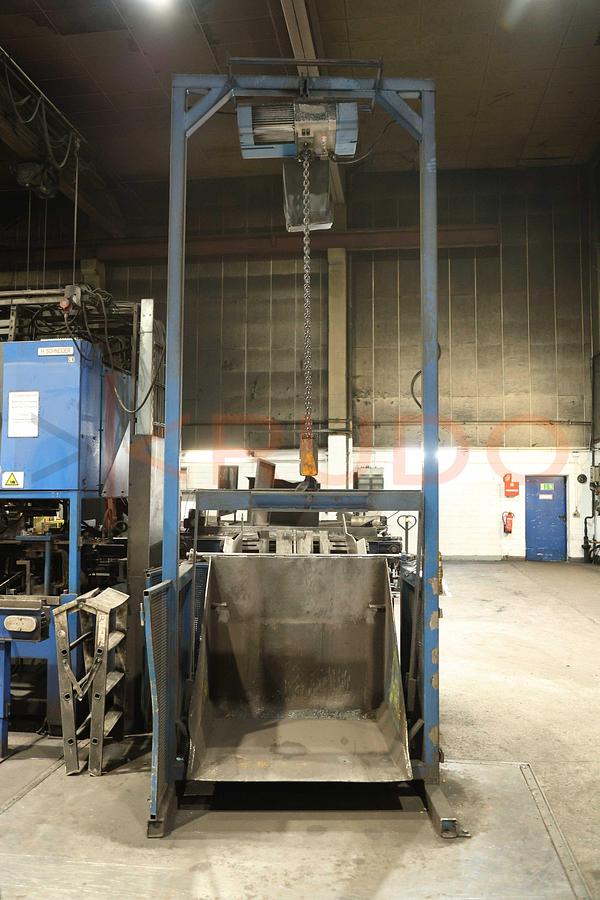

Tilting device, Stahlmann

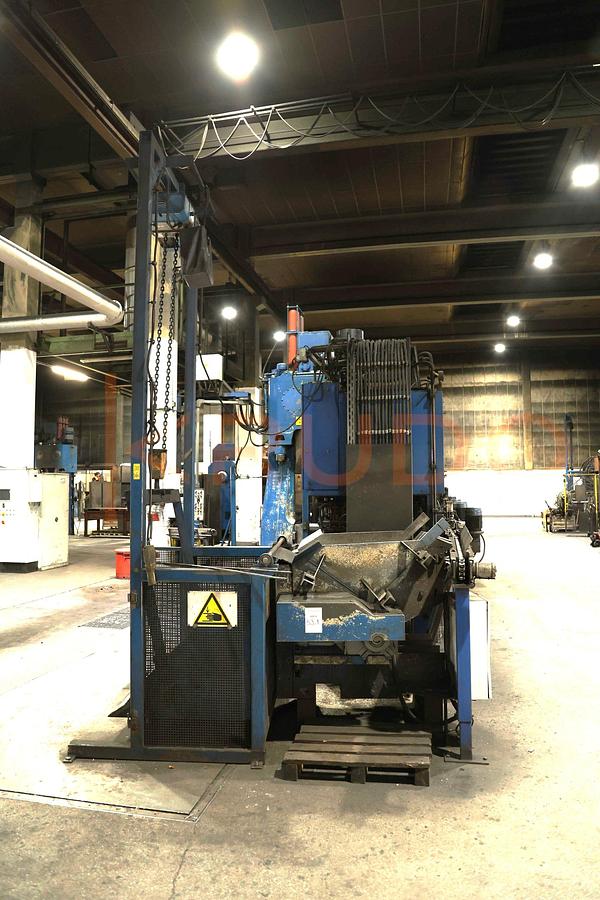

Step conveyor, Stahlmann

Cold conveyor belt

Conductive heating unit with 3 modules, Schneider, KEA, 2002

Frako reactive power compensation unit; - Cooling system is required -

Hot conveyor belt

Impulse blower

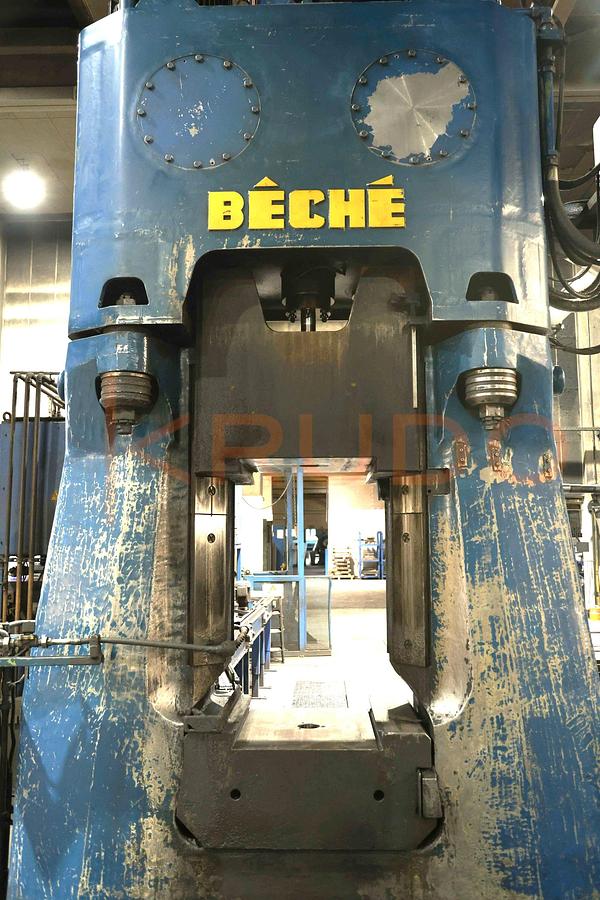

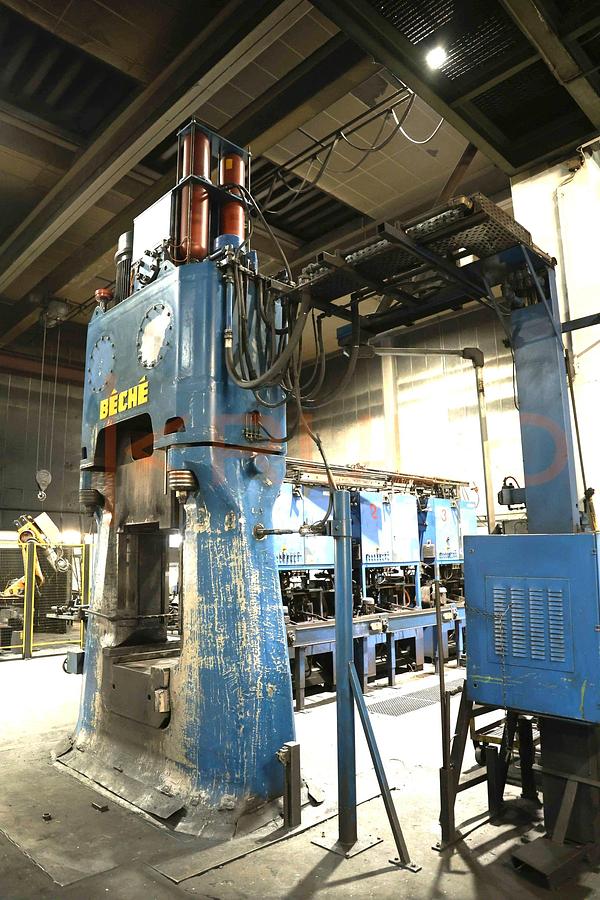

Short-stroke drop hammer (forging), Beche, KGH 4B, 2001

‍Technical Details

‍

‍1. Machine identification data

Name : Short-Stroke Die Forging Hammer,

Model : KGH4B,

Machine number : 127050,

Year of manufacture : 2001,

2. Operational parameters

Working capacity max. : 40 kJ,

Max. impact frequency : 98/min,

Max. usable impact rate : 41/min,

Max. ram stroke : 790 mm,

‍

3. ‍Weights

Total machine weight approx. : 58 tons,

Anvil bed : 46 tons,

Drive head complete without oil : 7.8 tons,

Ram approx. : 2700 kg ‍

4. Dimensions

Overall height approx. : 6250 mm,

Installation height above floor approx. : 5220 mm,

Installation height below floor approx. : 1030 mm,

Width x Depth : 2520 x 1620 mm,

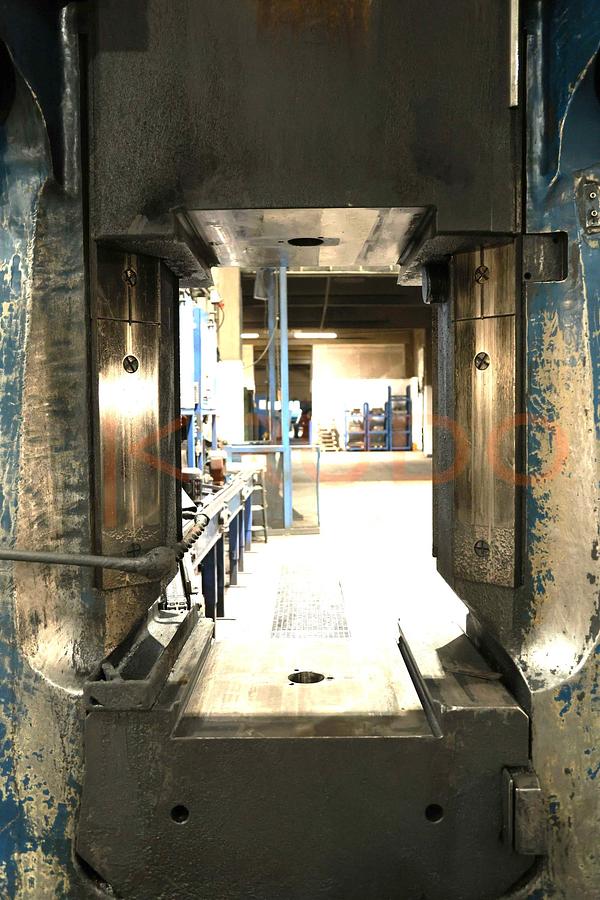

5. Workspace

Clear width between guides : 717 mm,

Working height to upper edge of the insert : 700 mm,

Ram depth : 640 mm,

Insertion depth : 750 mm,

Die height without dovetail : Min. total 175 mm, Max. total 455 mm.
