Hammer Forging Hydraulic Line Beche KGH4B

 Semi-Automated Forging Hammer Line (1994) Beche KGH4B (40 KJ)

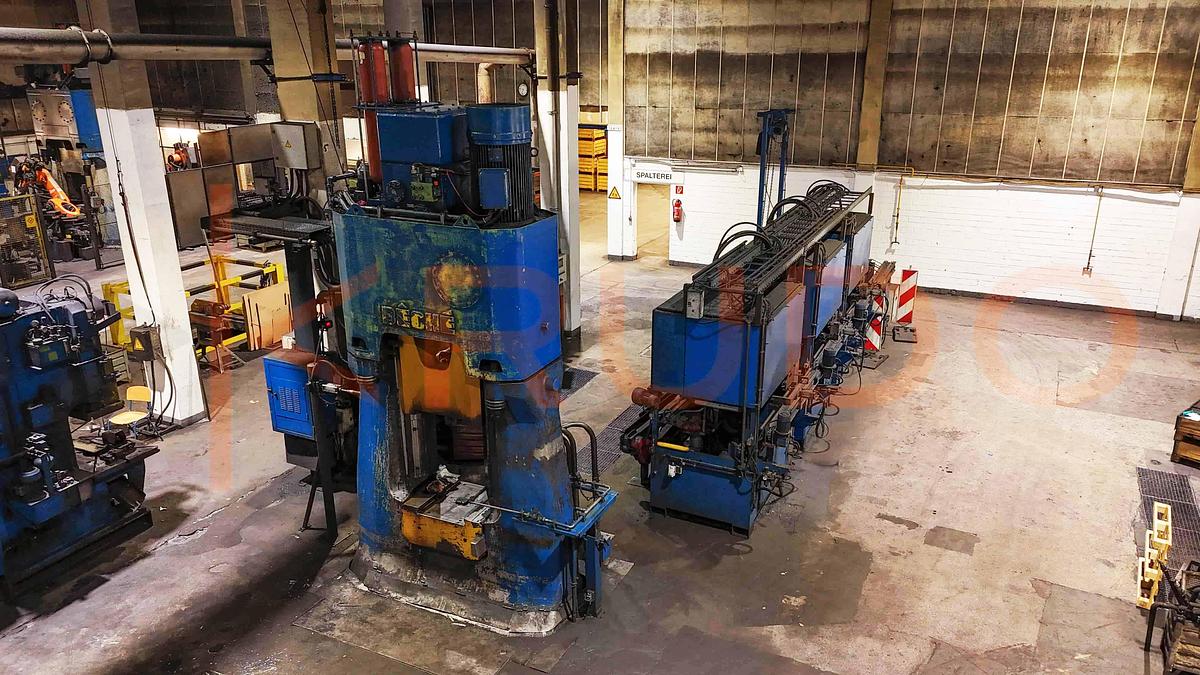

The complete line consists of the following machines:

‍

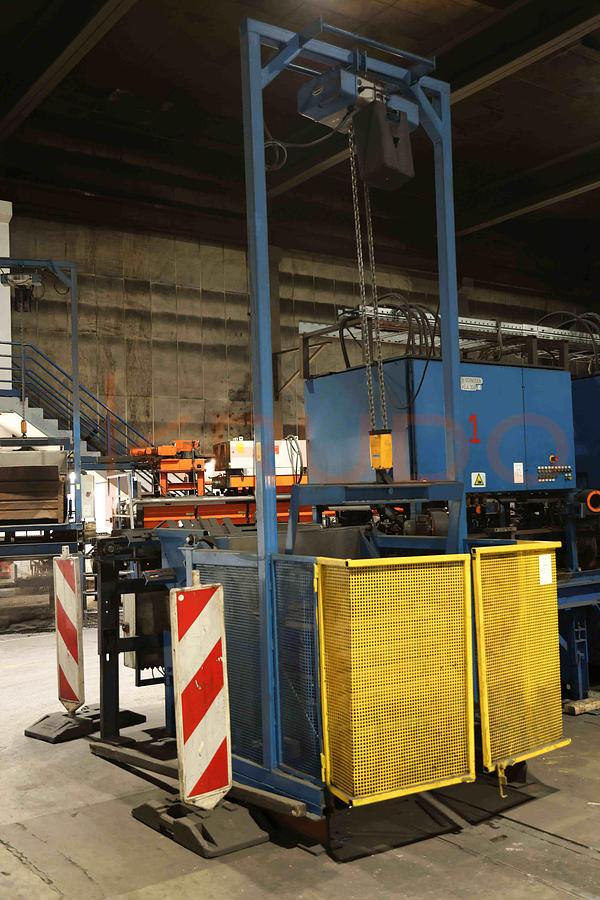

Tilting Device, Stahlmann

Step Conveyor, Stahlmann

Cold Belt Conveyor

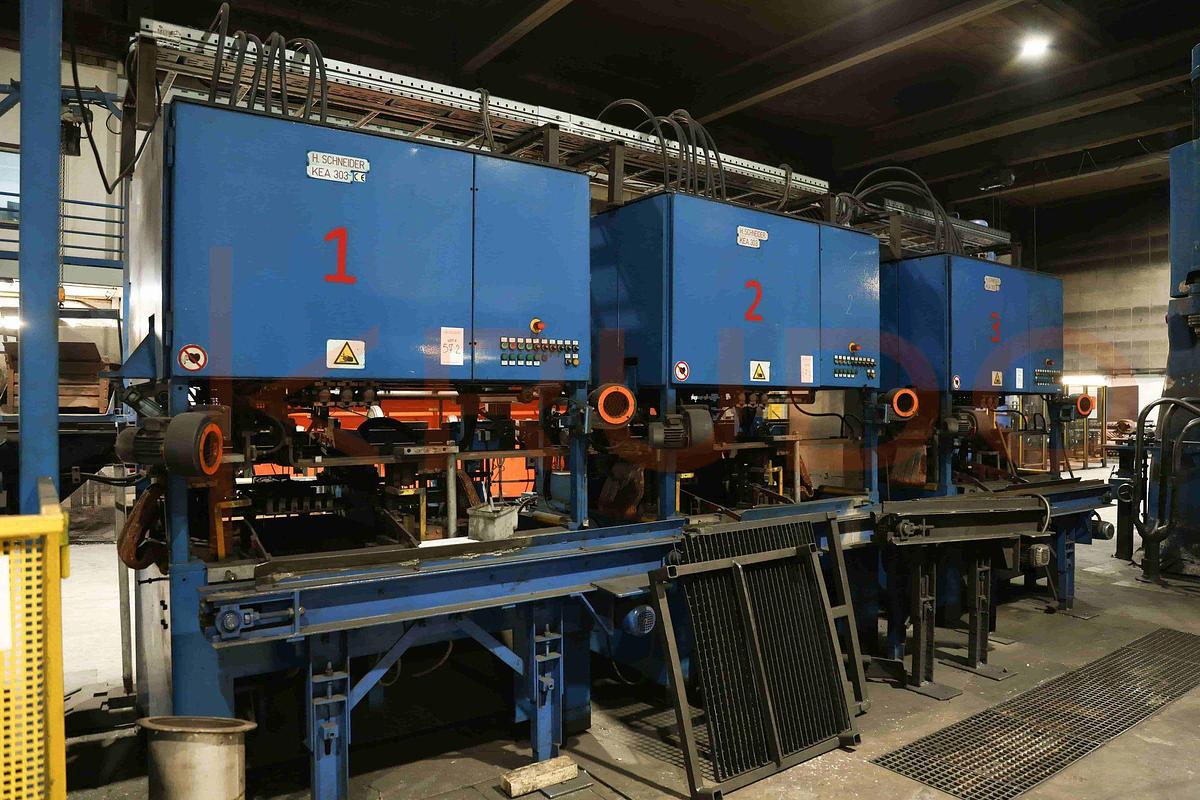

Conductive Heating System, Schneider, KEA 303, 2002

Transfer Conveyor

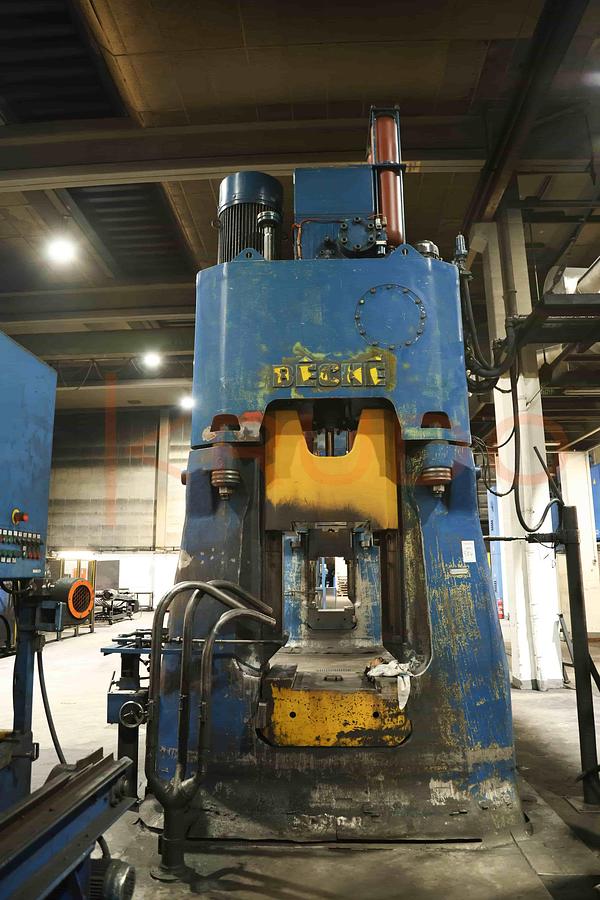

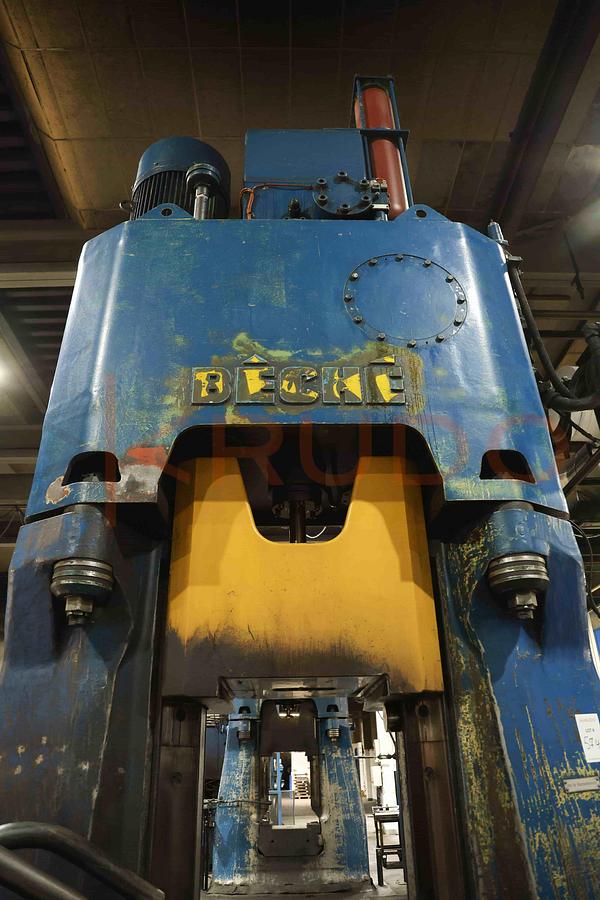

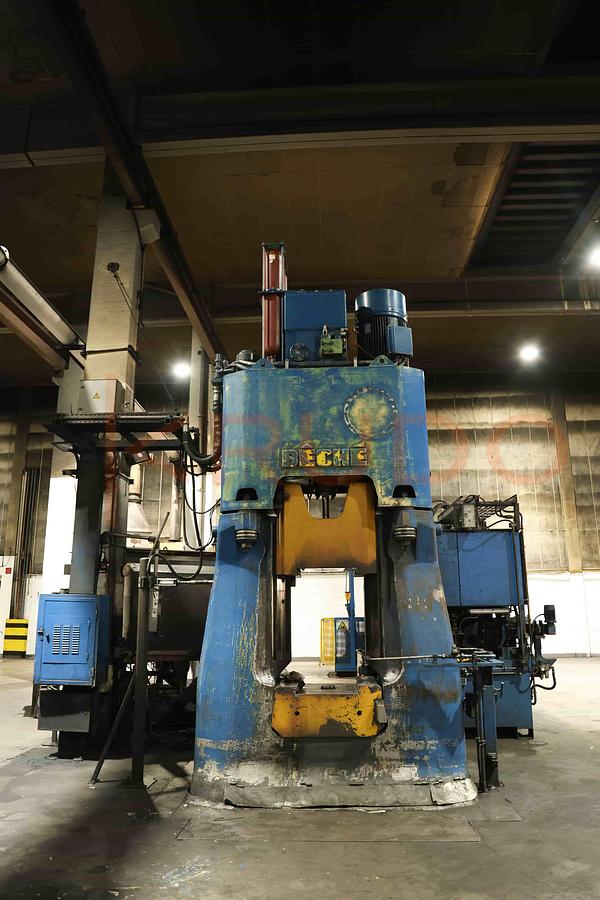

Short-Stroke Die Forging Hammer, Beche, KG H 4B, 1994

Discharge Conveyor with Blow-Off Control, Stahlmann, 2001

Gas furnace, Stahlmann

Eccentric Press for Hot Trimming, Ruhrmann, EVR 125 H

‍Technical Details

‍

‍1. Machine identification data

Name : Short-Stroke Die Forging Hammer,

Model : KGH4B,

Machine number : 9415435,

Year of manufacture : 1994,

2. Operational parameters

Working capacity max. : 40 kJ,

Max. impact frequency : 98/min,

Max. usable impact rate : 48/min,

Max. ram stroke : 855 mm,

‍

3. ‍Weights

Total machine weight approx. : 58 tons,

Anvil bed : 46 tons,

Drive head complete without oil : 7.8 tons,

Ram approx. : 2700 kg ‍

4. Dimensions

Overall height approx. : 6245 mm,

Installation height above floor approx. : 5215 mm,

Installation height below floor approx. : 1030 mm,

Width x Depth : 2520 x 1620 mm,

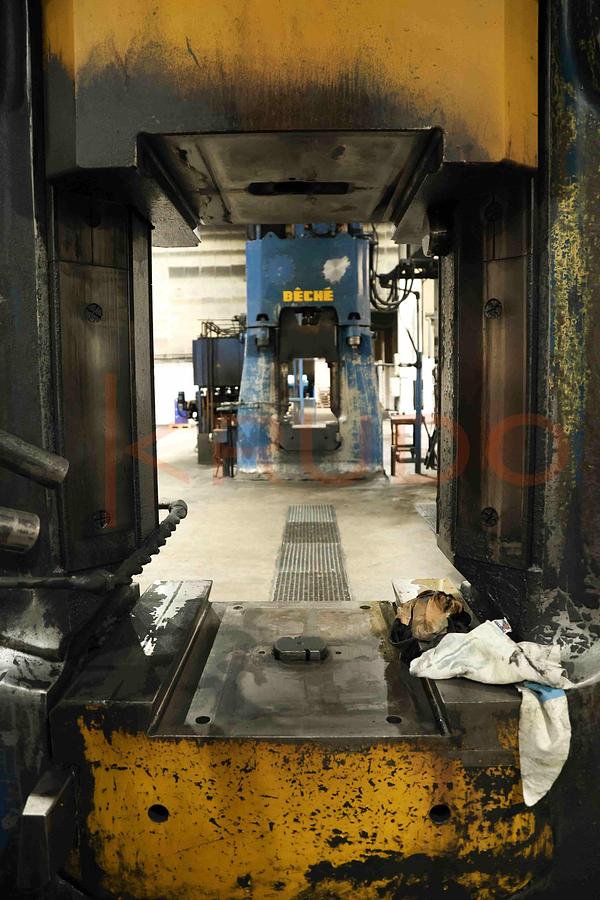

5. Workspace

Clear width between guides : 717 mm,

Working height to upper edge of the insert : 700 mm,

Ram depth : 640 mm,

Insertion depth : 750 mm,

Die height without dovetail : Min. total 175 mm, Max. total 455 mm.
