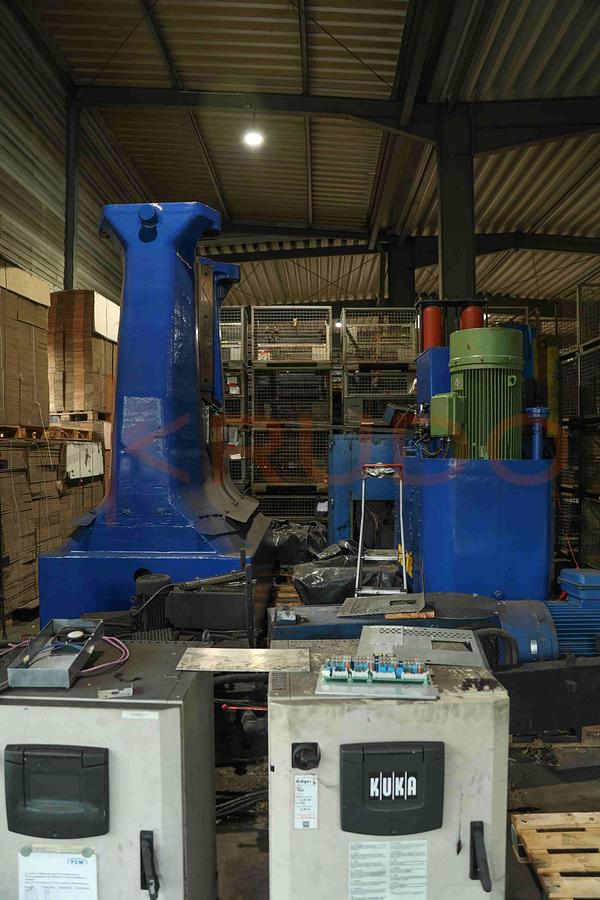

1.5 tons Hammer Forging Hydraulic Beche KGH4B
Specifications
| Manufacturer | Beche |
| Model | KGH4B |
| Year | 1998 |
| Condition | Used |
| Stock Number | MA3235 |
| Item condition | Good condition |
| Capacity tons | 1.5 |
Description
The complete line consists of the following machines:
Induction heating unit, ABP, EBS 225-W UPW, 2007 (defective)

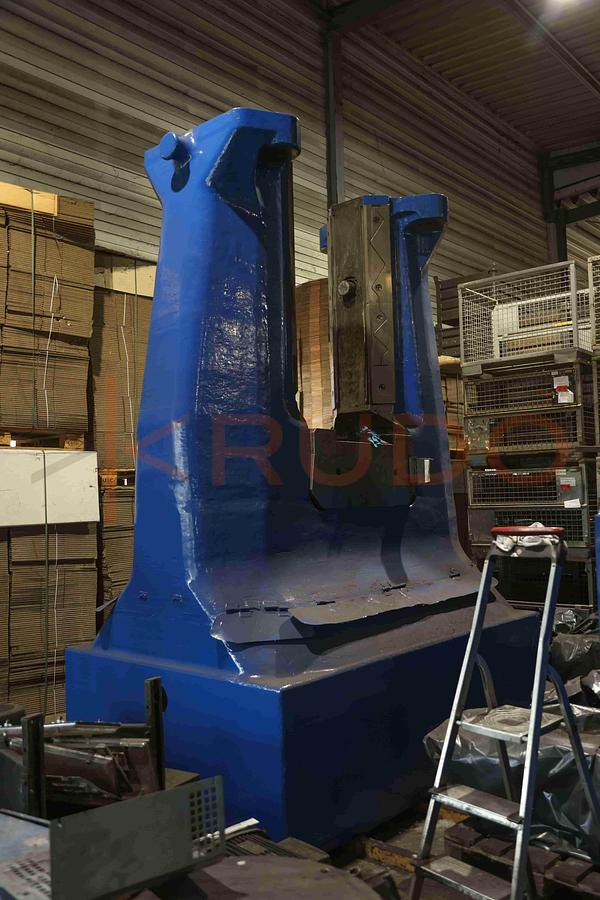

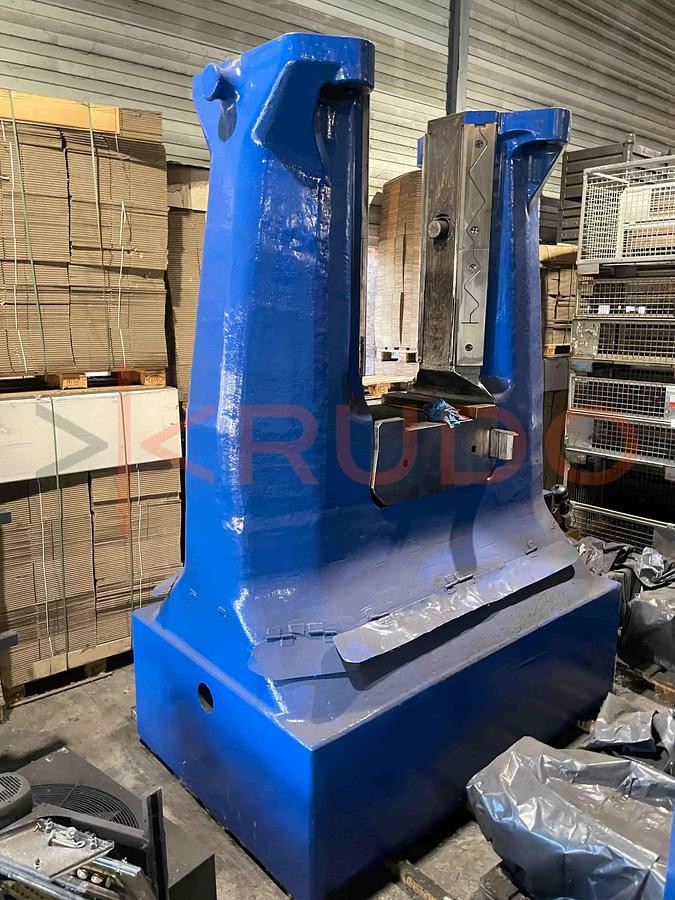

Hammer 6 (short-stroke die forging hammer), Beche, KGH4B, 1998, (40 KJ)
Technical Details
1. Machine identification data
Name : Short-Stroke Die Forging Hammer,
Model : KGH4B,
Machine number : 119820,
Year of manufacture : 1998,
Capacity : 1.5 tons.
2. Operational parameters
Working capacity max. : 40 kJ,
Max. impact frequency : 98/min,
Max. usable impact rate : 41/min,
Max. ram stroke : 790 mm
3. Weights
Total machine weight approx. : 65 tons,
Anvil bed : 52.5 tons,

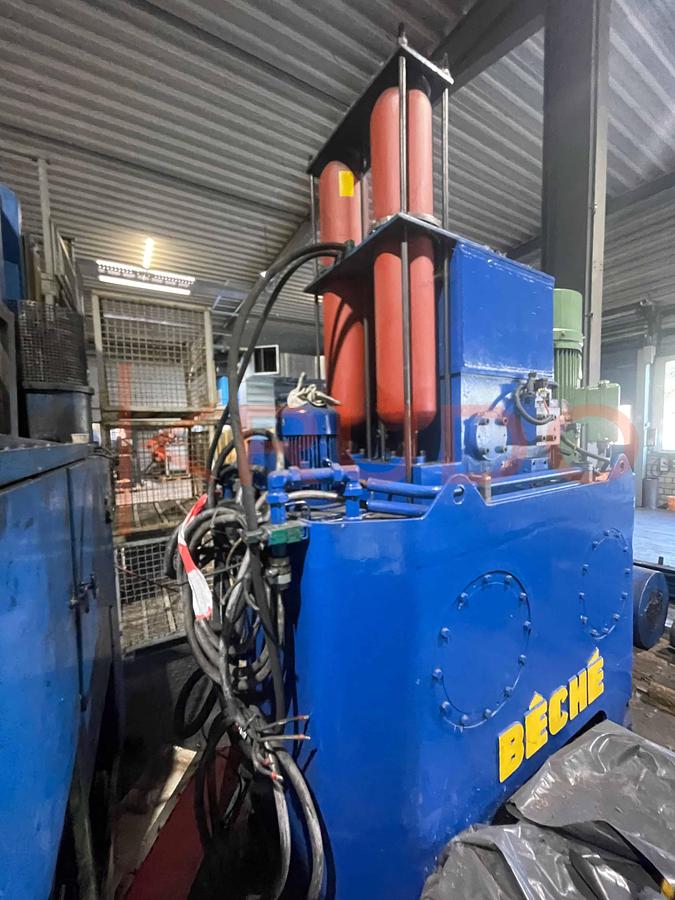

Drive head complete without oil : 7.8 tons,
Ram approx. : 2700 kg
4. Dimensions
Overall height approx. : 6450 mm,
Installation height above floor approx. : 5220 mm,
Installation height below floor approx. : 1230 mm,
Width x Depth : 2520 x 1620 mm
5. Workspace
Clear width between guides : 717 mm,
Working height to upper edge of the insert : 700 mm,
Ram depth : 640 mm,
Insertion depth : 750 mm,
Die height without dovetail : Min. total 175 mm, Max. total 455 mm.
