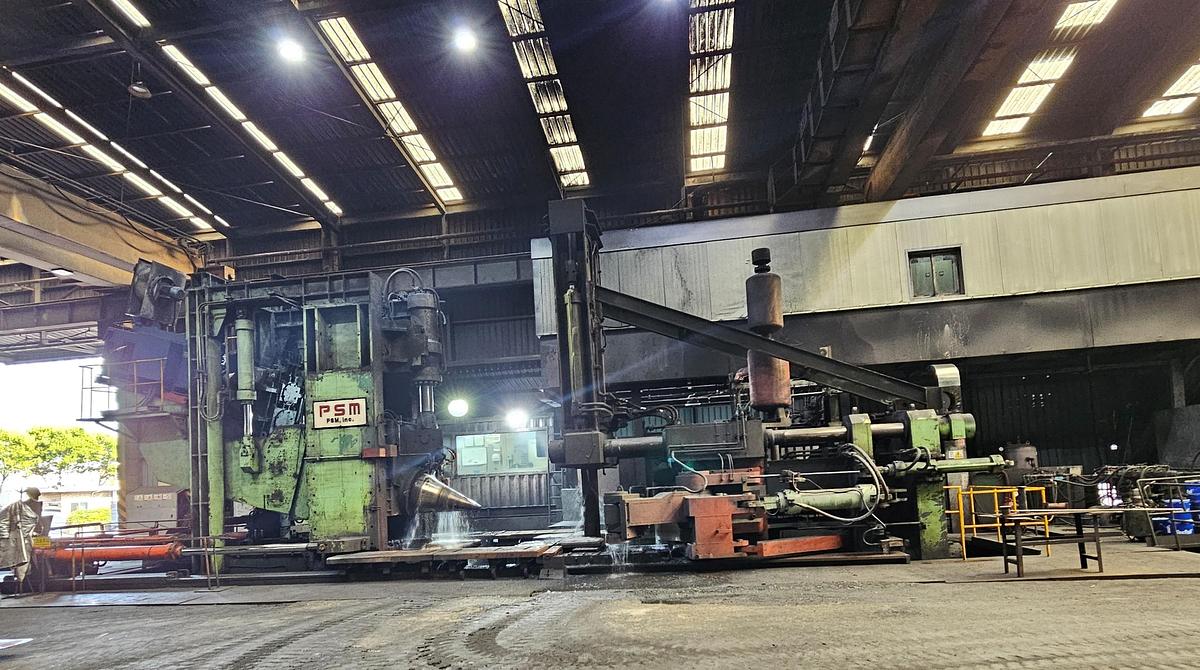

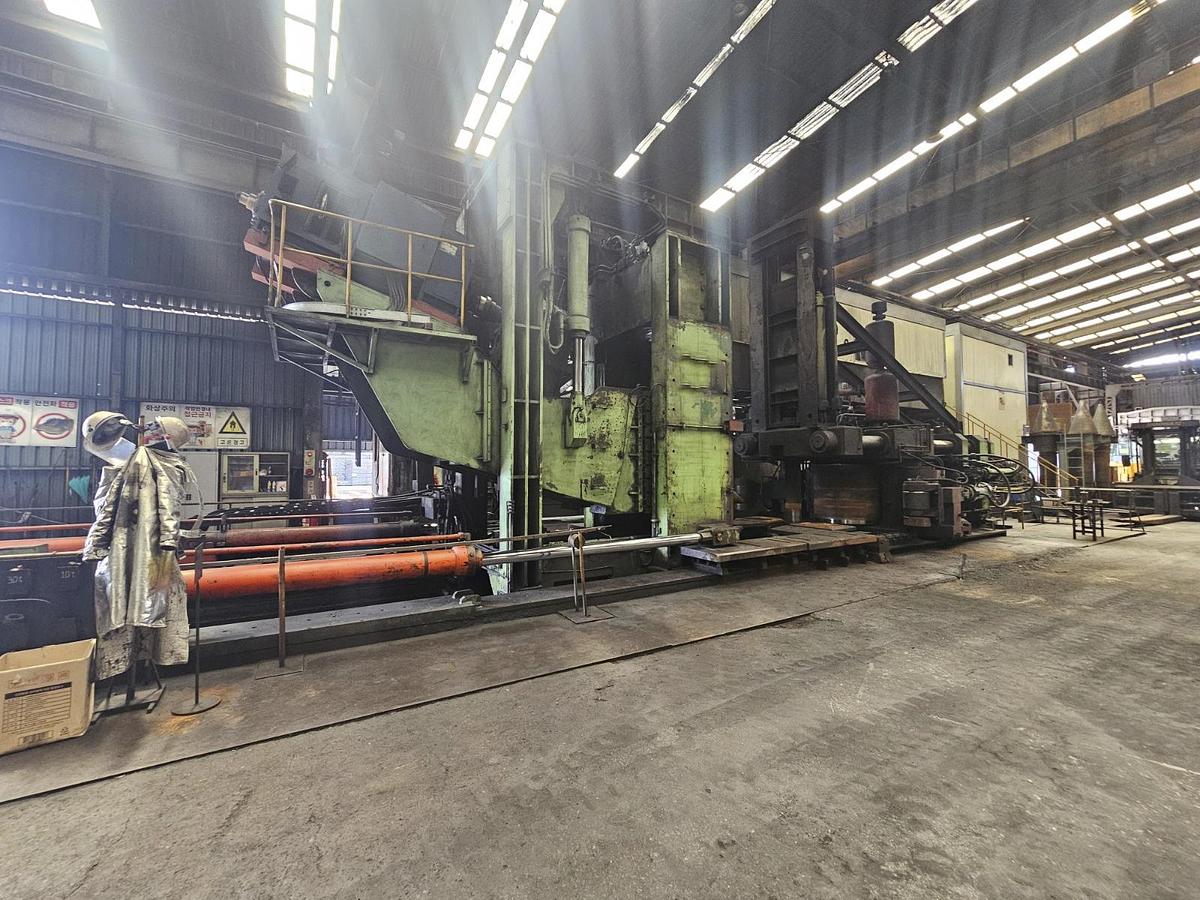

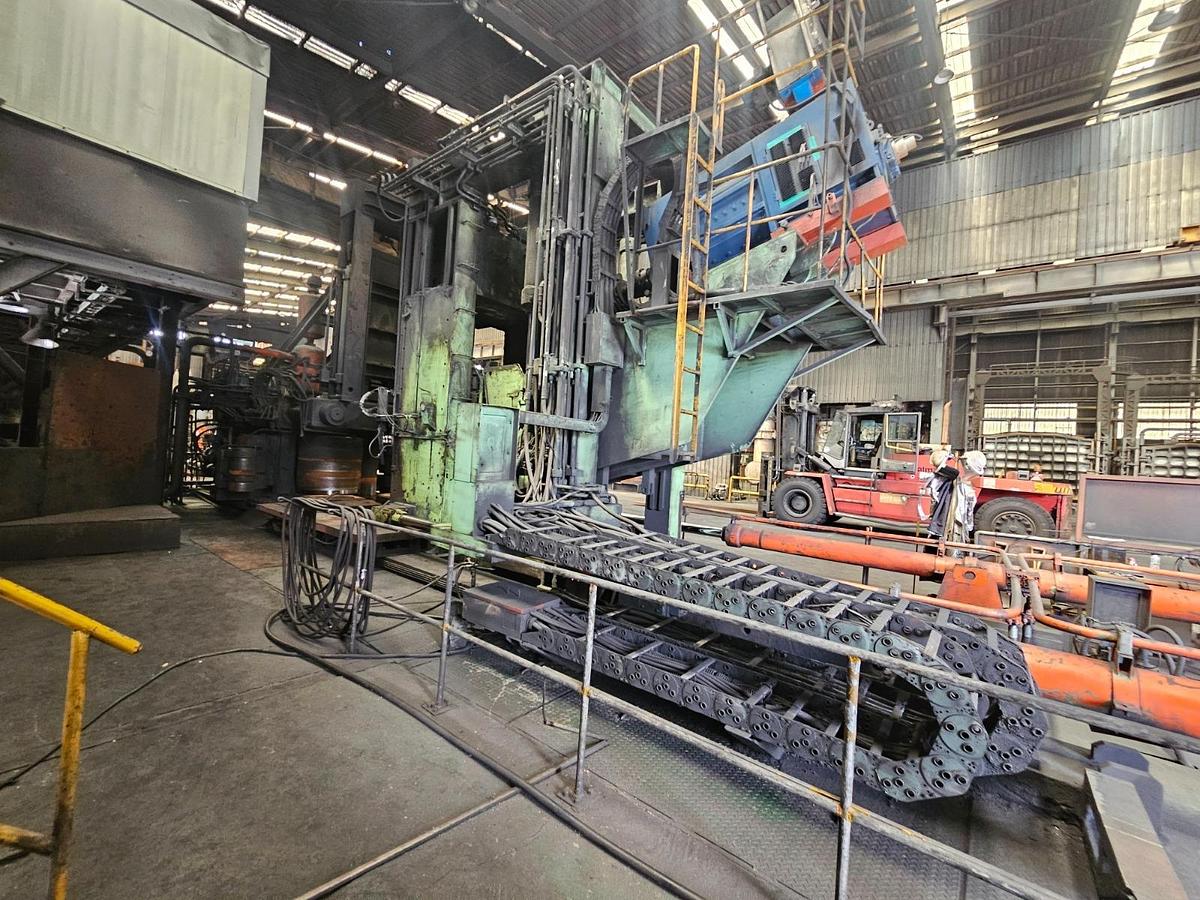

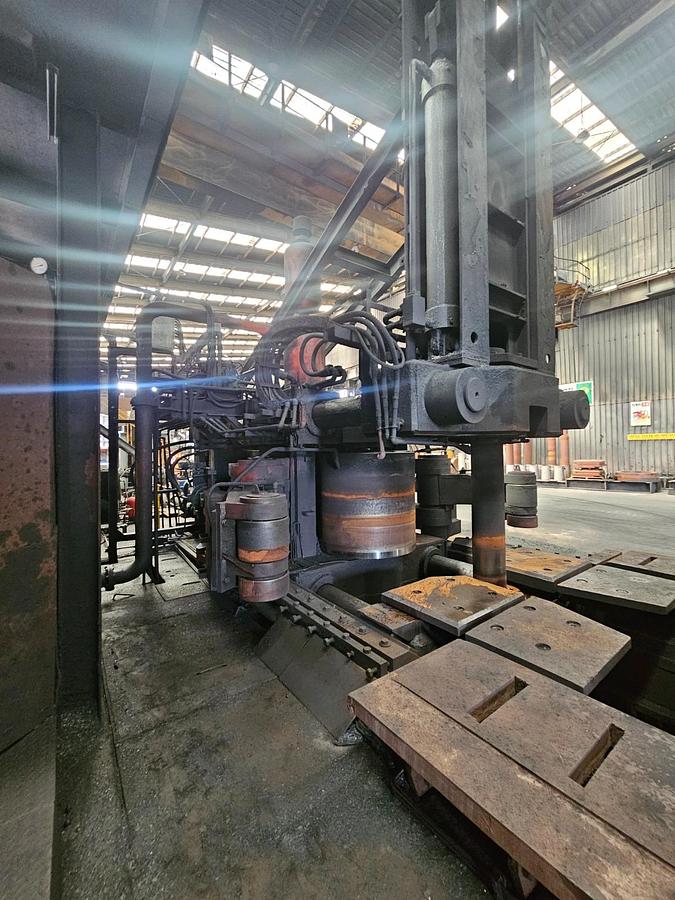

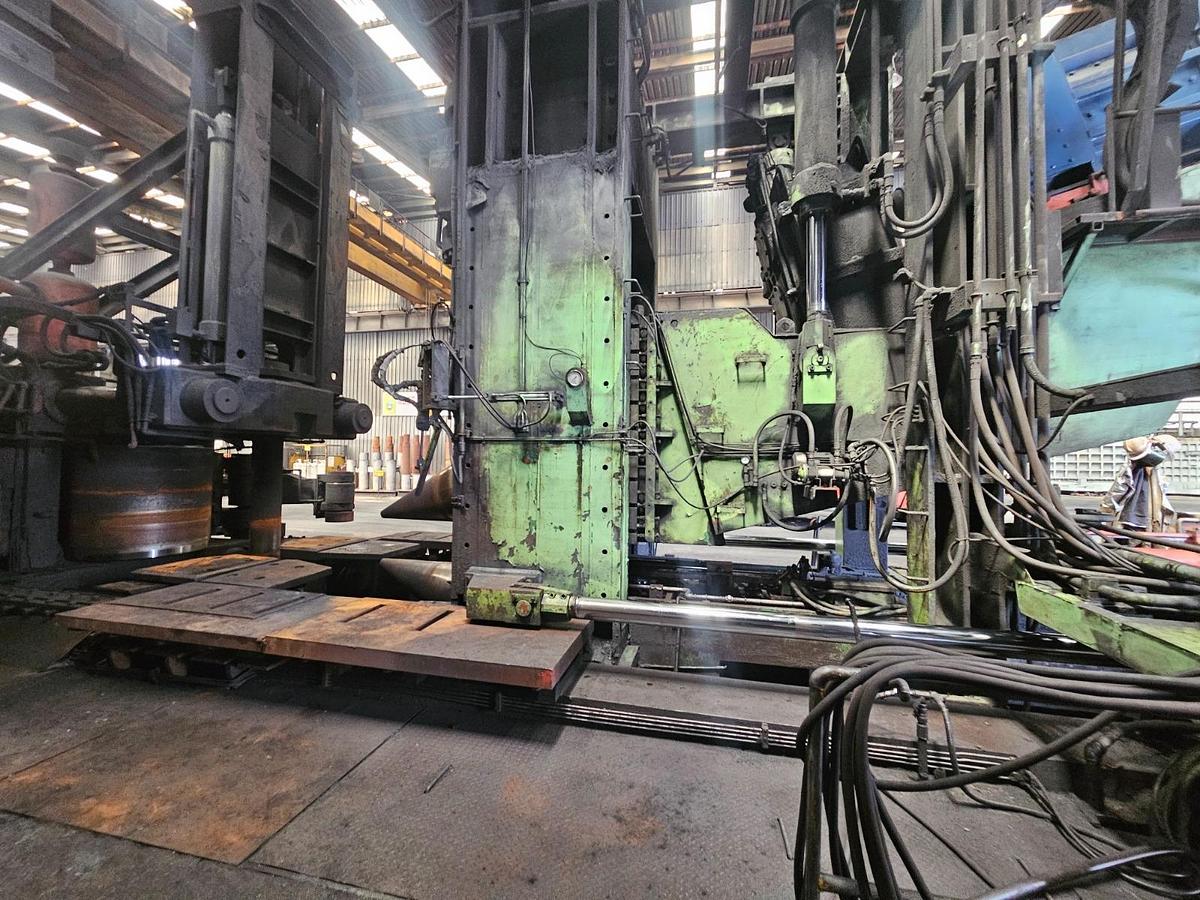

Ring Rolling Machine PSM, Korea H/530/V310

1. Ring Rolling Mill

The horizontal / vertical ring rolling mill is provided for rolling seamless rings at forging temperature.

2. Working Range

- Outside Diameter of finished ring : 1200 ~ 6000 mm,

- Height of finished of ring blank for 100 ~ 980 mm,

Mandrel diameter Ø300 mm : min. : 320 mm,

- Height of ring blank : max. 1000 mm,

- Ratio of wall thickness to height max. : approx. 3 : 1,

- Ring weight max. approx. : 18 tons.

The max. possible ring weight as well as the obtainable ratio "wall thickness to height" is dependent on the cross section of the ring, the ring profile and the ring material, its deformation resistance depending on temperature, and on deformation speed.

3. Main Characteristics

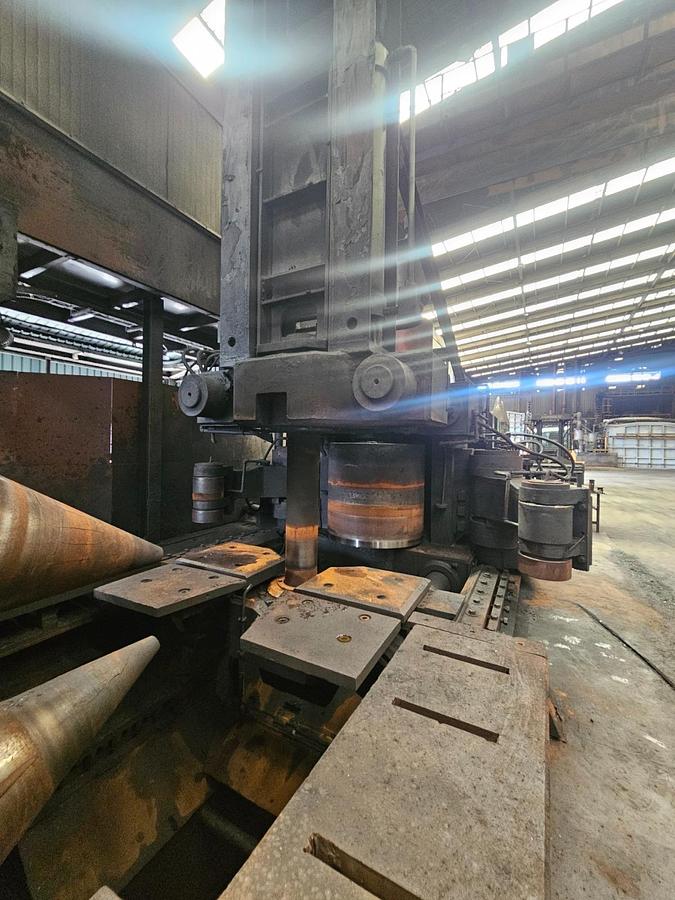

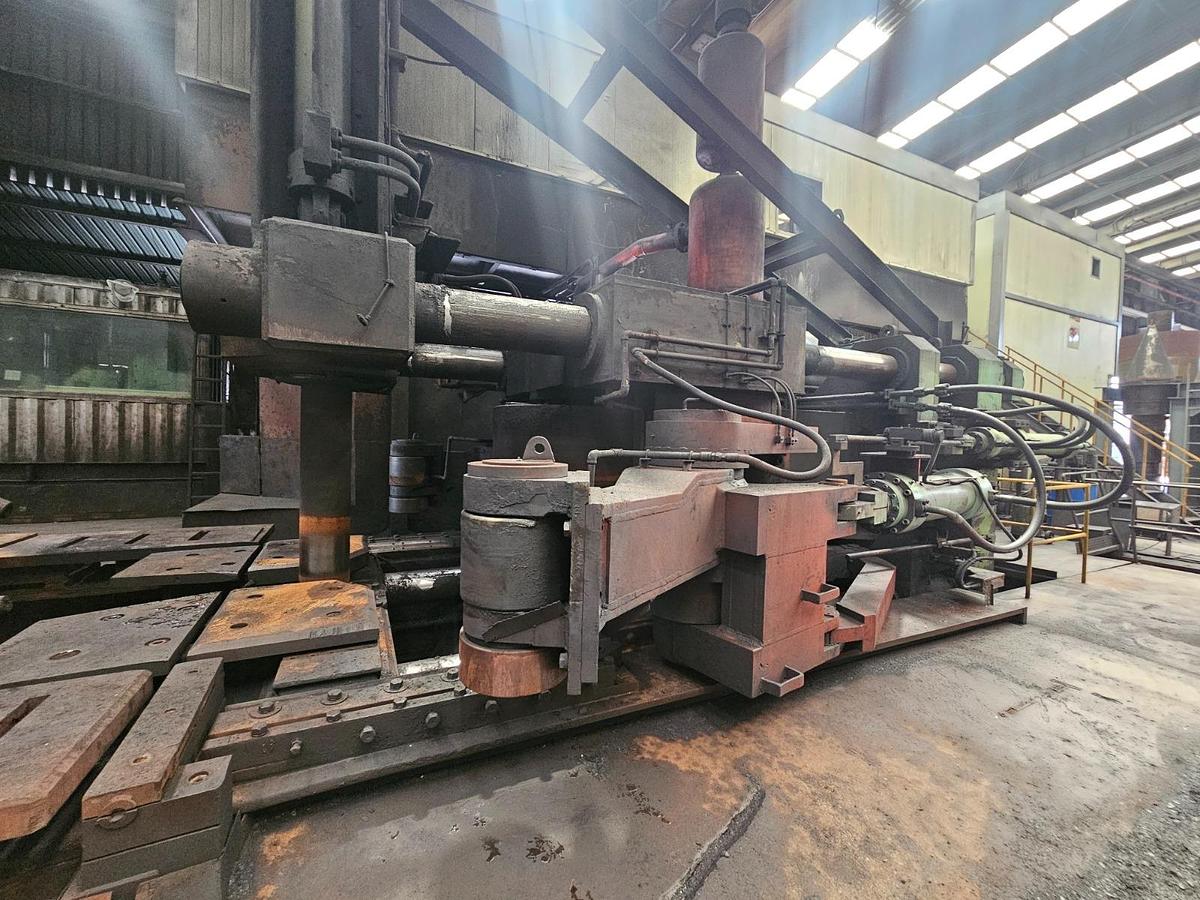

3-1. Horizontal Stand

- Rolling force max. : 530 tons,

- Main roll diameter : Ø1300 mm,

- No. of revolution of main roll max. : 28.75 rpm,

- Rolling speed max. approx. : 19.55 m/sec,

- Horizontal stroke of mandrel : 1100 mm,

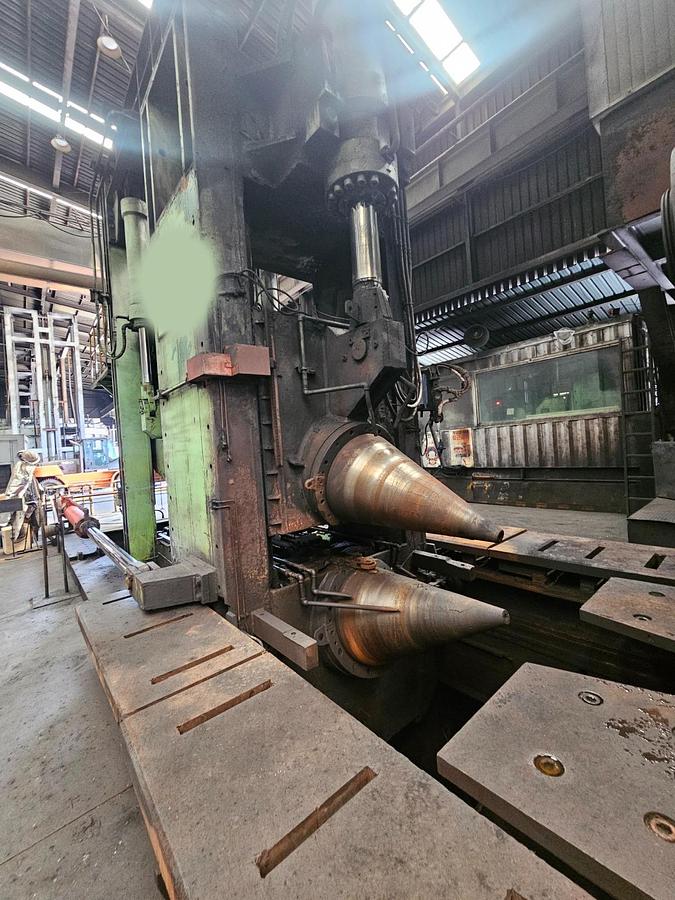

3-2. Vertical Stand

- Rolling force max. : 310 tons,

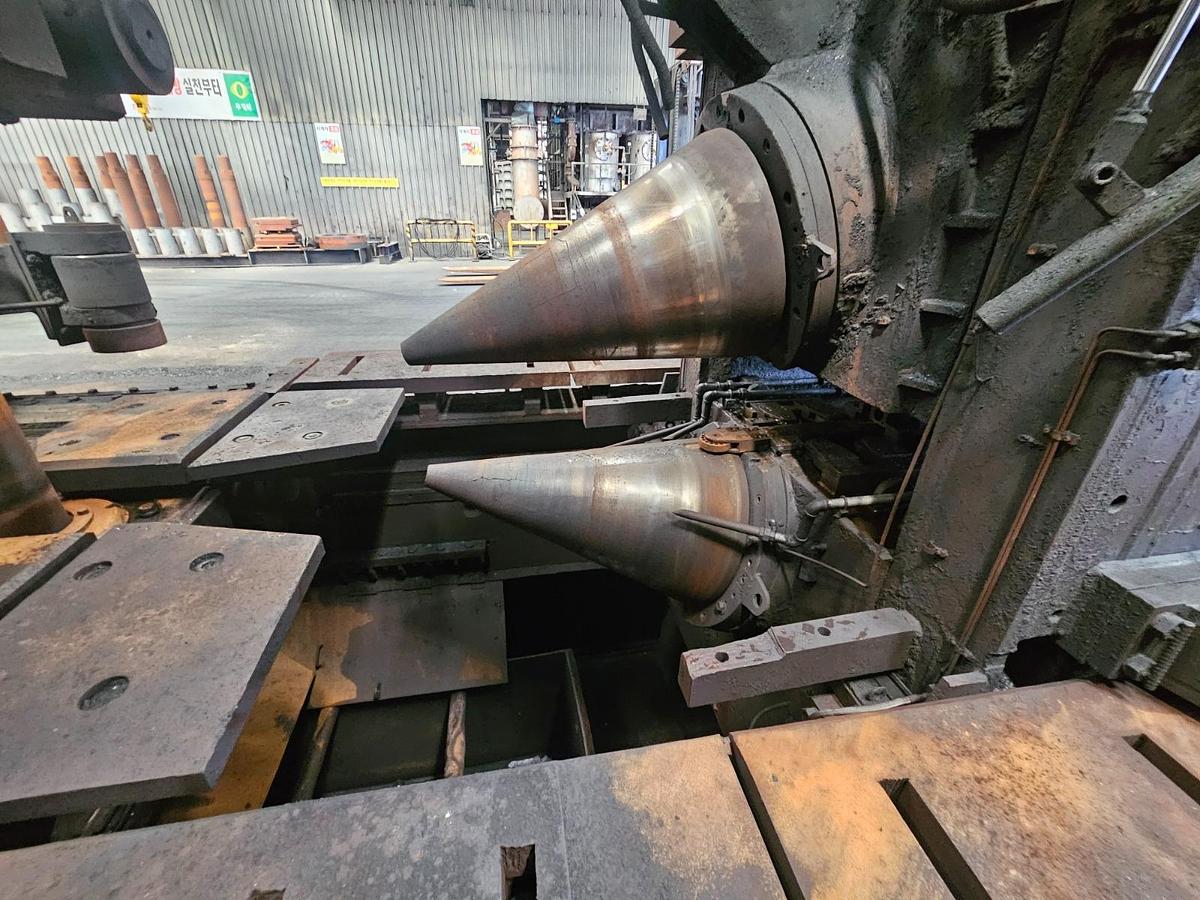

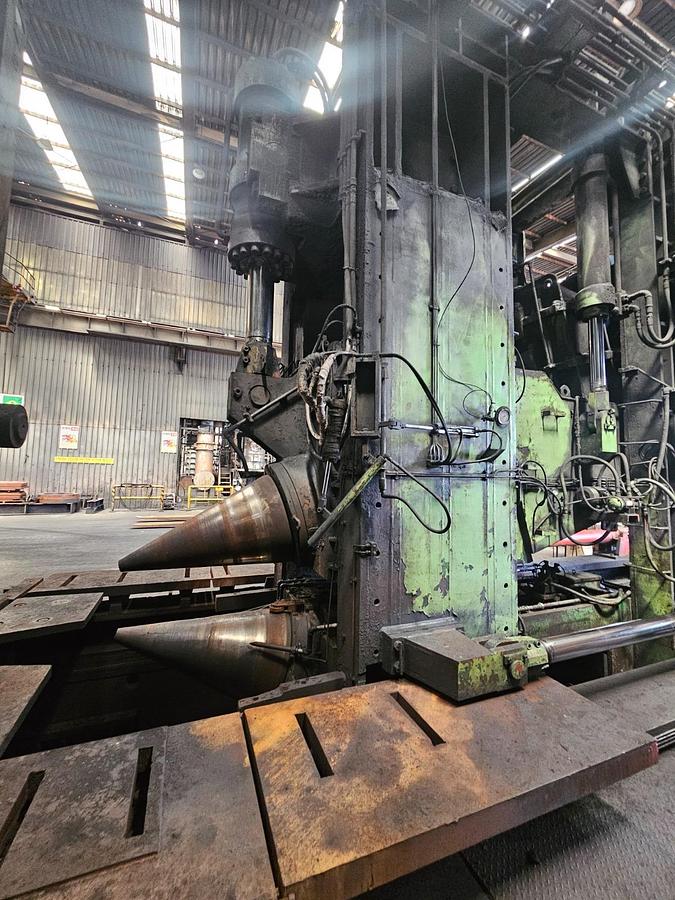

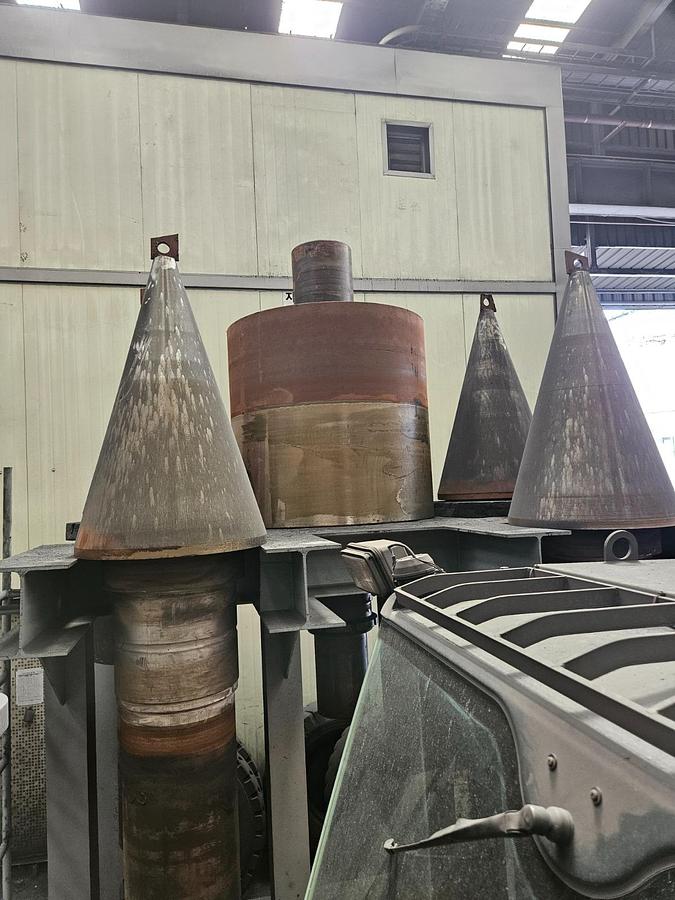

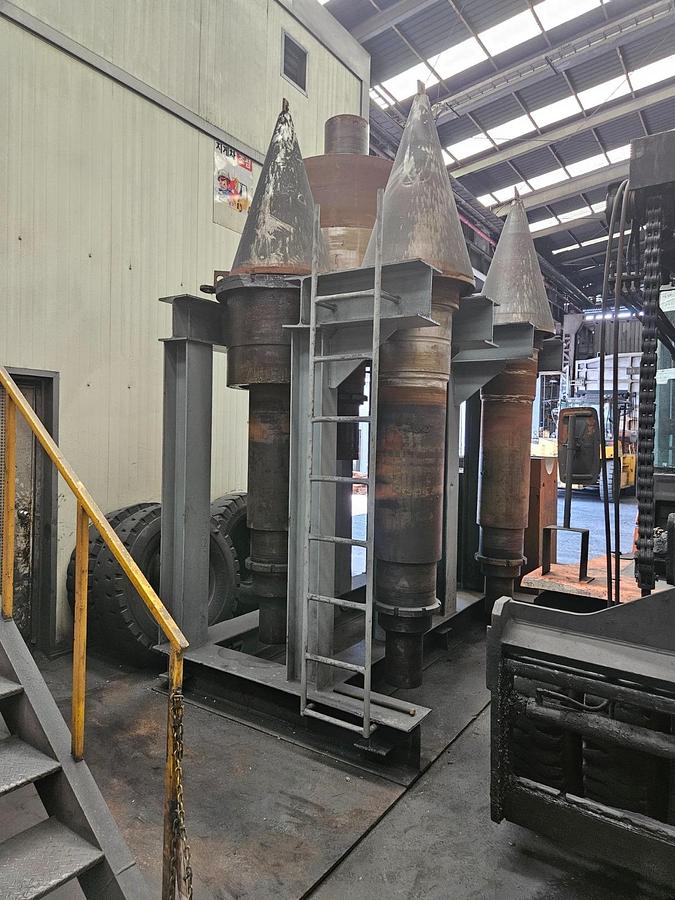

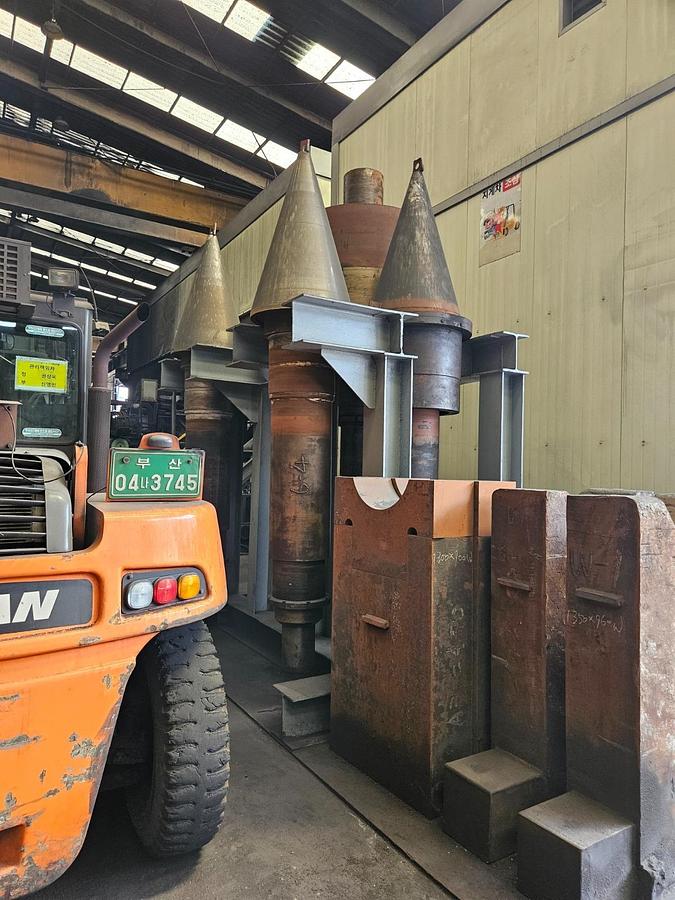

- Length of taper rolls theoretical stand : 1200 mm,

- Taper cone angle : 32 ̊,

- Horizontal stroke of vertical stand : 5500 mm,

- Vertical stroke of upper taper roll : 1020 mm,

- Max. distance between the taper rolls : 1100 mm,

4. Driving Unit

4-1 Driving Unit of Main roll

4-1-1 Driving motor(DC-Electro motor)

- Nominal power : 1100 KW,

- Armature voltage : 700 V

4-1-2 Driving gear reducer

- Nominal power : 1100 KW,

- Ratio of Reducer : 1/43,

4-2 Driving Unit of Taper roll

4-2-1 Driving motor (DC-Electro motor),

- Nominal power : 900 KW,

- Armature voltage : 700 V,

4-2-2 Driving gear reducer,

- Nominal power : 900 KW,

- Ratio of Reducer 1/14,

5. Driving Units for Hydraulic Power Unit

5-1 Driving Motor for Hydraulic Pumps

5-1-1 Ac-Electro-motor for main Pump

- Nominal Power : 75 kw 4set,

- Nominal Speed : 1000 rpm,

5-1-2 Ac-Electro-motor for Oil Cooler

- Nominal Power : 3.7 kw 2set,

- Nominal Speed : 1500 rpm,

5-2 Hydraulic Pumps

5-2-1 Main Pump : A7V-160 4set,

- Delivery : 4-180 l/min,

5-2-2 Pump for Oil Cooler : PVV2-055 2set,

5-2-3 Max Operation Pressure : 250 kg/cm2,

6. Grease Lubrication Unit (for lubrication of the moveable machine components)

- Grease Pump : 2 set

7. Cooling of Roll tools (The roll tools are cooled by water)

- Pressure : 0.2kg/cm2

8. Electric Equipment

- Power Supply Unit

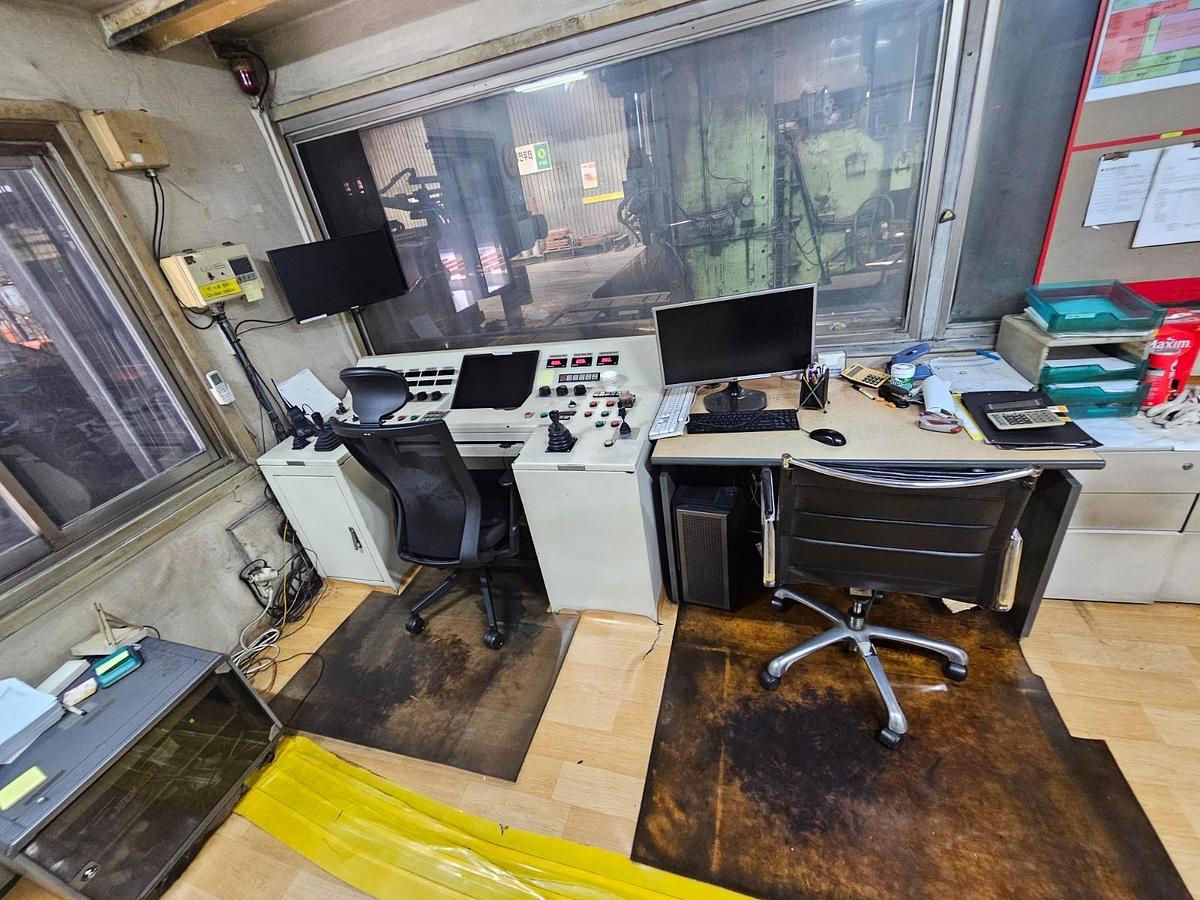

- Control Desk

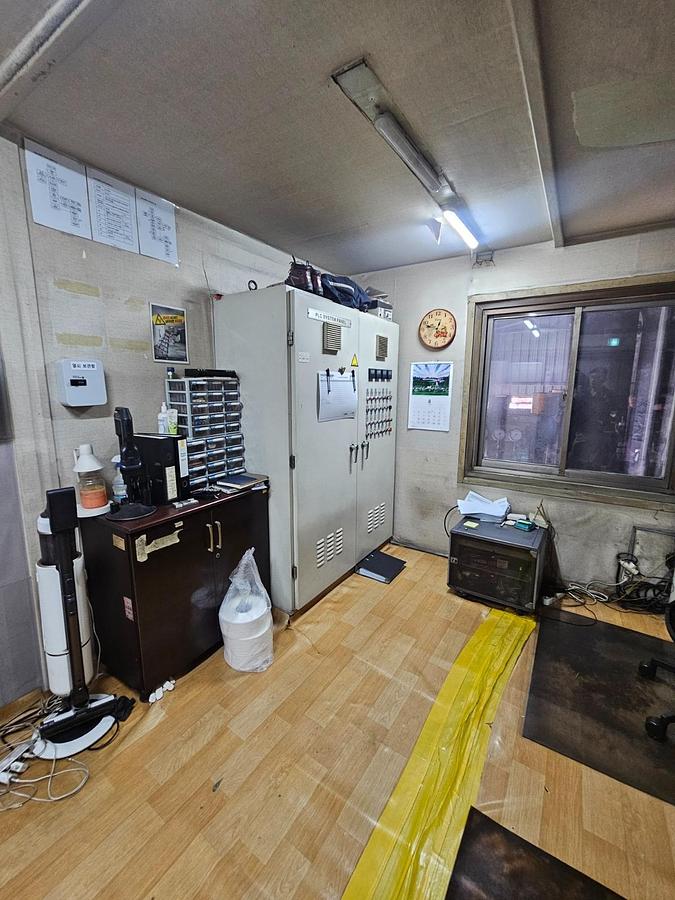

- Control Cabinet

9. Control and Operation Function

- Control functions are realized in the PLC & LabVIEW

- Operation for the passes Pressure control

10. Actual Value Display for the Ring

- Ring O.D

- Ring I.D(Calculated)

- Ring wall Thickness

- Ring height

11. Selection of the Final Diameter

- Ring O.D

- Ring I.D

Manual is Available.
