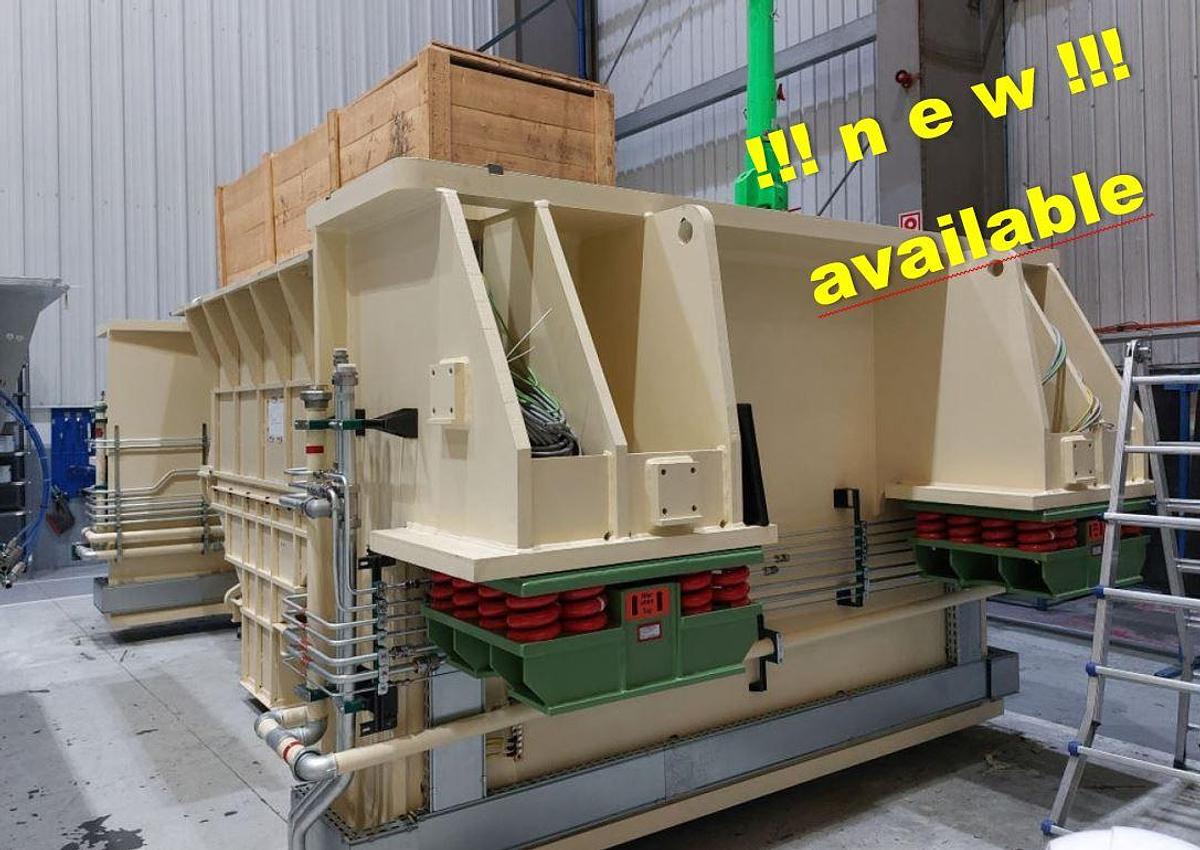

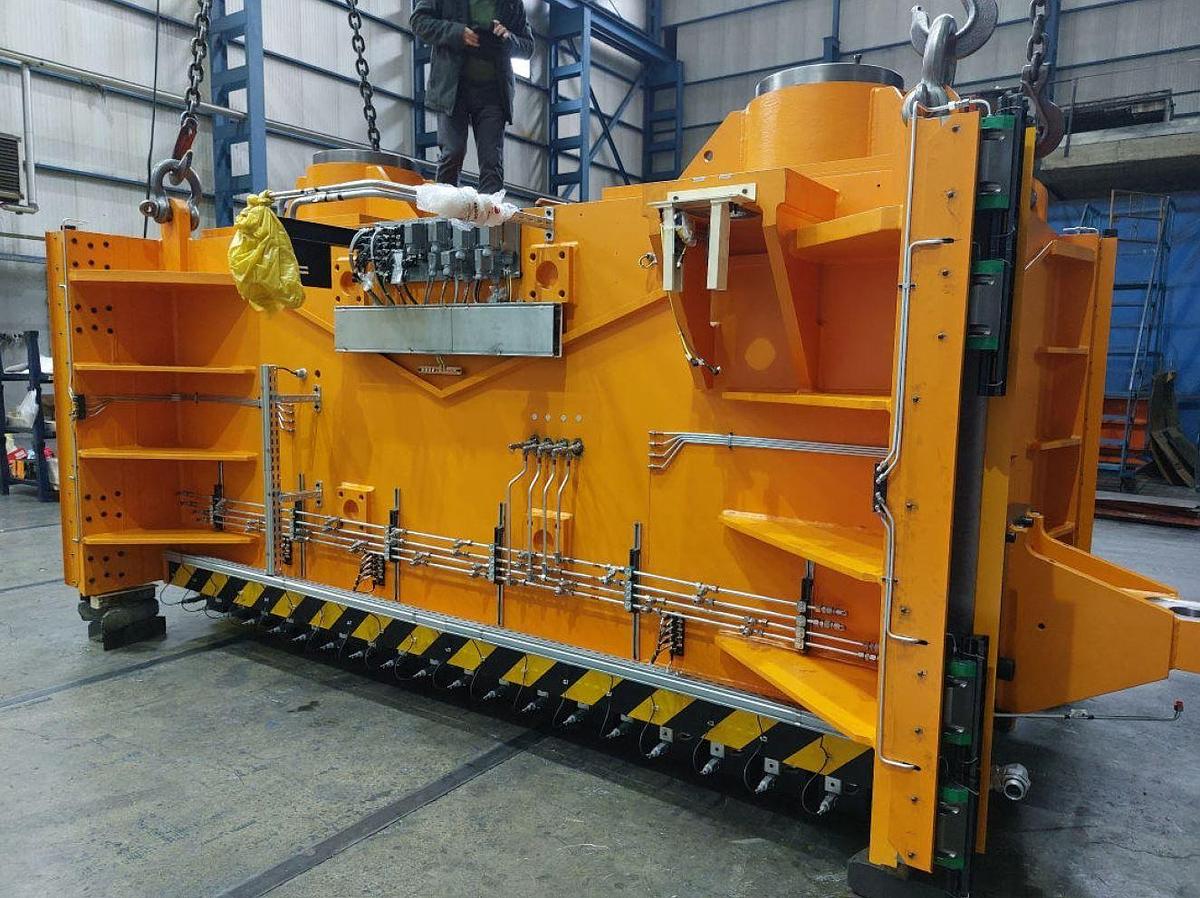

1000 tons Press Transfer Mechanical Fagor TSE2-1000-4000-1600

Capacity : 1000 tons,

Press Table -:

Clamping surface (left-right) : 4000 mm,

Clamping surface (front-back) : 1600 mm,

Height above floor level : 600 mm,

Autom. tool clamping device : Yes,

Ram stroke : 400 mm,

Ram adjustment : 300 mm,

Ram adjustment : 100 mm,

Number of strokes min : 8 /min,

Number of strokes max : 50 /min,

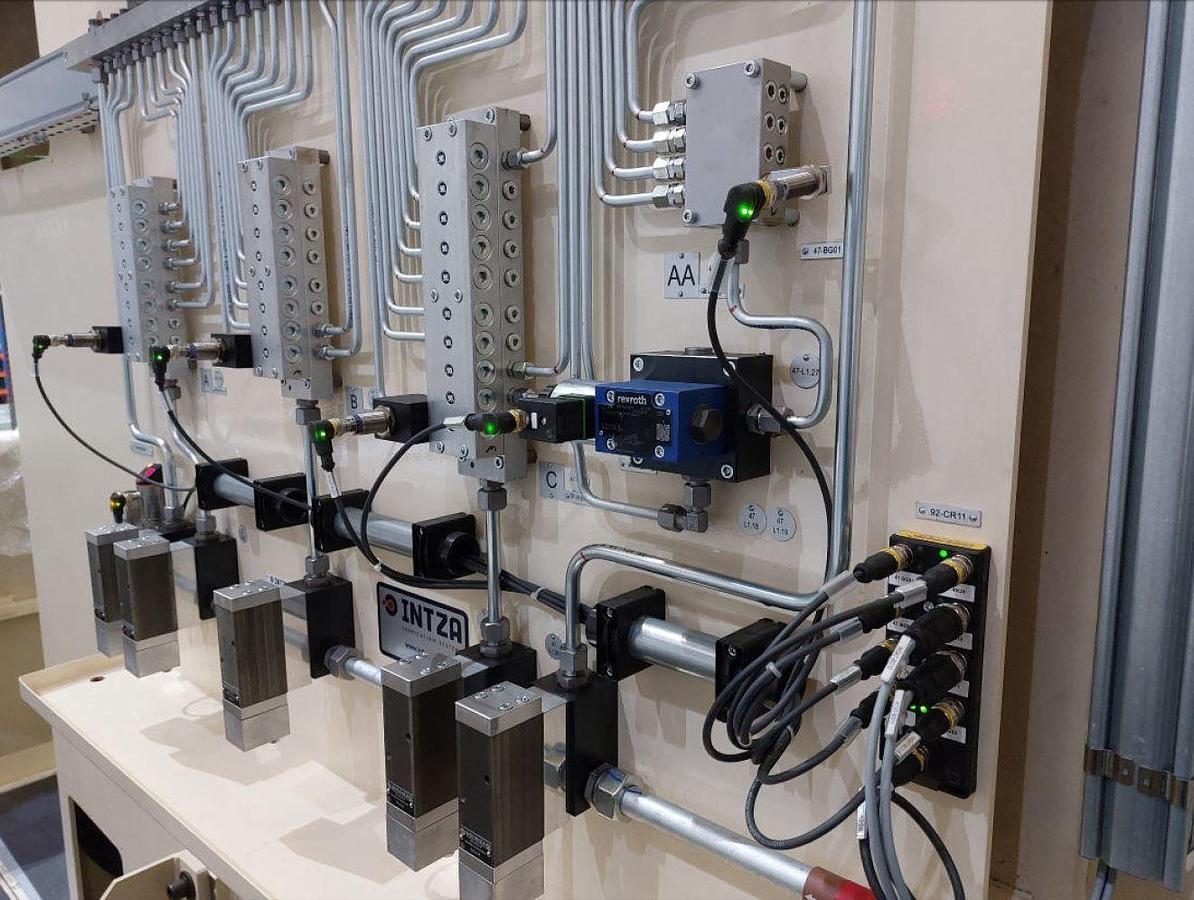

Hydraulic overload protection : Yes,

Tool Assembly Dimensions -:

Shut height (stroke down, adjustment up) : 900 mm,

Shut height (stroke down, adjustment up) : 766 mm,

Distance between columns (H-frame) : 4250 mm,

Free passage between side columns (width) : 1800 mm,

Tool weight max. : 20 tons.

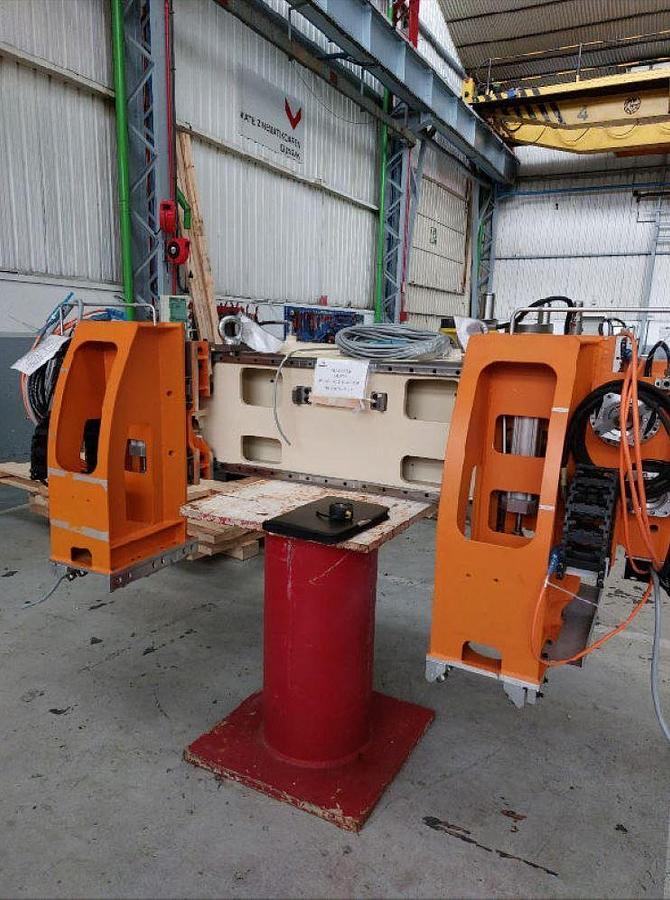

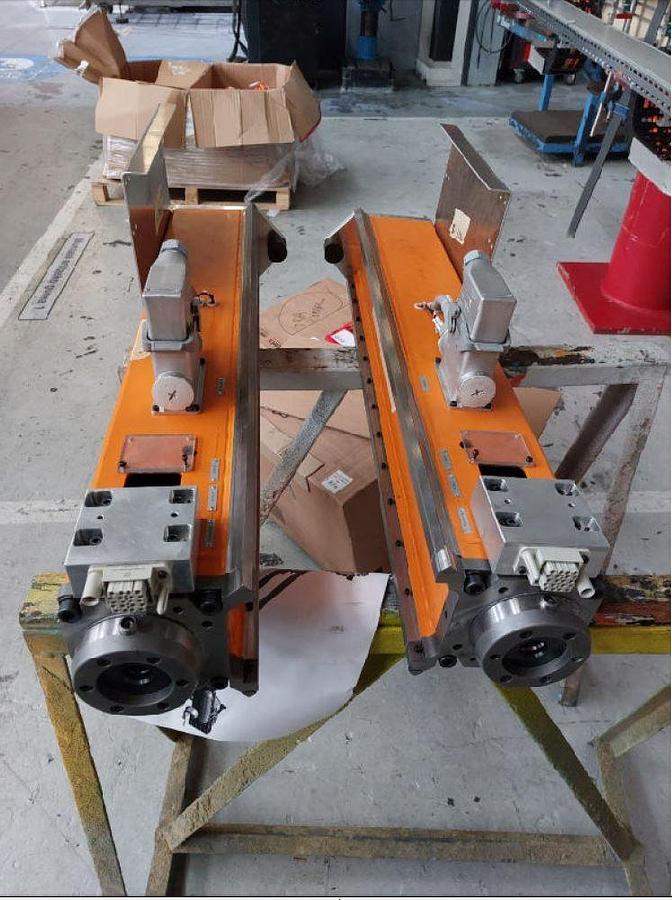

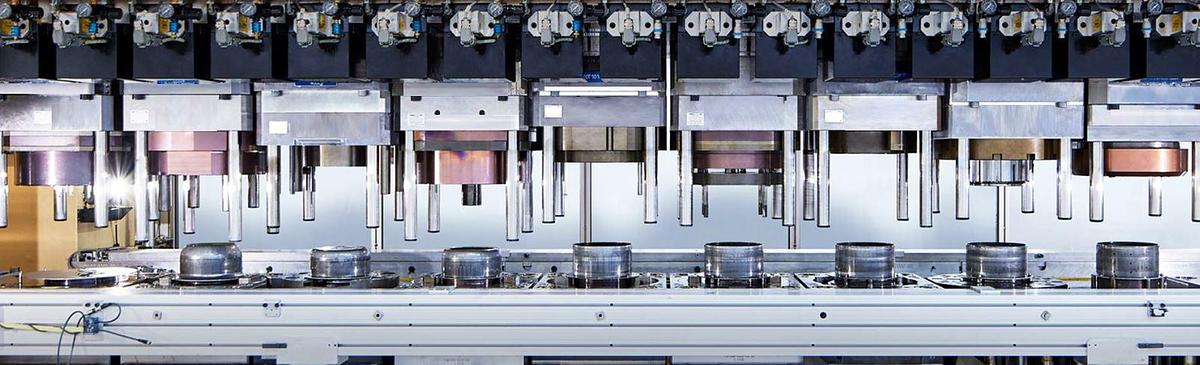

Transfer System -:

Inner width clamping rails closed max. : 500 mm,

Inner width clamping rails open max. : 1300 mm,

Distance between tools, stroke : 0-800 mm,

Electrical specifications -:

Total power consumption : 200 kW,

Mains power supply : 350 kVA,

Mains voltage : 400 V,

Mains frequency : 60 Hz,

Dimensions / weights -:

Space requirements length : 7500 mm,

Space requirements width : 4800 mm,

Height above floor level : 7360 mm,

Height under floor level : 4000 mm,

Total weight approx. : 250 tons.

Attachments for Presses -:

Light barrier : yes

Cutting impact damping system : Yes

Autom. tool clamping device : Yes

Hydraulic overload protection : Yes

Transfer system : Yes

Openings in uprights : Yes

Opening in table : Yes

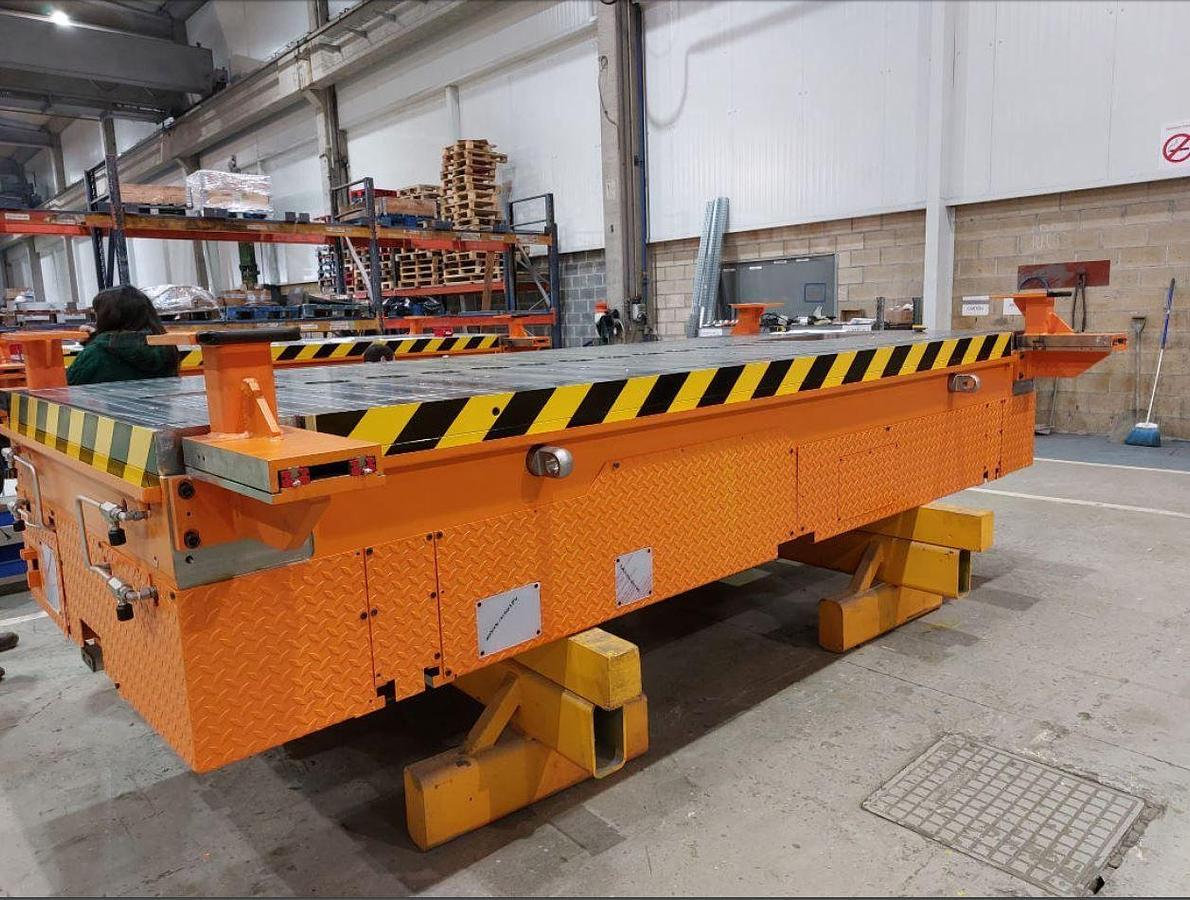

Moving bolster : Yes

Number of tables : 2

Controls : PLC SIEMENS S7-1500F
