Hammer Counterblow Line Beche

1. Hot forging line based on Beche hammer 8000 kgm

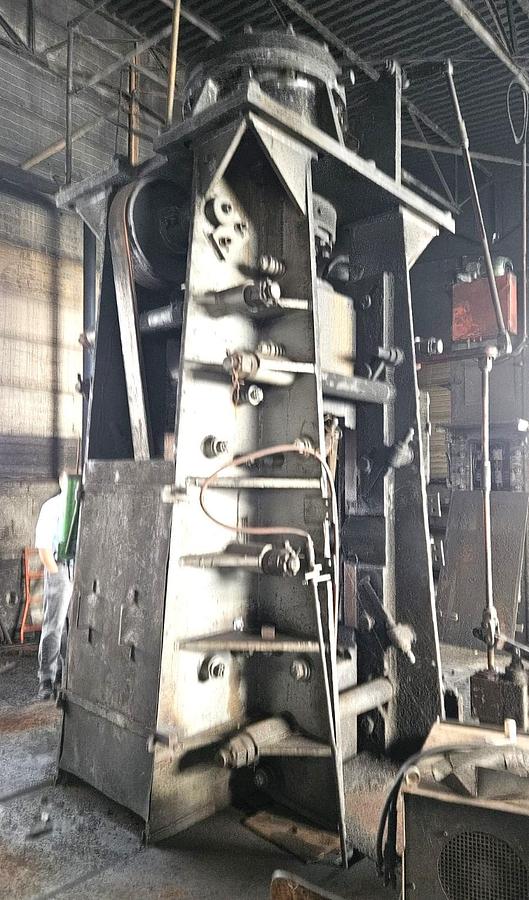

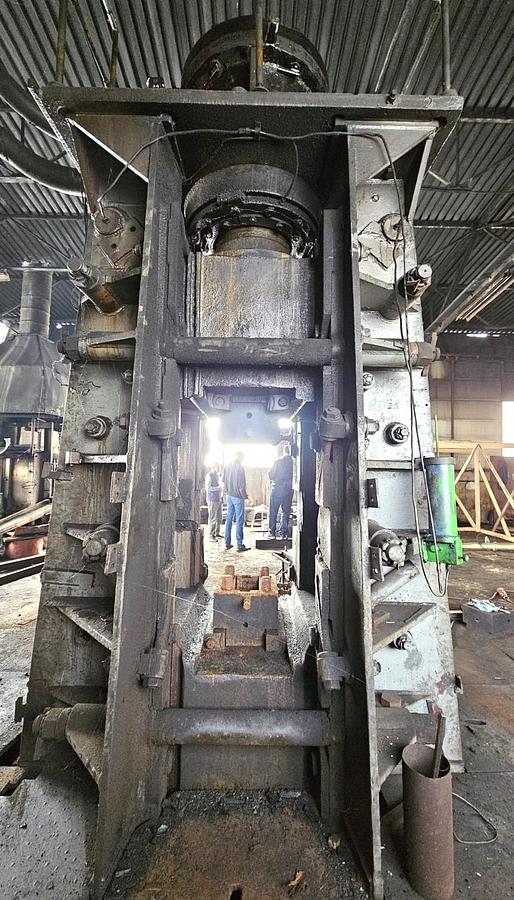

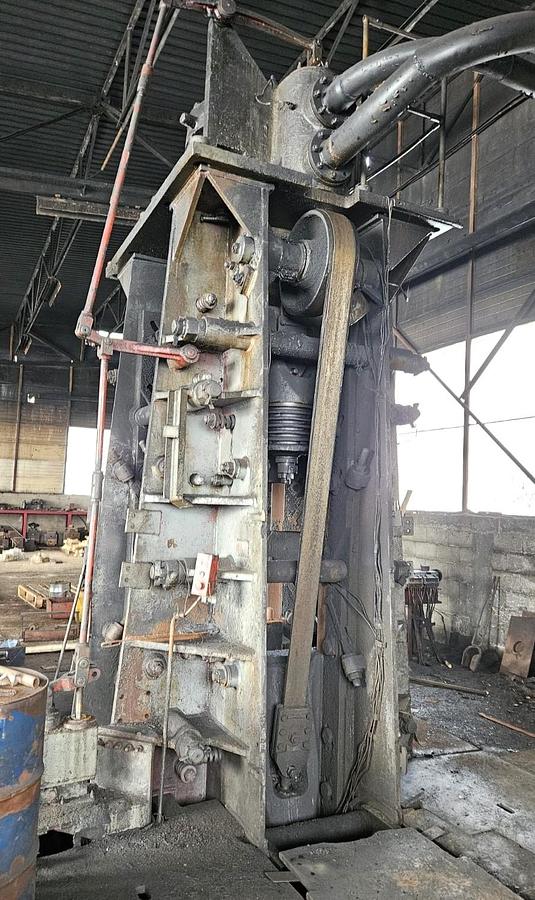

1.1 Belt type pneumatic forging hammer BECHE type DGH 8

Blow energy: 8000 kgm / 80 kJ

Number of blows, max.: 12…55 1/min

Total stroke of both rams: 940 mm

Ram size front to back: 1080 mm

Distance between rams: 300 mm

Air pressure needed: 6 – 8 Atm.

Overall dimensions: L = 1300 mm; B = 2830 mm; H = 5300 mm

Height above the floor: 3900 mm

Total weight: 37 000 kg

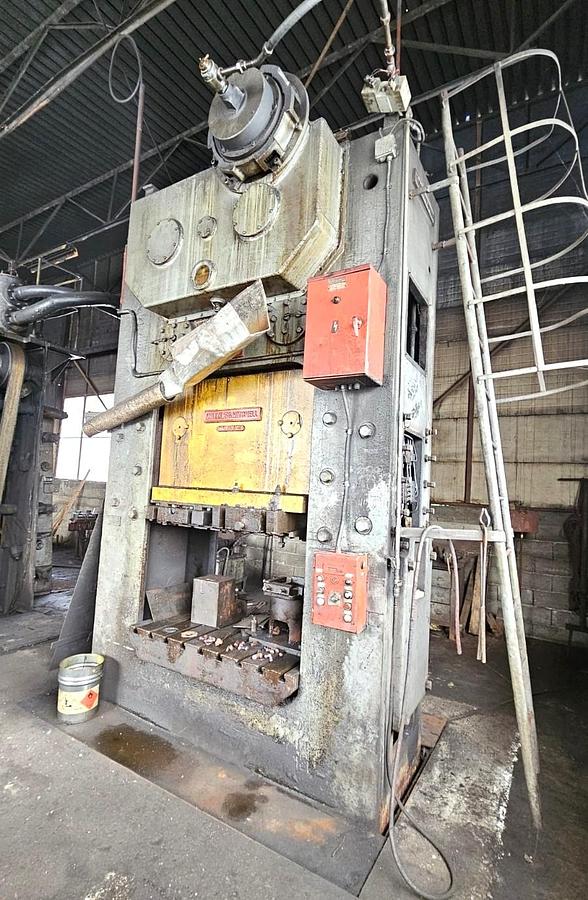

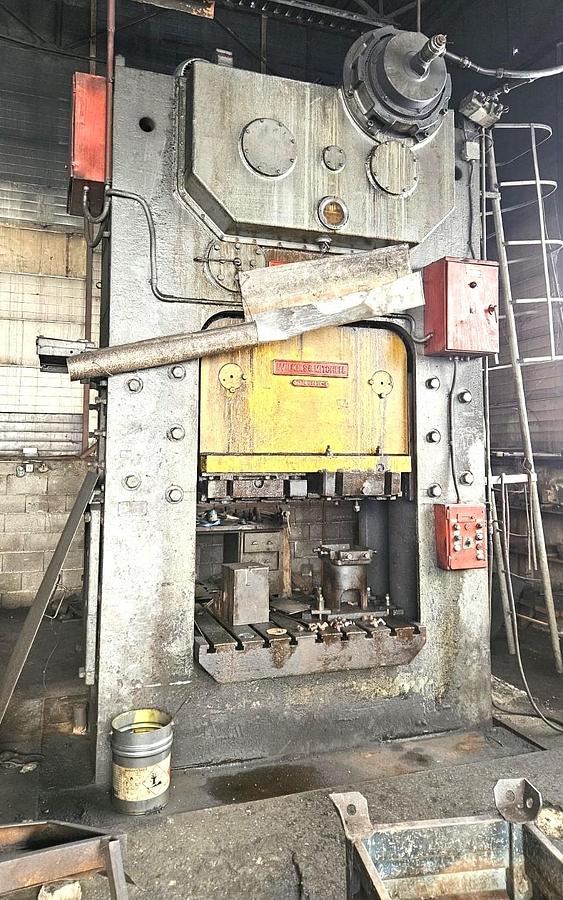

1.2 Trimming press Wilkins & Mitchell 320 ton force.

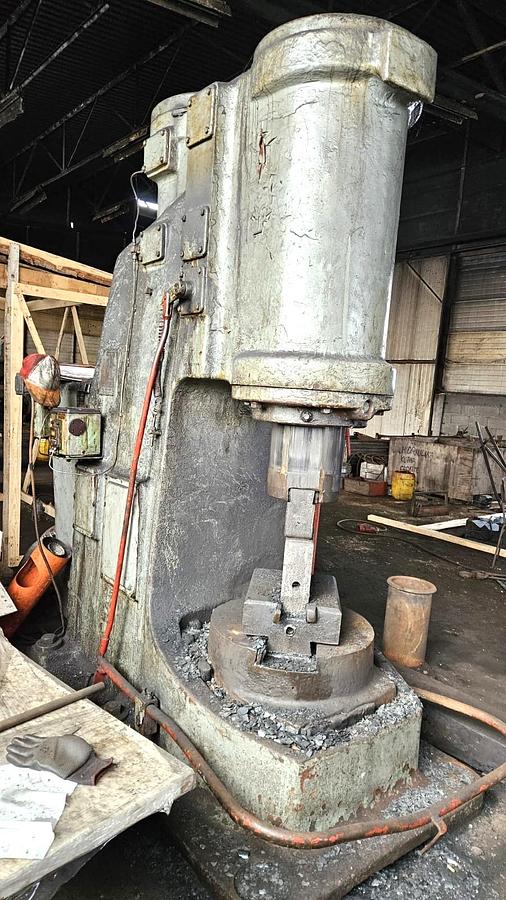

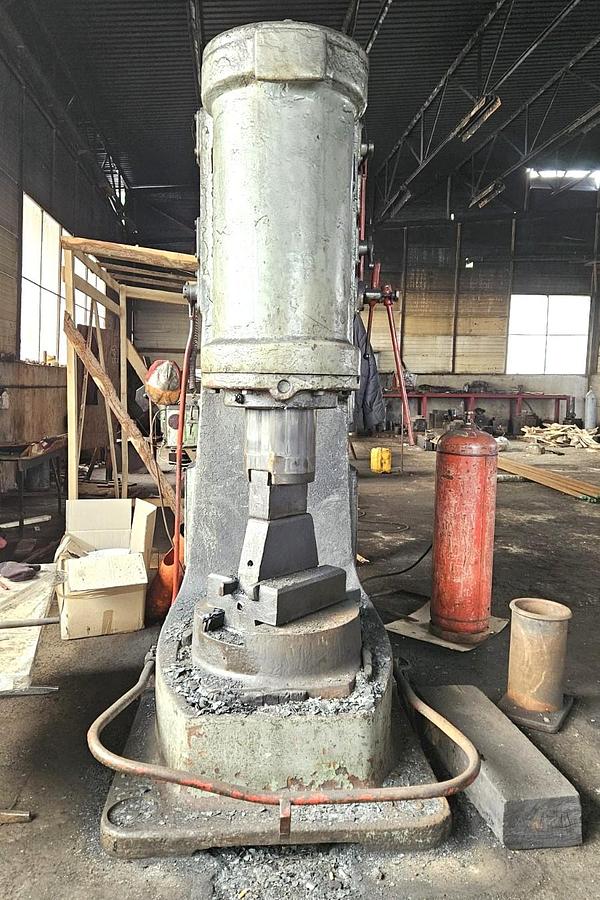

1.3 Pre forging C-type hammer Voronezh 250 kg falling parts.
