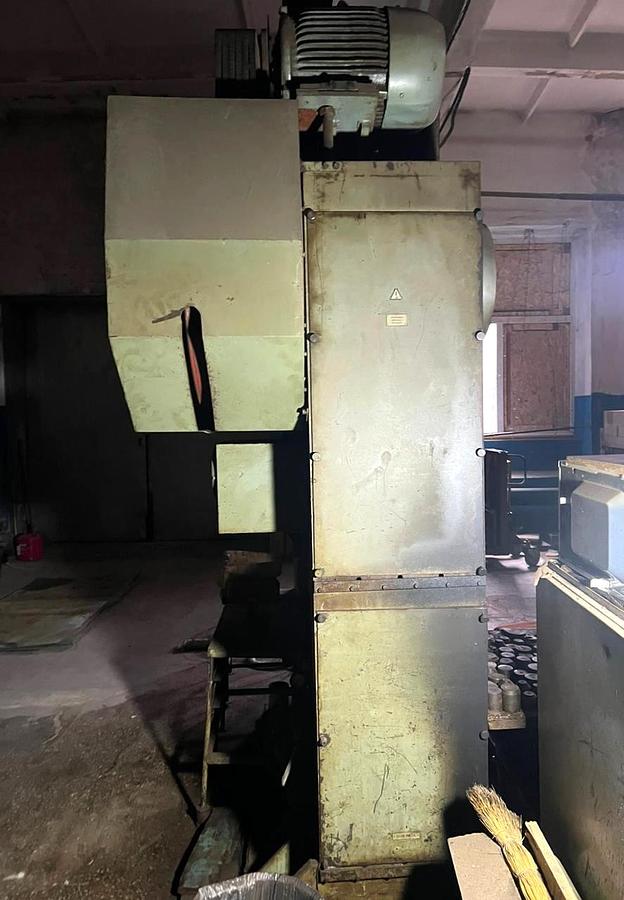

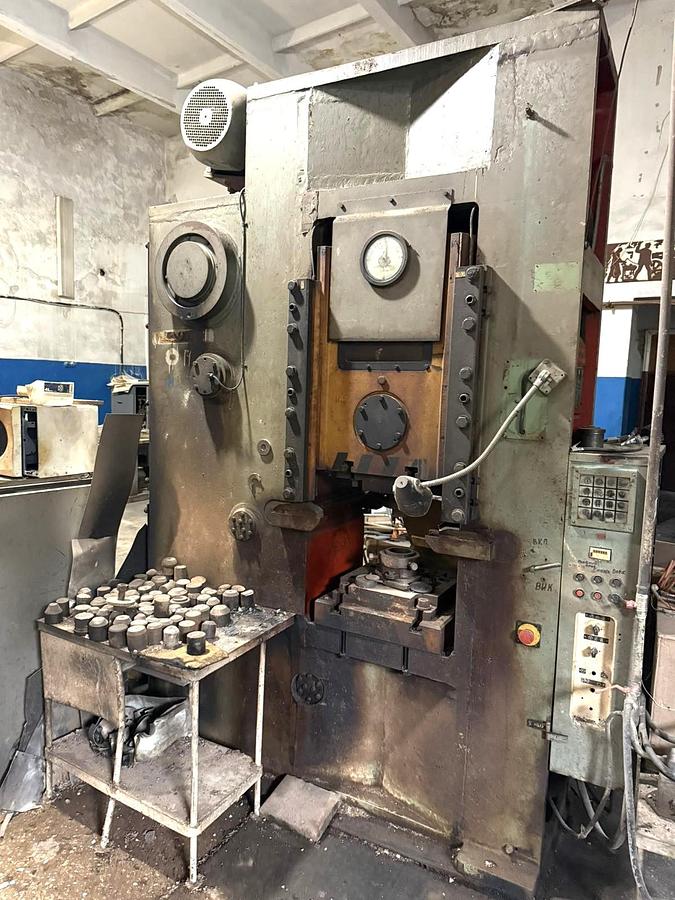

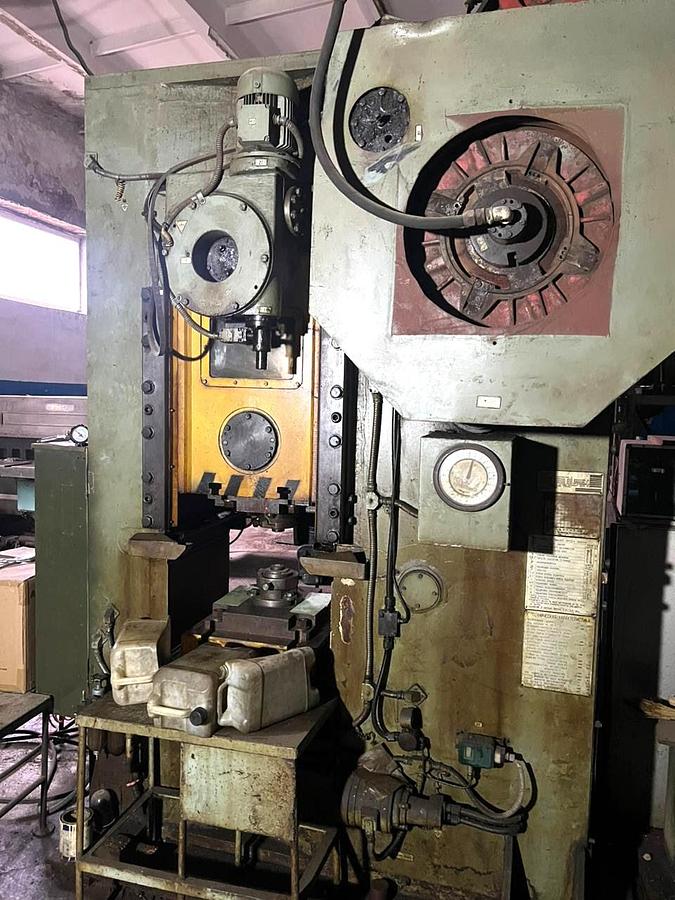

400 tons Press Knuckle Joint Coining Barnaul KB8336

Capacity : 400 tons,

Ram stroke : 130 mm,

Stroke per minute : 50 spm,

Shut height : 475 mm,

Adjustment (bolster-to-slide): 12 mm,

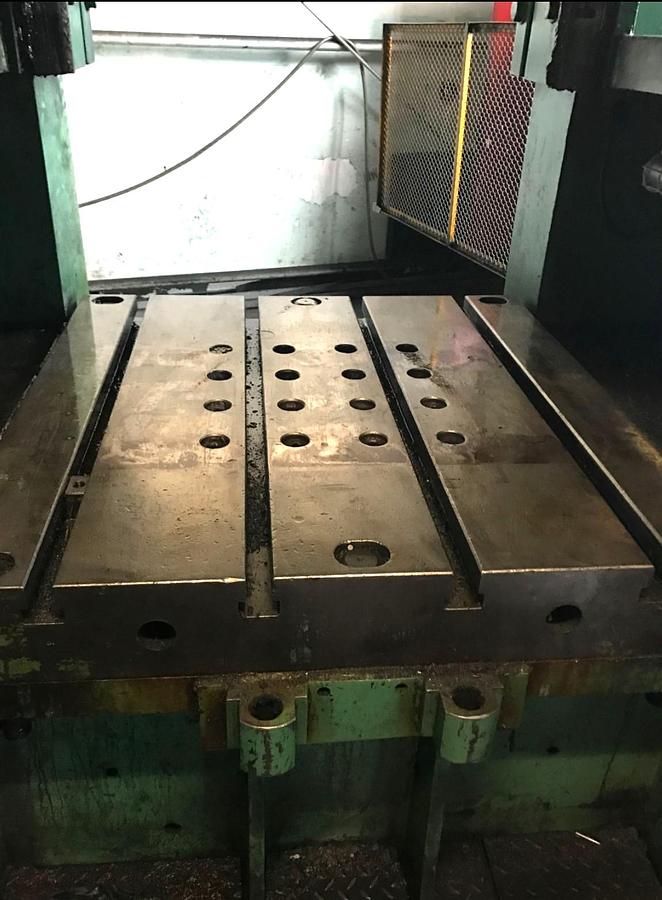

Bed size : 500 x 500 mm,

Bolster plate thickness : 100 mm,

Distance between bolster plate and slide :375 mm,

Lower ejector stroke : 80 mm,

Force : 12 tons,

Upper ejector stroke : 10 mm,

Force : 4 tons,

Overall dimensions (L×W×H) : 1940 x 1240 x 2800 mm,

Main motor power : 19 kW,

Voltage : 50 Hz, 380 V,

Motor capacity : 16 kW,

Weight : 8.5 tons.
