Sheet Stamping Line Mechanical KIA 800-500-400-400-400
Specifications
| Manufacturer | KIA |
| Model | SL2-800 |
| Year | 1992 |
| Condition | Used |
| Stock Number | MA3256 |
| Item condition | Good condition |
| Capacity tons | 800 |
Description

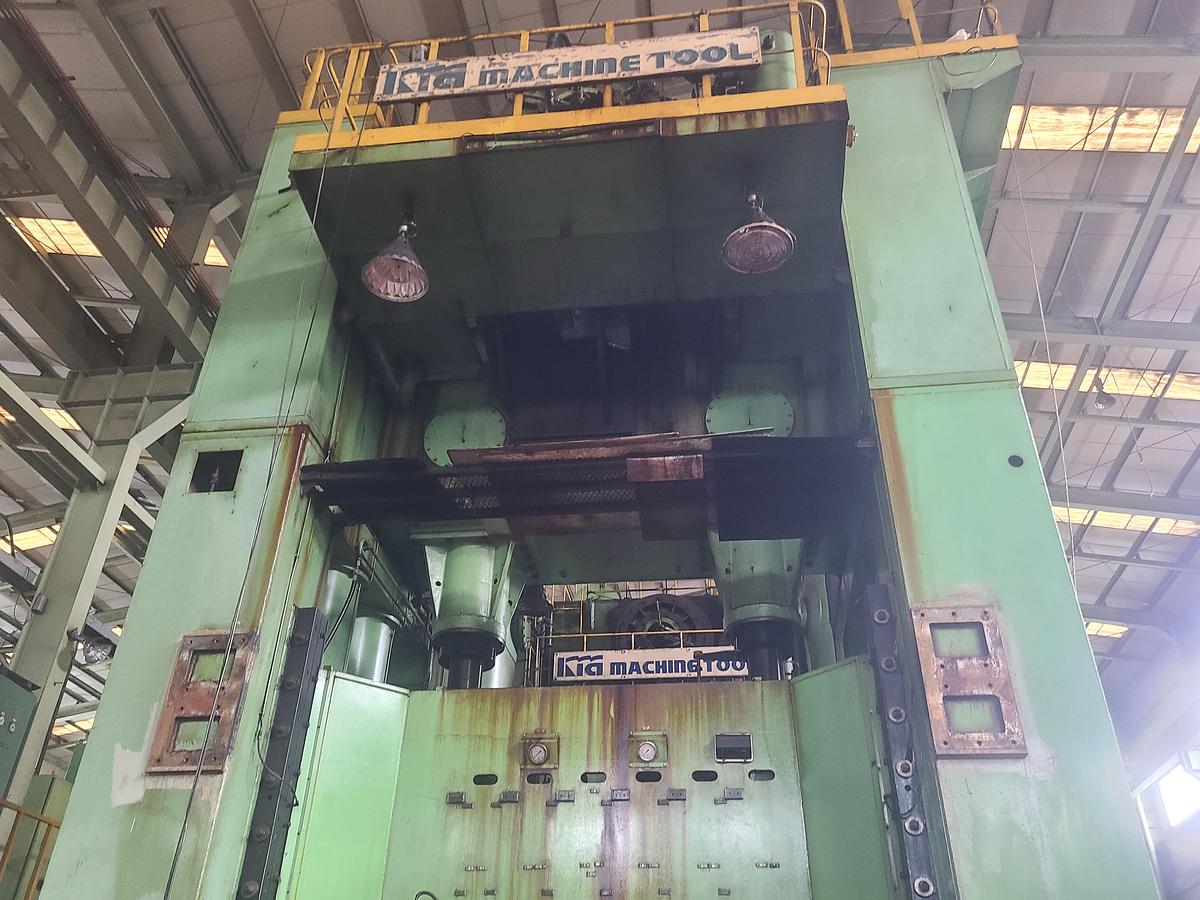

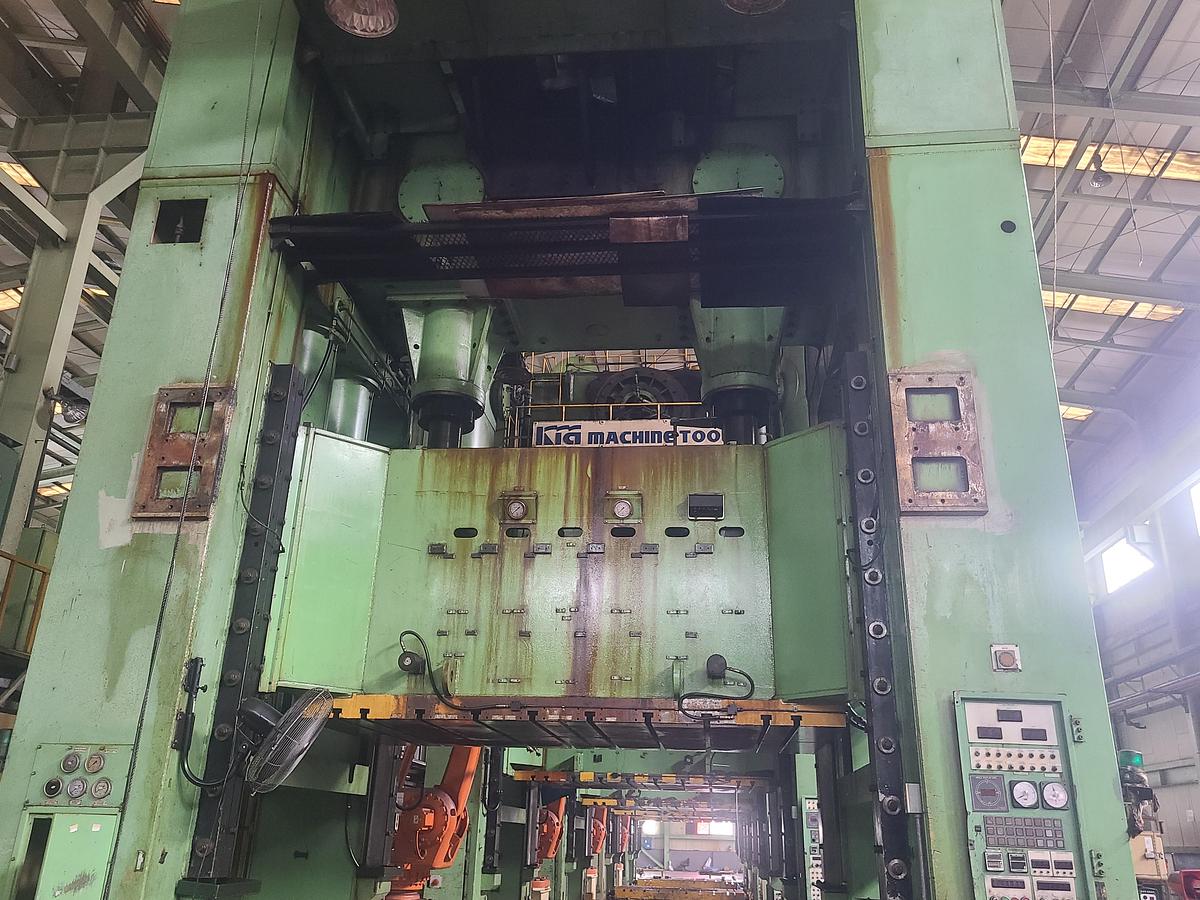

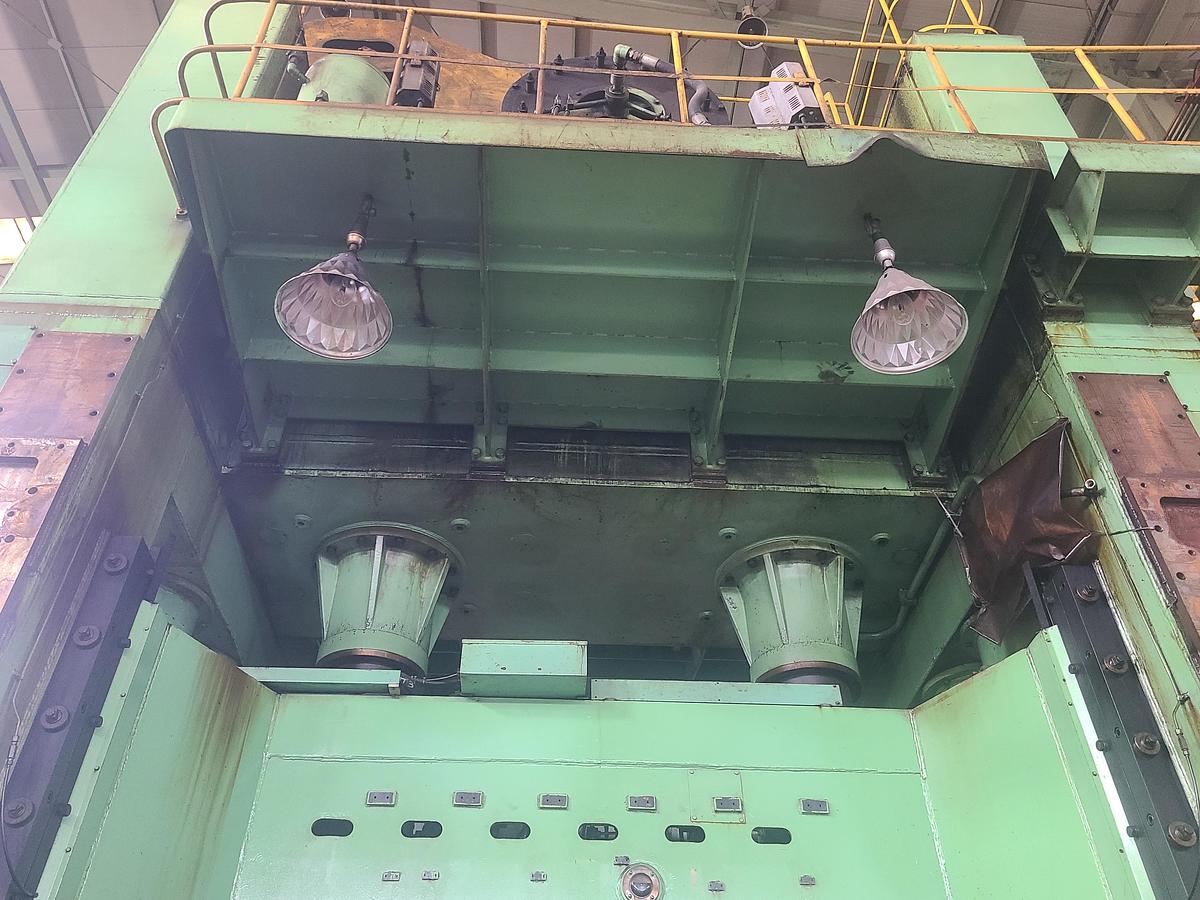

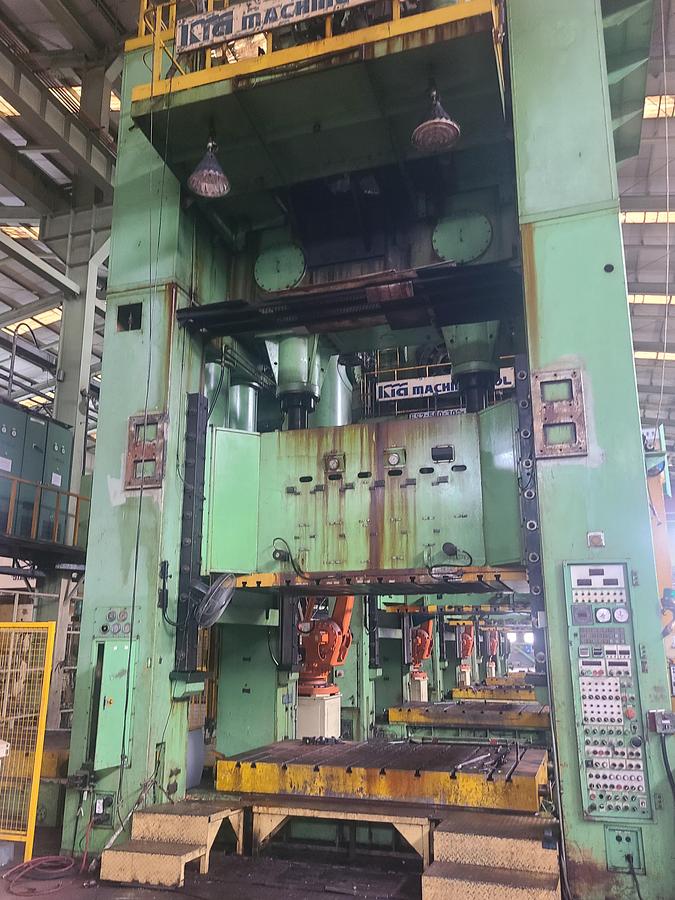

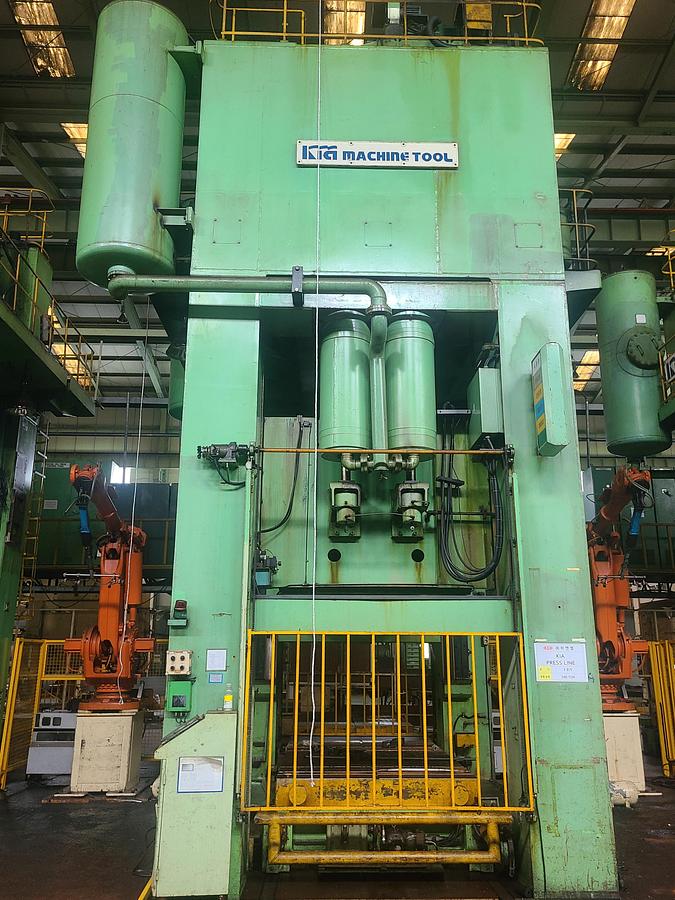

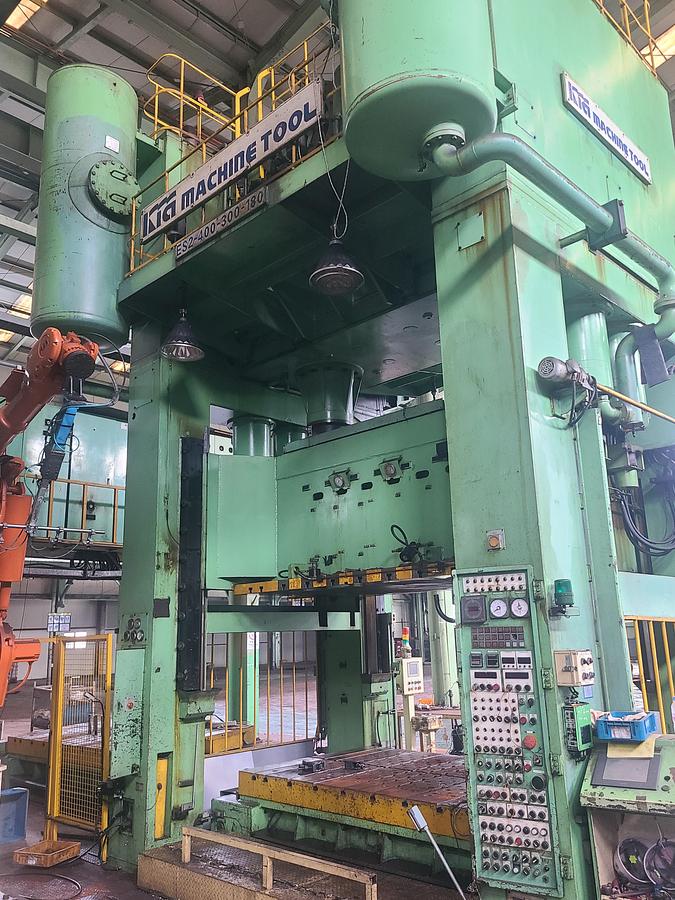

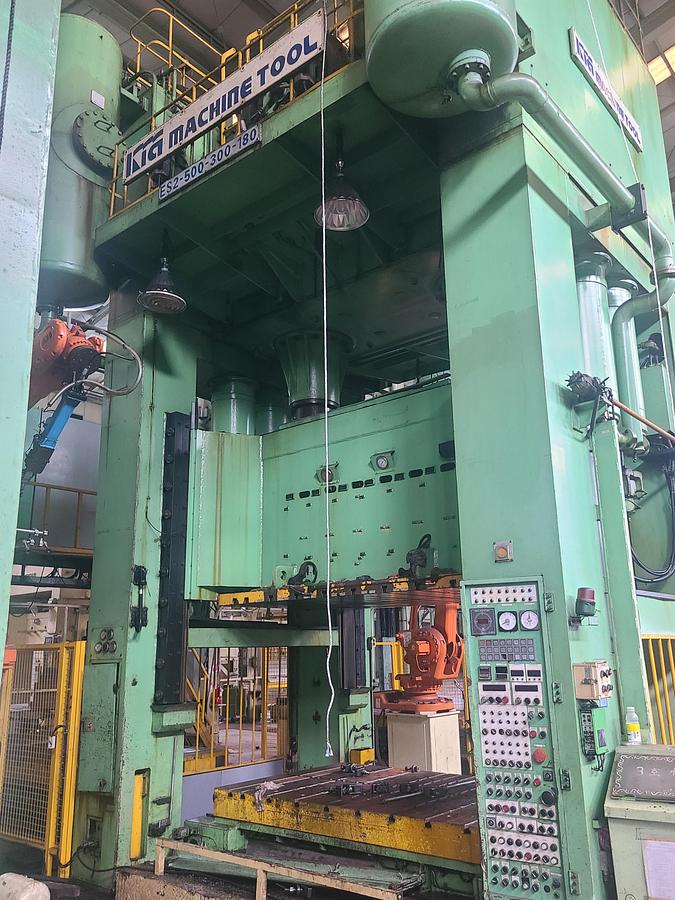

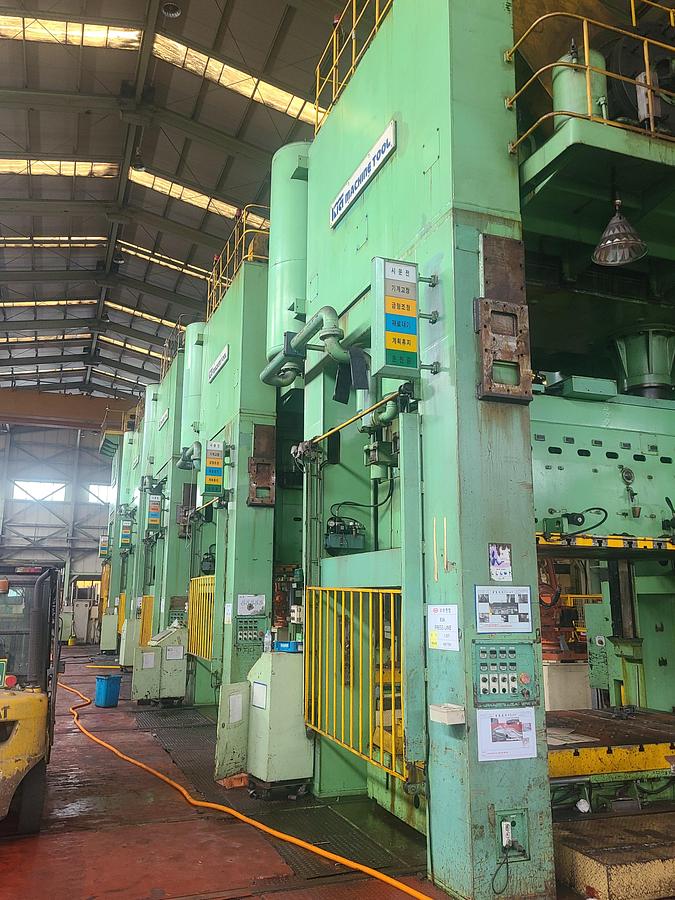

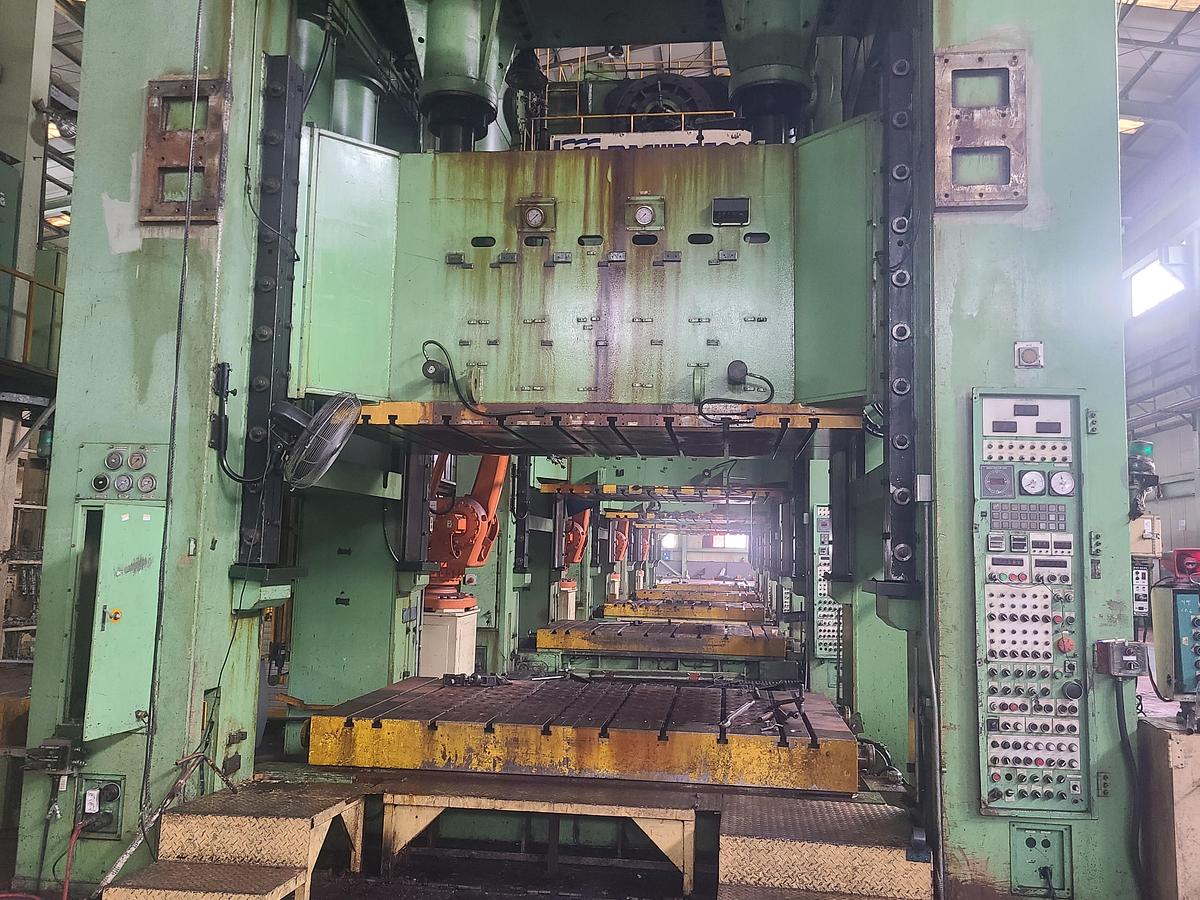

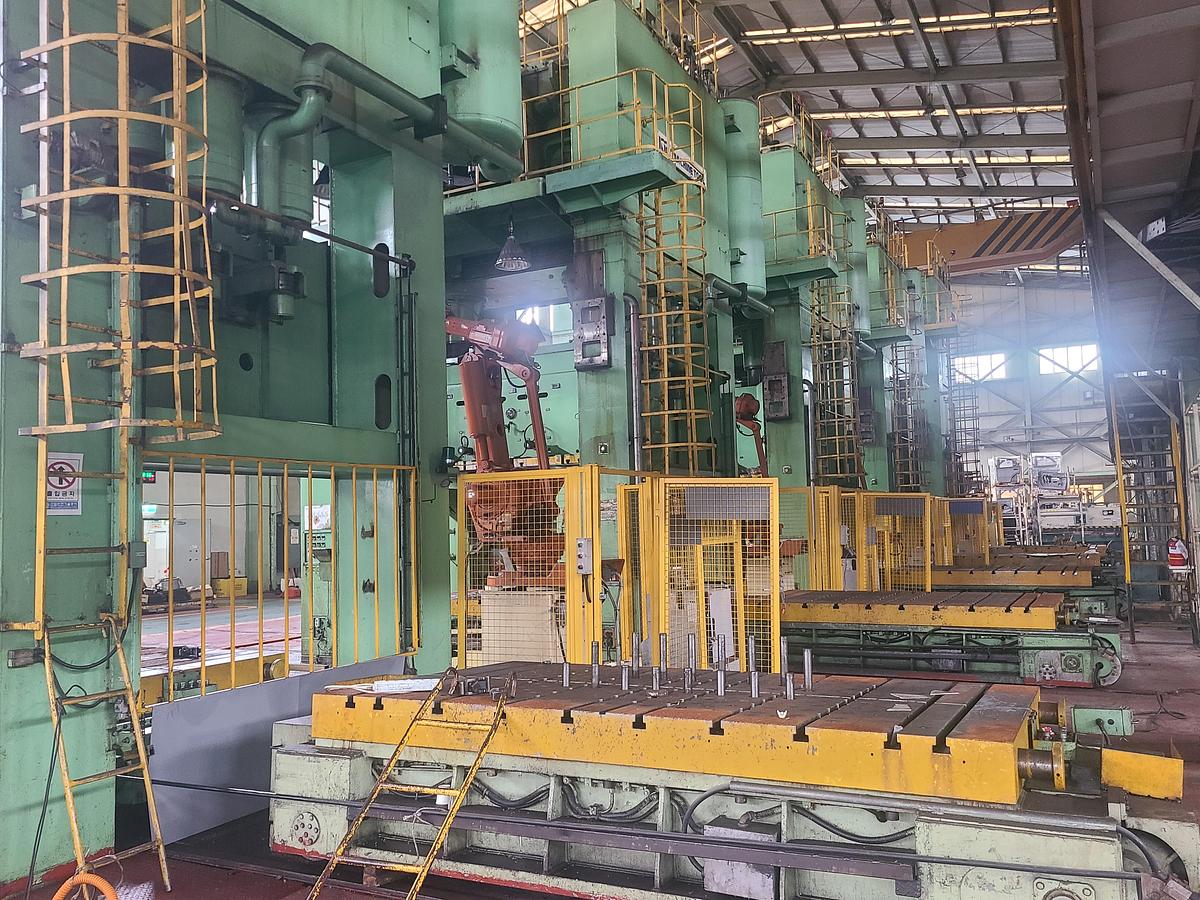

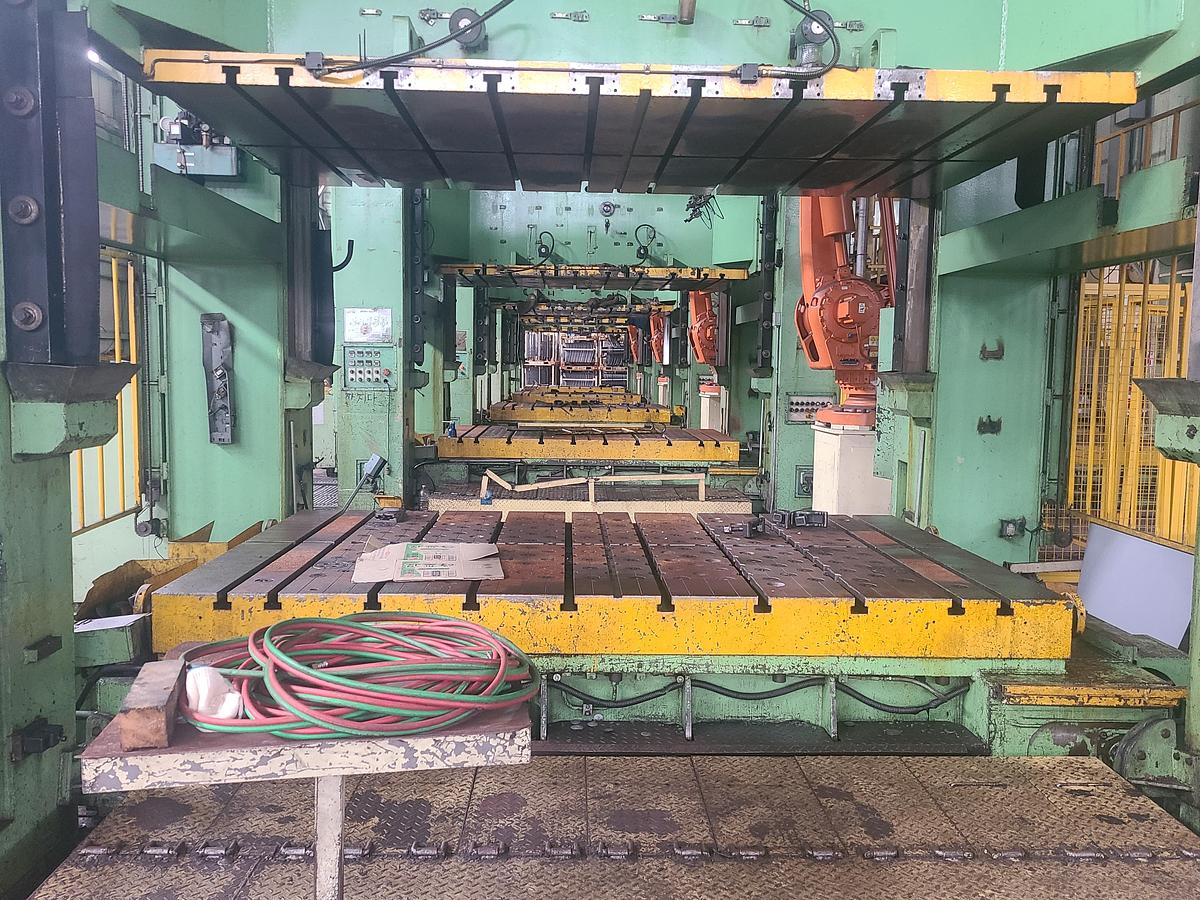

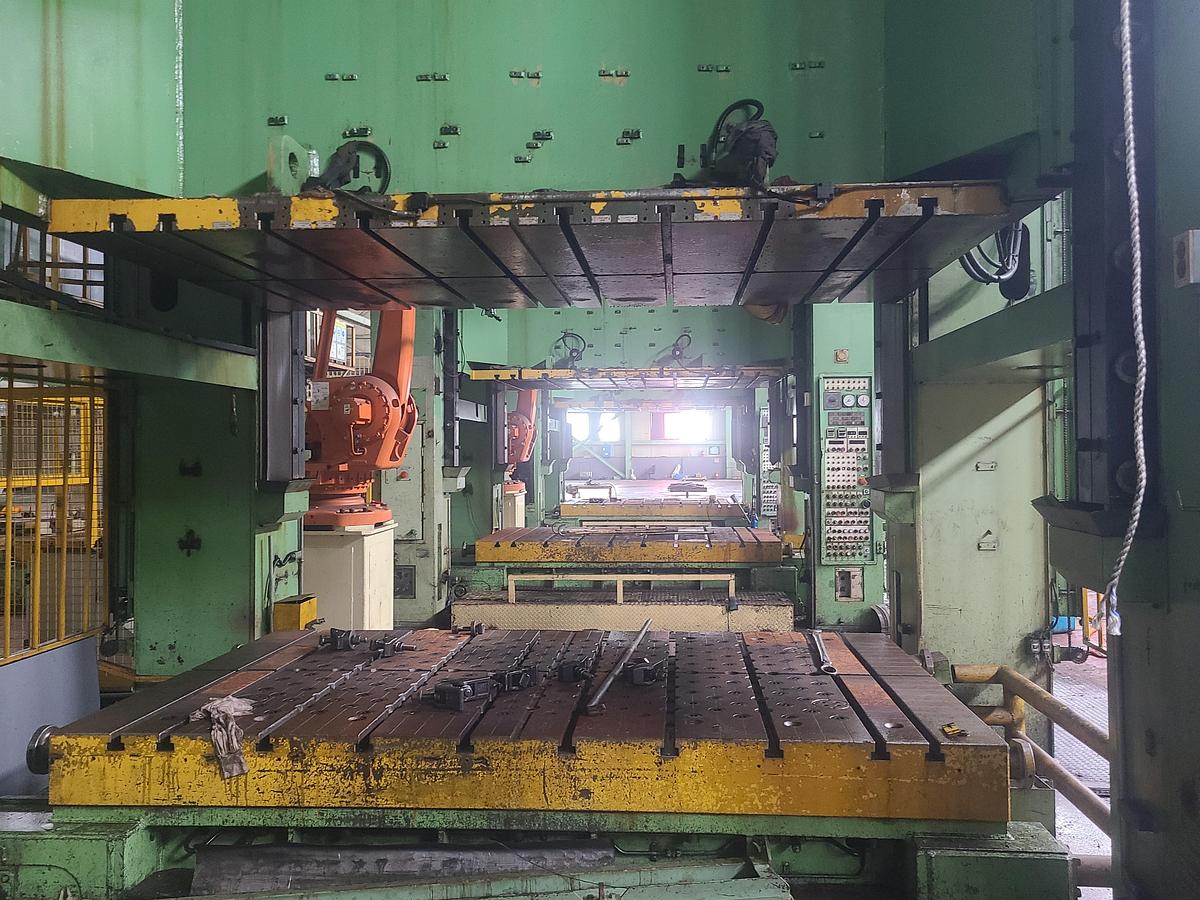

KIA Tandem Line (800-500-400-400-400 Ton) with all existed accessories.

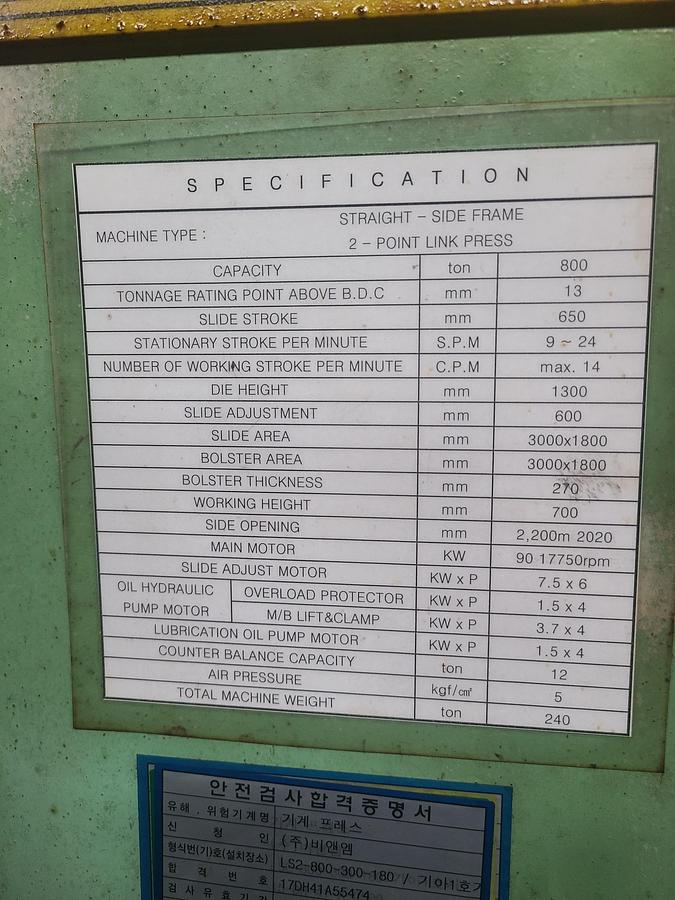

1. Capacity : 800 tons,
Model : SL2-800 (Link Motion),
Yom : 1992,
Tonnage rating point above B.D.C. : 13,

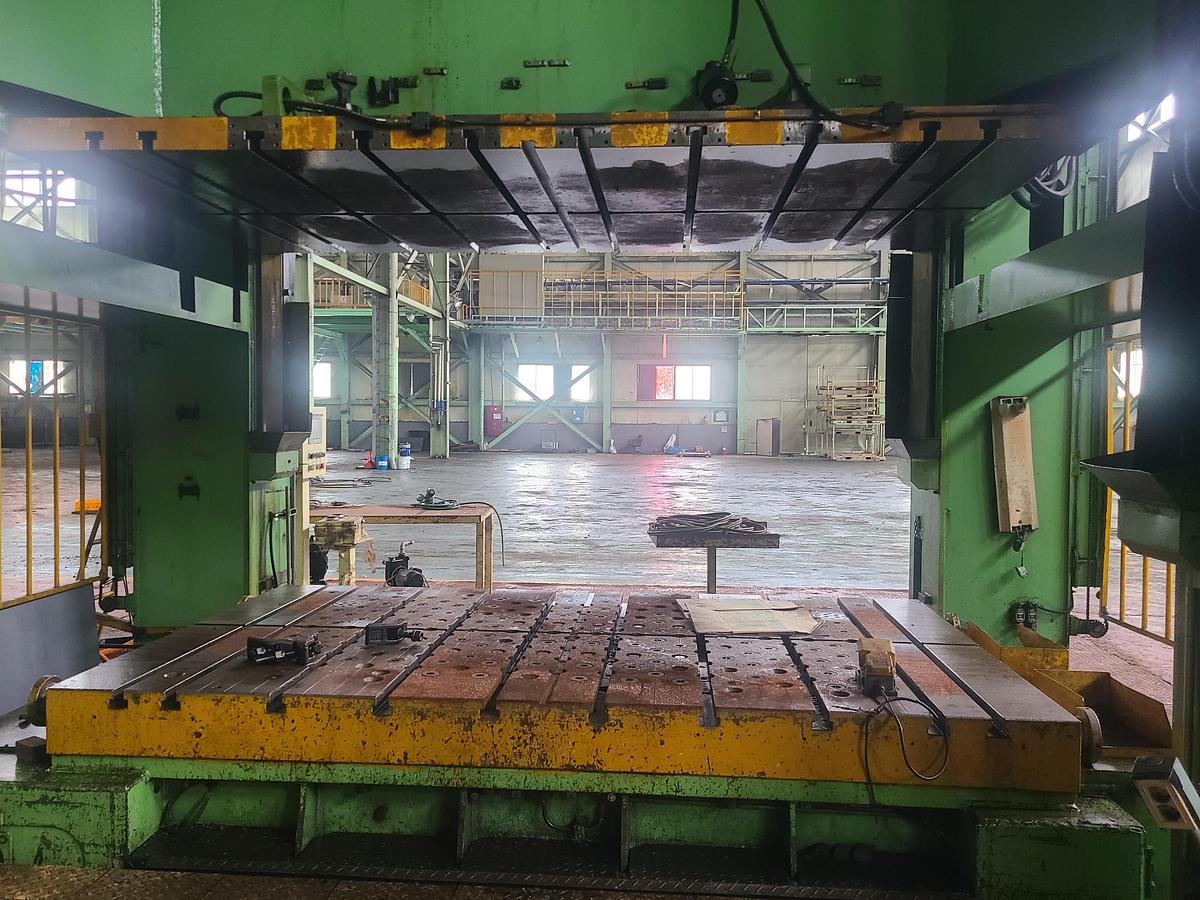

Bolster : 3000 x 1800 mm,

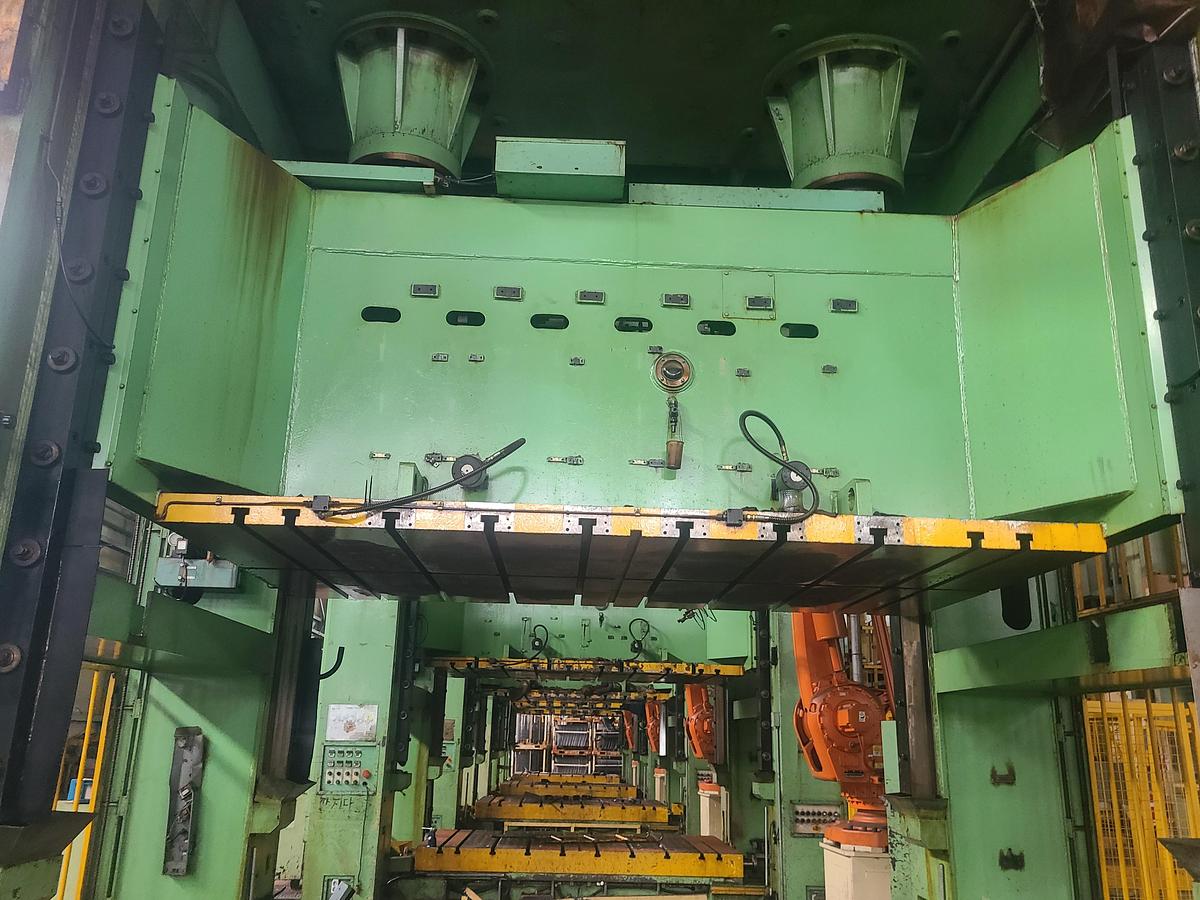

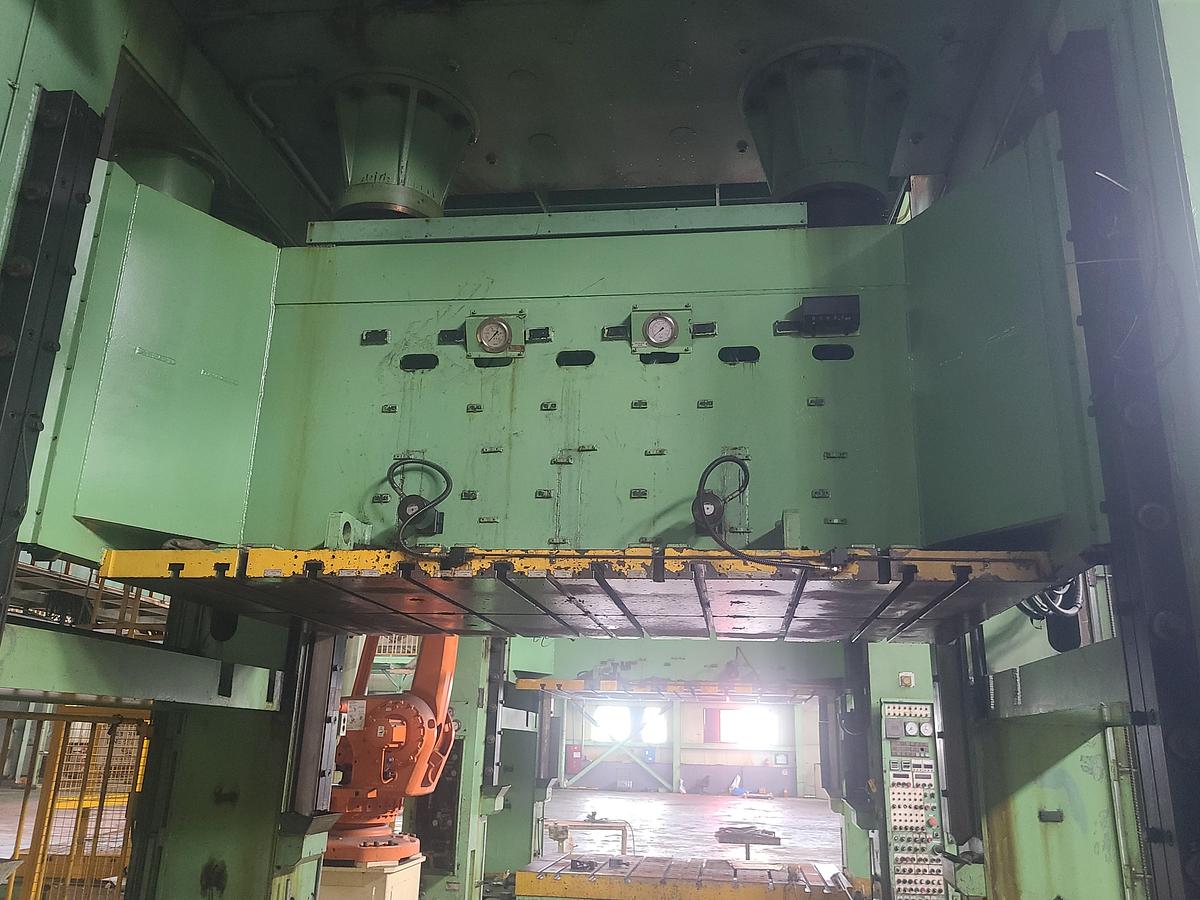

Slide : 3000 x 1800 mm,
Die height : 1300 mm,
Stroke : 650 mm,
Adjust : 600 mm,
Stroke per minutes : 9-24 SPM,
Bolster T-Slot : 160,
Clutch & Brake : Dry
Die Cushion Capacity : 150 tons,
Stroke : 270 mm,
Pad area : 2500 x 1400 mm,

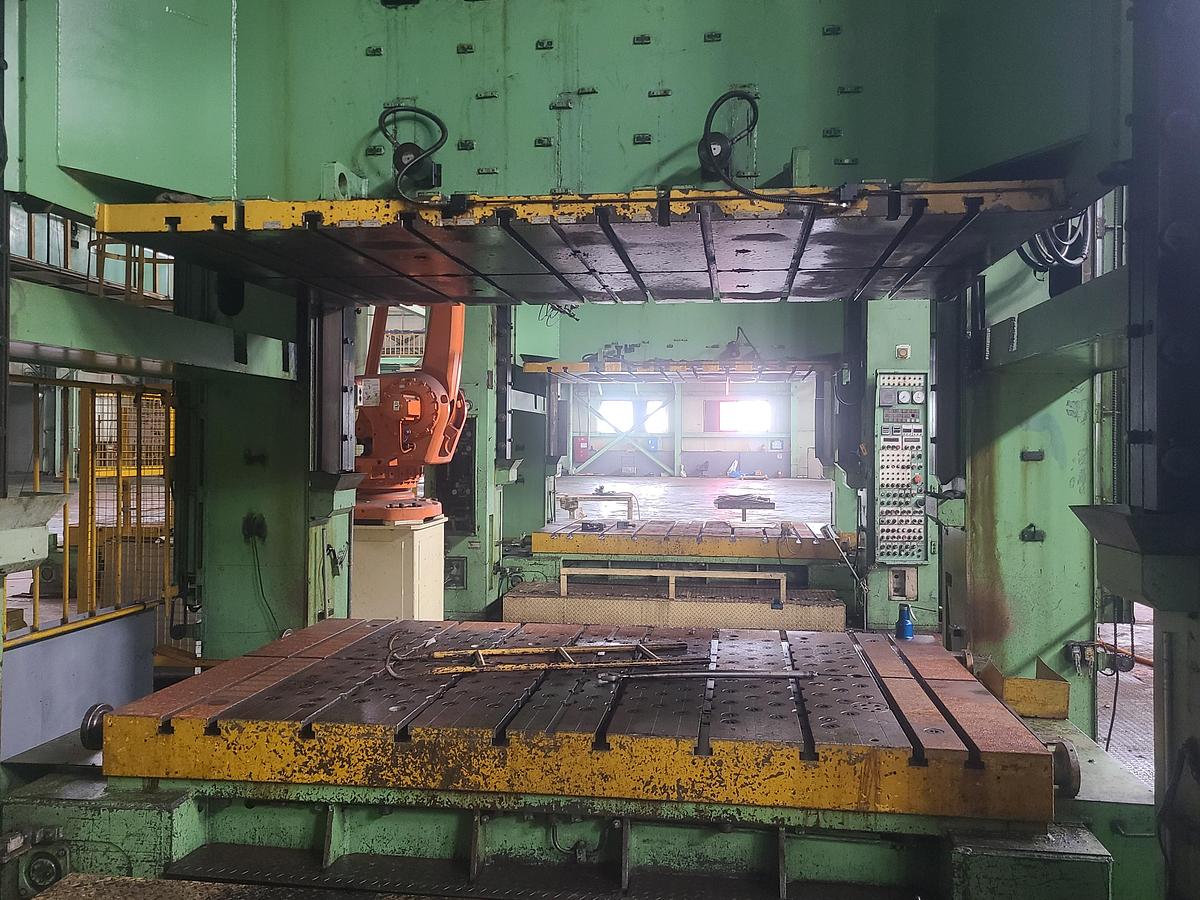

Moving Bolster : Side 2 set Type.

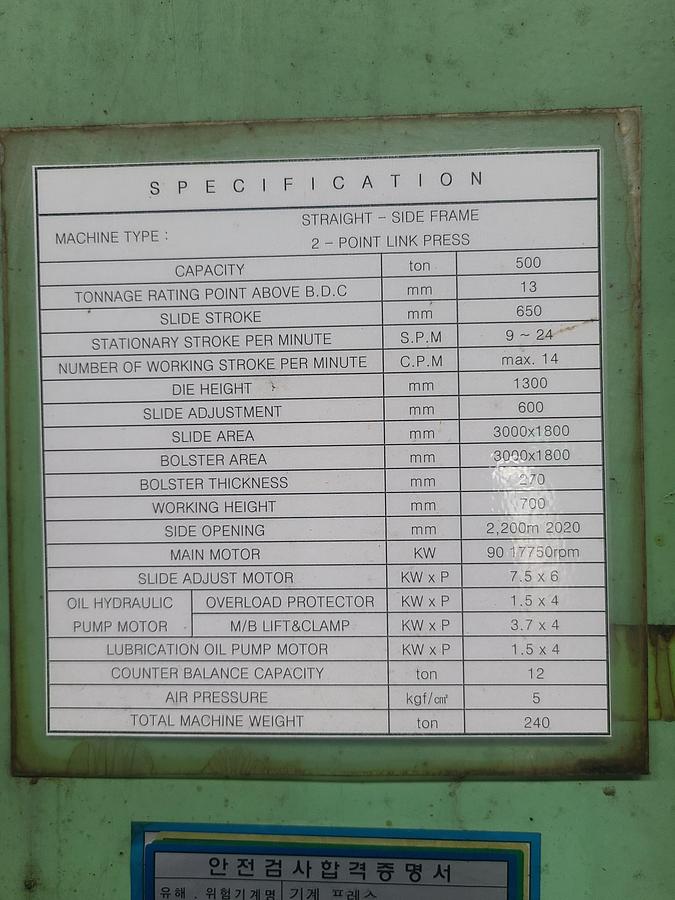

2. Capacity : 500 tons,
Model : S2-500,
Yom : 1992,
Tonnage rating point above B.D.C. : 13,
Bolster : 3000 x 1800 mm,
Slide : 3000 x 1800 mm,
Die height : 1300 mm,
Stroke : 650 mm,
Adjust : 600 mm,
Stroke per minutes : 9-24 SPM,
Bolster T-Slot : 160,
Clutch & Brake : Dry
Die Cushion Capacity : 100 tons,
Stroke : 250 mm,
Pad area : 2500 x 1400 mm,
Moving Bolster : Side 2 set Type.

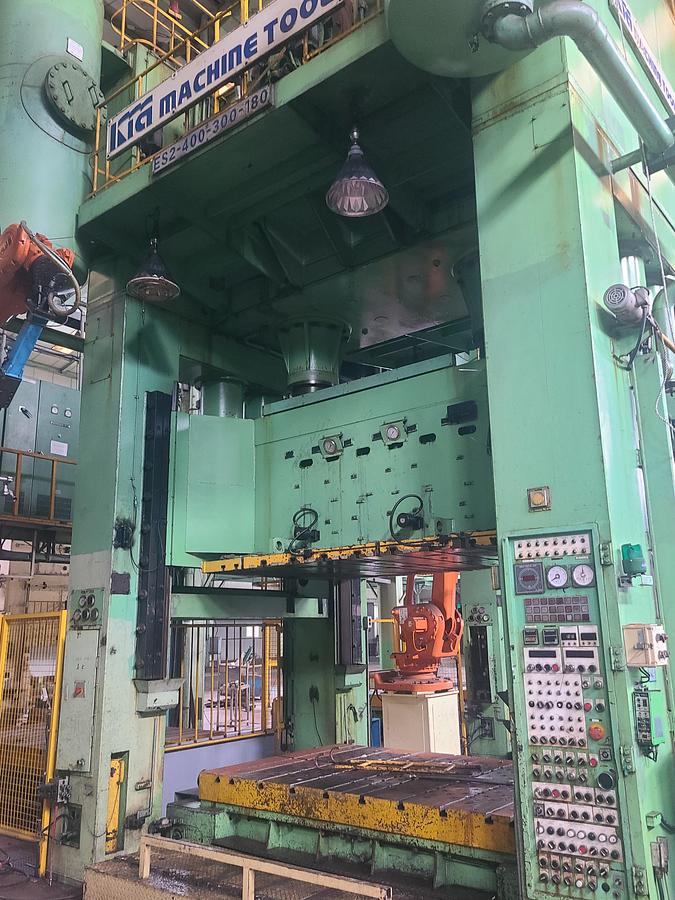

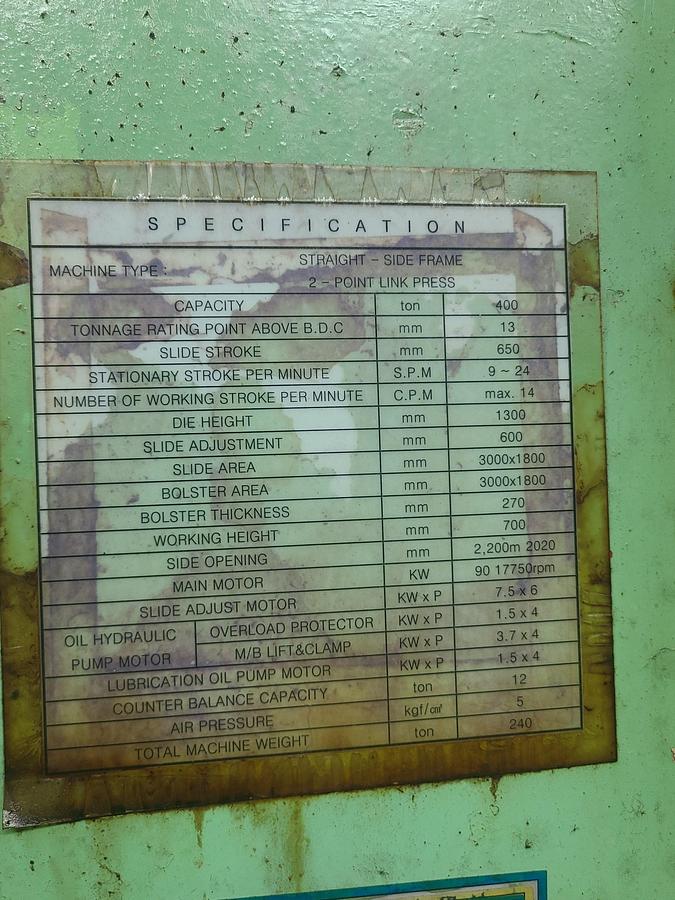

3. Capacity : 400 tons,
Model : S2-400,
Yom : 1992,
Tonnage rating point above B.D.C. : 13,
Bolster : 3000 x 1800 mm,
Slide : 3000 x 1800 mm,
Die height : 1300 mm,
Stroke : 650 mm,
Adjust : 600 mm,
Stroke per minutes : 9-24 SPM,
Bolster T-Slot : 160,
Clutch & Brake : Dry
Die Cushion Capacity : 80 tons,
Stroke : 250 mm,
Pad area : 2500 x 1400 mm,
Moving Bolster : Side 2 set Type.
4. Capacity : 400 tons,
Model : S2-400,
Yom : 1992,
Tonnage rating point above B.D.C. : 13,
Bolster : 3000 x 1800 mm,
Slide : 3000 x 1800 mm,
Die height : 1300 mm,
Stroke : 650 mm,
Adjust : 600 mm,
Stroke per minutes : 9-24 SPM,
Bolster T-Slot : 160,
Clutch & Brake : Dry
Die Cushion Capacity : 80 tons,
Stroke : 250 mm,
Pad area : 2500 x 1400 mm,
Moving Bolster : Side 2 set Type.
5. Capacity : 400 tons,
Model : S2-400,
Yom : 1992,
Tonnage rating point above B.D.C. : 13,
Bolster : 3000 x 1800 mm,
Slide : 3000 x 1800 mm,
Die height : 1300 mm,
Stroke : 650 mm,
Adjust : 600 mm,
Stroke per minutes : 9-24 SPM,
Bolster T-Slot : 160,
Clutch & Brake : Dry
Die Cushion Capacity : 80 tons,
Stroke : 250 mm,
Pad area : 2500 x 1400 mm,
Moving Bolster : Side 2 set Type.

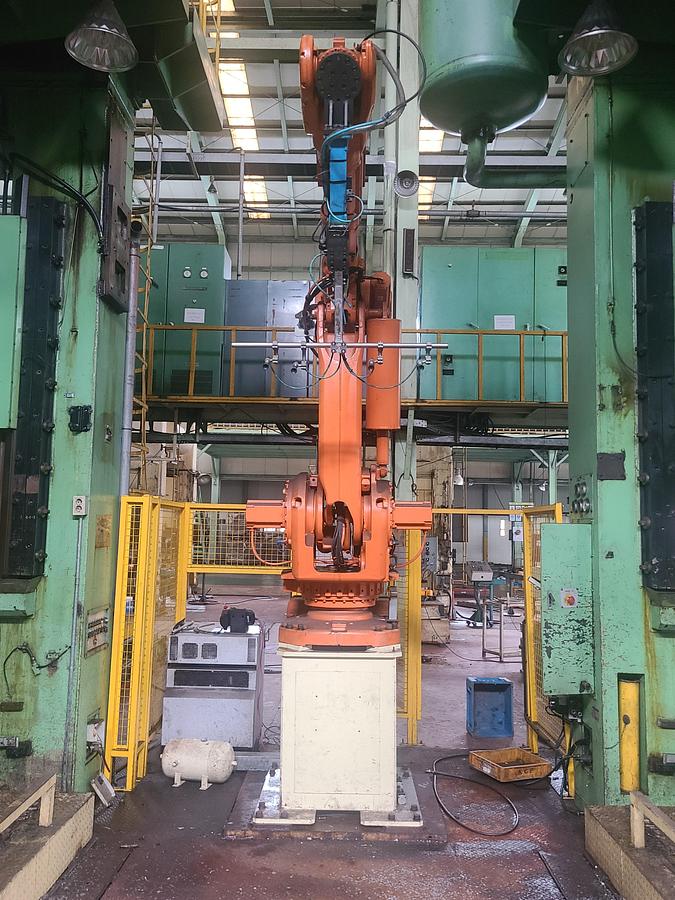

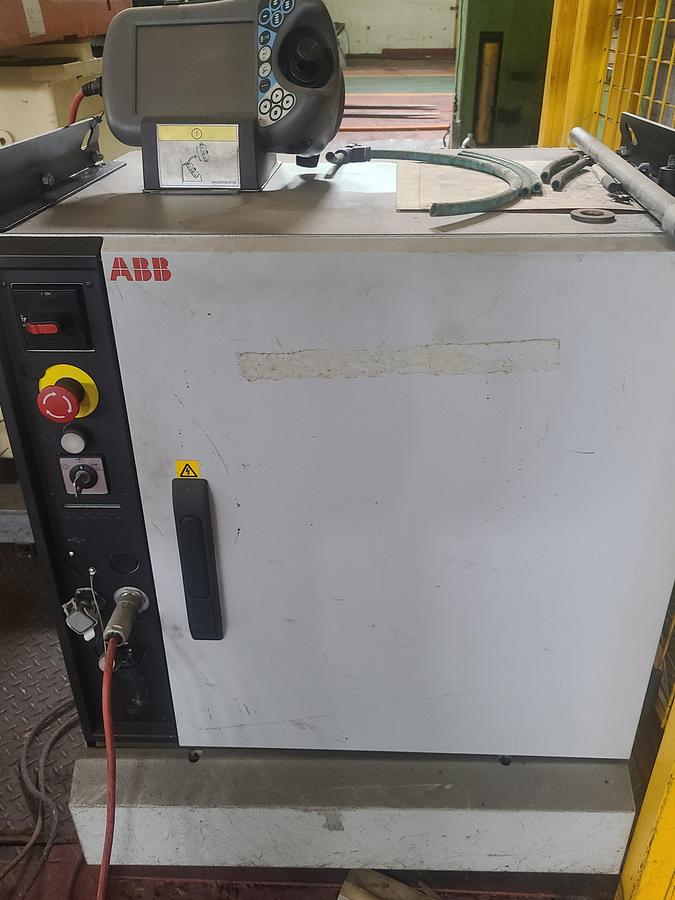

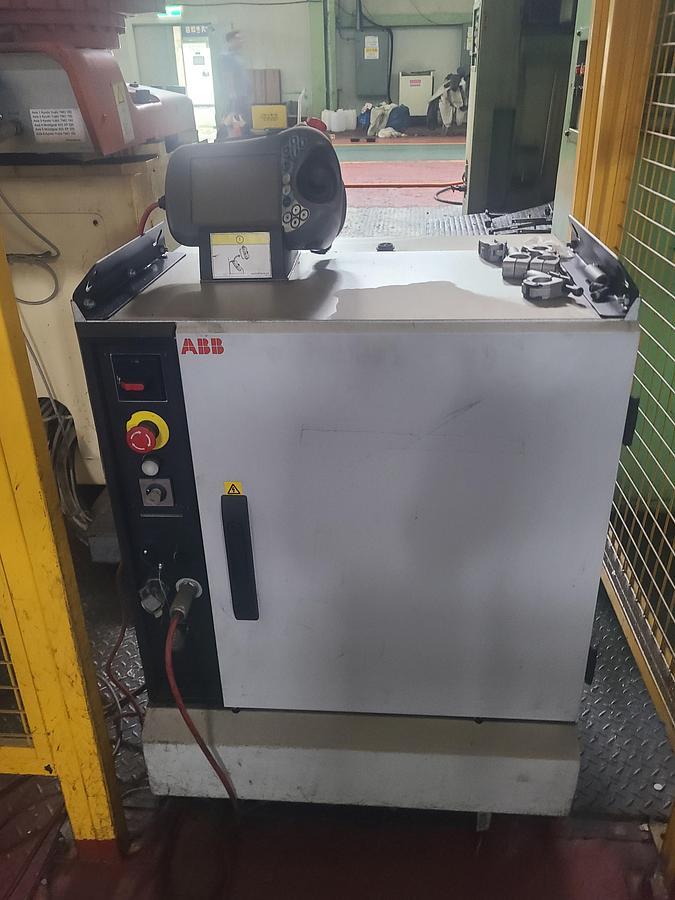

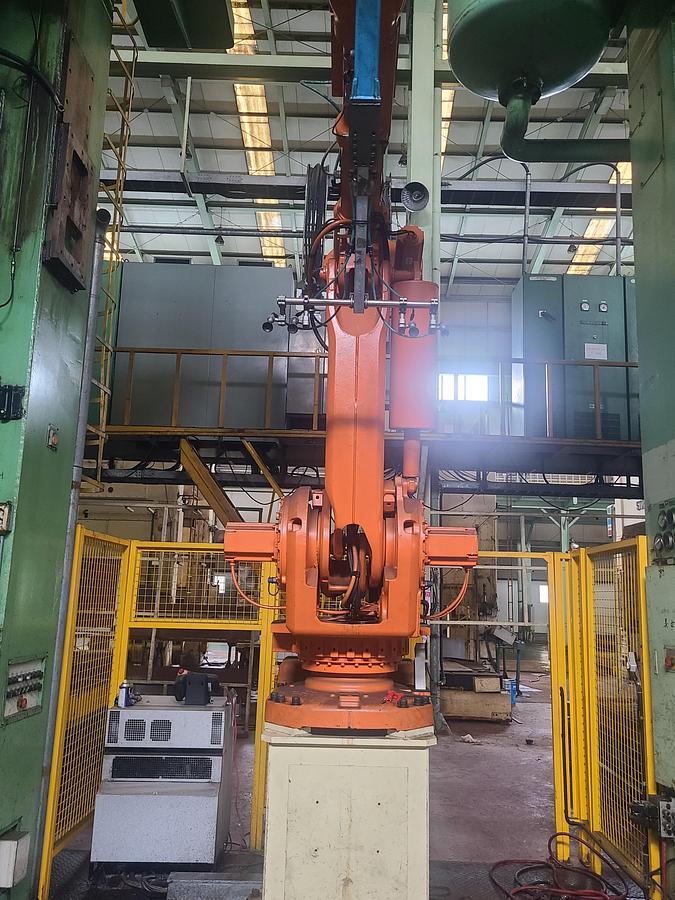

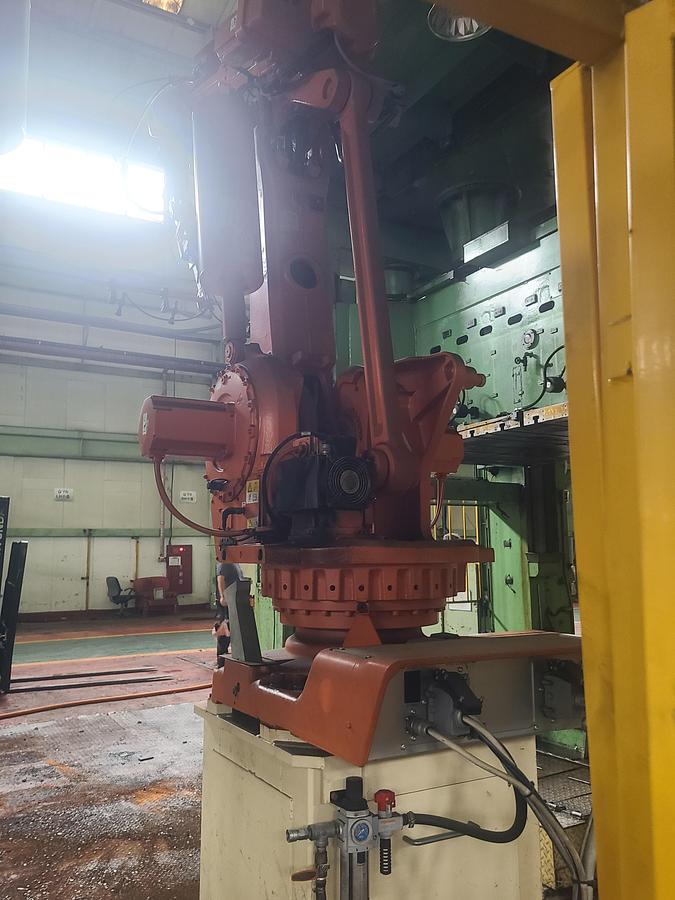

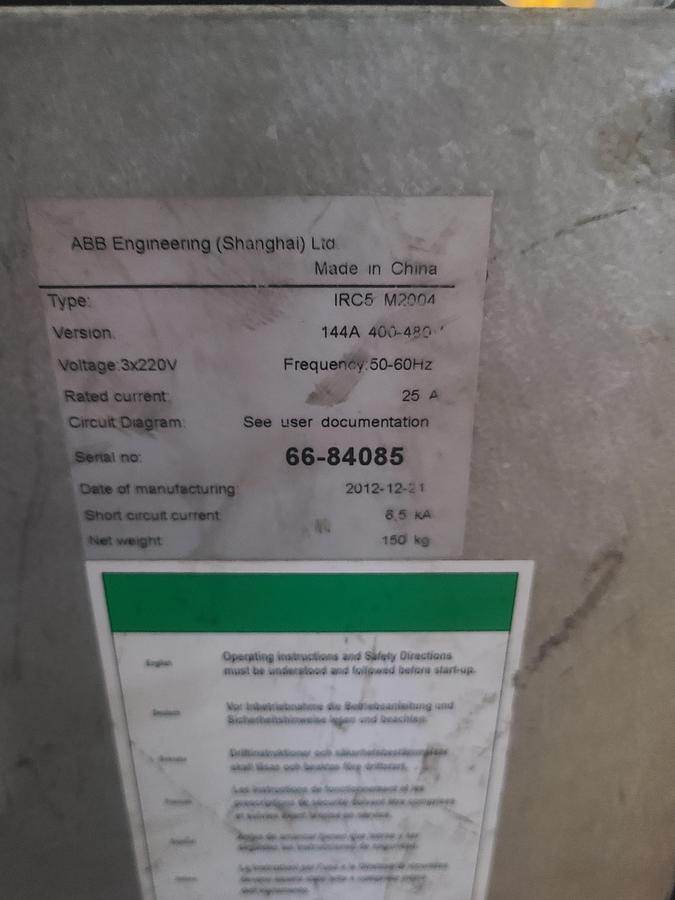

Including Robots : 4 Nos.,

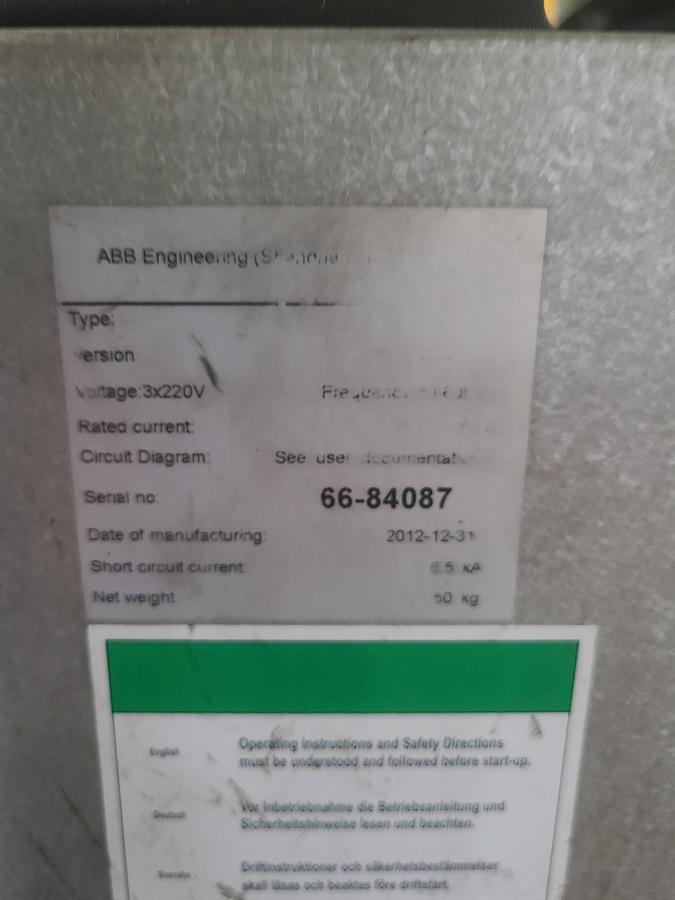

Make : ABB Engineering (Shanghai) Ltd.,
Type : IRB6660M2004,
Robot Variant : IRB6660-130/3.1,
Protection : Standard,
Date of manufacturing : 2012/12/24,
Max. load : See load diagram,
Net weight : 1910 kg.
Including Scrap Conveyor : 1 Set.
Including Bolster, ABB Robert, Cushion & Side moving bolster (2 pcs)
Technical manuals not available.
