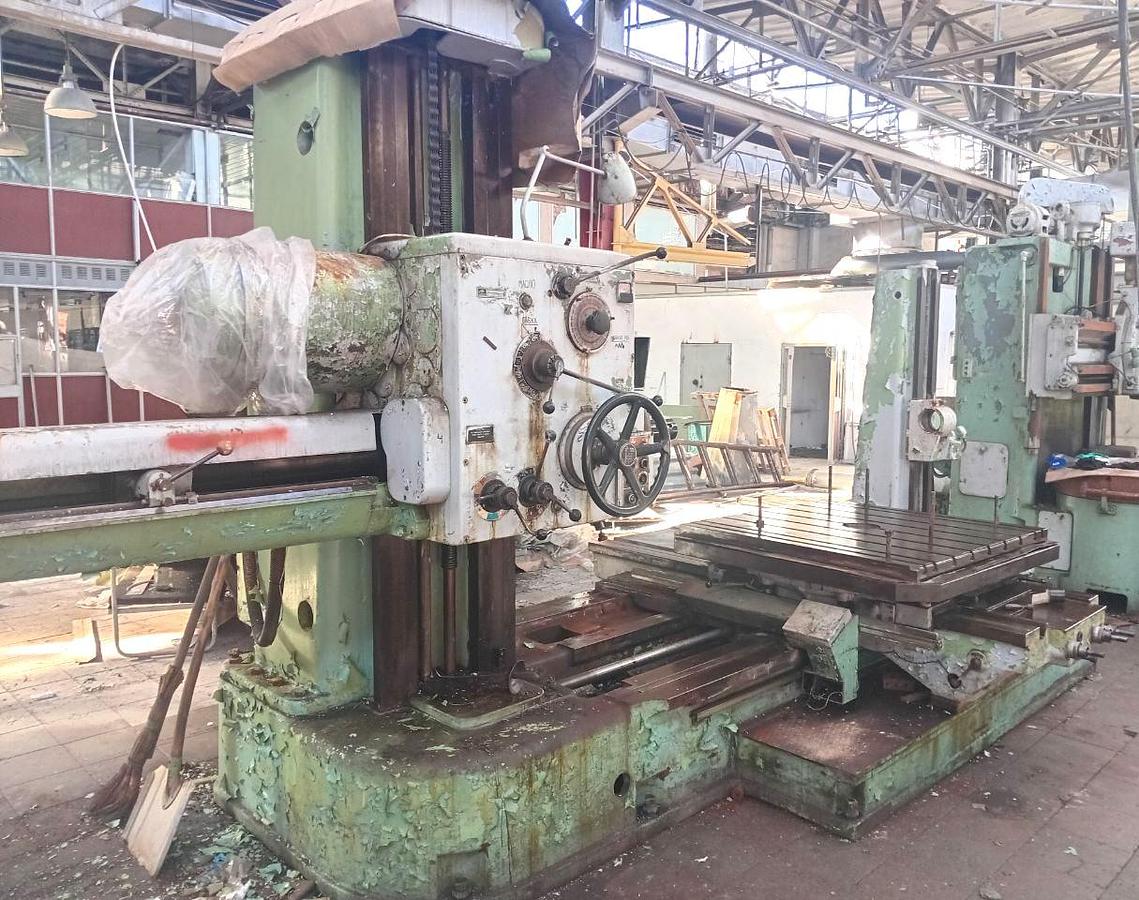

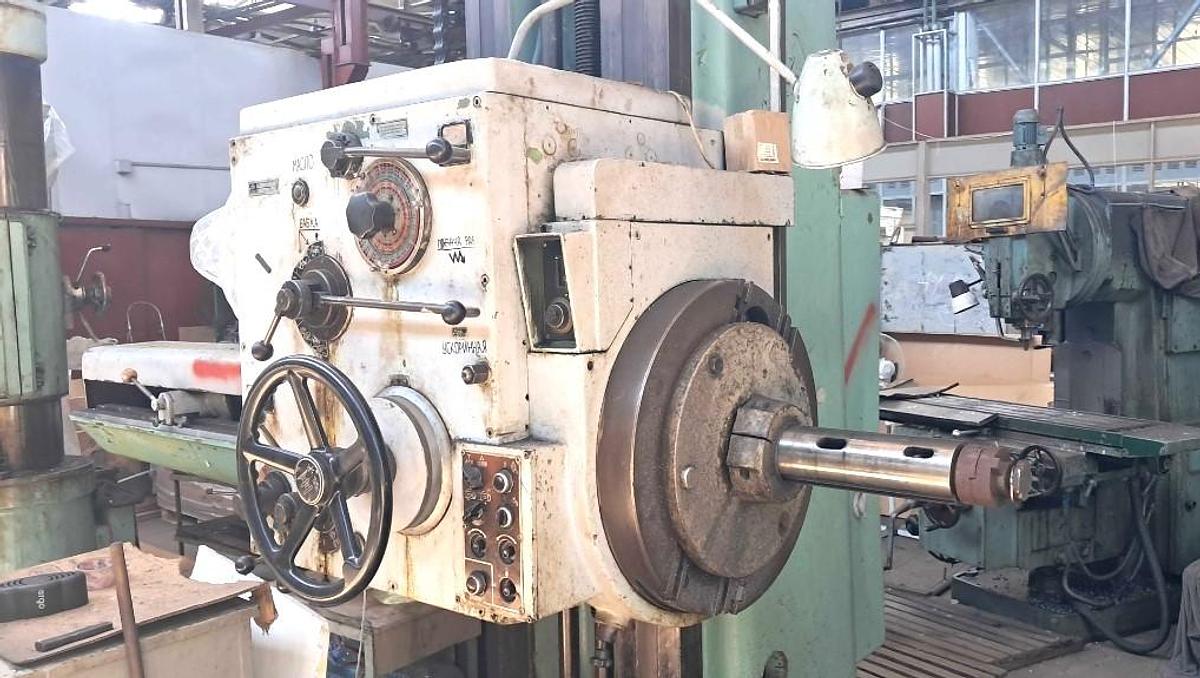

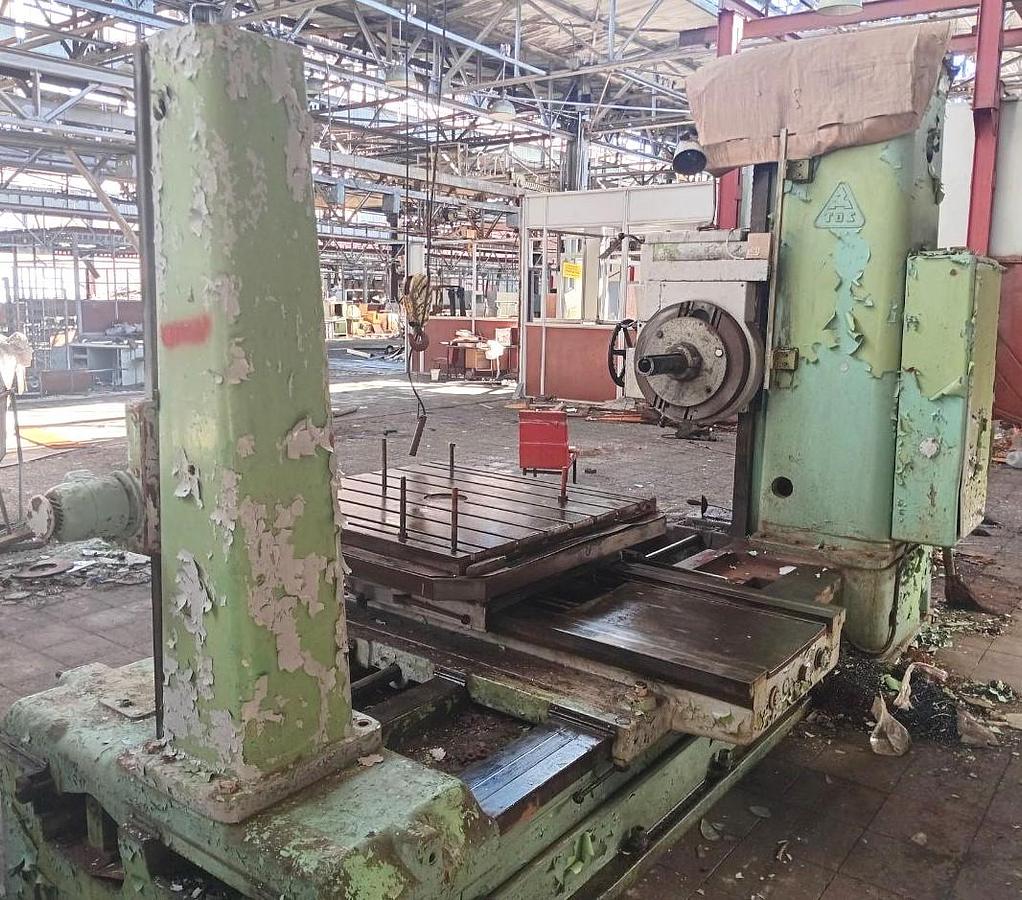

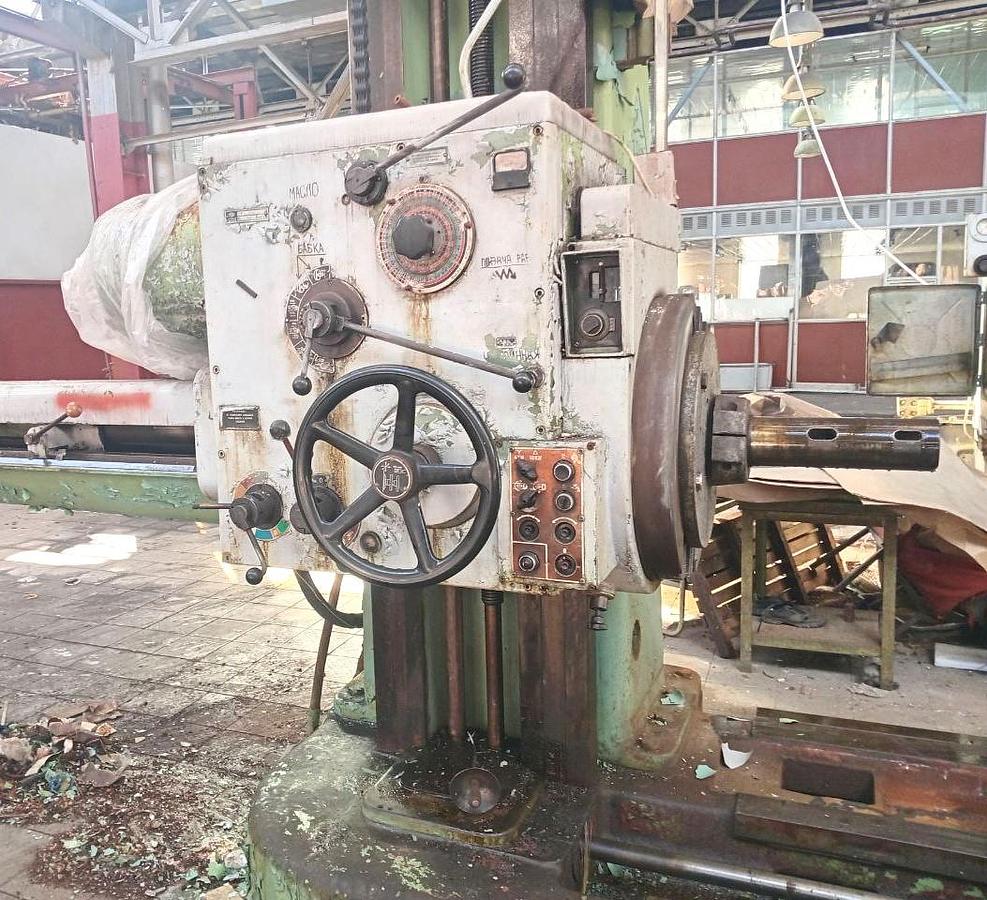

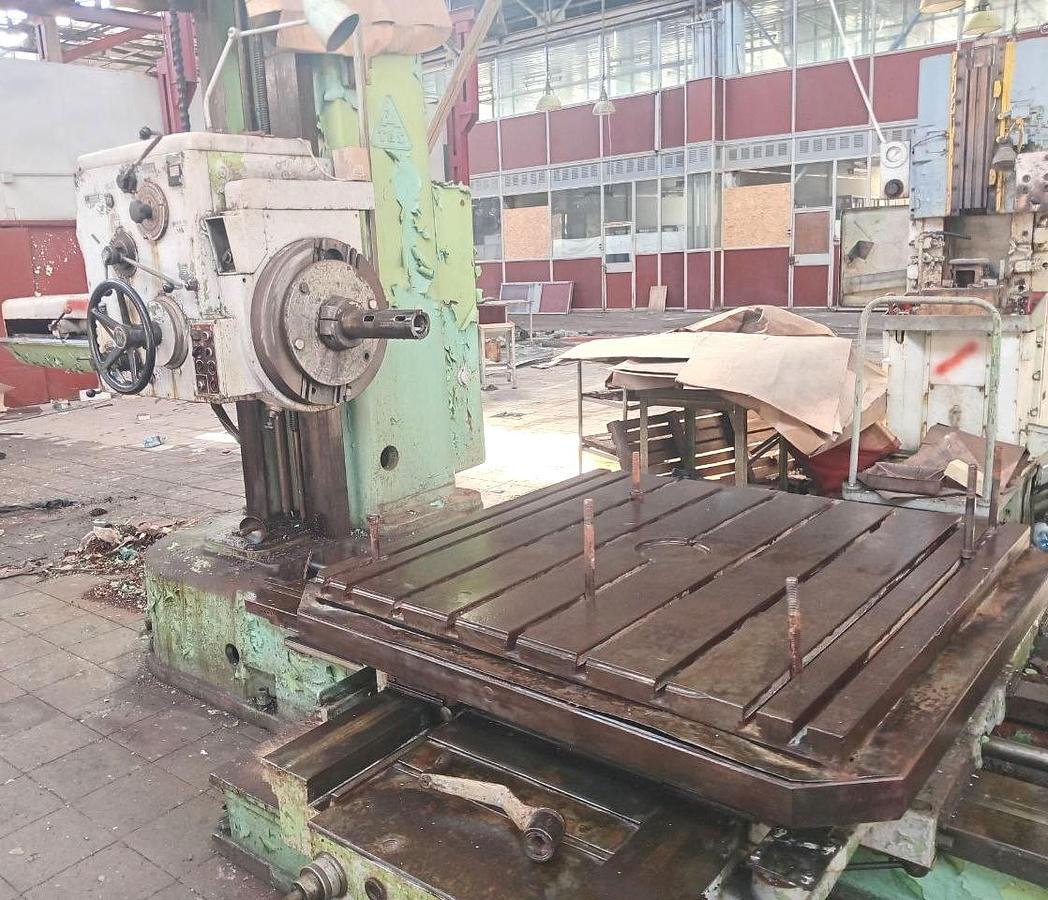

Borer Horizontal Table Type Tos W100
or
Call +919920651051
Specifications
| Manufacturer | Tos Varnsdorf |
| Model | W100 |
| Condition | Used |
| Stock Number | MA3269 |
| Item condition | Good condition |
| Capacity tons | 100 |
Description
Spindle size: 100 mm,
Spindle speeds: 7.1-1120 rpm
Spindle taper: ISO 50
X-Axis: 1600 mm
Y-Axis: 1120 mm
Z-Axis: 1250 mm
W-Axis: 900 mm
Table size: 1250x1250 mm
Max. table load: 3 tons

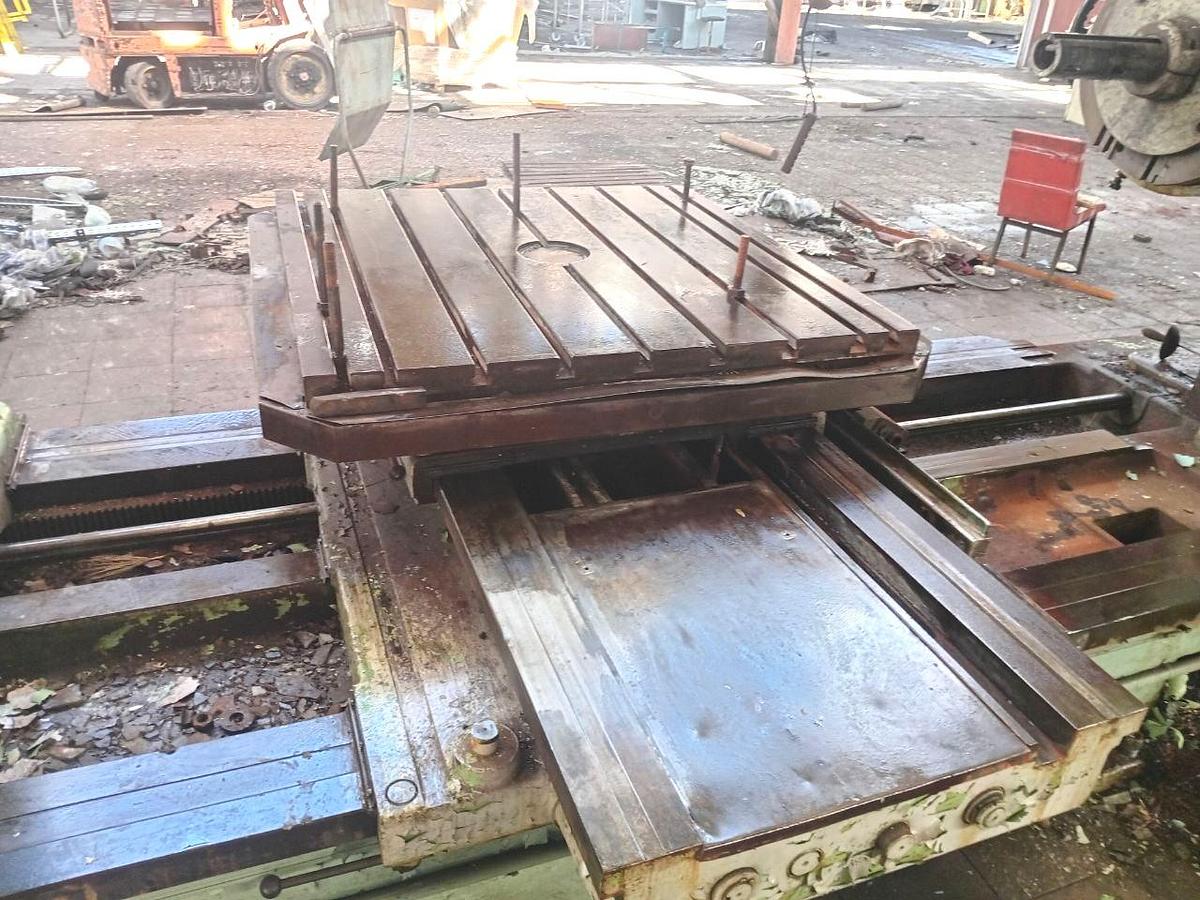

Table type: rotary
Facing chuck diameter: 600 mm
Slide travel: 210 mm
Max. facing diameter: 900 mm
Facing chuck speed range: 7.1-224 rpm
Total power: 15 kW
Dimensions: 6020x3000x3500 mm
Weight: 14000 kg
Year of manufacturing 1965.
