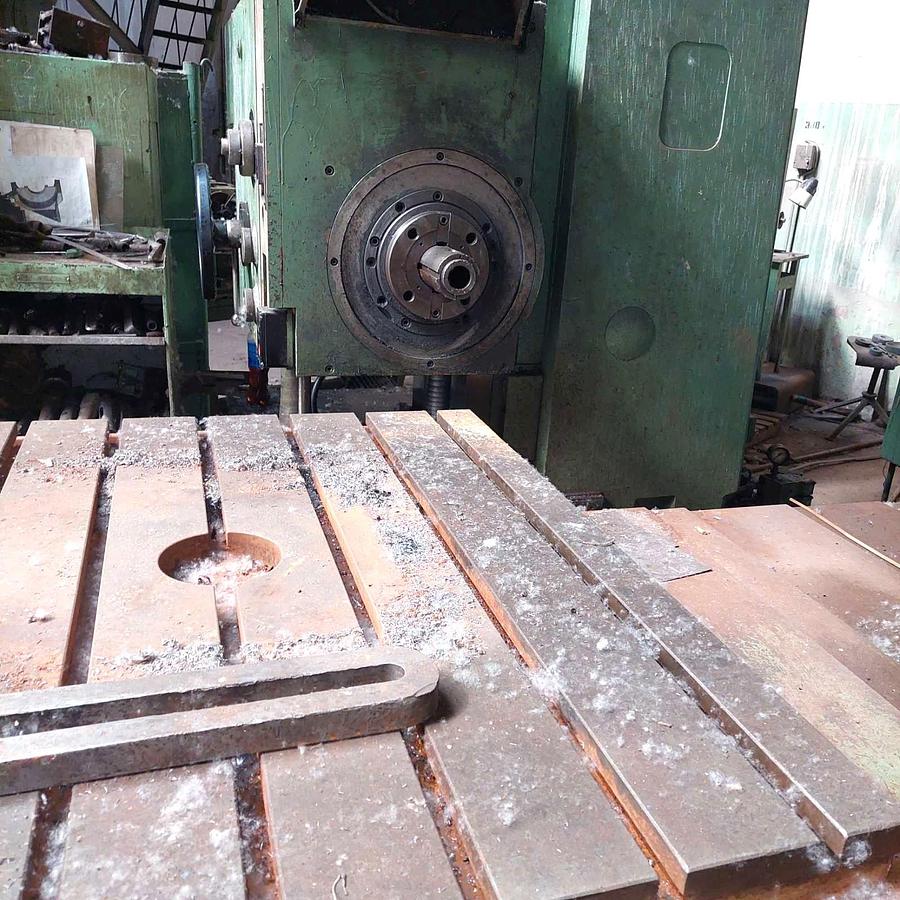

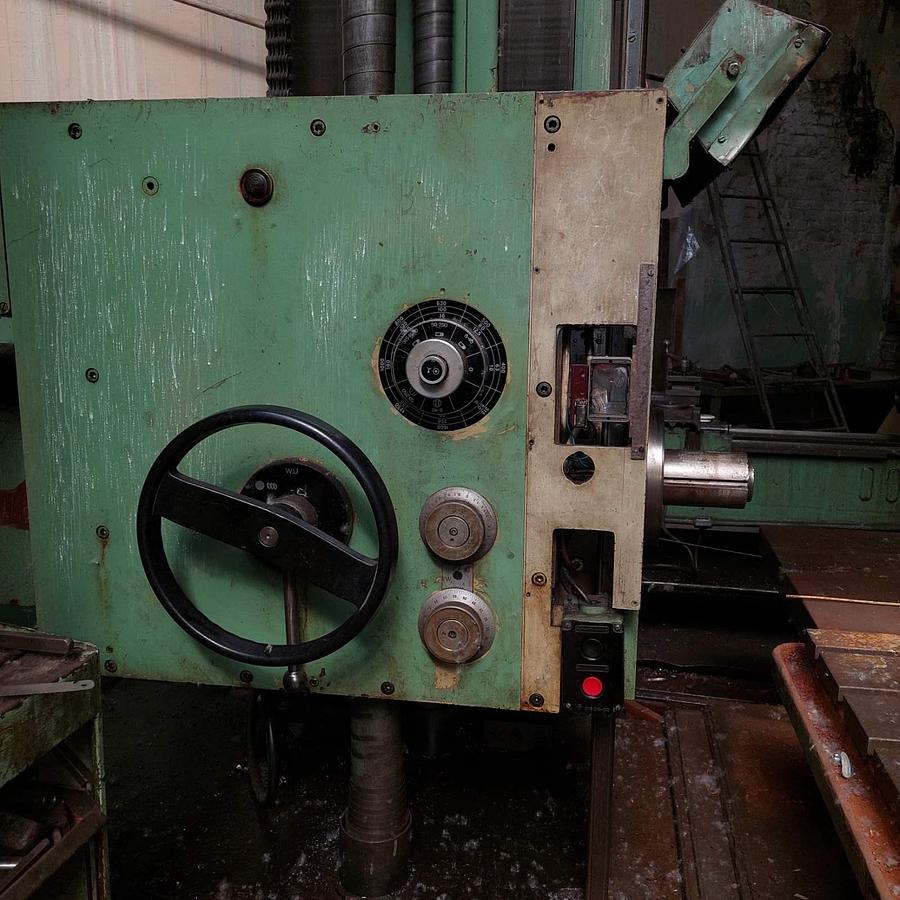

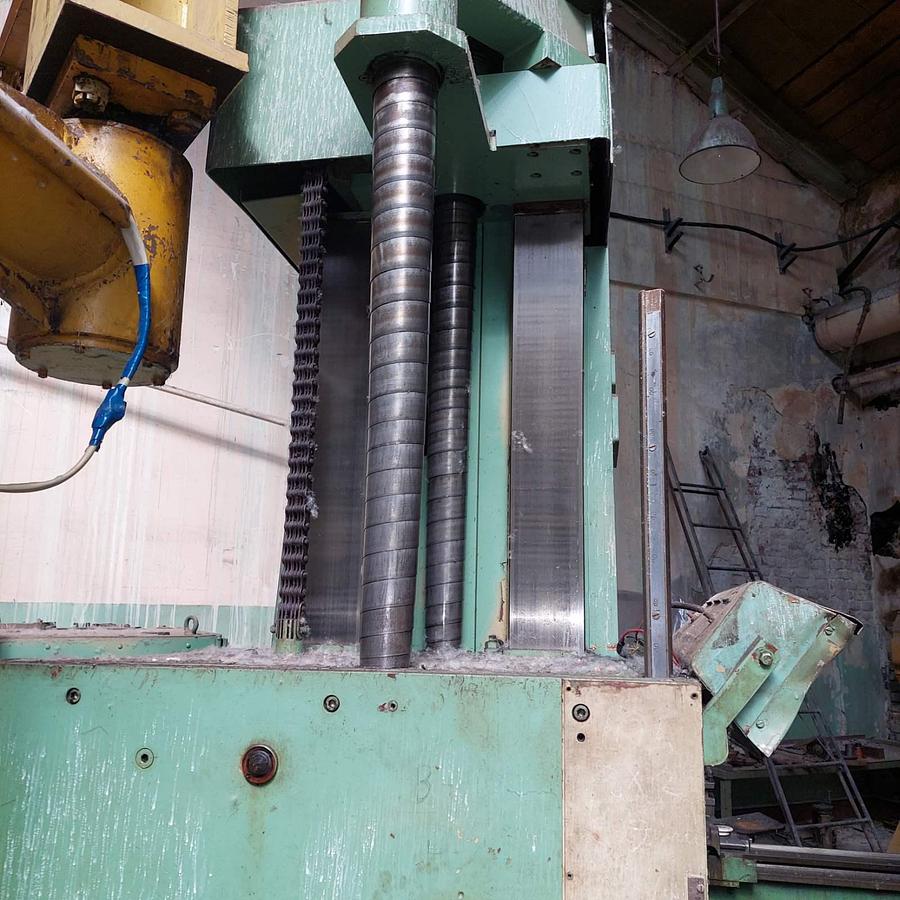

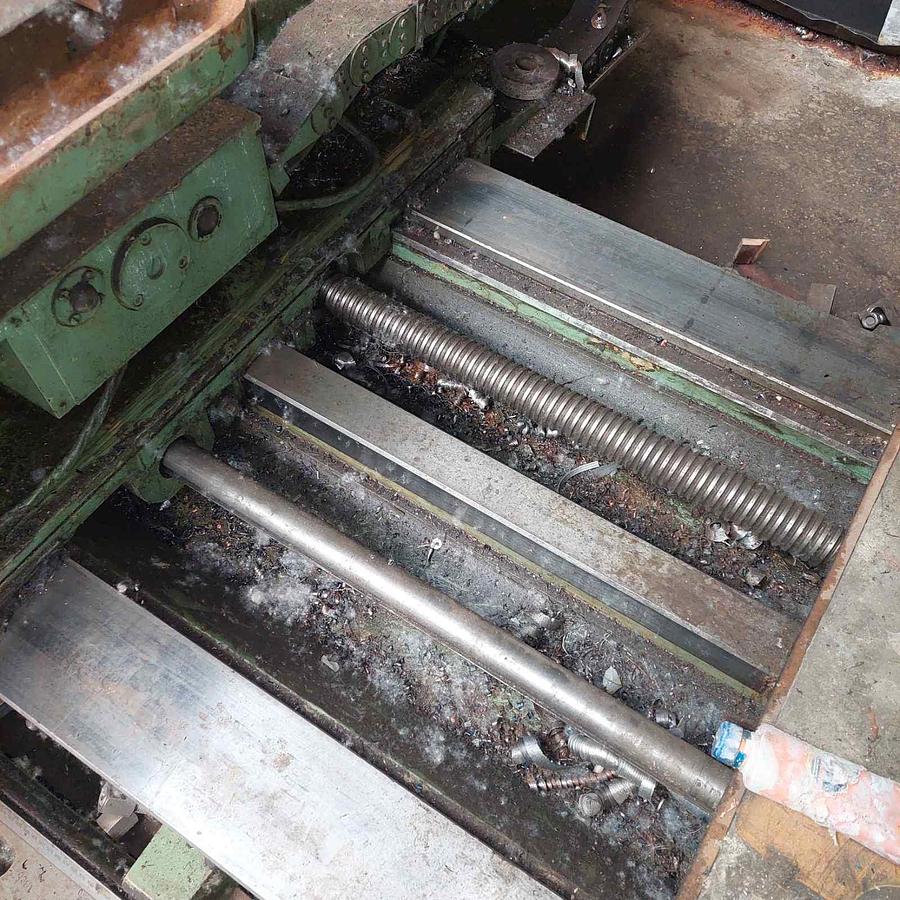

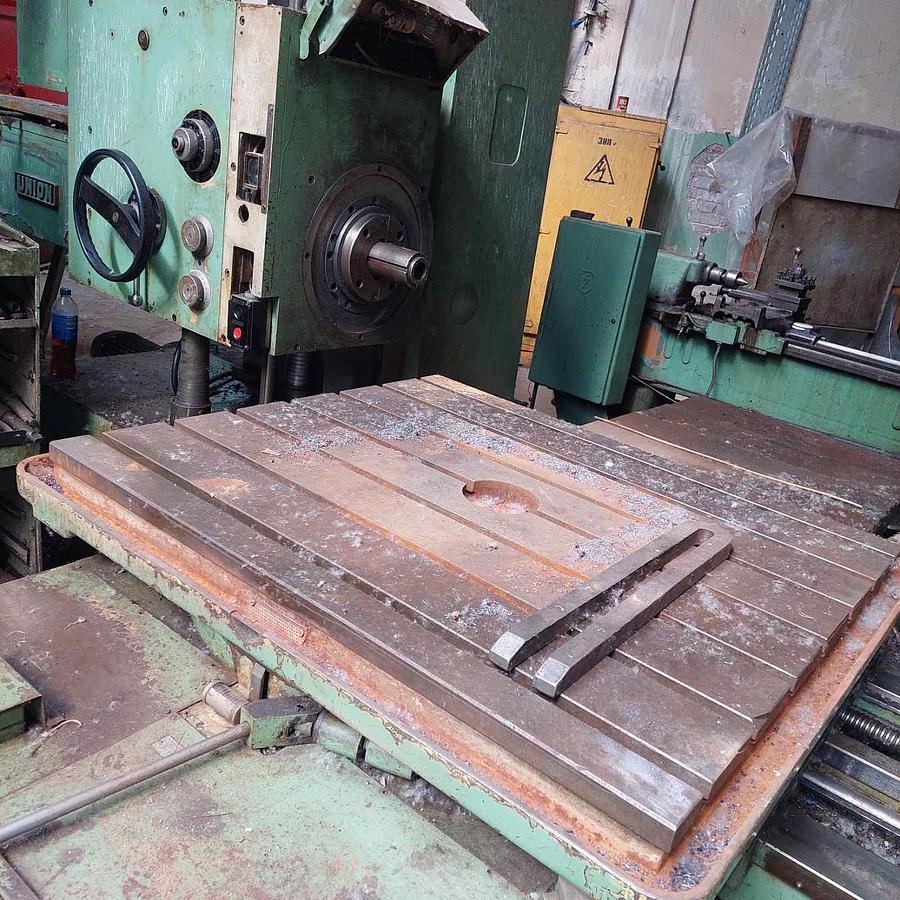

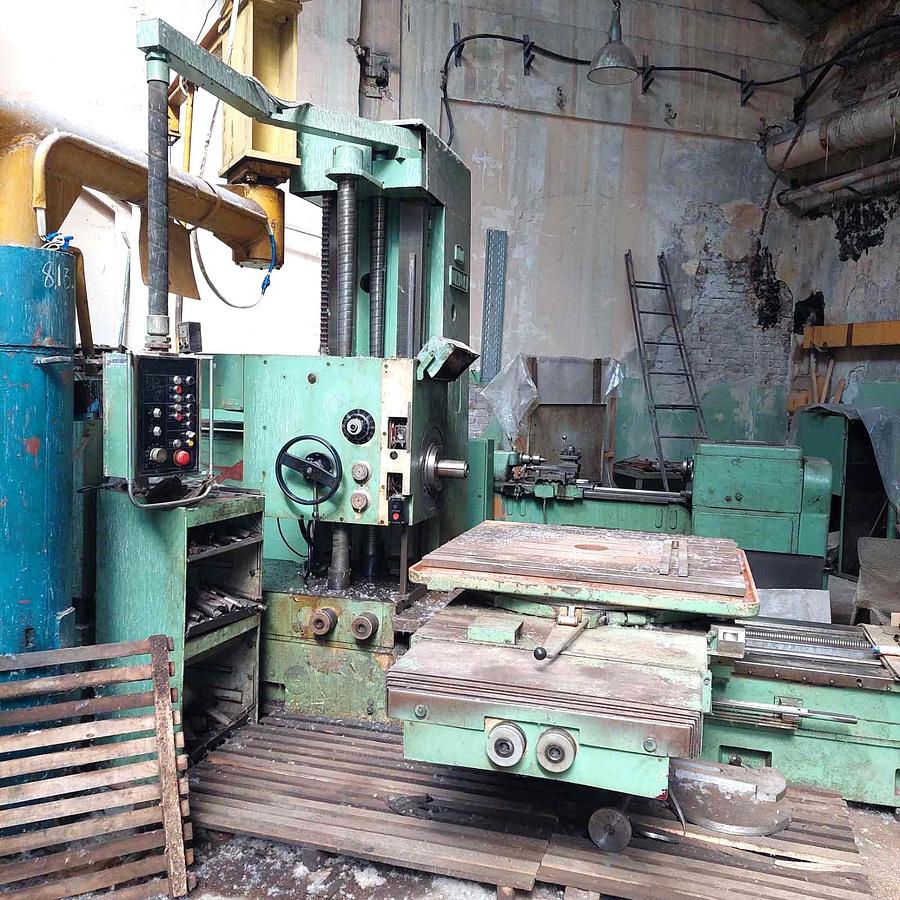

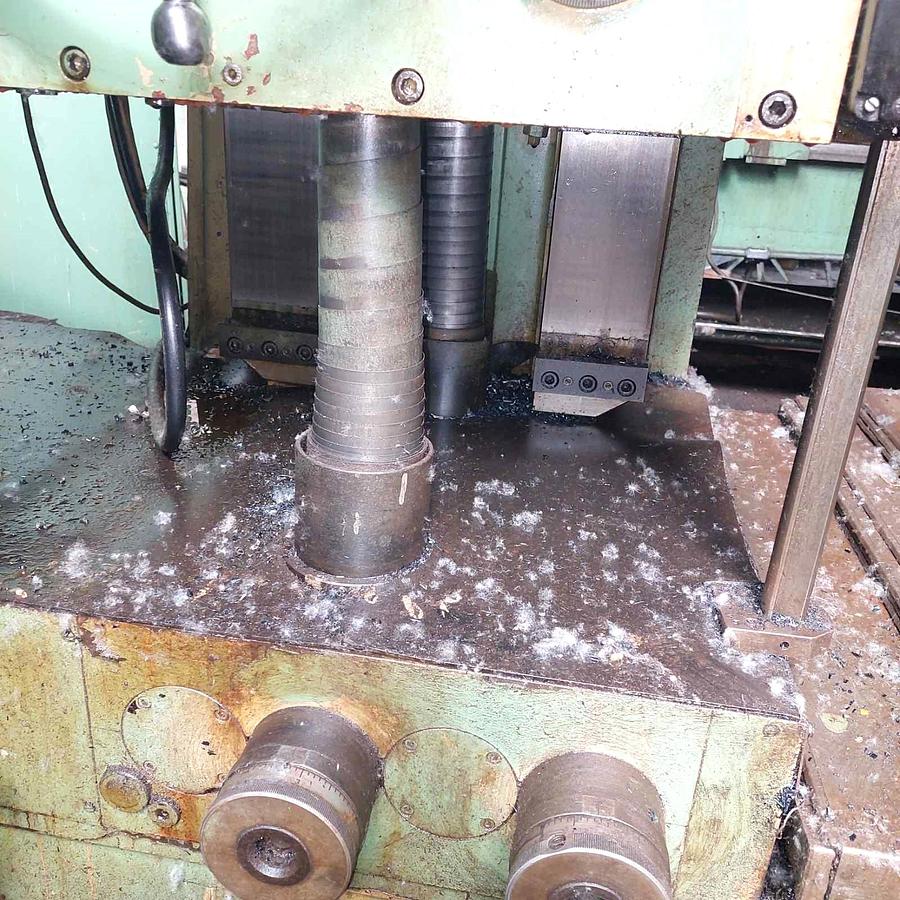

Borer Horizontal Table Type Union BFT90

Spindle diameter : 90 mm,

X axis : 1000 mm,

Y axis : 1000 mm,

Z axis : 1600 mm,

Spindle taper morse : 5,

Spindle travel (W) : 710 mm,

B axis degrees : 360°,

Table size : 1000 x 1120 mm,

Max. work piece weight : 2500 kg,

Spindle speed range : 8...1600 rpm,

Feed on axis 1 - 2.500 mm/min,

Rapid feed on axis 3.150 mm/min,

Motorpower 11 kW

Machine weight : 9 tons.
