3150 tons Press Forging Open Die Hydraulic Denpro PA1345

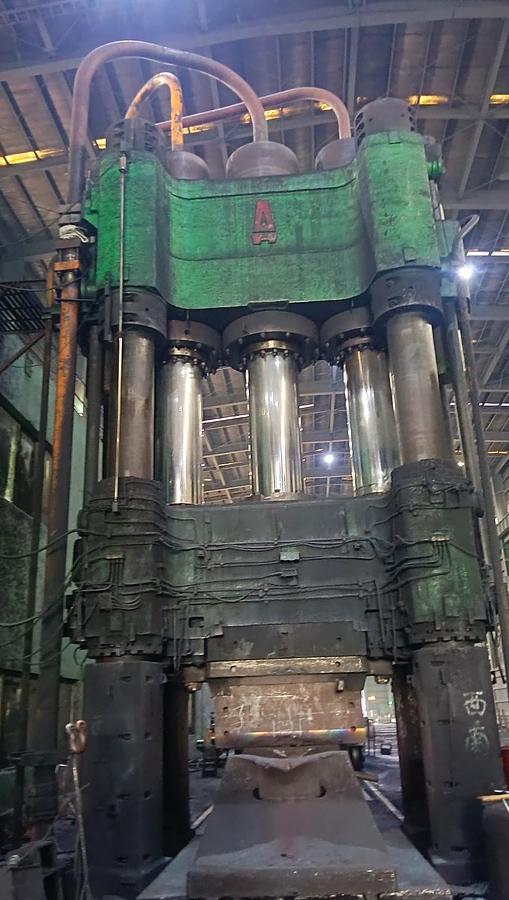

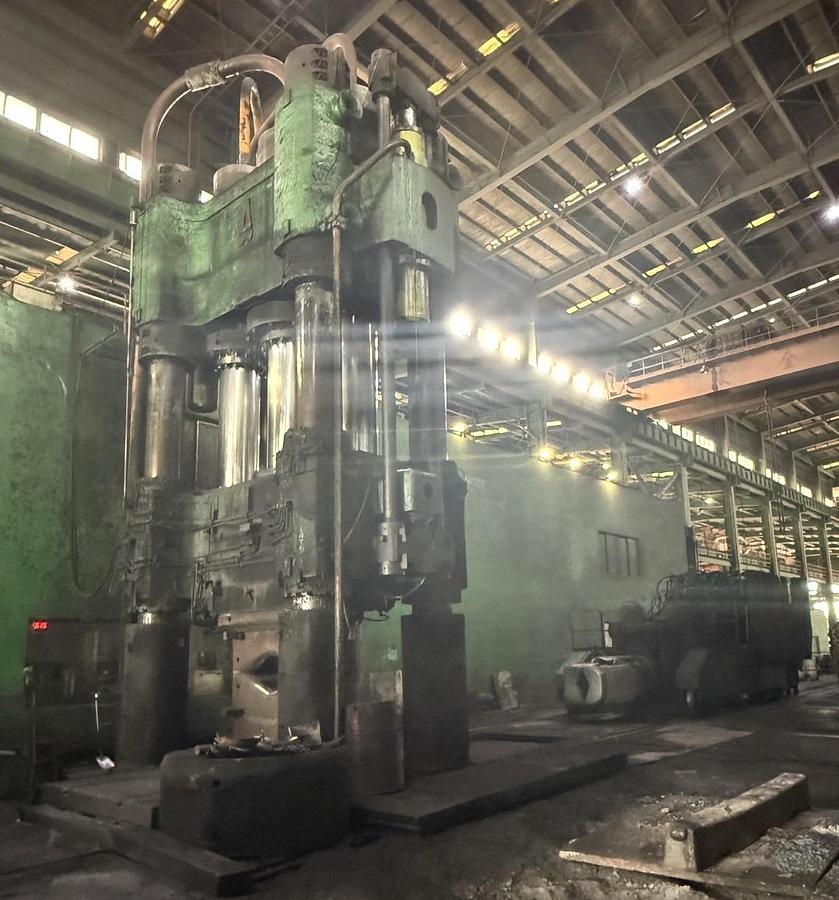

DENPRO PA1345 OPEN DIE FORGING PRESS

Capacity : 3150 tons,

Max. working stroke ：2000 mm,

Construction : Push Down,

Max. Daylight ：4000 mm,

Dis. between columns ：2650/1250 mm,

Stroke(general working) ：1500 mm,

Number of Main Cylinders ：3,

Number of Return Cylinders ：2,

Diameter of Mail Ram ：1 x 706 / 2 x 623 mm.

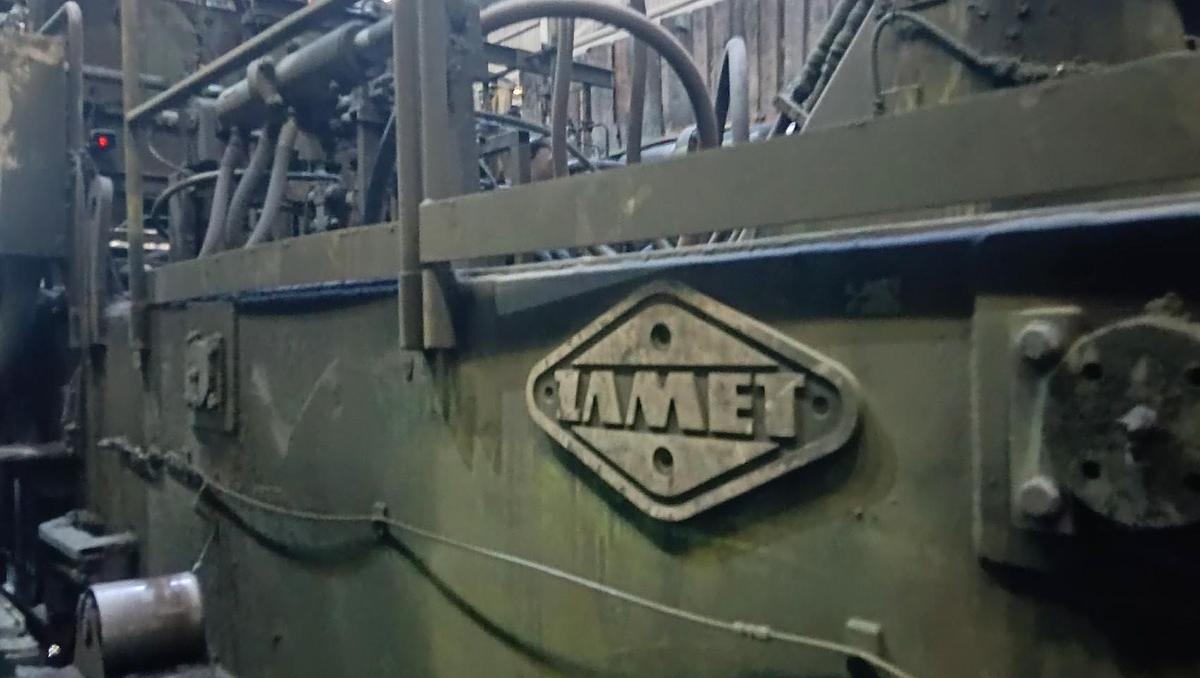

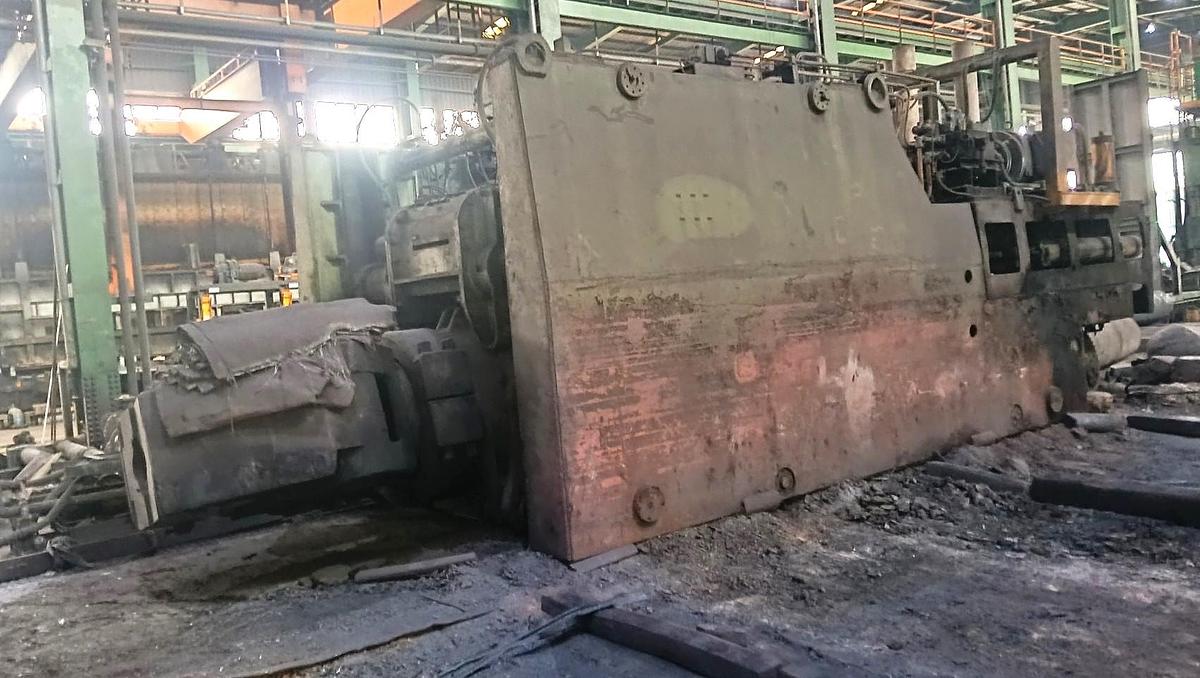

ZAMET 35T MANIPULATOR

Railbound Forging Manipulator

Capacity : 35 tons,

Make : Zamet,

Load moment ：800 Nm.,

Nominal load ：350 N.,

Height ：3160 mm,

Width ：3990 mm,

Length ：10500 mm,

Weight approximate ：80000 kg,

Clamping diameter of the tongs ：1750 mm,

Horizontal height of the tongs ：910-1814 mm,

Vertical tilting of the tongs-up ：7.5 deg,

Vertical tilting of the tongs-down ：10 deg,

Horizontal movement of the tongs +/- ：224 mm,

Angle of rotation of the tongs ：360 deg,

Max. turning diameter of the tongs ：2690 mm,

Travel of the machine ：17500 mm,

Rail gauge ：3100 mm,

Travel of the horizontal buffering cylinder ：440 mm.
