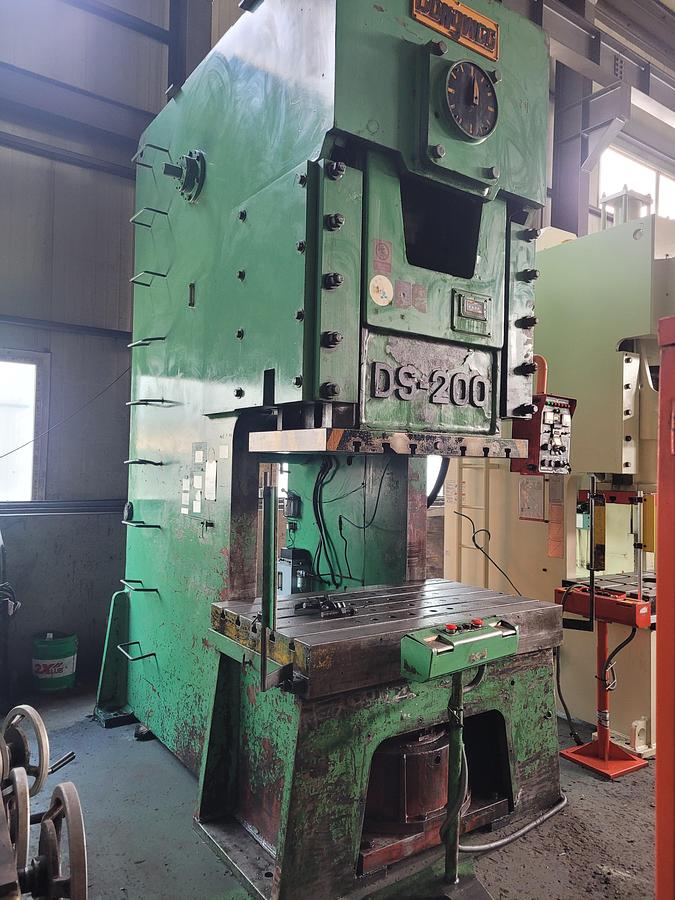

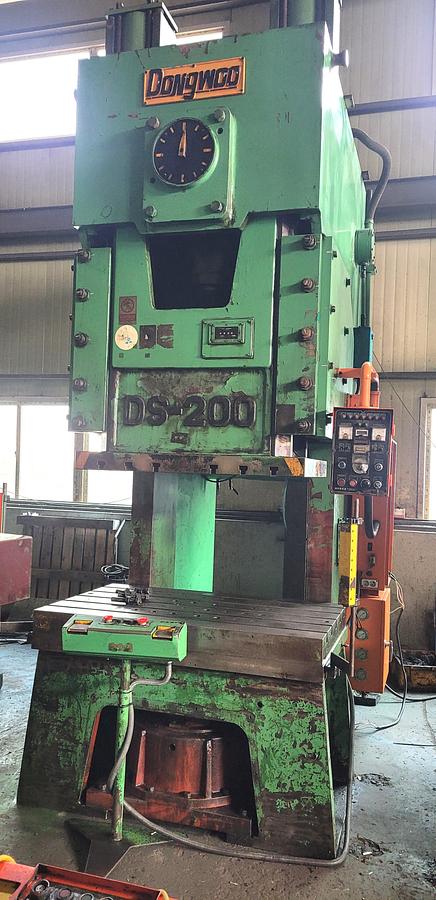

200 tons Press Trimming Dongwoo C-200
or
Call +919920651051
Specifications
| Manufacturer | Dongwoo |
| Model | C-200 |
| Year | 1992 |
| Condition | New |
| Stock Number | MA3285 |
| Item condition | Good working condition |
| Capacity tons | 200 |
Description
DONGWOO 200 ton Trimming Press Model.C-200 with Die Cushion ( capacity 11 Ton )
Capacity : 200 tons,
Stroke : 250 mm,
Stroke per minutes : 40,
Die height : 480 mm,
Slide adjustment : 120 mm,
Slide area (LR x FB) : 1200 x 650 mm,

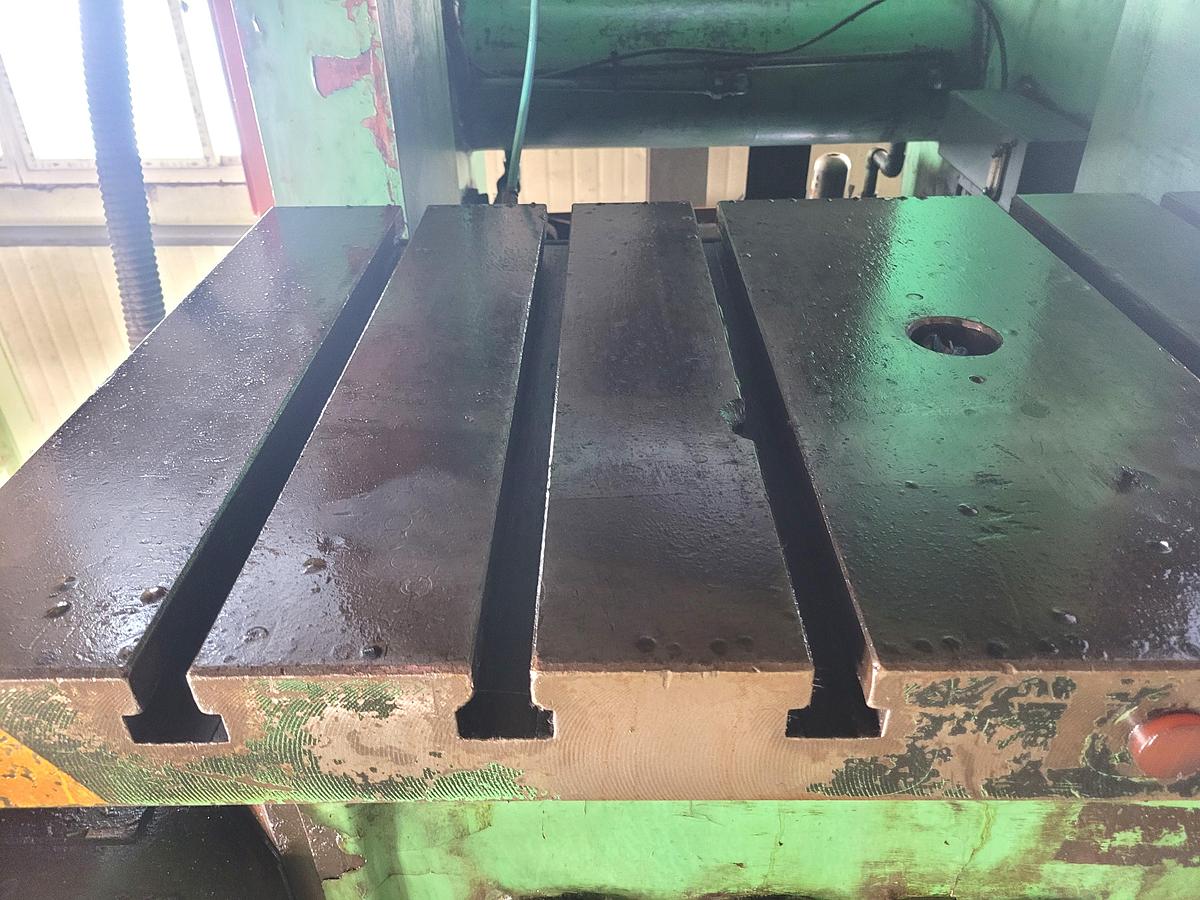

Bolster area (LR x FB) :1450 x 850 mm,
Bolster thickness : 130 mm,
Main motor : 22 x 4 KWxP,
Adjust motor : 1.5 x 4,
Air pressure : 5 kg/cm2,
Die cushion
Capacity : 17 tons,
Stroke : 130 mm,
Pad area (LR x FB) : 760 x 480 mm,
Technical manual : Not Available
