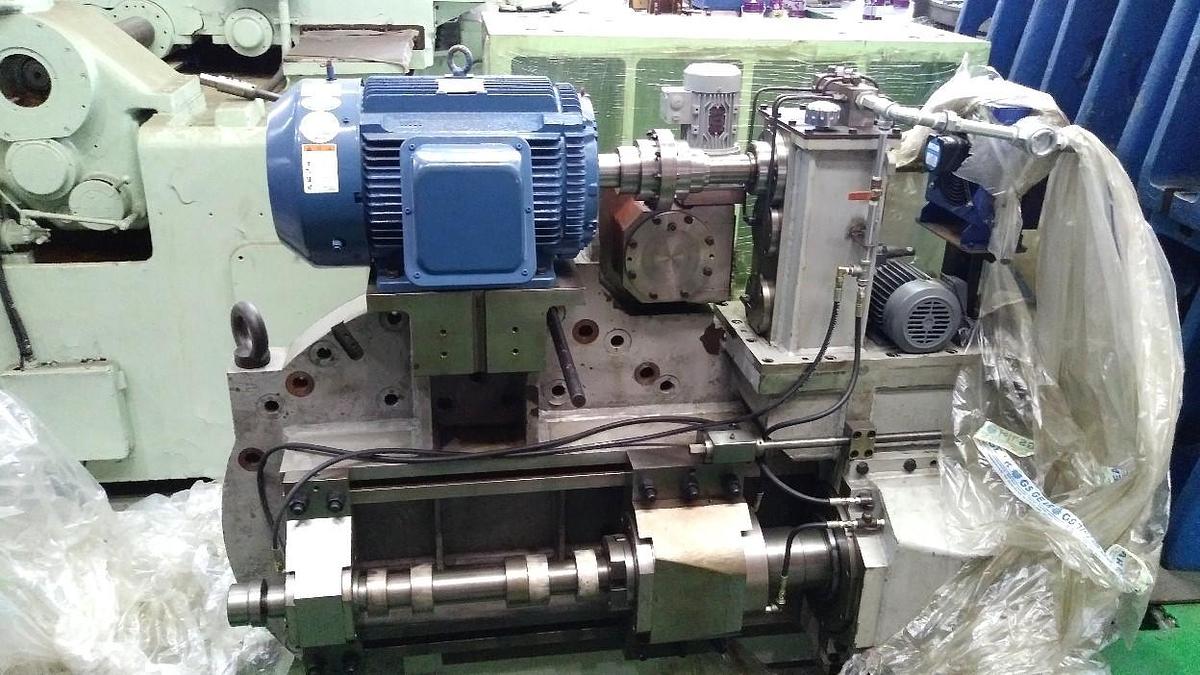

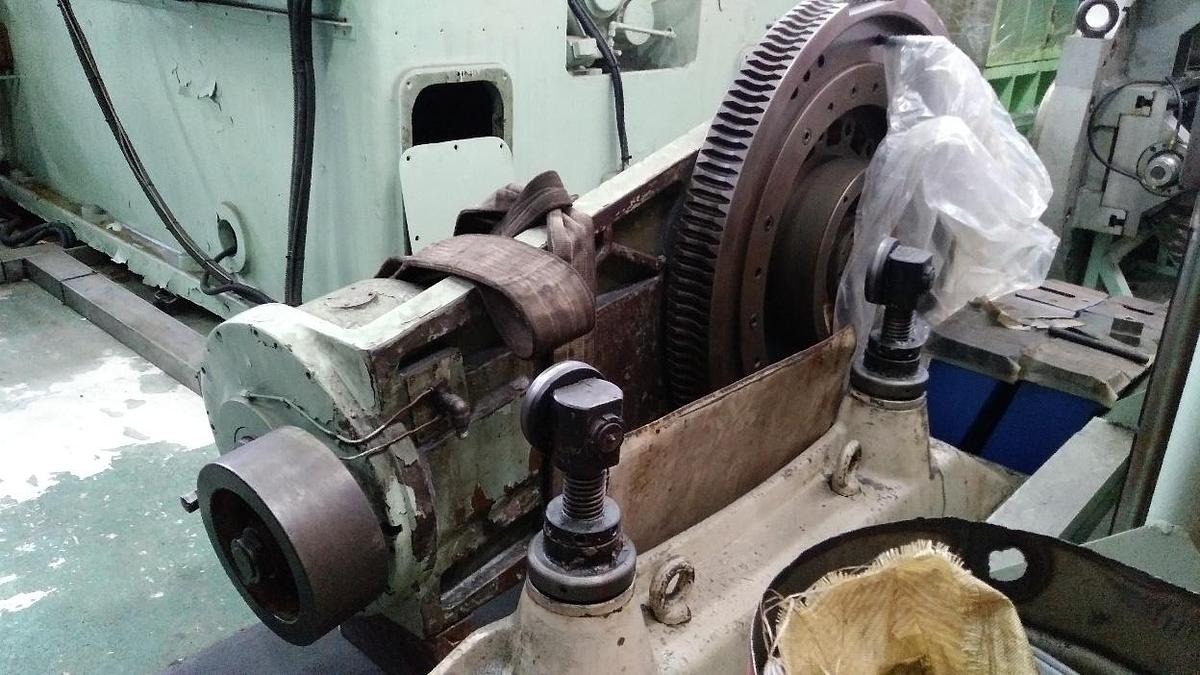

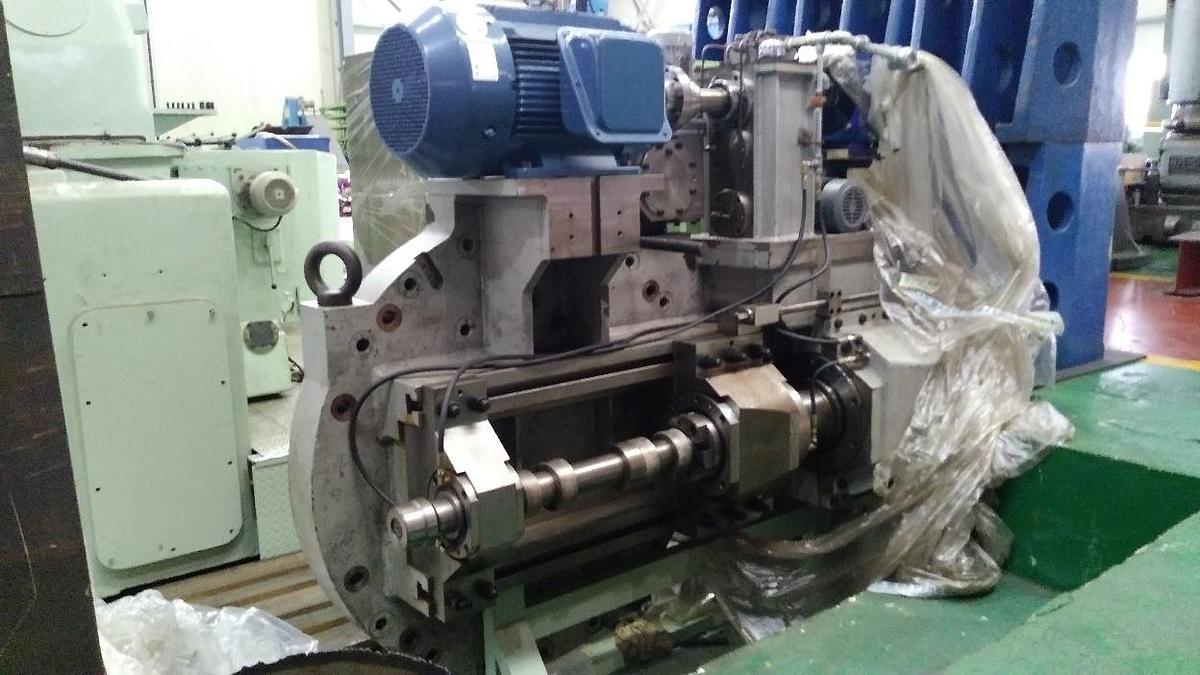

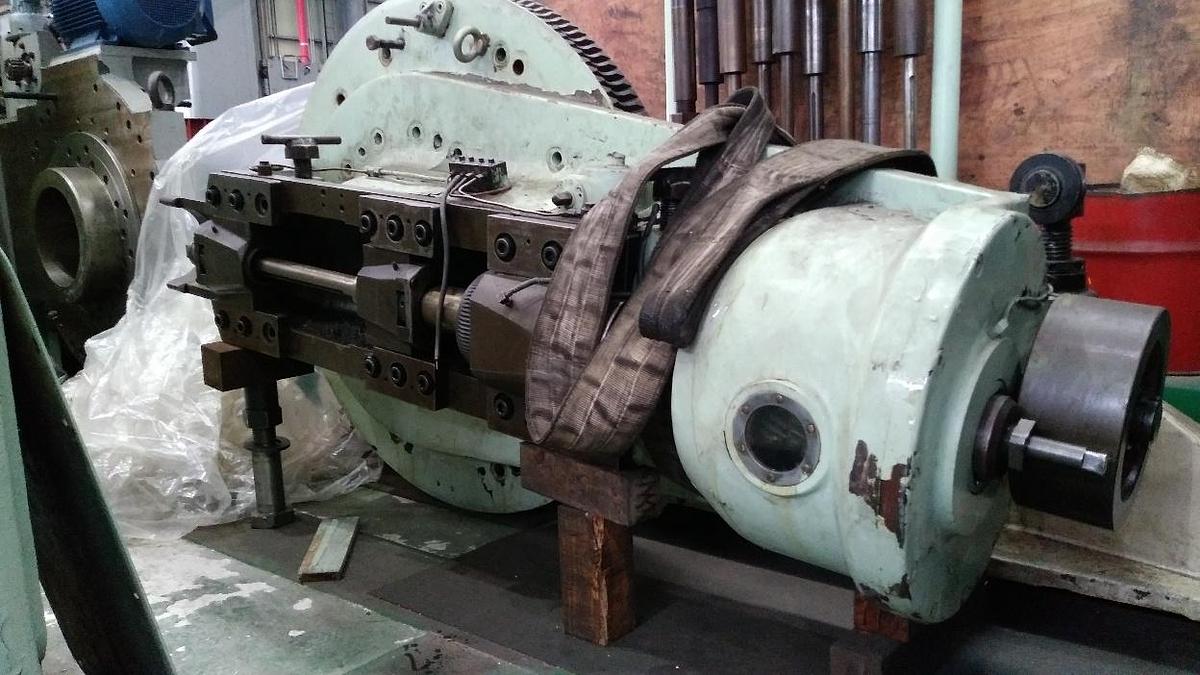

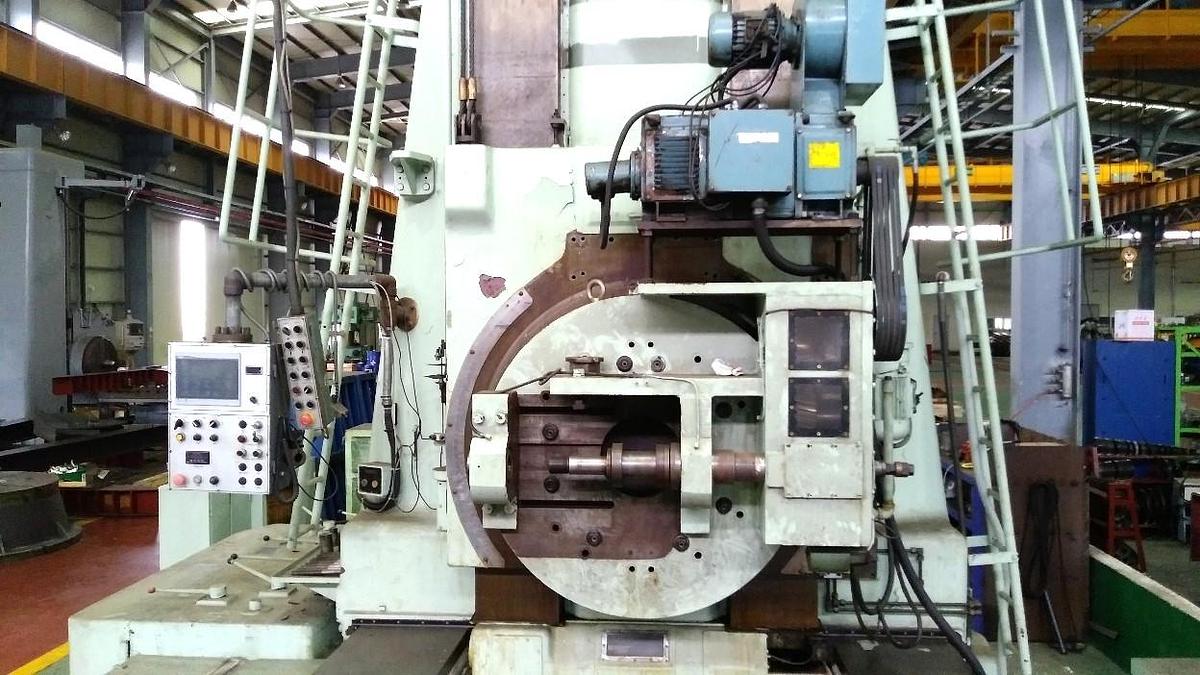

Gear Hobber Shibaura HR-500

Max. dia of gear to be hobbed : 5000 mm,

Min. dia of the gear to be hobbed : 900 mm,

Center distance between hob and table spindle : 2750 mm,

Vertical travel of hob saddle : 2300 mm,

Max. module pitch : 10 ~ 32,

Dia. of table : 4340 mm,

Center hole of table : 1000 mm,

Max. load on the table : 70 ton,

Dia. of the master worm wheel : 4125 mm,

Hob spindle speed : 15-80 rpm (continuous),

Weight : 135 tons.

Rebuilt : 2010.

Manual : Available.
