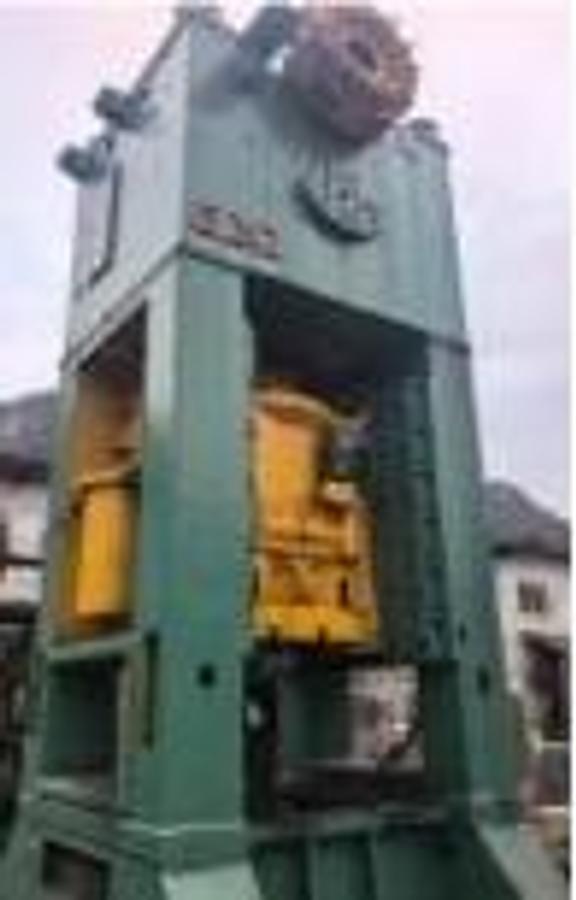

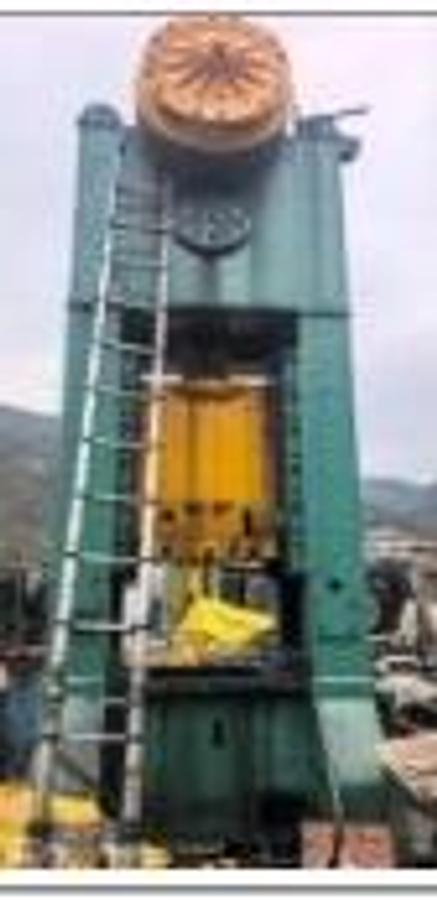

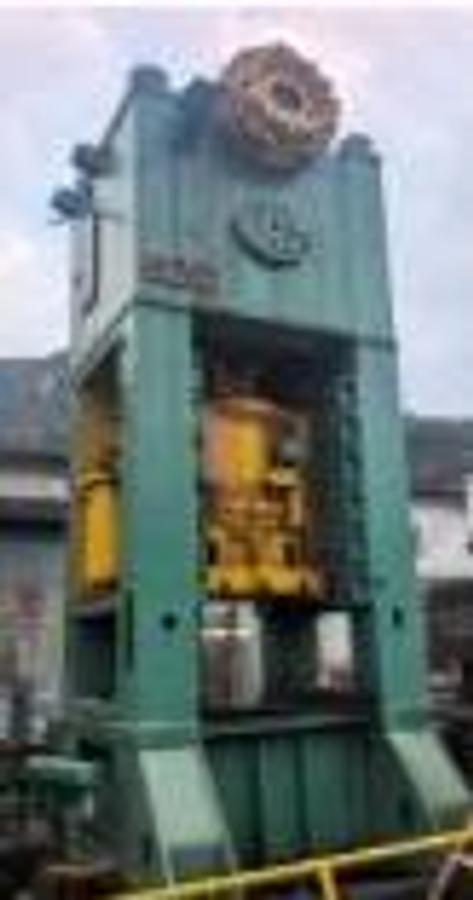

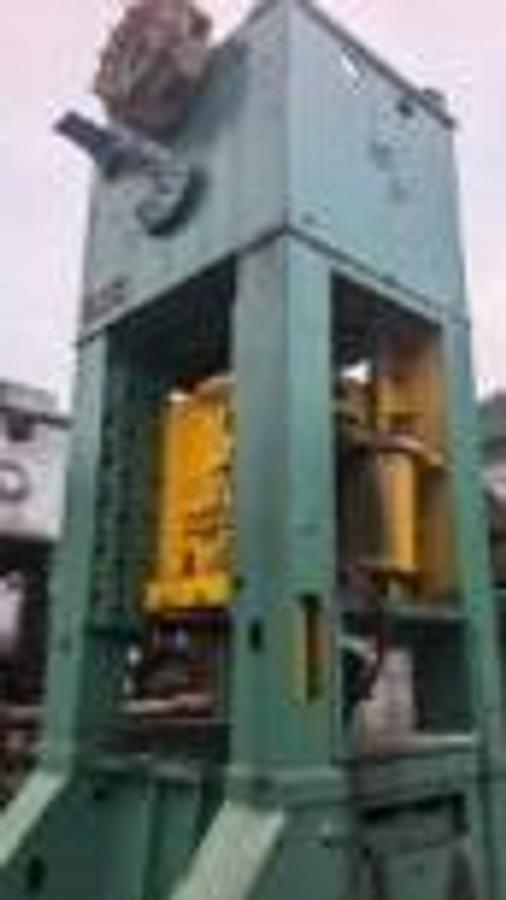

630 tons Press Trimming TMP Voronezh Russia K2538

Straight Side Single Point Press

Capacity : 630 tons,

Ram stroke : 320 mm,

Stroke per minutes : 20 SPM,

Shut height : 620 mm,

Max. distance between bolster and ram: 800 mm

Bolster plate to ram adjustment stroke : 180 mm,

Bed dimensions : 1250 x 1250 mm,

Ram dimensions : 1000 x 1000 mm,

Bolster plate thickness : 180 mm,

Main drive motor power : 61 kW,

Overall dimensions : 3600 x 3470 x 6190 mm,

Weight : 49.6 tons.

Quantity no. : 2.
