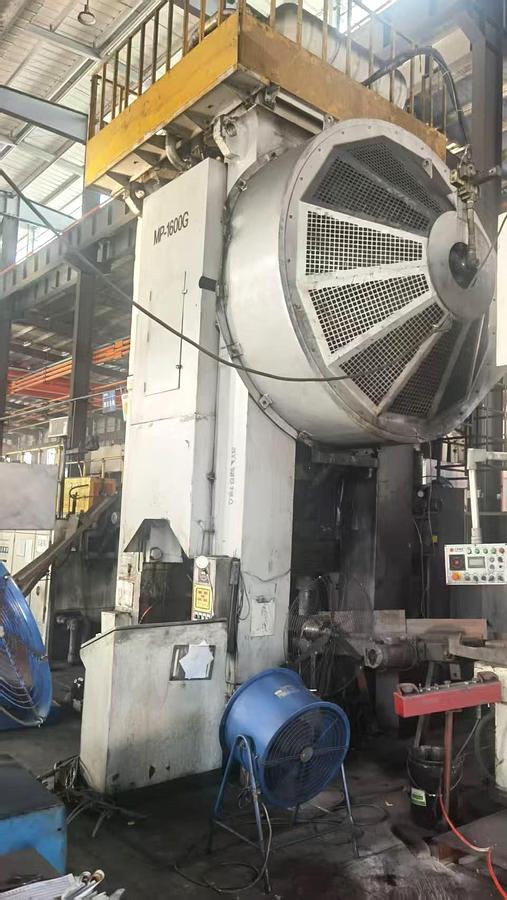

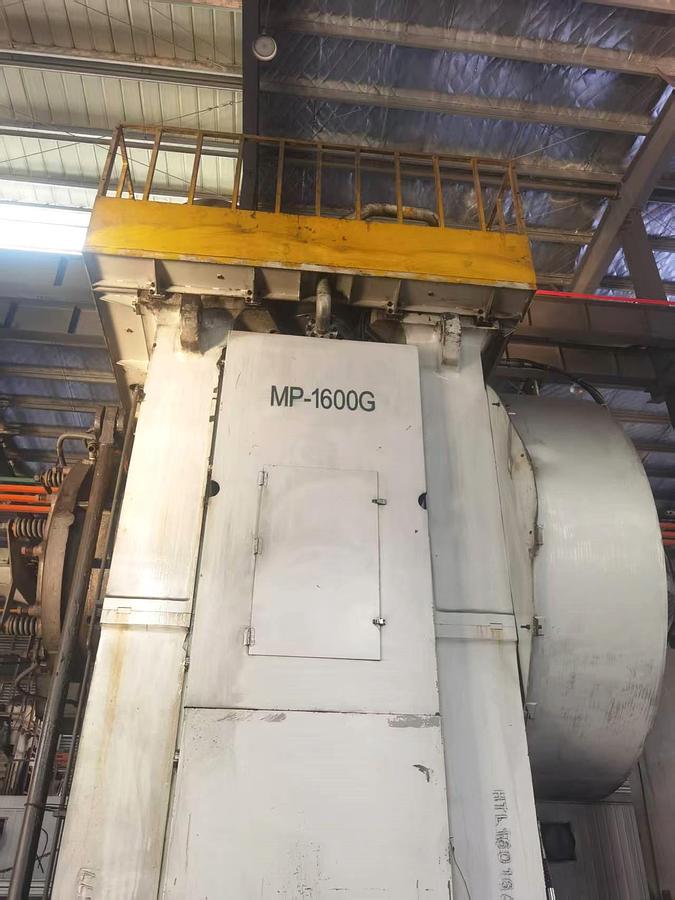

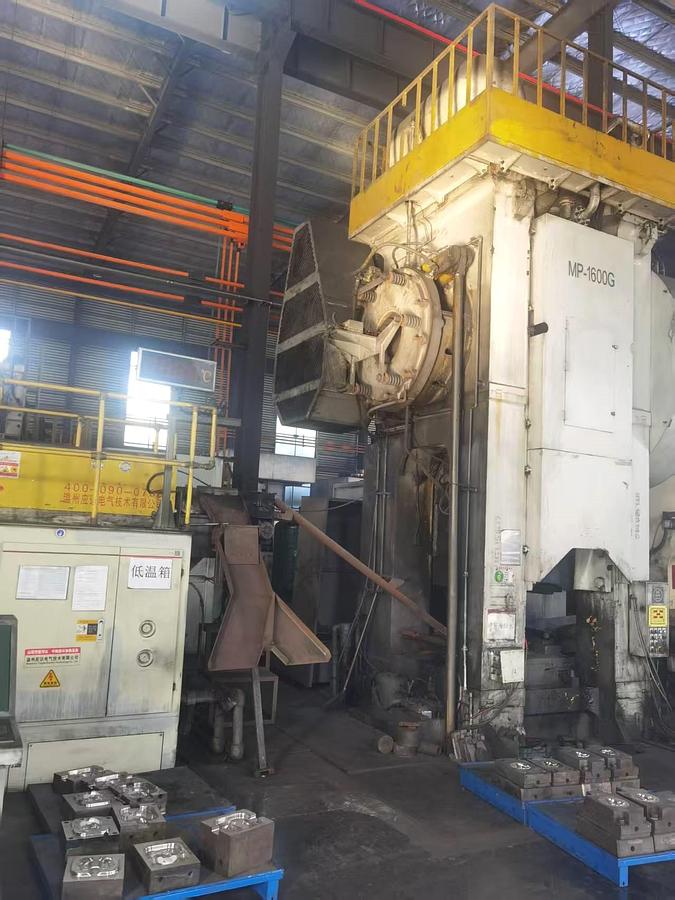

1600 tons Press Hot Forging Yadon MP-1600G

Capacity : 1600 tons,

Slide stroke : 280 mm,

Stroke : 85 SPM,

Stroke per minutes : 15,

Max.die set height : 800 mm,

Die height adjustment : 16 mm,

Table size (LR x FB) : 1050 x 1400 mm,

Bottom size of slide (LR x FB) : 1030 x 1140 mm,

Main motor power : 90 KW,

Upper ejection force : 80 KN,

Upper ejection stroke : 37 mm,

Lower Ejection Force : 240 KN,

Lower Ejection Stroke : 37 mm,

Overall Dimensions (L-R x F-B) : 4000 x 3500 mm,

Height : 7050 mm,

Weight : 138 tons.
