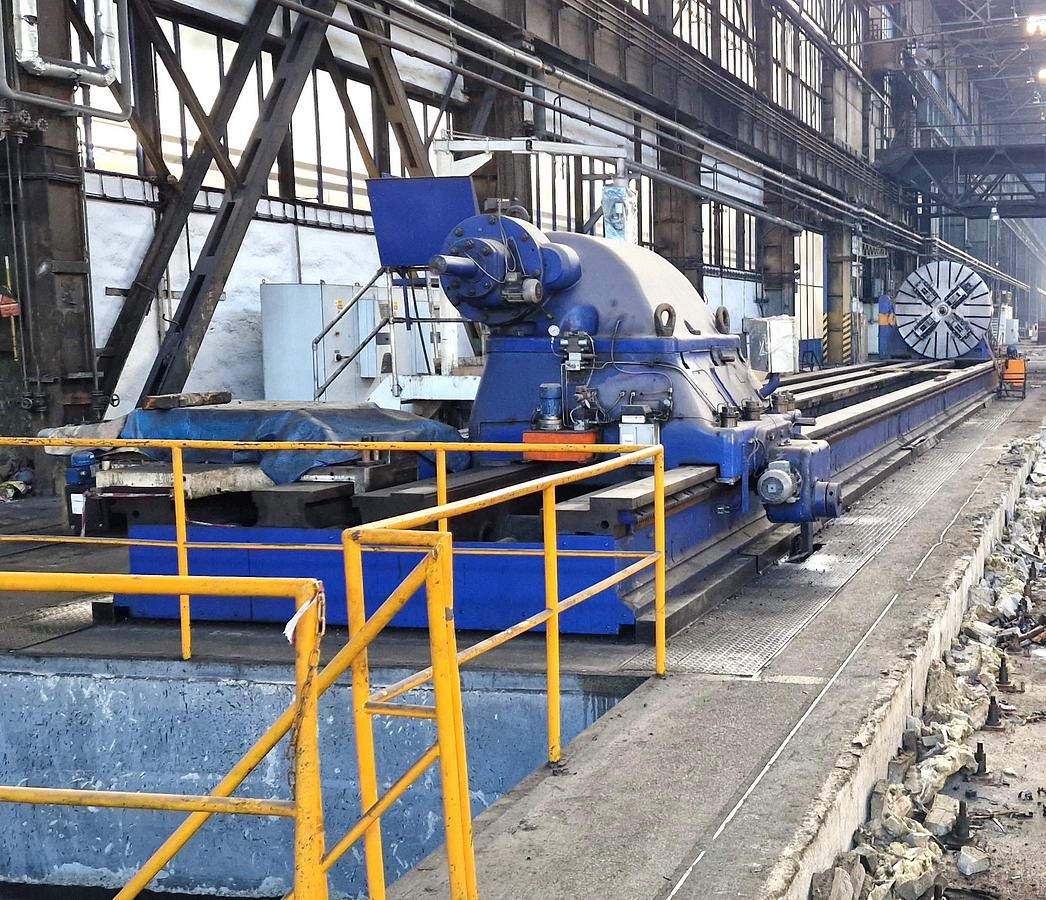

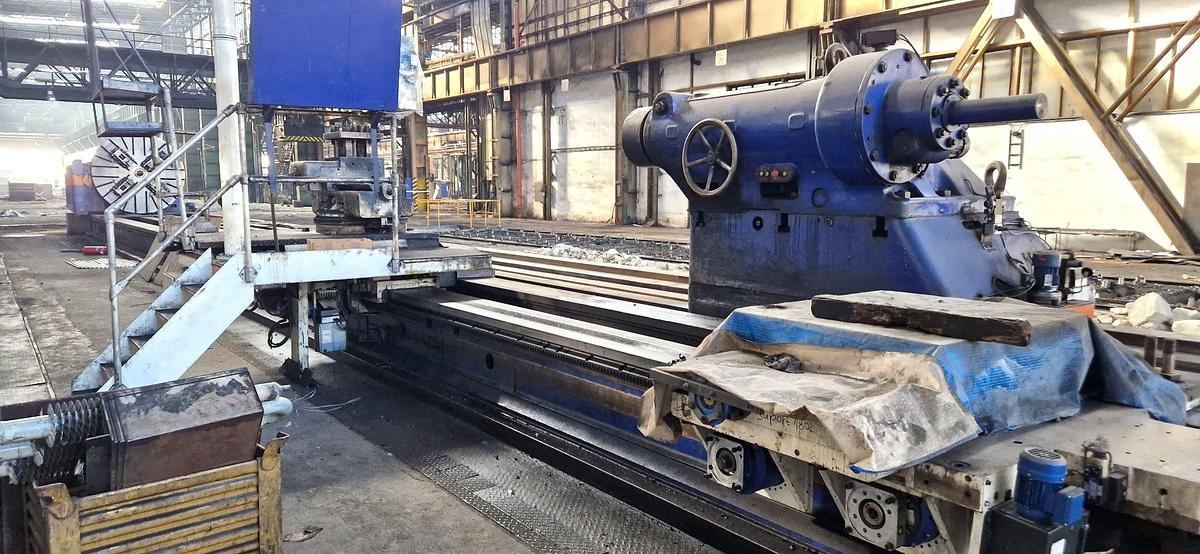

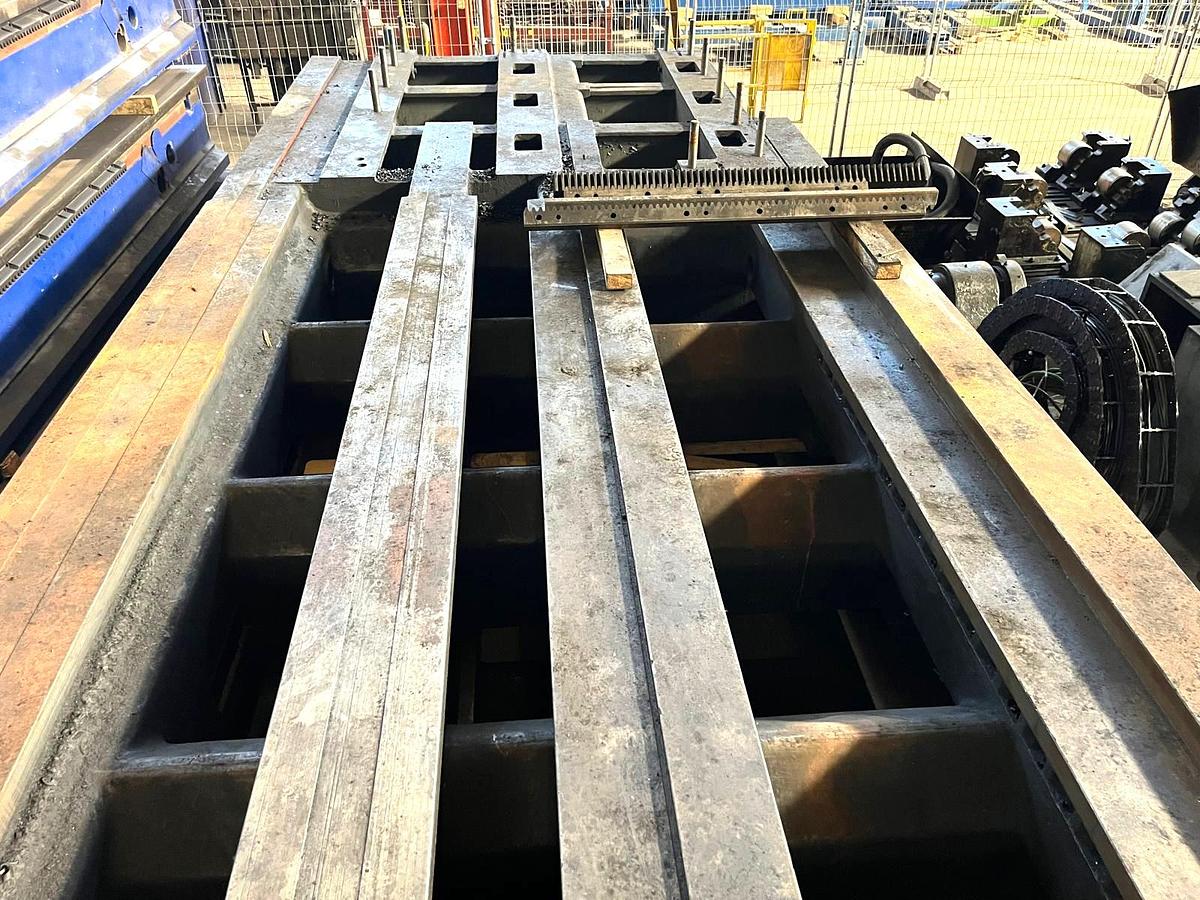

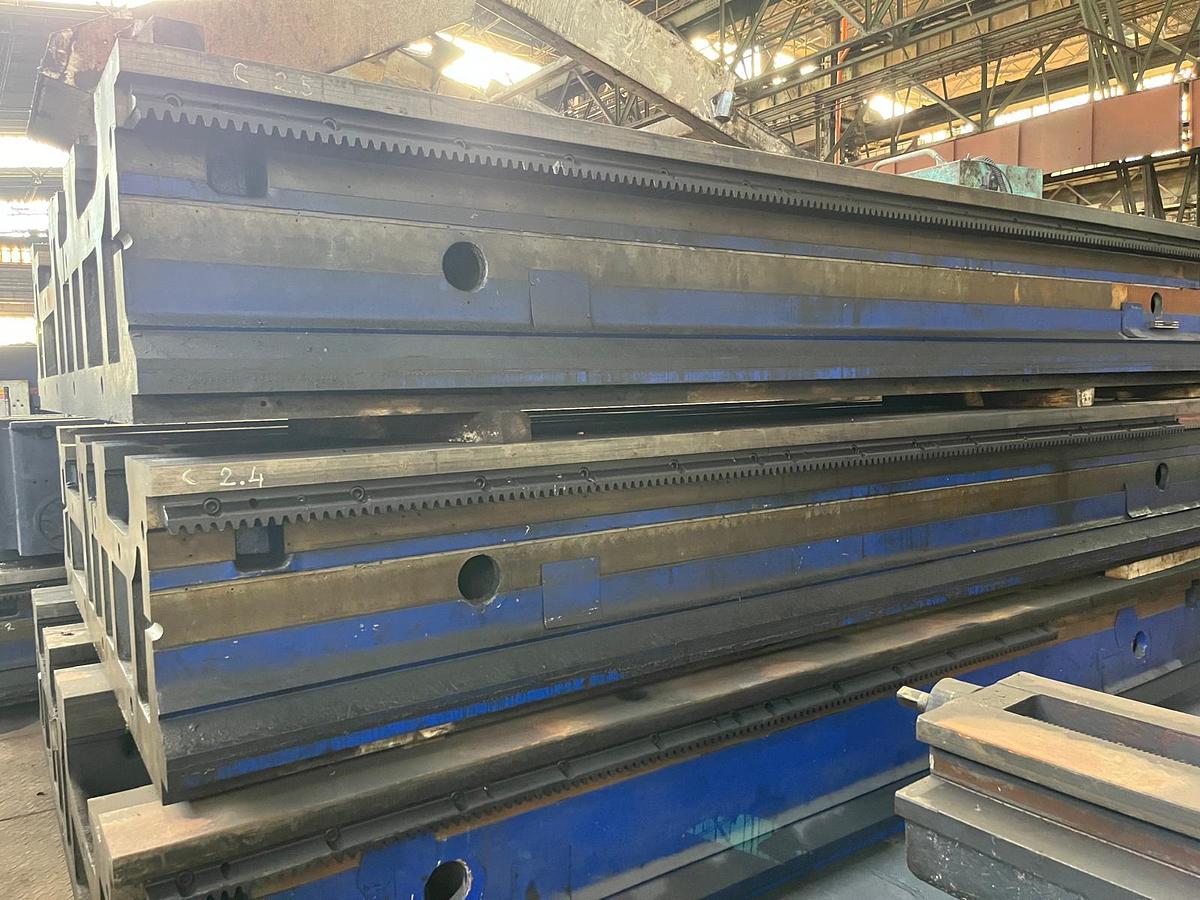

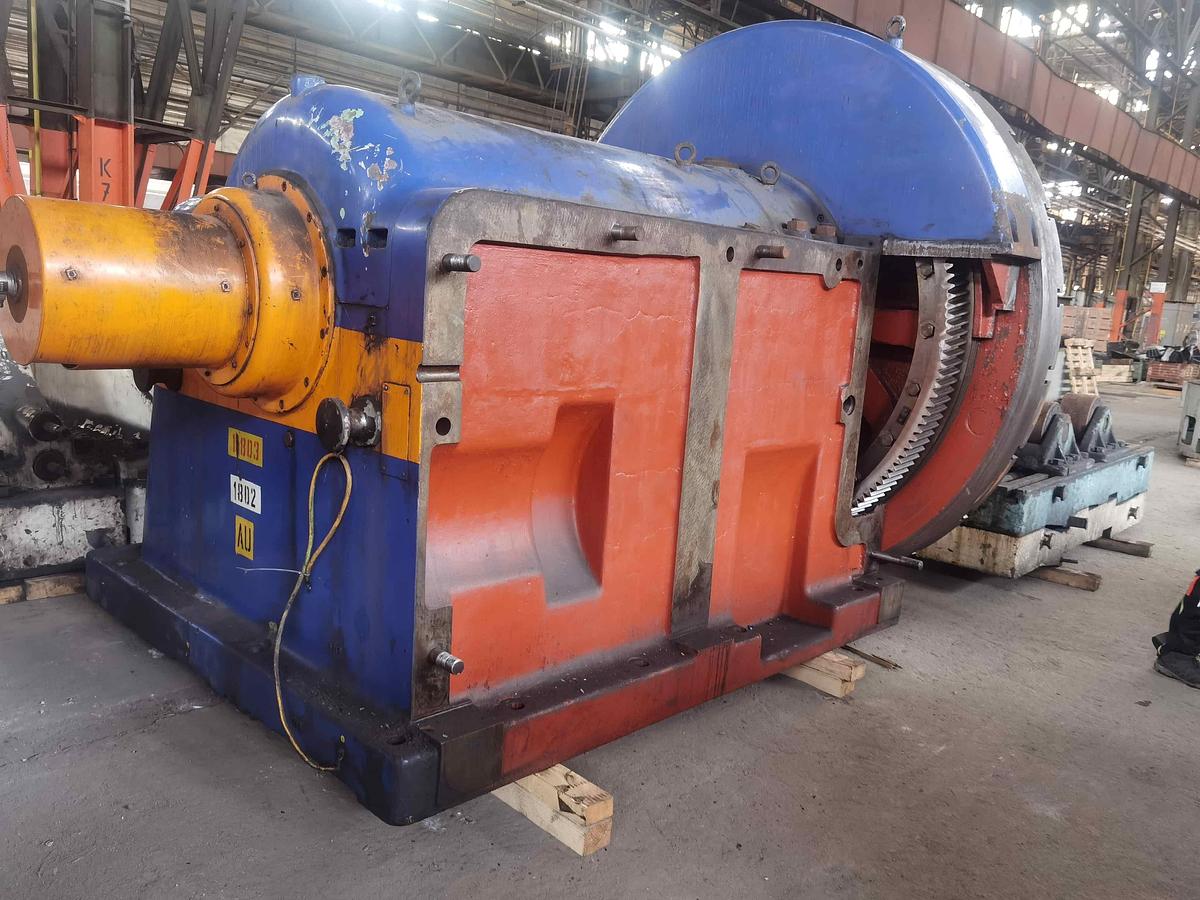

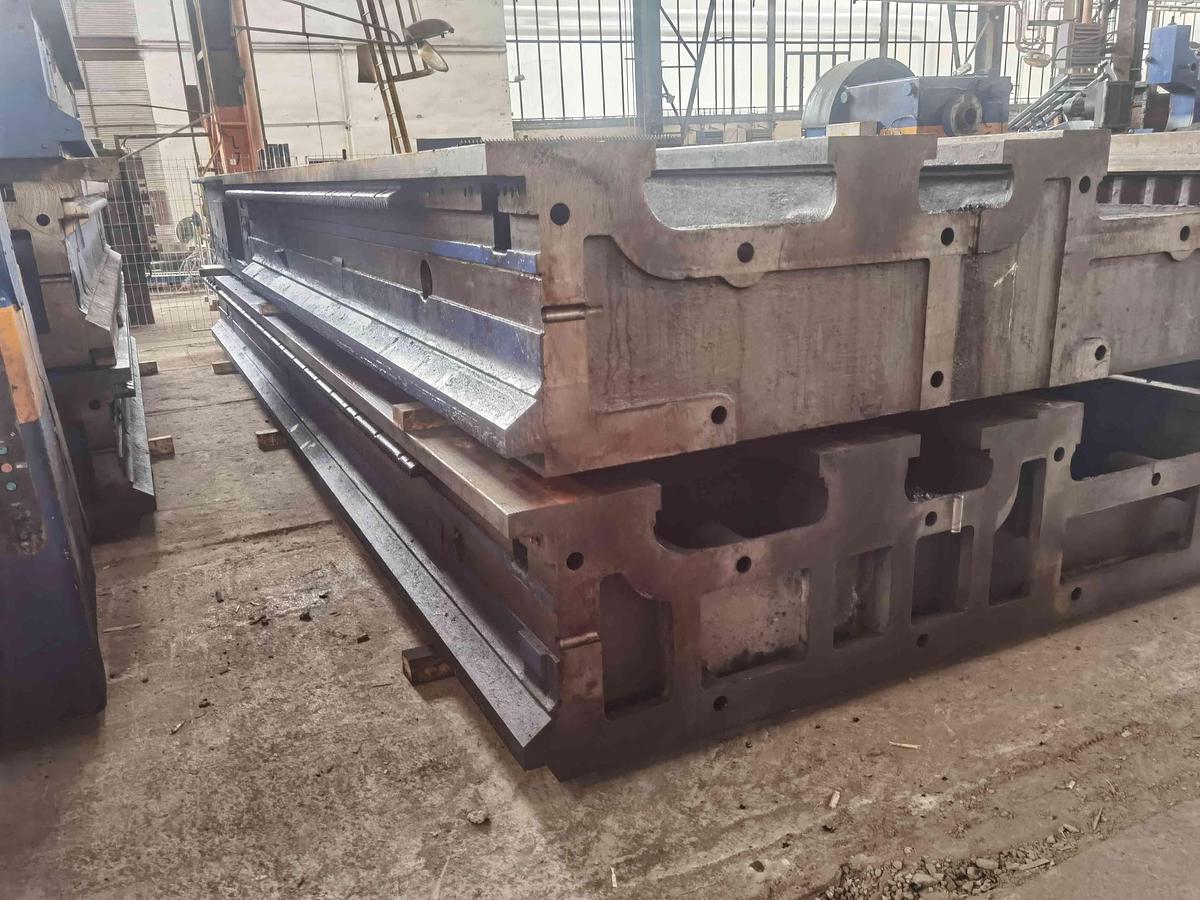

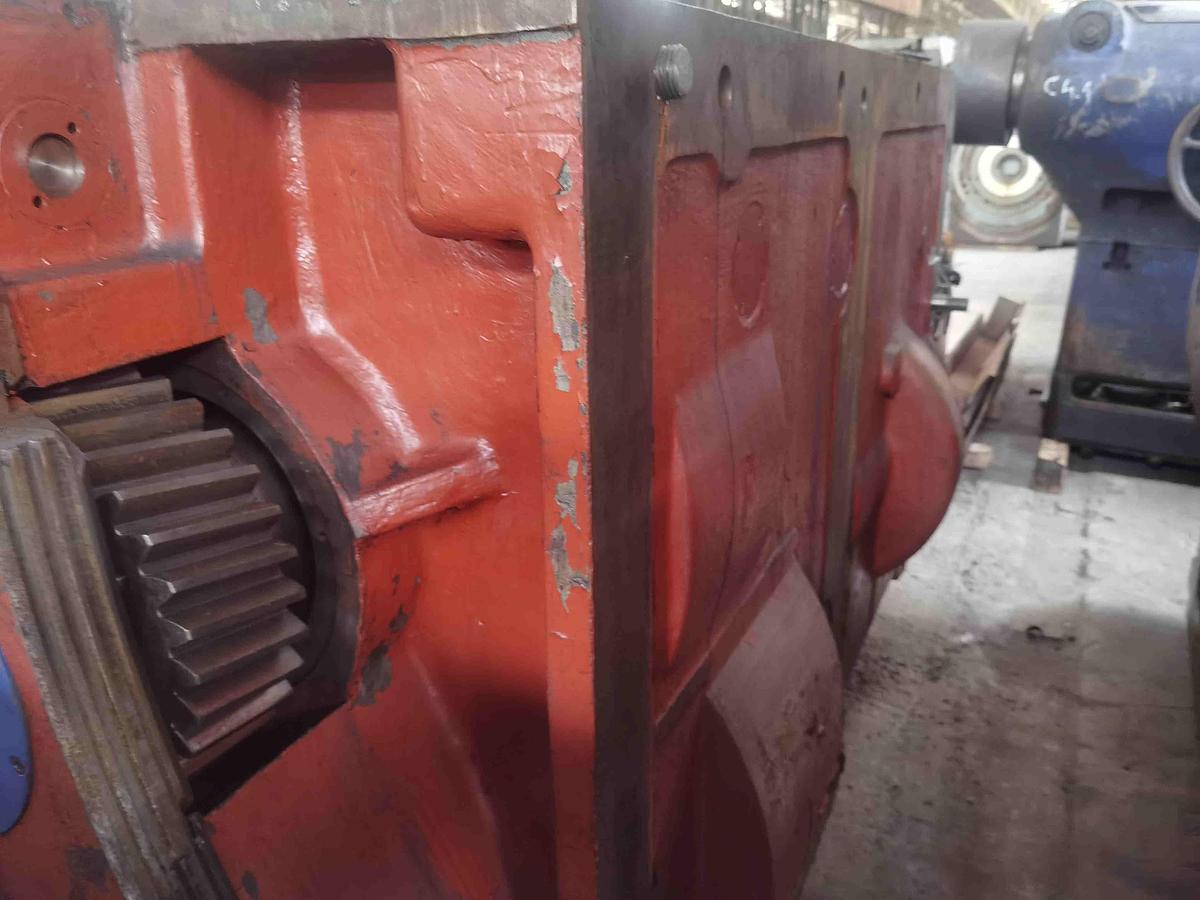

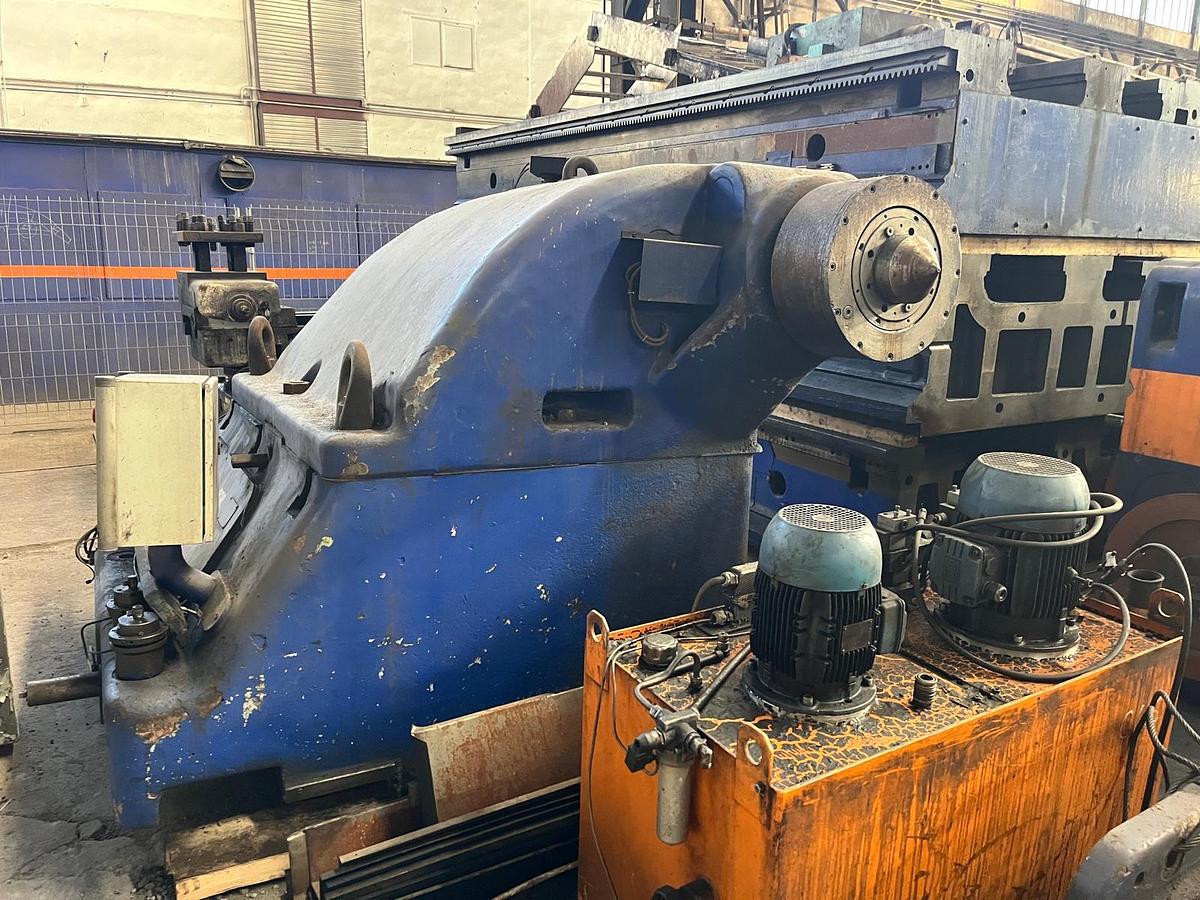

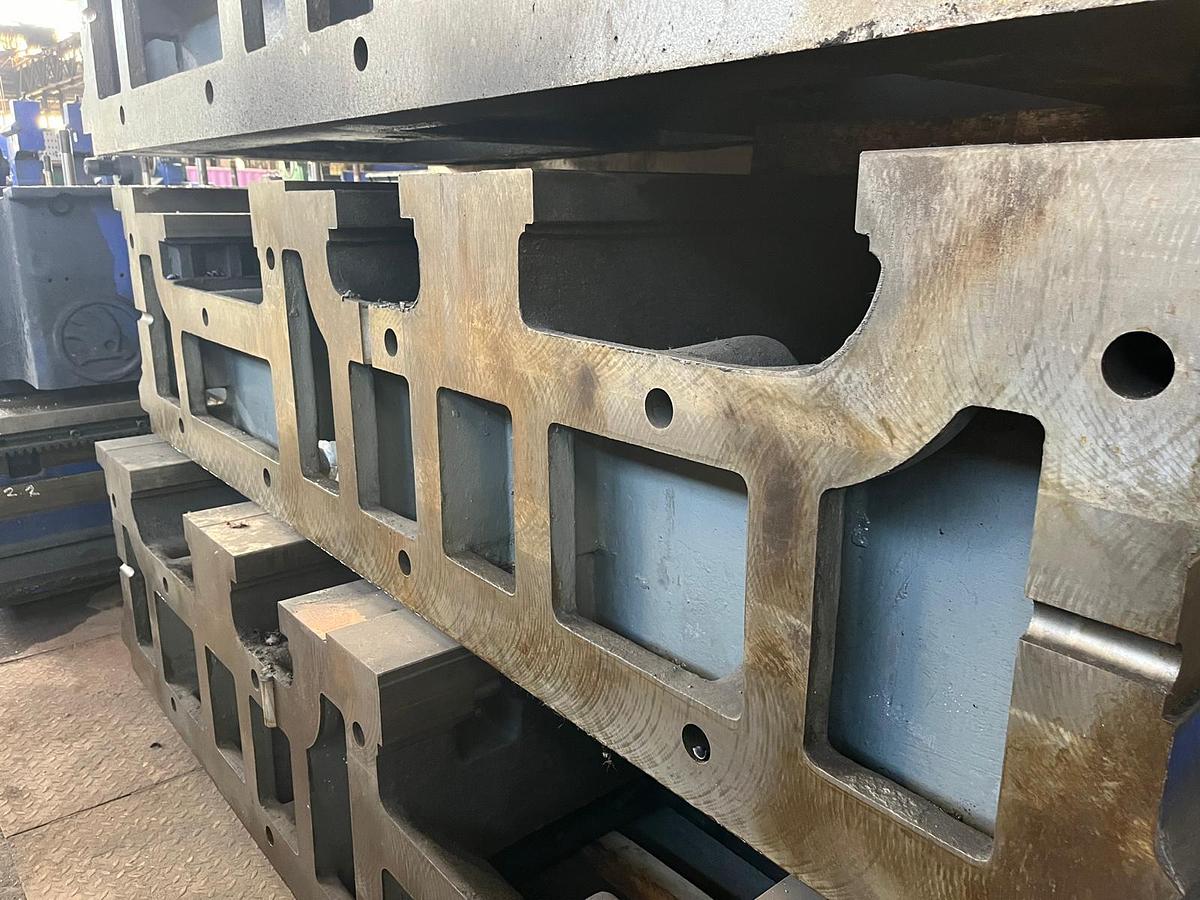

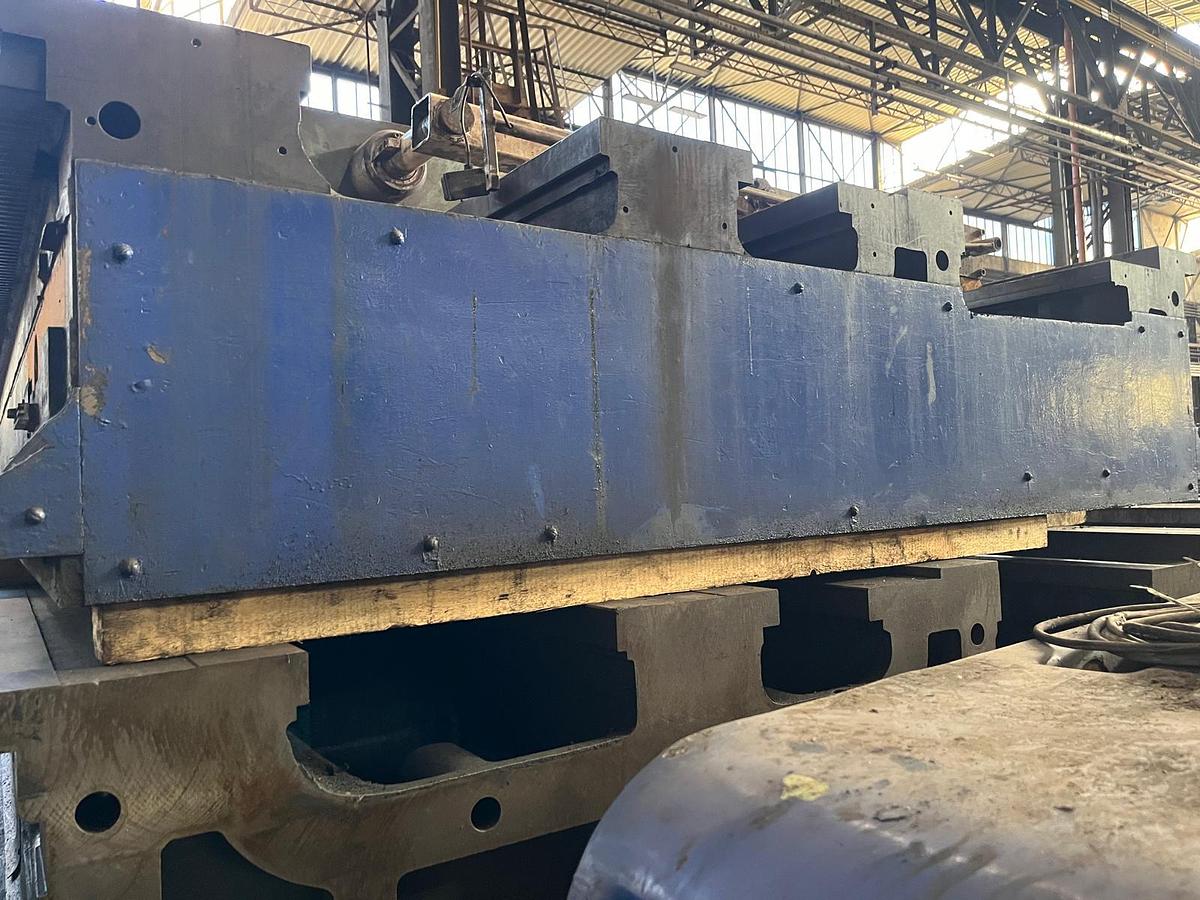

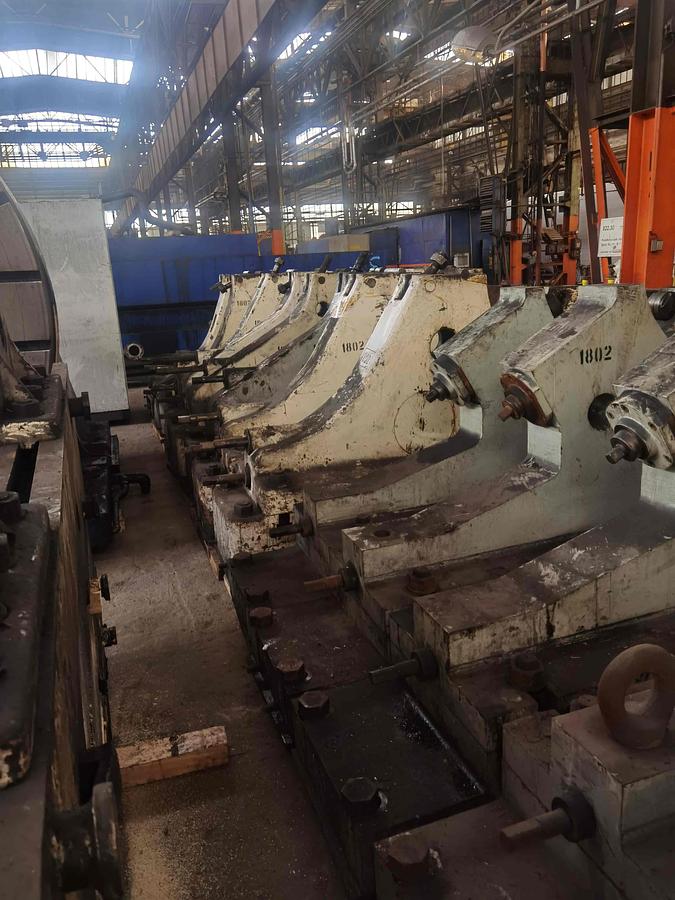

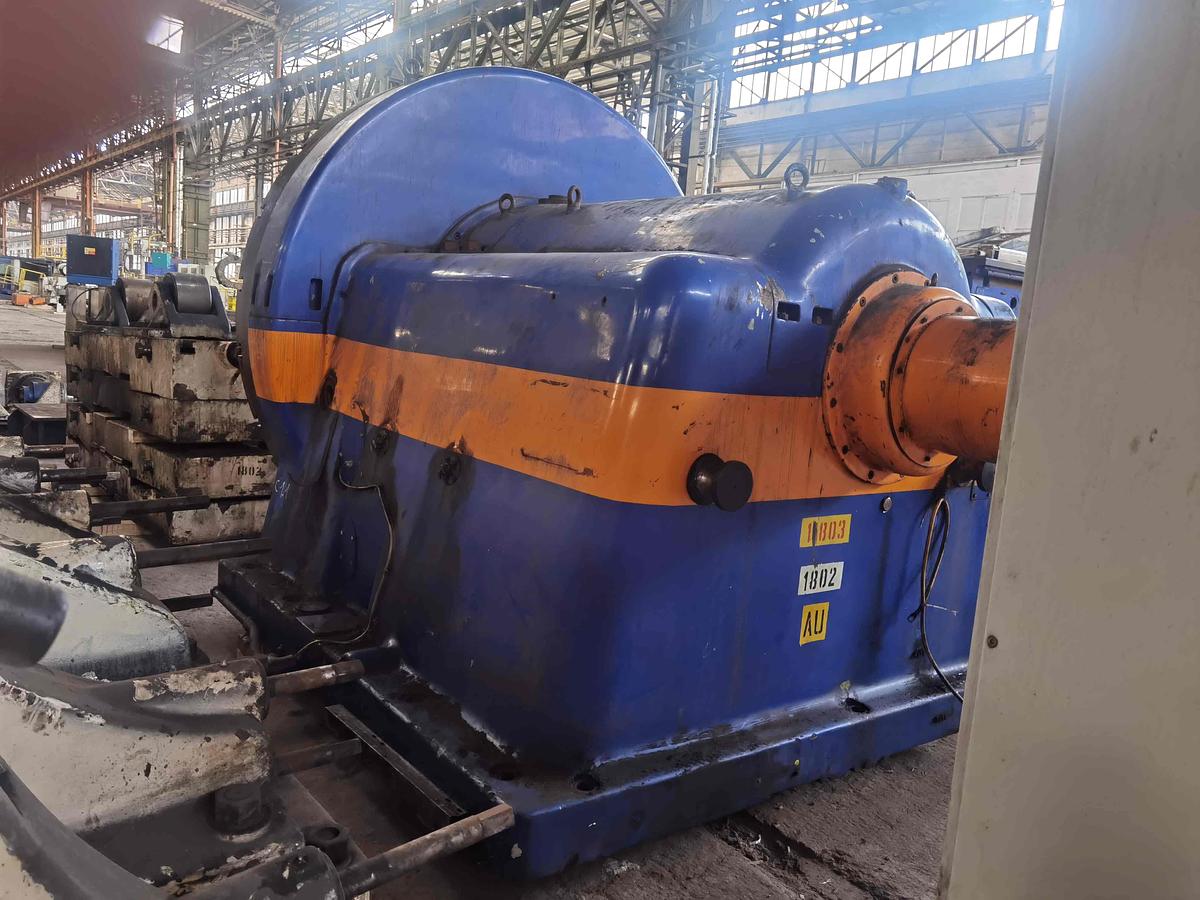

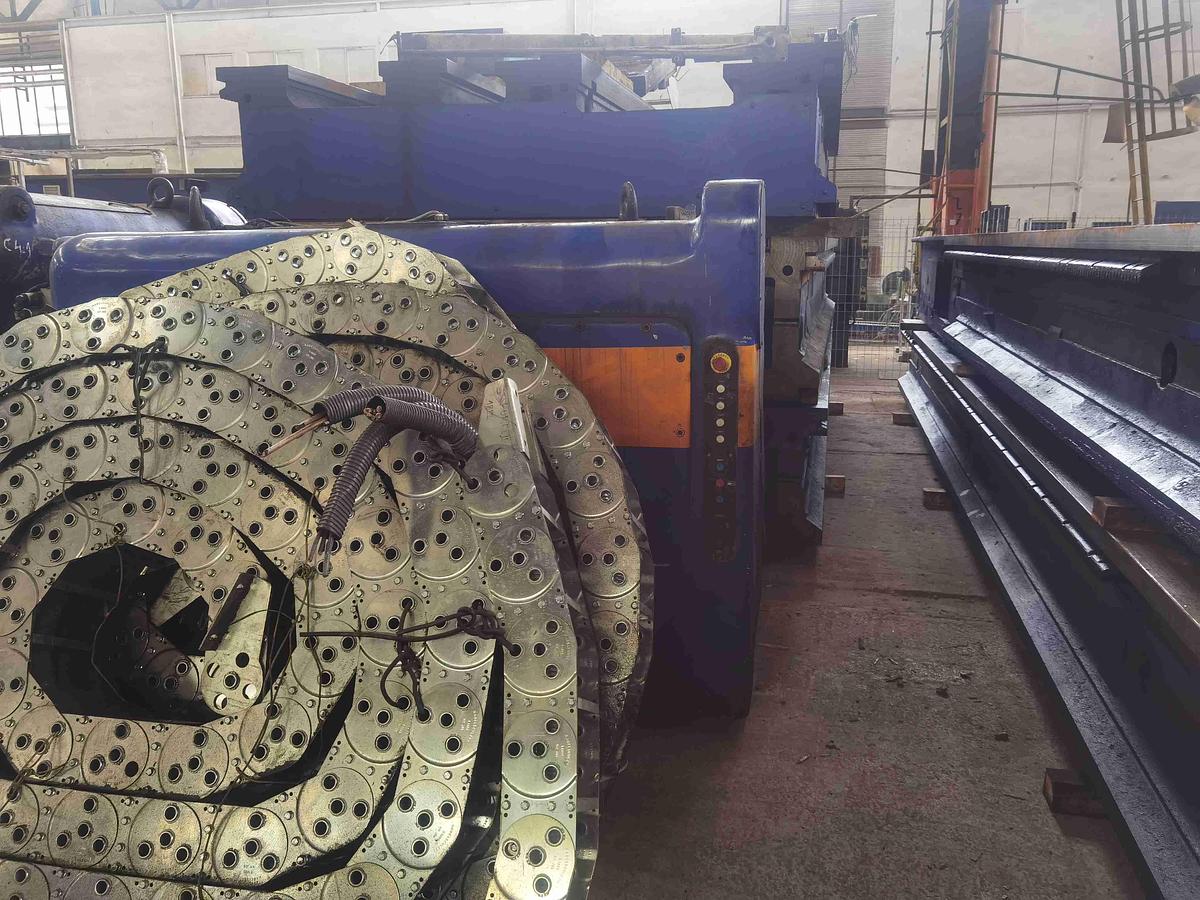

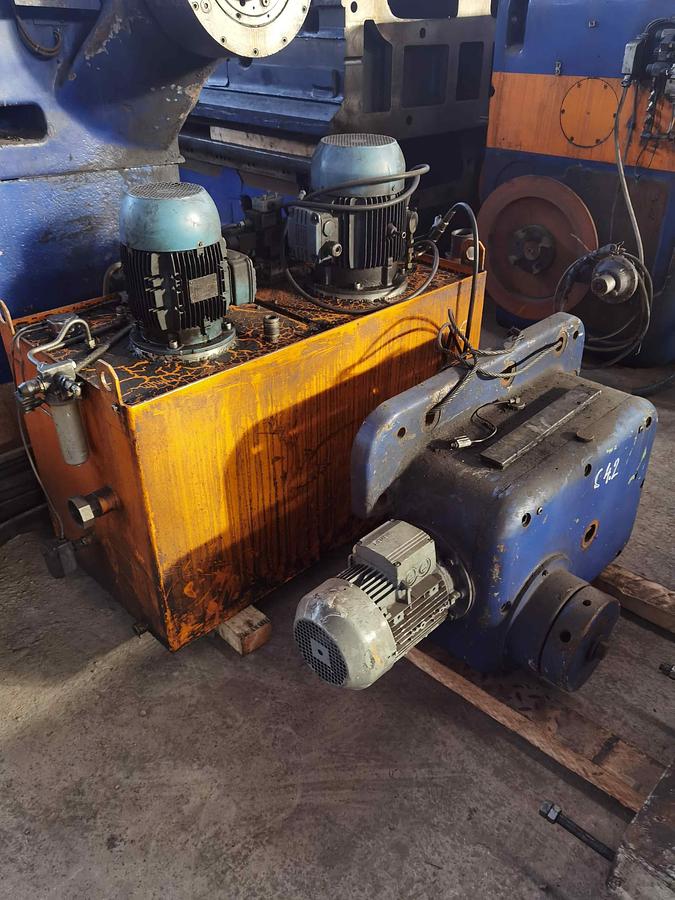

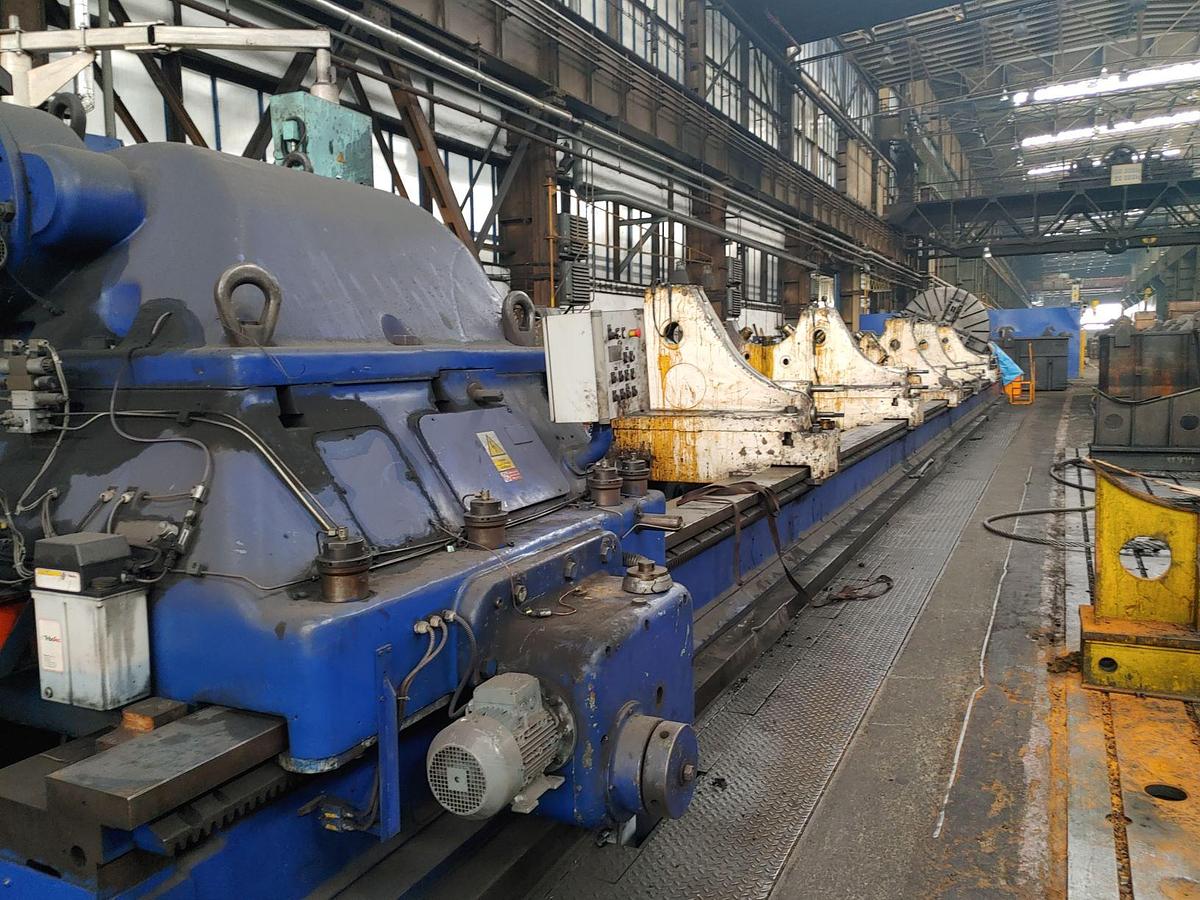

Lathe Heavy Duty CNC Skoda

Distance between center : 25000 mm,

Swing over cariages : 1800 mm ( 2000 mm ),

Max turning length : 20000 mm,

Center height : 1250 mm,

Loading capacity : 70 tons,

Cross section of the knife holder : 1000 x 1000 mm,

Speed : 0,45 – 90 rpm,

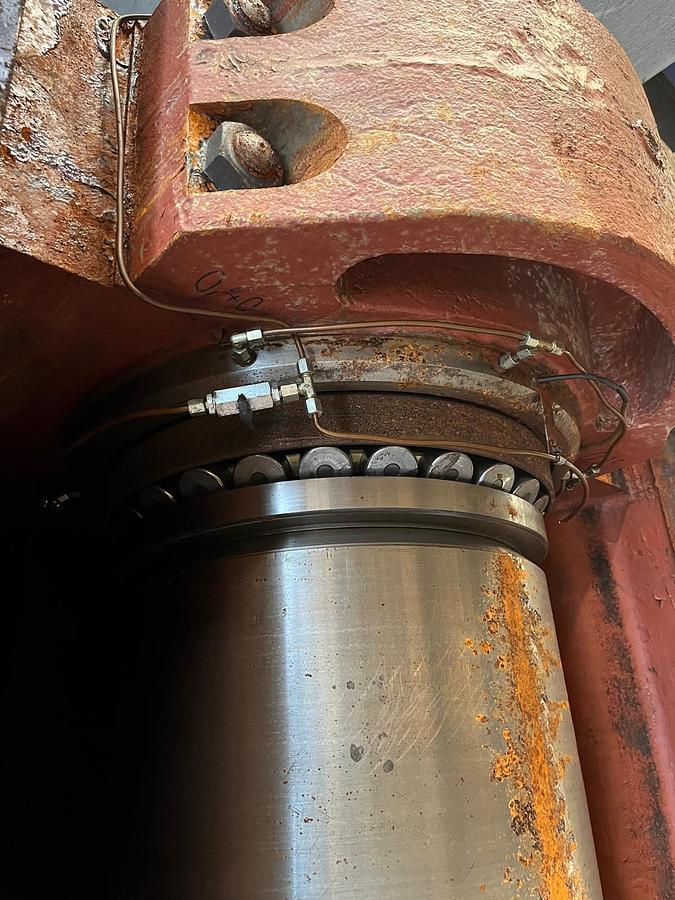

Spindle diameter in front bearing : 500 mm,

Front bearing length : 630 mm,

Cone in the spindle : 1 : 10 mm,

Diameter of the cone in the spindle : 160 mm,

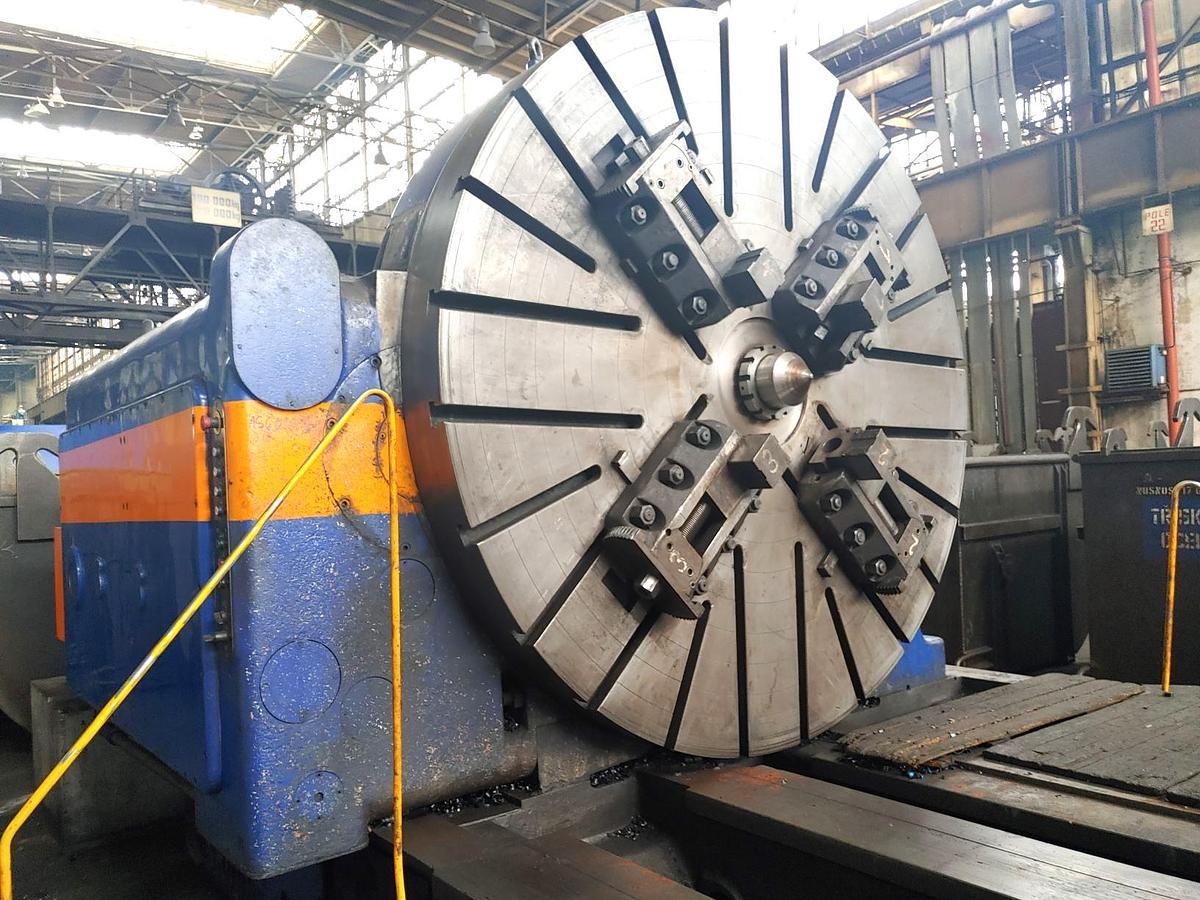

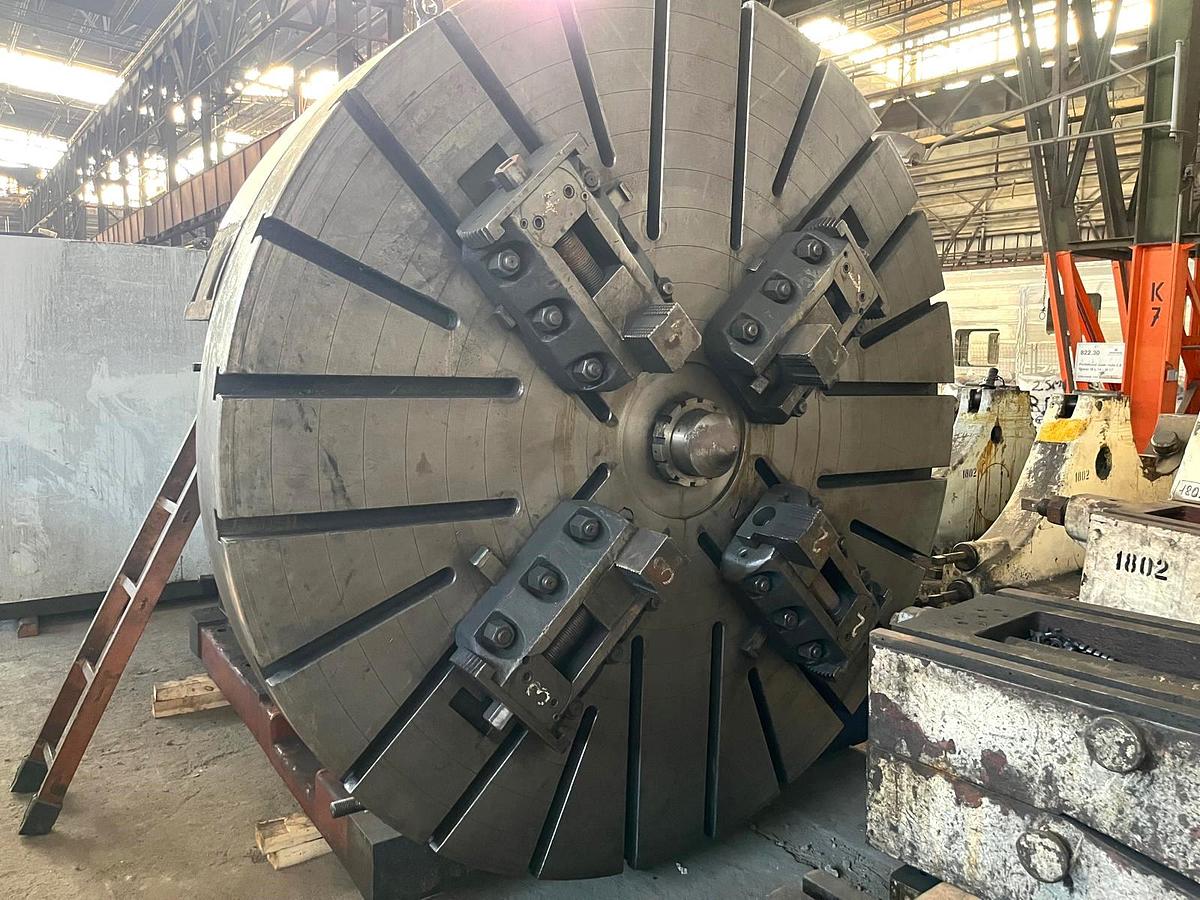

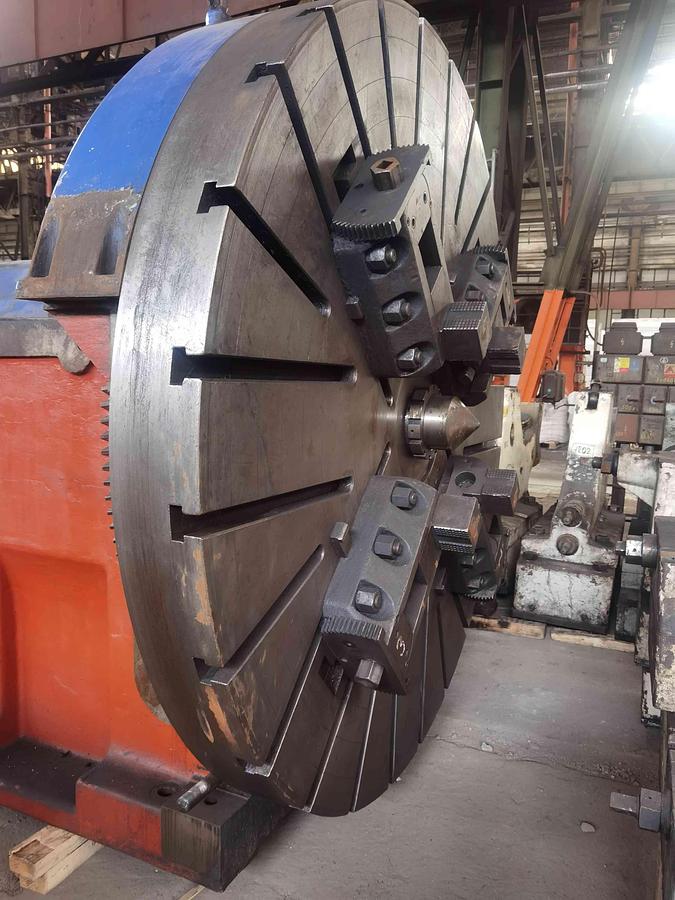

Clamping plate diameter : 2500 mm,

Max. torgue on the clamping plate at max. : 700 rpm 1.4/min kNm,

Longitudinal shift continuously adjustable : 0-2000 mm/min,

Rapid traverse of longitudinal slide : 5000 mm,

Traverse movement continuously adjustable : 0-2000 mm/min,

Rapid traverse of the cross slide : 2000 mm/min,

Shear force in the longitudinal direction : 100 kN,

Thrust force in : 1000 kN

Knife cross section for normalni drzak : 100 x 100 mm,

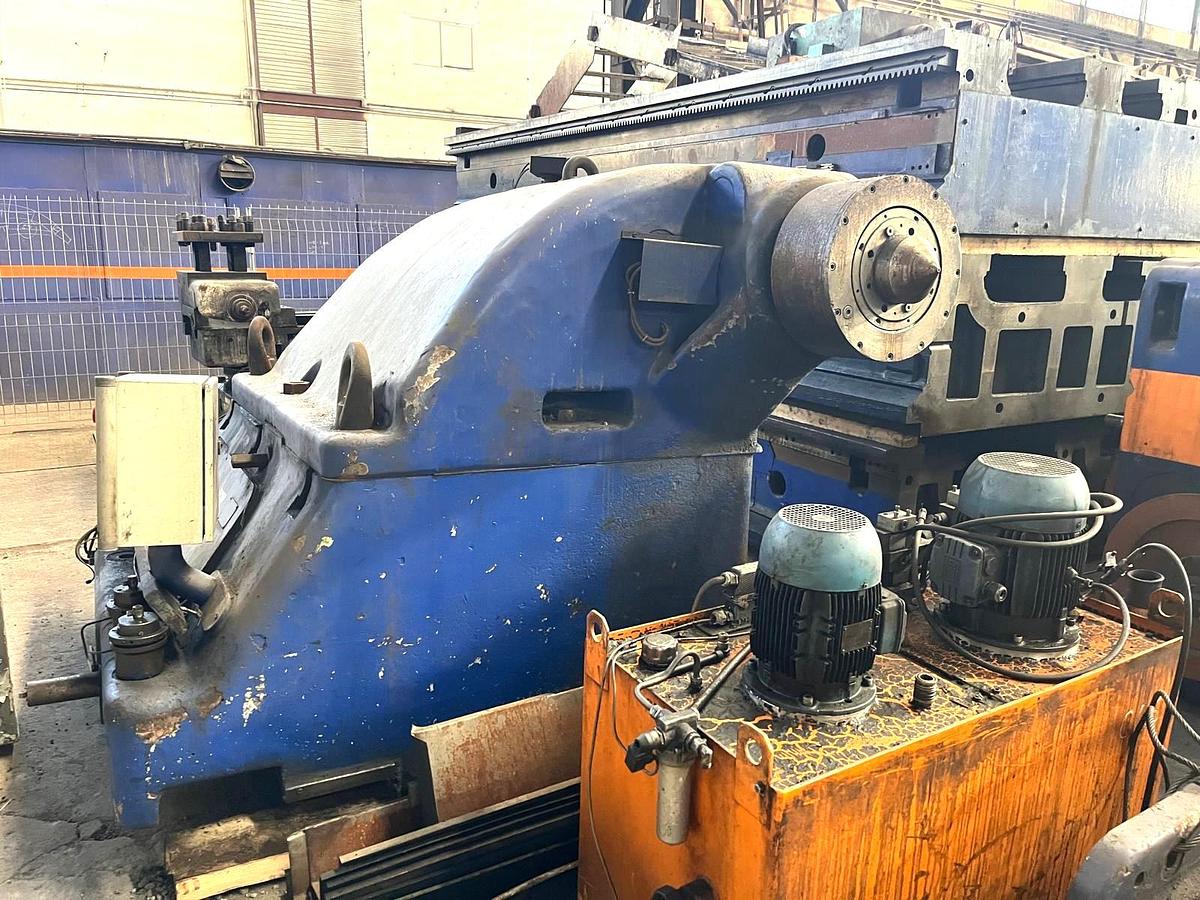

Tip sleeve diameter : 315 mm,

Cone diameter hrotove objimky : 120 mm,

Tip sleeve cone : 1 : 10,

Quik movement of the horse across the bed : 2300 mm/min,

Quick release tip sleeve : 1000 mm/min,

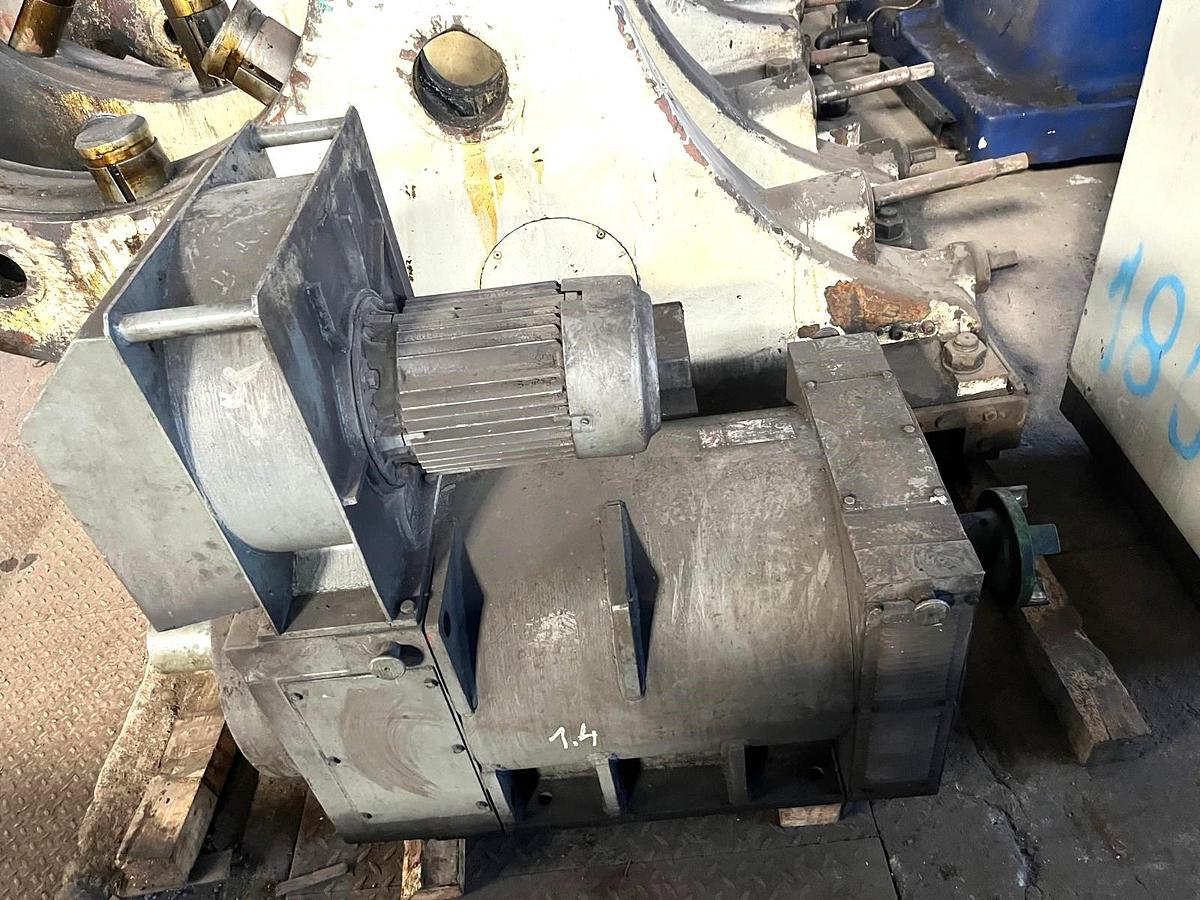

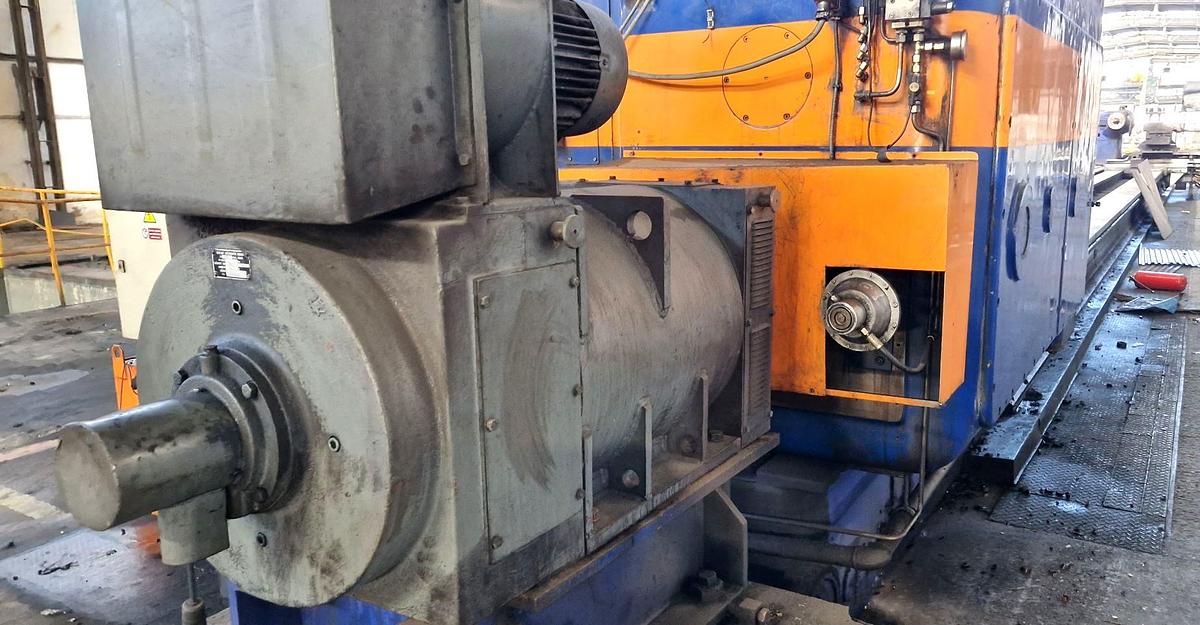

Main motor power: 80 kW,

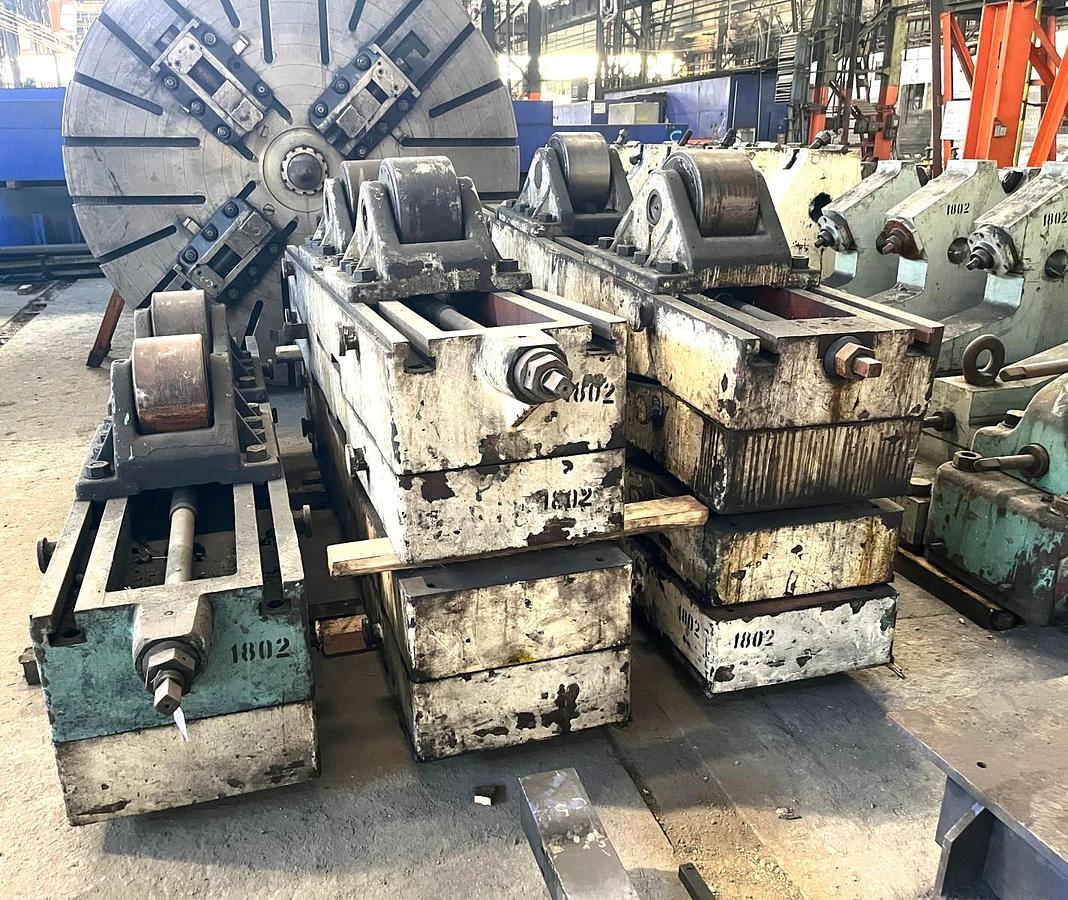

Workpiece weight : 70 tons. without steady rests

Total weight approx. : 160/170 tons,

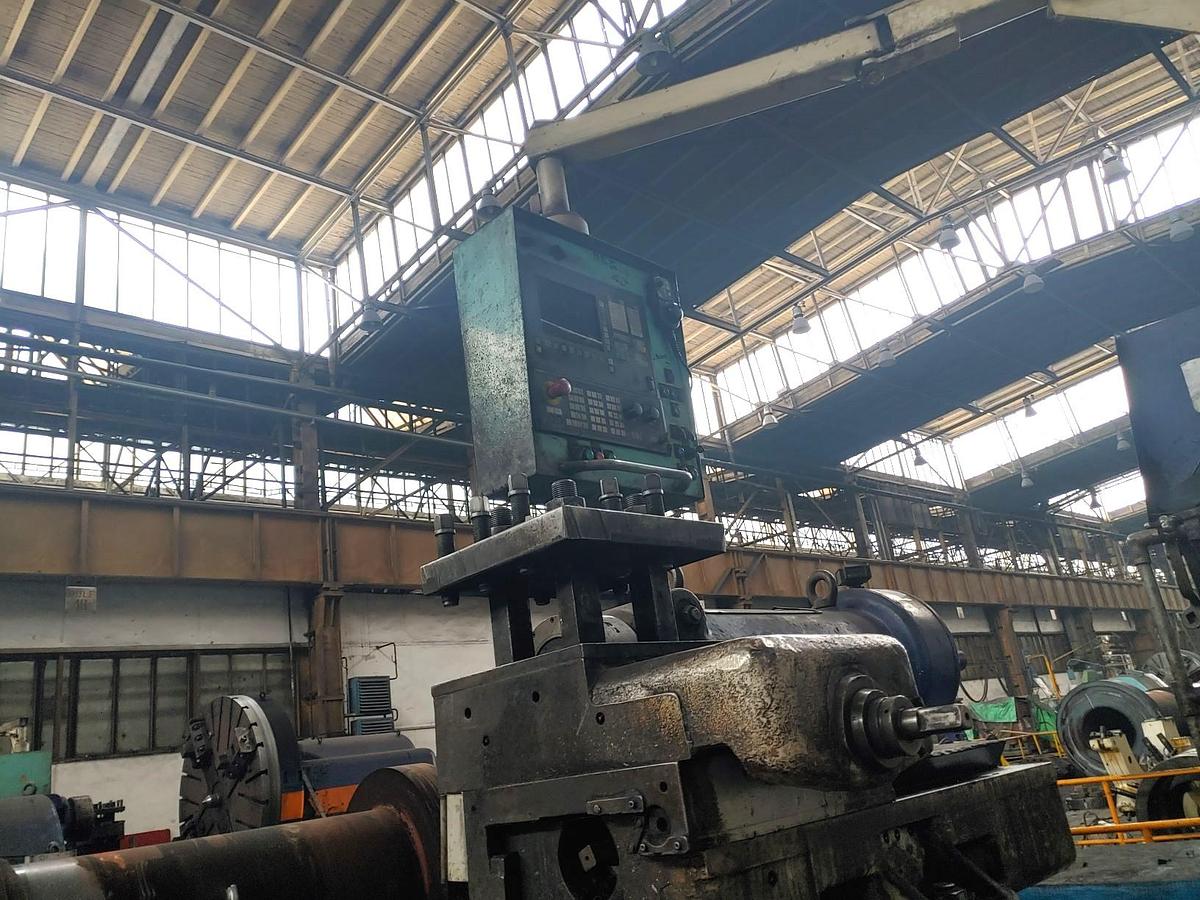

Control system: CNC SIEMENS Sinumerik 840,

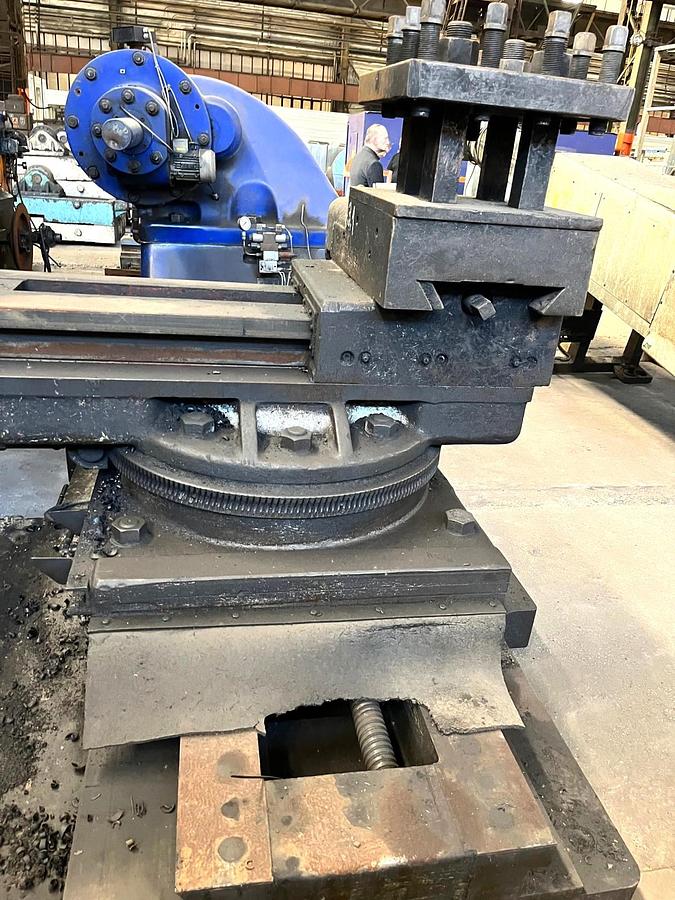

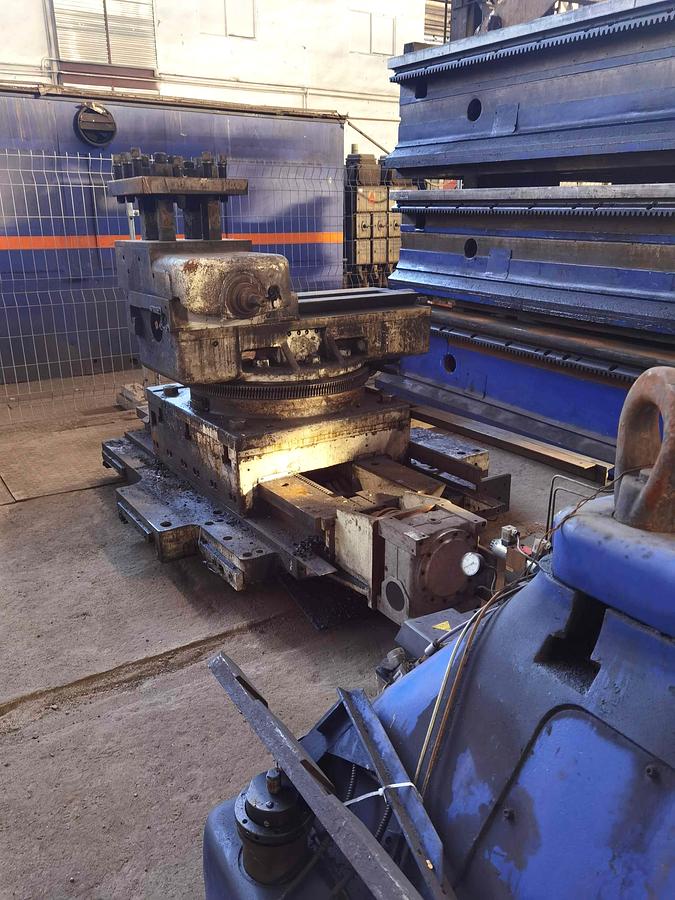

n.2 carriage (n.1 must be reconditioned),

Fully reconditioned : 2007.
