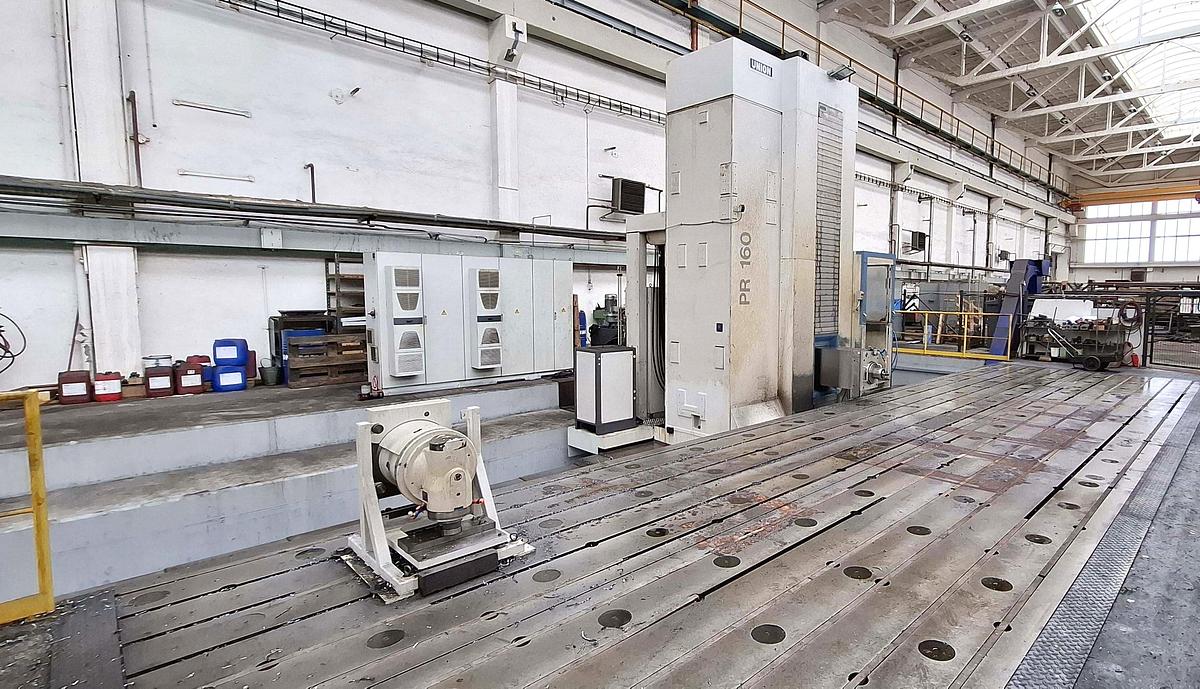

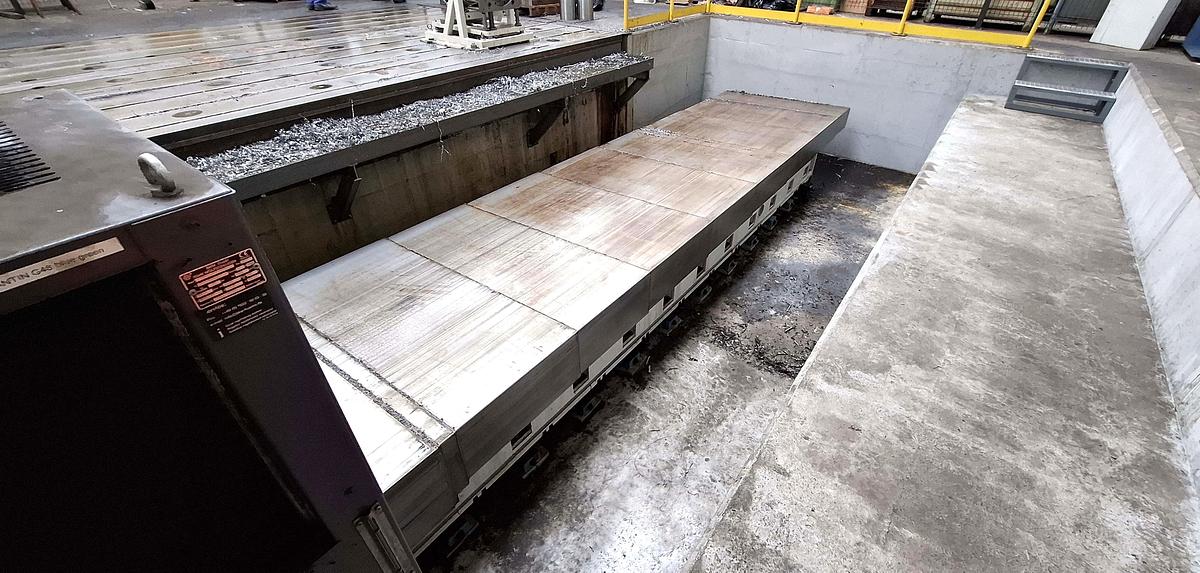

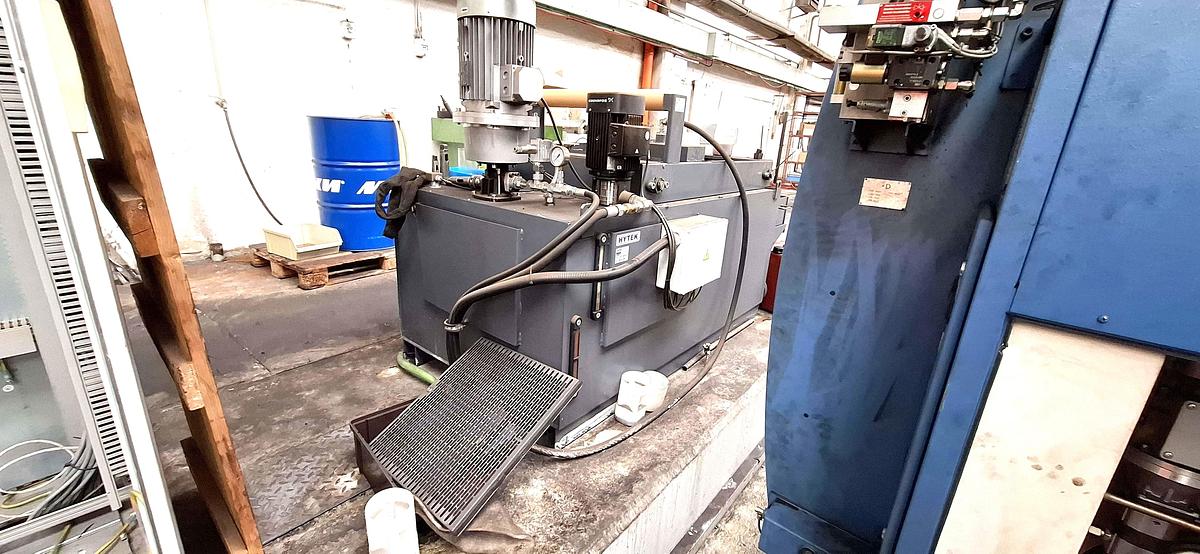

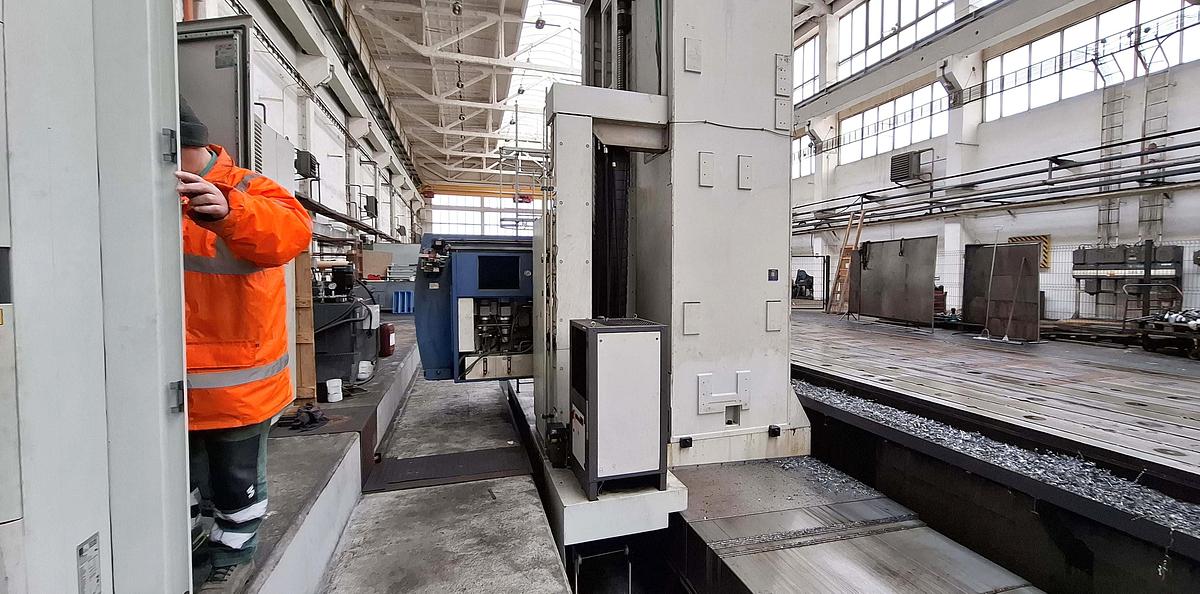

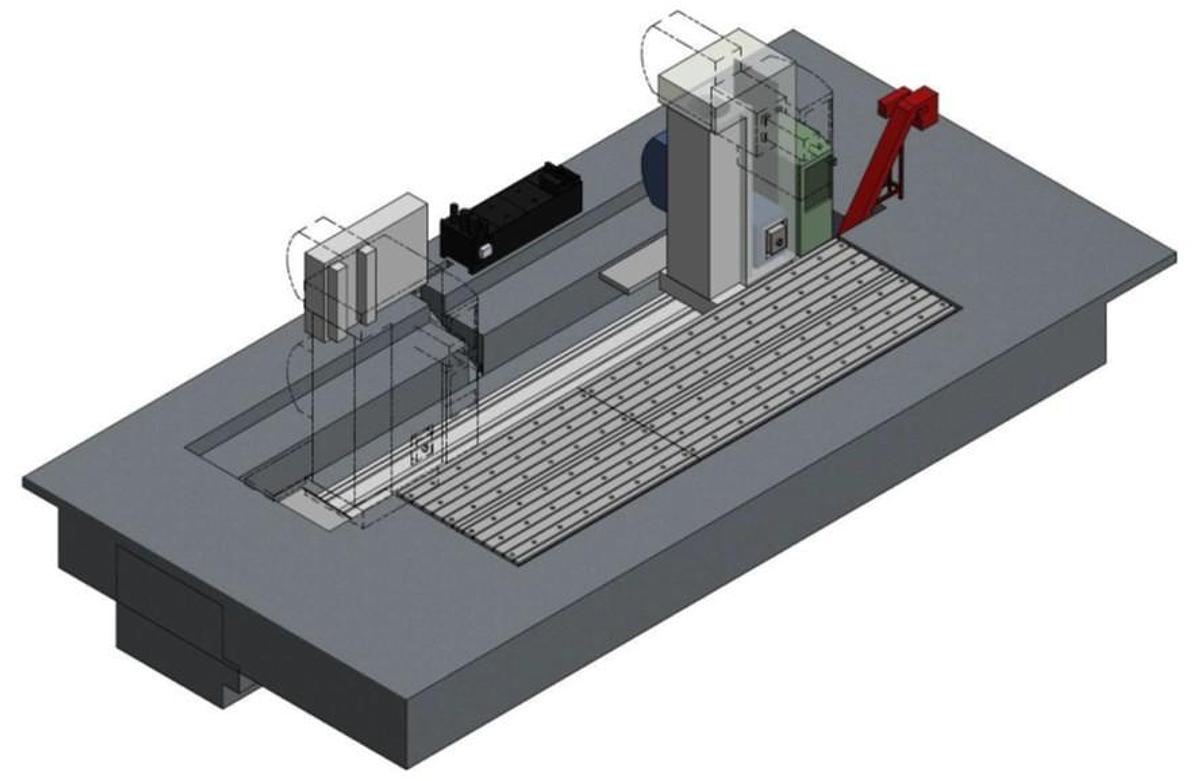

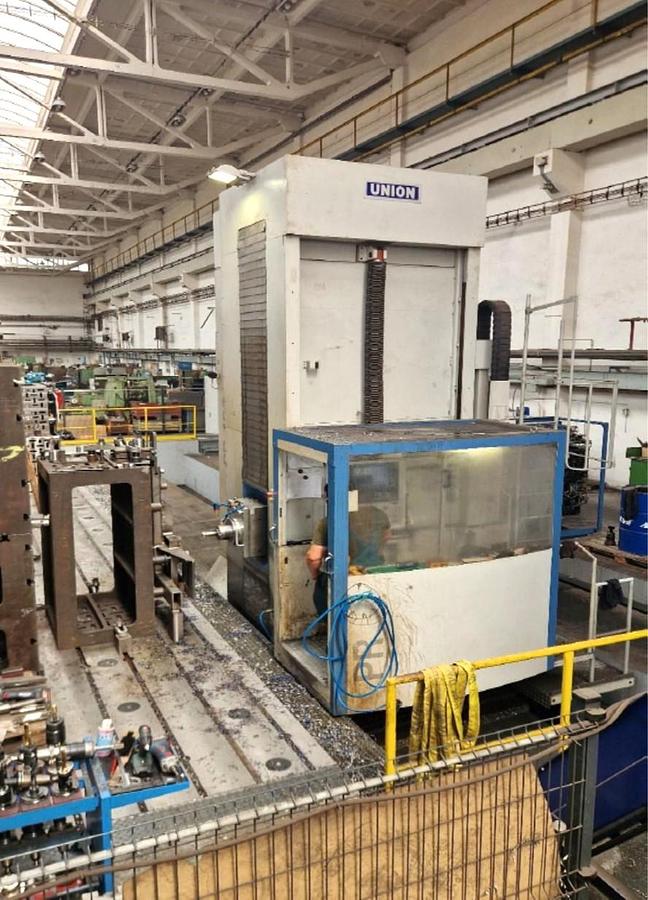

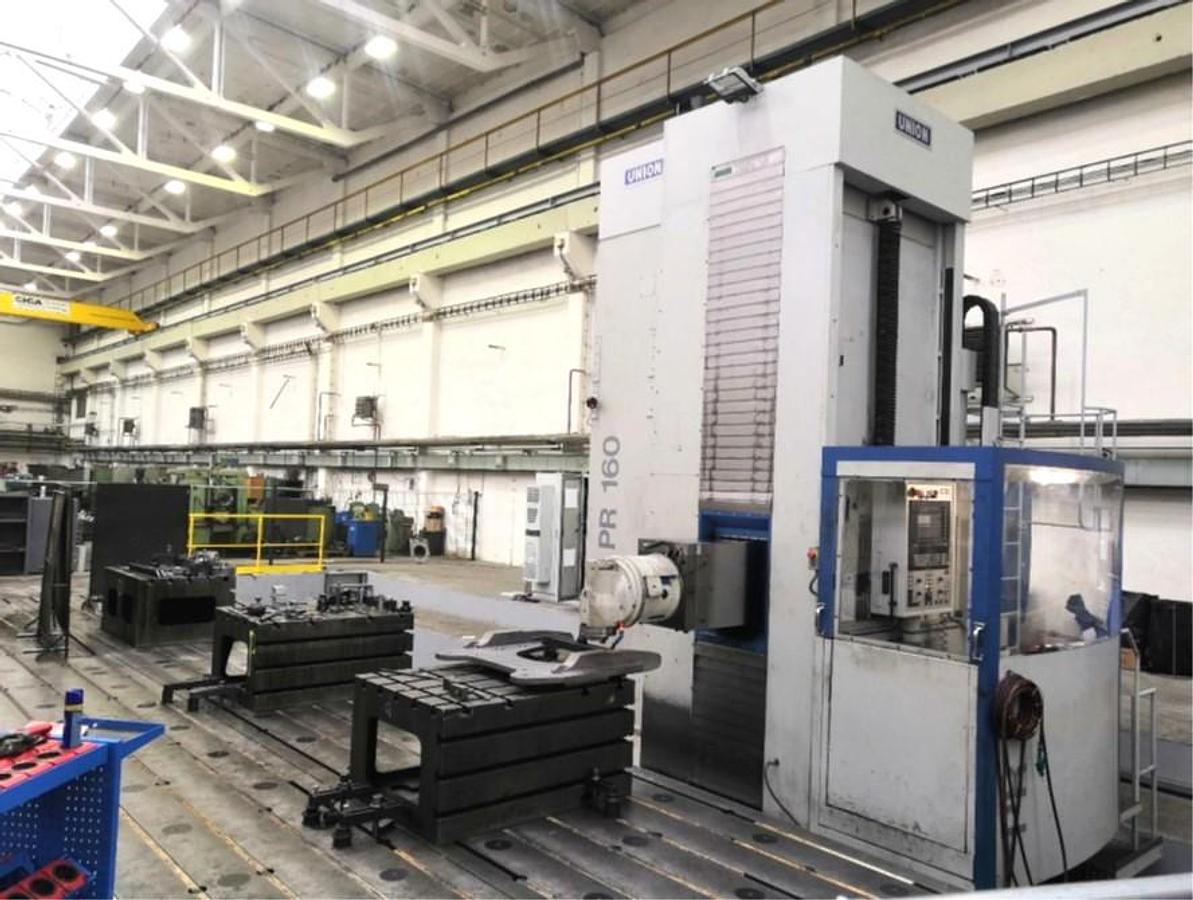

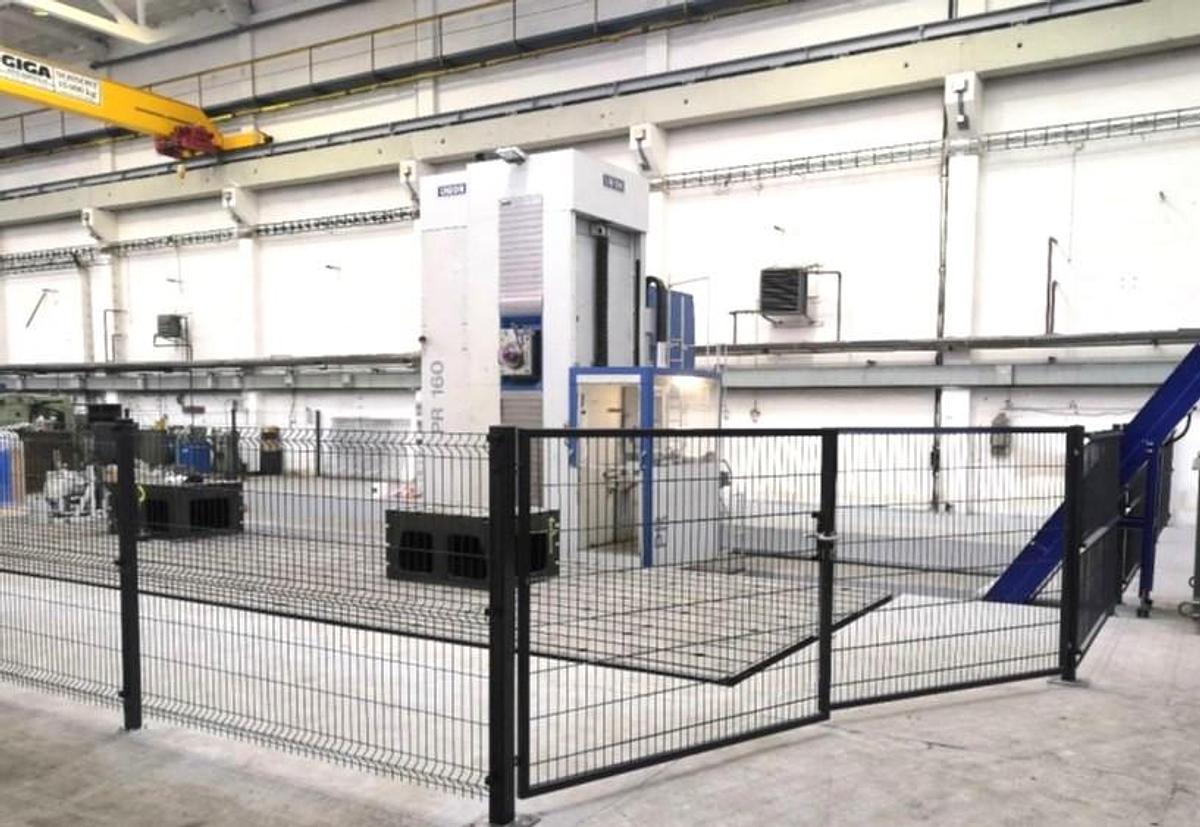

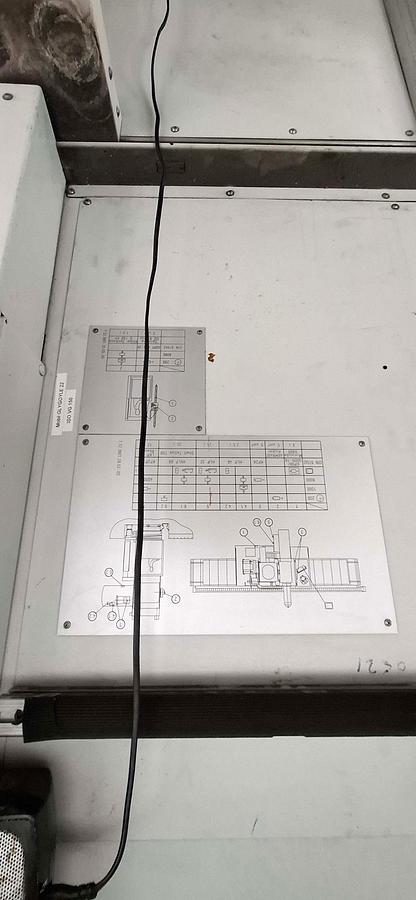

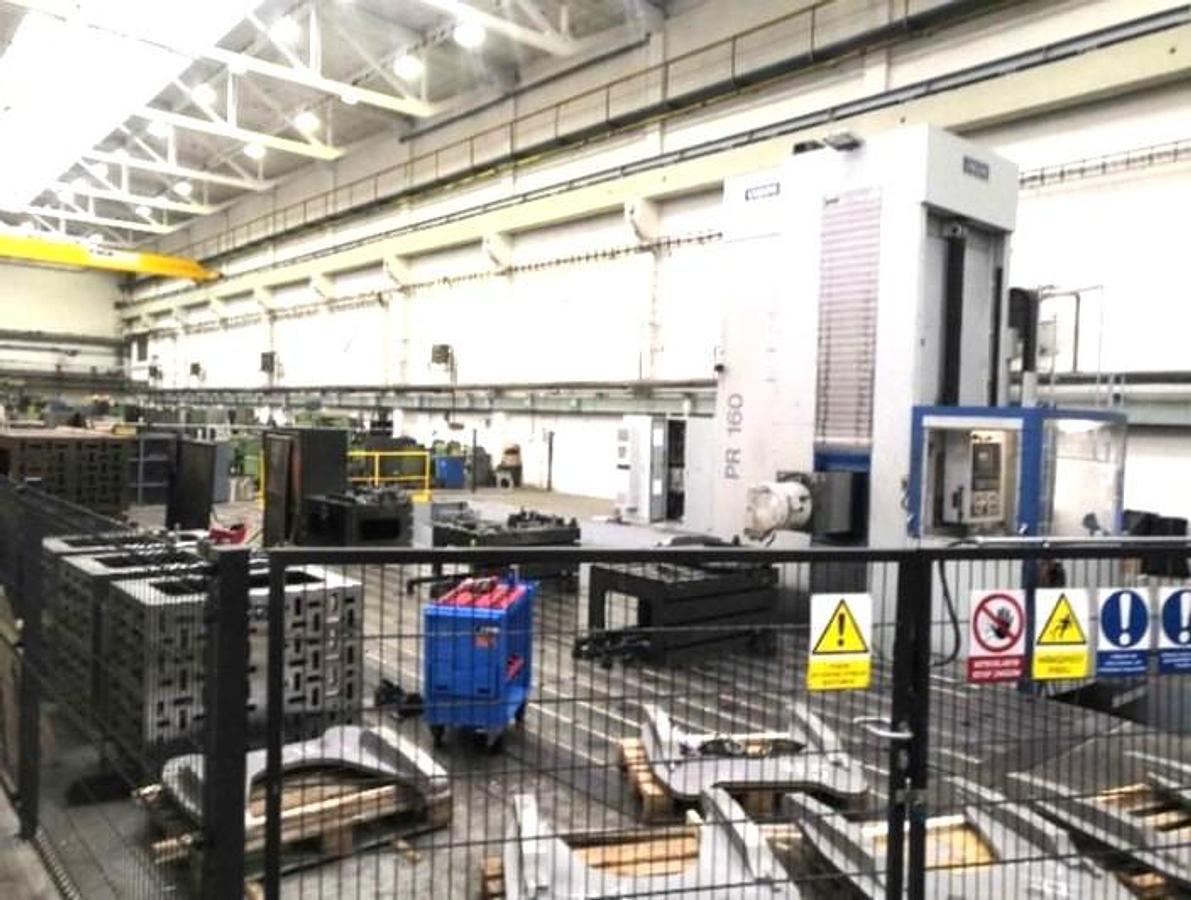

Borer Horizontal Table Type CNC Union PR160

Type : Plate type

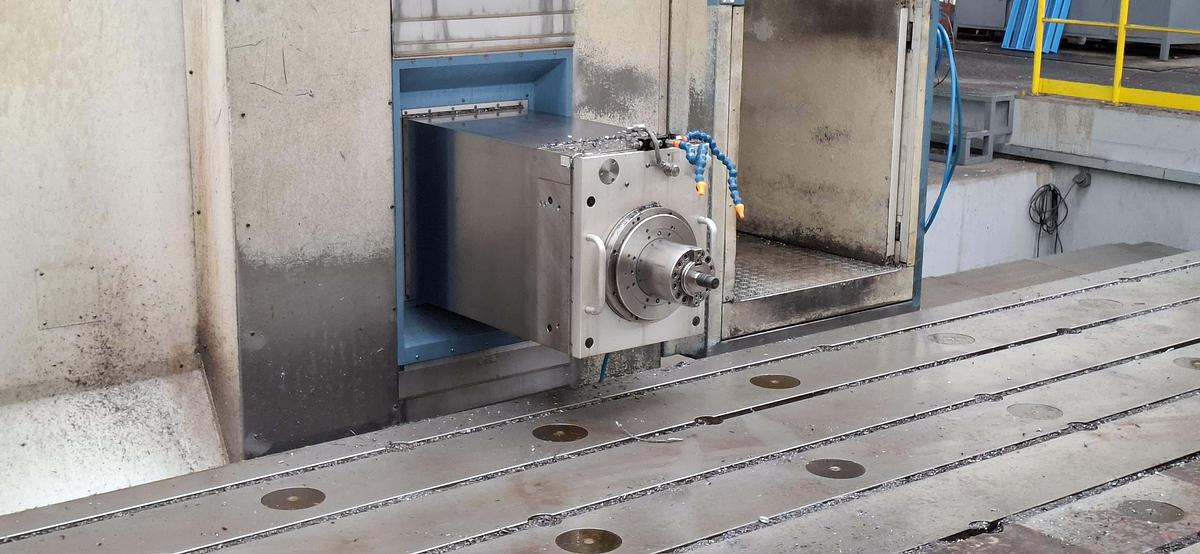

Spindle diameter : 162 mm,

X-axis travel : 11000 mm,

Y-axis travel : 3000 mm,

Z-axis travel (spindle extension) : 1000 mm,

W-axis travel (spindle extension) : 700 mm,

Working feed X, Y, Z, W : 1 – 6000 mm/min,

Rapid feed : 15000 mm/min,

Feed force X, Y, Z, W : 25 kN,

Clamping : ISO 50,

Max. spindle speed : 2800 rpm,

Max. torque : 2868 Nm,

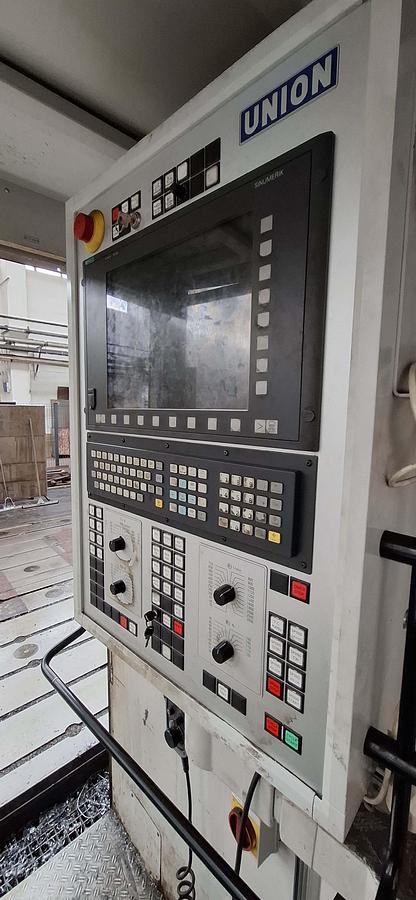

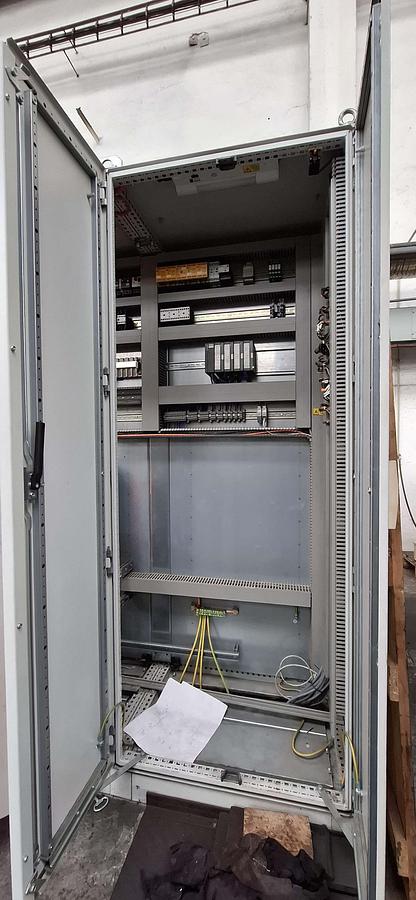

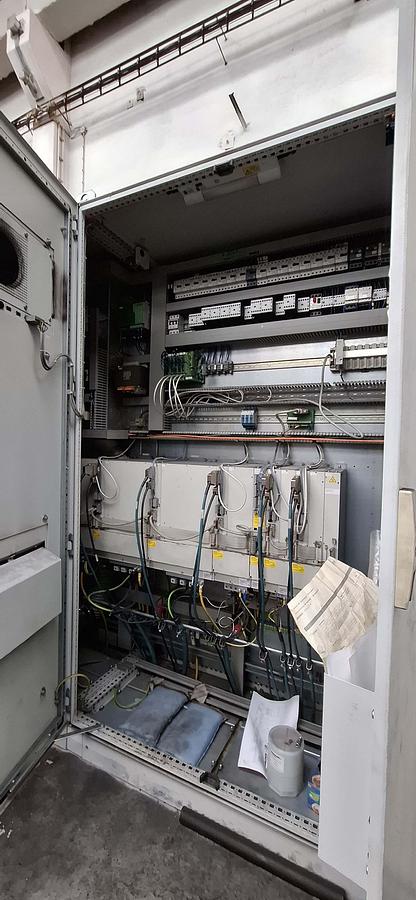

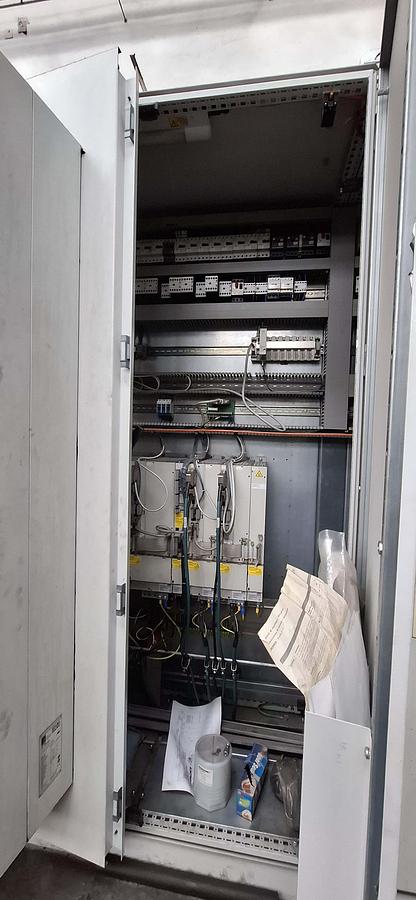

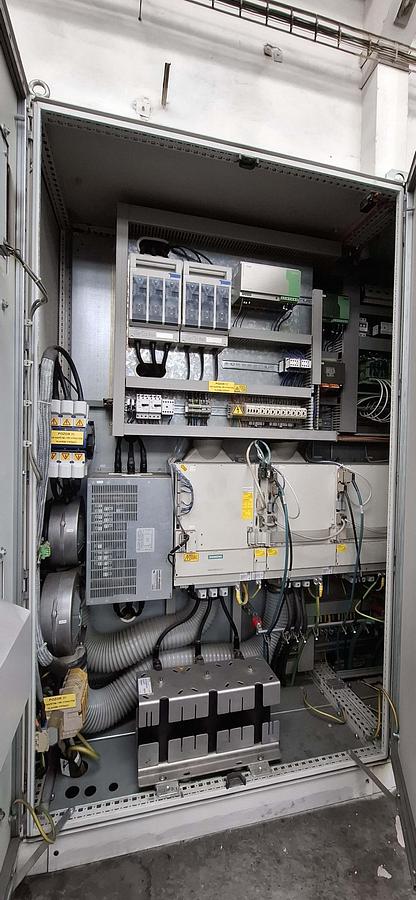

Control system: Siemens Sinumerik 840D

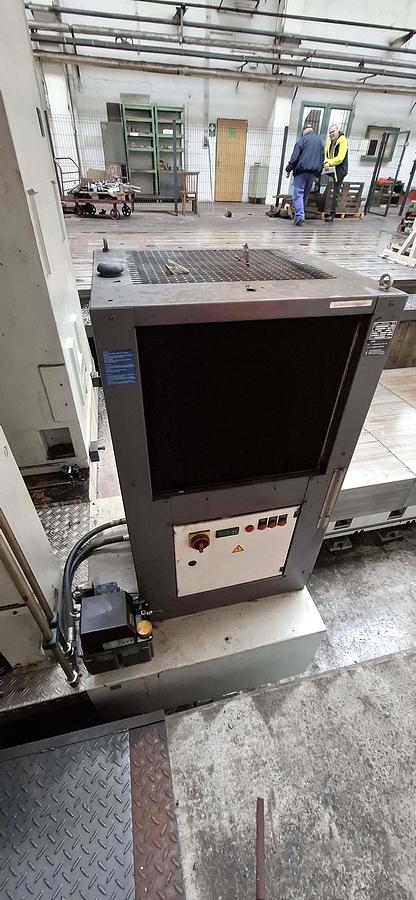

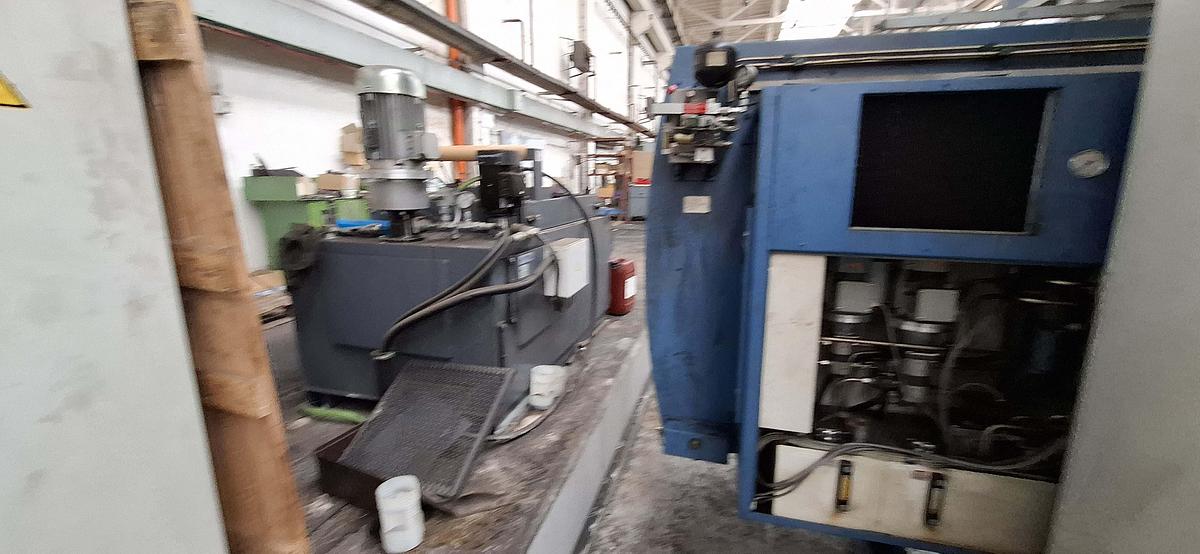

Cooling by rinsing (6 bar) and high-pressure cooling through the spindle center (max. 70 bar)

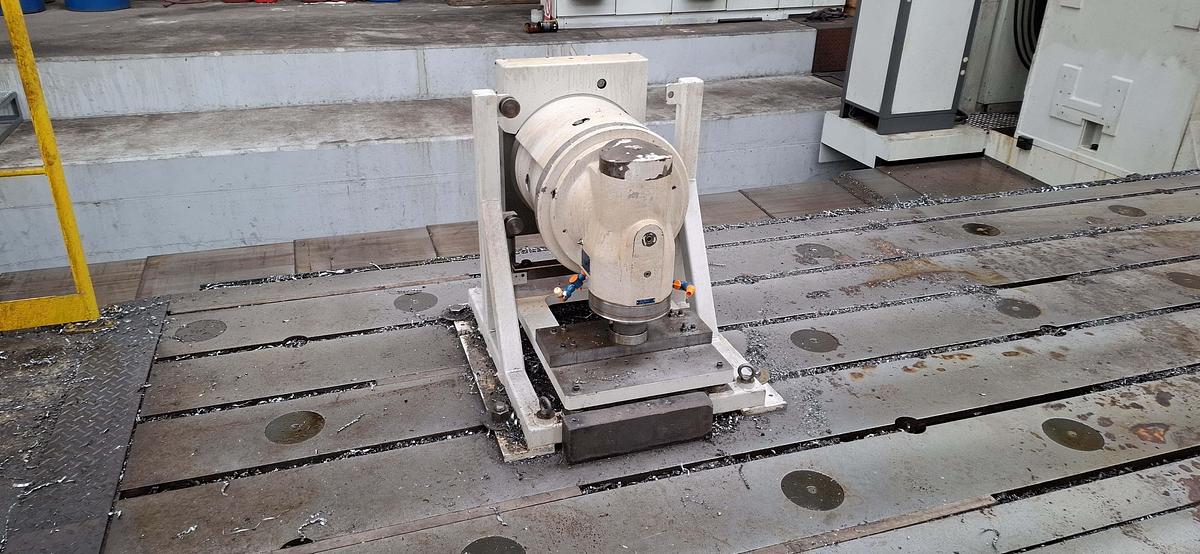

Right-angle milling head KDF4/90 see below

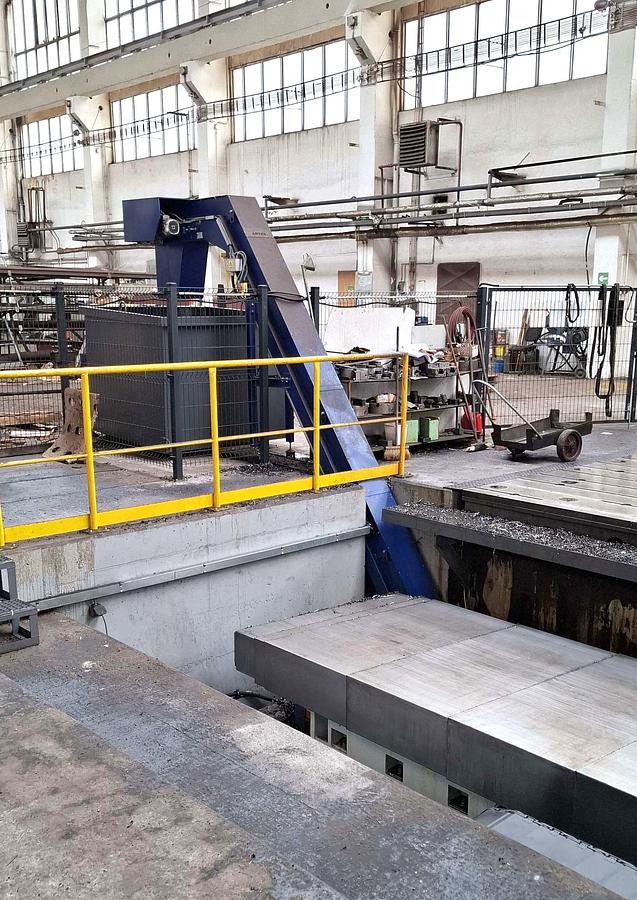

Swarf conveyor X=11 m,

Workpiece probe

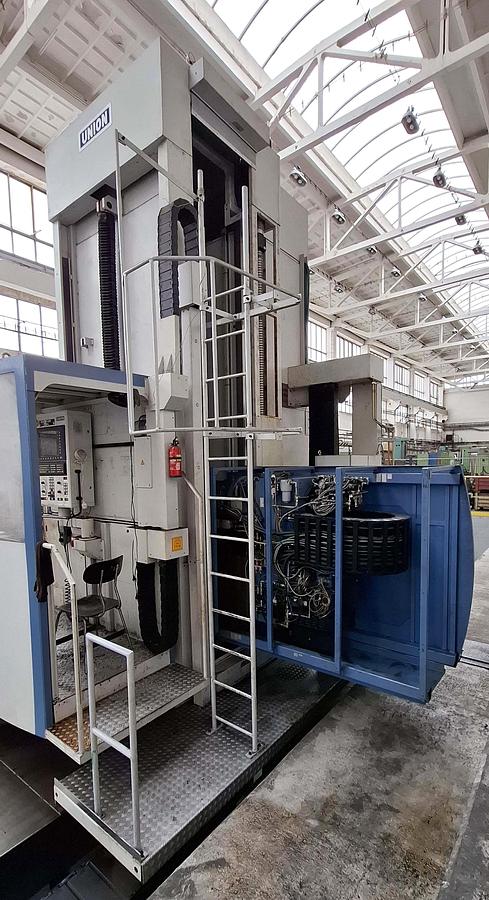

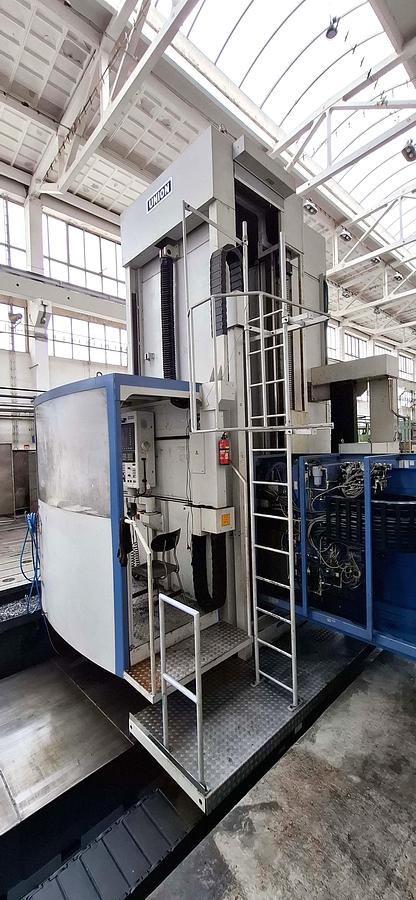

Operator lifting cabin

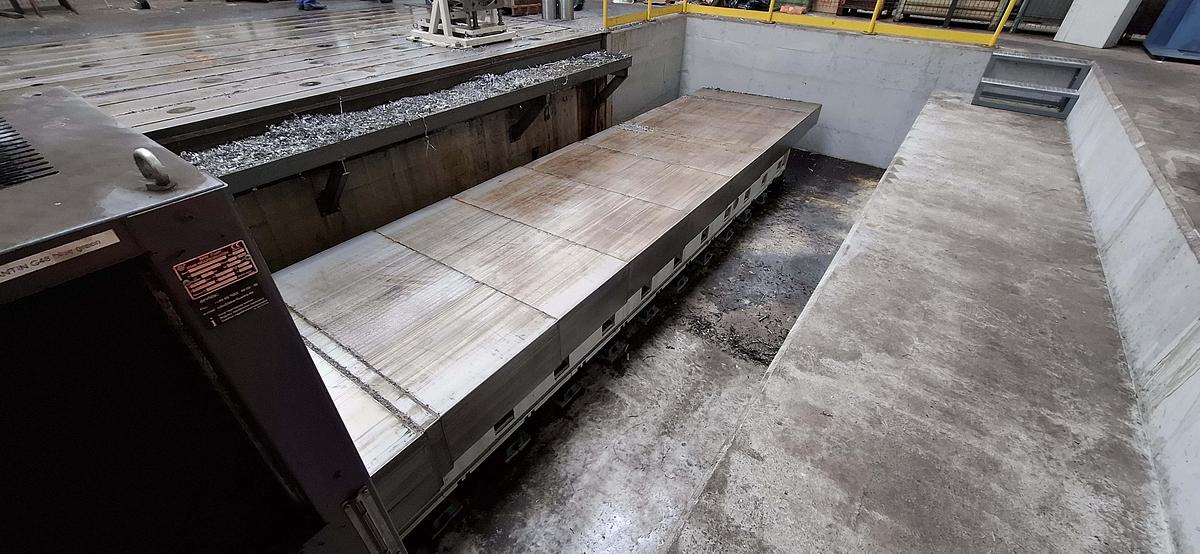

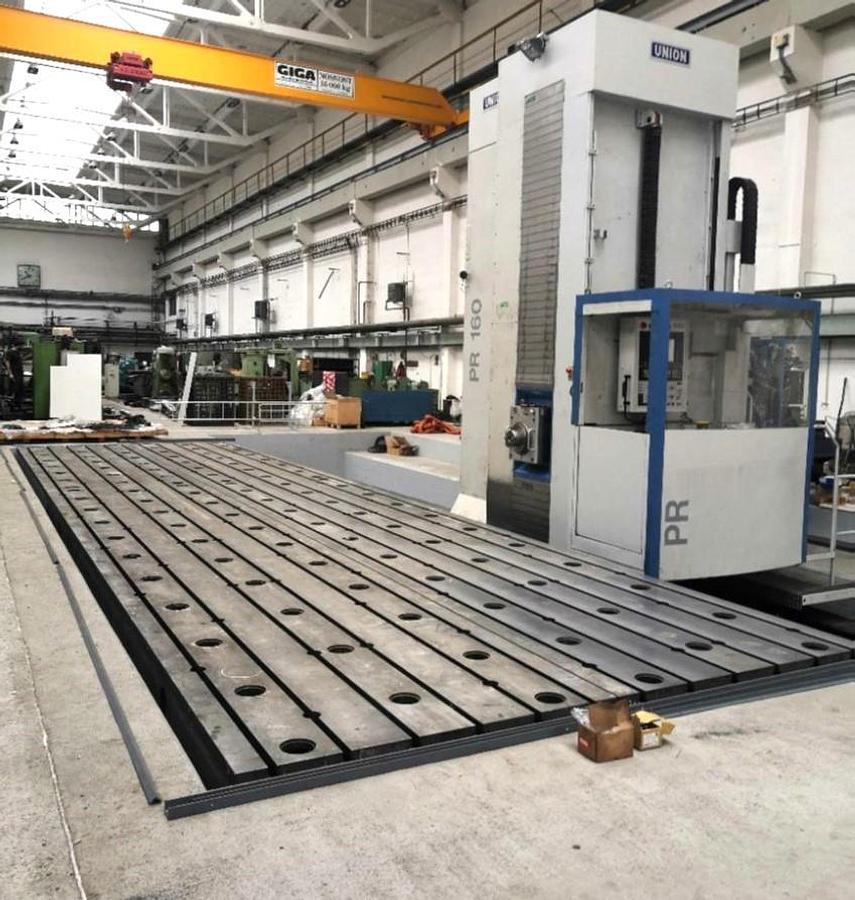

Clamping plates : total dimensions :13600 x 3770 mm,

Divided into 4 parts,

Right-angle milling head KFD4/90:

Automatic head clamping on the quill

Automatic tool clamping

Clamping cone : ISO 50,

Max power : 30 kW,

Max torque : 1000 Nm,

Max speed : 2800 rpm,

Max. feed force X,Y : 17.5kN,,

Max. feed force W : 12kN,

Positioning : 1-360°,

Positioning accuracy : +/-3 sec.
