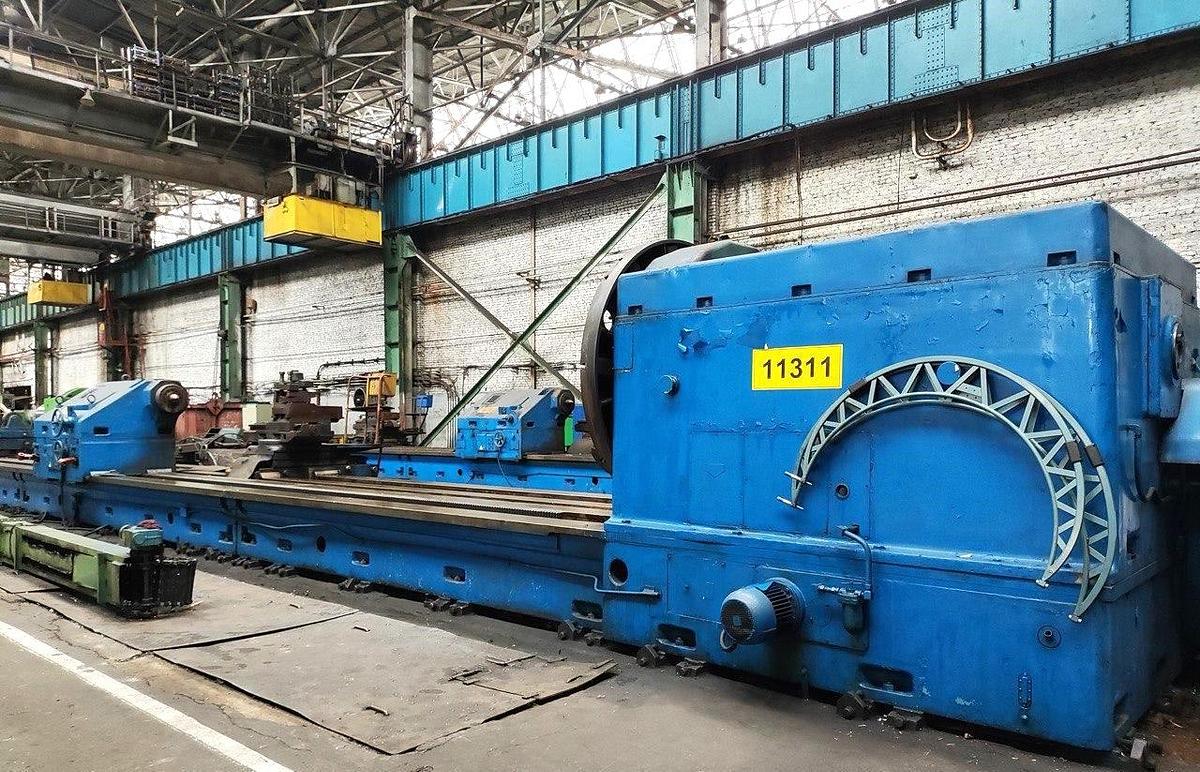

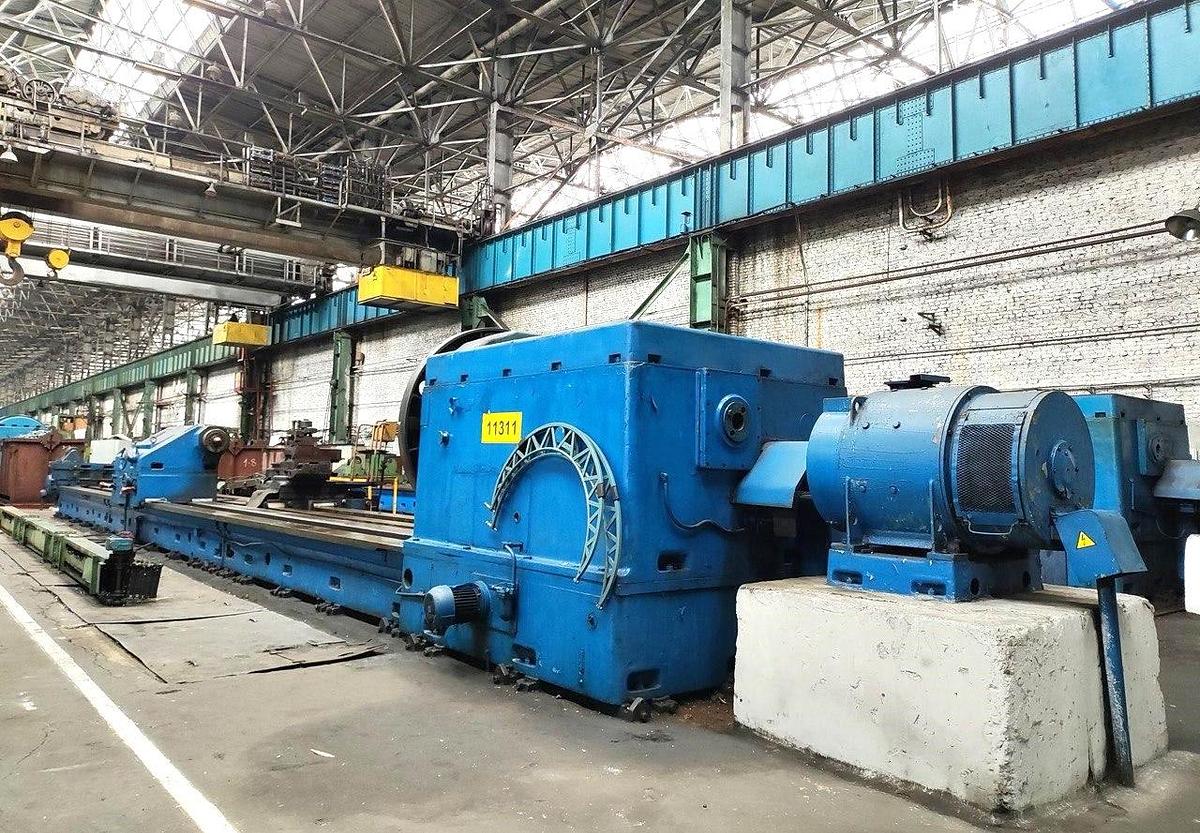

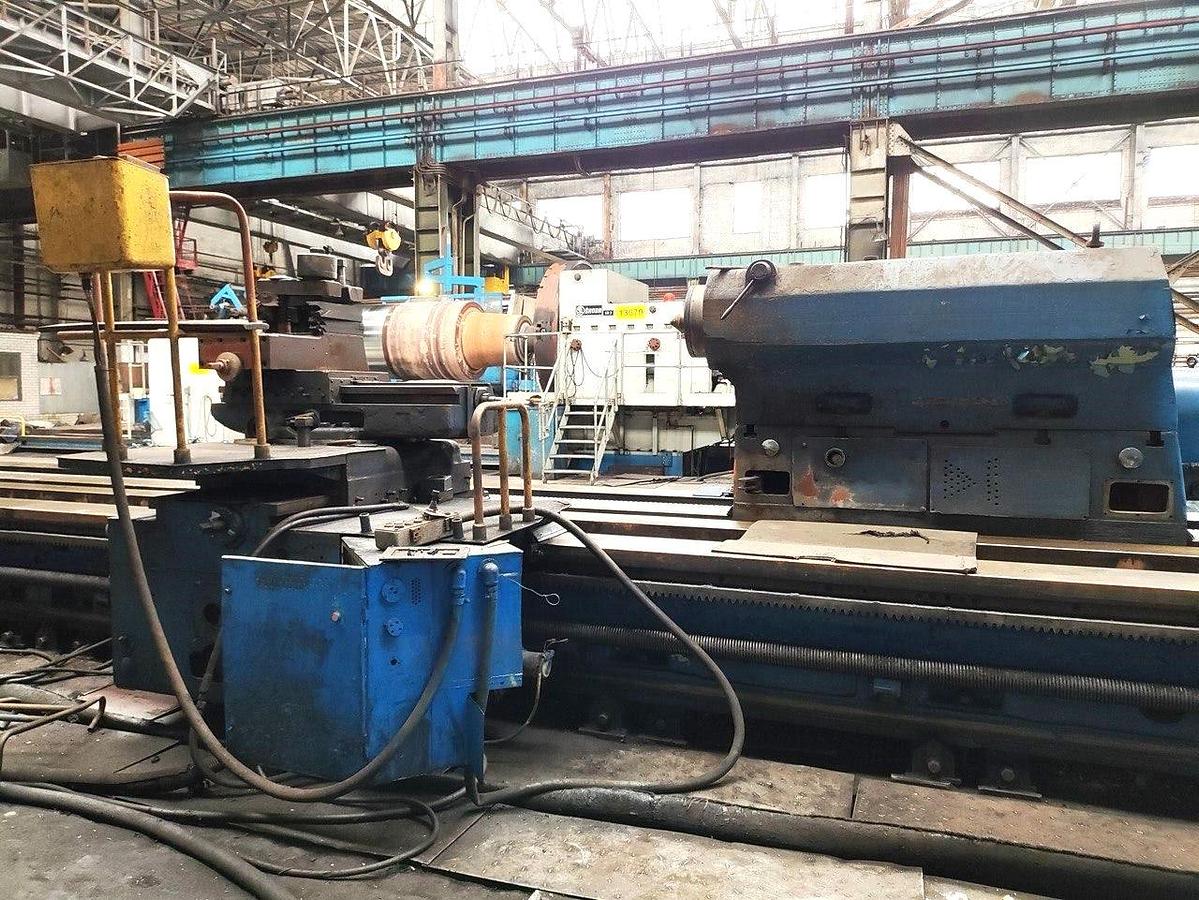

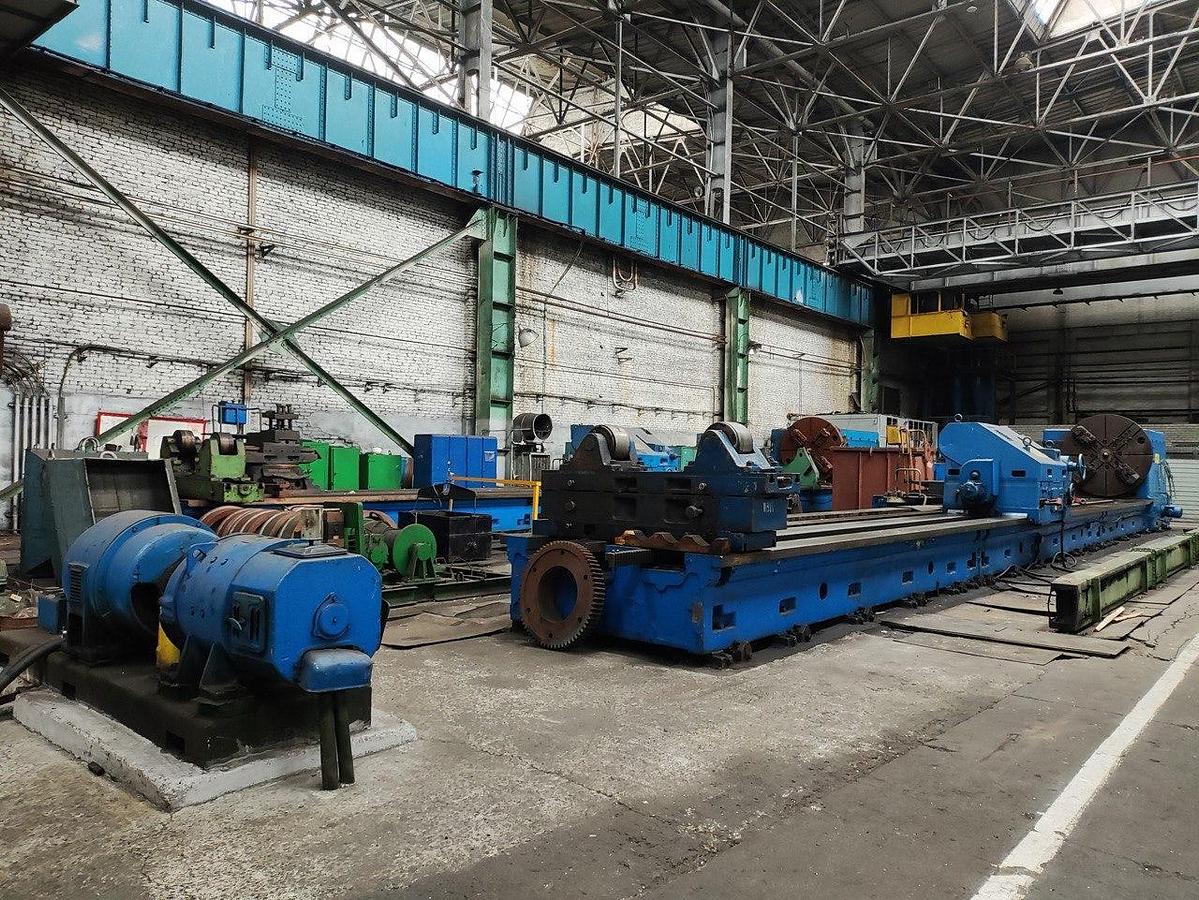

Lathe Heavy Duty CNC Kramatorsk 1A670
or
Call +919920651051
Specifications
| Manufacturer | Kramatorsk |
| Model | 1A670 |
| Year | 1987 |
| Condition | Used |
| Stock Number | MA3309 |
| Item condition | Good condition |
| Capacity tons | 2000 |
Description
The Model 1A670 heavy-duty screw-cutting lathe was manufactured from 1962 to 1987. A total of 251 units were produced.
Maximum workpiece diameter: 2000 mm,
Maximum workpiece diameter over the carriage: 1600 mm,
Distance between centers: 16000 mm,
Dimensions (L×W×H): 17720 × 3250 × 2850 mm,

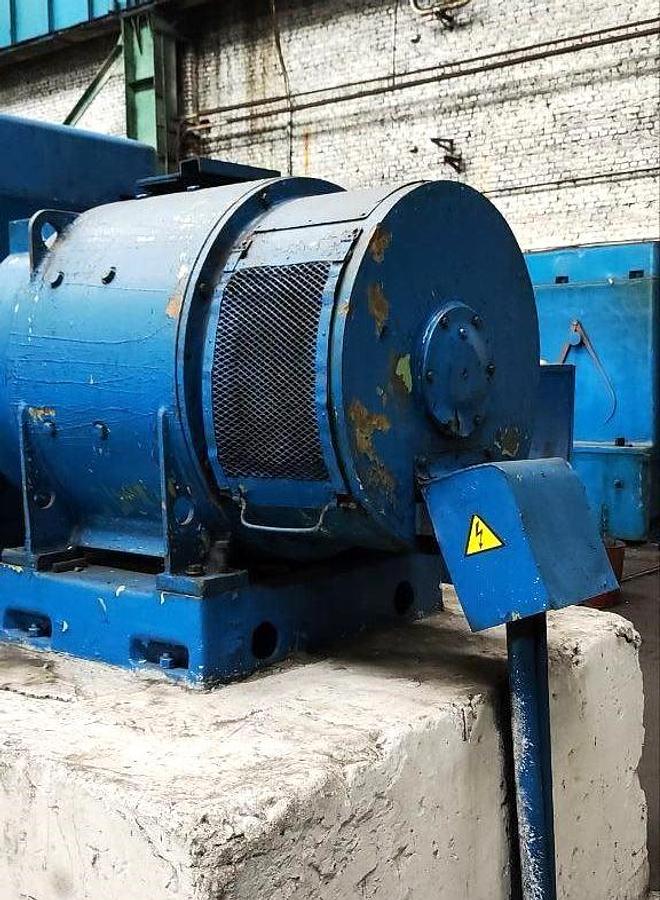

Main drive motor power : 100 kW,
Machine weight (including auxiliary equipment) : 104 tons,
Accuracy class: N,
Minimum spindle speed, rpm: 1,
Maximum spindle speed, rpm: 125.
Start of serial production: 1972,
