Borer Horizontal Table Type CNC Toshiba BF-130A

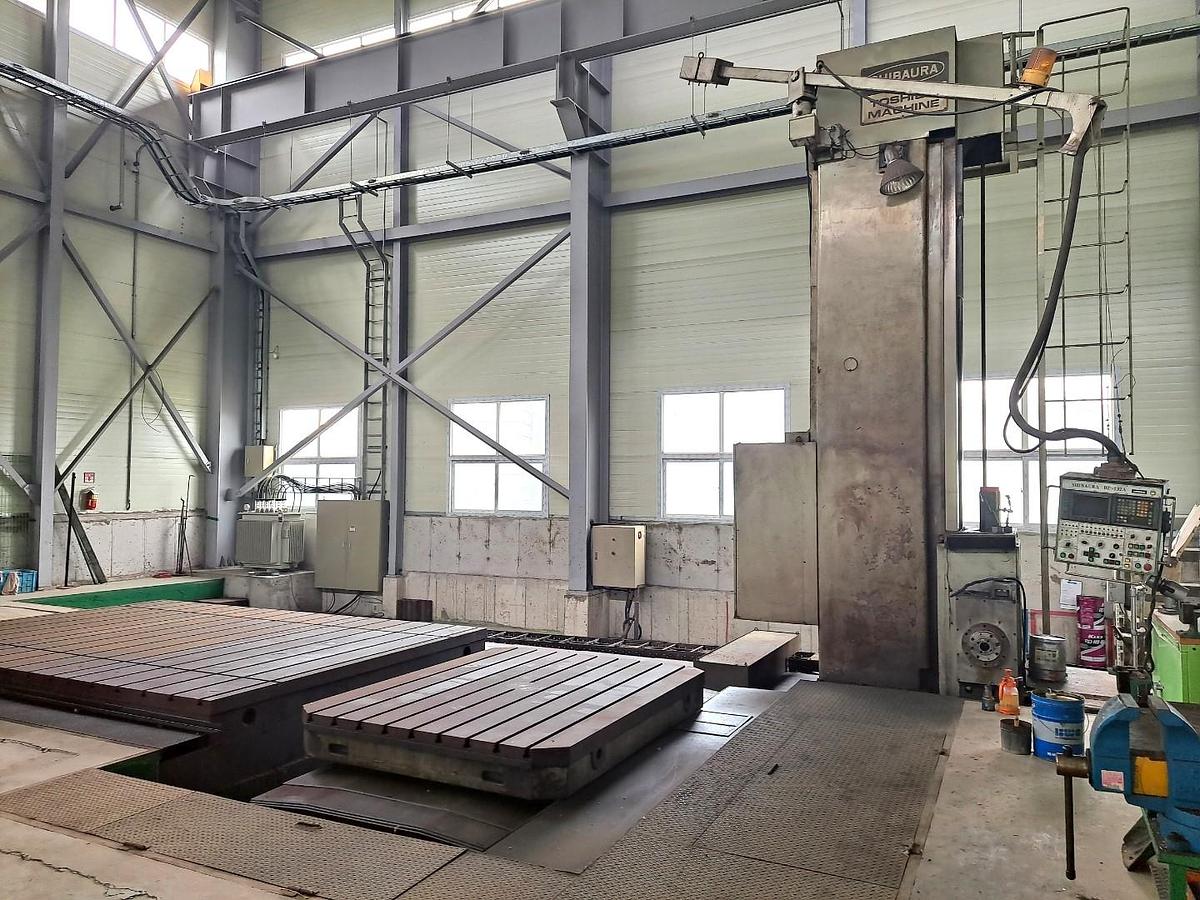

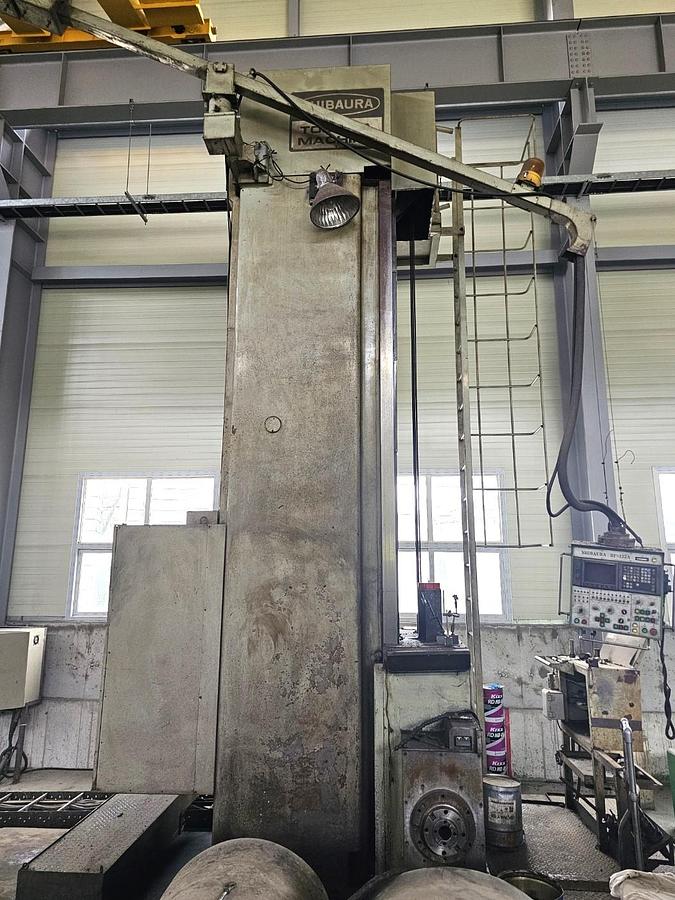

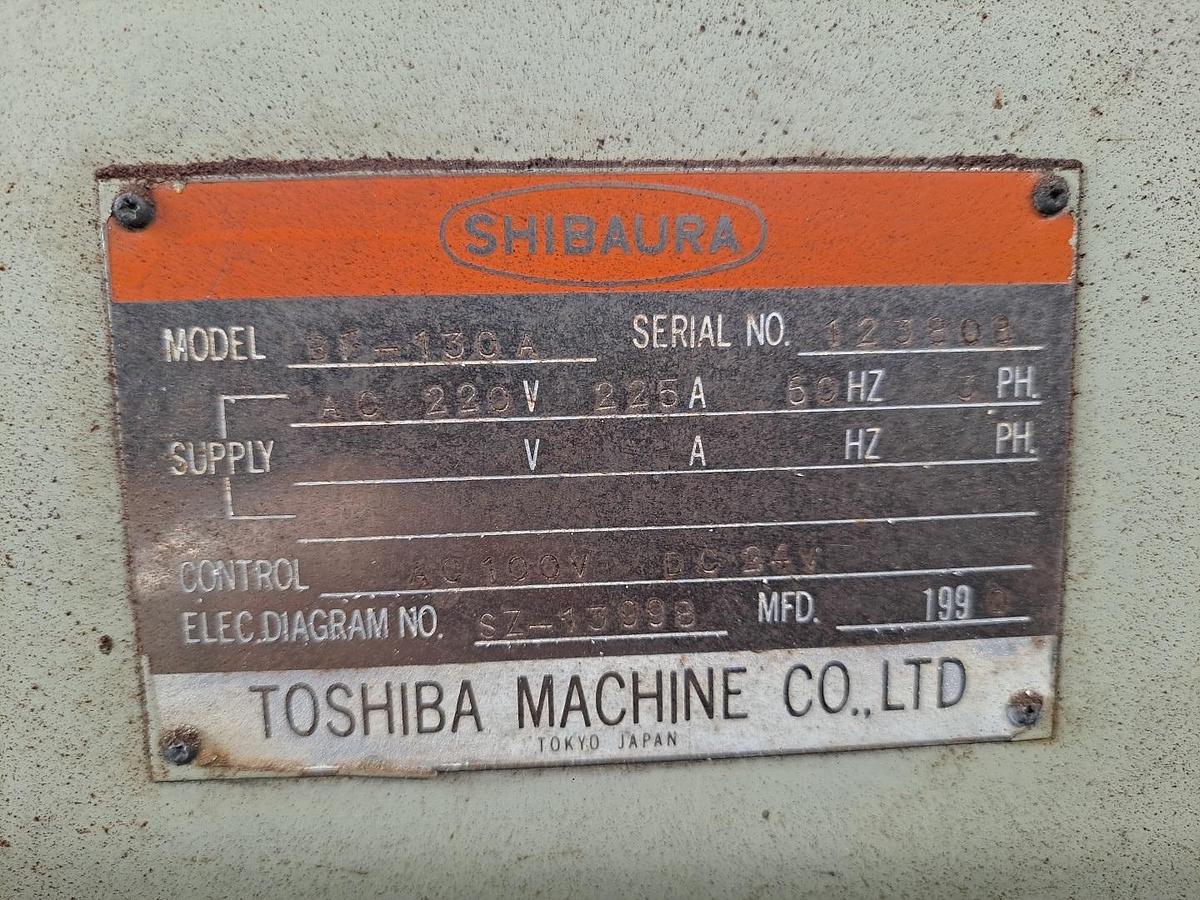

Shibaura CNC Floor Borer Model BF-130A, new 1990

With angle Head – 1ea ,

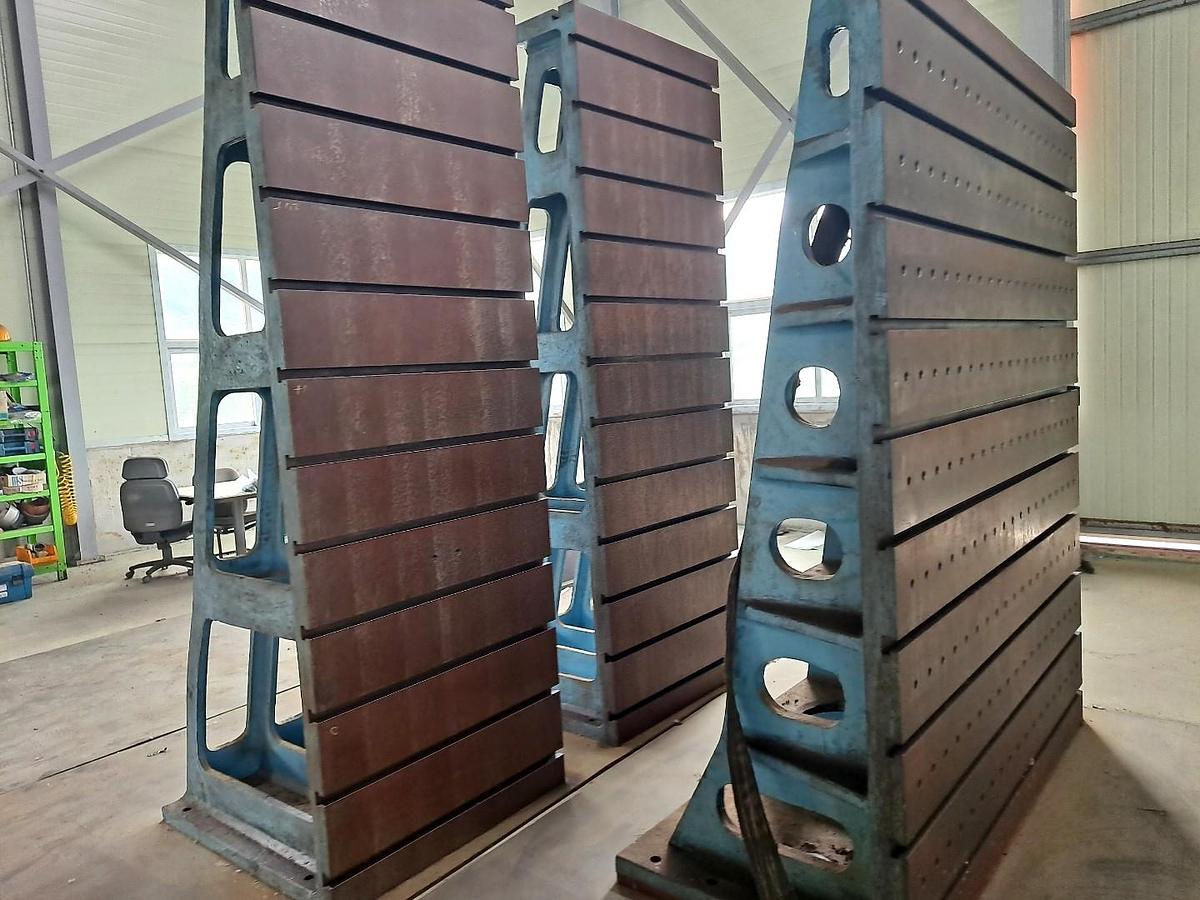

Angle Plate-3ea ,

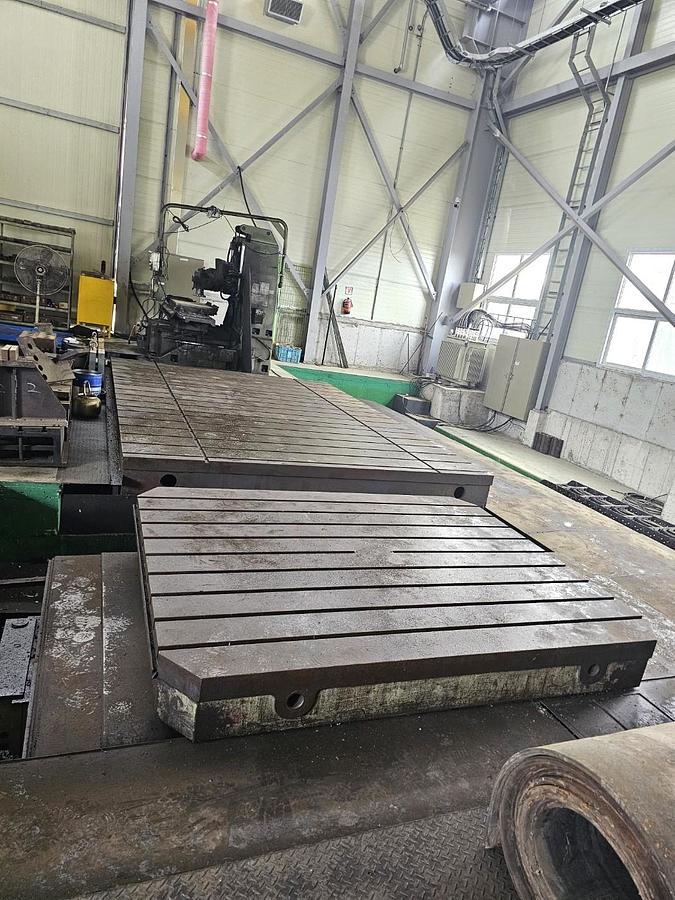

Fixed Plate

Main spindle Dia : 132 mm,

X travel : 9000 mm ,

Y travel : 3500 mm,

Z¹  ( Spindle) travel :  1000 mm,

Z²  ( Quill)  travel  :  450 mm,

Total travel of   Z¹ +  Z² : 1000 mm,

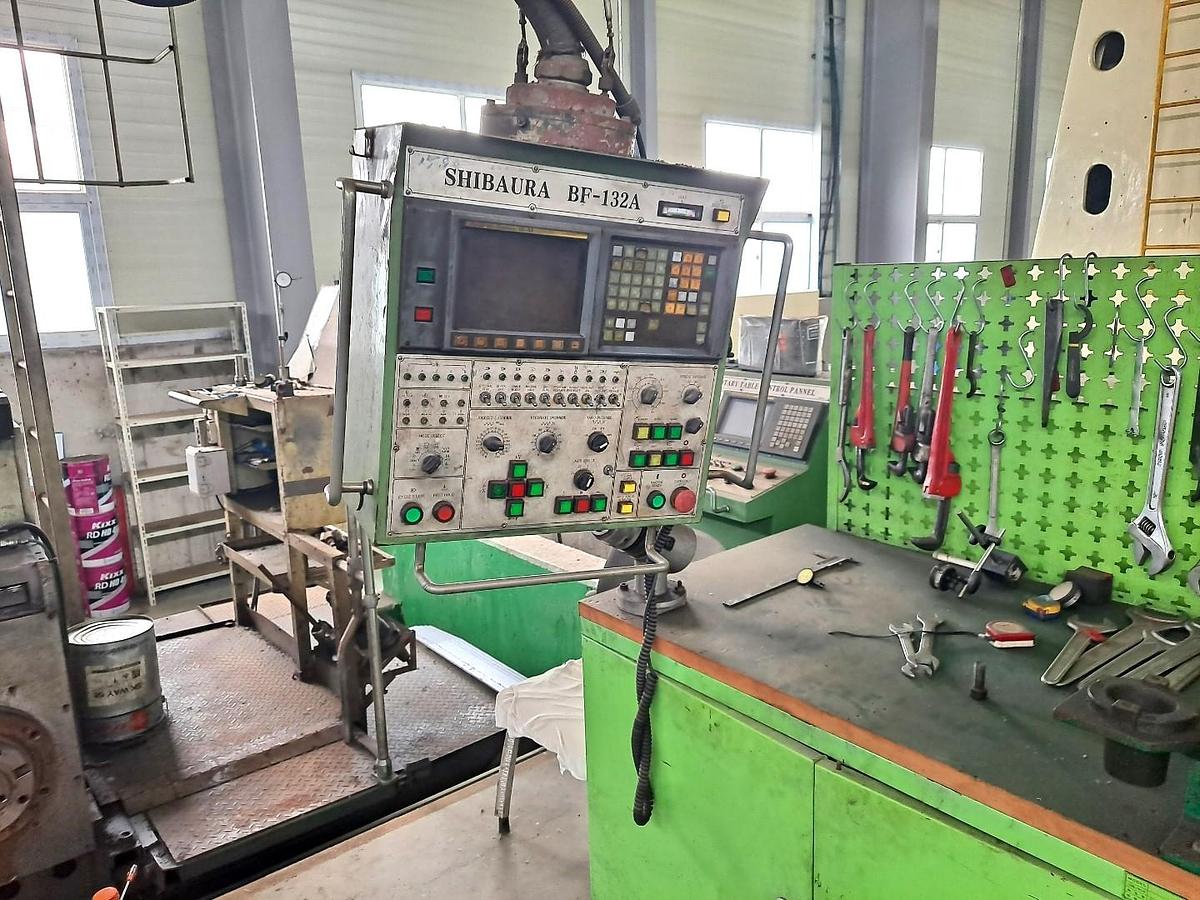

CNC controller : Fanuc 15M,

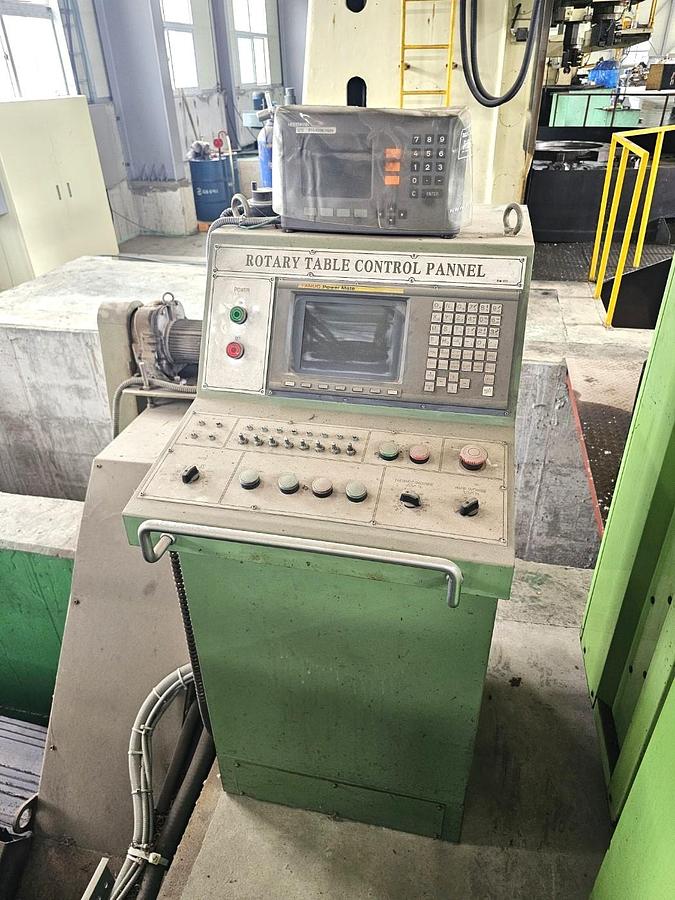

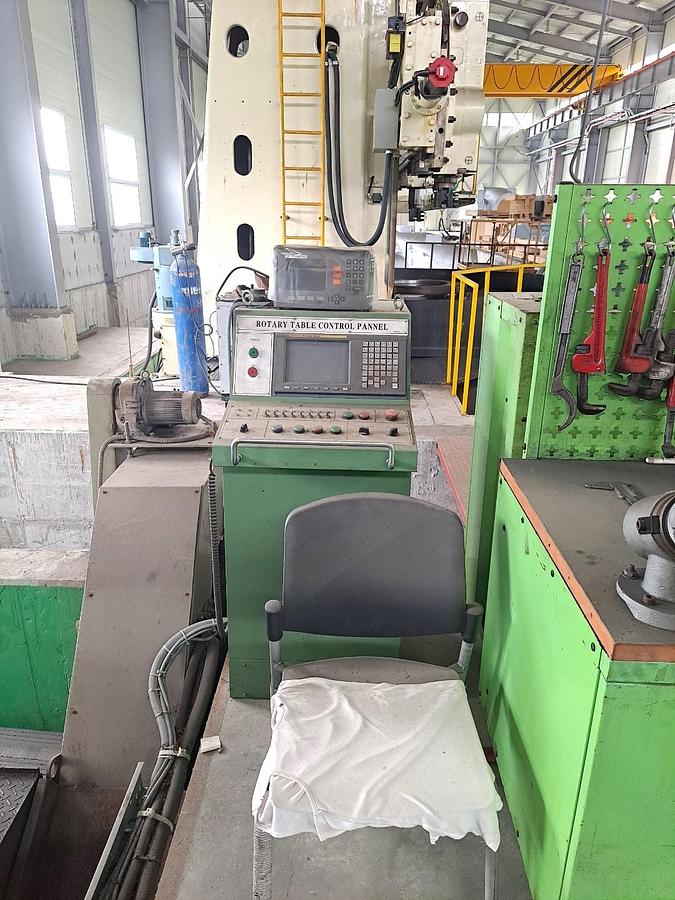

With NC Rotary Table (Independent Control panel),

Rotary Table Size : 2000 x 2500 mm,

Loading capacity on Rotary Table : 20 ton,

Indexing Degree by Encoder : 1/1,000 degree.

Weight of the machine : approx. 55 tons.

Technical manuals available.

CNC Controller : Fanuc 15M.
