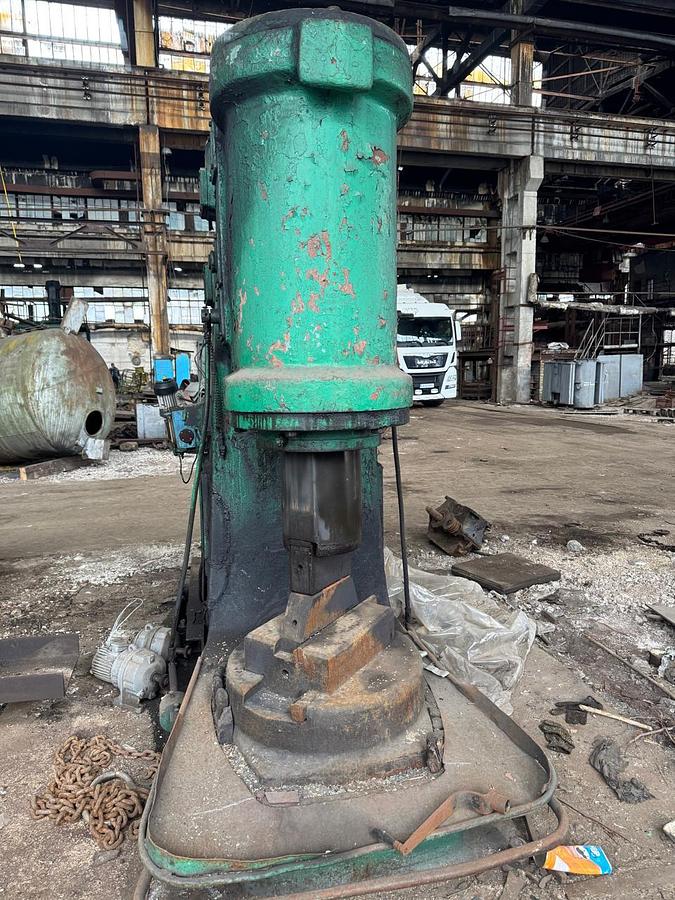

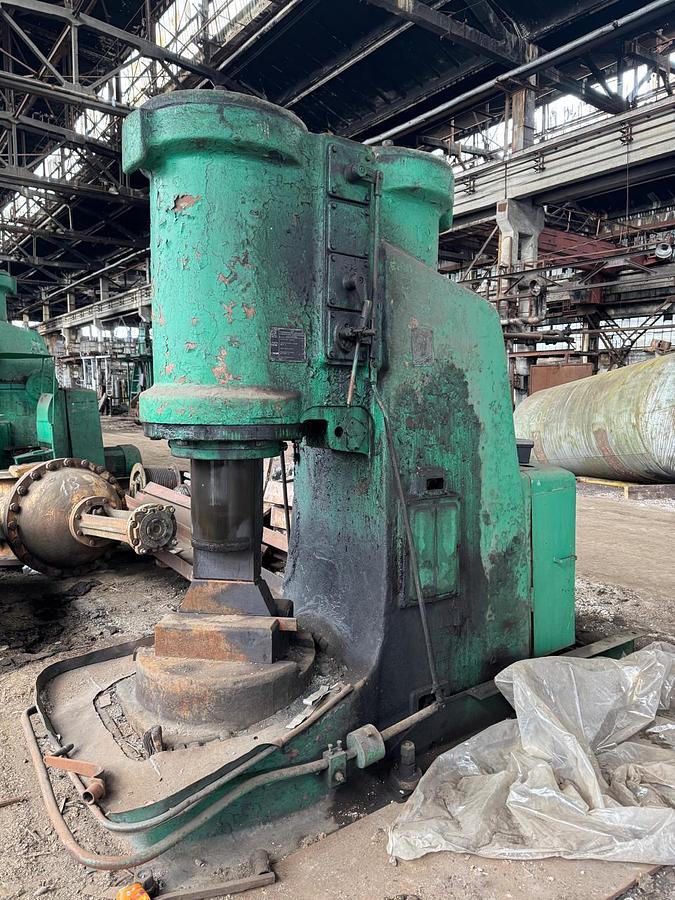

Hammer Drop Forging Open Die Russia MA4136

Weight of the falling parts : 400 kg,

Strike energy : 11 kJ,

Strike frequency per min: 142

Flight : 30 mm,

Height of the working area : 530 mm,

Dimensions of the working surface:

 -Length : 560 mm,

 -Width : 100 mm,

Optimal dimensions of the forging detail : 100 mm,

Power : 37 kW,

Overall dimensions mm:

Length : 3200 mm,

Width : 1320 mm,

Height : 2700 mm,

Height over the floor level : 2600 mm,

Weight: 13 tons.
