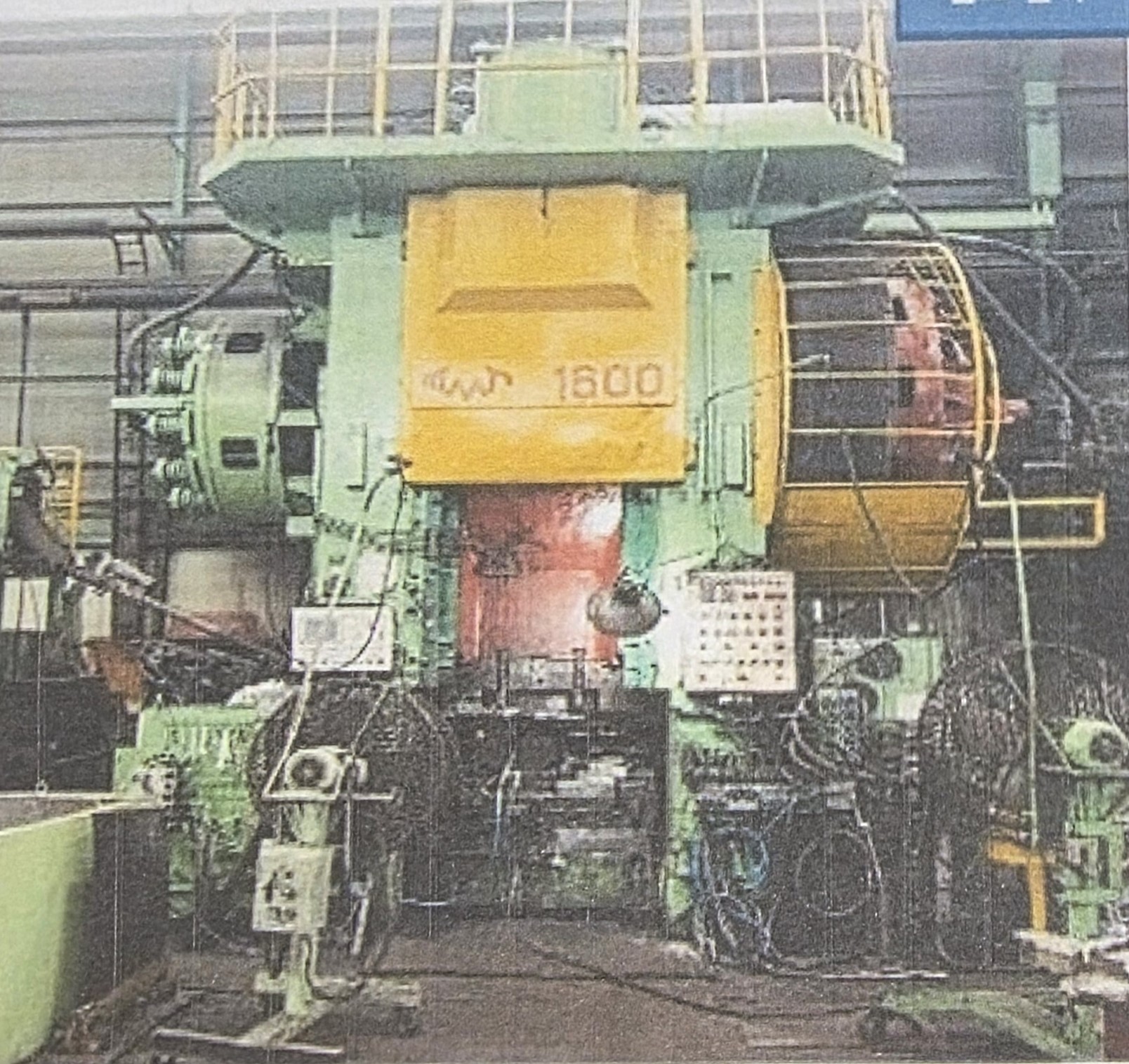

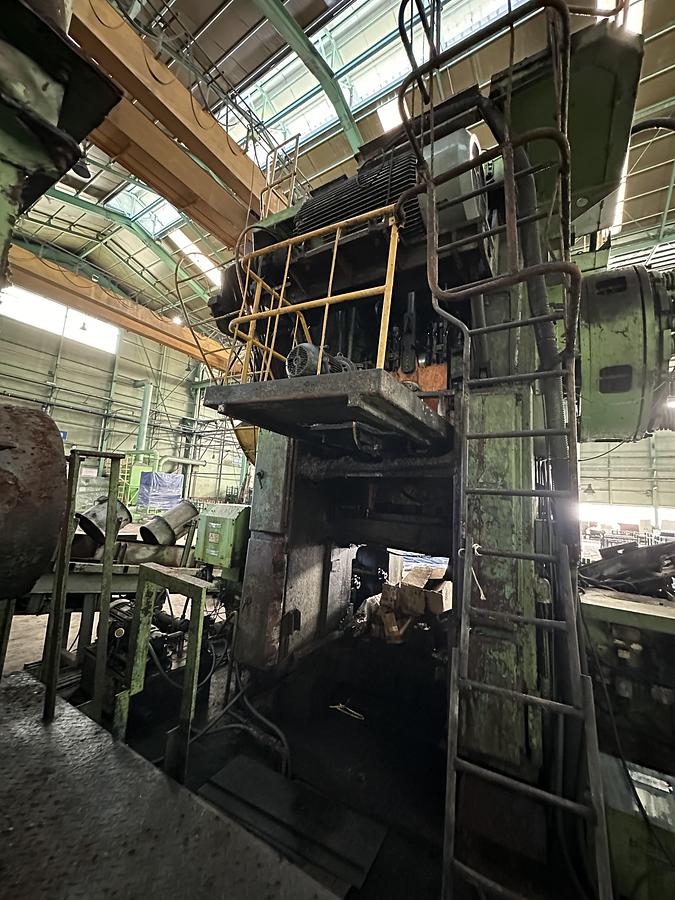

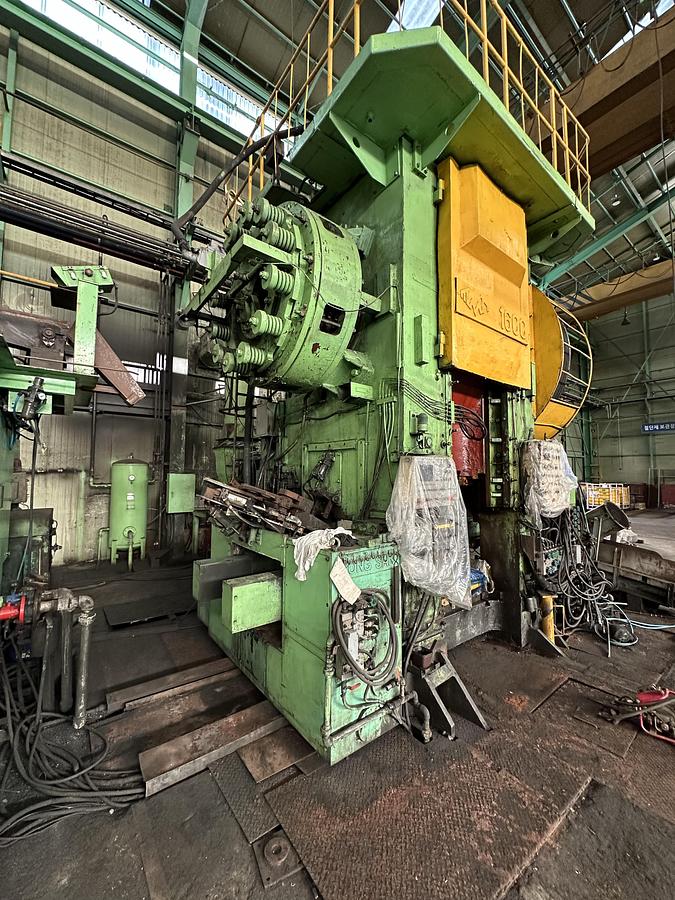

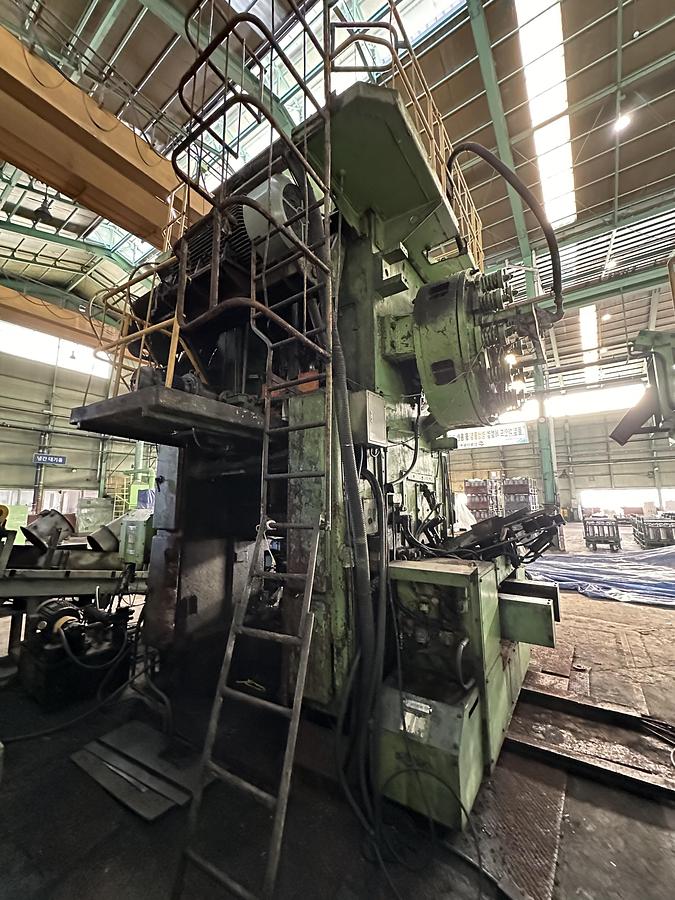

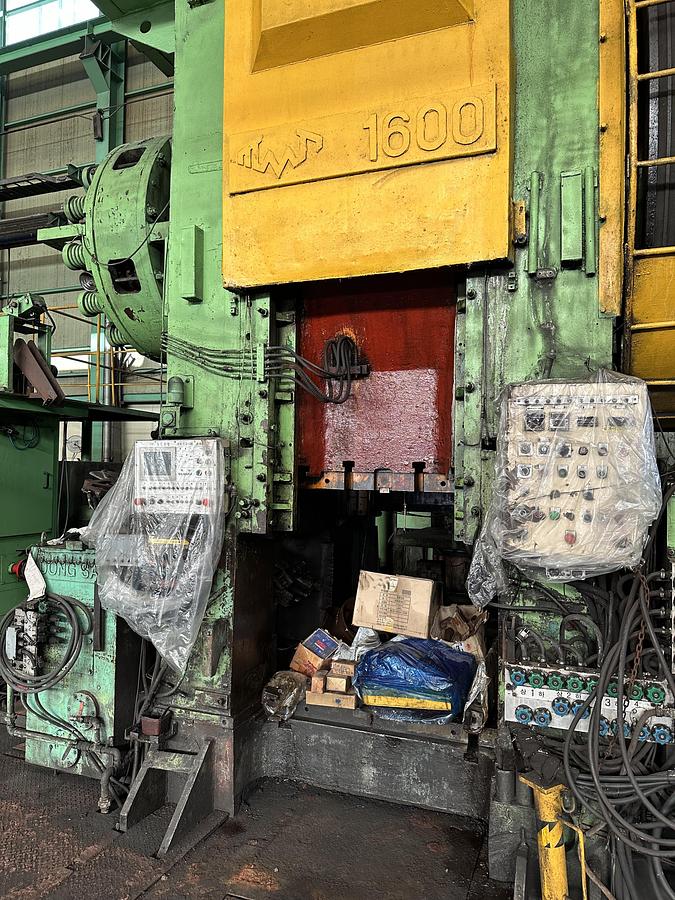

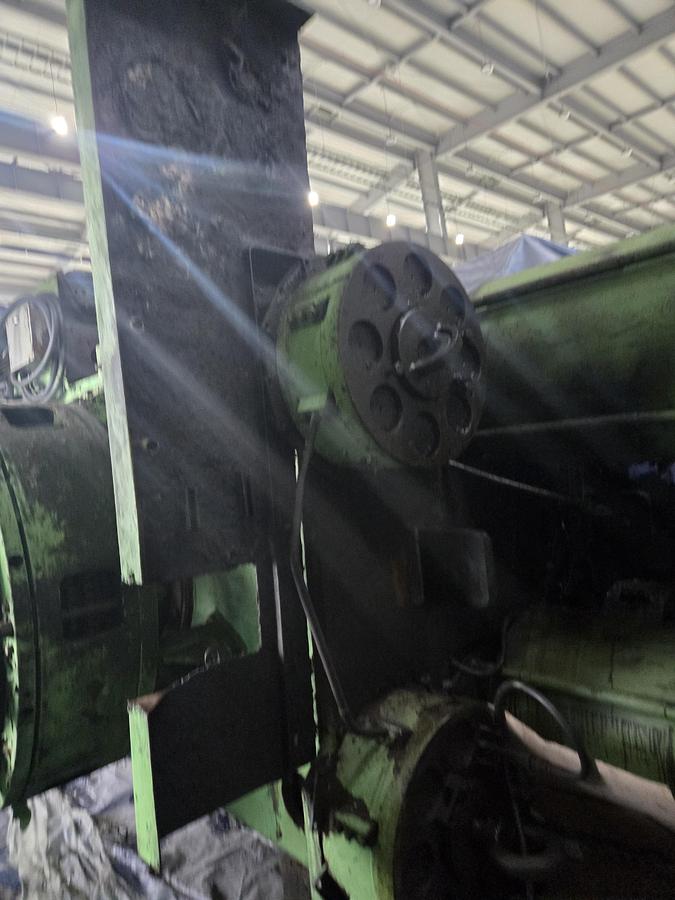

1600 tons Press Hot Forging TMP Voronezh Russia KG8042
or
Call +919920651051
Specifications
| Manufacturer | TMP Voronezh Russia |
| Model | KG8042 |
| Year | 1997 |
| Condition | Used |
| Stock Number | MA3319 |

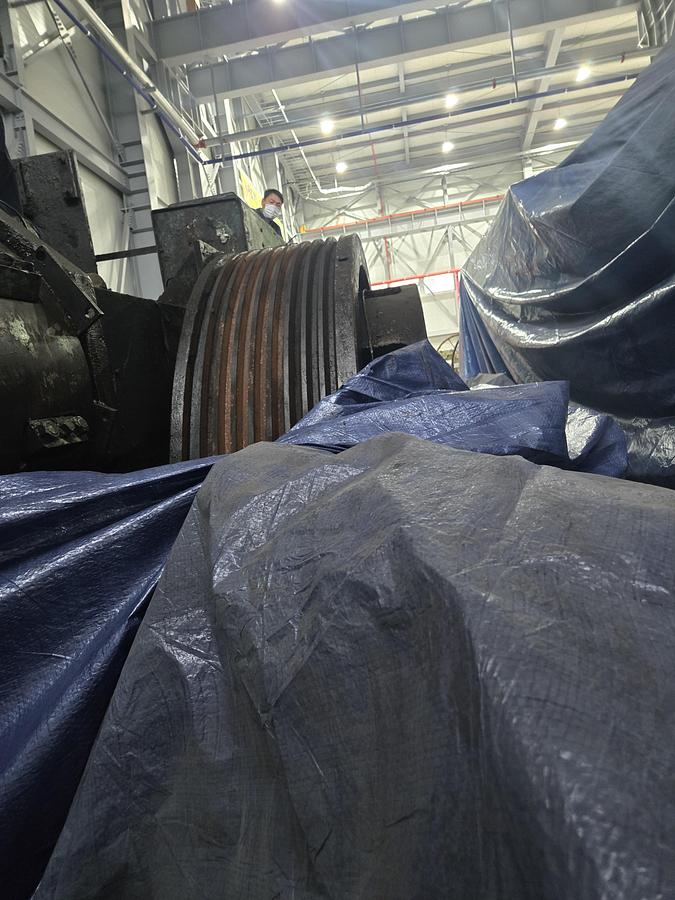

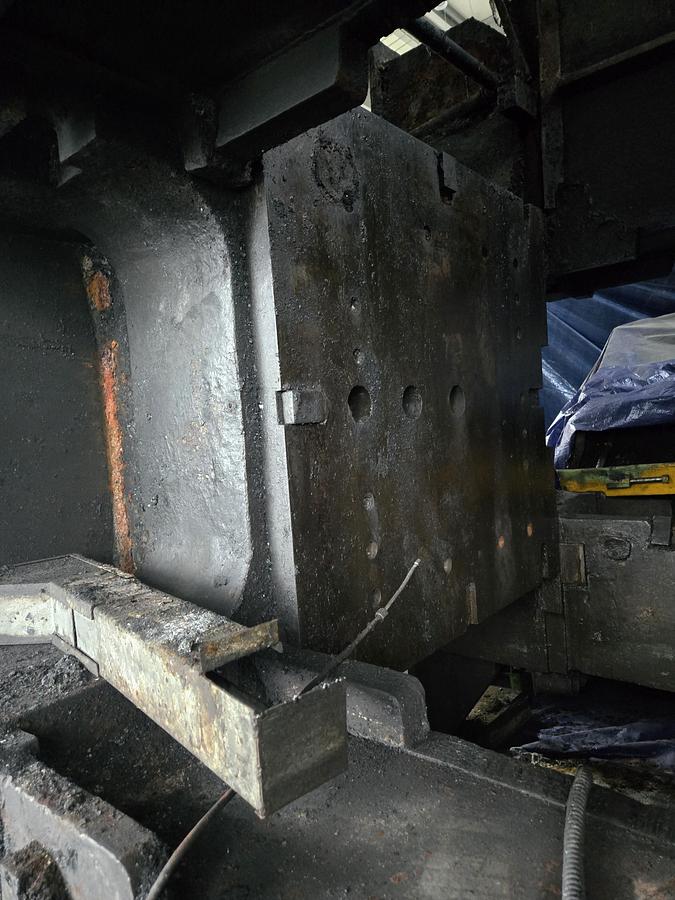

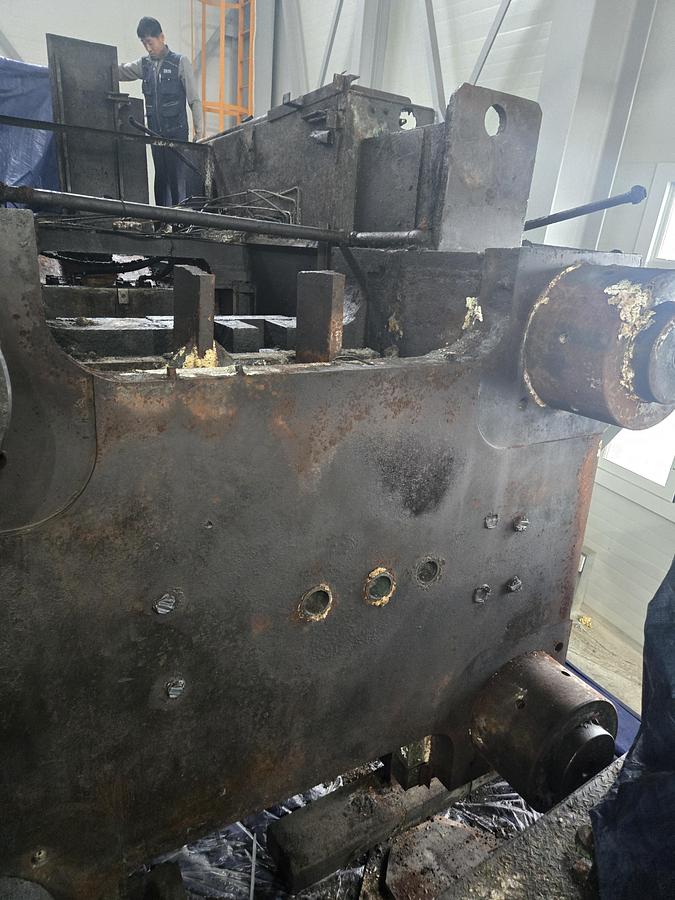

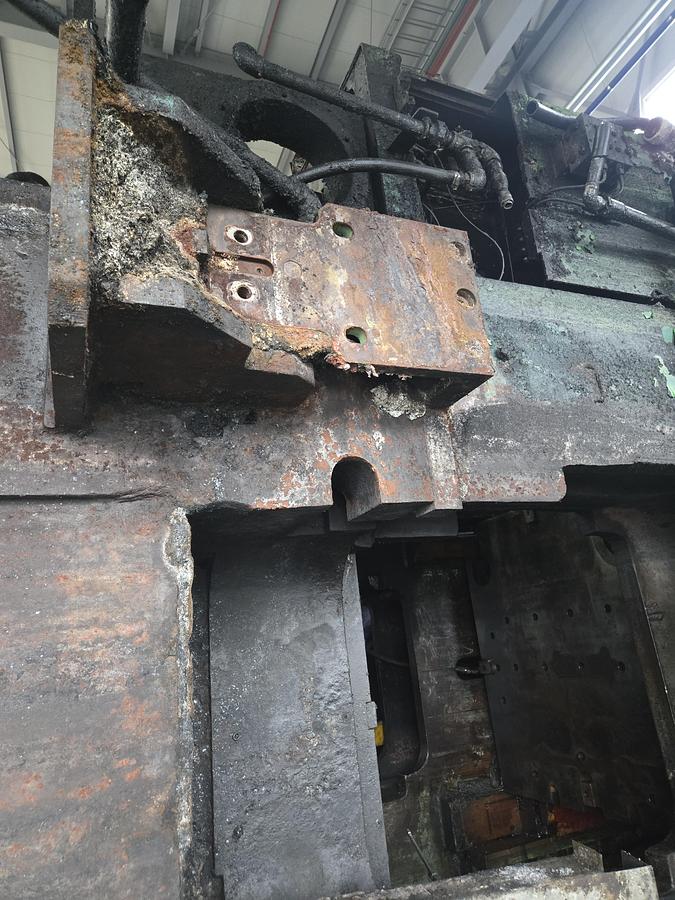

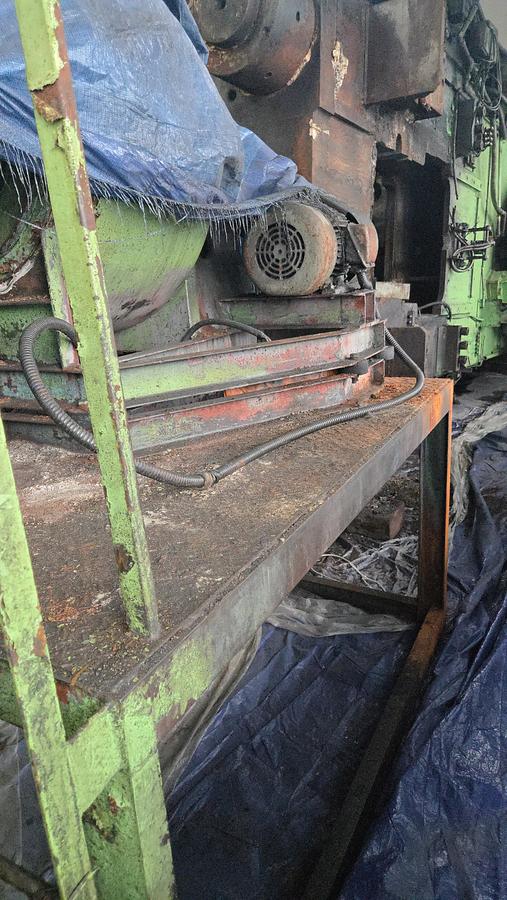

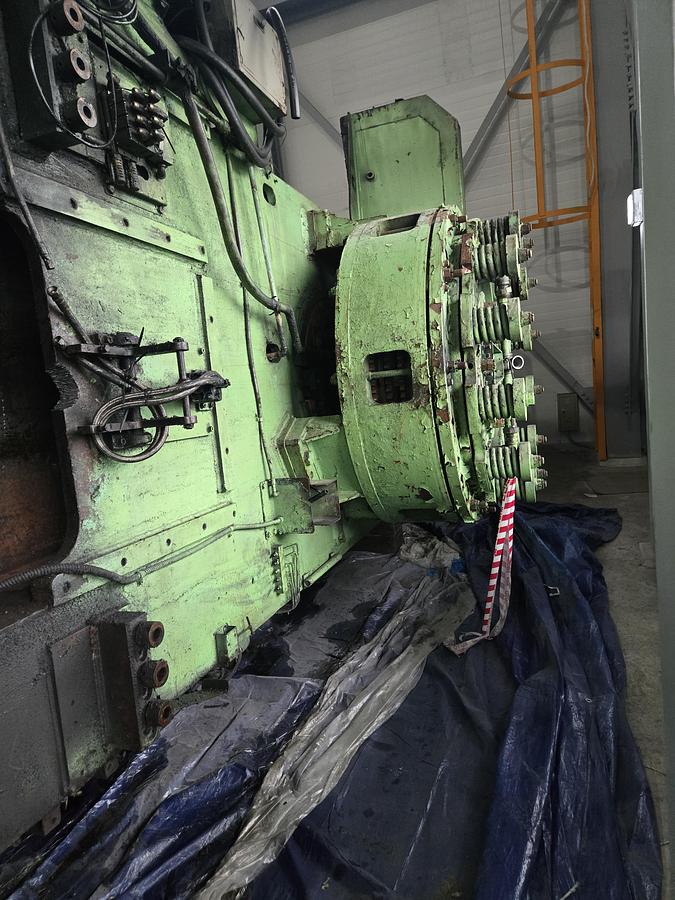

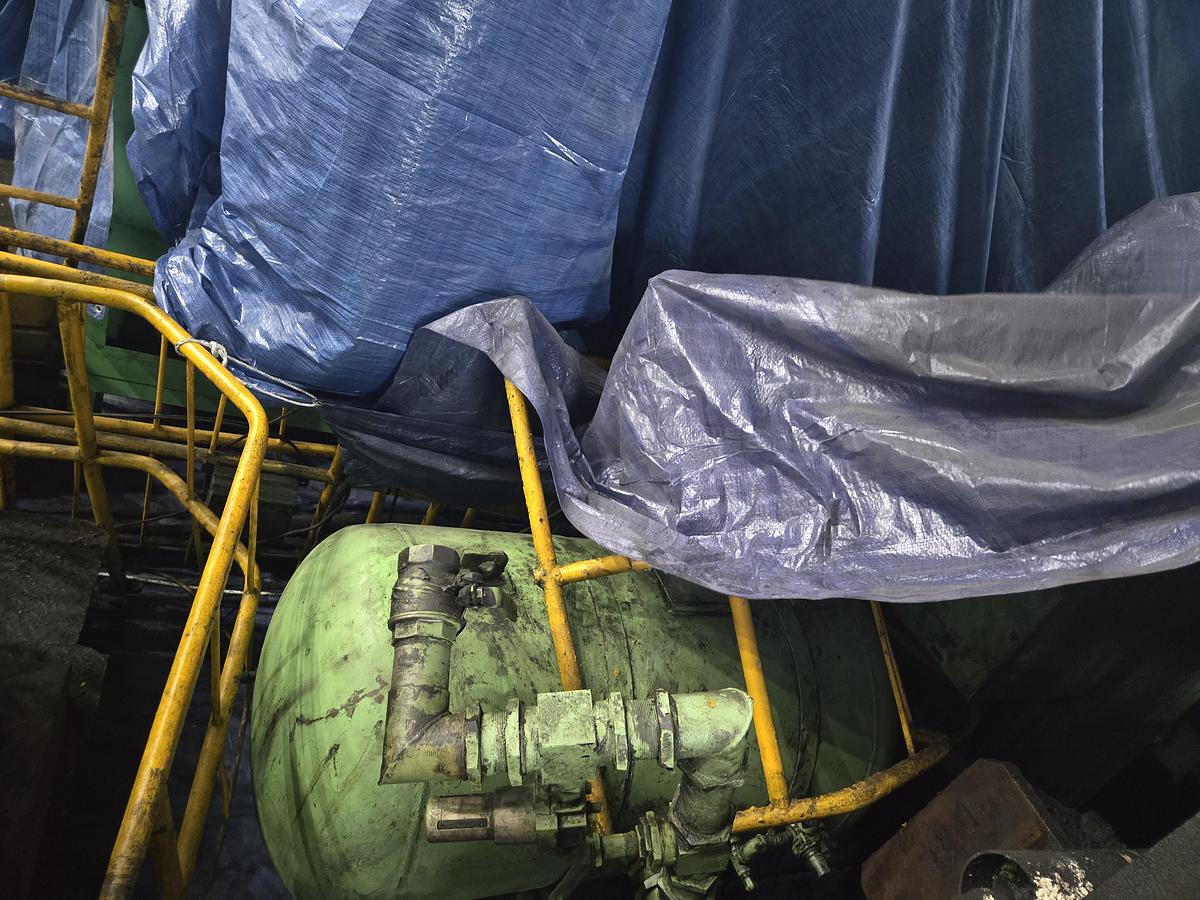

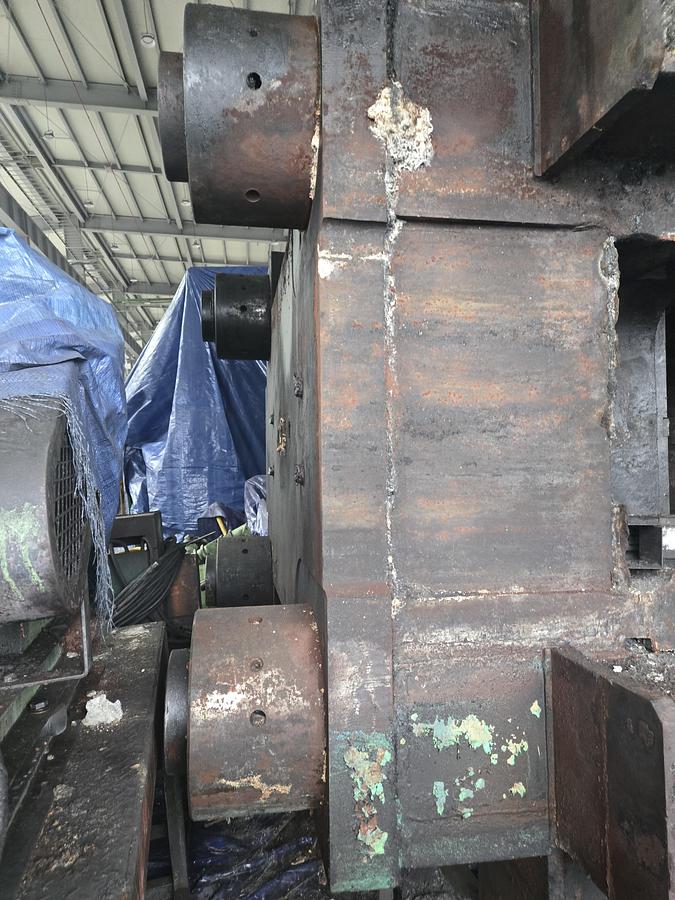

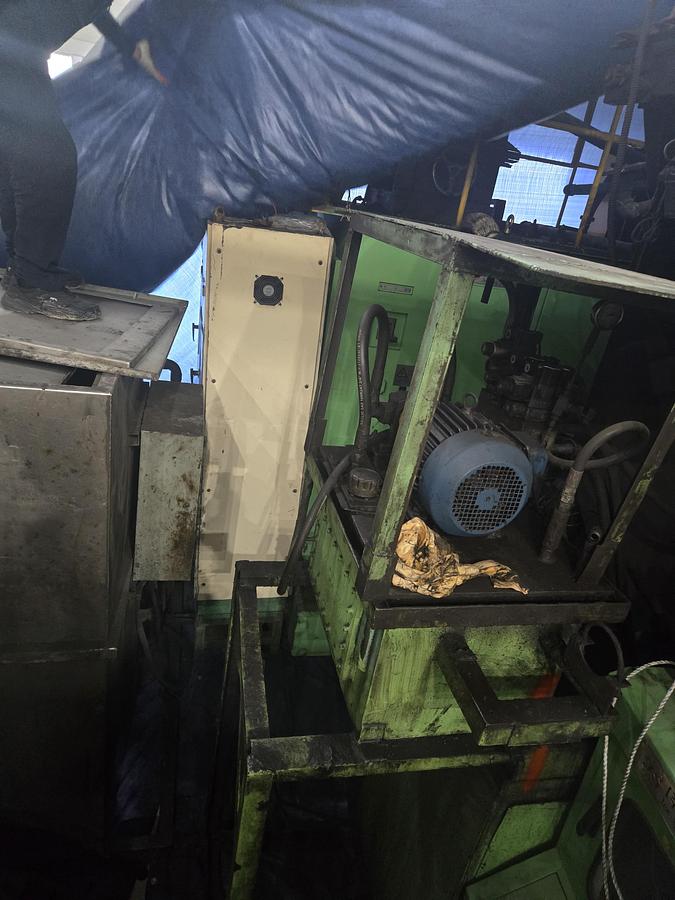

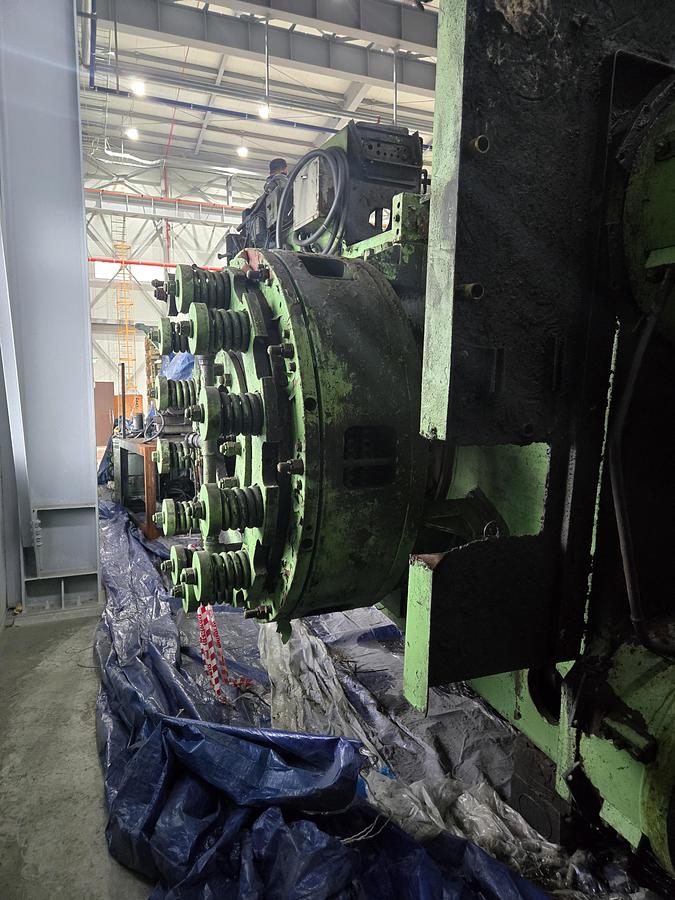

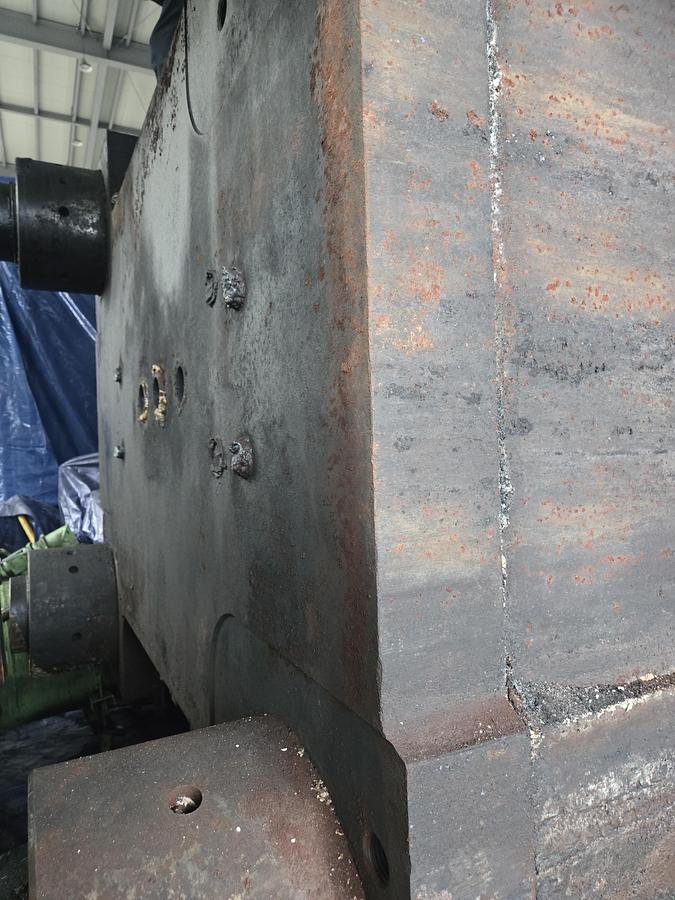

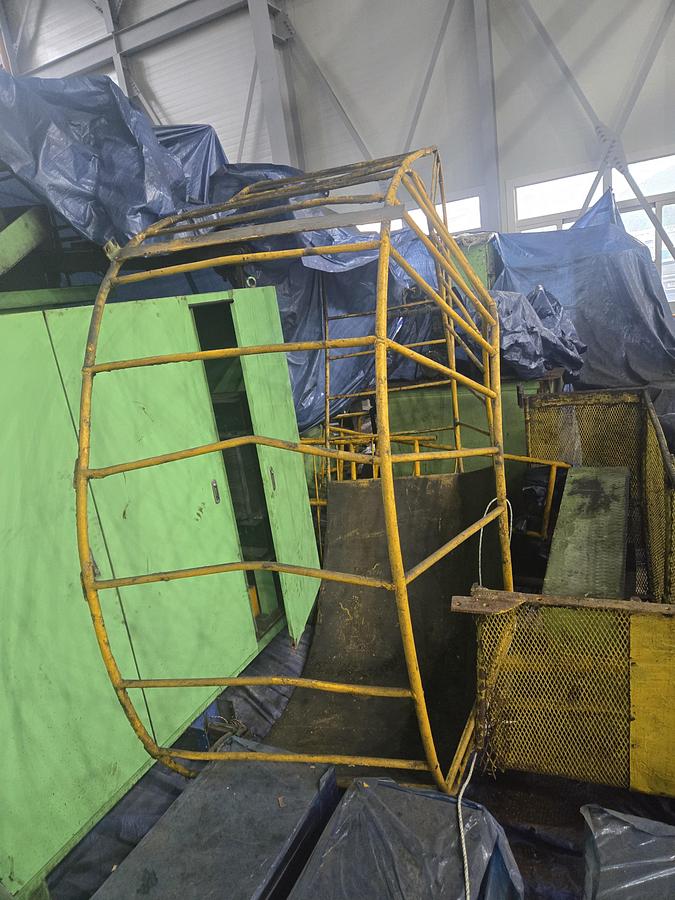

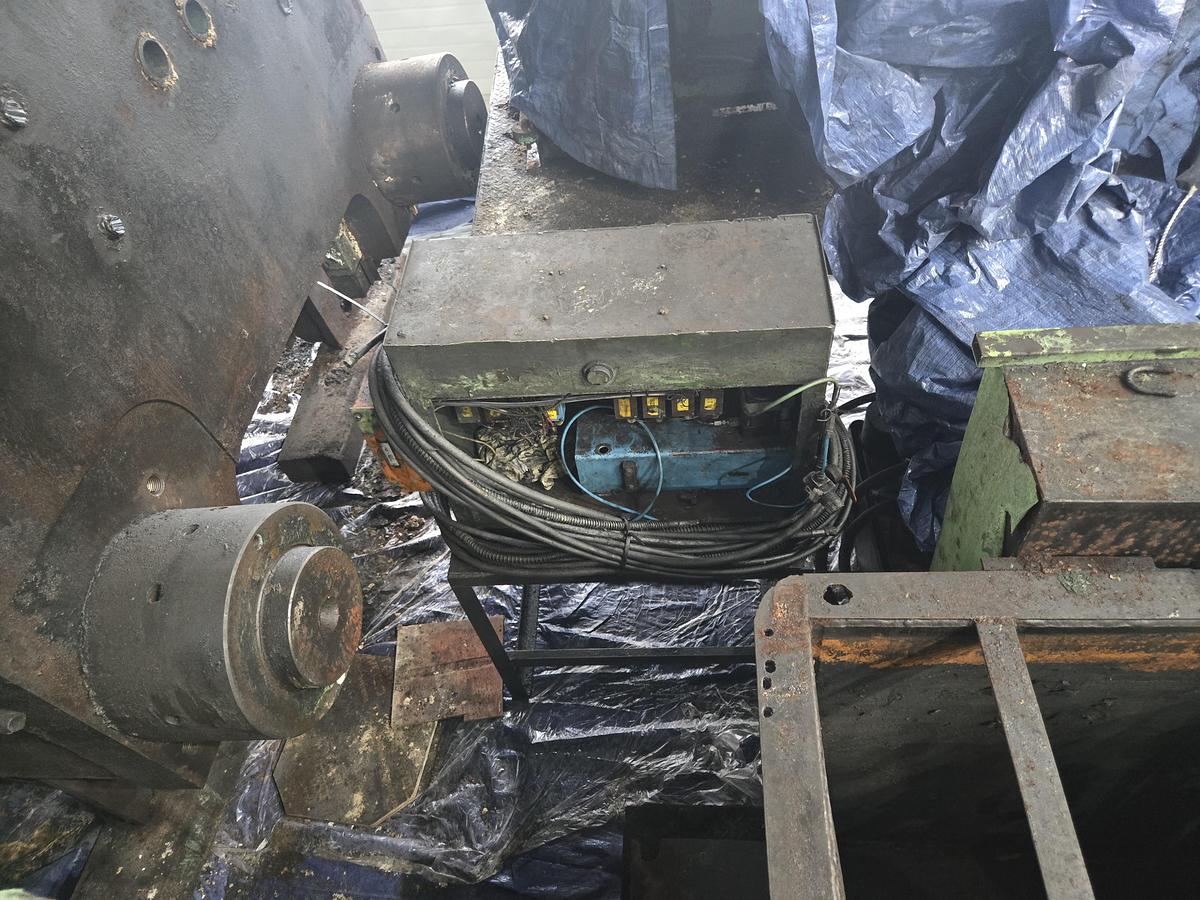

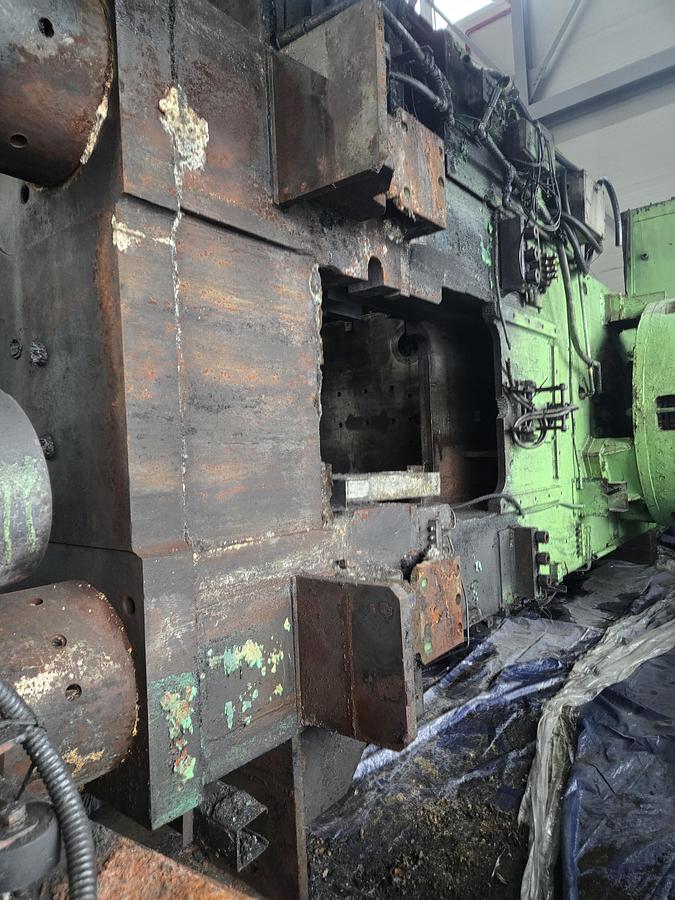

| Item condition | Good condition, Partially dismantled & Stored |
| Capacity tons | 1600 |
Description
Capacity : 1600 tons,
Stroke : 300 mm,
Number of stroke per min-1 : 85,
Number of single switches : 26 min-1,
Die height : 850 mm,
Die space Adjustment in the ram : 10 mm,
Table dimension (left to right) x (front to back) : 1260 x 1200 mm,
Ram dimensions (left to right) x (front to back) : 1120 x 1400 mm,
Uprights opening Dimensions (W x H) : 800 x 910 mm,
Mechanic Upper knockout :
Power : 5 TN,
Stroke : 50 mm,
Pneumatic Lower knockout :
Power : 10 TN,
Stroke : 40 mm,

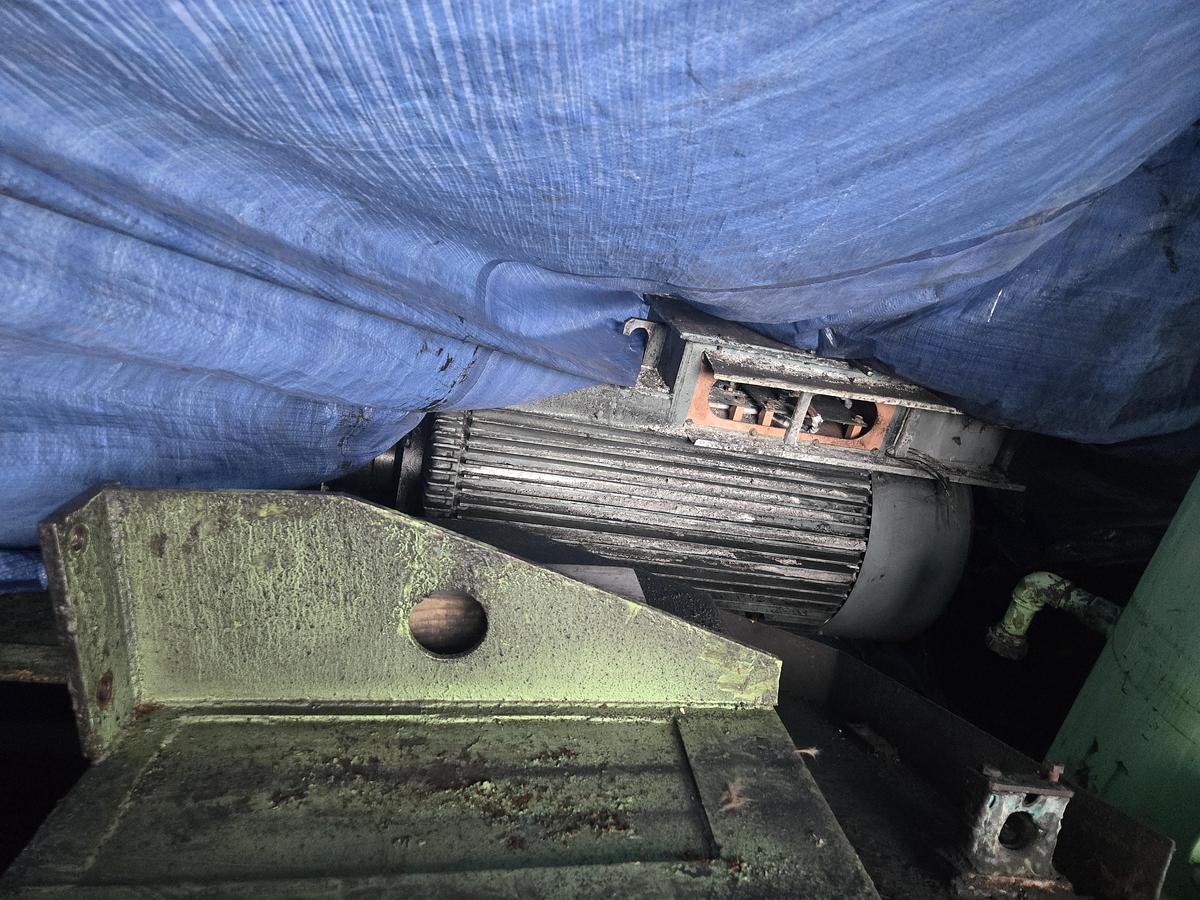

Main motor : 150HP x 440V,
Bolster (LR x FB) : 1260 x 1200 mm,
Die Height : 850 mm,
Overall dimensions of the press (LR x FB x H) : 5340 x 4090 x 5640 mm,
Press weight : 120 tons.
Knock out : by Hydraulic,

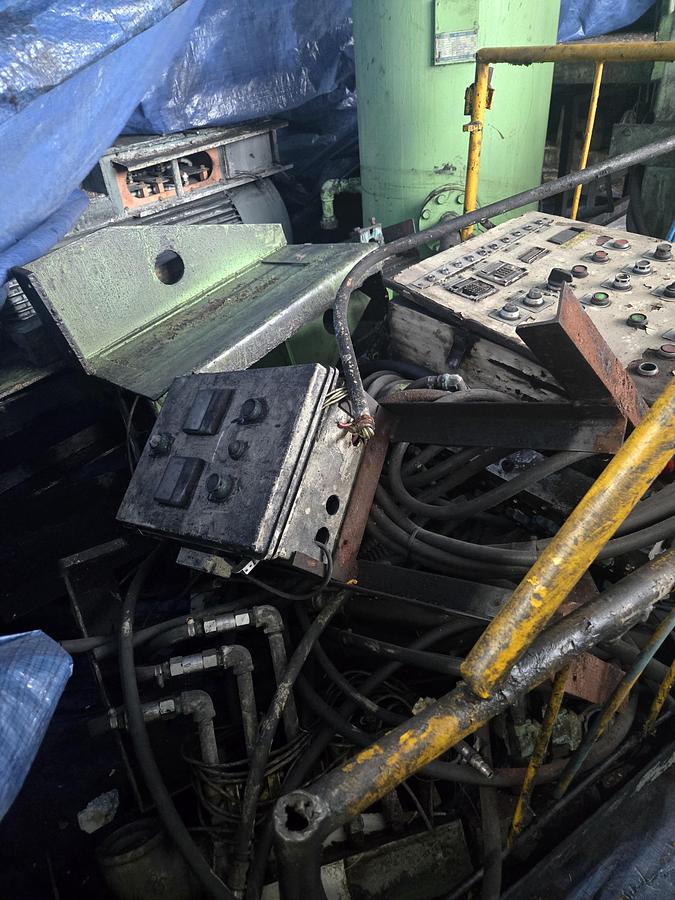

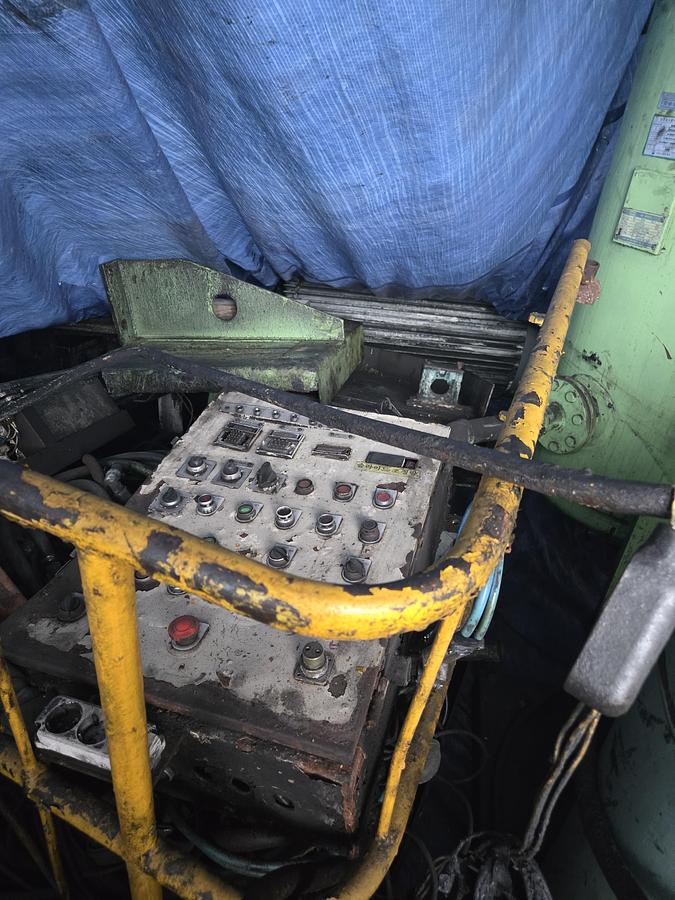

Main Electrical Panel : PLC.
New 1997 , Installed 1998;

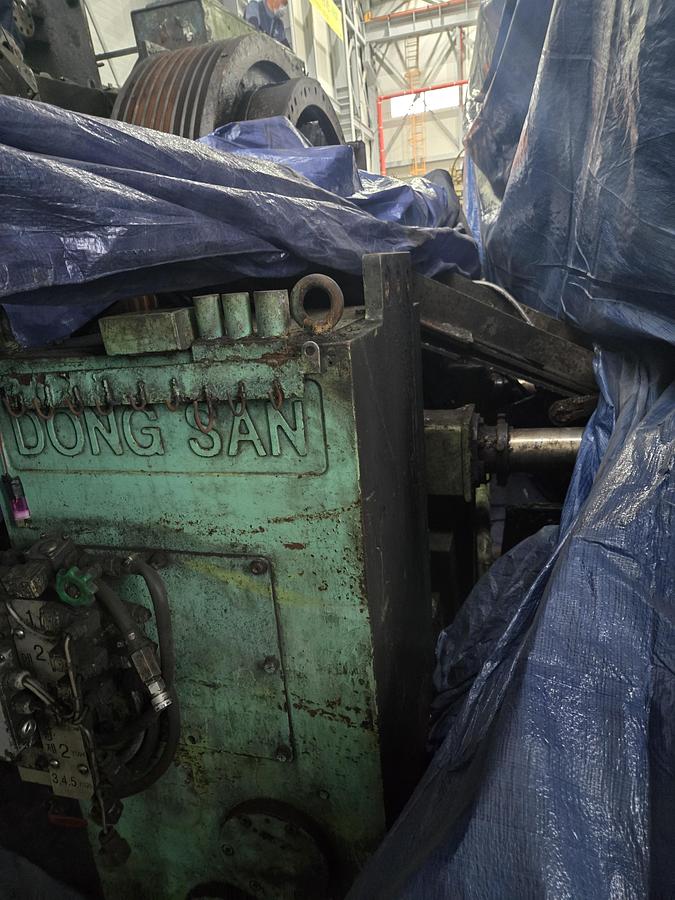

With DONGSAN Servo Type Transfer.
