2500 tons Hot Forging Line TMP Voronezh KA8044

(Wide) with full automation line

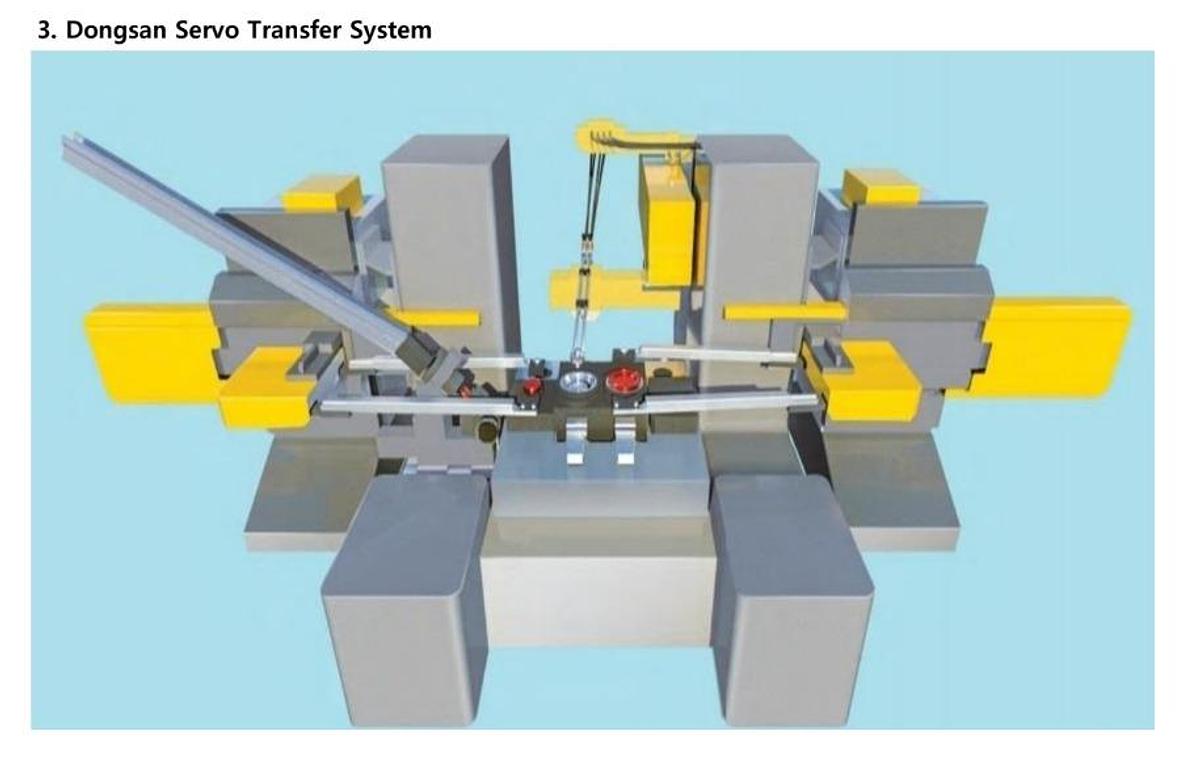

Including Induction Heater with Bucket Lifter, Dongsan Servo Transfer system.

Capacity : 2500 tons,

Ram stroke : 320 mm,

Number of strokes in 1 minute : 65 (Continuous), 18 (Discont.),

Shut height : 905 mm,

Ram adjustment : 10 mm,

Bed size : 1340 x 1400 mm,

Side windows : 1320 x 1100 mm,

Main motor : 3PH x 6P x 440V 150Kw, 60Hz,

Air pressure : 5-7 Kg/cm2,

Upper ejector stroke : 50 mm,

Lower ejector stroke : 70 mm,

Press size : 4000 x 6710 mm,

Weight : 145 tons.

Hangu 800Kw Induction Heater & Step Feeder

Make : Hango Iron Tec., Korea,

Yom : 2011 Dec,

Main power : 6Ph 580V 1050KVA, 60Hz,

Control Power : 3Ph 440V 50KVA, 60Hz,

Earth for equipment : Neutra

Main Circuit type : Thyristor Bridge Inverter

Control & Op Panel

Type : Weight-based fully automatic control,

Control Part : PLC (Q-Type, Mitsubishi) GOT-1000 (Touch Monitor),

Using Power : Control V : 3P 220V, Motor V : 3P 440V,

Water pressure : 3-4 kg/cm2,

Water Volume : 850 L/Min,

Air pressure : 5-7 kg/cm2,

Material supply device : Step feeder.
