Lathe Vertical Turning CNC Doosan Puma VT1100

Max turning diameter : 1100 mm,

Max turning length/height: 1000 mm,

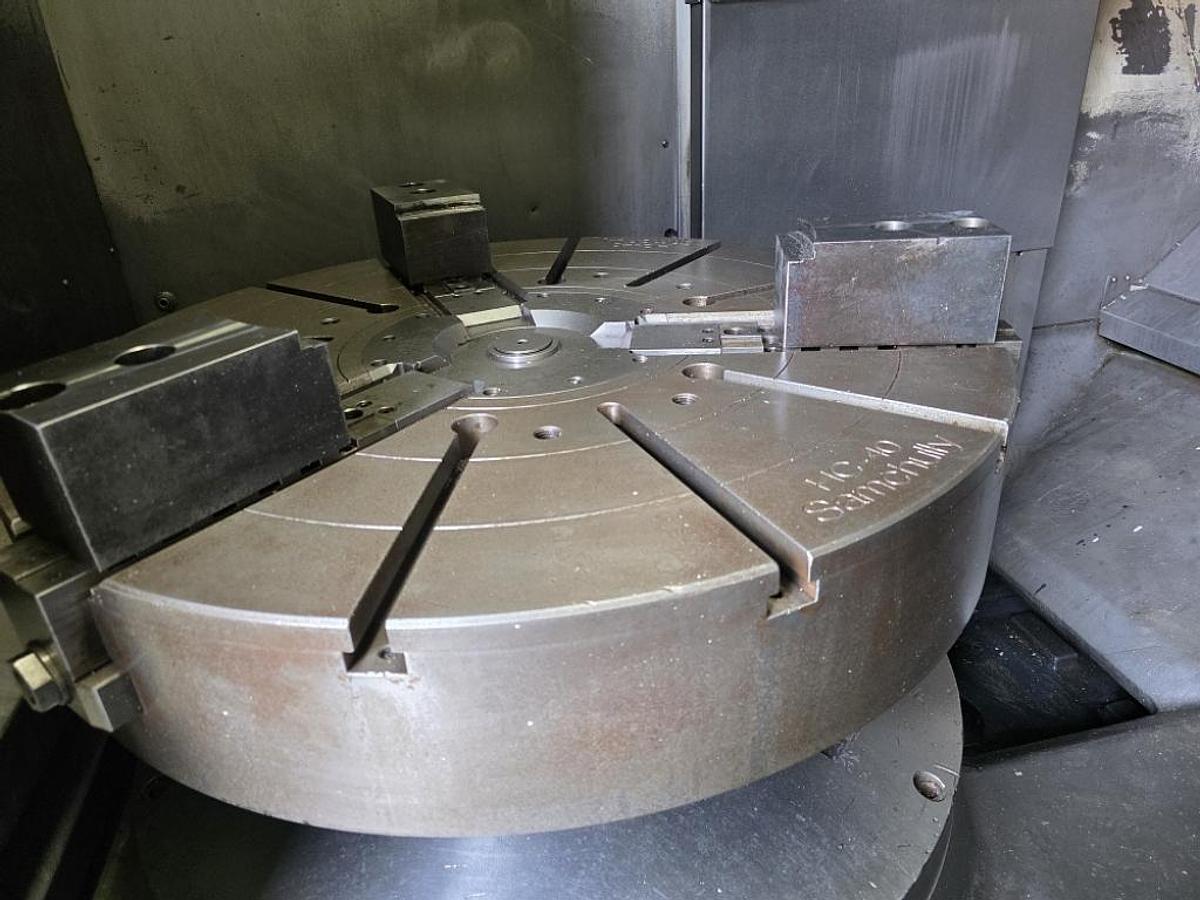

Chuck size: 32 inch or 40 inch

Max swing over bed : 1270 mm – 1400 mm,

Spindle speed : 850 RPM (2-stage ZF gearbox),

Main spindle power : 60 HP (45–60 kW / ~87 HP in some configurations),

Max torque: 7552 N·m (5573 ft-lbs),

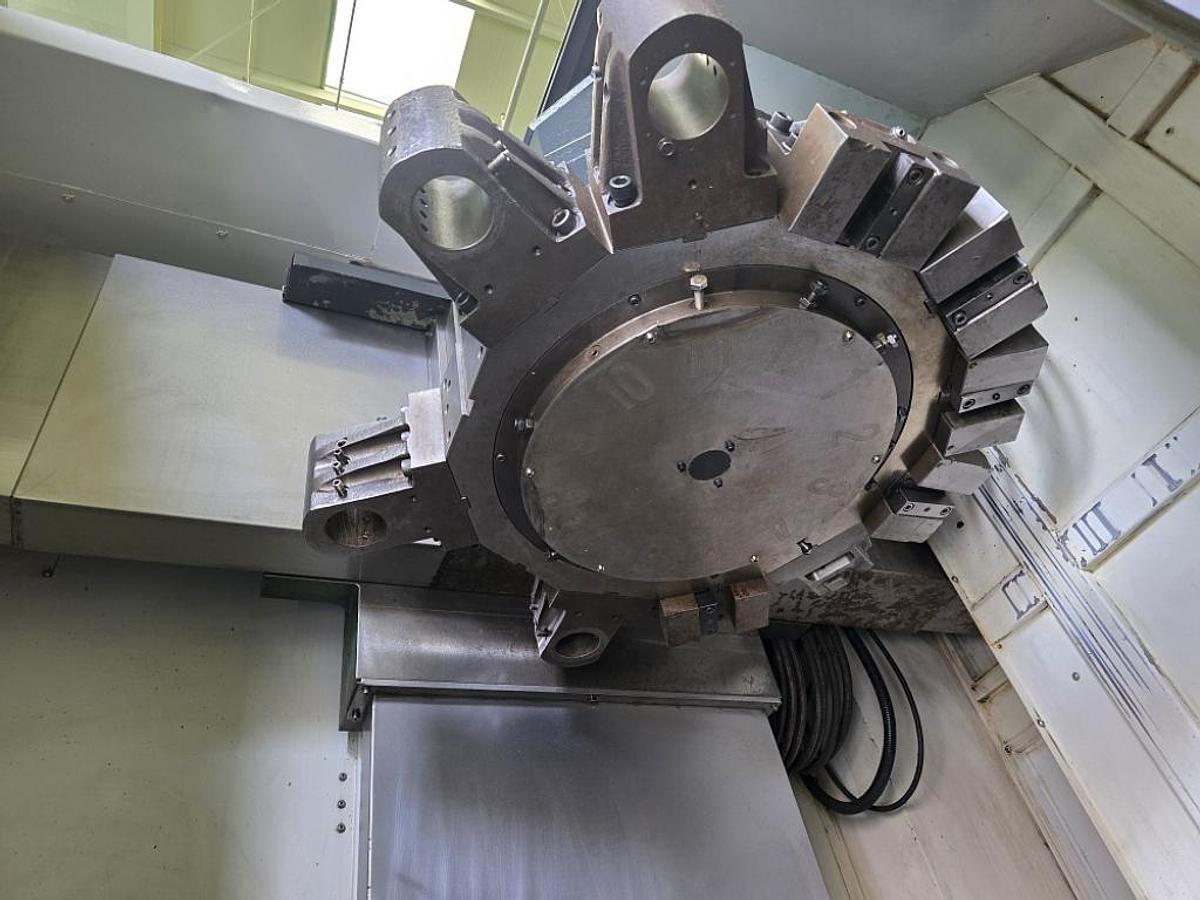

Turret capacity: 12 station,

Maximum table/workpiece weight : approximately 2300 kg,

X - axis travel : 650 mm,

Z - axis Travel : 1000 mm,

Rapid traverse (X/Z) : 20 m/min,

Machine weight : ~22,000 kg (48,502 lbs),

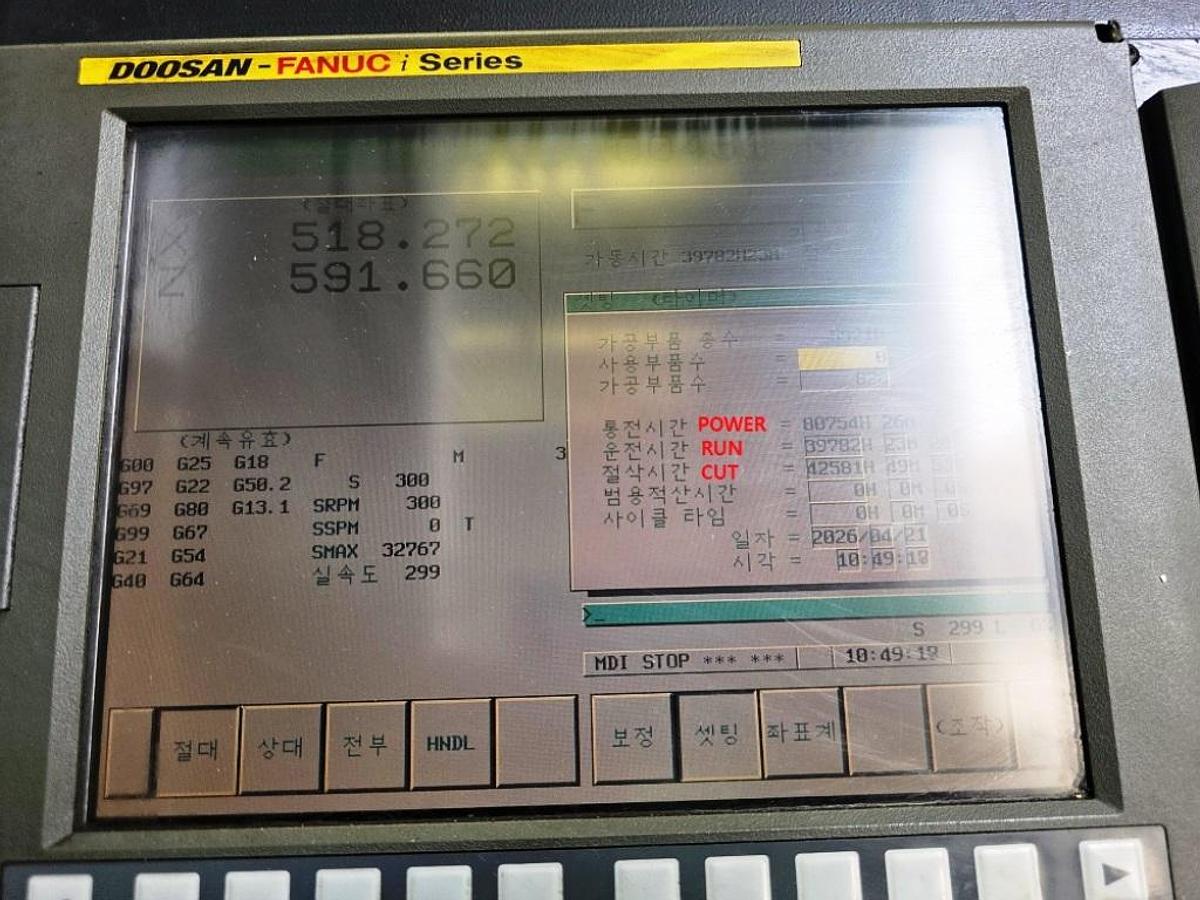

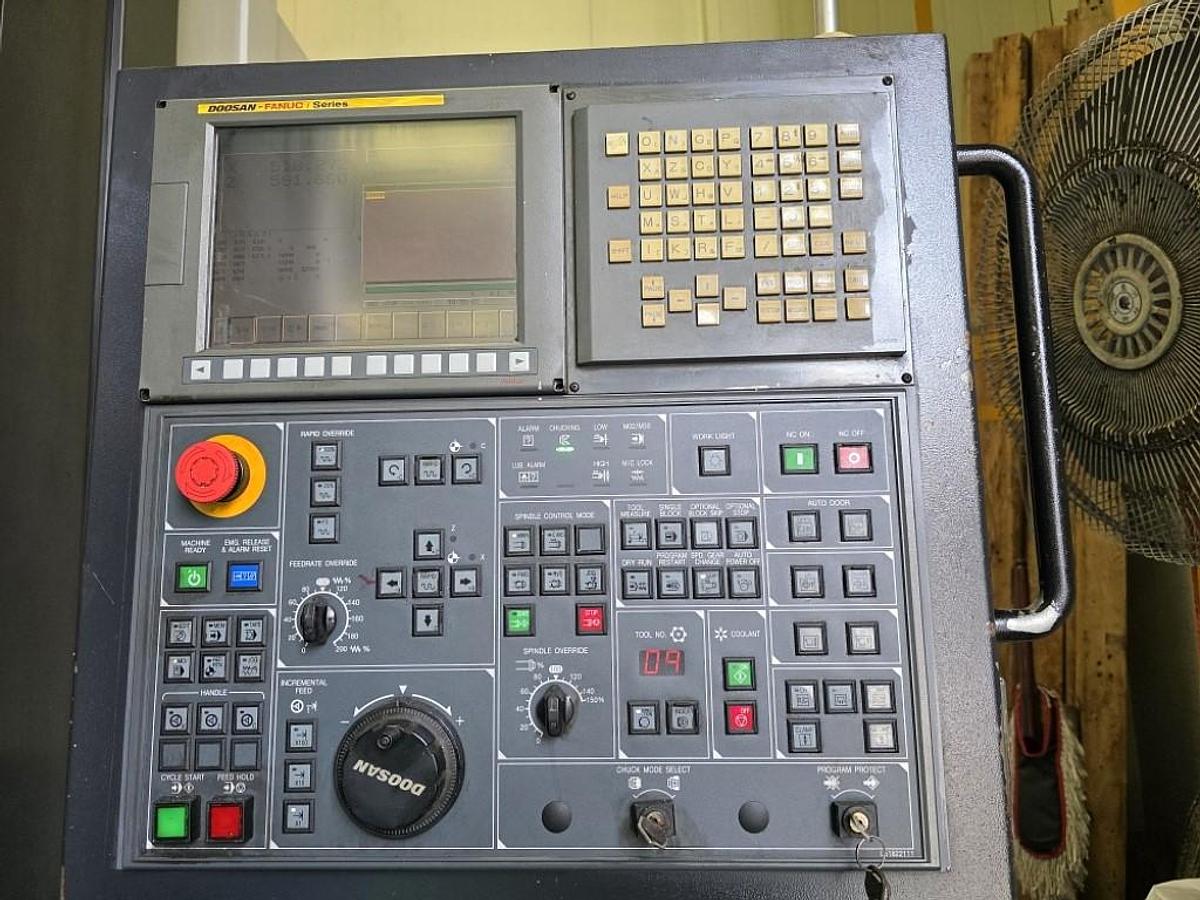

Control System: Fanuc I series.
