1600 tons Hot Forging Line Erie

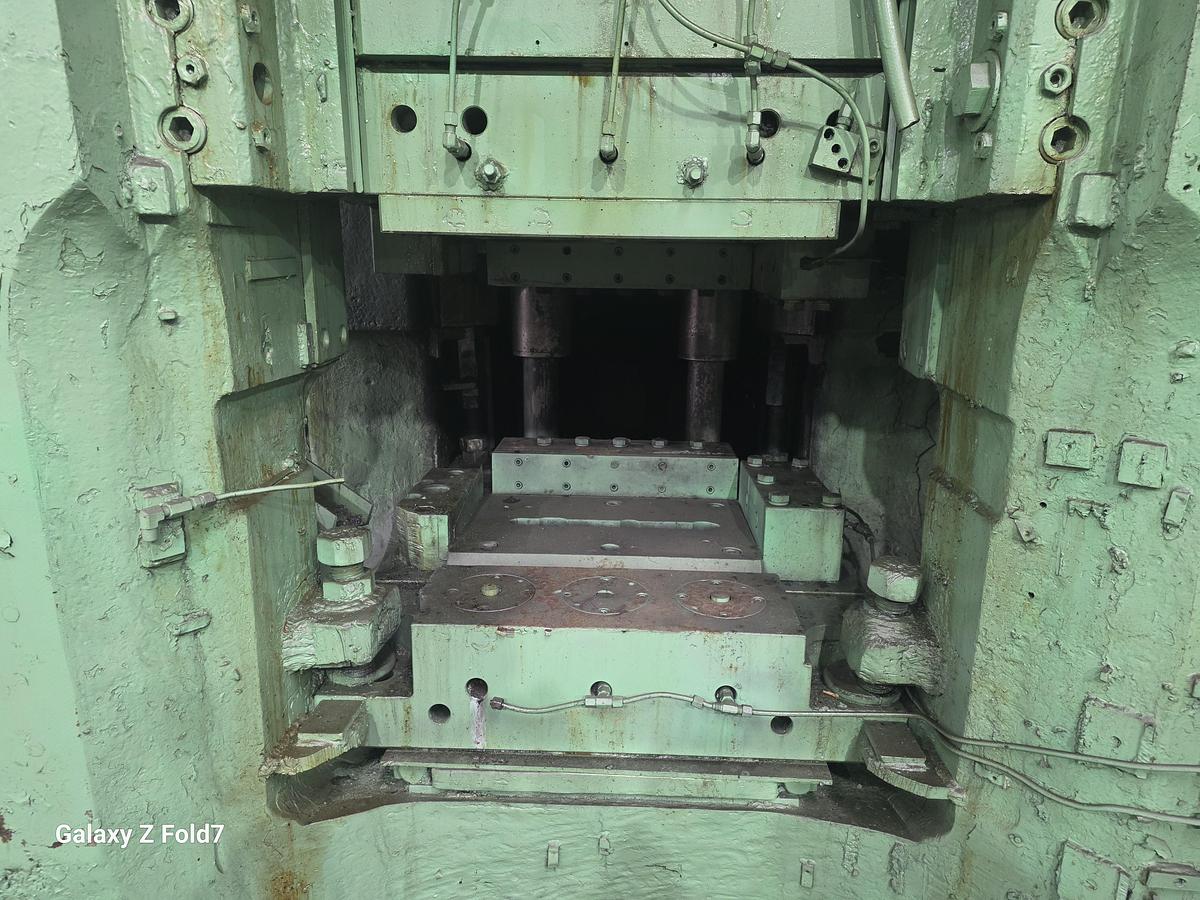

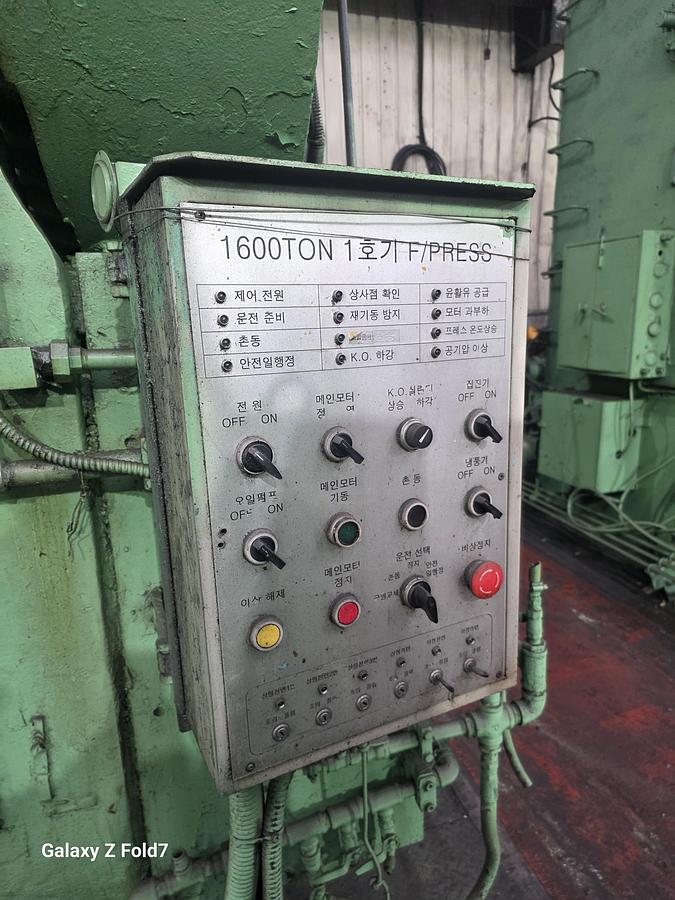

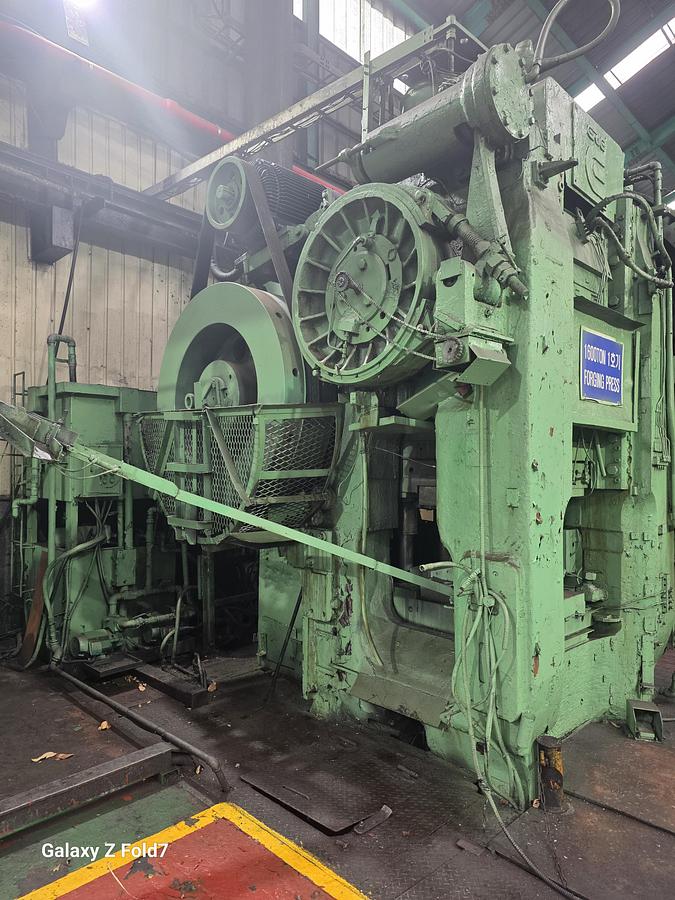

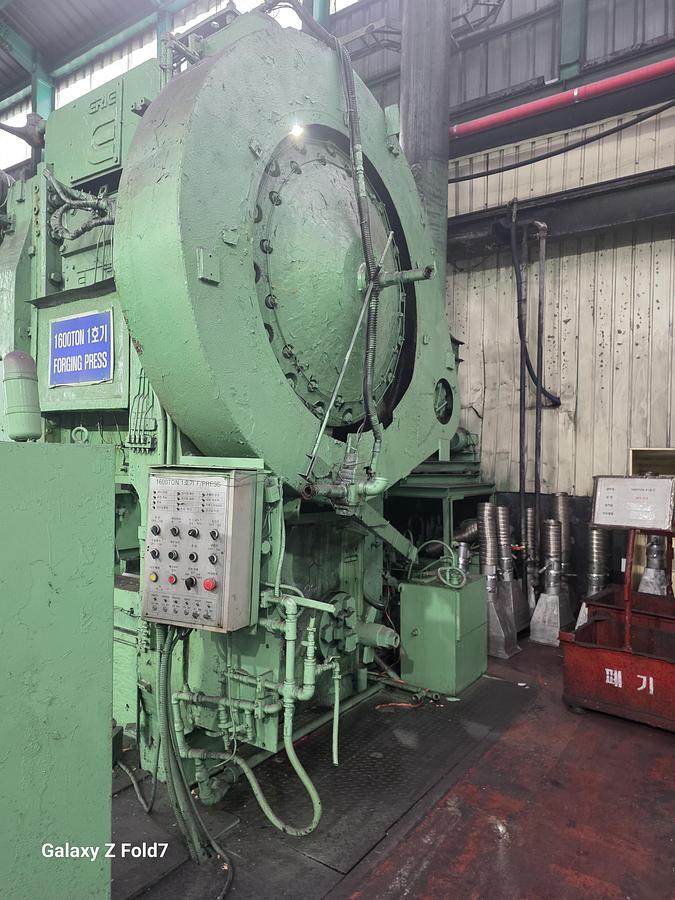

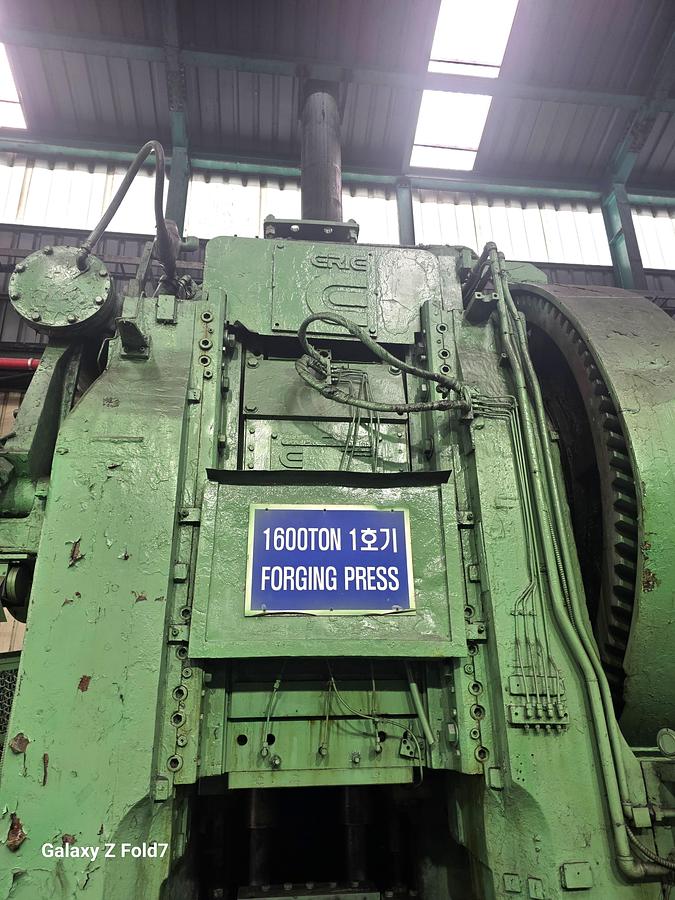

1) 1600 tons Hot Forging Press

Make : Erie,

Mode : Erie1600,

Yom : 1983,

Capacity : 1600 tons,

Slide Stroke : 304.8 mm,

Number of strokes : 65,

Die Height : 762 mm,

Table Adjustment : 10 mm,

Slide Area Dimensions : 965.2 x 965.2 mm,

Bed Area Dimensions : 990.6 x 1092.2 mm,

Low Ejector : 70 mm / 10 tons,

Main Motor : 3 440V 100HP (75KW) 6P,

Weight : 85 tons.

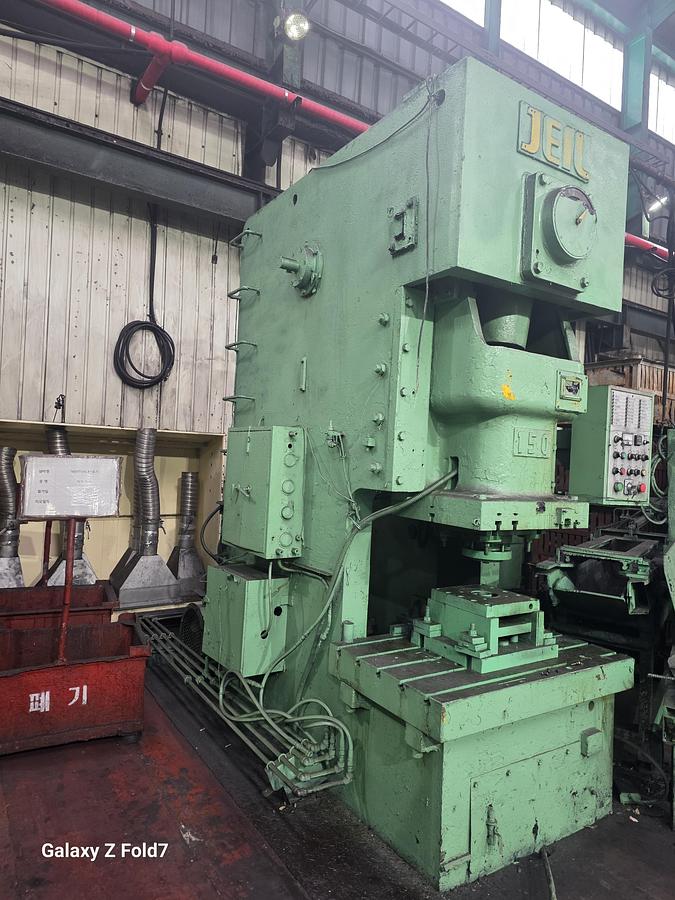

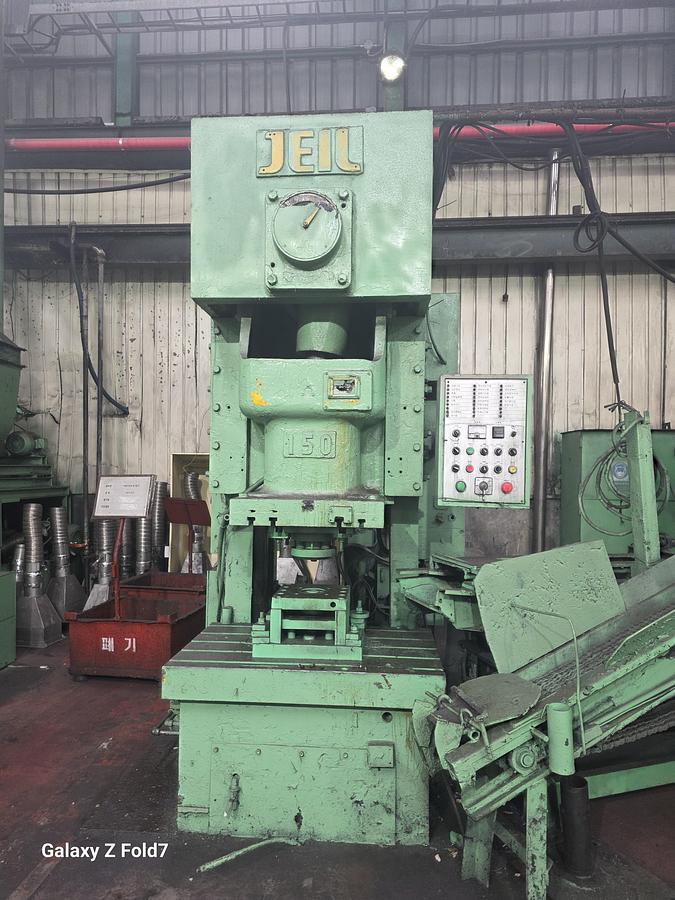

2) Jeil 150 tons Trimming Press

Make : Jeil,

Mode : JSCP150,

Yom : 1994,

Capacity : 150 tons,

Slide Stroke : 200 mm,

Number of Strokes : 45,

Die Height : 450 mm,

Slide Adjustment : 100 mm,

Slide Area Dimensions : 700 x 580 mm,

Bed Area Dimensions : 1220 x 760 mm,

Die Cushion Stroke : 80 mm,

Die Cushion Pad : 540 x 340 mm,

Main Motor : 220V 20HP (15KW) 4P,

Slide Motor : 220V 1HP (0.75KW) 4P,

Weight : 13.5 tons.

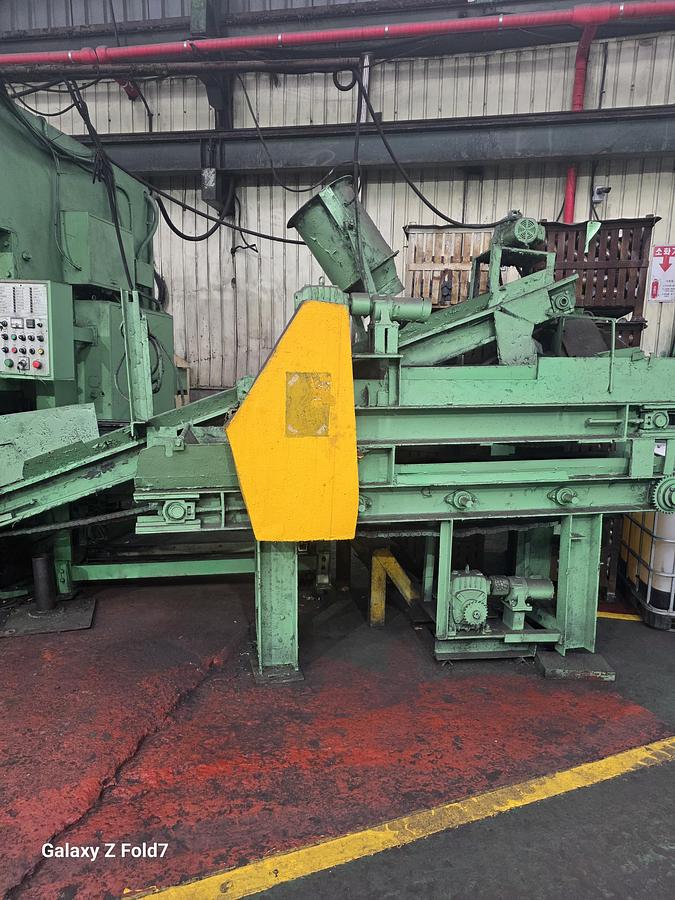

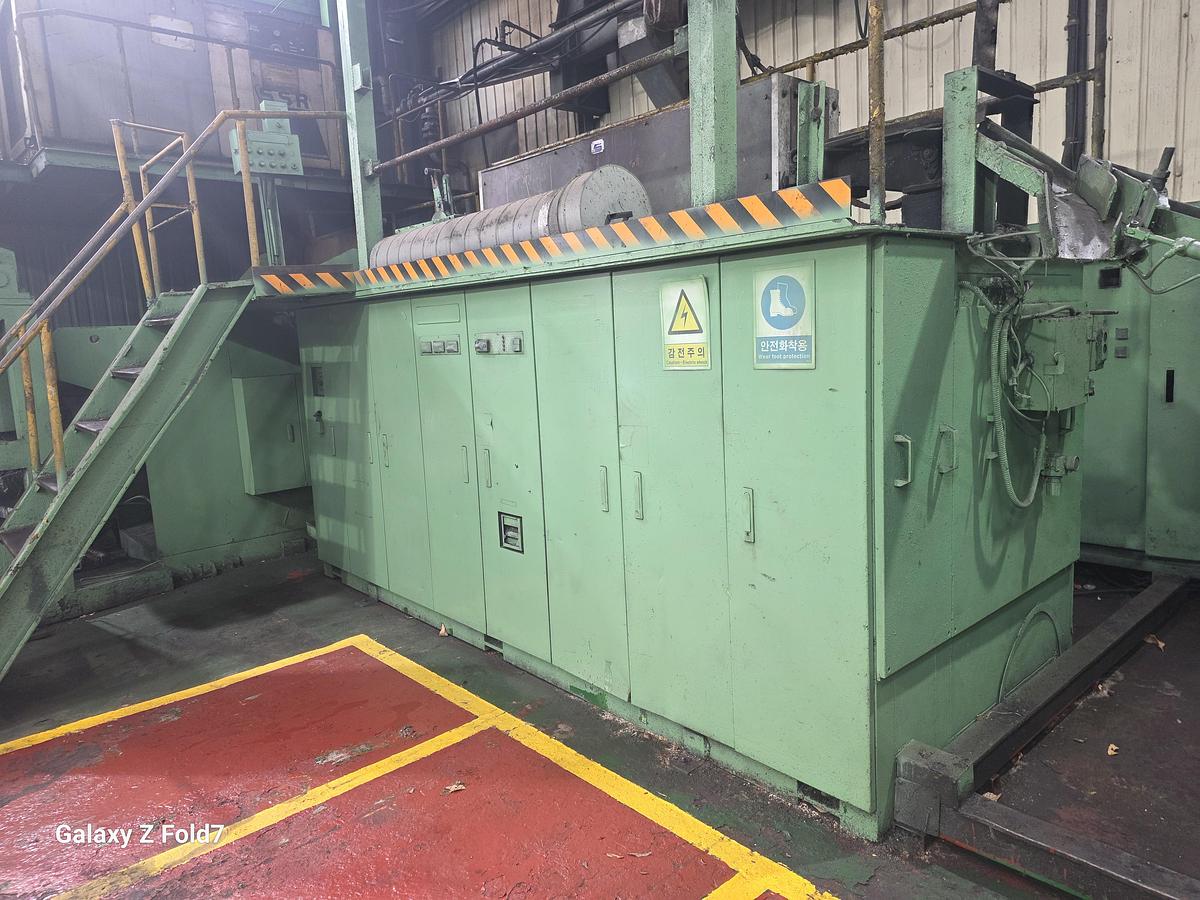

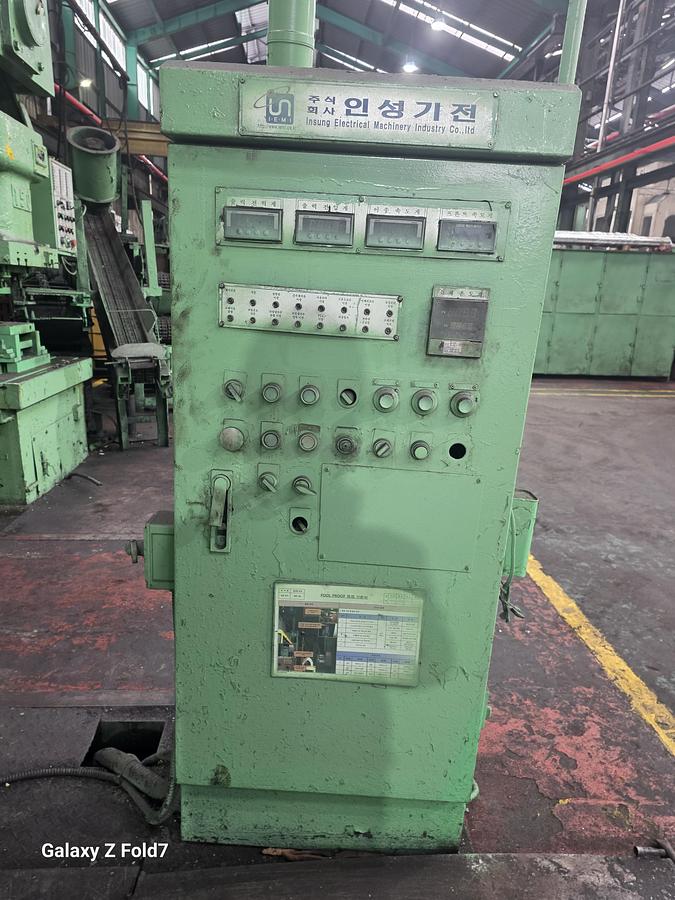

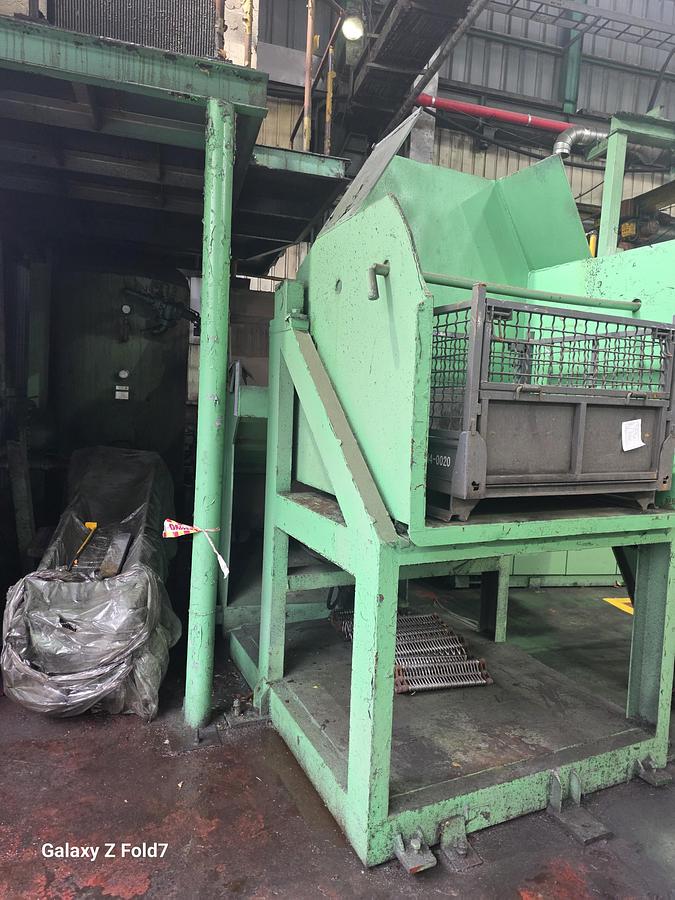

3) Insung Induction heater with Bucket Lifter

Make : Insung,

Model : ISB20425,

Yom : 2004,

Heating Capacity : 1.6 tons/Hr,

Type : Inverter,

Output Hz : 2.2 KHz,

Tilting Machine : 2 tons,

Step Feeder : 2 tons,

Voltage : 580V 60Hz,

Weight : 3 tons.

Technical manuals available
