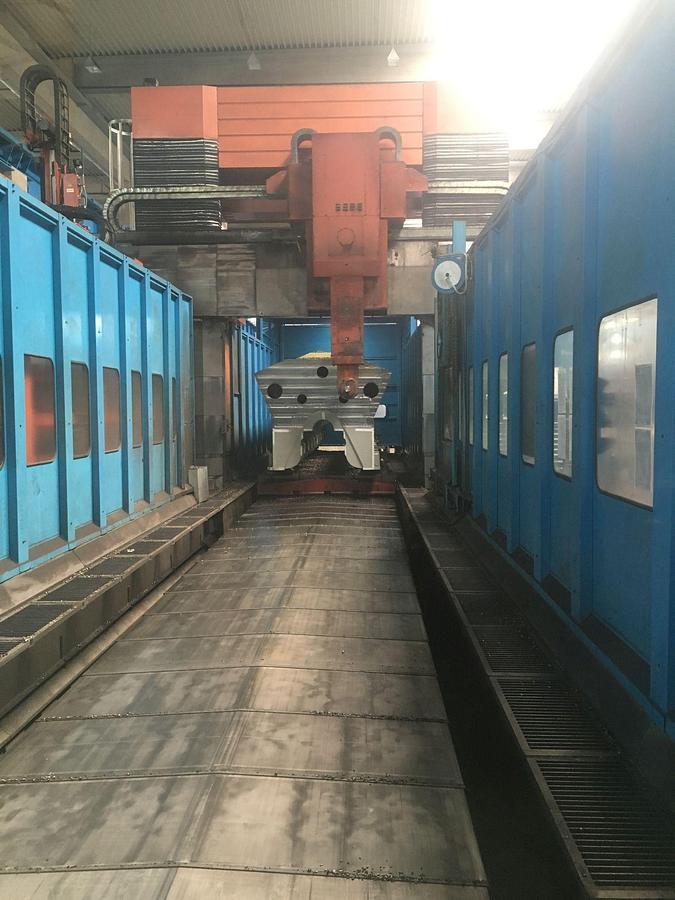

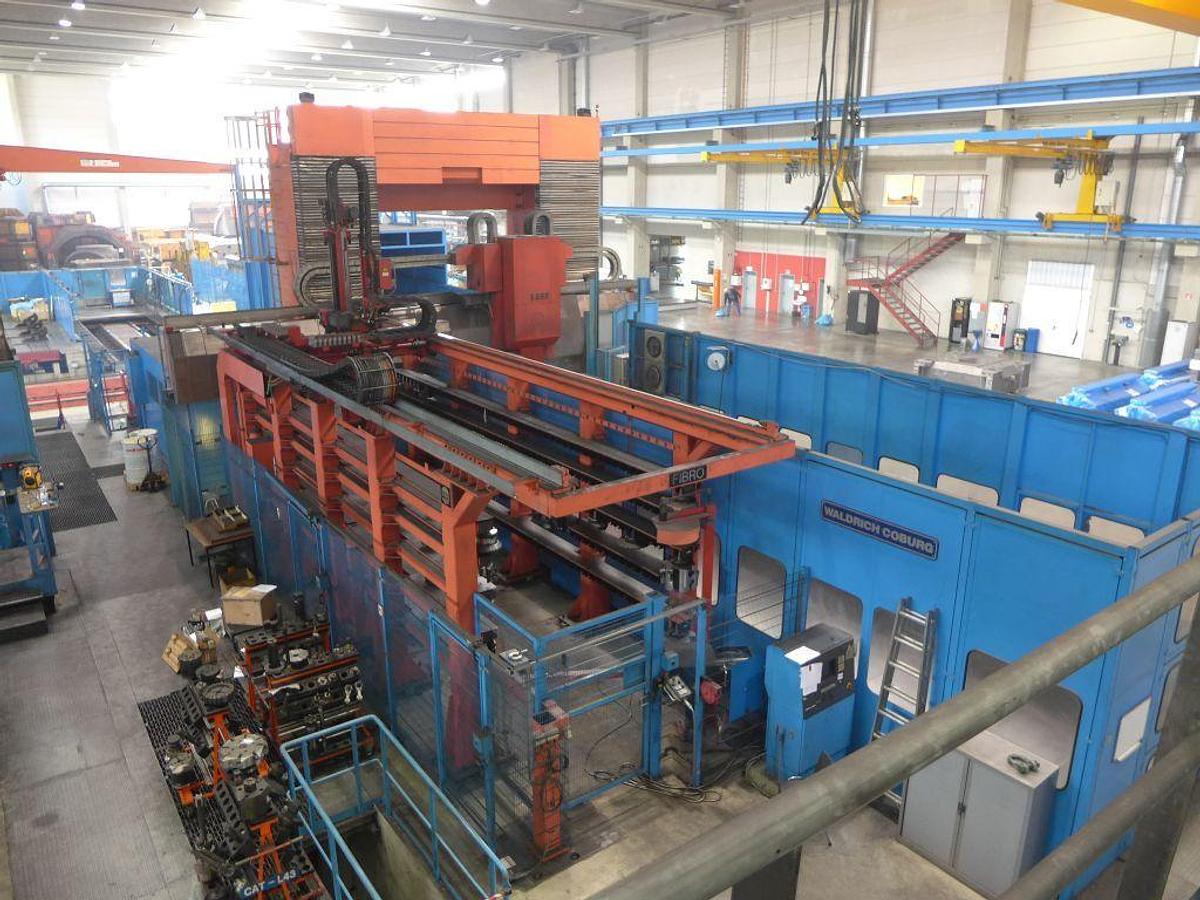

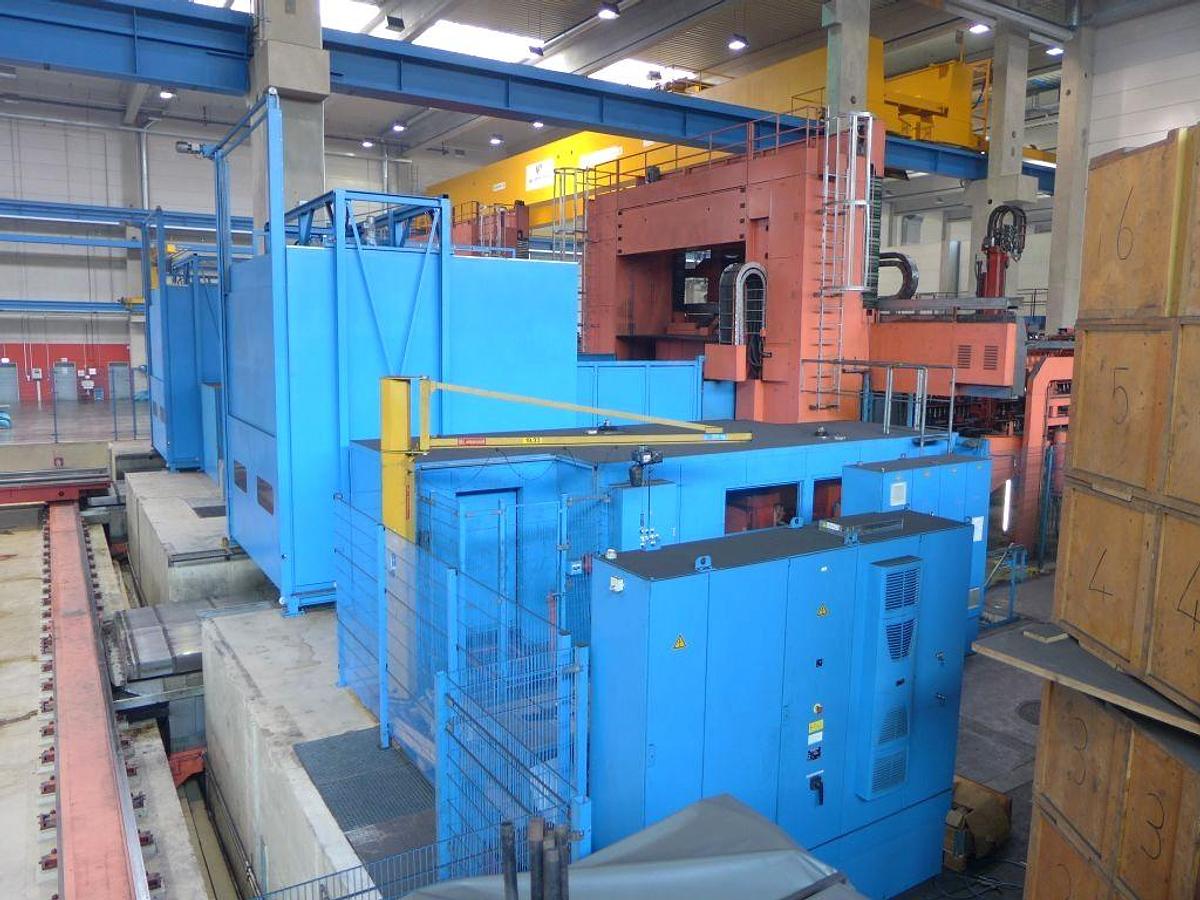

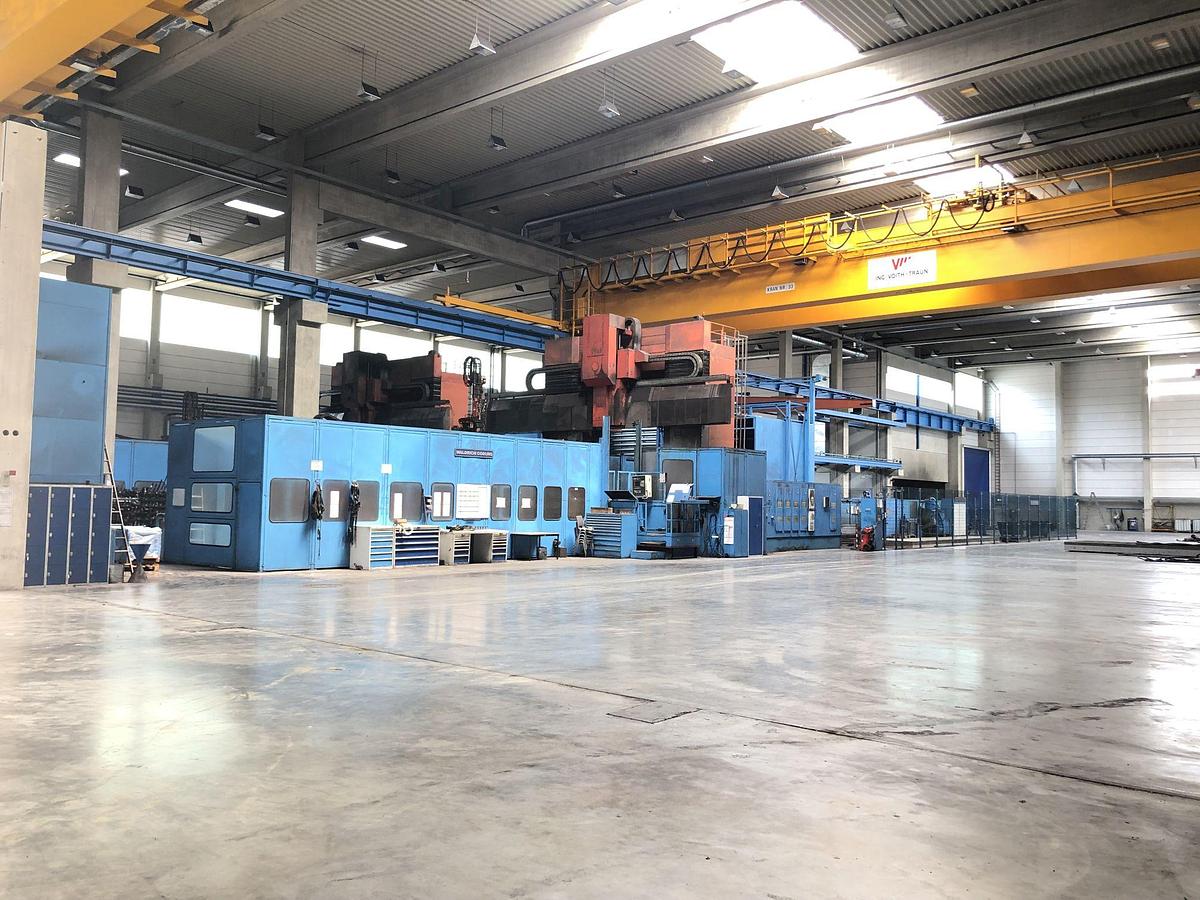

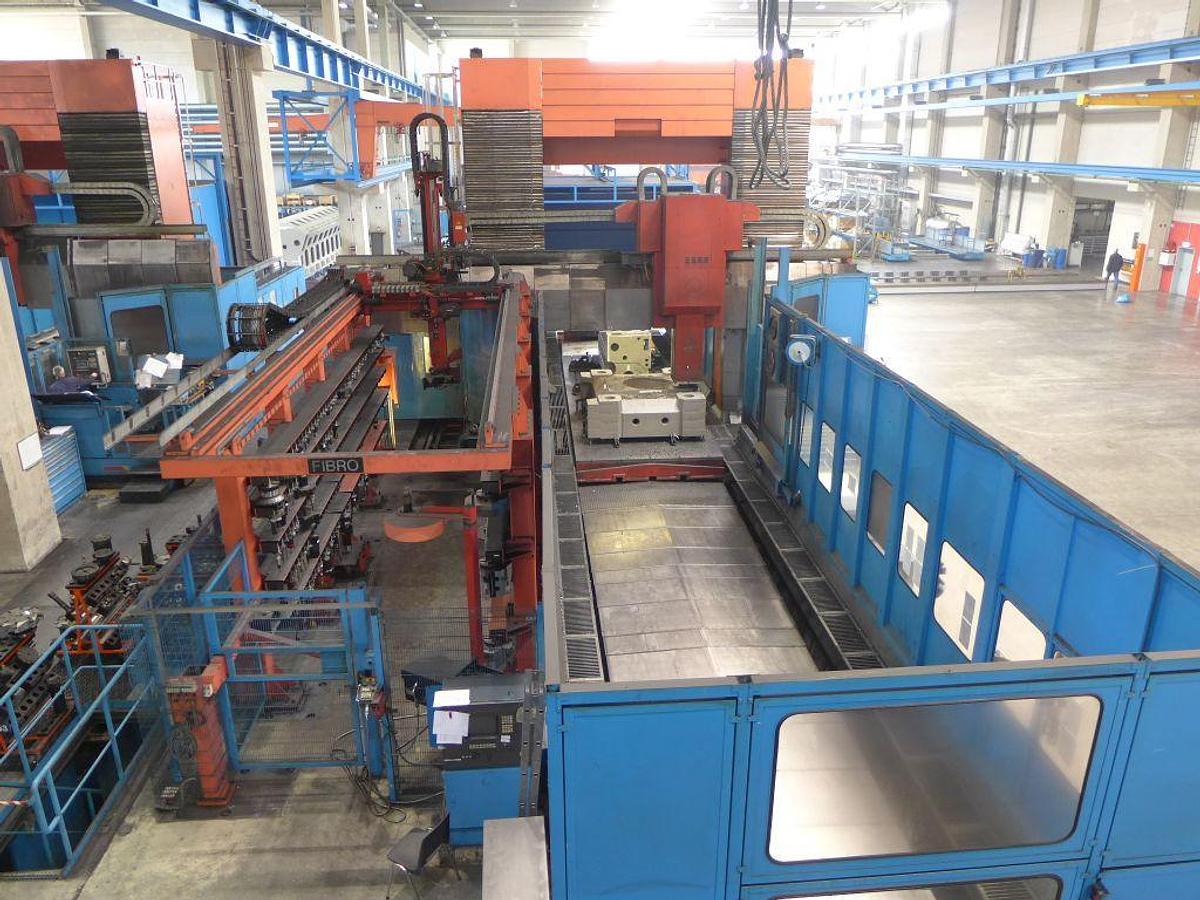

Plano Miller CNC Waldrich Coburg

Working Range -milling

X - axis traverse : 14000 mm,

Y - axis traverse : 5000 mm,

Z - axis traverse : 1500 mm,

W - axis traverse : 3000 mm,

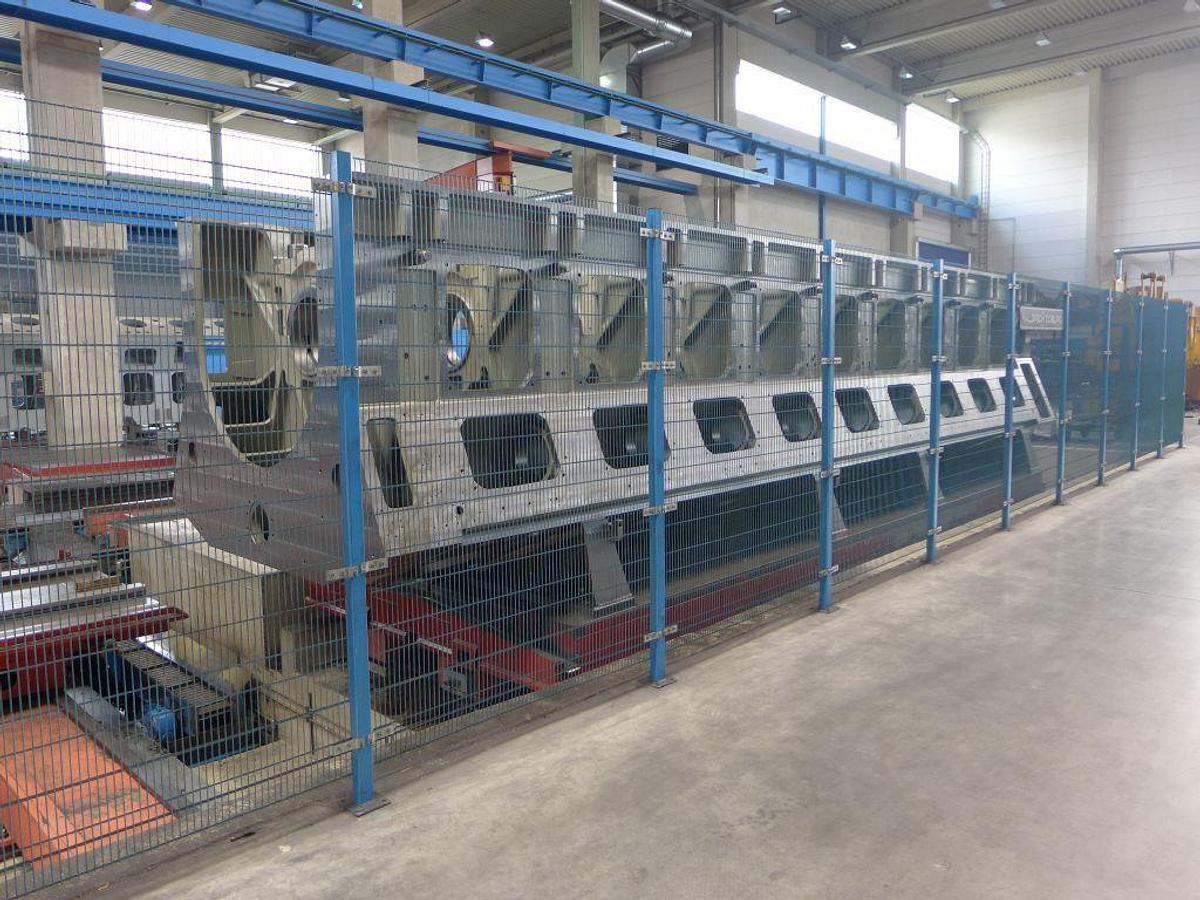

Portal / Bridge

Passage height : 4500 mm,

Distance between columns : 4000 mm,

Working spindle / head

Spindle type : vertical

Spindle revolutions (min) :2 /min,

Spindle revolutions (max) : 2500 /min,

Number of gears : 2,

Spindle diameter : 200 mm,

Taper fixture : ISO SK 50,

Drive power (max) : 113 kW,

Spindle power (continuous) : 106 kW,

Torque (max.) : 9500 Nm,

Axis drives

Traverse velocity x (min) : 1 mm/min,

Traverse velocity x (max) : 10000 mm/min,

traverse velocity y (min) : 1 mm/min,

Traverse velocity y (max) : 10000 mm/min,

traverse velocity z (min) : 1 mm/min,

Traverse velocity z (max) : 10000 mm/min,

Feed velocity w (min) : 1 mm/min,

Feed velocity w (max) : 2000 mm/min,

Rapid traverse x : 20000 mm/min,

Rapid traverse y : 20000 mm/min,

Rapid traverse z : 20000 mm/min,

Rapid traverse w : 2000 mm/min,

Electrical specifications

Mains voltage : 400 V,

Mains frequency : 50 Hz,

Dimensions / weights

height above floor level 8590 mm

total weight approx. 360000 kg

Attachments

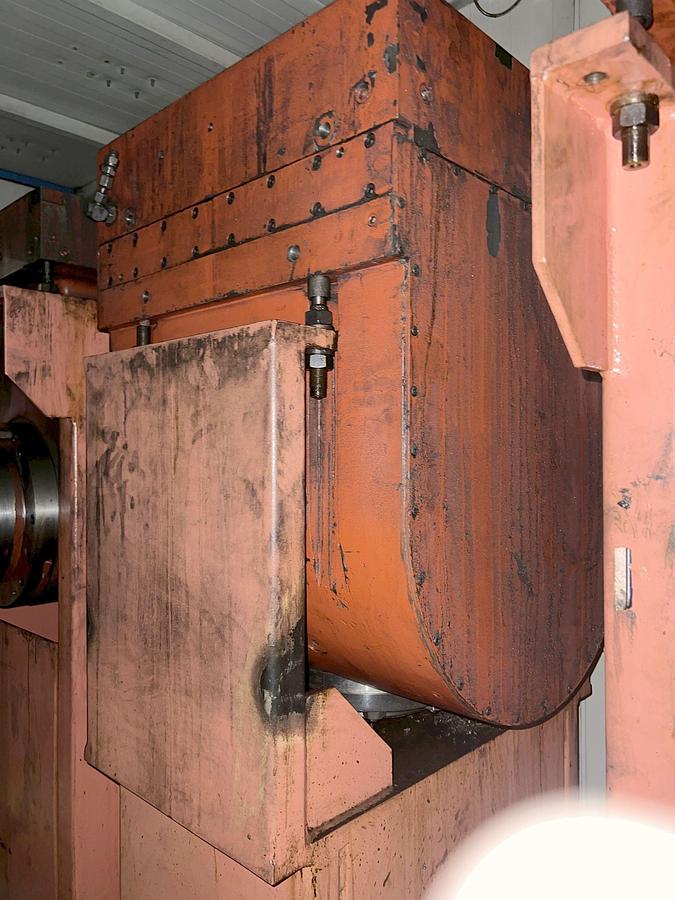

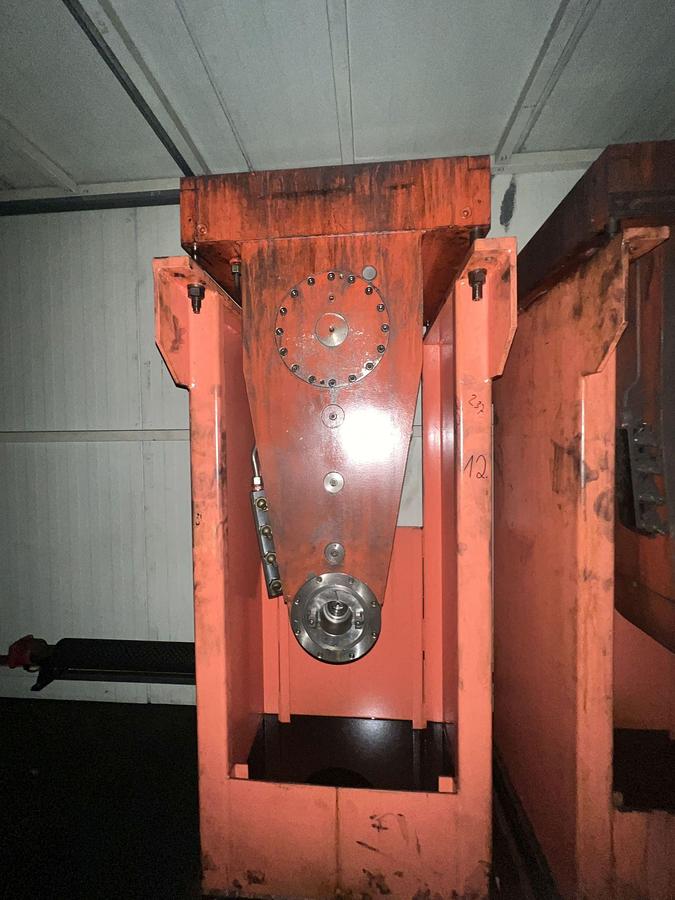

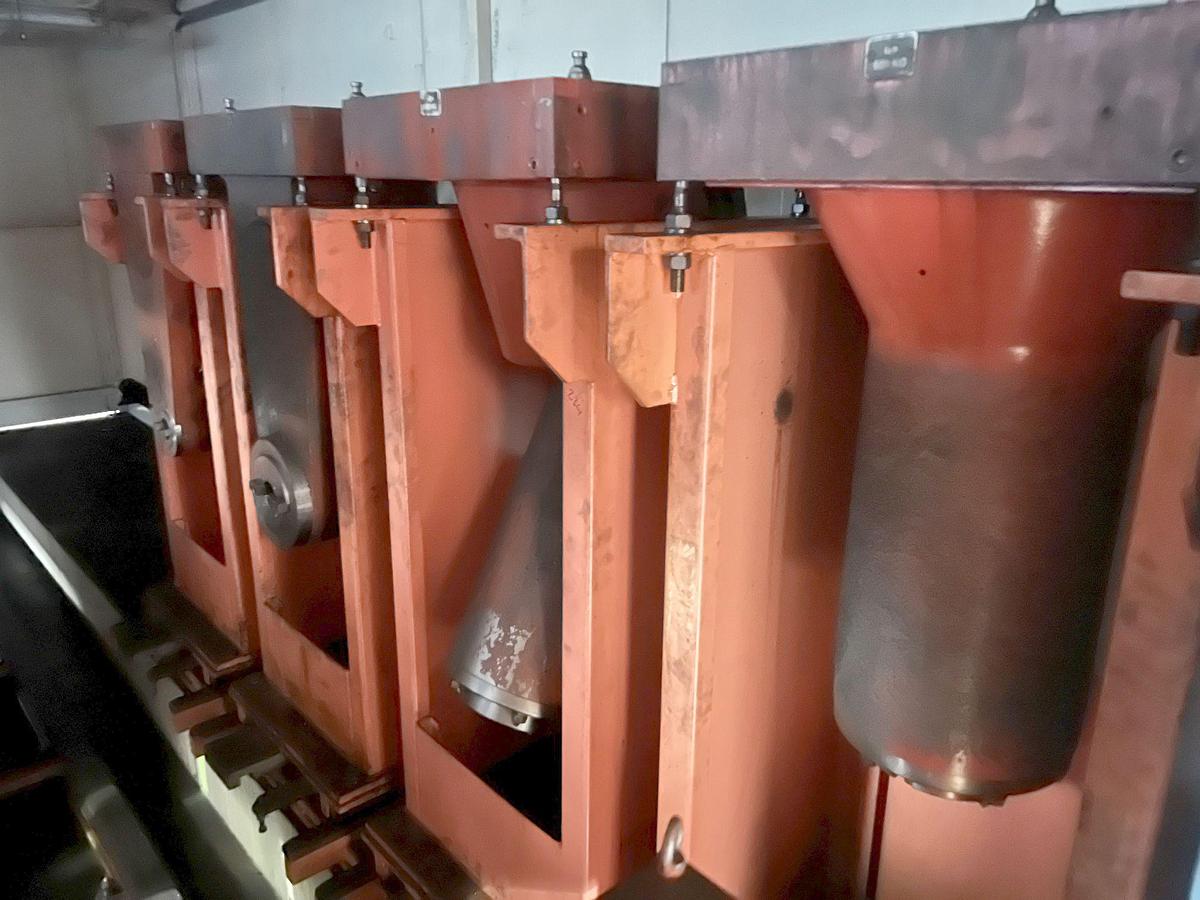

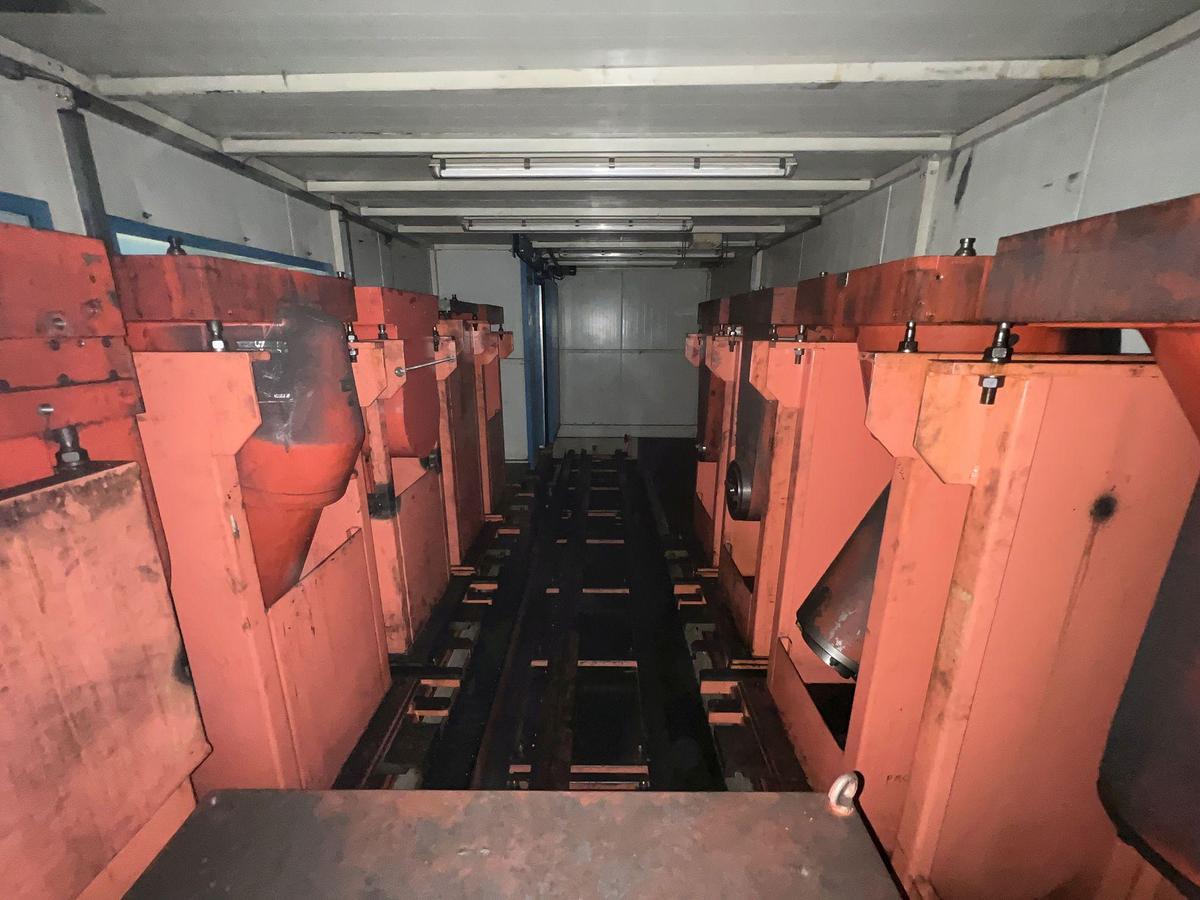

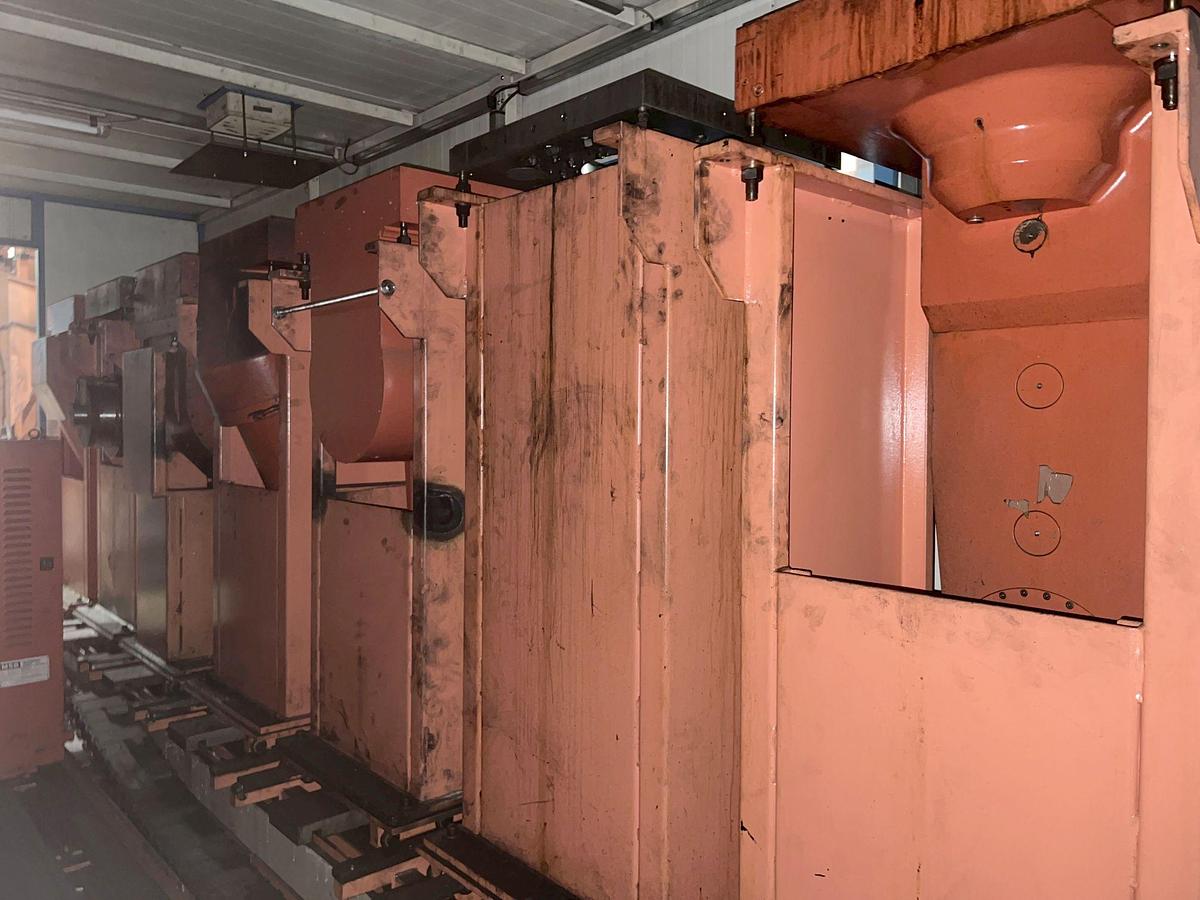

angular milling head yes

autom. tool clamping yes

ball spindles yes

guideway covers yes

coolant unit yes

high pressure cooling syst. (through spindle) yes

closed cabin yes

chip conveyor yes

Both identical machines are retrofitted by WALDRICH COBURG in 2011.

Controls: CNC controls SIEMENS 840 C

The x travel was extended to totally 14000 mm.

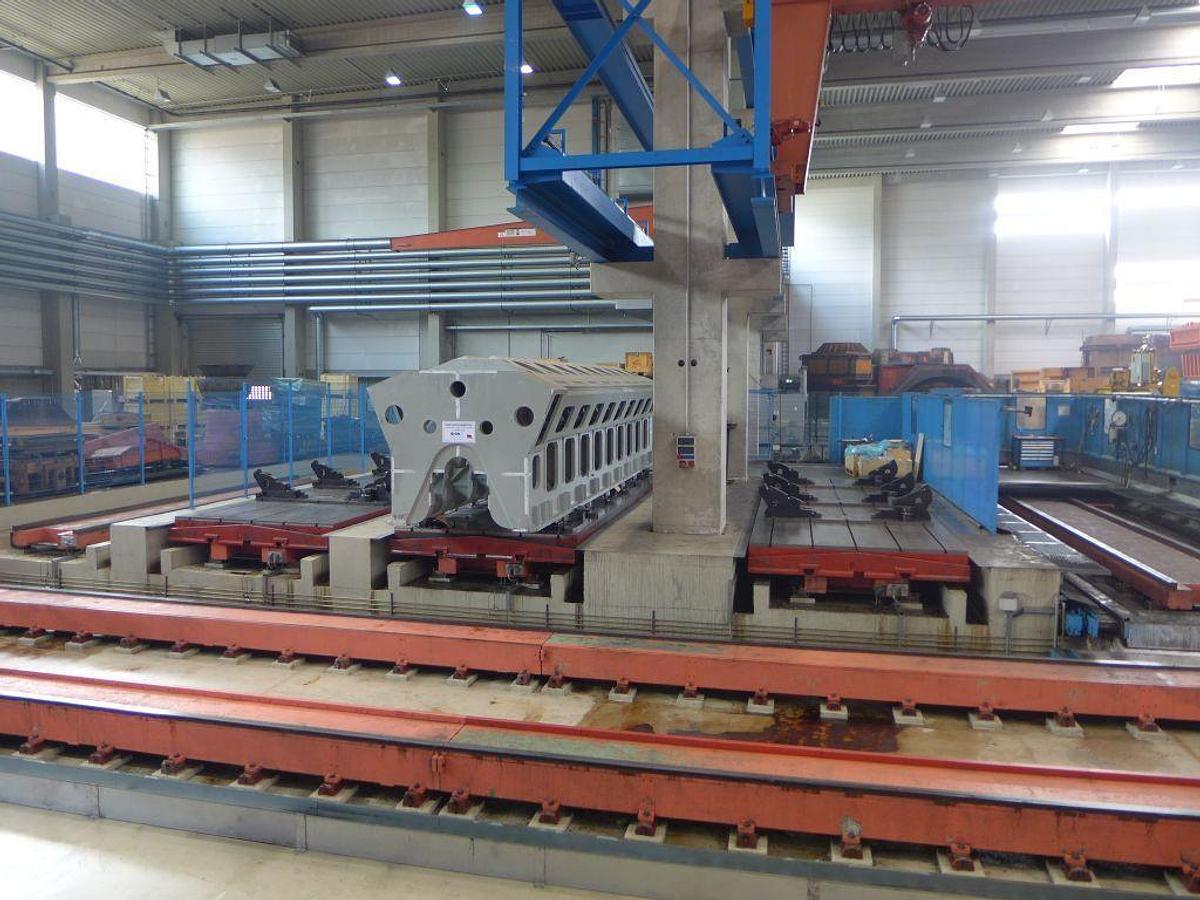

A pallet changing system was installed.

Quantity no. : 2
