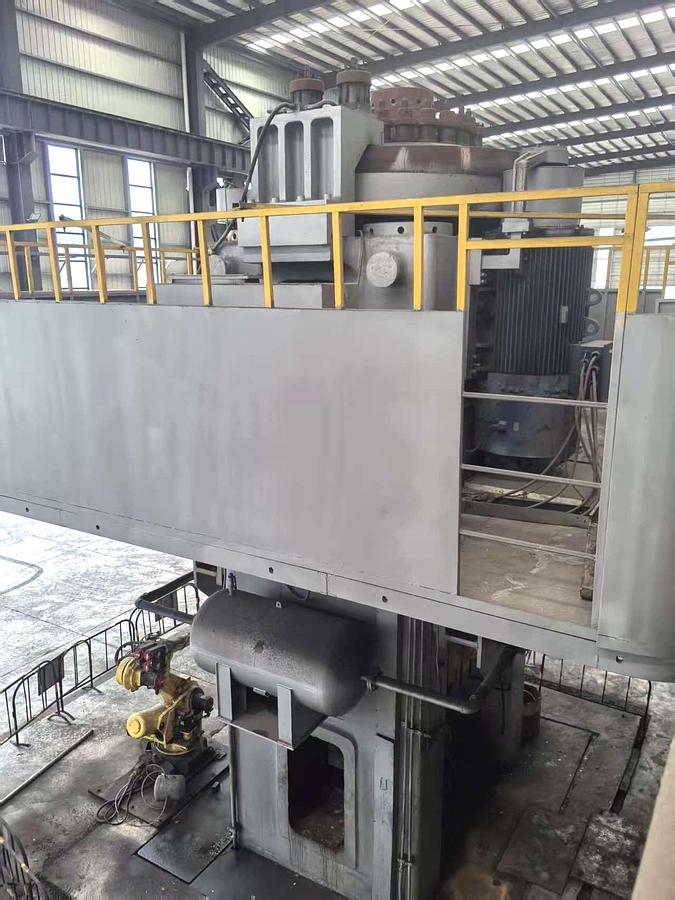

4000 tons Press Friction Screw Hongda EP-4000A

Numerical Control Electric Screw Press

Capacity : 4000 tons,

Max Forging Force (Center Load) : 64000 kN

Kinetic Energy : 1000 kJ

Slide Stroke : 750 mm,

Strokes Per Minute : 11 min⁻¹,

Min Die Height : 1200 mm,

Slide Area (F/B x L/R) : 2000 x 1330 mm,

Table Size (F/B x L/R) : 2000 x 1600 mm,

Table Thickness : 300 mm,

Distance Between Guides: 1380 mm,

Ejector Type: Hydraulic (Force: 600 kN / Stroke: 200 mm),

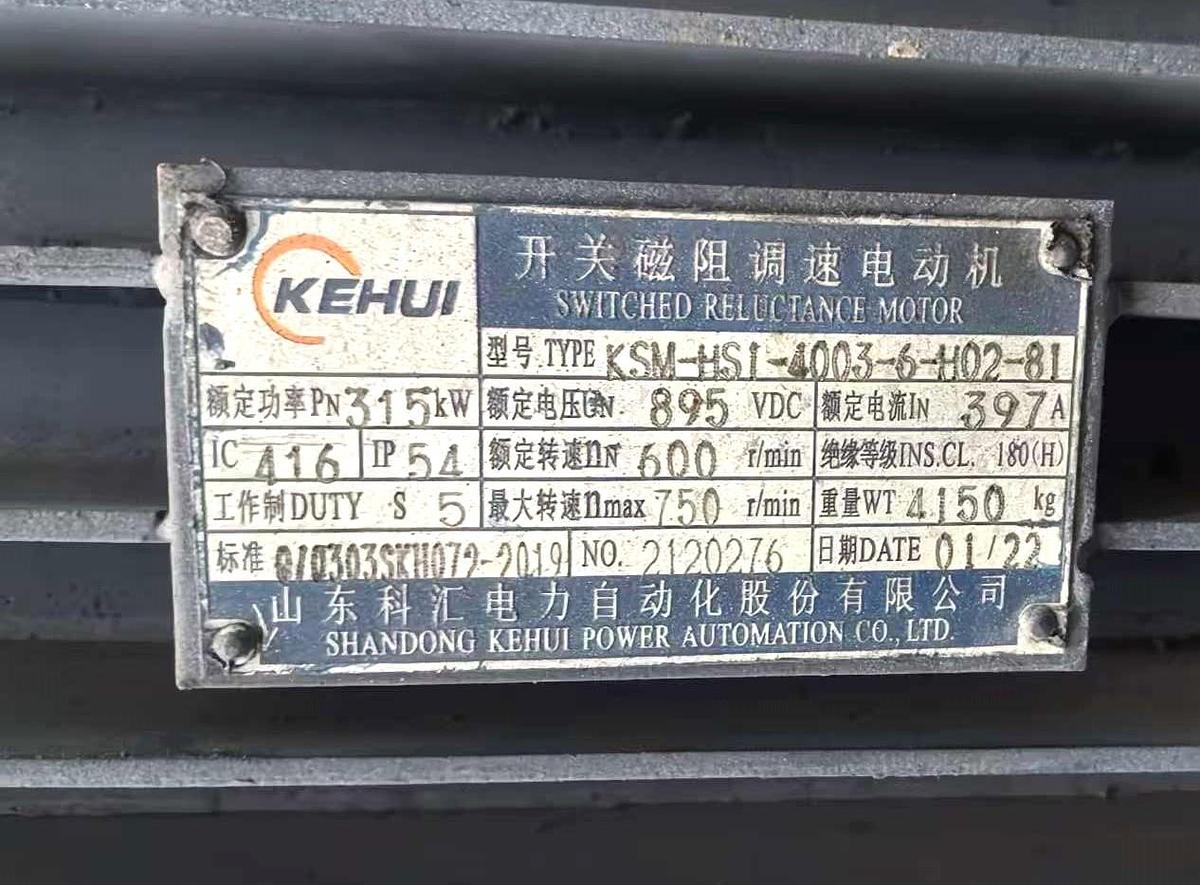

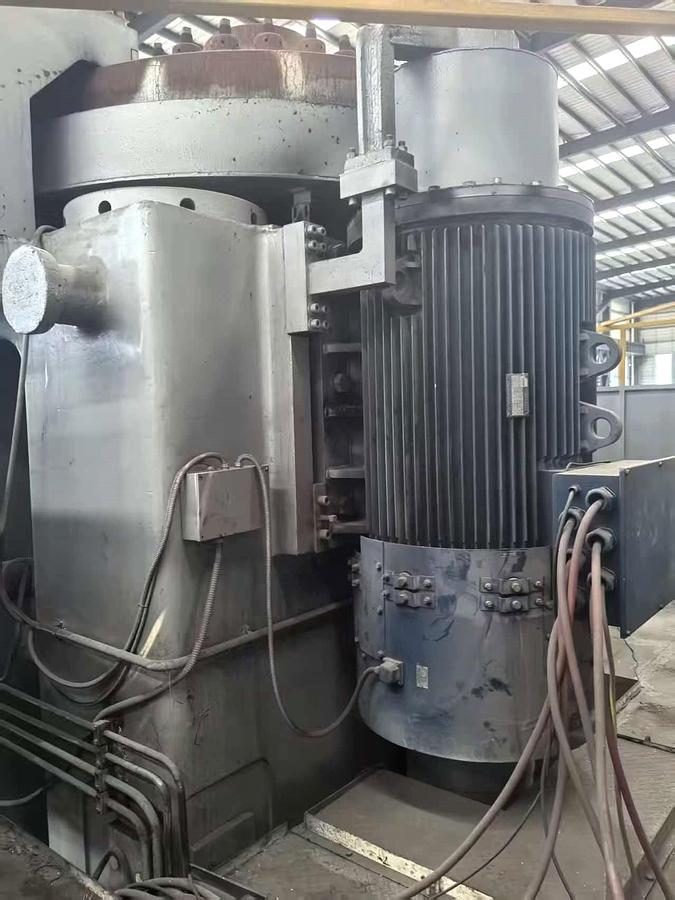

Main Motor Power : 2 × 315 kW,

Overall Dimensions (F/B x L/R) : 6600 x 9885 mm,

Height Above Ground : 8030 mm (Total Height: 9550 mm),

Quantity no. : 2
