Lathe Vertical Turning CNC Giddings & Lewis VTC-2500
Specifications

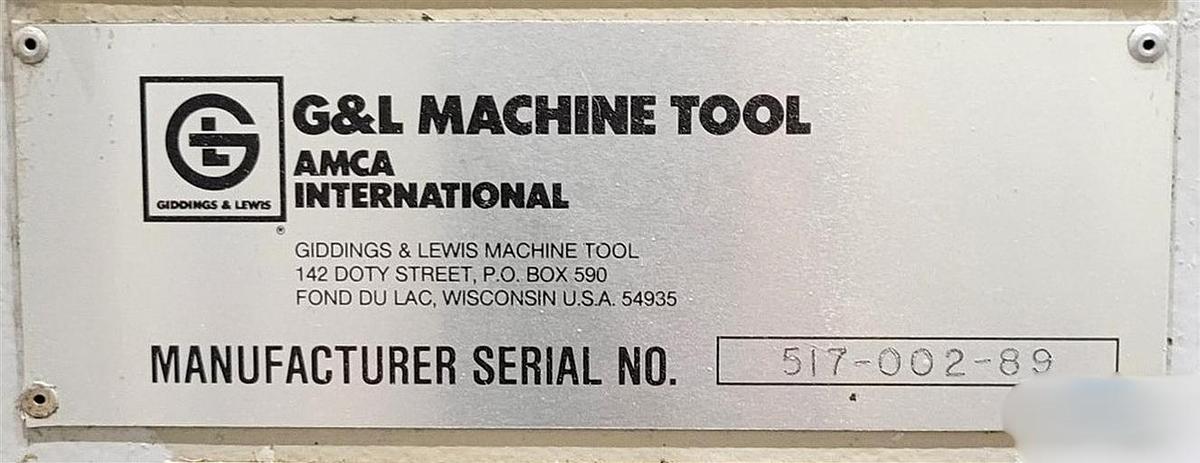

| Manufacturer | Giddings & Lewis |
| Model | VTC-2500 |
| Year | 1990 |
| Condition | Used |
| Stock Number | MA3344 |
| Item condition | Good condition |
Description

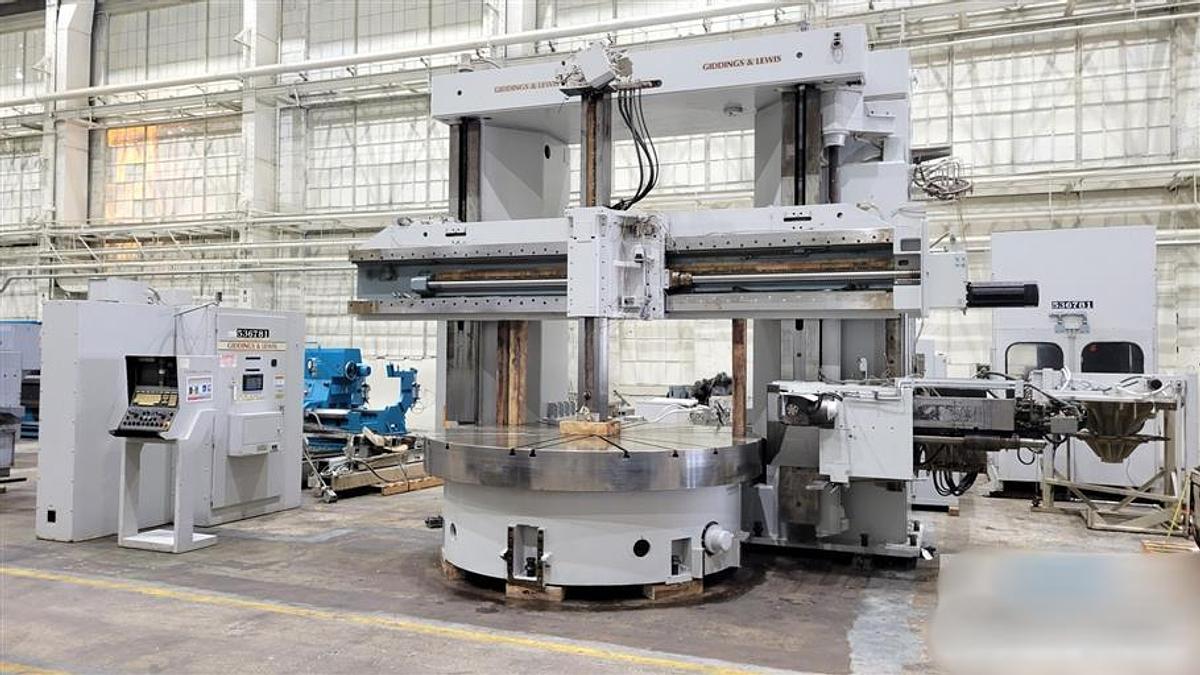

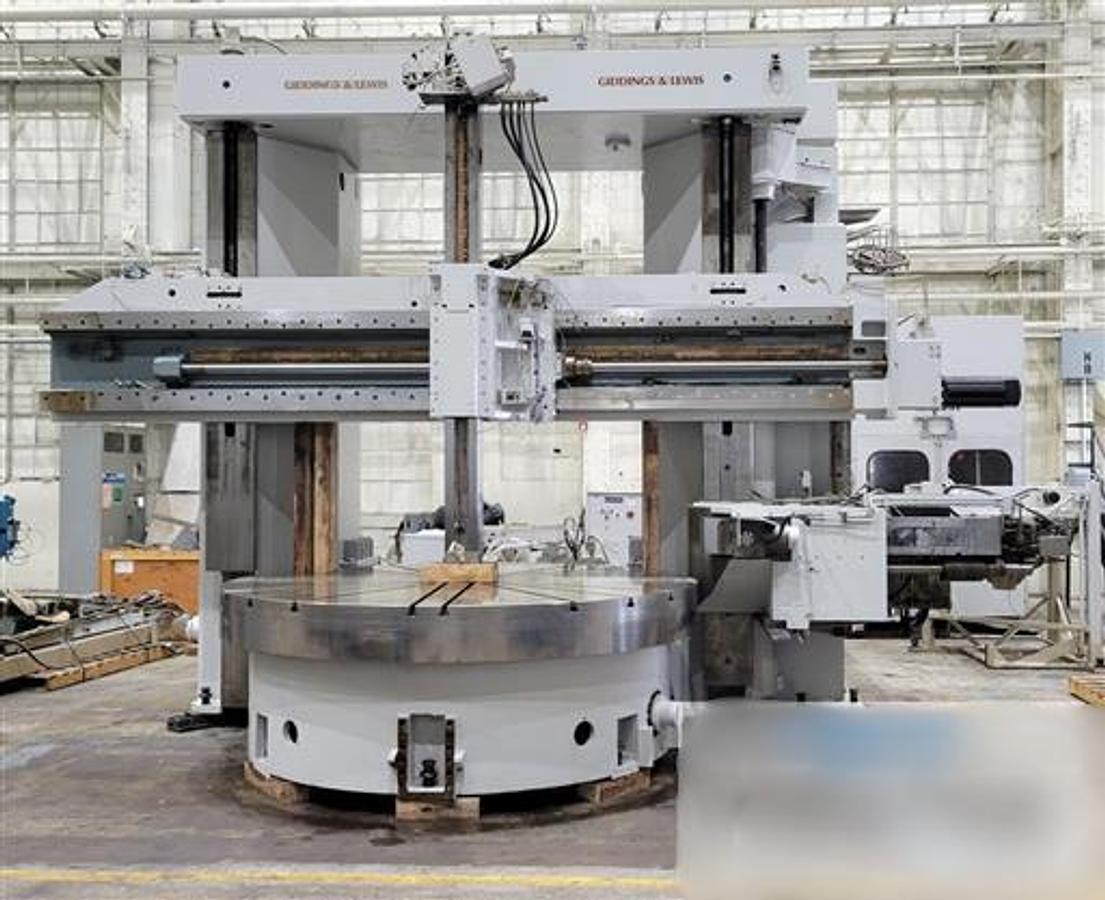

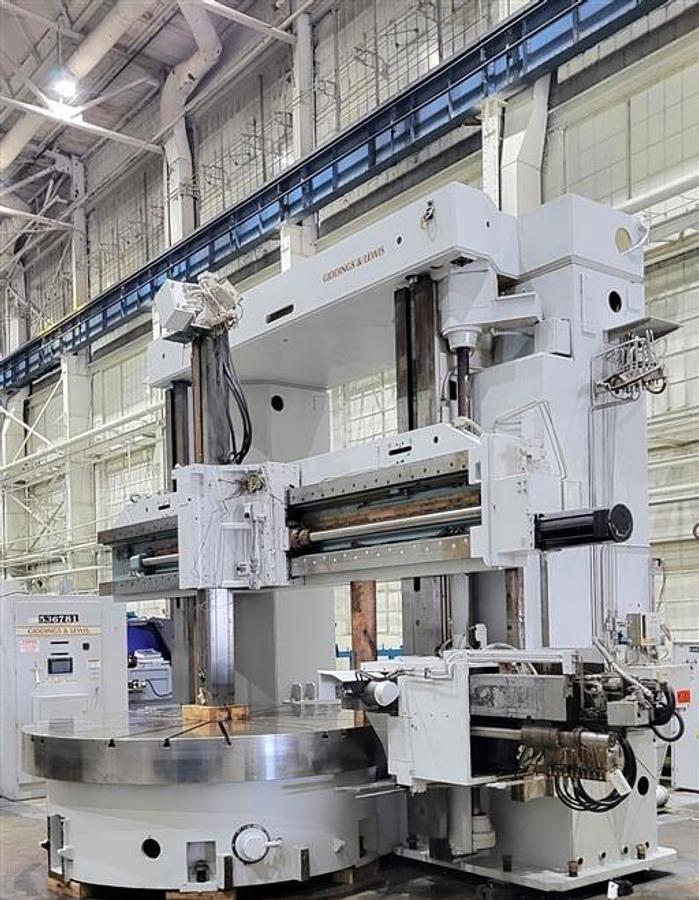

CNC Vertical Boring Mill w/Ram & Side Head
FEATURES:
Giddings & Lewis 8000 CNC Control
30-Station Automatic Tool Changer

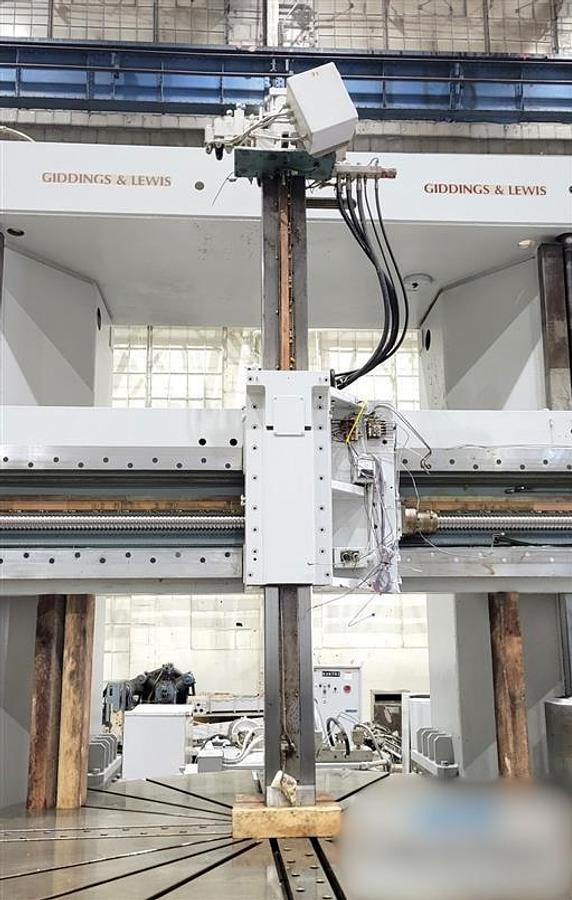

Vertical Ram Head

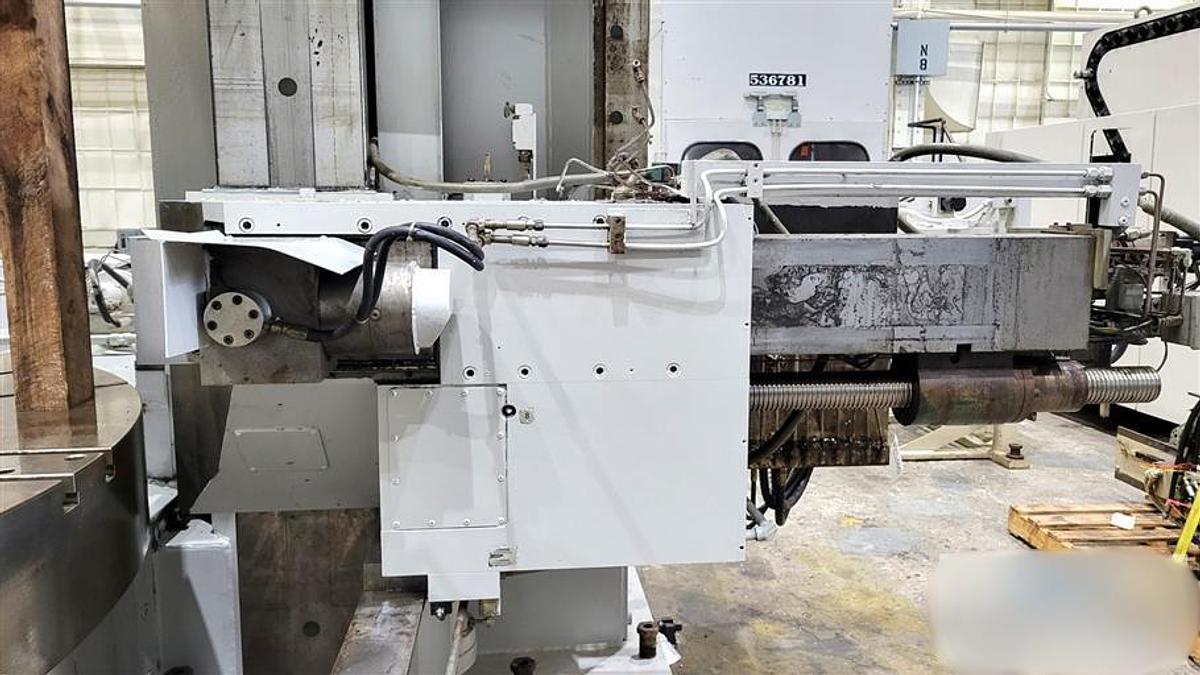

Right Hand Side Head
250,000 Lb Table Weight Capacity
SPECIFICATIONS:

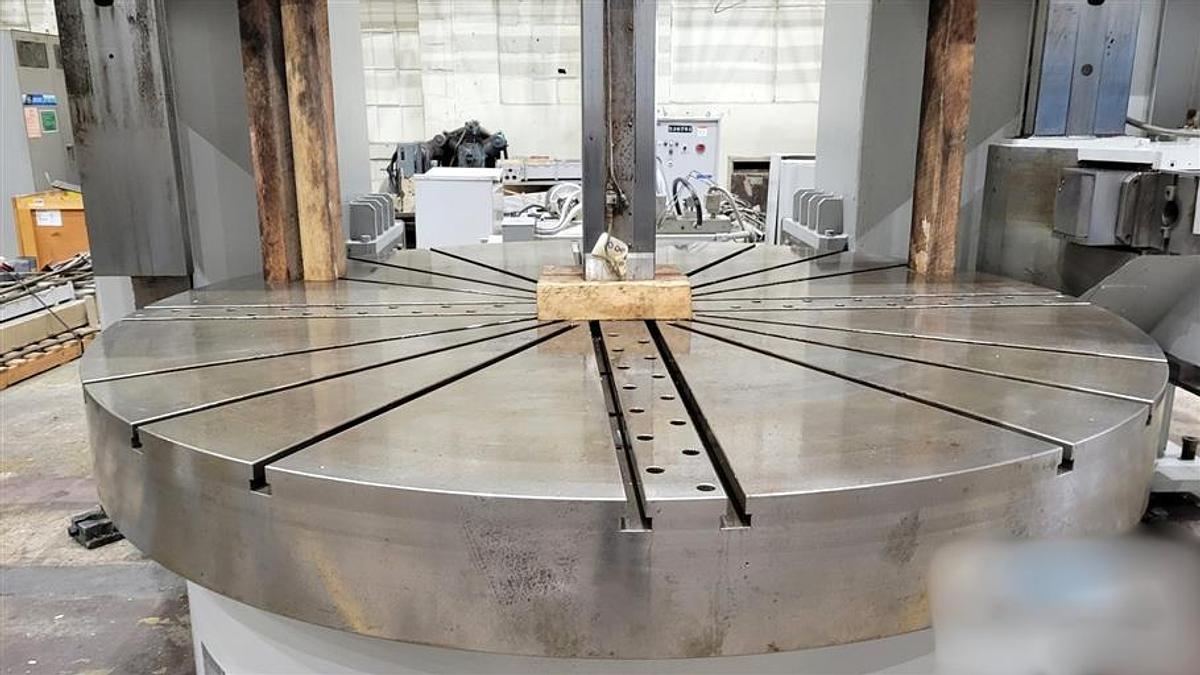

Table Diameter, T-Slotted : 2743 mm,
Maximum Swing : 3048 mm,
Maximum Height Under Cross Rail : 2134 mm,
Ram Stroke, 305 MM Extended Travel : 1575 mm,
Ram Taper : #60 ANSI,
Ram Cross Section : 200 x 200 mm,
Side Head Horizontal Ram Travel : 813 mm,
Side Head Ram Taper : #50 ANSI,
Side Head Ram Cross Section : 184 x 216 mm,
Table Speeds, 2-Ranges : 2.5-150 RPM,
Table Drive Motor : 75 KW,
Table Load Capacity At Maximum RPM : 113 tons,
Rapid Traverse Rate : 3810 mm/min.,
Feed Range : 3813 mm/min.,

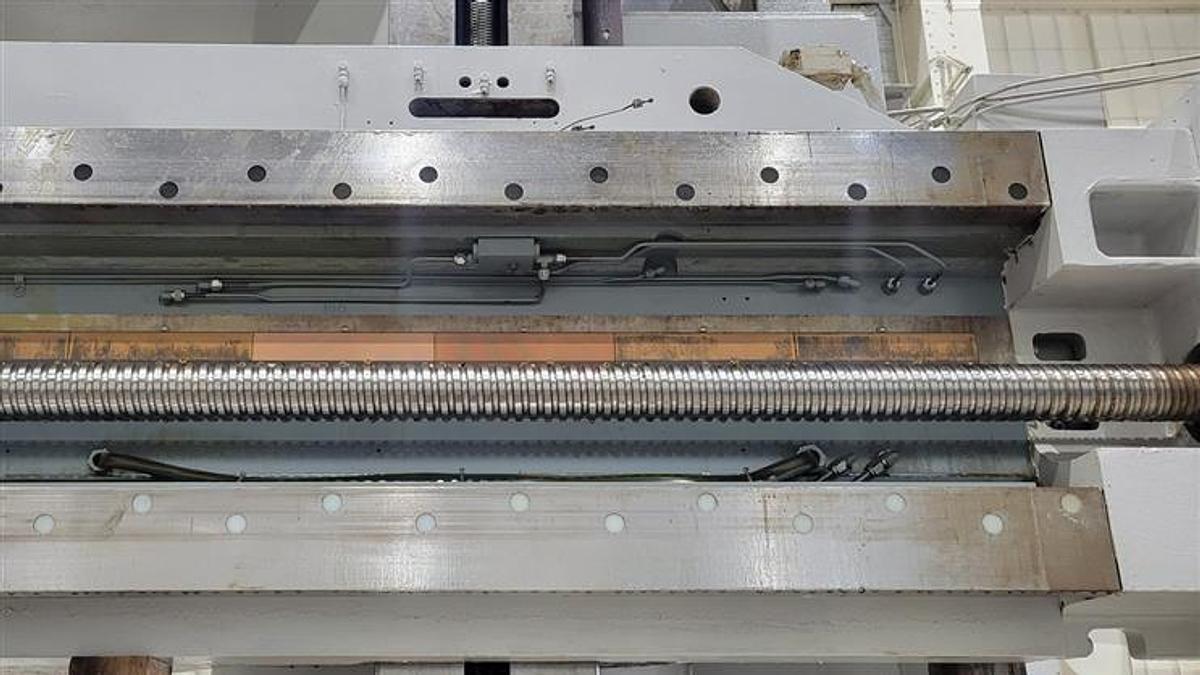

Ball Screw Diameter : 76 mm,
Positioning Uni-Direction Accuracy : +/-0 mm In 914 mm,
Positioning Uni-Direction Repeatability +/-0 mm,
Approximate Machine Weight : 68 tons.
EQUIPPED WITH:
Giddings & Lewis 8000 4-Axis CNC Control

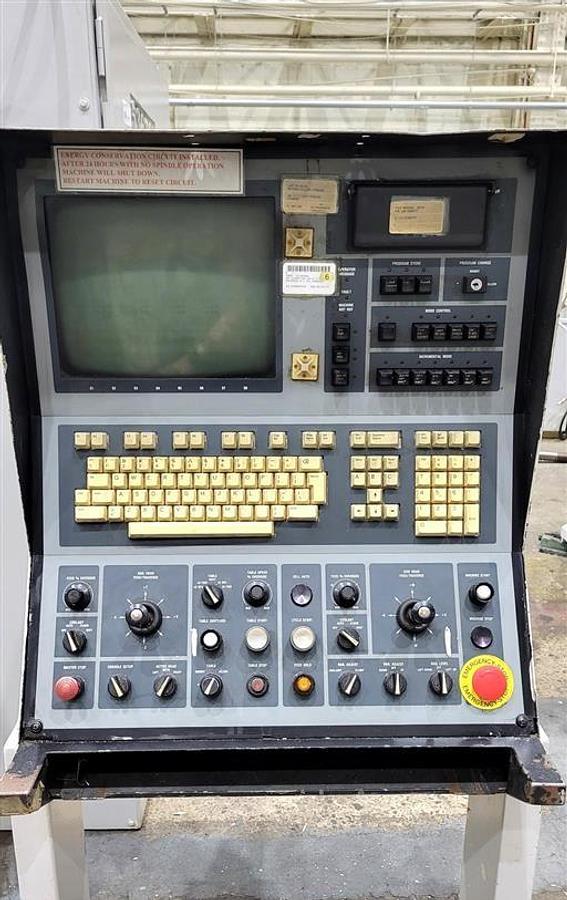

Pedestal Mounted Operators Station
30 Station ATC, Right Hand for Vertical Ram
12 Station ATC, Right Hand for Side Head
Rams Built with Steel Forged Material
Hardened Ways
Inductosyn Feedback System
Thread Cutting
Programable Rail Travel
Rail Leveling Device
Kennemetal Tool Condition Sensor
Numeriprobe Part Probe System
Numeriprobe Tool Probe System

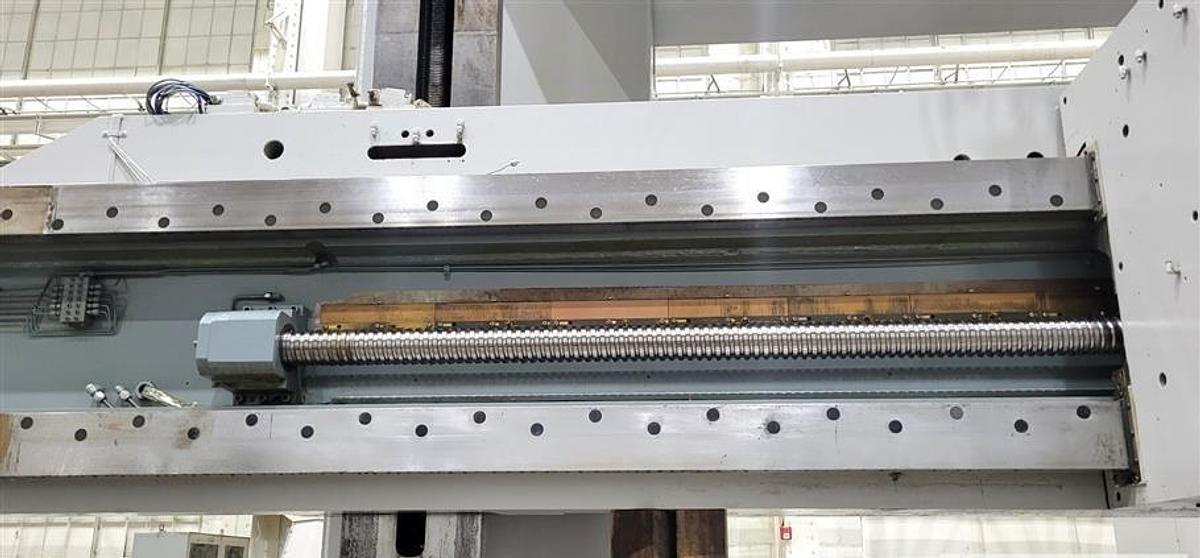

Cross Rail Power Elevation and Clamping
Way Covers on Cross Rail
High Volume Flood Coolant
Coolant Thru Center of Ram
Temperature Controlled Coolant System
Hardened Ways
Chip Conveyor, 457 MM Wide with 1372 MM Discharge Ht.
75 KW Table Drive 460/3/60 Cycle.
