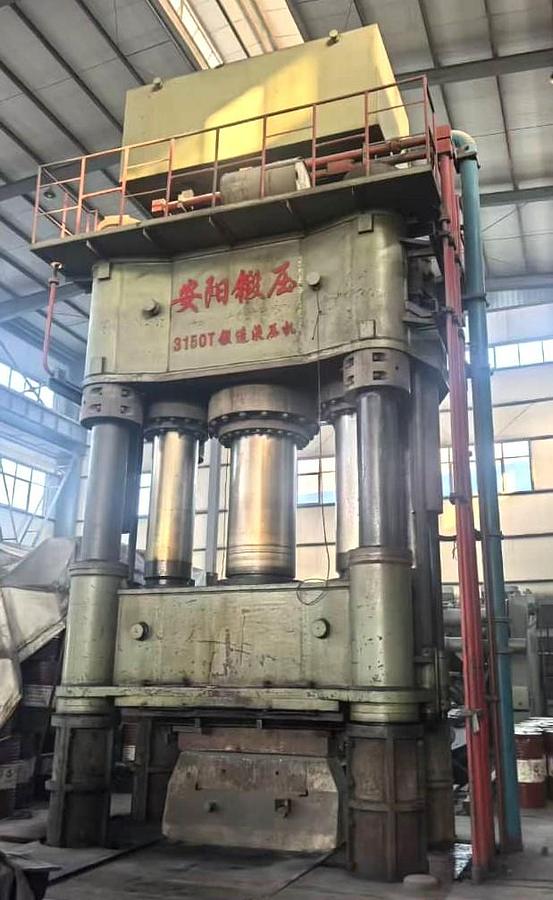

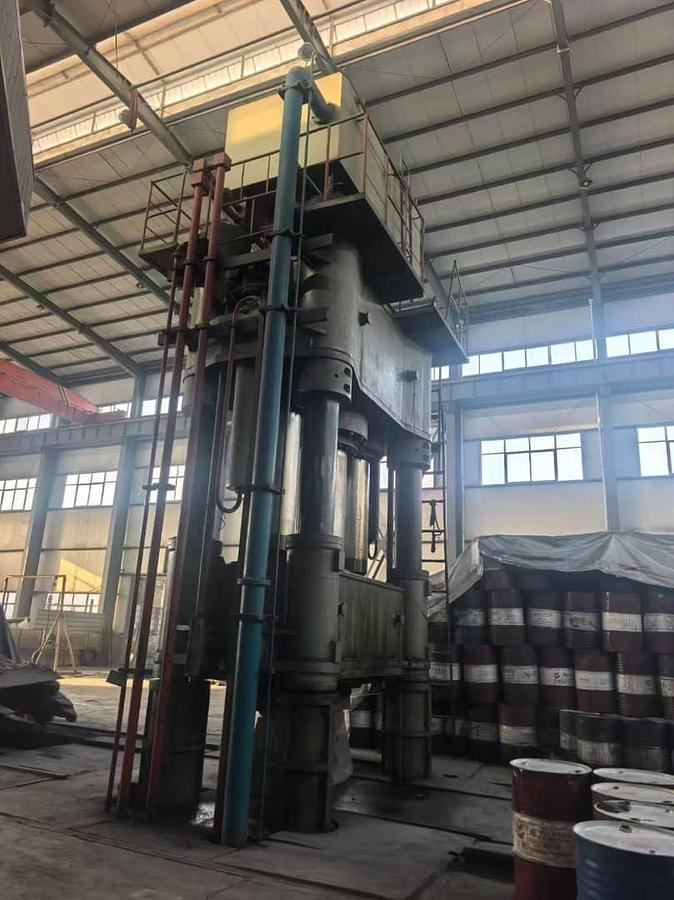

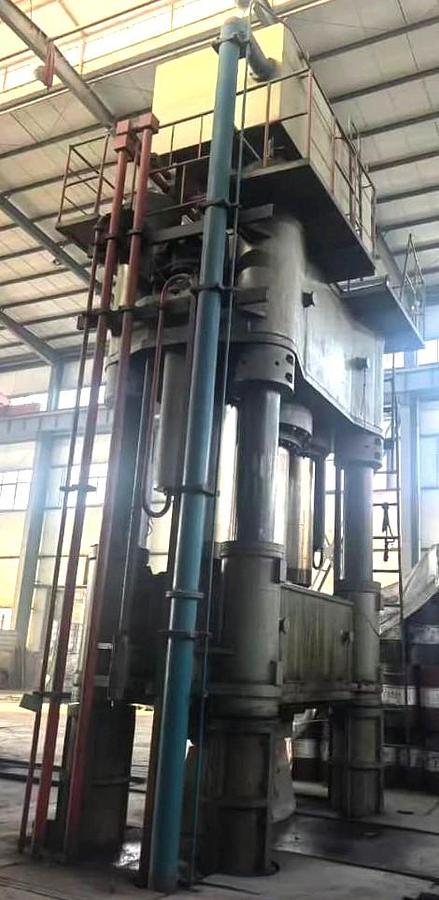

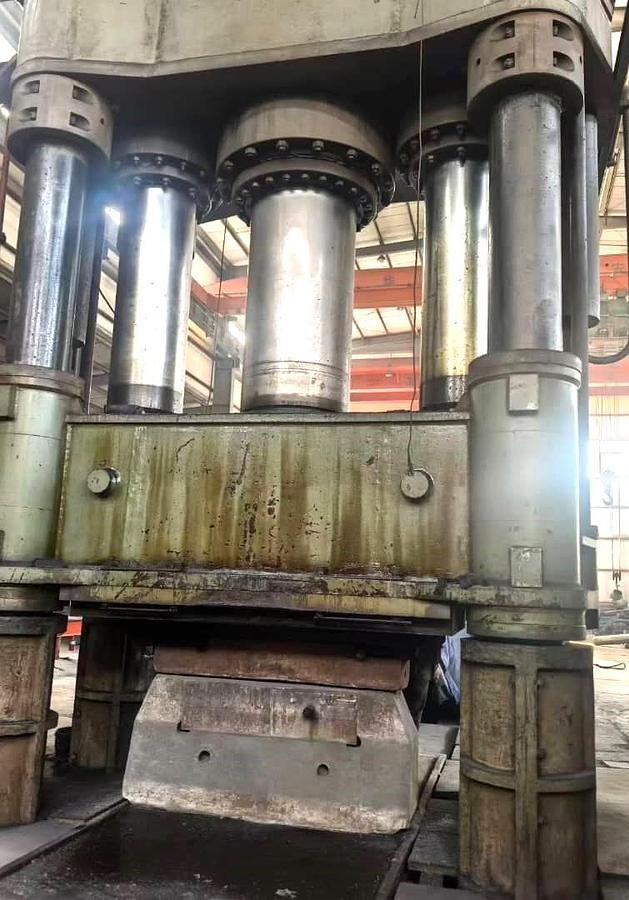

3150 tons Press Forging Open Die Hydraulic Chinese Y13-3150

Capacity : 3150 tons,

Pressure Stages 31.5 / 19 / 12.5 MN,

Maximum working pressure of medium : 25 MPa,

Maximum working stroke : 1800 mm,

Maximum daylight opening : 3800 mm,

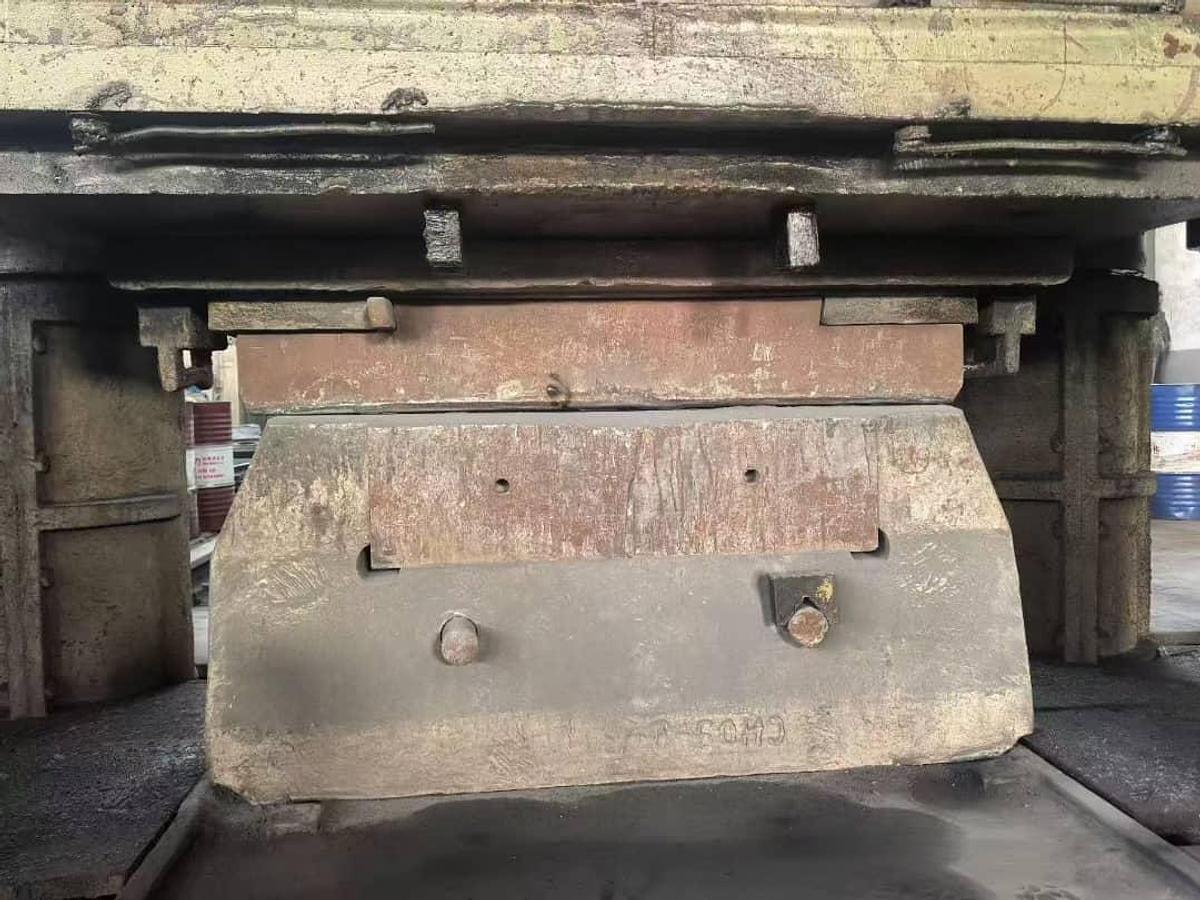

Worktable dimensions : 5000 × 2300 mm,

Center distance between columns : 3600 × 1900 mm,

Empty journey downwards : 250 mm/s,

Work downwards : 45 mm/s,

Return journey upwards : 250 mm/s,

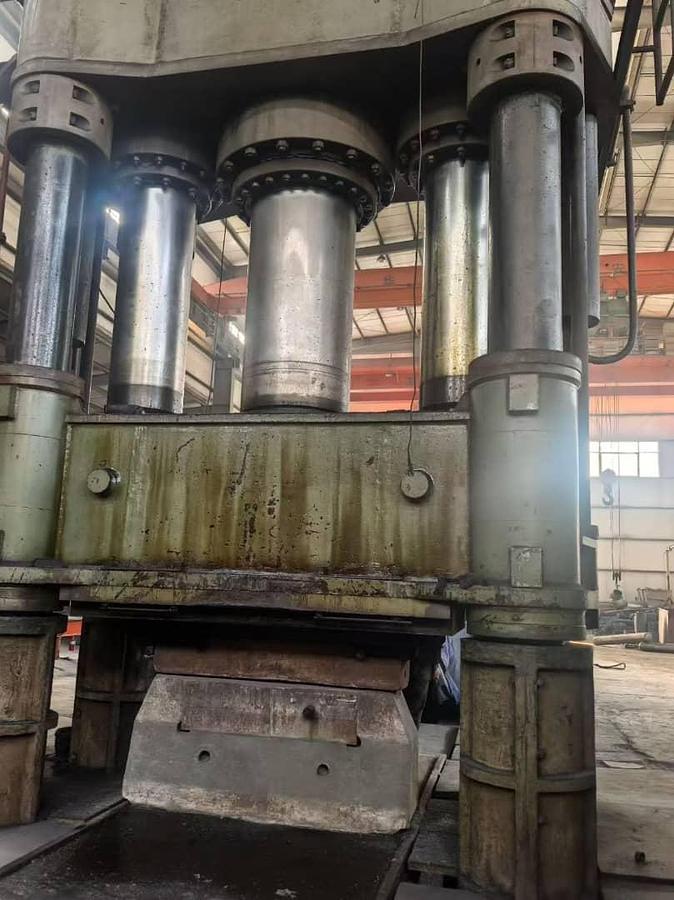

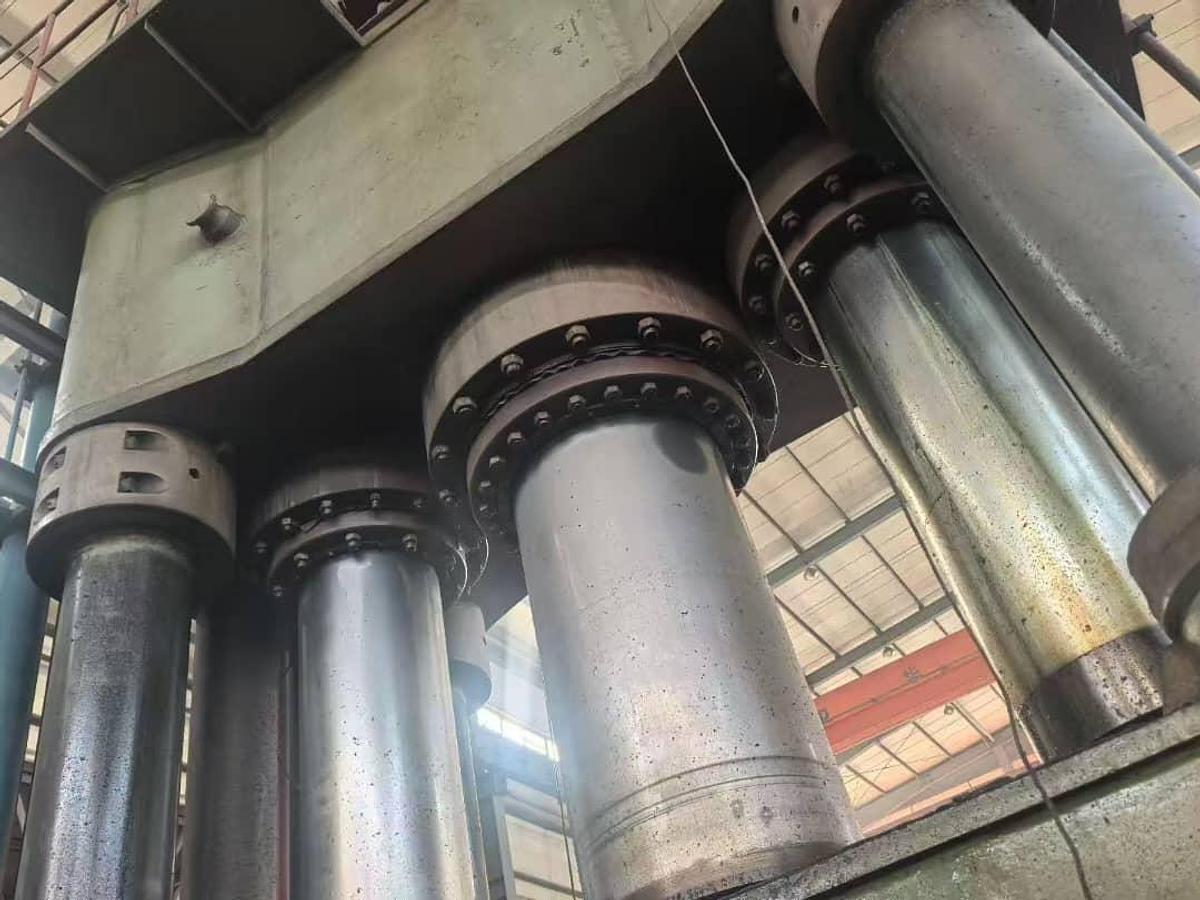

Diameter of working cylinder plunger : φ800/φ700/φ700 mm,

Return cylinder plunger diameter : 2-φ250 mm,

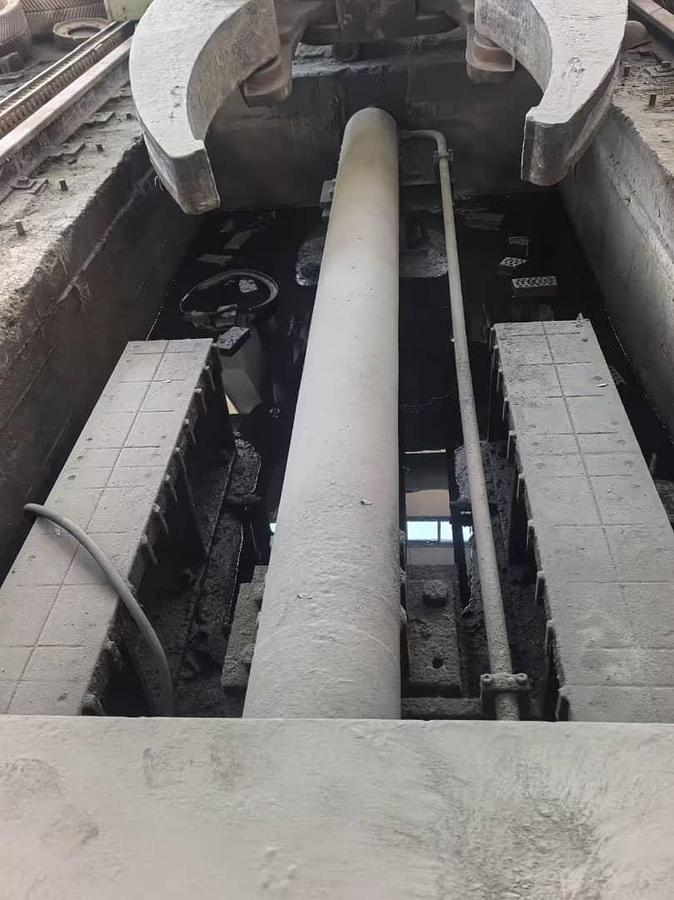

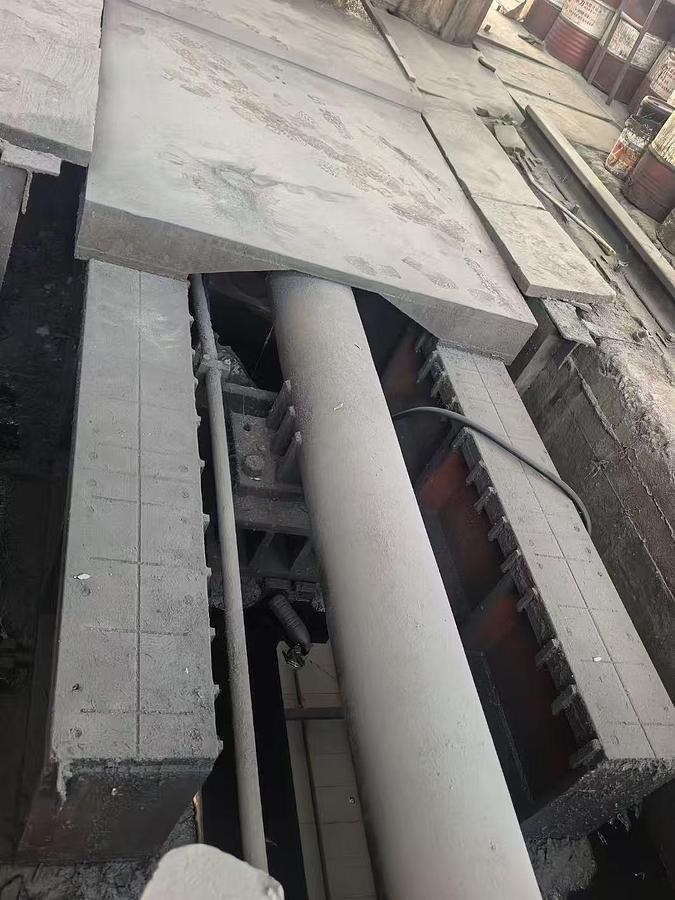

Table stroke : 2500 mm on both sides

Worktable movement speed : 150 mm/s,

Maximum allowable eccentricity : ≤200 mm,

Total pump displacement : 15 × 250 ml/r,

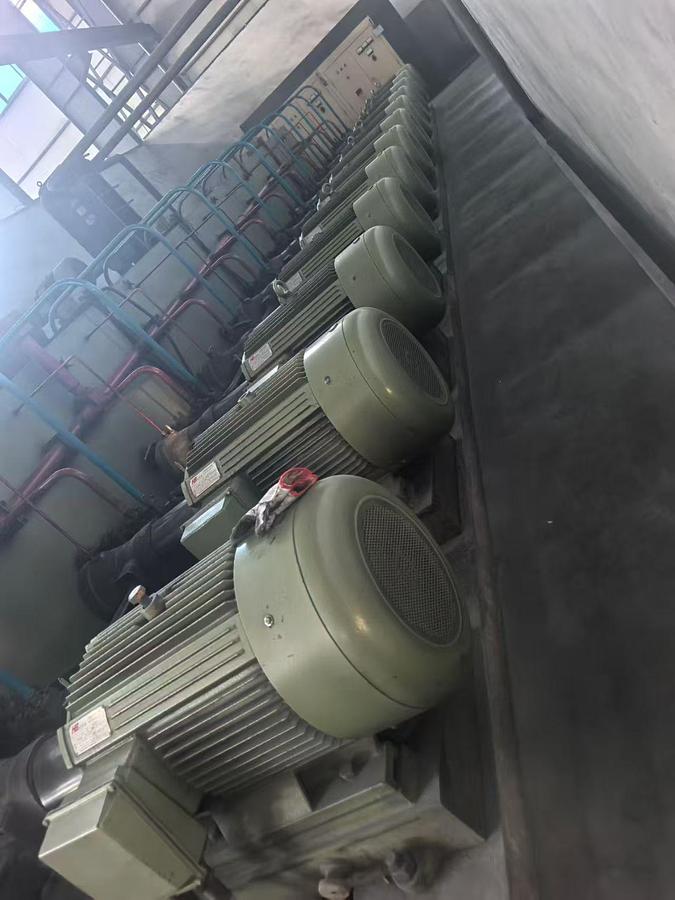

Main motor power : 1650 kW,

Press is only 10 years old , it,s  OIL hydraulic.

The installation is complete in all aspects (mechanical + hydraulic + electric + electronic) and are all drawings available.
